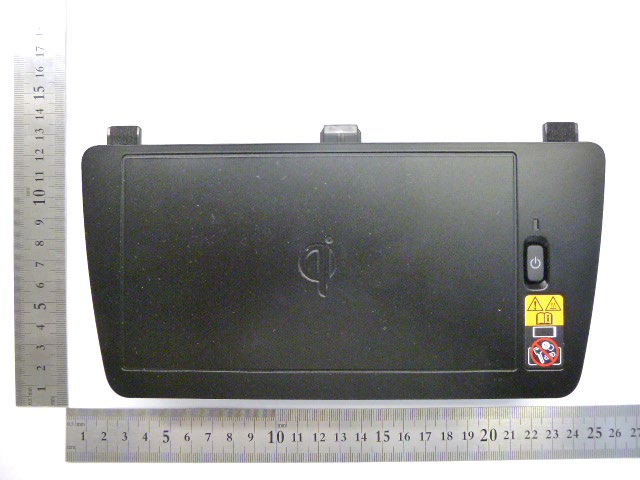

Wireless charger user’s manual A portable device can be charged by just placing “qi” standard wireless charge compatible portable devices according to the Wireless Power Consortium, such as portable phones, smart phones, etc., on the charge area. This function can not be used with portable devices that are larger than the charging area. Also, depending on the portable device, it may not operate as normal. Please read the operation manual for portable devices to be used. ■The “qi” symbol The “qi” symbol is a trademark of the Wireless Power Consortium. ■Namefor all parts (1) Power supply switch (2) Operation indicator light (3) Charge area ■Using the wireless charger Press the supply switch (1) of the wireless charger. Each press the power supply switch (1) it on/off. When turned the hybrid system off, the state of the power supply for wireless charger is memorized. Place the charging side of the portable device (etc. mobile phone) down. When charging, the operation indicator light (2) (orange) comes on. If charging is not occurring, try placing the portable device as close to the center of the charging area as possible. When charging is complete, the operation indicator light (2) (green) comes on. Recharging function ・When charging is compatible and after a fixed timed in the charge suspension state, charging restarts. ・Whenthe portable device is moved, charging is stopped for a moment and then it restarts. ■Lighting conditions of operation indicator light *Depending on the portable device, there are cases where the operation Indicator light will continue being. Operation indicator lightConditions Turning off When the wireless charger power supply is off. On standby (charging possible state) When charging is complete. * Green (comes on) When placing the portable device on the charging area (detecting the portable device) Charging Orange (comes on) (3) (1) (2) Since this device is always used with vehicle, it is not sold to general end users separately.Therefore there is no user manual of this device by alone. The following statements must be described on the user manual of the vehicle; [For FCC] This device complies with part 15 and part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a wireless power charger, pursuant to part 18 of the FCC Rules. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio communications, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. The contact information for maintenance is described in the car manual by the manufacturer of the car in which this wireless charger is installed. [For ISED] IC : 216J-AF2201 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1.This device may not cause interference. 2.This device must accept any interference, including interference that may cause undesired operation of the device. This equipment should be operated keeping at least 10cm or more away from person’s body. L’émetteur/récepteurexempt de licencecontenudansle présentappareilest conformeaux CNR d’Innovation, Sciences et Développementéconomique Canada applicablesaux appareilsradio exempts de licence. L’exploitationest autoriséeaux deuxconditions suivantes: 1.L’appareil ne doitpas produirede brouillage; 2.L’appareil doitaccepter tout brouillageradioélectriquesubi, mêmesi le brouillageestsusceptible d’en compromettrele fonctionnement. Cet équipement doit être utilisé en gardant au moins 10 cm ou plus loin du corps de la personne.

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America FCC Agent Authorization Letter July 7, 2021 PAS-21-F001 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Re: Original Certification for Wireless Charger, Model A F2201 under FCC ID: ACJ932AF2201 - FCC Parts 15C and 18 To Whom It May Concern: Please be advised Panasonic Corporation of North America hereby authorizes Rie Fujiwara of Consumer Technology Division, UL Japan, Inc. (“UL”) to act on our behalf for this single filing and for a period of one year from the date of this letter. Any and all acts carried out by UL on our behalf shall have the same effect as acts of our own. We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Further, this application for equipment authorization has not been submitted to another TCB for Certification. Equipment Name: Wireless Charger Frequency of operation: 120 KHz – 130 KHz Please advise the undersigned should you have any questions or comments. Authorized by , Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 / [email protected] Ben Botros, Manager – Regulatory & Compliance Panasonic Corporation of North America Request for Permanent Confidentiality July 7, 2021 PAS-21-F001 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Re: Original Certification for Wireless Charger, Model A F2201 under FCC ID: ACJ932AF2201 - FCC Parts 15C and 18 To Whom It May Concern: In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. • Schematic Diagrams • Block Diagram • Theorty of Operation These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. Thank you for your attention to this matter. Authorized by, Ben Botros Manager – Regulatory & Compliance Panasonic Corporation of North America

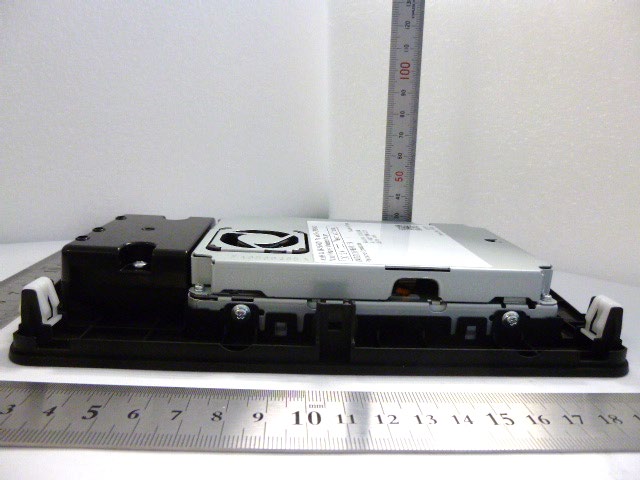

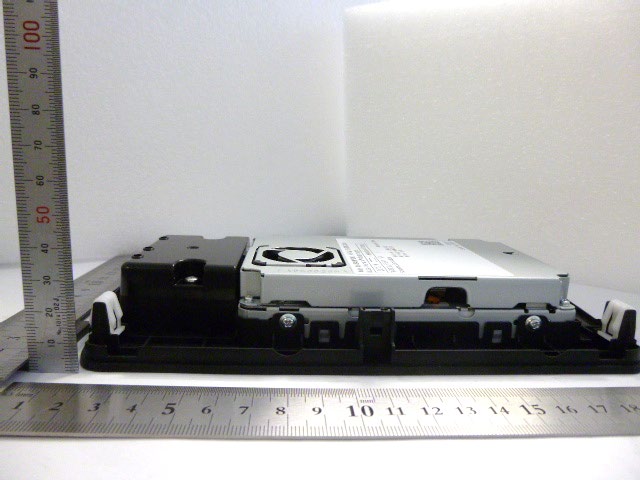

External photoConfidential LABEL External photoConfidential External photoConfidential External photoConfidential External photoConfidential External photoConfidential External photoConfidential

Wireless Charger Label position

Wireless Charger Label AF2201 The following text (statement of conformity to 15C) will be displayed in the manual because the label size of the product is small and there is no space to describe it. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

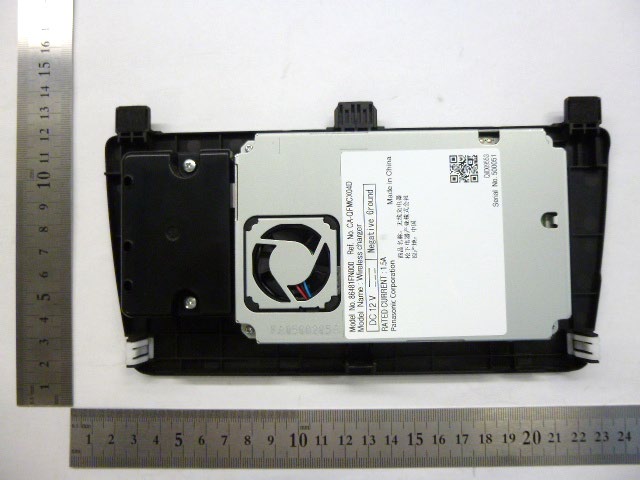

Internal photoConfidential Internal photoConfidential Internal photoConfidential Internal photoConfidential Internal photoConfidential Internal photoConfidential Internal photoConfidential MAIN PWB photoConfidential Detection PWB photoConfidential SW PWB photoConfidential

Test report No. : 13762991H Page : 1 of 33 Issued date : July 1, 2021 FCC ID : ACJ932AF2201 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 19.0 RADIO TEST REPORT Test Report No. : 13762991H Applicant : Panasonic Corporation Type of EUT : Wireless Charger Model Number of EUT : AF2201 FCC ID : ACJ932AF2201 Test regulation : FCC Part 15 Subpart C: 2021 Test Result : Complied (Refer to SECTION 3) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report appl y only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9. The information provided from the customer for this report is identified in Section 1. Date of test: May 13, 2021 Representative test engineer: Akihiko Maeda Engineer Approved by: Tsubasa Takayama Leader CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 13762991H Page : 2 of 33 Issued date : July 1, 2021 FCC ID : ACJ932AF2201 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 13762991H Revision Test report No. Date Page revised Contents - (Original) 13762991H July 1, 2021 - - Test report No. : 13762991H Page : 3 of 33 Issued date : July 1, 2021 FCC ID : ACJ932AF2201 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13762991H Page : 4 of 33 Issued date : July 1, 2021 FCC ID : ACJ932AF2201 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information .................................................................................................... 5 SECTION 2: Equipment under test (EUT) ......................................................................................... 5 SECTION 3: Test specification, procedures & results ....................................................................... 6 SECTION 4: Operation of EUT during testing .................................................................................. 9 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ...................................... 12 SECTION 6: -26 dB Bandwidth ..................................................…
