ACJ932AT2104Car Navigation

Car Navigation User’s manual Model AT2104 Operating Specifications Power Button Volume Knob Lo type model 8 inch Hi type model 14 inch ３．２． Audio部 Audio Section ３．２．１ AM/FM ラジオ部 AM/FM Radio Section 登録 Register 解除 Unregiste r 製 品 仕 様 書 Product Specifications 項目 No. 操作機能 Operating Function 釦No./名称 Button No. / Name 動 作 仕 様 Performing Specifications 備考 Note 3.2.1.1 ラジオモードへの移 行 (Softkey)①ショートカットメニューのAudioアイコン（ ）を選択 後、画面下の"Source"ボタン押下からRadioを選択。 ②Radio Top画面が表示されるので”FM Radio"または "AM Radio"を選択することでFM/AMモードへ遷移でき る。③受信するには画面下部の周波数をタッチ。 AM ,FM Transition to the radio mode ①Select Audio icon ( ) in short cut menu, push "Source" button at the bottom of screen, then push "Radio".②Select "FM Radio" or "AM Radio" to go to FM/AM mode.③To receive radio broadcast, touch frequency in the bottomo of screen. 3.2.1.2 ﾌﾟﾘｾｯﾄﾒﾓﾘの読み出 し／書込み (Softkey)FM/AM受信画面にて右上のハートマークをタッチするこ とでプリセットメモリへの登録、登録解除が可能。 Favourite Reading/writing of the preset memory. In FM/AM mode, by pressing "Heart mark" in top-right of the screen, you can set/remove arbitrary frequency to/from preset memory. ② ① ③ ３．２．４ USB部 USB Section [USB-Audio] [USB-Video] 再生中にソフトキー を押すと一時停止する。 一時停止中にソフトキー を押すと再生を開始 する。 If is pressed while playing, this unit pauses. If is pressed while pausing, this unit stars playing. 製 品 仕 様 書 Product Specifications 項目 No. 操作機能 Operating Function 釦No./名称 Button No. / Name 動 作 仕 様 Performing Specifications 備考 Note 3.2.4.1 USBﾓｰﾄﾞへの移行(Softkey)①ショートカットメニューのAudioアイコン（ ）を選択 後、画面下の"Source"ボタン押下から"USB"を選択す る。※一覧にはUSBメディアのボリューム名が表示され る。 USB Transition to the USB mode ①Select Audio icon ( ) in short cut menu, push "Source" button at the bottom of screen, then push "USB". ※Volume name of USB media is shown in source list. 3.2.4.2 再生／一時停止(softkey) Playback / Pause ① ３．２．５ iPod部 iPod Section 再生中にソフトキー を押すと一時停止する。 一時停止中にソフトキー を押すと再生を開始 する。 If is pressed while playing, this unit pauses. If is pressed while pausing, this unit stars playing. 製 品 仕 様 書 Product Specifications 項目 No. 操作機能 Operating Function 釦No./名称 Button No. / Name 動 作 仕 様 Performing Specifications 備考 Note 3.2.5.1 iPodモードへの移行(Softkey)①ショートカットメニューのAudioアイコン（ ）を選択 後、画面下の"Source"ボタン押下から"iPhone"を選択 する。※一覧にはiPod/iPhone名が表示される。 iPod Transition to the iPod mode ①Select Audio icon ( ) in short cut menu, push "Source" button at the bottom of screen, then push "iPhone". ※Volume name of iPod/iPhone is shown in source list. 3.2.5.2 再生／一時停止(softkey) Playback / Pause ① ３．３． Bluetooth部 Bluetooth Section ３．３．１ Bluetoothデバイスの登録方法 Registration method of Bluetooth device ①ショートカットメニューから歯車アイコン（ ）をタッチ ①Touch Gear icon ( ) in short cut menu. ②メニューから"Bluetooth ＆ devices"をタッチ ②Touch "Bluetooth & devicese" in the menu. ③"Manage devices"タッチ後、画面右下の"Search for devices"を タッチ、同時に端末側もBT接続待ち受け状態にする。 ③Touch "Manage devices", then touch "Search devices" in the bottom-right of the screen. Meantime, set smart phone to waiting BT connection. ④画面右側に接続可能なデバイス一覧が表示されるので 接続したいデバイスを選択 ④You can see available devices list in bottom-right of the window, then select the device that you want to connect. ⑤H/U、BT端末の両方にパスコードが表示されるので 両方承認する。 ⑤You may see pass code on both H/U and smartphone. Then Approve both. ⑥登録が完了する。 電話帳を転送する場合は端末側で電話帳転送を許可する。 ⑥BT paring established successfully. You may need to approve on smartphone to transfer phonebook. *コールドスタートを行なうと全てのBT登録が解除されます。 *Cold start erase all BT paring. 製 品 仕 様 書 Product Specifications 操作方法 Operation Method 画面表示仕様 Screen Display Specifications ① ② ③ ③ ④ ⑤ ⑤ ⑥ ３．３．２ Handsfree部 Handsfree Section 連絡先画面 ダイアル画面 電話メニューを表示させ、ソフトキー"Keypad"を押すと ダイアル画面に移行する。 ダイアル画面で電話番号を入力したのち、 ( )ボタンを押すと発信する。 ダイアル画面 製 品 仕 様 書 Product Specifications 項目 No. 操作機能 Operating Function 釦No./名称 Button No. / Name 動 作 仕 様 Performing Specifications 備考 Note 3.3.2.1 電話メニュー表示 (softkey) ①ショートカットメニューから電話アイコン（ ）を選択 ②使える機能のリストが出るので使用する機能を選択。 電話 Transition to the telephone menu screen Phone ①Select Phone icon ( ) in the short cut menu. ②Select function you want to use from phone menu. 3.3.2.2発信(softkey) OutgoingKeypad Select "Keypad" from phone menu to go to dial screen. Push numeric button to enter phone number, push ( ) to start phonecall. ① ② ３．６．３ AudioSetup部 Audio Setup Section Balance/Fader To Adjust Balance/Fader, drag pointer or press adjust button. ①ショートカットメニューからSetting（ ）を選択。 ②Settingsメニューから"Sound ＆ Media"を選択。 ③Sound & Mediaメニューから"Sound tuning"を選択 ①Select Setting（ ） from shortcut menu. ②Select "Sound & Media" from Settings menu. ③Select "Sound tuning" from "Sound & Media". Bass/Mid/Treble To Adjust Treble/Mid/Bass, drag slider to left (low) or right (high). 3.6.3.3Balance/Fader (softkey)Balance/Faderの調整はポインタ（音場の中心）を上下 左右にドラッグ、または の調整用ボタ ンで調整する 製 品 仕 様 書 Product Specifications 項目 No. 操作機能 Operating Function 釦No./名称 Button No. / Name 動 作 仕 様 Performing Specifications 備考 Note 3.6.3.2Bass/Mid/Treble, (softkey)Bass/Mid/Trebleの調整はスライダを左（低）または右 （高）に動かして行う 3.6.3.1 Audio setup画面 への移行 (Softkey)設定項目はAMPに依存 します。 Sound Transition to the audio setup adjustment screen 接続機器(AMPなど)の 初期化にはトヨタダイア グ（4.1.1章参照）からの 一斉初期化操作が必要 です。トヨタ工場ダイア グの[INIT]スイッチを長 押ししてください。 ① ② ③ Pointer Adjust button ３．９． ナビゲーション部 Navigation Section ３．９．１ ロケーション Location GPSで現在地を表示し、ジャイロにより方向を検知する。 A vehicle location is displayed by GPS, and a direction is detected with a gyroscope. ※案内音声について 4chスピーカの場合下記のとおり音声出力される。 FL/FR = 案内音声 + オーディオ音声(-2dB) RL/RR = オーディオ音声(-2dB) *About navi guidance When the speaker output is 4 channels, sounds are outputted as follows. FL/FR = Navi guidance + Basic music(-2dB) RL/RR = Basic music(-2dB) 案内音声確認方法 Navi guidance check method 製 品 仕 様 書 Product Specifications 案内音声 Navi guidance Since this device is always used with vehicle, it is not sold to general end users separately.Therefore there is no user manual of this device by alone. The following statements must be described on the user manual of the vehicle; [For FCC] FCCID: ACJ932AT2104 This device complies with part 15 and part 18 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 /[email protected] Ben Botros,Manager–Regulatory & Compliance Panasonic Corporation of North America FCC Agent Authorization Letter October 6, 2020 PAS-20-F019 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Re: Original Certification for Car Navigagtion, Model AT2104 under FCC ID: ACJ932AT2104 To Whom It May Concern: Please be advised Panasonic Corporation of North America hereby authorizes Rie Fujiwara of Consumer Technology Division, UL Japan, Inc. (“UL”) to act on our behalf for this single filing and for a period of one yearfrom the date of this letter. Any and all acts carried out by UL on our behalf shall have the same effect as acts of our own. We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Further, this application for equipment authorization has not been submitted to another TCB for Certification. Please advise the undersigned should you have any questions or comments. Authorized by, Ben Botros Manager –Regulatory & Compliance Panasonic Corporation of North America Request for Permanent Confidentiality

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7760 /[email protected] Ben Botros,Manager–Regulatory & Compliance Panasonic Corporation of North America October 6, 2020 PAS-20-F019 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Re: Original Certification for Car Navigagtion, Model AT2104 under FCC ID: ACJ932AT2104 To Whom It May Concern: In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentialityfor the below indicated exhibits. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. Schematic Diagrams Block Diagram Theorty of Operation Thank you for your attention to this matter. Authorized by, Ben Botros Manager –Regulatory & Compliance Panasonic Corporation of North America

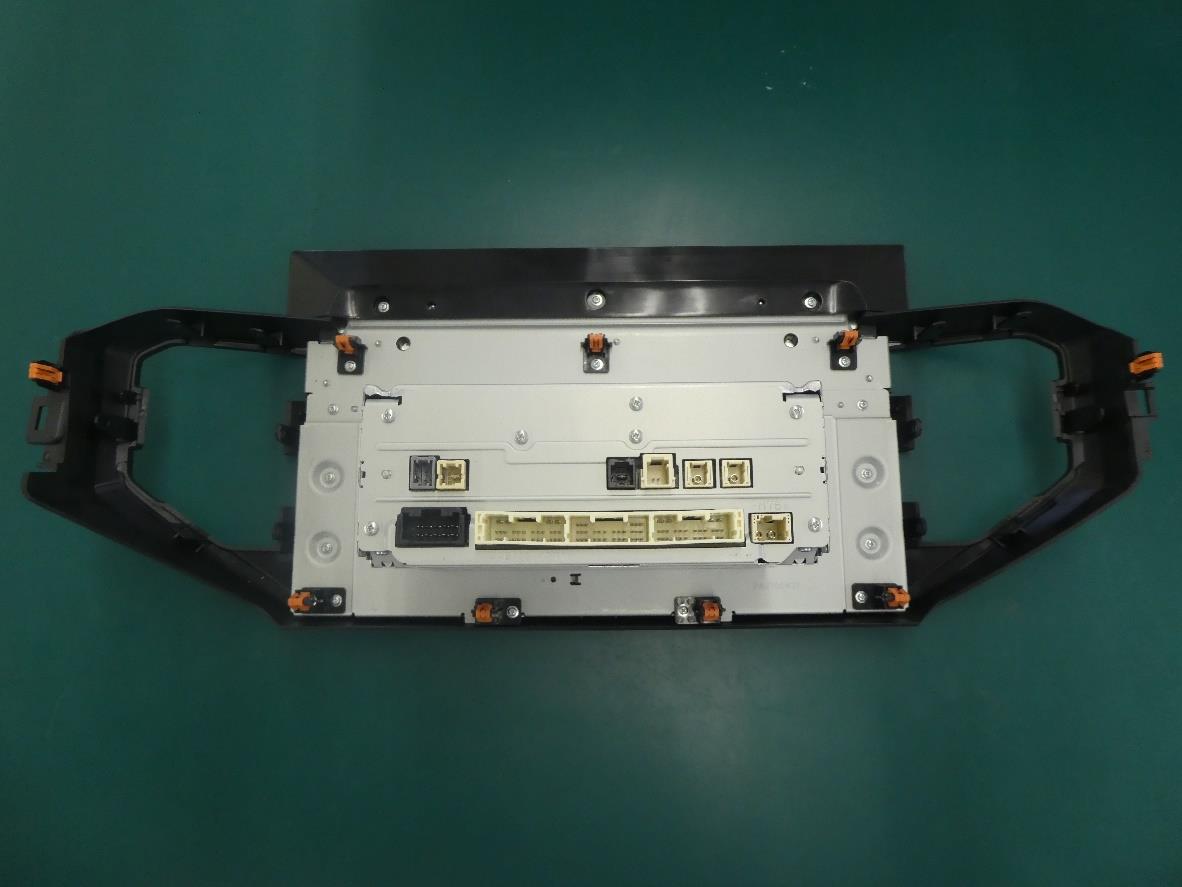

AT2104External Photo Hi type Front Rear Top Bottom Label AT2104External Photo Hi type Side AT2104External Photo Hi type Front Rear AT2104External Photo Lo type Top Bottom AT2104External Photo Lo type Label Side AT2104External Photo Lo type

TopView Label AT2104 Label position

AT2104 Label AT2104 Made in Mexico FCC ID: ACJ932AT2104 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 216J-AT2104 ******

Audio PWB CPU PWB IF PWBWireless module BT Antenna WiFiAntenna IF PWB Wireless module Audio PWB FM AM Radio module Radio/Audio DSP FM AM Radio Antenna connector CPU PWB

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Panasonic Corporation Type of EUT: Car Navigation Model Noumber of EUT : AT2104 FCC ID: ACJ932AT2104 Panasonic Corporation declares that Model : AT2104 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091(for mobile). AT2104 is intended to be used Bluetooth and Wireless LAN simultaneously within 20 cm. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “AT2104“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = ( (P1 * G1) + (P2 * G2) + (P3 * G3) ) / (4* π * r 2 ) Where P1 = 4.19 mW (Maximum average output power ) *1) P2 = 3.03 mW (Maximum average output power) *2) P3 = 21.23 mW (Maximum average output power) *3) G1 = 1.84 Numerical Antenna gain; equal to 2.64 dBi *1) G2 = 0.98 Numerical Antenna gain; equal to -0.13 dBi *2) G3 = 1.68 Numerical Antenna gain; equal to 2.25 dBi *3) r =20.0 cm For: AT2104 ( Wireless LAN and Bluetooth) S = 0.00922 mW/cm 2 Even taking into account the tolerance, this device can be satisfied with the limits. *1) Wireless LAN (5 GHz band) value *2) Bluetooth value *3) Wireless LAN (2.4 GHz band) value This calculation was made to show that the EUT complies with the limit in simultaneous transmitting of Wireless LAN (5 GHz band) and Bluetooth and Wireless LAN (2.4 GHz band) No. : 13408107S RF Exposure / SAR Statement

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Panasonic Corporation Type of EUT: Car Navigation Model Noumber of EUT : AT2104 FCC ID: ACJ932AT2104 Panasonic Corporation declares that Model : AT2104 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091(for mobile). AT2104 is intended to be used Bluetooth and Wireless LAN simultaneously within 20 cm. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “AT2104“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = ( (P1 * G1) + (P2 * G2) ) / (4* π * r 2 ) Where P1 = 4.19 mW (Maximum average output power ) *1) P2 = 3.03 mW (Maximum average output power) *2) G1 = 1.84 Numerical Antenna gain; equal to 2.64 dBi *1) G2 = 0.98 Numerical Antenna gain; equal to -0.13 dBi *2) r =20.0 cm For: AT2104 ( Wireless LAN (5 GHz band) and Bluetooth) S = 0.00213 mW/cm 2 Even taking into account the tolerance, this device can be satisfied with the limits. *1) Wireless LAN (5 GHz band) value *2) Bluetooth value This calculation was made to show that the EUT complies with the limit in simultaneous transmitting of Wireless LAN (5 GHz band) and Bluetooth. No. : 13408107S RF Exposure / SAR Statement

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Panasonic Corporation Type of EUT: Car Navigation Model Noumber of EUT : AT2104 FCC ID: ACJ932AT2104 Panasonic Corporation declares that Model : AT2104 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091(for mobile). AT2104 is intended to be used Bluetooth and Wireless LAN simultaneously within 20 cm. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “AT2104“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = ( (P1 * G1) + (P2 * G2) ) / (4* π * r 2 ) Where P1 = 4.19 mW (Maximum average output power ) *1) P2 = 21.23 mW (Maximum average output power) *2) G1 = 1.84 Numerical Antenna gain; equal to 2.64 dBi *1) G2 = 1.68 Numerical Antenna gain; equal to 2.25 dBi *2) r =20.0 cm For: AT2104 ( Wireless LAN 5 GHz and Wireless LAN 2.4 GHz) S = 0.00863 mW/cm 2 Even taking into account the tolerance, this device can be satisfied with the limits. *1) Wireless LAN (5 GHz band) value *2) Wireless LAN (2.4 GHz band) value This calculation was made to show that the EUT complies with the limit in simultaneous transmitting of Wireless LAN 5 GHz and Wireless LAN 2.4 GHz. No. : 13408107S RF Exposure / SAR Statement

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RF Exposure / MPE Calculation No. : 13408107S-C Applicant : Panasonic Corporation Type of Equipment : Car Navigation Model No. : AT2104 FCC ID : ACJ932AT2104 Panasonic Corporation declares that Model: AT2104 complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “AT2104“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1mW/cm^2 uncontrolled exposure limit. The Friis formula used was: Where P =4.19 mW (Maximum average output power) Time average was used for the above value in consideration of 6-minutes time-ave r Burst power average was used for the above value in consideration of worst condit G =1.837 Numerical Antenna gain; equal to 2.64 dBi r =20 cm (Separation distance) 0.00153 mW/cm 2 Power Density Result S = 2 4r GP S ×× × = π Even taking into account the tolerance, this device can be satisfied with the limits.

Tes t report No. : 13408107S-C P age : 1 of 133 Issue d date : September 29, 2 020 F CC ID : ACJ932AT2 104 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401Report Cover Page - 13-EM-F0429 Issue # 17.0 CERTIFICATE 1266.03 RADIO TEST REPORT Test Report No. : 13408107S-C Applicant : Panasonic Corporation Type of EUT : Car Navigation Model Number of EUT : AT2104 FCC ID : ACJ932AT2104 Test regulation : FCC Par t 15 Subpart E: 2020 Test Item : Antenna Terminal Conducted Tests Test result : Com plied (Refer to SECTION 3.2) 1.This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2.The results in this report appl y only to the sample tested. 3.This sample tested is in compliance with the limits of the above re gulation. 4.The test results in this test report are traceable to the national or international standards. 5.This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y. 6. T his test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7.The all test items in this test report are conducted b y UL Japan, Inc. Shonan EMC Lab. 8.The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9. The information provided from the customer for this report is identified in SECTION 1. Date of test: July 10 to August 17, 2020 Representative test engineer: Shiro Kobayashi Engineer Consumer Technology Division Appro ved by: Shinichi Takano Engineer Consumer Technology Divisio n The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 13408107S-C Page : 2 of 133 Issued date : September 29, 2020 FCC ID : ACJ932AT2104 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 13385909S-C Revision Test report No. Date Page revised Contents - (Original) 13408107S-C September 29, 2020 - - Test report No. : 13408107S-C Page : 3 of 133 Issued date : September 29, 2020 FCC ID : ACJ932AT2104 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13408107S-C Page : 4 of 133 Issued date : September 29, 2020 FCC ID : ACJ932AT2104 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information....................................................................................................... 5 SECTION 2: Equipment under test (EUT) ............................................................................................ 5 SECTION 3: Test specification, procedures & results.......................................................................... 7 SECTION 4: Operation of EUT during testing .............................…

Text truncated - open the document above for the full version.

Test report No. : 13408125M-C-R1 Page : 1 of 127 Issued date : November 17, 2020 FCC ID : ACJ932AT2104 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 Report Cover Page - 13-EM-F0429 Issue # 17.0 CERTIFICATE 1266.01 RADIO TEST REPORT Test Report No. 13408125M-C-R1 Applicant : Panasonic Corporation Type of EUT : Car Navigation Model Number of EUT : AT2104 FCC ID : ACJ932AT2104 Test regulation : FCC Part 15 Subpart E:2020 *WLAN (5 GHz band) part Test items : Radiated emission test Test Result : Complied (Refer to SECTION 3.2) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim any endorsement by the A2LA accreditation body. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. The all test items in this test report are conducted by UL Japan, Inc. Kashima EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9. The information provided from the customer for this report is identified in SECTION 1. 10. This report is a revised version of 13408125M-C. 13408125M-C is replaced with this report. Date of test: July 27 to November 13, 2020 Representative test engineer: Kazuhiro Ando Engineer Consumer Technology Division Approved by: Kenichi Suda Manager Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 13408125M-C-R1 Page : 2 of 127 Issued date : November 17, 2020 FCC ID : ACJ932AT2104 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 REVISION HISTORY Original Test Report No.: 13408125M-C Revision Test report No. Date Page revised Contents - (Original) 13408125M-C September 30, 2020 - - 1 13408125M-C-R1 November 17, 2020 P.1 Correction of “Date of test”: from July 27 to August 25, 2020 to July 27 to November 13, 2020 1 13408125M-C-R1 November 17, 2020 P.6 Correction of “Radio Specification”: from to => 1 13408125M-C-R1 November 17, 2020 P.6 Correction of “Radio Specification”: from to 1 13408125M-C-R1 November 17, 2020 P.11 Addition “Operating Mode” at Radiated Spurious Emission (Below 1 GHz) 11ac-20 Tx MIMO with 11g 2437MHz and BT Hopping on DH5 (Above 1 GHz): 11ac-20 Tx MIMO with 11g 2437MHz and BT Hopping on DH5 11ac-80 Tx MIMO with 11g 2437MHz and BT Hopping on DH5 1 13408125M-C-R1 November 17, 2020 P.11 Addition Comment: *2) and *3) 1 13408125M-C-R1 November 17, 2020 P.69 to 70, P.122 to 123 Addition Data of Radiated Spurious Emission. 1 13408125M-C-R1 November 17, 2020 P.125 Addition Test equipment: CCC-S11-R, CAF-16, CTR-01 1 13408125M-C-R1 November 17, 2020 P.125 Correction of Test equipment of CCC-G13: LIMS ID from PRE0181658 to 171928 Last Calibration Date from “-“ to 2020/7/5 Col Int from “-“ to 12 Test report No. : 13408125M-C-R1 Page : 3 of 127 Issued date : November 17, 2020 FCC ID : ACJ932AT2104 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnic…

Text truncated - open the document above for the full version.

Test report No. : 13408125M-C-R1 Page : 93 of 127 Issued date : November 17, 2020 FCC ID : ACJ932AT2104 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 Radiated Spurious Emission Report No. 13408125M-C-R1 Test place Kashima EMC Lab. Semi Anechoic Chamber No.11 Date August 18, 2020 Temperature / Humidity 24 deg. C / 59 % RH Engineer Kazuhiro Ando Mode Tx 11ac-80 MIMO 5775 MHz EUT Lo type Horizontal Vertical Restricted-band band-edge Plot Restricted-band band-edge Plot Trace Green: Peak Plot Trace Purple: Average Plot Trace Green: Peak Plot Trace Purple: Average Plot Horizontal Vertical Restricted-band band-edge Plot Restricted-band band-edge Plot Trace Green: Peak Plot Trace Purple: Average Plot Trace Green: Peak Plot Trace Purple: Average Plot * The measurement was conducted for a sufficiently long enough time to detect any possible spurious emissions. Final result of restricted band edge was shown in tabular data. Test report No. : 13408125M-C-R1 Page : 94 of 127 Issued date : November 17, 2020 FCC ID : ACJ932AT2104 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6500 Facsimile : +81 478 82 3373 Radiated Spurious Emission (Plot data, Worst case) Report No. 13408125M-C-R1 Test place Kashima EMC Lab. Semi Anechoic Chamber No.11 No.11 No.11 No.11 Date August 18, 2020 August 18, 2020 August 20, 2020 August 25, 2020 Temperature / Humidity 24 deg. C / 59 % RH 24 deg. C / 59 % RH 23 deg. C / 49 % RH 24 deg. C / 58 % RH Engineer Kazuhiro Ando Kazuhiro Ando Hiromitsu Tanabe Hiromitsu Tanabe (1 GHz -6.4 GHz) (6.4 GHz -10 GHz) (10 GHz -18 GHz) (18 GHz -40 GHz) Mode Tx 11ac-80 MIMO 5210MHz EUT Lo type *These plots data contain sufficient number to show the trend of characteristic features for EUT. 0 10 20 30 40 50 60 70 80 10100100010000100000 Result [dBμV/m] Frequency [MHz] QP Limit PK Limit AV Limit Hori./QP Hori./PK Hori./AV Vert./QP Vert./PK Vert./AV Test report No. : 13408125M-C-R1 Page : 95 of 127 Issued date : November 17, 2020 FCC ID : ACJ932AT2104 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone : +81 478 88 6…
