ACJ932BX1501Car Audio

User Manual Since this device is always used with vehicle, it is not sold to general end users separately. Therefore there is no user manual of this device by alone. The following statements must be described on the user manual of the vehicle; This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE).

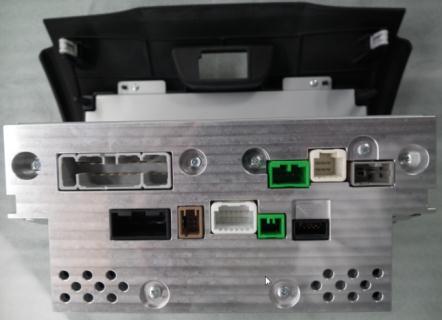

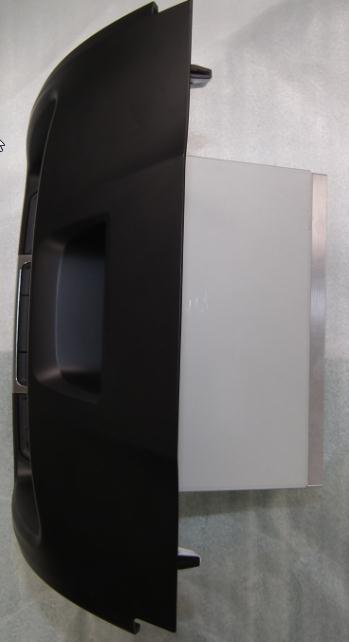

External_Photos (BX1501) FRONT/REAR TOP/BOTTOM RIGHT/LEFT Confidential Period:Unlimited 秘：無期限 Panasonic

Confidential Period:Unlimited 秘：無期限 Panasonic Position of label BX1501 Top side “Set No.” described in Label means “Model No.”. Confidential Period:Unlimited 秘：無期限 Panasonic Since this device is always used with vehicle, it is not sold to general end users separately . Since the product is attached on the vehicle, the user can not see the label. The following statements describe on the user manual of the vehicle. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos (BX1501) Display ASSY OPEN Only Display ASSY PCB Surface Side PCB Back Side Confidential Period:Unlimited 秘：無期限 Panasonic RF Block < ZoomUp > Pattern Antenna

UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 2015/1/23 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: ACJ932BX1501 To whom it may concern, We, UL Japan, Inc., hereby declare that Car Audio, model : BX1501 (FCC ID: ACJ932BX1501) of Panasonic Corporation is exempt from RF exposure SAR evaluation as its ou power meets the exclusion limits stated in FCC Part 2 §2.1093. KDB 447498D01(v05r02) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(measured maximum peak output power(mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and <7.5 for 10g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are a pplicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation and the measured maximum peak output power was 2 mW So for this device: 2 mW [measured maximum peak output power] / 5 mm [minimum separation distance] * ( √ 2.48) = 0.6 *This is less than 3.0, so no SAR is required. Even takin g into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Go Ishiwata Site Manager EMC/Wireless Group, Kashima EMC Lab. Consumer Technology Division UL Japan, Inc.

Test report No. : 14090901M-A-R1 Page : 1 of 46 Issued date : October 7, 2014 FCC ID : ACJ932BX1501 Revised date : February 12, 2015 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 TESTING CERTIFICATE 1266.01 RADIO TEST REPORT Test Report No.: 14090901M-A-R1 Applicant : Panasonic Corporation Type of Equipment : Car Audio Model No. : BX1501 FCC ID : ACJ932BX1501 Test regulation : FCC Part15 Subpart C: 2014 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: September 22, 24, 25, 2014 Representative test engineer: Kazuhiro Ando EMC/Wireless Group, Consumer Technology Division Approved by : Go Ishiwata Site Manager EMC/Wireless Group, Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 14090901M-A-R1 Page : 2 of 46 Issued date : October 7, 2014 FCC ID : ACJ932BX1501 Revised date : February 12, 2015 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 Contents Page SECTION 1: Customer information ..................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ........................................................ 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Carrier frequency separation ........................................................................ 10 SECTION 6: 20 dB bandwidth & Occupied bandwidth (99%) ........................................ 10 SECTION 7: Number of hopping frequency ...................................................................... 10 SECTION 8: Dwell time ....................................................................................................... 10 SECTION 9: Maximum peak output power ....................................................................... 10 SECTION 10: Radiated emission ......................................................................................... 11 SECTION 11: Spurious emissions (Antenna port conducted) .......................................... 12 Contents of APPENDIXES ...................................................................................................... 13 APPENDIX 1: Data of radio tests ........................................................................................ 14 APPENDIX 2: Test instruments .......................................................................................... 45 APPENDIX 3: Photographs of test setup ............................................................................ 46 REVISION HISTORY Original Test Report No. 14090901M-A Revision Date Page revised Revision Description 00 October 7, 2014 - Original 01 February 12, 2015 P.3 All pages - Modification of description of FCC 15.31 (e) - Due to change of company name, the description of “UL Kashima, Inc” was changed to “UL Japan, Inc”. Test report No. : 14090901M-A-R1 Page : 3 of 46 Issued date : October 7, 2014 FCC ID : ACJ932BX1501 Revised date : February 12, 2015 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 SECTION 1: Customer information Company Name : Panasonic Corporation Brand Name : Panasonic Address : 4261 Ikonobe-cho, Tsuzuki-ku, Yokohama-shi, Kanagawa 224-8520 Japan Telephone Number : +81-50-3689-7270 Contact Person : Yoshinori Nagatani SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio Model No. : BX1501 Serial No. : Refer to Section 4.2 Rating : System : DC13.2 V (Car battery), Bluetooth Block : DC3.3 V Receipt Date of Sample : September 17, 2014 Country of Mass-production : Thailand Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: BX1501 (referred to as the EUT in this report) is a Car Audio. Clock frequency(ies) in the system : 26 MHz Radio specification Equipment type : Transceiver Frequency of operation : 2402-2480 MHz Bandwidth / Channel spacing : 79 MHz & 1 MHz Type of modulation : FHSS (GFSK, π/4-DQPSK, 8DPSK) Antenna type : Pattern Antenna connector type : None Antenna gain with cable loss : -4.3 dBi ITU code : F1D, G1D Operation temperature range : -20 to +65 deg. C. FCC 15.31 (e) The EUT provides stable voltage (DC3.3V) constantly to the wireless transmitter regardless of input voltage. Instead of a new battery, DC power supply was used for the test. That does not affect the test result, therefore the EUT complies with the requirement. FCC 15.203 The equipment and its antenna comply with the requirement since the antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 14090901M-A-R1 Page : 4 of 46 Issued date : October 7, 2014 FCC ID : ACJ932BX1501 Revised date : February 12, 2015 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chib…

Text truncated - open the document above for the full version.

UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) END OF REPORT
