ACJ932CQ-EP1660WBCar Audio system w/ BT

Panasonic Corporation of North America

Click to zoom

Application Details

Equipment Class: CYY - Communications Receiver used w/Pt 15 Transmitter
Date of Grant: Dec 19, 2007
Application Purpose: Original Equipment
Date of Application: Dec 17, 2007
Equipment Note: Car Audio system w/ BT
Frequency Range: 162.40000000 - 162.55000000
Company: Panasonic Corporation of North America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

155 Controls in detail Control system Audio menuThe functions in the “ Audio ” menu operate the audio equipment which you currently have turned on.If no audio equipment is currently turned on, the message “ Audio Off ” appears in the multifunction display.The following functions are available: To adjust the volume : Press æ or ç on the multifunction steering wheel. Selecting radio station Turn on the radio ( page 184) and se- lect “ Radio ”. Vehicles with COMAND*: Refer to separate operating instruc-tions. Press ( or & to select the “ Audio ” menu. The currently tuned sta- tion appears in the multifunction dis-play. 1 Waveband setting 2 Station frequency Select next or previous stored sta-tion: Press % or $ briefly to se- lect a stored station. Select next or previous station in waveband: Press and hold % or $ to select a station. Selecting satellite radio station*The satellite radio is treated as a radio application. Turn on the radio ( page 184) and se- lect the satellite radio with the audio control unit or the audio controller. Vehicles with COMAND*: Refer to separate operating instructions. Press ( or & to select the “ Audio ” menu. The currently tuned channel appears in the multifunction display. Function Page Selecting radio station 155 Selecting satellite radio station* (USA only) 155 Operating CD player* 156 i You can only store new stations using the corresponding feature on the radio ( page 195). Vehicles with COMAND*: Refer to separate operating instructions.You can also operate the radio in the usual manner. 156Controls in detailControl system 1 SAT mode 2 Channel name or number Press % or $ repeatedly until the desired channel is found. Operating the CD player* Turn on the radio and select the CD mode ( page 210). Vehicles with COMAND*:Refer to separate operating instructions. Press ( or & to select the “ Audio ” menu. The settings for the cur- rently being played CD appear in the multifunction display. 1 Current CD (with additional number from 1 to 6 when running from CD changer*) 2 Current track Press % or $ to select a track. For more information on CD operation, see “CD mode” ( page 205) and for the CD changer*, see ( page 211). 1 MP3 mode 2 Current track For more information on MP3, see “Notes about MP3 mode” ( page 208). i A subscription to SIRI US satellite radio ser- vice provider is required for the satellite radio op- eration. Contact an authorized Mercedes-Benz Center for details and availability for your vehicle.For more information on satellite radio opera-tion, see “Satellite radio*” ( page 197). Vehicles with COMAND*: Refer to separate operating instructions. i To select a CD from the CD changer* maga- zine, press a number on the audio system or the COMAND* system key pad located in the center console. i Level of information displayed will vary de- pending on the information contained on the CD with MP3 files insert in the audio or COMAND* system. 157 Controls in detail Control system TEL menu*You can use the functions in the “ Tel ” menu to operate your telephone, provided it is inserted in the cradle and switched on. Switch on the telephone and audio sys-tem or COMAND* (Vehicles with CO-MAND*: Refer to separate operating instructions). Press ( or & to select the “ Tel ” menu. Warning! G Some jurisdictions prohibit the driver from using a cellular telephone while driving. Whether or not prohibited by law, for safety reasons, the driver should not use the cellu-lar telephone while the vehicle is in motion. Stop the vehicle in a safe location before placing or answering a call.If you nonetheless choose to use the mobile phone while driving, please use the hands- free feature and be sure to pay attention to the traffic situation at all times. Use the mo-bile phone only when road, weather and traf-fic conditions permit. Otherwise, you may not be able to observe traffic conditions and could endanger your-self and others.Bear in mind that at a speed of just 30 mph (approximately 50 km/h), your vehicle is covering a distance of 44 feet (approximately 14 m) every second.Warning! G Never operate radio transmitters equipped with a built-in or attached antenna (i.e. with-out being connected to an external antenna) from inside the vehicl e while the engine is running. Doing so could lead to a malfunc-tion of the vehicle’s electronic system, possibly resulting in an accident and personal injury. i Various mobile phone cradles can be in- stalled in the front center armrest, see separate installation instructions for the mobile phone cradle. These mobile phone cradles can be ob-tained from an authorized Mercedes-Benz Cen-ter. For more information about telephone ( page 300). i Wenn Sie ein Mobiltelefon mit Bluetooth be- nutzen, können Sie eine Bluetooth-Verbindung zu Ihrem Audio-System mit CD-Wechsler her-stellen ( page 189). Vehicles with COMAND*: Refer to separate operating instructions. 158Controls in detailControl systemWhich messages will appear in the multifunction display depends on whether your telephone is switched on or off: If the telephone is no t inserted in the cradle, the message in the multifunc-tion display is: “ No telephone inserted ”. If the telephone is off, the message “ Tel off ” appears in the multifunction display. If the PIN or unlock code is not yet en- tered, the message in the multifunction display is “ Please enter PIN ” or “ Enter unlock code ”. If the telephone is switched on, the telephone will then search for a net-work. During this time, the message “ No Service ” appears in the multifunc- tion display. If no network available, the multifunction display message “ No Service ”is shown continuously. If the telephone is on, as soon as the telephone has found a network, “ Ready ” or “ Ready (Roaming) ” appears in the multifunction display. This standby message indicates that your telephone is ready for use and you can operate it using the control system. Entering the PIN or unlock c…

Text truncated - open the document above for the full version.

Cover Letter(s)

Block Diagram Schematics Theory of Operation Please be advised that the following information is to be held in confidence for 45 days from the date of the Grant of Equipment Authorization and behalf of, Matsushita Electric Industrial Co., Ltd. referring to the FCC rules 0.457 and 0.459: External Photo Internal Photo Test Setup Photos User's Manual

External Photos

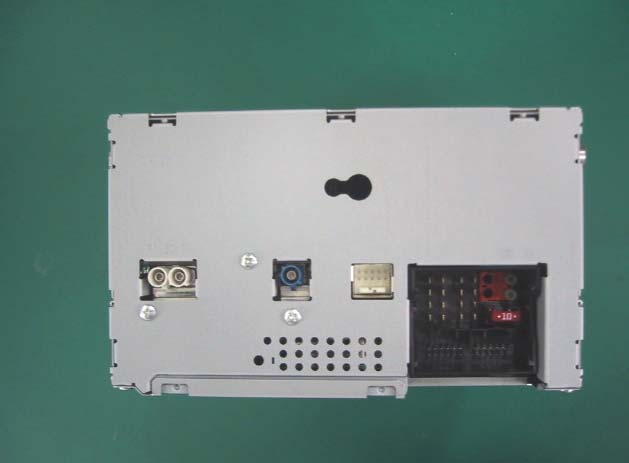

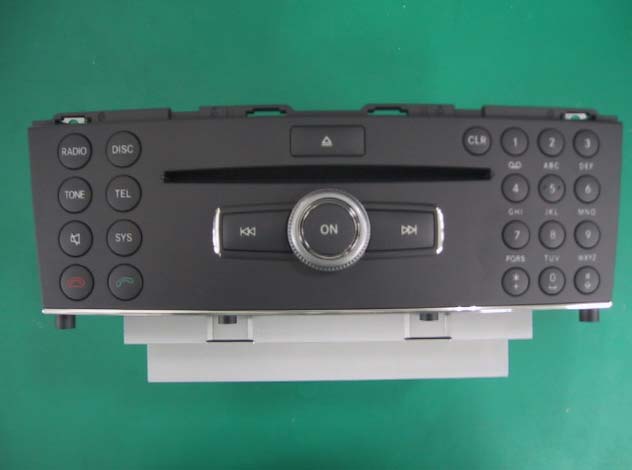

Matsushita Electric Industrial Co., Ltd. Car Audio with Bluetooth function FCC ID: ACJ932CQ-EP1660WB IC: 216J-CQEP16WB (Model: CQ-EP1660G) External Photo Front Matsushita Electric Industrial Co., Ltd. Car Audio with Bluetooth function FCC ID: ACJ932CQ-EP1660WB IC: 216J-CQEP16WB (Model: CQ-EP1660G) Rear Matsushita Electric Industrial Co., Ltd. Car Audio with Bluetooth function FCC ID: ACJ932CQ-EP1660WB IC: 216J-CQEP16WB (Model: CQ-EP1660G) Top Bottom Matsushita Electric Industrial Co., Ltd. Car Audio with Bluetooth function FCC ID: ACJ932CQ-EP1660WB IC: 216J-CQEP16WB (Model: CQ-EP1660G) Right Left

ID Label/Location Info

Type: Drawn: Checked: Approved: DWG Name: DWGName: DWG No.:DWGNo.: Signed: Checked: Page: Part No.: PartNo.: Revision: Date: Symbol: Tolerance: Material: 2/4 Perforation Line Content of printing CQ-EP1660G B.Jockel See 1/4 See 1/4 MGC0560469 File: PRINT_CQ-EP1660G Printing Instruction 10A 412V 2.2 Panasonic Automotive Systems Europe GmbHPanasonic AutomotiveSystemsEuropeGmbH Dialog-name:ZB Bedienteil / Headunit Entry, CDC, USA LU: A 204 870 46 90 ZGS001 DiagID0300 HW: A 204 870 04 89 ZGS009 HW06/43 SW: A 204 442 98 60 ZGS001 SW07/07 (Ref.No.CQ-EP1660G) 510 P 070550010001A Panasonic Automotive Systems Czech, s. r. o. Pardubice, Czech Republic Made in Czech Republic Date of Manufacture Bar CodeMax 68.5 1. 2. 4. 3. 5. Perforation Line 6. Product complies with Subchapter J in effect as of Date of manufacture. DHHS Rules 21 CFR, For explanation of content please see page 4/4 This device complies with part15 of the FCC Rules. Operation is subjected to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Contains FCC ID:ACJ932CQ-EP1660 ContainsIC:216J-CQEP1660 FCC ID:ACJ932CQ-EP1660WB IC:216J-CQEP16WB Q1 Base material for the seal is MGCFM00188A

Internal Photos

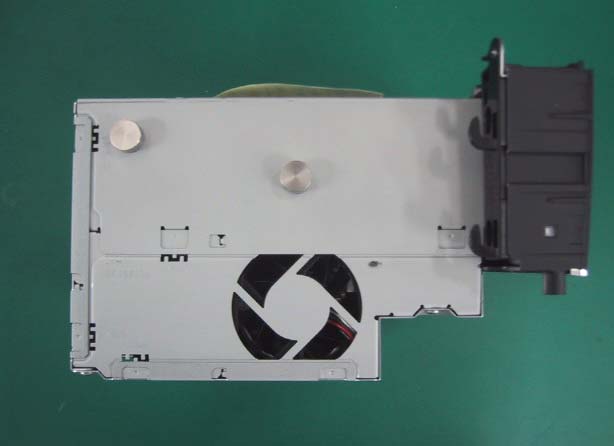

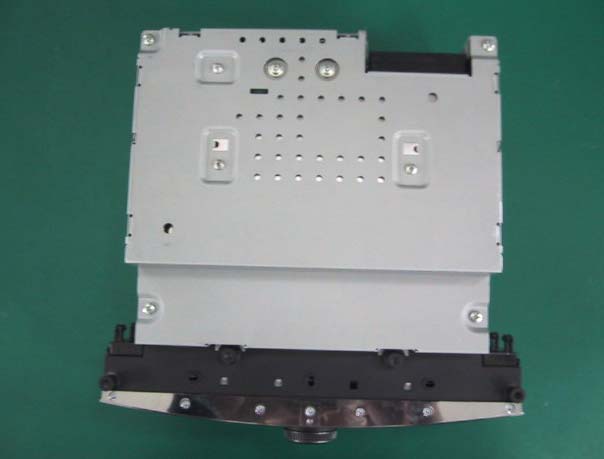

Matsushita Electric Industrial Co., Ltd. Car Audio with Bluetooth function FCC ID: ACJ932CQ-EP1660WB IC: 216J-CQEP16WB (Model: CQ-EP1660G) Internal Photo Side A of Internal Board Side B of Internal Board Matsushita Electric Industrial Co., Ltd. Car Audio with Bluetooth function FCC ID: ACJ932CQ-EP1660WB IC: 216J-CQEP16WB (Model: CQ-EP1660G) Top View of Internal Board Bottom View of Internal Board Matsushita Electric Industrial Co., Ltd. Car Audio with Bluetooth function FCC ID: ACJ932CQ-EP1660WB IC: 216J-CQEP16WB (Model: CQ-EP1660G) Right View of Internal Board Left View of Internal Board Matsushita Electric Industrial Co., Ltd. Car Audio with Bluetooth function FCC ID: ACJ932CQ-EP1660WB IC: 216J-CQEP16WB (Model: CQ-EP1660G) Antenna Antenna without cover
