ACJ932YEAP01A473WBluetooth/WLAN Module Assy

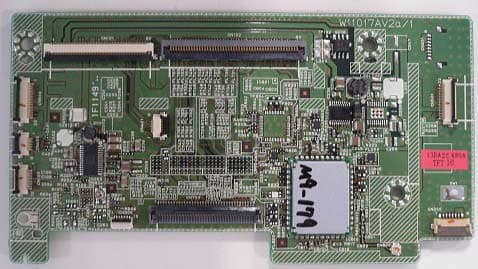

Installation Manual This PCB assy with is to be installed only by the professionals and used only with a Car Audio produced by Panasonic Co., Ltd. When this PCB assy with Bluetooth for car audio is installed in the Car Audio, we shall consider the following points; 1. Since Model “YEAP01A473WLAN” owns its FCC ID Number / IC Number, we shall affix an exterior label on the outside of the product if the FCC ID Number and IC Number are not visible. The exterior label shall use wording such as either ”Contained Transmitter Module FCC ID: ACJ932YEAP01A473W” , “Contained Transmitter Module IC: 216J- YEAP01A473W” or “Contained FCC ID: ACJ932YEAP01A473W”, “Contained IC: 216J- YEAP01A473W” 2. “YEAP01A473WLAN”, complies with requirements of sub-sections 15.19(a)(3) in FCC Rules Part 15 Subpart C. The manual statement (15.19 (a)(3) is included User Guide of the product. 3. “YEAP01A473WLAN”, is to be installed only by the professional line operator as shown in following pictures. (Fig 1 and 2) Fig 1. Surface side of “YEAP01A473W” Bluetooth/WLAN Module Antenna Connecter Fig 2. Top view of “YEAP01A446”, “YEAP01A473” be equipped for a Car Audio (example) Fig 3. Top view of “YEAP01A446”, “YEAP01A473” be equipped for a Car Audio (example) Fig 4. Front view of “YEAP01A446”, “YEAP01A473” be equipped for a Car Audio (example) There isn’t an official user manual for this PCB assy with Bluetooth “YEAP01A446”, “YEAP01A473”. However, user manuals of final product which have the module, must contain notification corresponding to the following description. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Properly shielded a grounded cables and connectors must be used for connection to host computer and / or peripherals in order to meet FCC emission limits. This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna List The following antennas are install ed to this Bluetooth Module Assy. Model name Type Manufacturer Antenna gain (with cable loss) Cable loss Connector type N1KYYYY00019 Monopole antenna NISSEI ELECTRONIC Co., LTD. -3.8dBi 0.165dB U.FL (Coaxial connector) N1KYYYY00030 Monopole antenna NISSEI ELECTRONIC Co., LTD. -4.4dBi 0.743dB U.FL (Coaxial connector)

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Letter of Agency August 2, 2012 PAS-12-F002 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan To Whom It May Concern: Please be advised Panasonic Corporation of North America authorizes Yoshinobu Asai of Application Section, WiSE Japan, UL Verification Service, UL Japan, Inc. to act on our behalf for a period of one year from the date of this letter, or until otherwise notified. Any and all acts carried out by them on our behalf shall have the same effect as acts of our own. Equipment Name: Bluetooth/WLAN Module Assembly, Model YEAP01A473WLAN FCC ID: ACJ932YEAP01A473W Equipment Classifications: Spread Spectrum Transmitter for BT / Equipment Code DSS Digital Transmission System for WLAN / Equipment Code DTS FCC Rule Parts: FCC Part 15, Subpart C BT Frequency Range: 2402 ~ 2480 MHz WLAN Frequency Range: 2412 ~ 2462 MHz Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 USA FRN Number: 0003762242 We certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division Cc: Tomoaki Ikegami and Ichiro Furuya / PASJ Hiroshi Tajima / ASC Panasonic Corporation / Automotive Systems Company / Technology Administration Group

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Request for Limited Modular Approval August 2, 2012 PAS-12-F002 Re: Request for Limited Modular Approval for Bluetooth/WLAN Module Assembly, Model YEAP01A473WLAN / FCC ID: ACJ932YEAP01A473W The Bluetooth/WLAN Module Assembly, Model: YEAP01A473WLAN is designed by Panasonic Automotive Systems Company. This modular transmitter will be equipped and used only in Car Audio, which is produced by Panasonic Corporation. The modular transmitter complies the module basic requirement (Item 1 to 8) in FCC Part 15 Subpart C Section 15.212 as indicated below: (1) Have its own RF shielding: This modular transmitter has it own RF shielding, which covers the RF circuitry on the PWB. Refer to below photograph. (2) The modular transmitter must have buffered modulation/data inputs: Data input to this modular transmitter is controlled as not generating excessive data speed and abnormal modulation. (3) The modular transmitter must have its own power supply regulation: The RF module is provided with stable power supply DC 3.3V and DC1.8V from the host device, therefore, the equipment complies with the power supply regulation. (4) The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c): This equipment has a unique coupling antenna connector(U.FL) , and the installation is to be done by the professionals. Therefore, the equipment complies with the antenna requirement of section 15.203. (5) Tested in a stand-alone configuration: The modular transmitter has been performed the testing as a stand alone and then confirmed the compliance. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in FCC § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module. The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available: This module is only installed to devices for vehicles; therefore it will never be supplied AC power and the test for FCC §15.207 is not conducted. DC power lines and data input/output lines do not contain ferrites and the lengths of these lines are typical of actual use. All peripherals used during the testing are unmodified and commercially available. Please refer to the test report. RF Shield RF Block Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division August 2, 2012 PAS-12-F002 (6) Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC ID: FCC ID is shown on the label and permanently affixed to this modular transmitter. Please refer to the label drawing. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module: If the FCC ID is not visible, FCC ID will also be displayed on the host device. Please refer to the installation manual. (7) Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: The necessary explanation to be complied with this requirement is contained in the manual. Please refer to the installation manual. (8) Comply with any applicable RF exposure requirements in its final configuration: The modular transmitter complies with FCC radiation exposure requirement. Please refer to the RF Exposure Statement. Sincerely Yours, Richard Mullen Richard Mullen Group Manager, Product Safety & Compliance Division Panasonic Corporation of North America

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Request for Confidentiality August 2, 2012 PAS-12-F002 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan Re: Request for Confidentiality for Bluetooth/WLAN Module Assembly, Model YEAP01A473WLAN FCC ID: ACJ932YEAP01A473W To Whom It May Concern: In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. This transmitter is not user adjustable and does not have user tune-up procedure. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Schematic Diagram • Block Diagram • Theory of Operation In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the issuance of equipment authorization date, for the below indicated exhibits. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. • External Photographs • Internal Photographs • Test Setup Photographs and Test Setup Configuration • User Manual. The above materials contain trade secrets and proprietary information not customarily released to the general public. Since this design is a basis from which future technological products will evolve, the public disclosure of these materials can be harmful to the Applicant by providing unfair advantage and benefits to its competitors. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

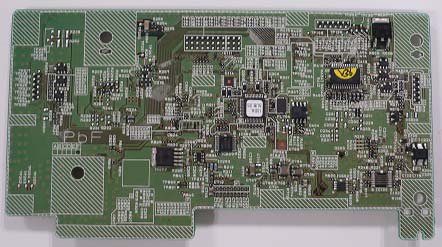

Fig.1 with Shield without shield(RF Block) Fig.2 without Shield(Surface) Fig.2 without Shield(Back) Internal Photos(YEAP01A473WLAN) Antenna Antenna connector Bottom plate (small) Bottom plate (large)

YEAP01A473WLAN Front side Position of label ACJ932YEAP01A473W 216J-YEAP01A473W YEAP01A473WLAN

Fig.1 with Shield without shield(RF Block) Fig.2 without Shield(Surface) Fig.2 without Shield(Back) Internal Photos(YEAP01A473WLAN) Antenna Antenna connector Bottom plate (small) Bottom plate (large)

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applica nt: Panasonic Corporation Automotive Systems Company Type of Equipment : Bluetooth/W LAN M odule Assy M odel No. : YEAP01A473W LAN FCC ID: ACJ932YEAP01A473W Panasonic Corporation Automotive Systems C ompany declares that M odel : Bluetooth/W LAN M odule Assy complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “YEAP01A473W LAN“ has 106.17 mW of conducted Peak O utput power and 44.26 mW of EIR P. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “YEAP01A473W LAN“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 106.17 mW (M aximum peak output power) G = 0.42 Numerical Antenna gain; equal -3.80 dBi r =20.0 cm For: YEAP01A473W LANS = 0.00881mW/cm 2 N o. : 32G E 0051-SH -03-B RF Ex posure / SAR Statement

Test report No. : 32GE0051-SH-03-B Page : 2 of 61 Issued date : July 23, 2012 FCC ID : ACJ932YEAP01A473W UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32GE0051-SH-03-B Revision Test report No. Date Page revised Contents - (Original) 32GE0051-SH-03-B July 23, 2012 - - 1 32GE0051-SH-03-B August 21, 2012 1, 2, 4 Addition of information, Revised date : August 21, 2012 Test report No. : 32GE0051-SH-03-B Page : 3 of 61 Issued date : July 23, 2012 FCC ID : ACJ932YEAP01A473W UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 7 SECTION 5: 6dB bandwidth & Occupied bandwidth (99%) ................................................ 9 SECTION 6: Maximum peak output power ........................................................................... 9 SECTION 7: Spurious emissions (Antenna port conducted) .................................................. 9 SECTION 8: Radiated emission ............................................................................................ 10 SECTION 9: Peak power density........................................................................................... 11 Contents of APPENDIXES ...................................................................................................... 12 APPENDIX 1: Data of radio tests .......................................................................................... 13 APPENDIX 2: Test instruments ............................................................................................ 58 APPENDIX 3: Photographs of test setup .............................................................................. 59 Test report No. : 32GE0051-SH-03-B Page : 4 of 61 Issued date : July 23, 2012 FCC ID : ACJ932YEAP01A473W UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Panasonic Corporation Automotive Systems Company Brand Name : Panasonic Address : 4261 Ikonobe-cho, Tsuzuki-ku, Yokohama-shi, Kanagawa 224-8520 Japan Telephone Number : +81-50-3689-6973 Facsimile Number : +81-45-931-0806 Contact Person : Ichiro Furuya SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth/WLAN Module Assy Model No. : YEAP01A473WLAN Serial No. : Refer to 4.2 in this report. Rating : DC5.0V Receipt Date of Sample : June 20, 2012 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: YEAP01A473WLAN (referred to as the EUT in this report) is a Bluetooth/WLAN Module Assy. Clock frequency(ies) in the system : 26MHz, 32.768kHz Radio specification Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : 5MHz Type of modulation : DSSS: CCK,DQPSK, DBPSK, OFDM: 64QAM, 16QAM, QPSK, BPSK Antenna type : Monopole *1) Antenna connector type : U.FL Antenna gain with cable loss : -3.8dBi (N1KYYYY00019), -4.4dBi (N1KYYYY00030) ITU code : F1D, G1D Operation temperature range : -30 to +85 deg. C. * For Bluetooth part, Refer to the test report: 32GE0051-SH-03-A. *1) N1KYYYY00019 or N1KYYYY00030 is installed to the module. The length of coaxial cable is different. Antenna Cable Loss (dB) N1KYYYY00019 0.165 N1KYYYY00030 0.743 FCC 15.31 (e) The RF module is provided with stable power supply DC 3.3V and DC1.8V from the host device, therefore, the equipment complies with the power supply regulation. FCC 15.203 The EUT complies with the requirement, because the antenna has a unique coupling (U.FL). There is 2-type of bottom plate. The size is different. Bottom plate is located on the bottom of the EUT. Revised date : August 21, 2012 Test report No. : 32GE0051-SH-03-B Page : 5 of 61 Issued date : July 23, 2012 FCC ID : ACJ932YEAP01A473W UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012, final revised on May 17, 2012 and effective June 18, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.207 - N/A *1) N/A N/A 6dB bandwidth ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(2) & 15.209 ConductedN/A * See data Complied Maximum peak output power ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (b)(3) & 15.209 ConductedN/A Complied Spurious emission & Restricted band edges ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 0.8dB Freq.: 7386.000MHz Detector: Average Polarization: Vertical Mode: Tx 2462MHz, IEEE 802.11n Complied Power density ANSI C63.…

Text truncated - open the document above for the full version.

Test report No. : 32GE0051-SH-03-B Page : 9 of 61 Issued date : July 23, 2012 FCC ID : ACJ932YEAP01A473W UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 5: 6dB bandwidth & Occupied bandwidth (99%) Test procedure The bandwidth was measured with a spectrum analyzer connected to the antenna port. Summary of the test results: Pass Refer to APPENDIX 1 SECTION 6: Maximum peak output power Test procedure The Maximum Peak Output Power was measured with a power meter connected to the antenna port. Summary of the test results: Pass Refer to APPENDIX 1 SECTION 7: Spurious emissions (Antenna port conducted) Test procedure The Out of Band Emissions was measured with a spectrum analyzer connected to the antenna port. In any 100kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator confirmed 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power, based on a radiated measurement. In the frequency range below 30MHz, RBW was narrowed to separate the noise contents. Then, wide-band noise near the limit was checked separately, however the noise was not detected as shown in the chart. (9kHz-150kHz:RBW=200Hz, 150kHz-30MHz:RBW=10kHz) Summary of the test results: Pass Refer to APPENDIX 1 Test report No. : 32GE0051-SH-03-B Page : 10 of 61 Issued date : July 23, 2012 FCC ID : ACJ932YEAP01A473W UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 8: Radiated emission 8.1 Operating environment Test place : See test data (APPENDIX 1) Temperature : See test data (APPENDIX 1) Humidity : See test data (APPENDIX 1) 8.2 Test configuration EUT was placed on a urethane platform of nominal size, 0.5m by 0.5m, raised 0.8m above the conducting ground plane. Photographs of the set up are shown in APPENDIX 3. 8.3 Test conditions Frequency range : 30MHz to 25GHz Test distance : 3m (below 15GHz) / 1m (above 15GHz) EUT position : Table top 8.4 Test procedure The Radiated Electric Field Strength intensity has been measured on a semi-anechoic chamber with a ground plane and at a distance of 3m (below 15GHz) / 1m (above 15GHz). Measurements were performed with quasi-peak, peak and average detector. The measuring antenna height was varied between 1 and 4m and EUT was rotated a full revolution in order to obtain the maximum value of the electric field intensity. The measurements were performed for both vertical and horizontal antenna polarization. The radiated emission measurements were made with the following detection of the test receiver and spectrum analyzer. Frequency 30-1000MHz 1-25GHz 20dBc Detection type Quasi-Peak Peak Average *1) Peak IF Bandwidth 120kHz RBW: 1MHz VBW: 3MHz RBW: 1MHz VBW: *2) RBW: 100kHz VBW: 300kHz *1) When using Spectrum analyzer, the test was made with adjusting span to zero by using peak hold. *2) Refer to VBW Calculation Chart. The carrier level and noise levels were confirmed at each position of X, Y and Z axes of EUT to see the position of maximum noise, and the test was made at the position that has the maximum noise. Worst position: Frequency range Below 1GHz Above 1GHz Carrier EUT (Module & Antenna) Horizontal Y Z Y Vertical Y Y Z * The definition of the axis was listed in a ‘Pre-check of the worst position’ in APPENDIX 3. Test report No. : 32GE0051-SH-03-B Page : 11 of 61 Issued date : July 23, 2012 FCC ID : ACJ932YEAP01A473W UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Figure 1. Antenna angle No.3 Semi-Anechoic Chamber (Antenna angle) Radiated Emission (30MHz-1000MHz) 3m / 3t 3m Biconical Antenna Logperiodic Antenna / 0 deg. 90 deg. 4 5 d e g . TurnTable No.3 Semi-Anechoic Chamber (Antenna angle) Radiated Emission (Above 1GHz) 3m / 3t 3m 0 deg. 90 deg. 4 5 d e g . TurnTable Measuring Receiver Horn Antenna No.3 Semi-Anechoic Chamber (Antenna angle) Radiated Emission (Above 1GHz) 3m / 3t 1m 90 deg. 4 5 d e g . TurnTable Measuring Receiver Horn Antenna 0 deg. 8.5 Band edge Band edge level at 2390MHz and 2483.5MHz is below the limits of FCC 15.209 and band edge level at 2400MHz is below the 20dBc. Refer to the data. 8.6 Results Summary of the test results : Pass *No noise was detected above the 5 th order harmonics. Refer to APPENDIX 1 SECTION 9: Peak power density Test procedure The peak power density was measured with a spectrum analyzer connected to the antenna port. Instrument used : Spectrum Analyzer *1) RBW / VBW : 30kHz / 100kHz *2) *1) PSD Option 1 of " Measurement of Digital Transmission Systems Operating under Section 15.247". *2) The test was not performed at RBW: 3kHz that was stated in the Regulation. However, the measurement value with RBW: 3kHz is less than the value of RBW: 30kHz and the test data met the limit with RBW: 30kHz. Summary of the test results: Pass Refer to APPENDIX 1 Test report No. : 32GE0051-SH-03-B Page : 12 of 61 Issued date : July 23, 2012 FCC ID : ACJ932YEAP01A473W UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents of APPENDIXES APPENDIX 1: Data of Radio tests 6dB bandwidth Maximum peak output power Radiated emission Spurious emission (Antenna port conducted) Peak power density 99% Occupied bandwidth APPENDIX 2: Test instruments Test instruments APPENDIX 3: Photographs of test setup Radiated emission Pre-check of worst position Antenna type APPENDIX 1: Data of Radio tests Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room DateJune22, 2012 Temperature / Humidit y23deg.C, 54%RH Enginee rMakoto Hosaka ModeTx, IEEE802.11b, PN9, worst data mode 11Mbps Tx1_6OBWTx2_6OB…

Text truncated - open the document above for the full version.

Test report No. : 32GE0051-SH-03-B Page : 59 of 61 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 32GE0051-SH-03-B Page : 60 of 61 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position: Module & Antenna X-axis Y-axis Z-axis Test report No. : 32GE0051-SH-03-B Page : 61 of 61 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna type Model: N1KYYYY00019 (Shorter cable: 0.03m) Model: N1KYYYY00030 (Longer cable: 0.22m) END OF REPORT
