ACJ96NBB-HCM371A802.11b/g Wireless Camera Transmitter

Installation/Troubleshooting Please read this manual before using and save this manual for future reference. Network Camera Panasonic Network Camera Website: http://www.panasonic.com/netcam for customers in the USA or Puerto Rico Model No. BB-HCM371A Installation/Troubleshooting 2 Introduction How to Use This Documentation The camera includes the following 2 manual types. •Installation/Troubleshooting (This manual) Installation/Troubleshooting provides explanations for accessories included with the camera, the initial configuration, and troubleshooting tips. The Installation/Troubleshooting helps you to easily configure the camera. •Operating Instructions (Included on the Setup CD-ROM) Operating Instructions explains about operations, settings, features and the cleaning method when using the camera. Abbreviations •UPnP is the abbreviation for Universal Plug and Play. •"Network Camera" is called "Camera" in this Installation/Troubleshooting. Trademarks •Adobe, Acrobat and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. •Ethernet is either a registered trademark or a trademark of Xerox Corporation in the United States and/or other countries. •Microsoft, Windows and ActiveX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. •Pentium is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. •SD mark is a trademark of the SD Card Association. •Screen shots reprinted with permission from Microsoft Corporation. •All other trademarks identified herein are the property of their respective owners. Installation/Troubleshooting [For assistance, please call: 1-800-272-7033] 3 System Requirements for your PC Your PC (Personal Computer) and network must meet the following technical specifications for the camera to work properly. For IPv4 Connection ItemDescription Operating System Microsoft ® Windows ® XP, Microsoft ® Windows ® 2000 Microsoft ® Windows ® Me, Microsoft ® Windows ® 98SE CPU•For viewing single camera Pentium ® III (800 MHz or greater is recommended.) •For viewing multiple cameras Pentium 4 (1.8 GHz or greater is recommended.) ProtocolTCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ARP, ICMP) Interface10/100 Mbps network card installed Web BrowserInternet Explorer 6.0 or later (Not included on the Setup CD- ROM) AudioAudio input/output feature (Microphone or speaker) Installation/Troubleshooting 4 Note See Panasonic Network Camera support website at http://panasonic.co.jp/pcc/products/en/netwkcam/ for details about network environment. What is IPv6? •IPv6 is short for "Internet Protocol Version 6". •IPv6 was created to address the additional IP addresses that will be needed as the Internet continues to expand. •IPv6 is expected to gradually replace IPv4, with the 2 coexisting for a number of years during a transition period. •Though most ISPs (Internet Service Providers) do not yet support IPv6, many local networks already use it. When your ISP supports IPv6, your Panasonic Network Camera will be ready! •For more information you wish to visit http://www.ipv6.org/. For IPv6 Connection ItemDescription Operating System Microsoft ® Windows ® XP Service Pack 1 or later CPU•For viewing single camera Pentium III (800 MHz or greater is recommended.) •For viewing multiple cameras Pentium 4 (1.8 GHz or greater is recommended.) ProtocolTCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ICMPv6, NDP) Interface10/100 Mbps network card installed Web BrowserInternet Explorer 6.0 or later (Not included on the Setup CD- ROM) AudioAudio input/output feature (Microphone or speaker) Installation/Troubleshooting [For assistance, please call: 1-800-272-7033] 5 Table of Contents 1Before Using ..................................................................7 1.1IMPORTANT SAFETY INSTRUCTIONS........................................ 7 1.1.1FCC and Other Information ....................................................................... 8 1.1.2Security Cautions .................................................................................... 10 1.1.3User Name and Password Protection...................................................... 10 1.2Included Accessories ................................................................... 11 1.3Camera Feature Locations........................................................... 12 1.3.1Front View................................................................................................ 12 1.3.2Side View................................................................................................. 13 1.3.3Bottom View ............................................................................................ 13 1.3.4Rear View ................................................................................................ 14 1.4Connecting the Camera to Your Router ....................................... 15 1.5Setting up the Camera to View on the LAN ................................. 17 1.6Setting up Internet Access to the Camera ................................... 23 1.7Confirming the Wireless LAN Setup ............................................ 27 1.8Viewnetcam.com Service (IPv4/IPv6) .......................................... 28 1.9 Connecting the Camera to a Router Supporting UPnP™ (IPv4 Only) .30 1.10Connecting the Camera to a Router Not Supporting UPnP™ (IPv4 Only) ............................................................................................ 31 1.11Setting up the Camera Using the MAC Address on the Setup Program ....................................................................................... 32 1.12Confirming the Camera Image ..................................................... 35 1.13Using the SD Memory Card ......................................................... 38 1.14Installing the Camera .....................................................…

Text truncated - open the document above for the full version.

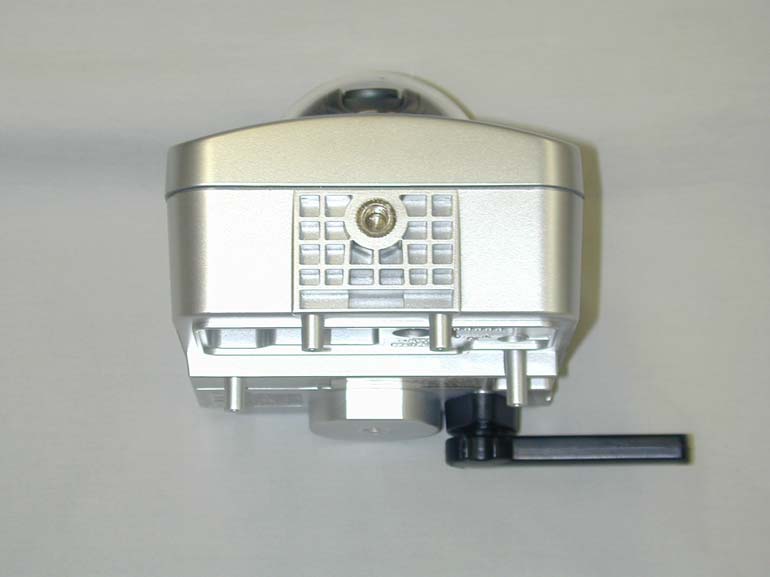

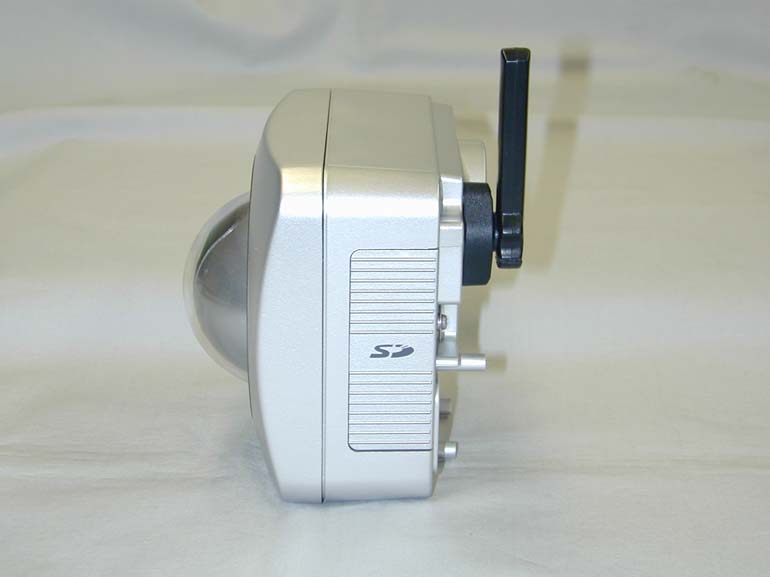

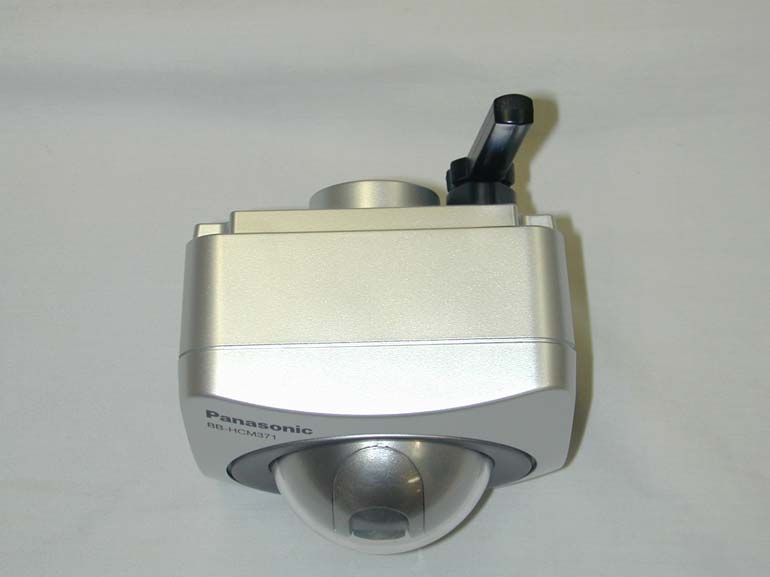

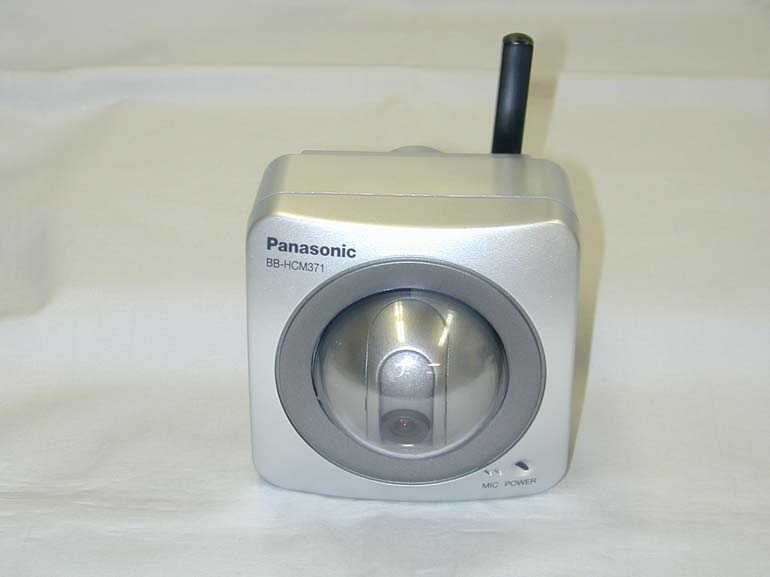

Panasonic Communications Co., Ltd. FCC ID: ACJ96NBB-HCM371A External Photo Front Rear Panasonic Communications Co., Ltd. FCC ID: ACJ96NBB-HCM371A Top Bottom Panasonic Communications Co., Ltd. FCC ID: ACJ96NBB-HCM371A Side A Side B

Panasonic Communications Co., Ltd. FCC ID: ACJ96NBB-HCM371A Internal Photo Module Side A Module Side B Panasonic Communications Co., Ltd. FCC ID: ACJ96NBB-HCM371A Internal View of Network Camera

Test report No. : 25BE0317-HO Page : 2 of 62 Issued date : October 29, 2004 FCC ID : ACJ96NBB-HCM371A Revised date : November 9, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Manufacturer’s information ................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)................................................................................................ 3 SECTION 3: Test specification, procedures & results ................................................................................ 4 SECTION 4: Operation of E.U.T. during testing ......................................................................................... 6 SECTION 5: Conducted Emission................................................................................................................. 7 SECTION 6: Spurious Emission .................................................................................................................... 8 SECTION 7: Bandwidth ................................................................................................................................. 9 SECTION 8: Maximum Peak Output Power ............................................................................................... 9 SECTION 9: Peak Power Density.................................................................................................................. 9 APPENDIX 1: Photographs of test setup .................................................................................................... 10 Conducted Emission........................................................................................................................................................10 Spurious Emission (Radiated)........................................................................................................................................ 11 Spurious Emission (Radiated)........................................................................................................................................12 Worst Case Position (90 deg. :Horizontal / 180 deg. :Vertical)....................................................................................13 APPENDIX 2:Test instruments .................................................................................................................... 14 APPENDIX 3: Data of EMI test.................................................................................................................... 15 Conducted Emission........................................................................................................................................................15 6dB Bandwidth(DSSS and other forms of modulation) ...............................................................................................22 Maximum Peak OutPut Power (DSSS and other forms of modulation) ....................................................................25 Radiated Spurious Emission(DSSS and other forms of modulation ) ........................................................................29 Reference data .................................................................................................................................................................47 Conducted Spurious Emission(DSSS and other forms of modulation) ......................................................................51 Conducted emission Band Edge compliance (DSSS and other forms of modulation)...............................................57 Power Density (DSSS and other forms of modulation ) ...............................................................................................58 99%Occupied Bandwidth(DSSS and other forms of modulation)..............................................................................61 Test report No. : 25BE0317-HO Page : 3 of 62 Issued date : October 29, 2004 FCC ID : ACJ96NBB-HCM371A Revised date : November 9, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Manufacturer’s information Company Name : Panasonic Communications Co., Ltd. Brand name : Panasonic Communications Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka, 812-8531 Japan Telephone Number : +81-92-477-1405 Facsimile Number : +81-92-477-1487 Contact Person : Michihito Miyazaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Network Camera Model No. : BB-HCM371A Serial No. : ES001 Country of Manufacture : JAPAN Rating : AC 120V (Inner: DC3.3V) Receipt Date of Sample : October 21, 2004 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Clock frequency 16.384 MHz, 25.0MHz, 24.545MHz, 40.0MHz Local frequency:672MHz,1740 - 1790MHz Feature of EUT <Wireless Netwok Camera> Network Camera corresponds to the wireless system based on IEEE 802.11b or 802.11g. <Transmitter> Equipment Type Transceiver Frequency band Lower limit 2412MHz Upper limit 2462MHz Frequency of Operation 2412-2462 Intermediate frequency 672MHz Channel spacing 5MHz Type of Modulation DSSS, OFDM Antenna Type ½ lambda Dipole Antenna Antenna Connector Type Hirose U.FL-R-SMT(10) Antenna Gain 2.8dBi Mode of Operation Simplex ITU code G1D Method of Frequency Generation Synthesizer FCC 15.31 (e) This EUT provides stable voltage constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement The antenna is not removable from EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 25BE0317-HO Page : 4 of 62 Issued date : October 29, 2004 …

Text truncated - open the document above for the full version.

Test report No. : 25BE0317-HO Page : 10 of 62 Issued date : October 29, 2004 FCC ID : ACJ96NBB-HCM371A Revised date : November 9, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 25BE0317-HO Page : 11 of 62 Issued date : October 29, 2004 FCC ID : ACJ96NBB-HCM371A Revised date : November 9, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear Test report No. : 25BE0317-HO Page : 12 of 62 Issued date : October 29, 2004 FCC ID : ACJ96NBB-HCM371A Revised date : November 9, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear Test report No. : 25BE0317-HO Page : 13 of 62 Issued date : October 29, 2004 FCC ID : ACJ96NBB-HCM371A Revised date : November 9, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (90 deg. :Horizontal / 180 deg. :Vertical) 0 deg. 90 deg. 180 deg.
