EXHIBIT A GENERAL INFORMATION This device is a wireless network camera, operating in the 2.4 – 2.4835GHz band. Appearance: Specifications: Power Supply: From AC Adaptor : DC9V Interface: LAN : 1 port Radio Interface: IEEE802.11b: Channels : 1ch (2412MHz) ~11ch (2462MHz) Modulation : Direct Sequence Speed : 1Mbps, 2Mbps, 5.5Mbps, 11Mbps IEEE802.11g: Channels : 1ch (2412MHz) ~11ch (2462MHz) Modulation : OFDM Speed : 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps,48Mbps, 54Mbps

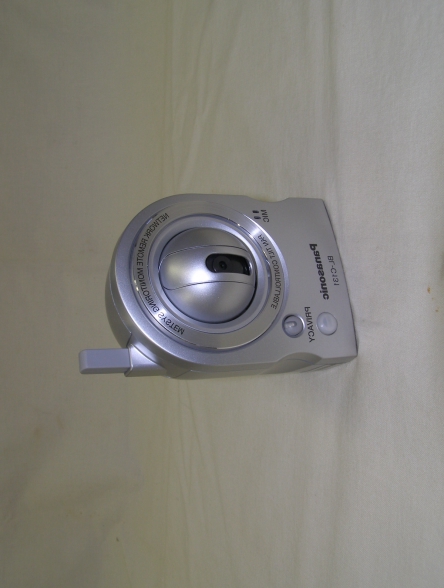

     EXTERNAL PHOTOGRAPHS BL-C131A
     Rear Side

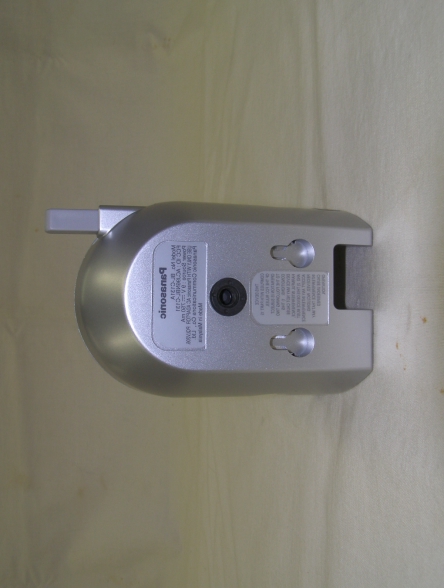

     Bottom Side

EXHIBIT B MARKINGS This unit provides with the following markings, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Above markings are shown on Nameplate rear of the unit.

     INTERNAL PHOTOGRAPHS Main Board
     Main Board (The Other Side)
     RF Board
     RF Board (The Other Side)
     IO Board
     IO Board (The Other Side)
     Audio Board
     Audio Board (The Other Side)

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Panasonic Communications Co., Ltd. Type of Equipment : Network Camera Model No. : BL-C131A FCC ID: ACJ96NBL-C131 Panasonic Communications Co., Ltd. declares that Model : BL-C131A complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “BL-C131A“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 220.29 mW (Maximum peak output power) G = 1.62 Numerical Antenna gain; equal 2.10 dBi r =20.0 cm For: BL-C131AS = 0.07108 mW/cm 2 No. : 27BE0234-HO RF Exposure / MPE Statement

Test report No. : 27BE0234-HO Page : 2 of 46 Issued date : November 17, 2006 FCC ID : ACJ96NBL-C131 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 4 SECTION 4: Operation of E.U.T. during testing .................................................................................6 SECTION 5: Conducted Emission......................................................................................................... 7 SECTION 6: Spurious Emission............................................................................................................ 8 SECTION 7: Bandwidth ......................................................................................................................... 9 SECTION 8: Maximum Peak Output Power ....................................................................................... 9 SECTION 9: Peak Power Density.......................................................................................................... 9 APPENDIX 1: Photographs of test setup ............................................................................................ 10 Conducted Emission ........................................................................................................10 Spurious Emission (Radiated) ........................................................................................11 Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) .........................................12 APPENDIX 2: Data of EMI test............................................................................................................ 13 Conducted Emission ........................................................................................................13 6dB Bandwidth.................................................................................................................19 Maximum Peak Output Power.......................................................................................22 Radiated Spurious Emission (below 1GHz) ..................................................................23 Radiated Spurious Emission (above 1GHz) ..................................................................29 Conducted Spurious Emission........................................................................................35 Conducted emission Band Edge compliance .................................................................41 Power Density...................................................................................................................43 APPENDIX 3:Test instruments ............................................................................................................ 46 Test report No. : 27BE0234-HO Page : 3 of 46 Issued date : November 17, 2006 FCC ID : ACJ96NBL-C131 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name : Panasonic Communications Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Telephone Number : +81--92-477-1405 Facsimile Number : +81--92-477-1487 Contact Person : Kunihiko Nawata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Network Camera Model No. : BL-C131A Serial No. : E.S.3 Rating : AC120V/60Hz, Output DC9V (AC adaptor) Country of Manufacture : Malaysia Receipt Date of Sample : October 30, 2006 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: BL-C131A (referred to as the EUT in this report) is the Network Camera. Clock frequencies in the system : CPU: 48-108MHz, Ether: 25MHz, RTC: 32.768kHz 、 MAC&BB: 40MHz, Camera:27MHz Equipment Type : Transceiver Frequency of Operation : 2412-2462MHz Bandwidth & Channel spacing : 25MHz & 5MHz Modulation : DSSS / OFDM ITU code : 22M0G1D Power Supply (inner) : DC9V(from AC adaptor) Antenna Type : ½ lambda dipole Antenna Antenna Connector Type : UFL-connector Antenna Gain : 2.1dBi Test report No. : 27BE0234-HO Page : 4 of 46 Issued date : November 17, 2006 FCC ID : ACJ96NBL-C131 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits : 2006 Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz: 2006 FCC 15.31 (e) This EUT provides stable voltage (DC9.0V) constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. 3.2 Procedures and results No. Item Test Procedure Specification Remarks Deviation Worst margin Results 1 Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 - N/A 15.6dB 0.69452MHz QP, N Complied 2 6dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.247(a)(2) Conducted N/A N/A…

Text truncated - open the document above for the full version.

Temporary Confidential Test report No. : 27BE0234-HO Page : 10 of 46 Issued date : November 17, 2006 FCC ID : ACJ96NBL-C131 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Temporary Confidential Test report No. : 27BE0234-HO Page : 11 of 46 Issued date : November 17, 2006 FCC ID : ACJ96NBL-C131 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emission (Radiated) Front Rear Temporary Confidential Test report No. : 27BE0234-HO Page : 12 of 46 Issued date : November 17, 2006 FCC ID : ACJ96NBL-C131 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) X-axis Y-axis Z-axis
