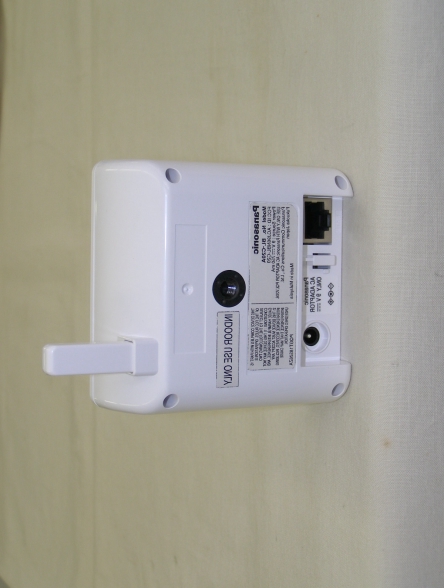

EXTERNAL PHOTOGRAPHS BL-C20A with AC Adaptor Rear Side

EXHIBIT B MARKINGS This unit provides with the following markings, or equivalent. NOTE: Above markings are shown on rear of the unit. Nameplate

INTERNAL PHOTOGRAPHS Main Board Main Board (Another Side) RF Board RF Board (Another Side)

Test report No. : 26BE0215-HO-1a Page : 2 of 68 Issued date : October 18, 2005 Revised date : October 19, 2005 FCC ID : ACJ96NBL-C20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Manufacturer’s (Client’s) information .......................................................................... 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................8 SECTION 5: Conducted Emission......................................................................................................... 9 SECTION 6: Spurious Emission.......................................................................................................... 10 SECTION 7: Bandwidth ....................................................................................................................... 11 SECTION 8: Maximum Peak Output Power ..................................................................................... 11 SECTION 9: Peak Power Density........................................................................................................ 11 APPENDIX 1: Photographs of test setup ............................................................................................ 12 Conducted Emission ............................................................................................................................12 Spurious Emission (Radiated) ............................................................................................................13 Worst Case Position (Z-axis:Horizontal / X-axis:Vertical)..............................................................14 APPENDIX 2:Test instruments ............................................................................................................ 15 APPENDIX 3: Data of EMI test............................................................................................................ 16 Conducted Emission ............................................................................................................................16 6dB Bandwidth ....................................................................................................................................26 Maximum Peak Output Power ...........................................................................................................29 Radiated Spurious Emission ...............................................................................................................32 Conducted Spurious Emission............................................................................................................56 Conducted Emission Band Edge Compliance ...................................................................................62 Power Density ......................................................................................................................................64 99%Occupied Bandwidth ...................................................................................................................67 Test report No. : 26BE0215-HO-1a Page : 3 of 68 Issued date : October 18, 2005 Revised date : October 19, 2005 FCC ID : ACJ96NBL-C20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Manufacturer’s (Client’s) information Company Name : Panasonic Communications Co., Ltd. Brand Name : Panasonic Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka, 812-8531 Japan Telephone Number : +81-92-477-1405 Facsimile Number : +81-92-477-1487 Contact Person : Kunihiko Nawata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Network Camera Model No. : BL-C20A Serial No. : 001 Country of Manufacture : Malaysia Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Rating : AC120V/60Hz Receipt Date of Sample : October 7, 2005 Test report No. : 26BE0215-HO-1a Page : 4 of 68 Issued date : October 18, 2005 Revised date : October 19, 2005 FCC ID : ACJ96NBL-C20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) 2.2 Product Description Model No: BL-C20A (referred to as the EUT in this report) is the Wireless Network Camera (IEEE802.11b and 11g). Equipment Type : Transceiver Frequency band : Lower limit: 2412MHz Upper limit: 2462MHz Frequency of Operation : 2412-2462MHz Modulation : DSSS/OFDM Mode of Operation : Simplex ITU code : G1D Method of Frequency Generation : Synthesizer Power Supply : AC120V (Inner: DC3.3V) Antenna Type : ½ lambda Dipole Antenna Antenna Connector Type : Hirose U.FL-R-SMT (10) Antenna Gain : 2.8dBi FCC 15.31 (e) This EUT provides stable voltage (DC3.3V) constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement The antenna is not removable from EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 26BE0215-HO-1a Page : 5 of 68 Issued date : October 18, 2005 Revised date : October 19, 2005 FCC ID : ACJ96NBL-C20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2005 Title : FCC 47CFR Part15 Radio Frequency Device Subp…

Text truncated - open the document above for the full version.

Test report No. : 26BE0215-HO-1a Page : 12 of 68 Issued date : October 18, 2005 Revised date : October 19, 2005 FCC ID : ACJ96NBL-C20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 26BE0215-HO-1a Page : 13 of 68 Issued date : October 18, 2005 Revised date : October 19, 2005 FCC ID : ACJ96NBL-C20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Spurious Emission (Radiated) Front Rear Test report No. : 26BE0215-HO-1a Page : 14 of 68 Issued date : October 18, 2005 Revised date : October 19, 2005 FCC ID : ACJ96NBL-C20 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position (Z-axis:Horizontal / X-axis:Vertical) X-axis Y-axis Z-axis
