ACJ96NBL-C30A802.11b/g Network Camera Transmitter

How to Use This Documentation The camera includes the following 3 manual types. •Installation/Troubleshooting (This manual) This manual has important information you will need to understand before installing the camera and troubleshooting tips. •Getting Started Getting Started provides explanations for the initial configuration and accessories included with the camera. The Getting Started helps you to easily configure the camera. •Operating Instructions (Included on the Setup CD-ROM) Operating Instructions explains about operations, settings, features and the cleaning method when using the camera. Please read this manual before using and save this manual for future reference. Panasonic Network Camera Website: http://www.panasonic.com/netcam/ for customers in the USA or Puerto Rico Installation/Troubleshooting Model No. BL-C30A Network Camera Installation/Troubleshooting 2 Abbreviations •UPnP TM is the abbreviation for Universal Plug and Play. •"Network Camera" is called "Camera" in this Installation/Troubleshooting. Trademarks •Ethernet is either a registered trademark or a trademark of Xerox Corporation in the United States and/or other countries. •Windows and ActiveX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. •Screen shots reprinted with permission from Microsoft Corporation. •All other trademarks identified herein are the property of their respective owners. Installation/Troubleshooting 3 Table of Contents 1Before Using ..................................................................4 1.1IMPORTANT SAFETY INSTRUCTIONS........................................ 4 1.1.1FCC and Other Information ....................................................................... 5 1.2Camera Feature Locations............................................................. 7 1.2.1Front View.................................................................................................. 7 1.2.2Bottom View .............................................................................................. 8 1.2.3Rear View .................................................................................................. 8 Installation/Troubleshooting 4 1Before Using 1.1 IMPORTANT SAFETY INSTRUCTIONS When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 1.Read and understand all instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.After taking away the dust on the lens, wipe the lens with a cotton bud. 6.Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat. 7.Protect the AC adaptor cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the unit. 8.When you operate the camera, the power outlet should be near the camera and easily accessible. 9.Do not touch the unit or the AC adaptor during lightning storms. 10.Unplug the unit when unused for long periods of time. 11.Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as the AC adaptor cord or plug is damaged, the unit does not operate normally, or has been dropped. 12.The camera is intended for indoor use only. Prolonged exposure to direct sunlight or halogen light may damage CMOS sensor. SAVE THESE INSTRUCTIONS Network Camera Memo Serial Number (Found on the rear side of the main unit) MAC Address (Found on the rear side of the main unit) Name and address of dealer Date of purchase For your future reference Attach your purchase receipt here. Installation/Troubleshooting 5 1.1.1FCC and Other Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Some wireless Cameras operate at frequencies that may cause interference to nearby TVs and VCRs. To minimize or prevent such interference, the base of the wireless Camera should not be placed near or on top of a TV or VCR. If interference is experienced, move the wireless Camera further away from the TV or VCR. This will often reduce or eliminate interference. Operating near 2.4 GHz electrical appliances may cause interference. Move away from the electrical appliances. Environment: Do not install the camera where the temperature is less than 5 °C (+41 °F) or greater than +40 °C (+104 °F). Allow 10 cm (4 inches) clearance around the unit for proper ventilation. Avoid excessive smoke, dust, mechanical vibration, shock, or direct sunlight. Routine care: Wipe the unit with a soft cloth. Do not use benzine, thinner, or any abrasive powder. When you leave the unit unused for a long period of time, unplug the AC adaptor from the outlet. If you have any problems: Consult an authorized Panasonic Factory Service Center. Installation/Troubleshooting 6 Caution •To comply with FCC RF exposure requirements in uncontrolled envir…

Text truncated - open the document above for the full version.

Panasonic Communications Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan Letter Of Agency July 15, 2004 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Please be advised that Panasonic Communications Co., Ltd. authorizes UL Apex Co., Ltd. to act on our behalf, until otherwise notified, for applications submitted to Federal Communication Commission. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Michihito Miyazaki Approvals Engineer / Coordinator Technical Regulation Panasonic Communications Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan FCC Labeling Requirements and Information July 15, 2004 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE: FCC Labeling Requirements FCC ID: ACJ96NBL-C30A The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Michihito Miyazaki Approvals Engineer / Coordinator Technical Regulation Panasonic Communications Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan Request for Confidentiality July 15, 2004 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: ACJ96NBL-C30A Please be advised that the following information is to be held confidential and behalf of Panasonic Communications Co., Ltd.: Block Diagram and description Schematics Theory of Operation The application contains technical information, which Panasonic Communications Co., Ltd. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Michihito Miyazaki Approvals Engineer / Coordinator Technical Regulation Panasonic Communications Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan Manufacturer’s Letter July 15, 2004 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: ACJ96NBL-C30A To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Sincerely, Michihito Miyazaki Approvals Engineer / Coordinator Technical Regulation

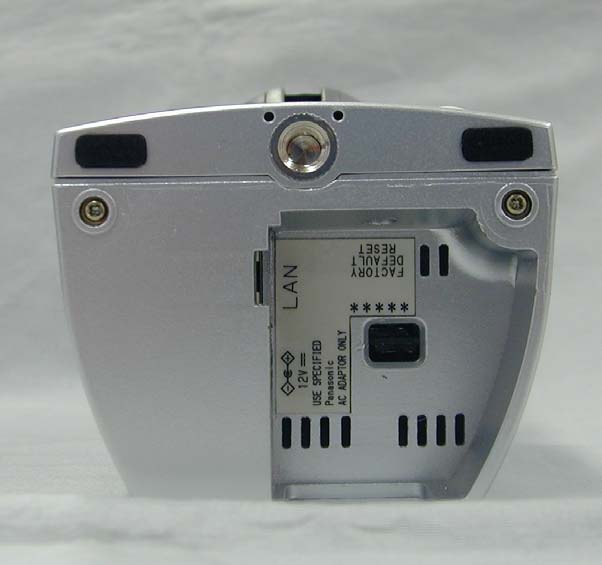

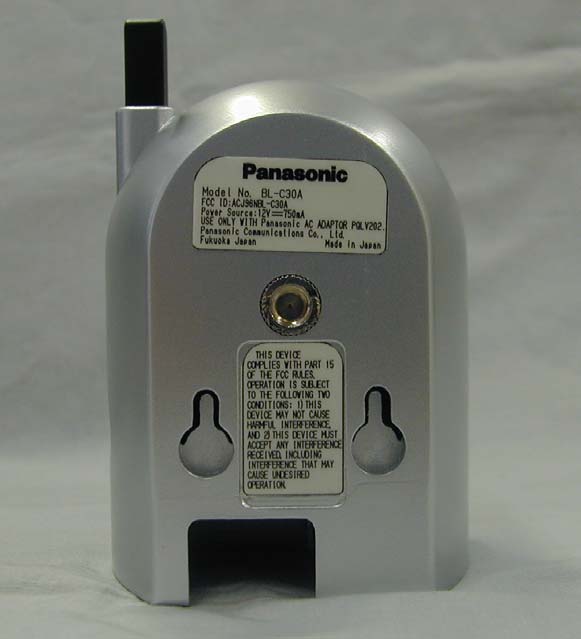

Panasonic Communications Co., Ltd. ACJ96NBL-C30A External Photo Front Rear Panasonic Communications Co., Ltd. ACJ96NBL-C30A Top Bottom Panasonic Communications Co., Ltd. ACJ96NBL-C30A Side A Side B

Panasonic Communications Co., Ltd. ACJ96NBL-C30A Internal Photo Module Side A Module Side B Panasonic Communications Co., Ltd. ACJ96NBL-C30A Module with Antenna Cable Module with Antenna

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Panasonic Communications Co.,Ltd. Type of Equipment : Network Camera Model No. : BL-C30A FCC ID: ACJ96NBL-C30A Panasonic Communications Co.,Ltd. declares that Model : BL-C30A complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093. The “BL-C30A“ has 140.93 mW of conducted Peak Output power and 268.53 mW of EIRP. This kind of equipment that is over 60/frequency[M Hz] W (TCB Exclusion List) is required SAR testing. However this equipment is used as mobile(at least 20cm and more between the radiator and person’s body ); therefore, SAR testing is excluded. Follw ing calculation is reference data for 20cm distance. RF Exposure Calculations: The follow ing inform ation provides the m inim um separation distance for the highest gain antenna provided with the “BL-C30A“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure lim it. The Friis form ula used w as: S = (P * G ) / (4* π * r 2 ) W here P = 140.93 mW (M aximum peak output power) G = 1.91 Numerical Antenna gain; equal 2.80dBi r =20.0 cm For: BL-C30AS = 0.05342mW/cm 2 RF Exposure / SAR Statement No. : 24JE0143-HO

Test report No. : 24JE0143-HO Page : 2of 50 Issued date : July 21, 2004 Revised : July 22,2004 FCC ID : ACJ96NBL-C30A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 4 SECTION 4: Operation of E.U.T. during testing........................................................................... 6 SECTION 5: Conducted Emission, Section 15.207 ........................................................................ 7 SECTION 6: Spurious Emission 15.247(c) ..................................................................................... 8 SECTION 7: 6dB Bandwidth, Section 15.247(a)(2) ....................................................................... 9 SECTION 8: Maximum Peak Output Power, Section 15.247(b)(3) ............................................. 9 SECTION 9: Peak Power Density, Section 15.247 (d) ................................................................... 9 APPENDIX 1: Photographs of test setup...................................................................................... 10 Conducted Emission ........................................................................................................... 10 Spurious Emission (Radiated)............................................................................................ 11 Worst Case Position (Y-axis:Horizontal / X-axis:Vertical)............................................. 12 APPENDIX 2:Test instruments ...................................................................................................... 13 APPENDIX 3: Data of EMI test ..................................................................................................... 14 Conducted Emission (11b).................................................................................................. 14 Conducted Emission (11g) .................................................................................................. 17 6dB Bandwidth(DSSS and other forms of modulation) .................................................. 20 Maximum Peak Output Power (DSSS and other forms of modulation) ....................... 23 Radiated Spurious Emission(DSSS and other forms of modulation )(11b)................... 26 Radiated Spurious Emission(DSSS and other forms of modulation)(11g) .................... 32 Conducted Spurious Emission(DSSS and other forms of modulation)(11b)................. 38 Conducted Spurious Emission(DSSS and other forms of modulation)(11g) ................. 41 Conducted emission Band Edge compliance (DSSS and other forms of modulation)(11b) ............................................................................................................................................... 44 Conducted emission Band Edge compliance (DSSS and other forms of modulation)(11g) ............................................................................................................................................... 45 Peak Power Density (DSSS and other forms of modulation ) ......................................... 46 99%Occupied Bandwidth(DSSS and other forms of modulation)(11b) ........................ 49 99%Occupied Bandwidth(DSSS and other forms of modulation)(11g) ........................ 50 Test report No. : 24JE0143-HO Page : 3of 50 Issued date : July 21, 2004 Revised : July 22,2004 FCC ID : ACJ96NBL-C30A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Panasonic Communications Co.,Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka, Japan, 812-8531 Telephone Number : +81-92-477-1405 Facsimile Number : +81-92-477-1487 Contact Person : Michihito Miyazaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Network Camera Model No. : BL-C30A Serial No. : ES1 Rating : AC 120V Country of Manufacture : Japan Receipt Date of Sample : July 6, 2004 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No: BL-C30A(referred to as the EUT in this report) is the Wireless Network Camera. Network Camera corresponds to the wireless system based on IEEE 802.11b and 802.11g. System clock : 32.768kHz(RTC), 16.32MHz(RTC), 25MHz(LAN), 49.0MHz(LAN), 40MHz(RF) [W-LAN:IEEE802.11b,11g] Equipment Type : Transceiver Frequency of operation : 2412-2462MHz Transmission method : DSSS Type of modulation : CCK(11b), OFDM(11g) Bandwidth & Channel spacing : 5MHz Transmit power : 16dBm (11b), 15dBm (11g) Power control : Non Mode of operation : Simplex Antenna Gain : 2.8dBi Antenna Connector Type : Hirose U.FL-R-SMT(10) Operating voltage (inner) : DC 3.3V FCC 15.31 (e) This EUT provides stable voltage(DC3.3V) constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 24JE0143-HO Page : 4of 50 Issued date : July 21, 2004 Revised : July 22,2004 FCC ID : ACJ96NBL-C30A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification…

Text truncated - open the document above for the full version.

Test report No. : 24JE0143-HO Page : 10of 50 Issued date : July 21, 2004 FCC ID : ACJ96NBL-C30A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 24JE0143-HO Page : 11of 50 Issued date : July 21, 2004 FCC ID : ACJ96NBL-C30A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear Test report No. : 24JE0143-HO Page : 12of 50 Issued date : July 21, 2004 FCC ID : ACJ96NBL-C30A UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Y-axis:Horizontal / X-axis:Vertical) X-axis Y-axis Z-axis
