ACJ96NBL-VP104WNetwork Camera

Precautions for use Standard accessories This system is designed to be used indoors. This product is not operable outdoors. This product has no power switch. When turning off the power, disconnect the power supply from AC adaptor. To keep on using with stable performance Do not use this camera in hot and humid conditions for a long time. Failure to observe this causes component degradation resulting in life shortening of this product. Do not expose this camera to direct heat sources such as a heater. Do not touch the lens with your bare hands. A dirty lens causes deterioration of picture quality. Handle this camera with care. Do not drop this camera, nor apply shock or vibration to this camera. Failure to observe this may cause trouble. About the PC monitor Displaying the same image on a monitor for a long time may damage the monitor. It is recommend- ed to use a screen-saver. When an error is detected, this product will restart automatically. This product will be inoperable for around 2 minutes after the restart just as when the power is turned on. Product disposal/transfer Data saved on this product or a storage device used with this product may lead to personal information leakage. When it is necessary to dispose or give this product to someone, even when for repair, make sure that there is no data on this product. Cleaning this product body Be sure to turn off the power before cleaning. Failure to observe this may cause injury. Do not use strong abrasive detergent when cleaning this product. Otherwise, it may cause discoloration. Transmission interval Image transmission interval may become slow depending on the network environment, PC performance, shooting subject, access number, etc. About the CMOS image sensor When continuously shooting a bright light source such as a spotlight, the color filter of the CMOS image sensor may have deteriorated and it may cause discoloration. Even when changing the fixed shooting direction after continuously shooting a spotlight for a certain period, the discoloration may remain. AVC Patent Portfolio License THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM Flickering Due to the influence of lighting, flickering may sometimes happen. Select “Indoor scene(50 Hz)” or “Indoor scene(60 Hz)” in accordance with the power supply frequency in your locality. Refer to the Operating Instructions (included in the CD-ROM) for further information about the setting. Under extremely strong lighting, flickering may happen even when “Indoor scene” is selected for “Light control mode”. When the brightness (illuminance) level on the screen is set to a relatively low level with the [Brightness] buttons, flickering may frequently happen. In such cases, either of the fol- lowing can reduce flickering. ⿟ Moderate the illumination intensities of objects by changing the camera direction. Set the brightness (illuminance) level on the screen to a brighter level with the [Brightness] but- ⿟ tons. White-out on images caused by the effect of light control mode When “Indoor scene” is selected for “Light control mode”, the tone of the brighter parts on the screen may be deteriorated than the case when “ELC” is selected. Color blurring on detailed drawing patterns When there are detailed drawing patterns on images, color blurring may happen over these parts. Flexible Stand (1 pc.) AC Adaptor (1 pc.)Screw (3 pcs.) (incl. 1 spare) Installation Guide (this document) ........(1 pc.) Configure the settings of the camera (leaflet) ... (1 pc.) Warranty card (P model) .......................(1 pc.) CD-ROM *1 ............................................(1 pc.) *1 The CD-ROM contains the operating instructions and different kinds of tool soft- ware programs. Installation Guide Network Camera Model No. BL-VP100 Series Cs0312-0 PGQX1158ZA Printed in China Main functions ● H.264 and JPEG triple encoding A total of 3 outputs, comprising of 2 H.264 outputs and 1 JPEG output, can be provided. ● Adaptive darkness correction mode Corrects the blacked-out parts of dark areas of objects that have different illumination intensities. ● Wireless LAN function (IEEE802.11 n/g/b) (BL-VP104W/BL-VP104WE/BL-VP104WU) It is possible to monitor camera images and configure camera settings over a wireless network. ● WPS (Wi-Fi Protected Setup) function (BL-VP104W/BL-VP104WE/BL-VP104WU) WPS enables the camera to automatically obtain the connection configuration information and the security configuration information of the wireless router. WPS can be configured by pressing the WIRELESS button (WPS button) (PBC method) or entering an 8 digit pin code (Pin code method) . Confirm the following items are included in the camera’s packaging. Scanning area: VP104W/VP104WE/VP104WU/VP104/VP104E/VP104U: 3.89 mm (H) x 2.43 mm (V) {5/32 inches (H) x 3/32 inches (V)} VP101/VP101E/VP101U: 2.69 mm (H) x 2.02 mm (V) {1/8 inches (H) x 1/16 inches (V)} Scanning system: Progressive Minimum illumination: VP104W/VP104WE/VP104WU/VP104/VP104E/VP104U: Color: 0.9 lx {0.09 footcandle} (F2.8, Auto slow shutter: Off (1/30 s), Gain: On (High)) 0.06 lx {0.006 footcandle} (F2.8, Auto slow shutter: max. 16/30 s, Gain: On (High))* BW: 0.6 lx {0.06 footcandle} (F2.8, Auto slow shutter: Off (1/30 s), Gain: On (High)) 0.04 lx {0.004 footcandle} (F2.8, Auto slow shutter: max. 16/30 s, Gain: On (High))* VP101/VP101E/VP101U: Color: 0.9 lx {0.09 footcandle} (F2.8, Auto slow shutter: Off (1/30 s), Gain: On (High)) 0.11 lx {0.011 footcandle} (F2.8, Auto slow shutter: max. 8/30 s, Gain…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Power of Attorney March 28, 2012 PSSD-12-F572 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Panasonic Corporation of North America hereby authorizes UL Japan to act on our behalf for a one year period from the date of this letter. Any and all acts carried out by them on our behalf shall have the same effects as acts of our own. Product Name: Panasonic Network Camera, Model BL-VP104W 1 FCC ID: ACJ96NBL-VP104W FCC Rule Parts: Verification LAN: FCC Part 15B / Other Class B Computing Device Peripheral Certification WLAN: FCC Part 15C, Section 15.247 / Digital Transmission System WLAN TX Specification: 2412~2462 MHz WLAN with operation limited to 11 Channels for Canada & USA Network Camera has built-in transceiver compatible with IEEE 802.11n/b/g (DSSS+OFDM) with two diversity antennas. Rated Max RF Output: 802.11n TX Mode: Ant 1: 168.66 mW / Antenna 2: 166.34 mW 802.11b TX Mode: Ant 1: 70.47 mW / Antenna 2: 63.39 mW 802.11g TX Mode: Ant 1: 187.50 mW / Antenna 2: 164.06 mW Antennas: Antenna 1 and 2 are dipole pattern antennas with 2.1 dBi antenna gain Power Supply: AC Adaptor Model PQLV219 Input: AC 100~120V, 0.1A, 50/60 Hz Output: DC 6.5V RF Exposure: The Installation Guide will contain the following FCC RF Exposure Warning Notice: “To comply with FCC RF exposure requirements in uncontrolled environment: This equipment must be installed and operated in accordance with provided instructions and minimum 20 cm (8 inches) spacing must be provided between antenna and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” 1 Panasonic Network Camera, Models BL-VP101 and BL-VP104 are provided with only LAN and are FCC Part 15B authorized under Verification for Class B limits. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division March 28, 2012 PSSD-12-F572 Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 USA Sales Company: Panasonic System Communications Company of North America Unit of Panasonic Corporation of North America Three Panasonic Way, Secaucus, New Jersey 07094 U.S.A. Customer Support: 1.800.528.6747 / www.panasonic.com/business/ Canada Sales Company: Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada Customer Support: (905)624-5010 / www.panasonic.ca We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. This Certification application has not been submitted to any other TCB for Certification. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division Cc: Kazumasa Saito / Kouichi Okada / PSN-SSBU (otherwise known as PSSD1 for Camera Group) [email protected] / [email protected]

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] RICHARD MULLEN Group Manager Product Safety and Compliance Division Request for Confidentiality March 28, 2012 PSSD-12-F572 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 Product Name: Panasonic Network Camera, Model BL-VP104W FCC ID: ACJ96NBL-VP104W To Whom It May Concern: In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for the below indicated exhibits. This transmitter is not user adjustable and does not have user tune-up procedure. These exhibits contain proprietary, confidential and/or trade secret materials, which would not be routinely made available for public inspection. • Description of Electrical Circuitry • Schematic Diagram • Block Diagram • Antenna Construction Pursuant to DA 04-1705 of the commission’s public notice, we request short-term confidential treatment for the following information until April 15, 2012 in order to ensure sensitive business information remains confidential until the actual marketing of the device: • External Photographs • Internal Photographs • Test Setup Photographs • User Manual (or sometimes known as Operation Instructions or Operational Description) The above materials contain trade secrets and proprietary information not customarily released to the general public. Since this design is a basis from which future technological products will evolve, the public disclosure of these materials can be harmful to the Applicant by providing unfair advantage and benefits to its competitors. Thank you for your attention to this matter. Sincerely, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

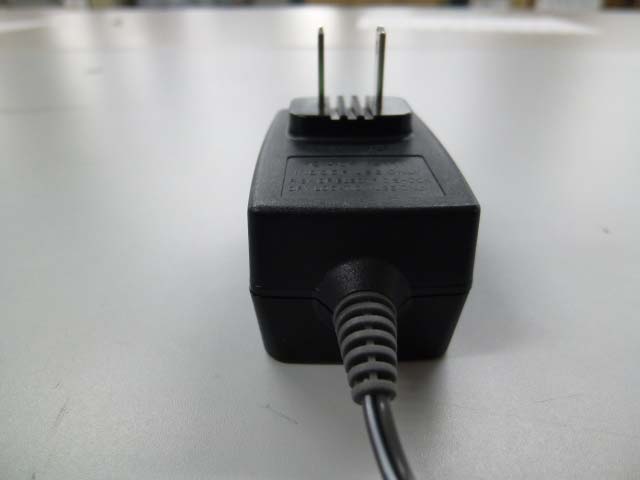

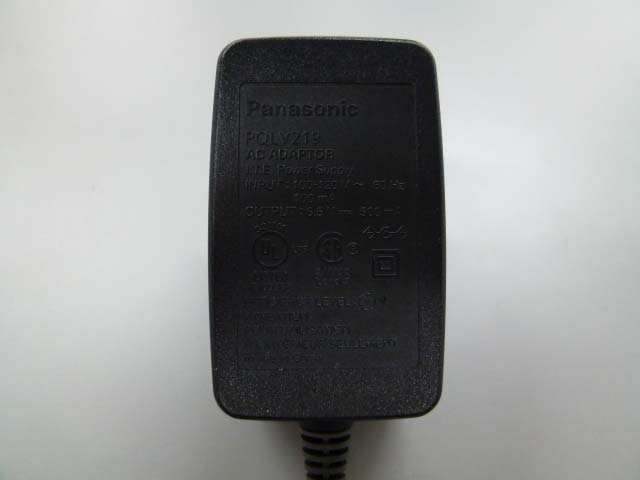

OVERALL VIEW FRONT BACK TOP Bottom Right Side Left Side

FCC ID: ACJ96NBL-VP104W FRONT BACK FCC ID: ACJ96NBL-VP104W TOP Bottom FCC ID: ACJ96NBL-VP104W Right Side Left Side

Substrate Front Substrate Back RF Substrate Front RF Substrate Back Interrnal Photo Sid Side A Pa de A with Sh A without S anasonic Co FC hield Shield orporation o C ID: ACJ9 Mod of North Am 96NWV-SW del: WV-SW merica 174W 174W Interrnal Photo Pa Side B anasonic Co FC orporation o C ID: ACJ9 Mod of North Am 96NWV-SW del: WV-SW merica 174W 174W

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Panasonic Corporation of North America T ype of Equipment : Network Camera Model No. : BL-VP104 W FCC ID: ACJ96NBL-VP104W Panasonic Corporation of North America declares that Model : BL-VP104W ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Ex posure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “BL-VP104W“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 187.50 mW (Maximum peak output power) G = 1.62 Numerical Antenna gain; equal to2.10dBi r =20.0 cm For: BL-VP104WS =0.06050 mW/cm 2 No. : 32CE0047-HO-06 RF Exposure / MPE Calculation

Test report No. : 32CE0047-HO-06-A Page : 2 of 68 Issued date : March 22, 2012 FCC ID : ACJ96NBL-VP104W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission ............................................................................................................ 9 SECTION 6: Radiated Spurious Emission ............................................................................................ 10 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 Conducted Emission ......................................................................................................................... 12 6dB Bandwidth ................................................................................................................................. 21 Maximum Peak Output Power .......................................................................................................... 24 Radiated Spurious Emission ............................................................................................................. 27 Conducted Spurious Emission .......................................................................................................... 40 Conducted Emission Band Edge compliance ................................................................................... 58 Power Density ................................................................................................................................... 59 99%Occupied Bandwidth ................................................................................................................. 62 APPENDIX 2: Test instruments ............................................................................................................. 64 APPENDIX 3: Photographs of test setup ............................................................................................... 66 Conducted Emission ......................................................................................................................... 66 Radiated Spurious Emission ............................................................................................................. 67 Worst Case Position .......................................................................................................................... 68 Test report No. : 32CE0047-HO-06-A Page : 3 of 68 Issued date : March 22, 2012 FCC ID : ACJ96NBL-VP104W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Panasonic System Networks Co., Ltd. Address : 4-1-62, Minoshima, Hakata-ku, Fukuoka-city, Fukuoka, 812-8531 JAPAN Telephone Number : +81-92-477-1335 Facsimile Number : +81-92-477-1751 Contact Person : Hironori Kuribayashi *Panasonic System Networks Co., Ltd. is on behalf of the applicant : Panasonic Corporation of North America. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Network Camera Model No. : BL-VP104W Serial No. : Refer to Section 4, Clause 4.2 Rating : DC6.5V AC Adaptor:100-120V, 0.1A, 60Hz Receipt Date of Sample : February 15, 2012 Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description This device is the 11bgn wireless network camera with 2.4GHz DSSS and OFDM modulation. It functions as a wireless network camera by establishing wireless link with a wireless router. It functions as a wireless camera by wireless link during start-up. It has one port for wired communication and it functions as a wired network camera. Nominal voltage: DC6.5V is supplied with the body by AC adaptor. Two diversity antennas are equipped with the device. General Specification Clock frequency(ies) in the system : 132MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : 11b: DSSS, 11g/n: OFDM Power Supply (radio part input) : DC 3.3V Antenna type : Ant 1: dipole antenna (pattern antenna) Ant 2: dipole antenna (pattern antenna) Antenna Gain : Ant 1: 2.1dBi Ant 2: 2.1dBi Test report No. : 32CE0047-HO-06-A Page : 4 of 68 Issued date : March 22, 2012 FCC ID : ACJ96NBL-VP104W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on February 1, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 13.9dB, 0.34950MHz, N AV 12.2dB, 0.34950MHz, N Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2…

Text truncated - open the document above for the full version.

Test report No. : 32CE0047-HO-06-A Page : 66 of 68 Issued date : March 22, 2012 FCC ID : ACJ96NBL-VP104W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32CE0047-HO-06-A Page : 67 of 68 Issued date : March 22, 2012 FCC ID : ACJ96NBL-VP104W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 32CE0047-HO-06-A Page : 68 of 68 Issued date : March 22, 2012 FCC ID : ACJ96NBL-VP104W UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Above 1GHz: Horizontal: X-axis/ Vertical:Z-axis) (Below 1GHz: Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis
