ACJ96NBL-WV102.4 GHz Wireless Camera Monitoring System

1 Setup Guide Wireless Camera Monitoring System Model No. BL-WV10A This guide will help you install and configure the BL-WV10A Wireless Camera Monitoring System and your Network Cameras (sold separately). Included Items Confirm that the following items are included in the product box. Additional pieces can be ordered by calling 1-800-332-5368. BL-WV10A AC adaptor Part no. PQLV202Y Cord length: 1.8 m (6 ft.) AC cord Part no. PSJA1069Z Length: 55 cm (1 ft. 10 in.) Ethernet cable Part no. PQJA10138Z (Cat. 5 straight cable) Length: 1 m (3 ft. 3 in.) Video cable Part no. Length: PSJP01R02Z Stand Part no. PSYLWV10N Remote control Part no. EUR648057 Batteries (2 AA size) Part no. R6PNB/2ST - Operating Instructions - Warranty Recommended Accessories (sold separately) Compatible router: Panasonic BB-HGW700A Network Camera Management System Compatible Network Cameras*: Panasonic BL-C10A, BL-C30A (firmware version 1.20 or higher**) * Cameras not listed here (including other Panasonic Network Cameras) may not be compatible with this product. ** For the latest firmware, visit http://panasonic.co.jp/pcc/products/hnetwk/support/ Setup Guide 2 Setup Overview 1. Insert the batteries in the remote control. 2. Connect the BL-WV10A to the power outlet and to the TV. 3. Use the BL-WV10A’s Basic Setup utility to configure the BL-WV10A. 4. Connect the cameras (and an optional BB-HGW700A Network Camera Management System, if you are using one). 5. Use the BL-WV10A’s Quick Setup utility to configure the cameras . 6. Confirm that camera images are viewable on the TV. 7. Place the cameras where you plan to use them. Preparing the Remote Control The remote control included with the BL-WV10A is required for most operations. Insert the included batteries as shown below. Using the Remote Control The remote control’s navigator keys are used to navigate through the BL-WV10A’s on-screen menus and to select on-screen items. The [RETURN] button is used to return to the previous menu. The [ENTER] button is used to select a menu item or parameter. [RETURN] Navigator keys [ENTER] When using the remote control with the BL-WV10A, make sure you aim the remote control toward the unit’s remote control sensor. Remote control sensor Setup Guide 3 Connecting the BL-WV10A There are 2 ways to connect your cameras to the BL-WV10A. Determine which method you will use, and refer to the pages in this manual listed below. Using the BL-WV10A only. Using an optional BB-HGW700A . BL-WV10A TV Internet BL-BR30A BL-WV10A TV PC Setup Guide 4 Using the BL-WV10A Only Connecting Cameras Using the BL-WV10A Only 1. Connect the BL-WV10A to your TV using the included video cable. 2. Turn the TV on and set the TV’s input switch to the external video input (“VIDEO”, “EXT”, “INPUT 1”, etc.) 3. Set the mode switch on the rear of the BL-WV10A to [SETUP]. 4. Connect the DC cord to the AC adaptor and to the power outlet. 5. Turn on the BL-WV10A by connecting the DC cord to the unit. • The startup screen appears on the TV screen. 6. Use an Ethernet cable to connect the camera to one of the LAN jacks on the BL-WV10A. • If connecting a BL-C30A, set the camera’s mode switch to [WIRED]. 7. Connect the camera to the power outlet. Setup Guide 5 Basic Setup After the BL-WV10A starts up for the first time, the [Basic Setup] screen is displayed. For most installations, these parameters do not need to be changed. For information regarding Basic Setup settings, see page xx in the Operating Instructions. 1. Use the navigator keys to select [Finished], then press [ENTER]. 2. When the dialog is displayed, select [Yes] then press [ENTER] to start Quick Setup. • The BL-WV10A restarts. Setup Guide 6 Quick Setup To use the BL-WV10A with your cameras, you will need to configure the BL-WV10A and your cameras. The BL-WV10A’s Quick Setup utility can help you configure the devices easily. 1. After the unit restarts, wait while the Quick Setup utility scans for network and wireless settings. • When the BL-WV10A has been configured, “Finished” is displayed and the buzzer sounds. • With this connection setup, it is normal for no router or wireless router to be found. 2. Wait while the Quick Setup utility restarts the camera, then configures and registers the camera. → • When the camera has been configured and registered, “Finished” is displayed next to the camera name (“CAM1”) and the buzzer sounds. 3. To register another camera, connect the camera to one of the LAN jacks of the BL-WV10A, then turn the camera on by connecting it to the power outlet. To finish, set the BL-WV10A’s mode switch to [NORMAL], disconnect the DC cord from the rear of the unit, reconnect the DC cord, then continue from “Viewing Camera Images” on page xx. Setup Guide 7 Using an Optional BB-HGW700A Connecting Cameras Using the BB-HGW700A 1. Connect the BL-WV10A to your TV using the included video cable. 2. Turn the TV on and set the TV’s input switch to the external video input (“VIDEO”, “EXT”, “INPUT 1”, etc.) 3. Set the mode switch on the rear of the BL-WV10A to [SETUP]. 4. Connect the DC cord to the AC adaptor and to the power outlet. 5. Turn on the BL-WV10A by connecting the DC cord to the unit. • The startup screen appears on the TV screen. 6. Use an Ethernet cable to connect the BB-HGW700A to one of the LAN jacks on the BL-WV10A. 7. Connect the BB-HGW700A to the power outlet. Setup Guide 8 Basic Setup After the BL-WV10A starts up for the first time, the [Basic Setup] screen is displayed. Here you can set the administrator user name and password. For most installations, other parameters do not need to be changed. For information regarding Basic Setup settings, see page xx in the Operating Instructions. 1. Press [ENTER], use the navigator keys to select [Admin. User Name], then press [ENTER]. 2. Enter an administrator user name (6 or more characters and/or digits), the press [STOP] to save the setting. 3. Select [Admin. Password], then press [ENTER]. 4. Enter an administrator password (6 or more characters and/o…

Text truncated - open the document above for the full version.

10 BLOCK DIAGRAM CPU HD6417751R IC408 CPU BUS SDRAM 128Mbit IC1,IC2 IC6,IC7Buffer IC9,IC10IC11 CKIO 120MHz X'tal X401 20MHz X'tal X200 27MHz SDRAM 128Mbit IC200 102MHz BUS S DR_CLK IC202 Amplifier NJM2561 CN201 Vodeo Output FLASH 64Mbit IC4 IC606 SD Card Controller IC CN601 CPU HD64F36014 IC602 TXD2RXD2 X'tal X600 4.91MHz OSC X1 33MHz IC8 33MHz RTL8100 Ether Controller IC700 PCI BUS Serial 88E6060 4 Ports Switch IC703 T701Trans LAN Port CN700 MAC Wireless BB IC AR5213A IC859 EEPROM IC701 RF IC AR2112A IC857 X'tal X850 40MHz CN850 RF Connector uPG2035T5F IC851 DivercityAntenna DC JACK 12V CN1000 DC/DC Converter HA16116FP IC1000 FET Q1000 FET Q1001 L1001 Inductor L1002 VRF(3.3V) VDD15(1.5V) IC1001 Power Supply Section Ether Section DSP Section SD Card Section L1003L1004 VDD33(3.3V) VDD25(2.5V) IC600 Reset IC RSTN Reset Signal LOGIC IC601 DSP TMS320 DM270 IC203 X'tal X701 25MHz 2 5MHz VRF(3.3V) VRF ADC (1.8V) VRF CORE BL-WV10A BLOCK DIAGRAM (1.8V) VRF33VCO (3.3V) VRF25D (2.5V) IC853 VRF25A (2.5V) VRF DAC (3.3V) IC855 VRF33,VRF33A (3.3V) Clock Buffer Inductor Inductor Regurator Regurator Regurator Composite Signal SD Card Slot External Antenna Pattern Antenna BL-WV10A 29

1 Helen Zhao Subject:FW: PCTP-05-F008: FCC ID: ACJ96NBL-WV10 / CCS Assessment No.: AN05T4760 / Notice #1 AverageFun.ppt From: Mullen, Richard Sent: Thursday, May 12, 2005 7:33 AM To: Helen Zhao Subject: PCTP-05-F008: FCC ID: ACJ96NBL-WV10 / CCS Assessment No.: AN05T4760 / Notice #1 Dear Helen, Please note below answers to your questions: Question #1: Test Report - Max. Peak Output Power The spectrum plots indicate PAvg, which means the output power was measured with max. transmit power averaged across all symbols, as defined in FCC15.247(b)(3). Such measurement procedure is same as UNII output power measurement procedures. Please clearly indicate which method that you use and provide the test procedures. Based upon FCC15.247(d), "If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB." So if the output power is measured based upon 15.247(b)(3), please demonstrate compliance by applying new limits(30dBc). UL-Apex Answer: The maximum peak power is measured with integrating power of 40MHz band during '1R' and '1' as shown in Page 27(Channel Power function of SA) after we got data in screen with the max. hold trace. UL-Apex Answer: We do not use RMS average. (TCB) Then please explain why PAvg showed up on the plots. Please explain in what situation PAvg will show on the plot, in what situation Pk will show on the plot. UL-Apex Answer: PAvg is always displayed. The number of average will be displayed under PAvg if PAvg would be enable. Please refer figure 1 and 2 of attached file. Best regards, Richard Mullen / Panasonic

EXHIBIT A GENERAL INFORMATION This system is a Wireless Camera Monitoring system, which provides with a high speed wireless LAN for IEEE 802.11b/g. <Main Features> 1.Camera Image Monitoring Simply connect the BL-WV10A to the user’s Panasonic home network cameras (sold separately) and to his TV, and the user will be able to view camera images conveniently on his TV. BL-C30A wireless cameras can be connected as well, meaning the user won't have to worry about running cables from the BL-WV10A to each camera. 2.Pan/Tilt Feature Aim the camera wherever you want by simply pressing the navigator keys on the included remote control. <ETHERNET LAN INTERFACE : LAN> Protocol Ports :Four RJ-45 port for PCs and network cameras Standards :IEEE802.3(10Base-T),IEEE802.3u(100Base-TX) Speed :10/100Mbps (automatic assignment) Data Communication Mode :Half duplex/full duplex (automatic identification) MDI/MDI-X : Automatic detection <RF BLOCK> IEEE802.11g Date Signaling Rate :54Mbit/s,48Mbit/s,36Mbit/s,24Mbit/s,18Mbit/s,12Mbit/s,9Mbit/s and 6Mbit/s Media Access Protocol : CSMA/CA(Collision Avoidance) Base-Band Modulation :OFDM 54Mbit/s, 48Mbit/s, 36Mbit/s, 24Mbit/s, 18Mbit/s, 12Mbit/s, 9Mbit/s (before spreading) and 6Mbit/s Carrier Frequency :Selectable from factory pre-programmed set according to 2412 ~ 2462MHz (2412,2417,2422,2427,2432,2437,2442,2447,2452,2457 and 2462MHz) RF Power Density : < 8 dBm/3kHz IEEE802.11b Date Signaling Rate: 11Mbit/s,5.5Mbit/s,2Mbit/s and 1Mbit/s Media Access Protocol: CSMA/CA(Collision Avoidance) Base-Band Modulation: 11Mbit/s,5.5Mbit/s : Complementary Code Keying (CCK) 8bits/symbol (before spreading) 2Mbit/s : DQPSK 1Mbit/s : DBPSK Spread Spectrum: 1Mbit/s,2Mbit/s : Direct Sequence with 11 chips/symbol interval. Pseudo random Barker code sequence: Chipping Rate: 11Mchips/s 5.5Mbit/s,11Mbit/s : Complementary Code Keying (CCK) 8bits/symbol Chipping Rate : 11Mchips/s Carrier Frequency: Selectable from factory pre-programmed set according to 2412 ~ 2462MHz (2412,2417,2422,2427,2432,2437,2442,2447,2452,2457 and 2462 MHz) RF Power Density: < 8 dBm/3kHz

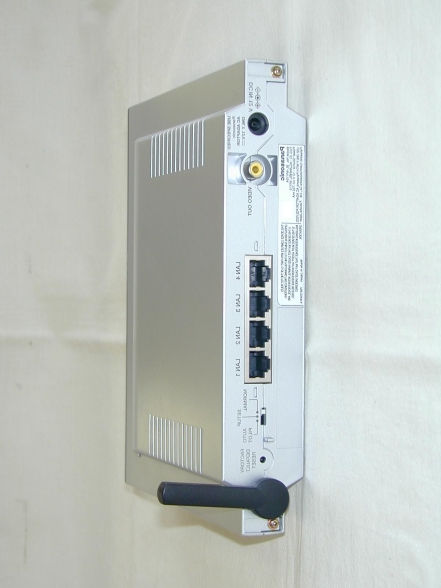

PHOTOGRAPHS Model, BL-WV10A (FCC ID: ACJ96NBL-WV10) Rear View

EXHIBIT B MARKINGS This unit provides with the following markings, or equivalent. NOTE: Above markings are shown on rear of the unit. Nameplate

Internal View P.C. Board (Another Side)

Test report No. : 25HE0249-HO-1 Page : 2 of 52 Issued date : April 26, 2005 FCC ID : ACJ96NBL-WV10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information .............................................................................................................. 3 SECTION 2: Equipment under test (E.U.T.).......................................................................................... 3 SECTION 3: Test specification, procedures & results .......................................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................................... 6 SECTION 5: Conducted Emission........................................................................................................... 8 SECTION 6: Spurious Emission .............................................................................................................. 9 SECTION 7: Bandwidth ......................................................................................................................... 10 SECTION 8: Maximum Peak Output Power ....................................................................................... 10 SECTION 9: Peak Power Density.......................................................................................................... 10 APPENDIX 1: Photographs of test setup .............................................................................................. 11 Conducted Emission ..........................................................................................................................................11 Spurious Emission (Radiated) ......................................................................................................................... 12 Worst Case Position (90 degree(left):Horizontal / 0 degree:Vertical) .......................................................... 13 APPENDIX 2:Test instruments .............................................................................................................. 14 APPENDIX 3: Data of EMI test.............................................................................................................. 15 AC Main Conducted Emission ........................................................................................................................ 15 6dB Bandwidth (Antenna Terminal)............................................................................................................... 23 Maximum Peak OutPut Power (Antenna Terminal) ..................................................................................... 26 Radiated Spurious Emission............................................................................................................................ 29 Conducted Spurious Emission (Antenna Terminal) ...................................................................................... 41 Conducted emission Band Edge compliance (Antenna Terminal) ............................................................... 47 Power Density (Antenna Terminal)................................................................................................................. 48 99%Occupied Bandwidth (Antenna Terminal) ............................................................................................. 51 Test report No. : 25HE0249-HO-1 Page : 3 of 52 Issued date : April 26, 2005 FCC ID : ACJ96NBL-WV10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Panasonic Communications Co., Ltd. Brand name : Panasonic Address : 1-62, 4-Chome, Minoshima, Hakata-ku, Fukuoka-shi, Fukuoka, 812-8531 Japan Telephone Number : +81-92-477-1405 Facsimile Number : +81-92-477-1487 Contact Person : Kunihiko Nawata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Camera Monitoring System Model No. : BL-WV10A Serial No. : ES1 Rating : AC120V/60Hz, 0.24A Country of Manufacture : Japan Receipt Date of Sample : April 21, 2005 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Clock frequencies in the system RF: 40MHz, CPU: 20MHz, LAN: 25MHz Local frequency: 672MHz, 1740-1790MHz Feature of EUT This system is a Wireless Camera Monitoring System, which provides with a high speed wireless LAN for IEEE802.11b/g. Equipment Type Transceiver Frequency band Lower limit 2412MHz Upper limit 2462MHz Frequency of Operation 2412-2462MHz Intermediate frequency 672MHz Duty Cycle 100% (Continuous transmit) Type of Modulation DSSS, OFDM Antenna Type Dipole Antenna Connector Type Murata MM8430 (SMT) Antenna Gain 2.14dBi Mode of Operation Simplex ITU code G1D Operating voltage DC12.0V (Output voltage from an AC Adapter) DC3.3V, DC2.5V (Supply voltage to a module part) Method of Frequency Generation Synthesizer FCC 15.31 (e) The AC Adapter provides stable voltage(DC12V) to the EUT(BL-WV10A) regardless of input voltage variation. The DC voltage(DC12V) provided to EUT(BL-WV10A) is constantly converted and provided as DC3.3V and DC2.5V for the operational voltage within RF module. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement The antenna is not removable from EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 25HE0249-HO-1 Page : 4 of 52 Issued date : April 26, 2005 FCC ID : ACJ96NBL-WV10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification …
