ACJ96NKX-A405DECT 6.0 Repeater for PBX

Model Number:KX-A405 Name:DECT6.0 Repeater 1) AC adaptor:PQLV219 - INPUT 120V/60Hz 100mA - OUTPUT 6.5V/500mA 2) Base model:KX-TGA405 The base of KX-A405 is KX-TGA405. Print circuit board, RF block, antenna and so on of KX-A405 are same as KX-TGA405. As for the difference between these models, refer to table 1, PCB photo and attached schematic diagram. Tabel 1. Difference between KX-A405 and KX-TGA405 ItemKX-TGA405(basemodel)KX-A405(EUT) DC/DC converter circuitNoYes Double layer capacitor(C371)NoYes Connector(CN601)NoYes BBIC(IC501)Mask versionFlash version

FCC Part 15D – Compliance Information part 15d declarations.doc 8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic System Networks Co., Ltd. Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka, 812-8531, Japan Contact Michihito Miyazaki FP PP Repeater EUT Type/System FCC ID ACJ96NKX-A405 Model name KX-A405 HW Version PNLB1754ZA SW Version Version 4.11 Max antenna Gain 1 Can the EUT be Initiating Device YES YES YES Does the EUT transmit signaling channels YES YES YES Max number of slots in use simultaneously 4 slots Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex FCC Part 15D – Compliance Information part 15d declarations.doc 8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Antenna Type Internal External 1 Wired Antenna 2 Wired Antenna 3 4 Base (FP) or Repeater Does RX and TX use the same antenna(s)? Yes No Antenna Type Internal External 1 2 Handset (PP) Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Diversity Supported Antenna TX RX 1 2 3 Base (FP) or Repeater 4 1 Handset (PP) 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Repeater Nominal Voltage 120Vac Cut-Off Voltage (if applicable) - POWER SOURCE Type Manufacturer Base or Repeater AC Adapter with SPS @ 36 kHz, Model PQLV219(UC) “or” AC Adapter with SPS @ 37 kHz, Model PQLV219(FW) Panasonic Handset (PP) (charger) Data Connections PSTN Others (please specify) ....Connect with host PBX via base unit. FCC Part 15D – Compliance Information part 15d declarations.doc 8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor Type PQLV219 Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION DECT 6.0 Cordless Telephone Repeater, Model KX-TGA405 was originally FCC Part 15D granted by TCB Nemko Canada under FCC ID: ACJ96NKX-TGA405. The subject product is a DECT 6.0 PBX Repeater, Model KX-TGA405, which is being applied for under new FCC ID: ACJ96NKX-A405. The original and similarity models are electrically identical regarding the transmitter related circuitry. FCC Part 15D – Compliance Information part 15d declarations.doc 8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: Date: July 1, 2010 Richard Mullen Name (print) Richard Mullen Signature

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Power of Attorney July 1, 2010 PCNF-10-F039 Federal Communication Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Equipment: Isochronous UPCS Repeater Product Name: 1921~1928.448 MHz DECT Repeater for PBX FCC ID Repeater Unit: ACJ96NKX-A405 Type of Filing: Original 1 Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Responsible Sales Company: Panasonic Consumer Electronics Company Unit Company under Panasonic Corporation of North America Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 DECT 6.0 Cordless Telephone Repeater, Model KX-TGA405 was originally FCC Part 15D granted by TCB Nemko Canada under FCC ID: ACJ96NKX-TGA405. The subject product is a DECT 6.0 PBX Repeater, Model KX-TGA405, which is being applied for under new FCC ID: ACJ96NKX-A405. The original and similarity models are electrically identical regarding the transmitter related circuitry. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality July 1, 2010 PCNF-10-F039 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Equipment: Isochronous UPCS Repeater Product Name: 1921~1928.448 MHz DECT Repeater for PBX FCC Rule Part: FCC Part 15D Equipment Class: Unlicensed PCS Base Station / Equipment Classification Code PUB Model Number: KX-A405(xx) Family FCC ID Repeater Unit: ACJ96NKX-A405 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagram of Base Unit and RF Unit; and (4) Block Diagram of Base Unit and RF Unit. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date for exhibits which contain: (1) External Photographs; (2) Internal Photographs; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

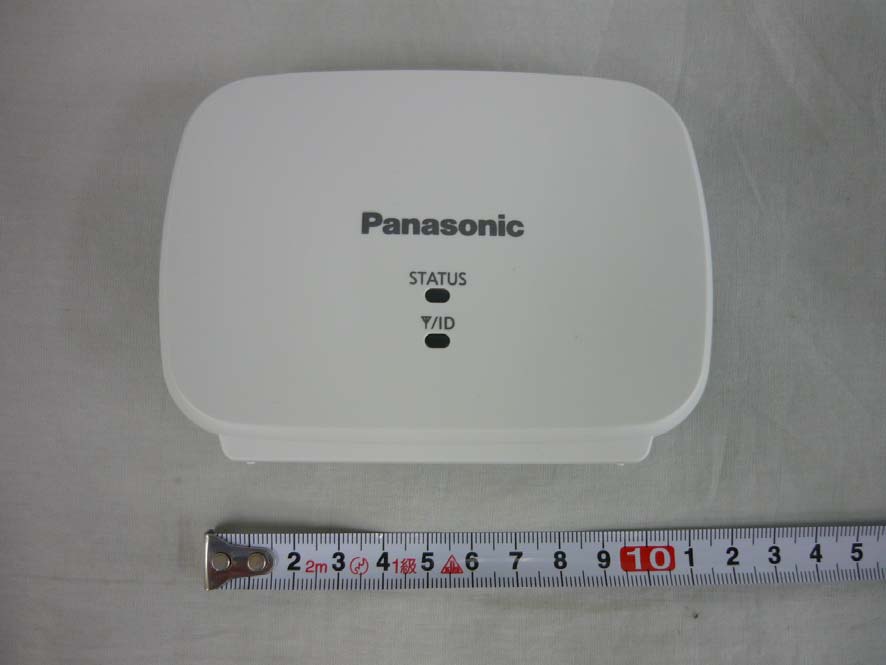

Temporary Confidential EXTERNAL PHOTOGRAPHS Front view Rear view

EXHIBIT B MARKINGS NOTE: Above markings are shown on back side of the unit.

Temporary Confidential INTERNAL PHOTOGRAPHS

PCB photo of KX-A405 and KX-TGA405 (1) Front side(2) Back side (1) Front side(2) Back side Fig. 1 PCB photo of KX-A40 5 Fig. 1 PCB photo of KX-TGA405 RF Block RF Block (same as KX-TGA405)

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to isotropicR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.20 (dBm) Maximum peak output power at antenna input terminal: 83.18 (mW) Antenna gain(typical): 1.4 (dBi) Maximum antenna gain: 1.380 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1925 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm^2) Power density at prediction frequency: 0.022842 (mW/cm^2) Power density at prediction frequency: 0.2284 (W/m^2) Margin of Compliance: 16.4 (dB) 2 4 R PG S π =

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 137945-5 Item tested : KX-TGA405 Type of equipment : UPCS Wireless Relay Station FCC ID : ACJ96NKX-TGA405 Client : Panasonic Communications Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 7 December 2009 Authorized by : ........................ ...................... Egil Hauger Technical Verificator TEST REPORT FCC part 15D Report no.: 137945-5 FCC ID: ACJ96NKX-TGA405 Nemko AS, N-2007 Kjeller Page 2 (57) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Description of Tested Device(s) ........................................................................................................ 4 2.3 Exposure Evaluation .......................................................................................................................... 5 2.4 Test Environment .............................................................................................................................. 5 2.5 Test Period ........................................................................................................................................ 5 2.6 Test Engineer(s) ................................................................................................................................ 5 2.7 Test Equipment ................................................................................................................................. 5 2.8 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS ................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave .................................................................................................. 11 4.3 Digital Modulation Techniques ........................................................................................................ 11 4.4 Labeling Requirements ................................................................................................................... 11 4.5 Antenna Requirement...................................................................................................................... 12 4.6 Channel Frequencies ...................................................................................................................... 12 4.7 Automatic Discontinuation of Transmission .................................................................................... 13 4.8 Peak Power Output ......................................................................................................................... 14 4.9 Emission Bandwidth B ..................................................................................................................... 19 4.10 Power Spectral Density ................................................................................................................... 22 4.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 25 4.12 Out-of-band Emissions, Conducted................................................................................................. 27 4.13 Carrier Frequency Stability .............................................................................................................. 32 4.14 Frame Repetition Stability ............................................................................................................... 33 4.15 Frame Period and Jitter ................................................................................................................... 33 4.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 35 4.17 Threshold Monitoring Bandwidth ..................................................................................................... 37 4.18 Reaction Time and Monitoring Interval ............................................................................................ 38 4.19 Time and Spectrum Window Access Procedure .................................................................…
