ACJ96NKX-CC2000900 MHz Controller Unit for Play Station

Panasonic Corporation of North America

Click to zoom

Application Details

Equipment Class: DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant: Nov 15, 2000
Application Purpose: Original Equipment
Date of Application: Oct 03, 2000
Equipment Note: 900 MHz Controller Unit for Play Station
Frequency Range: 913.00000000 - 917.60000000
Company: Panasonic Corporation of North America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

FCC ID: ACJ96NKX-CC2000 EXHIBIT A. GENERAL DESCRIPTION: The 8056H is a 900 MHz Transceiver, its function is to receive and send control signals from/to the 900 MHz 8056B base unit. TECHNICAL DATA SHEET POWER SOURCE: 3.6 V from 3-cells Ni-Cd, 600mAh. CONTROLS:Security Code selector: One 3 positions dipswitch. On/Off interrupter: This function will be done automatically as follow: Turned on: After touching any or some specific keys. Turned off: When any key has not been touched for long time. Joysticks: Two analog joysticks included Key board: Mode, select, start, L1, L2, L3, R1, R2, R3, UP, RIGHT, DOWN, LEFT, TRIANGLE, O, X, SQUARE. INDICATORS: LED indicator: A dual color LED will be used as follow: - Off. For digital mode. - Red for analog mode. - Green for sleeping mode. - Flashing for LOW BATTERY indicator. 2 DC motors are included for vibration. GENERAL : Frequency Band: 913MHz – 917.6MHz (4.6MHz). 24 Channels Automatic Channel selection Transmission Technique: FSK working in half duplex communication mode. BLOCK DIAGRAM: C.P.U. microcontroller Motor’s Interface. Low battery and charge current circuit Security code selector and LED’s indicators Matrix ke y Joystick R Joystick L 900MHz RF data communication module DC motor 1 DC motor 2 Rechargeable Batteries Charge contacts FCC ID: ACJ96NKX-CC2000 Channel assignment chart for the 8056H. Channel Frequency (MHz) 1 913.00 2 913.20 3 913.40 4 913.60 5 913.80 6 914.00 7 914.20 8 914.40 9 914.60 10 914.80 11 915.00 12 915.20 13 915.40 14 915.60 15 915.80 16 916.00 17 916.20 18 916.40 19 916.60 20 916.80 21 917.00 22 917.20 23 917.40 24 917.60 MODEL DIFFERENCES: Model KX-CC2000 is identical to Model 8056H. Total Channels: 24 Frequency band required: 913 MHz – 917.6 MHz (4.6MHz). Channel spacing: 200KHz. Modulation technique: Digital FSK. Deviation: 50KHz Maximum Data rate: 5.6 Kbits/sec. Minimum Data rate: 4.16 Kbits/sec. Bandwidth@ 3dB down : 60 KHz. Bandwidth@ 20dB down: 93 KHz. Bandwidth@ 30dB down: 140 KHz. Bandwidth@ 40dB down: 220 KHz. 25KHz25KHz25KHz25KHx 200KHz F ch1F ch 2 25~35 dB

Cover Letter(s)

1 Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic W ay, 4B-8Richard Mullen Secaucus, NJ 07094Manager Panasonic Quasar Technics Fax: (201) 392-4564Tel: (201) 348-7758 e-mail: [email protected] To:Joseph Dichose / FCC Application Processing Branch From:Richard Mullen / Matsushita Electronic Corp. of America Date:November 2, 2000 Re:FCC ID: ACJ96NKX-CC2000 Applicant:Matsushita Electric Industrial Co., Ltd. 731Confirmation Number:EA98956 Correspondence Ref. No.:16894 Correspondence Date:November 1, 2000 Fty Ref No:KMTDKM4-00-AK10 Type Product:900 MHz Remote Control for Play Station 1. Today I filed internal view photograph with the shielding removed. 2. The remote control’s uses a permanent attached antenna designed of copper tracks on the printed wiring board and thus, is in compliance with Section 15.203 for antenna replacement requirement. Sincerely yours, Richard Mullen Group Manager Product Safety and Compliance Division

External Photos

FCC ID: ACJ96NKX-CC2000 EXHIBIT D PHOTOGRAPHS: APPEARANCE. FCC ID: ACJ96NKX-CC2000 INTERNAL PCB.

ID Label/Location Info

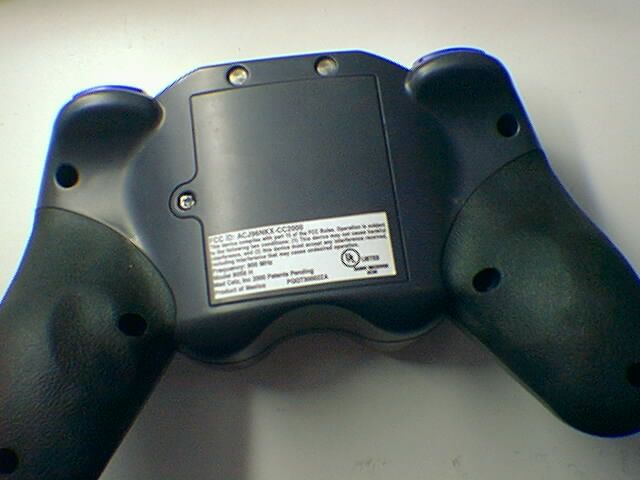

FCC ID: ACJ96NKX-CC2000 EXHIBIT B LABEL MARKING ON THE PRODUCT: FCC ID: ACJ96NKX-CC2000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Frequency: 900 MHz Model # 8056H Mad Catz, Inc 2000 Patents Pending Product of Mexico PQQT30002ZA U L

Internal Photos

Operational Description

FCC ID: ACJ96NKX-CC2000 EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUTRY: CONTROLLER UNIT: A) TRANSMISSION UNIT OPERATION. 1) The scanning process in the matrix keyboard and the joysticks is performed to build the transmission data package to be sent to the base unit. This data package includes 64 bits: 3 bits for the ID code gotten from the dipswitches, 18 bits for each button of the controller, 32 bits for the 4 analog joysticks, 8 bits for parity and 3 free bits. 2) The data package is sent from the pin 2 of IC201 (CPU) to the pin 19 of IC301 (RF chip). 3) The data package is modulated using FSK modulation technique by the internal PLL and VCO of IC301 and then it is sent to the power amplifier included in the IC301. 4) Finally the RF transmission signal coming from the power amplifier output of IC301 (pin 5) is matched to the antenna (pcb antenna) through C308, L304, L311 and L312. B) RECEIVER UNIT OPERATION. 1) A data signal from the base unit is received by the antenna, then it is matched to the LNA of IC301 (pin 2) through L311, L312 and C302. 2) Then the RX signal already amplified by the LNA is mixed whit other frequency coming from the PLL of IC 301 to get a 10.7MHz I.F. signal in the mixer output terminal (pin 44). 3) Then the 10.7MHz signal goes through CF302 to pin 42 of IC301 where it is amplified in the pin 41, then it goes through CF301 to the demodulator input (pin 39) where the signal is completely demodulated. 4) Finally the RX data signal is gotten in the output of the data slicer (pin 28) of IC 301 and it is going to the RX data terminal of IC 201 (pin 31). 5) The RX data signal is decoded by IC201 to control both DC motors, the macro function, the operation mode and to confirm the ID code used and channel used.
