ACJ96NKX-CC2000BS900 MHz Base Unit for Play Station

Panasonic Corporation of North America

Click to zoom

Application Details

Equipment Class: DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant: Nov 06, 2000
Application Purpose: Original Equipment
Date of Application: Oct 03, 2000
Equipment Note: 900 MHz Base Unit for Play Station
Frequency Range: 913.00000000 - 917.60000000
Company: Panasonic Corporation of North America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

FCC ID: ACJ96NKX-CC2000BS EXHIBIT A. GENERAL DESCRIPTION: The 8056B is a 900 MHz Transceiver, its function is to receive and send control signals from the Sony’s Play Station I or II to the 900 MHz 8056H Cordless controller. TECHNICAL DATA SHEET POWER SOURCE: 3.5 V to supply CPU from Sony’s Play Station 7.0 V to supply RF circuitry from Sony’s Play Station CONTROLS:Security Code selector: One 3 positions dipswitch is included. GENERAL : Frequency Band: 913MHz – 917.6MHz (4.6MHz). 24 Channels Automatic Channel selection Transmission Technique: FSK working in half duplex communication mode. Channel assignment chart for the 8056B. Channel Frequency (MHz) 1 913.00 2 913.20 3 913.40 4 913.60 5 913.80 6 914.00 7 914.20 8 914.40 9 914.60 10 914.80 11 915.00 12 915.20 13 915.40 14 915.60 15 915.80 16 916.00 17 916.20 18 916.40 19 916.60 20 916.80 21 917.00 22 917.20 23 917.40 24 917.60 Total Channels: 24 Frequency band required: 913 MHz – 917.6 MHz (4.6MHz). Channel spacing: 200KHz. Modulation technique: Digital FSK. Deviation: 50KHz Maximum Data rate: 5.6 Kbits/sec. Minimum Data rate: 4.16 Kbits/sec. Bandwidth@ 3dB down : 60 KHz. Bandwidth@ 20dB down: 93 KHz. Bandwidth@ 30dB down: 140 KHz. Bandwidth@ 40dB down: 220 KHz. 25KHz25KHz25KHz25KHx 200KHz F ch1F ch 2 25~35 dB BLOCK DIAGRAM: MODEL DIFFERENCES: Model KX-CC2000BS is identical to Model 8056B. 900MHz RF data communication module C.P.U. (microcontroller) Security code selector. S.C .I. Play Station I or II

Cover Letter(s)

1 Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic W ay, 4B-8Richard Mullen Secaucus, NJ 07094Manager Panasonic Quasar Technics Fax: (201) 392-4564Tel: (201) 348-7758 e-mail: [email protected] To:Joseph Dichose / FCC Application Processing Branch From:Richard Mullen / Matsushita Electronic Corp. of America Date:November 2, 2000 Re:FCC ID: ACJ96NKX-CC2000BS Applicant:Matsushita Electric Industrial Co., Ltd. 731Confirmation Number:EA98955 Correspondence Ref. No.:16891 Correspondence Date:November 1, 2000 Fty Ref No:KMTDKM4-00-AK09 Type Product:900 MHz Base Unit for Play Station 1. Today I filed internal view photograph with the shielding removed. 2. The base unit employs an unique custom-made antenna jack to plug the antenna onto the base unit. It is not interchangeable with other commonly available antennas and thus, is in compliance with Section 15.203 for antenna replacement requirement. Sincerely yours, Richard Mullen Group Manager Product Safety and Compliance Division

External Photos

FCC ID: ACJ96NKX-CC2000BS EXHIBIT D PHOTOGRAPHS: APPEARANCE. FCC ID: ACJ96NKX-CC2000BS PCB.

ID Label/Location Info

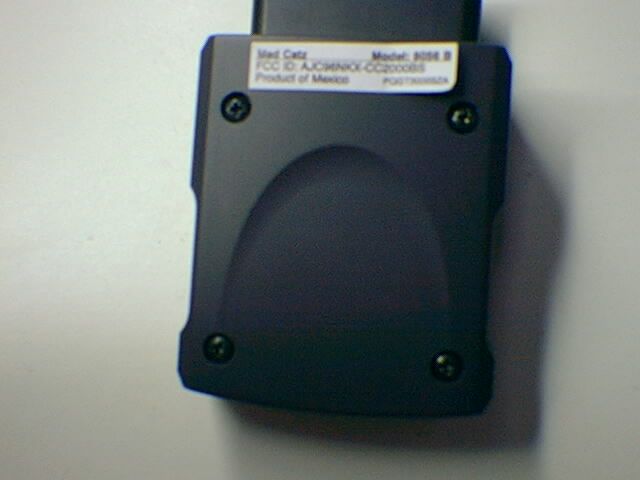

FCC ID: ACJ96NKX-CC2000BS EXHIBIT B LABEL MARKING ON THE PRODUCT: The following statement (or equivalent) is shown on the user's manual. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Mad Catz Model: 8056B FCC ID: ACJ96NKX-CC2000BS

ID Label/Location Info

Internal Photos

Operational Description

FCC ID: ACJ96NKX-CC2000BS EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUTRY: BASE UNIT: A) TRANSMISSION UNIT OPERATION. 1) The communication process with the play station is performed and the information is decoded to build the transmission data package to be sent to the controller unit. This data package includes 24 bits: 3 bits for the ID code gotten from the dip switches, 2 bits for macro function, 2 bits for operation modes, 1 bit for the smaller motor, 8 bits for the bigger motor and 8 bits for parity. 2) The data package is sent from the pin 11 of IC102 (CPU) to the pin 19 of IC101 (RF chip). 3) The data package is modulated using FSK modulation technique by the internal PLL and VCO of IC101 and then it is sent to the power amplifier included in the IC101. 4) Finally the RF transmission signal coming from the power amplifier output of IC101 (pin 5) is matched to the antenna through C125, L106, C122 and C140. B) RECEIVER UNIT OPERATION. 1) A data signal from the controller unit is received by the antenna, then it is matched to the LNA of IC101 (pin 2) through C128, L103 and C129. 2) Then the RX signal already amplified by the LNA is mixed whit other frequency coming from the PLL of IC 101 to get a 10.7MHz I.F. signal in the mixer output terminal (pin 44). 3) Then the 10.7MHz signal goes through CF102 to pin 42 of IC101 where it is amplified in the pin 41, then it goes through CF101 to the demodulator input (pin 39) where the signal is completely demodulated. 4) Finally the RX data signal is gotten in the output of the data slicer (pin 28) of IC 101 and it is going to the RX data terminal of IC 102 (pin 12). 5) The RX data signal is decoded by IC102, then this data information is used when a communication with the play station happens, during this process all the buttons states and joysticks are sent to the play station.

Schematics

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA KYUSHU MATSUSHITA ELECTRIC DE B. C. ENGINEERING DEPARTMENT. TITLE: BASE STATION ELECTRICAL SCHEMATIC FOR CORDLESS CONTROLLER SIZE: D NUMBER: N / A REVISION No.ECN: DRAFTER:FILE: DESIGN ENG. PROYECT LEADER SECTION MGR. ENG. MGR. APPROVALS N / A. DATE: 11/ SEP / 2000 V.MARTINEZ SHEET: 1 OF 1. R11010 K C107 1.5 nF C10933 nF C108 1.5 nF C103 0.1μF L101 8.2nH C137 100 pF R103 18 K C119100pF C120 1nF L10710nH C116 1.8pF C117 3.3pF D101 SMV1249-011 R102 100K C132 0.1μF L105 4.7nH C131 C129 100 pF C125 3.3pF XL10125.6 MHz R1071M R106 100Ω 100Ω 100Ω 100Ω C111 47 pF C112 47 pF 1 3 2 CF101 10.7 MHz C101 1pF C114 0.1μF C104 0.1μF L108 2.2μH C105 100pF C106 15 pF R10910 K 1 1 RX_IN TX_OUT C102 0.1μF R116 100Ω 100Ω 100Ω 100Ω R111 100Ω 100Ω 100Ω 100Ω R11210 K R118 100Ω 100Ω 100Ω 100Ω R12210k R11410 K R108 10Ω 10Ω 10Ω 10Ω R115 0Ω 0Ω 0Ω 0Ω C1224.7 pF C121 C110 L10218nH C127 L103 0Ω 0Ω 0Ω 0Ω L106 10 nH C113 1.5p-10pF X102 12.00MHZ C133 15p C13415p SW103*SW102*SW101* VCC SCKTxDRxD C130 100 pF DTRDSR D103SCHOTTKY D104SCHOTTKY VCC-14V Checked Signed Revition Sym. Date 123 CC2000B-H R12410K R12510K R12610K R12710K PANASONIC 1 TP3 12345 J1TP VCC-14 VCC GND B7B6 B6B7 1 TP5 123456789 J2CON9 RxDTxD GND VCCDTRDSRSCK TM1TM2TM3TM4 1 TP4TM1 1 TP6TM2 1 TP7TM3 1 TP8TM4 TX_DATA MODE STANDBY RX_DATACLK DATA VCO 1 TP16 1 2 JM1 JUMPER 1 2 JM2 JUMPER 1 2 JM3 JUMPER 1 2 JM4 JUMPER DSRDTRRXDTXDSCK VCC-14 C124 C136 0.1 uF R11710k RC6 1 RC5 2 RC4 3 RD3 4 RD2 5 RD1 6 RD0 7 NC 8 NC 9 RC3 10 RC2 11 RC1 12 RC0 13 OSC2 14 OSC1 15 Vss 16 Vss 17 AVss 18 VDD 19 VDD 20 VDD 21 RE2 22 RE1 23 RE0 24 RA5 25 RA4 26 RA3 27 RA2 28 RA1 29 RA0 30 MCLR 31 Vss 32 VDD 33 RB7 34 RB6 35 NC 36 NC 37 RB5 38 RB4 39 RB3 40 RB2 41 RB1 42 RB0 43 VDD 44 VDD 45 AVDD 46 NC 47 NC 48 Vss 49 Vss 50 RD7 51 RD6 52 RD5 53 RD4 54 RC7 55 PIC16C74B IC102 DIE VCC VCC-14 B7B6 RxDTxDVCCDTRDSRSCK VCC L VCC L VCCRF VCCRF VCCRF VCCRF VCC L STRB 1 TP13VCC-14 1 TP23 R11310k VCCRF Vin 5 Vout 4 Gnd 3 Gnd 2 Control 1 IC 103Voltage Regulator PIC + C138 C139 L109 1 3 2 CF102 10.7 MHz ( ) 0 Ω + C135 6.3μF 0.1 μF C1180.1μF L110 0Ω 0Ω 0Ω 0Ω C115 PIC ( ) C123 ( ) C140 0Ω 0Ω 0Ω 0Ω C126 ( ) C128 0Ω 0Ω 0Ω 0Ω C141 L104 ( ) ( ) R101 10Ω 10Ω 10Ω 10Ω VCC L 8V 8V + C1424.7μF B7 B6 R105 VCC L R128100K PROGRAMER PLAY STATION CONECTOR ( ) ( ) ( ) ( ) ( ) ( ) D105SCHOTTKY R104 100 nH 123456789 101112 13 14 15 16 17 18 19 20 21 22 23 24 252627282930313233343536 37 38 39 40 41 42 43 44 45 46 47 48 LN A_ GN DLN A_ INLN A_ GN DPA_VCCPA_OUTPA_GNDPD_S ETPLL_ GN DPD_OUT2PD_OUT1LOCKDETPLL_ VC C VCO_TANK1 VCO_TANK2 DDS_GND STDBY MODE DSS_VCC TX_DATA DIG_VCC DIG_GND GND XOSC1 XOSC2 STROBE CLOCK DATA DATA_OUT S&H_CA AMP_O UTAMP_C AP AMP_IN RSSI_OUT DEM_TANKDEM_TANK DEM_VCC VREF DEM_GND IF2_IN IF_GND IF1_OUT IF1_IN MIX_GND MIX_OUT MIX_IN MIX_VCC LNA_OUT LNA_VCC TRF6900 IC101

Test Report

FCC TEST REPORT for Panasonic AKME-BC 900MHz Dual Force Controller Base Unit Model KX-CC2000B Garwood Laboratories, Inc. Garwood Laboratories, Inc.Garwood Laboratories, Inc. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No. FR1503-2 EUT: 900MHz Dual Force Controller Date: September 15, 2000 1 of 25 EMC Measurement / Technical Report FCC Requirement : FCC Part 15, Subpart C §15.249 Type of Authorization : Certification Manufacturer : Panasonic AKME-BC Equipment Under Test : 900MHz Dual Force Controller Base Unit Model: KX-CC2000B Test Report No. : FR1503-2 Purchase Order No. : KC132 Document History Revision Issue Date Affected Pages Description of Modifications Revised By Approved By N/C September 15, 2000 Initial release Garwood Laboratories, Inc. Garwood Laboratories, Inc.Garwood Laboratories, Inc. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No. FR1503-2 EUT: 900MHz Dual Force Controller Date: September 15, 2000 2 of 25 EMC Measurement / Technical Report Document No. FR1503-2 From Garwood Laboratories, Inc. World Compliance Division Test for Panasonic AKME-BC 900MHz Dual Force Controller Base Unit Model KX-CC2000B Test Personnel Test Dates Arnulfo Tapia – EMC Sr. Technician September 9, 2000 Test Facility Address City, State, Zip Code Phone Fax Garwood Laboratories, Inc. 565 Porter Way Placentia, CA 92870 (714) 572-2027 (714) 572-2025 This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the equipment tested. This report may not be used to claim product endorsement by NVLAP or any agency of the U.S. government. Garwood Laboratories, Inc. Garwood Laboratories, Inc.Garwood Laboratories, Inc. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No. FR1503-2 EUT: 900MHz Dual Force Controller Date: September 15, 2000 3 of 25 TABLE OF CONTENTS (This document contains a total of 25 pages [excluding] attachments.) MEASUREMENT / TECHNICAL REPORT SUMMARY ............................................................................ 4 1. GENERAL INFORMATION................................................................................................................... 5 1.1 Product Description ...................................................................................................... 5 1.2 Related Submittal(s)/ Grant(s) ...................................................................................... 5 1.3 Tested System Description ............................................................................................ 6 1.4 Test Methodology .......................................................................................................... 6 1.5 Test Facility................................................................................................................... 7 2. PRODUCT LABELING.......................................................................................................................... 8 2.1 FCC Declaration of Conformity Label ......................................................................... 8 2.2 Location of Label on EUT............................................................................................. 8 2.3 Information to the User ................................................................................................. 8 3. SYSTEM TEST CONFIGURATION ....................................................................................................... 9 3.1 Justification ................................................................................................................... 9 3.2 EUT Exercise Software/Equipment ............................................................................... 9 3.3 Special Accessories ....................................................................................................... 9 3.4 Equipment Modifications .............................................................................................. 9 3.5 Configuration of Tested System .................................................................................. 10 3.6 Details of Tested System.............................................................................................. 10 4. BLOCK DIAGRAM(S) OF EUT........................................................................................................... 11 5. TEST MEASUREMENT/EUT PHOTOS .............................................................................................. 12 6. TEST DATA .......................................................................................................................................... 18 6.1 Conducted Emission Limits......................................................................................... 18 6.2 Conducted Emission Results ....................................................................................... 18 6.3 General Radiated Emission Requirements.................................................................. 19 6.4 General Radiated Emission Results ............................................................................ 19 6.5 Additional Radiated Emission Requirements .............................................................. 20 6.6 Additional Radiated Emission Results ........................................................................ 20 6.7 Field Strength Calculation .........................................................................................…
