2.4 GHz Cordless Phone System with Fax and Copier Operating Instructions Model No. KX-FPG379 Please read these Operating Instructions before using the unit and save for future reference. KX-FPG379(E) (001-007) 04.11.2 11:49 AM Page 1 2 For your future reference Date of purchaseSerial number (found on the rear of the unit) Dealer’s name and address Dealer’s telephone number Caution:  The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be a 900 number or any other number for which charges exceed local or long-distance transmission charges.) In order to program this information into your fax machine, you should complete the instructions on page 5 to page 7.  Note that the images of copied or received documents will remain on the used film. When disposing of the used film, use discretion.  Do not rub or use an eraser on the printed side of recording paper, as the print may smear. KX-FPG379(E) (001-007) 04.11.2 11:49 AM Page 2 3 Important safety instructions! When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on this unit. 3. Unplug this unit from AC outlets before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this unit near water, for example near a bath tub, wash bowl, kitchen sink, or the like. 5. Place the unit securely on a stable surface. Serious damage and/or injury may result if the unit falls. 6. Do not cover slots and openings on the unit. They are provided for ventilation and protection against overheating. Never place the unit near radiators, or in a place where proper ventilation is not provided. 7. Use only the power source marked on the unit. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. 8. For safety purposes this product is equipped with a three prong grounded plug. If you do not have this type of outlet, please have one installed. Do not use any type of adaptor plug to defeat this safety feature. 9. Do not place objects on the power cord. Install the unit where no one can step or trip on the cord. 10. Do not overload wall outlets and extension cords. This can result in the risk of fire or electric shock. 11. Never push any objects through slots in this unit. This may result in the risk of fire or electric shock. Never spill any liquid on the unit. 12. To reduce the risk of electric shock, do not disassemble this unit. Take the unit to an authorized servicenter when service is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the unit is subsequently used. 13. Unplug this unit from the wall outlet and refer servicing to an authorized servicenter when the following conditions occur: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the unit. C. If the unit has been exposed to rain or water. D. If the unit does not work normally by following the operating instructions. Adjust only controls covered by the operating instructions. Improper adjustment may require extensive work by an authorized servicenter. E. If the unit has been dropped or physically damaged. F. If the unit exhibits a distinct change in performance. 14. During thunderstorms, avoid using telephones except cordless types. There may be a remote risk of an electric shock from lightning. 15. Do not use this unit to report a gas leak, when in the vicinity of the leak. SAVE THESE INSTRUCTIONS INSTALLATION: 1. Never install telephone wiring during a lightning storm. 2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 3. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone lines. WARNING: To prevent the risk of fire or electrical shock, do not expose this product to rain or any type of moisture. OTHER INFORMATION  Keep the unit away from electrical noise- generating devices, such as fluorescent lamps and motors.  The unit should be kept free from dust, high temperature and vibration.  The unit should not be exposed to direct sunlight.  Do not place heavy objects on top of this unit.  Do not touch the plug with wet hands. KX-FPG379(E) (001-007) 04.11.2 11:49 AM Page 3 4 Recording paper! 1 Fan the stack of paper to prevent a paper jam. 2 Insert the paper into the paper tray. Connections! 1 Connect the telephone line cord. 2 Connect the power cord. Note:  The warranty does not cover damage due to power line surges or lightning. For additional equipment protection, we recommend you use a surge protector. Caution:  When you operate this product, the power outlet should be near the product and easily accessible. To a single telephone line jack (RJ11C) To a power outlet (120 V, 60 Hz) Telephone line cord Power cord Power surge protector ( ) Power surge protector ( ) KX-FPG379(E) (001-007) 04.11.2 11:49 AM Page 4 5 Date and time, your logo and facsimile telephone number! You should program the date and time, your logo and facsimile telephone number. This information will be printed on each page transmitted from your unit. Fax Correspondence Your logo Your facsimile telephone number Date and time FROM : Panasonic Fax Example…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has 1,099 billion digital security coding combinations that are provided by the following means: • Provided with 40 bits (1,099 billion) for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base and Handset knows each other’s security code information.

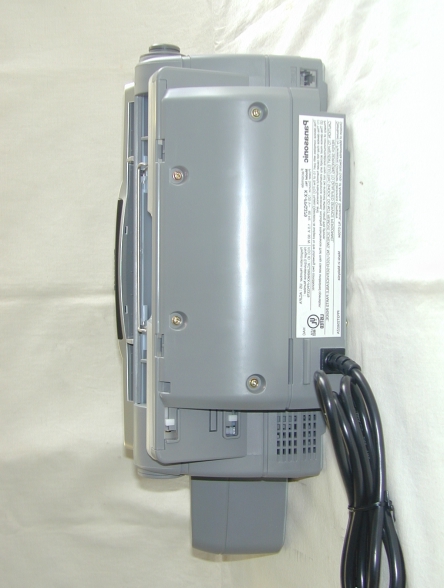

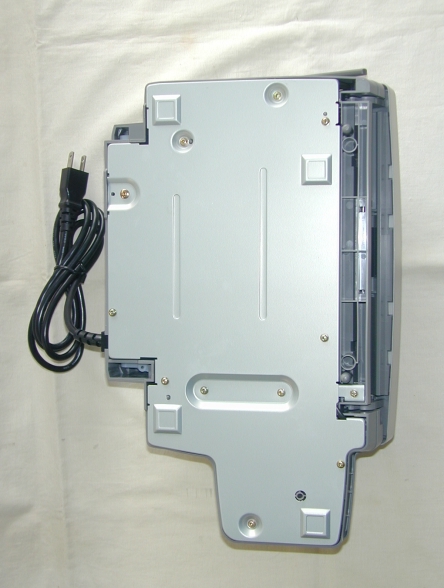

Photographs KX-FPG379 Rear View Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following markings, or equivalent. NOTE: Above markings are shown on rear of the unit. Nameplate

Photographs Internal View Telephone Board Telephone Board (Another Side) Digital Board Digital Board (Another Side) RF Board RF Board (Metal Cover Open) RF Board (Another Side) Power Supply Board Power Supply Board (Another Side)

IssueDate:December8,2004 Page 1 of 42 TEST REPORTEMCEMISSION - JQA APPLICATION No.: KL80040395 Name of Product: Facsimile with 2.4GHz FHSS Cordeless Telephone (Base Unit) Model/Type No.: KX-FPG379 FCC ID: ACJ96NKX-FPG379 : Panasonic Communications Co., Ltd.Applicant : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, JapanAddress : Panasonic Communications Co., Ltd.Manufacturer : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, JapanAddress November 2, 2004Receive date of EUT: PassedFinal Judgement: are obtained in use of equipment that is traceable to National TEST RESULTS IN THIS REPORT Institute of Advanced Industrial Science and Technology (AIST) under METI Japan and National Institute of Information and Communications Technology(NICT) under MPHPT Japan. only responds to the test sample. This test report shall not be reproduced THE TEST RESULTS except in full. Authorized by: Takashi Yamanaka, Director JQA KITA-KANSAI Testing Center Page 2 of 42 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 5 Test Conditions6-16 Configuration of EUT / Operation mode of the EUT17 - 18 EUT Modification / Responsible Party / Deviation from Standard19 Test results / Measurement Uncertainty20 - 22 Summary23 24Test System-Arrangement (Drawings) 25 - 28Preliminary Test and Test-setup (Drawings) 29Test-setup (Photographs) at worst case B) Test data Conducted Emission150 kHz - 30 MHz30 Electromagnetic Field Radiated Emission9 kHz - 25 GHz31 - 34 Maximum Peak Power (EIRP)35 Transmitter Power (TP)36 Antenna Gain of the EUT37 20dB Bandwidth38 Band-edge Emission39 Carrier Frequencies Separation40 Channel Separation / Dwell Time41 - 42 JQA Application No. : KL80040395Regulation: CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date: December 8, 2004 FCC ID: ACJ96NKX-FPG379 JQA Application No. : KL80040395Regulation: CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date: December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 3 of 42 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and C (Effective October 7, 2004) - Class A Digital Device{ - Class B Digital Device{ - Intentional Radiator (Sec.15.247)z - Receiver{ Test items: - Sec.15.203 : Antenna requirement{ - Sec.15.205 : Restricted bands of operationz - Sec.15.207 : Conducted limitsz - Sec.15.209 : Radiated emission limits general requirementsz - Sec.15.214 : Cordless Telephones{ - Sec.15.247 : Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz,z and 24.0-24.25GHz Test procedure: The tests were performed according to the procedures in ANSI C63.4-2003. GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai: 1st Open Site (3 m Site) Test Facility located at Kameoka: 1st Open Site (3, 10 and 30 m, on common plane) :2ndOpenSite(3and10m,oncommonplane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognizedunder the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 3) Average Measurement Method FCC filing No. : 950523A 1300F2 Definitions for symbols used in this test report: - Black box indicates that the listed condition, standard or equipment is applicablez for this Report. - Blank box indicates that the listed condition, standard or equipment is not applicable{ for this Report. JQA Application No. : KL80040395Regulation: CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date: December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 4 of 42 Description of the Equipment Under Test (EUT): 1) Name: Facsimile with 2,4GHz FHSS Cordless Telephone (Base Unit) 2) Model/Type No.: KX-FPG379 3) Product Type: Ptotype 4) Category: Intentional Radiator 5) EUT Authorization:- Verification- Certification- D.o.C.{z { 6) Transmitting Frequency: 2400.914355 MHz (01ch) - 2480.292773 MHz (90ch) 7) Receiving Frequency: 2400.914355 MHz (01ch) - 2480.292773 MHz (90ch) 8) Method/System: Frequency Hopping Spread Spectrum (FHSS) 9) Type of Antenna: Collinear Antenna 10) Antenna Gain: 4 dBi(Rated) 11) Measured MAX Output Power: 58.9 mW (Conducted) 12) Power Rating: AC 120V 60Hz 1 3-pin plugφ JQA Application No. : KL80040395Regulation: CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date: December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 5 of 42 Detailed Transmitter portion (Channel plan): Transmitting frequency: 2400.914355 MHz (01ch) - 2480.292773 MHz (90ch) Number of channel: 90 Channel Separation: 891.871 kHz Modulation System Information: Spread Spectrum Method : Frequency Hopping Modulation: GFSK (Gaussian-shaped Binary Frequency Shift Keying) HopRate: 100hops/sec. Bit Rate: 576 kBit/sec. Digital Security Code: 40 Bit Time Division Multiple Access(TDMA) Frame structure. The basic, repeating, frame structure is 10msec long. It is sub-divided into 8 slots, each 1250usec long. Theactivetransmissiontimeis986.1usec.Thefirst4slotsfromthe up-link ,whentheHandsets“” transmittotheBaseUnit.Thelast4slotsformthe down-link ,whentheBasesettransmitstothe“” Handsets. This system uses TDD (Time DivisionDuplex) to carry a two-way voice communication. This is always by using slot-pairs: 0 and 4, 1 and 5, 2 and 6, 3 and 7. Each slot contains 568 bits of 1.736 usec duration, with 263.9 usec gap times between each slot. Detailed Receiver portion: Receiving frequency: 2400.914355 MHz (01ch) - 2480.292773 MHz (90ch) Local frequency: 2398.914355 MHz (01ch) - 2478.292773 MHz (90ch) Intermediate frequency: 2.000 MHz Other used (generated) frequencies in the EUT: Reference Clock: 13.824 MHz PLL1(2nd, Reference Clock) : 129.6 MHz CH 0123456789 0 --2400.914355 2401.808203 2402.698096 2403.591943 2404.481836 2405.375684 2406.265576 2407.159424 2408.049316 10 2408.943164 2409.833057 2410.726904 2411.616797 2412.510645 2413.400537 2414.294385 2415.184277 2416.078125 2416.968018 20 2417.861865 2418.753736 2419.645935 2420.537806 2421.429677 2422.321548 2423.213419 2424.105290 2424.997161 2425.889032 30 24…

Text truncated - open the document above for the full version.

Page 1 of 8 Attchment A 20dB Bandwidth Measurement Test Date: November 2, 2004 Temp.: 24 ; Humi.: 60 %°C CHTransmitting20dB99%Data No.Frequency(MHz)BandwidthBandwidthPage 12400.914355669 kHz626 kHzPage 2 452440.156641665 kHz628 kHzPage 3 902480.292773650 kHz632 kHzPage 4 .Note) 1. The point shown on "" is the Maximum Margin Point Tester : Shigeru Kinoshita JQA Application No. : KL80040395Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date : December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 2 of 8 20dB Bandwidth Measurement Transmitting Frequency : 2400.914355 MHz ( 1ch) JQA Application No. : KL80040395Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date : December 8, 2004 FCC ID: ACJ96NKX-FPG379 JQA Application No. : KL80040395Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date : December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 3 of 8 20dB Bandwidth Measurement Transmitting Frequency : 2440.156641 MHz (45ch) JQA Application No. : KL80040395Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date : December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 4 of 8 20dB Bandwidth Measurement Transmitting Frequency : 2480.292773 MHz (90ch) JQA Application No. : KL80040395Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date : December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 5 of 8 Band-Edge Emission Measurement Test Date: November 2, 2004 Temp.: 24 ; Humi.: 60 %°C 1) Low Band-Edge Measurement CHTransmittingBand-Edge Band-EdgeData Frequency(MHz)Frequency(MHz) Level[dBc]Page* 12400.9143552400.0-51.8Page 6 2) High Band-Edge Measurement CHTransmittingBand-Edge Band-EdgeData Frequency(MHz)Frequency(MHz) Level[dBc]Page* 452480.2927732483.5-67.1Page 7 .Note) 1. The point shown on "" is the Maximum Margin Point Tester : Shigeru Kinoshita JQA Application No. : KL80040395Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date : December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 6 of 8 Band-Edge Emissiom Measurement Transmitting Frequency : 2400.914355 MHz ( 1ch) Band-Edge Frequency: 2400.0 MHz JQA Application No. : KL80040395Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date : December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 7 of 8 Band-Edge Emissiom Measurement Transmitting Frequency : 2480.292773 MHz (90ch) Band-Edge Frequency: 2483.5 MHz JQA Application No. : KL80040395Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date : December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 8 of 8 Carrier Frequency Separation Measurement Test Date: November 2, 2004 Temp.: 24 ; Humi.: 60 %°C Measurement Results: Transmitting Frequency No.1: 2440.156641 MHz (45 ch) Transmitting Frequency No.2: 2441.050488 MHz (46 ch) Channel Separation: 892 kHz Tester : Shigeru Kinoshita

JQA Application No. : KL80040395Regulation: CFR 47 FCC Rules Part 15 Model No.: KX-FPG379Issue Date: December 8, 2004 FCC ID: ACJ96NKX-FPG379 Page 29 of 42 Test-Setup (Photographs) at worst case Conducted EmissionRadiated Emission Front ViewFront View Side ViewRear View
