ACJ96NKX-HNB600DECT 6.0 Base with Wi-Fi

Initial Setup Guide for Base Unit Home Network System Model No. KX-HNB600 Thank you for purchasing a Panasonic product. Please read this document before using the unit and save it for future reference. For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. For your safety To prevent severe injury and loss of life/ property, read this section carefully before using the product to ensure proper and safe operation of your product. WARNING Power connection RDo not overload power outlets and extension cords. This can result in the risk of fire or electric shock. RCompletely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire. RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire. RUnplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact us at www.panasonic.com/contactinfo RUnplug from power outlets and never touch the inside of the product if its casing has been broken open. RNever touch the plug with wet hands. Danger of electric shock exists. Installation RDo not allow the AC adaptor or telephone line cord to be excessively pulled, bent or placed under heavy objects. RDo not perform any actions (such as fabricating, twisting, stretching, bundling, forcibly bending, damaging, altering, exposing to heat sources, or placing heavy objects on the power cable) that may damage the power cable. Using the product with a damaged power cable may cause electric shock, short circuits, or fire. Contact an authorized service center for repairs. Operating safeguards RUn p lug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners. RDo not disassemble the product. RD o not spill liquids (detergents, cleansers, e t c.) onto the telephone line cord plug, or allow it to become wet at all. This may cause a fire. If the telephone line cord plug becomes wet, immediately pull it from the telephone wall jack, and do not use. RNever put metal objects inside the product. If metal objects enter the product, turn off the circuit breaker and contact an authorized service center. Medical RCo n sult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to determine if they are adequately shielded from external RF (radio frequency) energy. DECT features operate between 1.92 GHz and 1.93 GHz with a peak transmission power of 115 mW. Wi-Fi features operate between 2.412 GHz and 2.462 GHz with a peak transmission power of 100 mW. RDo not use the product in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. CAUTION Installation and location RNe v er install wiring during an electrical storm. RNever install telephone line jacks in wet locations unless the jack is specifically designed for wet locations. RNever touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. RUse caution when installing or modifying telephone lines. RThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible. RDo not place magnetic cards or similar objects near the product. Magnetic data may be erased. 2 For assistance, please visit http://www.panasonic.com/help Installation Important safety in s tructions When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 2. Do not use a telephone to report a gas leak in the vicinity of the leak. 3. Use only the power cord indicated in this document. SAVE THESE INSTRUCTIONS For best performance Base unit location/avoiding noise Th e base unit and other compatible Panasonic units use radio waves to communicate with each other. Environment RKe e p the product away from electrical noise generating devices, such as fluorescent lamps and motors. RThe product should be kept free from excessive smoke, dust, high temperature, and vibration. RThe product should not be exposed to direct sunlight. RDo not place heavy objects on top of the product. RWhen you leave the product unused for a long period of time, unplug the product from the power outlet. RThe product should be kept away from heat sources such as heaters, kitchen stoves, etc. It should not be placed in rooms where the temperature is less than 0 °C (32 °F) or greater than 40 °C (104 °F). Damp basements should also be avoided. Routine care RWi p e the outer surface of the product with a soft moist cloth. RDo not use benzine, thinner, or any abrasive powder. Notice for product disposal, transfer, or re t urn RThis product can store your private/ confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product. Notice: • This product is designed for use in the United States of America. Sale or use of this product in other countries may violate local laws. • Cet appareil est conçu pour être utilisé aux États-Unis d’Amérique. La vente ou l’emploi de cet appareil dans certains autres pays peut constituer une infraction à la législation locale. • Este producto está diseñado para usarse en los Estados Unidos de América. La venta o el empleo de este producto en ciertos países pu…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Power of Attorney May 27, 2014 PCTP-14-F021 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15C and D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base Station 1 Model Numbers: KX-HNB600 Type Equipment for Wi-Fi: Digital Transmission System / DTS FCC Rule Part: FCC Part 15, Subpart C, Section 15.247 Frequency Range: 2412~ 2462 MHz Number Channels: 11 Channels Type Equipment for DECT: Isochronous UPCS Base (PUB) FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 Number Channels: 5 RF Channels / 5x12 = 60 TDMA Duplex Channels RF Exposure: Mobile / MPE (requires minimum 20cm spacing between antenna and body) Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 1 Base Station will be used with handset, cameras, and sensors, which will be separately certified under FCC IDs: ACJ96NKX-HNH100, ACJ96NKX-HNC200, ACJ96NKX-HNC600, ACJ96NKX-HNA101, ACJ96NKX-HNS101, ACJ96NKX-HNS102. Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Request for Confidentiality May 27, 2014 PCTP-14-F021 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base Station 2 Model Numbers: KX-HNB600 Product Description: Base Station contains DECT Transmitter FCC ID: ACJ96NKX-HNB600 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Base Unit Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 2 Base Station will be used with handset, cameras, and sensors, which will be separately certified under FCC IDs: ACJ96NKX-HNH100, ACJ96NKX-HNC200, ACJ96NKX-HNC600, ACJ96NKX-HNA101, ACJ96NKX-HNS101, ACJ96NKX-HNS101.

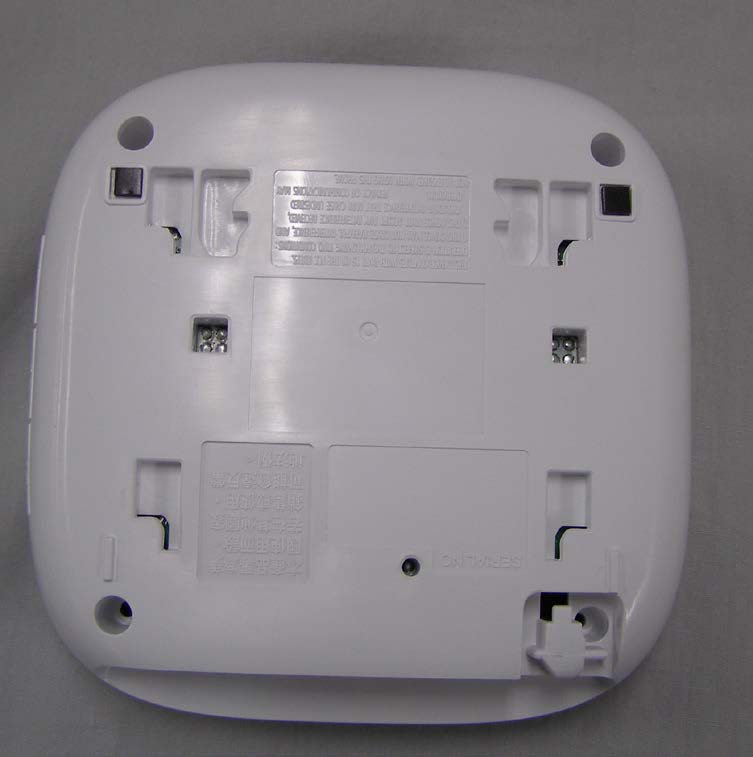

EXTERNAL PHOTOGRAPHS KX-HNB600 Top View Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit.

INTERNAL PHOTOGRAPHS Internal View Main Board <Main Board portion1> <Main Board portion 2>

FCC ID: ACJ96NKX-HNB600 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 16.10 (dBm) Maximum peak output power at antenna input terminal : 0.041 (W) Maximum antenna gain: 8.24 (dBi) Maximum antenna gain: 6.668 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0540 (mW/cm^2) Power density at prediction frequency: 0.540 (W/m^2) Maximum allowable antenna gain: 20.91 (dBi) Margin of Compliance: 12.67 (dB) 2 4 R PG S π =

Report No.258223 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2027 Kjeller, Norway TEL+4722 96 03 30FAX+4722 96 05 [email protected] ENTERPRISENUMBERNO974404532nemko.com/no Test Report Product WLAN Transceiver inUPCSBase Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531,Japan Model KX-HNB600 Rating 120VAC, 60Hz Trademark Panasonic Serial number / Additional information IEEE 802.11b/g/n(HT20) Tested according toFCC Part 15.247 Frequency Hopping Transmitters / Digital Transmission Systems Industry Canada RSS-210, Issue 8 Low Power Licence-Exempt Radiocommunications Devices Order number 258223 Tested in period 2014.05.08to2014.05.09 Issue date 2014.05.19 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS:2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [G.Suhanthakumar]Approved by [Frode Sveinsen] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC Part 15.247 Report no.:258223-1 FCC ID:ACJ96NKX-HNB600 Nemko Norway, Instituttveien 6, Kjeller, NorwayPage2(79) CONTENTS 1INFORMATION.........................................................................................................................3 1.1Test Item....................................................................................................................................3 1.2Test Environment......................................................................................................................4 1.3Test Engineer(s)........................................................................................................................4 1.4Test Equipment.........................................................................................................................4 2TEST REPORT SUMMARY......................................................................................................5 2.1General......................................................................................................................................5 2.2Test Summary...........................................................................................................................6 2.3Description of modification for Modification Filing.....................................................................6 2.4Comments.................................................................................................................................6 2.5Family List Rational...................................................................................................................6 3TEST RESULTS........................................................................................................................7 3.1Power Line Conducted Emissions.............................................................................................7 3.2Occupied Bandwidth (99% BW)................................................................................................9 3.3Minimum 6 dB Bandwidth (DTS Bandwidth)............................................................................16 3.4Peak Power Output.................................................................................................................20 3.5Spurious Emissions (Radiated)...............................................................................................40 3.6Power Spectral Density (PSD).................................................................................................73 4LIST OF TEST EQUIPMENT..................................................................................................77 4.1Conducted Tests.....................................................................................................................78 4.2This setup is used for all measurements on 50 ohm antenna connector................................78 4.3Power Line Conducted Emission.............................................................................................78 4.4Test Site Radiated Emission...................................................................................................79 TEST REPORT FCC Part 15.247 Report no.:258223-1 FCC ID:ACJ96NKX-HNB600 Nemko Norway, Instituttveien 6, Kjeller, NorwayPage3(79) 1INFORMATION 1.1TestItem Name :Panasonic FCC ID :ACJ96NKX-HNB600 Industry Canada ID:216A-KXHNB600 Model/version :KX-HNB600 Serial number :/ Hardware identity and/or version:PNLB2370xx Software identity and/or version :SW401 Frequency Range :2412–2462 MHz Number of Channels :11 Operating Modes :IEEE 802.11 b/g/n (HT20) Type of Modulation :Digital (DSSS, OFDM) User Frequency Adjustment :None Conducted Output Power :65mW (Peak) Type of Power Supply :AC Adaptor Model: PNLV241 Antenna Connector :None(Integral) Number of Antennas :1for TX, 2 for RX Antenna Diversity Supported :Yes Description of Test Item The EUT is adigital cordless base unitintegrated with WLAN and UPCS.This report covers only the WLAN part,theUPCS partiscovered bya separate test report.TheWLANpartoperates in the 2.4GHz frequency band only anduses 802.11b/g/n (HT20) modulation.TheWLANmodeis for connection to a WLAN router or access pointonlyand can not be used with theassociated UPCS base station. Exposure Evaluation For the purposes of exposure evaluation this EUT is amobile or fixed device. MPE Calculation at 20 cm satisfying FCC requirements is submitted as a separate document. The EUT is exempted from RF Exposure Evaluation to Industry Canada requirements since the output power complies with the power levels of section 2.5.2 of…

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS Projectno.:258223 FCC ID:ACJ96NKX-HNB600 Page1(3) PHOTOS OF TEST SET-UP Radiated emissions-< 30MHz, 10 meter TEST SET-UP PHOTOS Projectno.:258223 FCC ID:ACJ96NKX-HNB600 Page2(3) RadiatedEmissions30-1000 MHz, 3 meter Radiated emissions 1–25 GHz, 3 meter & 1 meter TEST SET-UP PHOTOS Projectno.:258223 FCC ID:ACJ96NKX-HNB600 Page3(3) Power line conducted emission , 120Vac, 60Hz
