ACJ96NKX-HNC200DECT 6.0 Indoor Camera

Installation Guide Wireless Indoor Camera Model No. KX-HNC200 Thank you for purchasing a Panasonic product. Please read this document before using the unit and save it for future reference. For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. For your safety To prevent severe injury and loss of life/ property, read this section carefully before using the product to ensure proper and safe operation of your product. WARNING Power connection RUs e only the power source marked on the product. RDo not overload power outlets and extension cords. This can result in the risk of fire or electric shock. RCompletely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire. RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire. RUnplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact us at www.panasonic.com/contactinfo RUnplug from power outlets and never touch the inside of the product if its casing has been broken open. RNever touch the plug with wet hands. Danger of electric shock exists. Installation RDo not allow the AC adaptor cord to be excessively pulled, bent or placed under heavy objects. RDo not connect a power cable to a terminal that is not specified in this guide. RWhen opening holes in walls for installation or wiring, or when securing the power cable, make sure you do not damage existing wiring and ductwork. RDo not perform any actions (such as fabricating, twisting, stretching, bundling, forcibly bending, damaging, altering, exposing to heat sources, or placing heavy objects on the power cable) that may damage the power cable. Using the product with a damaged power cable may cause electric shock, short circuits, or fire. Contact an authorized service center for repairs. RD o not mount the bracket in an unstable l ocation, in a location subject to frequent vibration, on a ceiling, or on a weak wall. (Do not mount on plaster board, concrete blocks, wooden materials exposed to the outdoors, walls with very rough surfaces, or surfaces that are narrower than the width of the wall mount bracket.) There is a risk of injury if the product falls, or of fire or electric shock if water enters the product. Operating safeguards RUn plug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners. RDo not disassemble the product. RNever put metal objects inside the product. If metal objects enter the product, turn off the circuit breaker and contact an authorized service center. Medical RCo nsult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to determine if they are adequately shielded from external RF (radio frequency) energy. DECT features operate between 1.92 GHz and 1.93 GHz with a peak transmission power of 115 mW. Wi-Fi features operate between 2.412 GHz and 2.462 GHz with a peak transmission power of 100 mW. RDo not use the product in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. CAUTION Installation and location RNe ver install wiring during an electrical storm. RThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible. Preventing accidents and injuries RDo not put your ear(s) near the speaker, as loud sounds emitted from the speaker may cause hearing impairment. 2 For assistance, please visit http://www.panasonic.com/help Installation Important safety in structions When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 2. Use only the power cord indicated in this document. SAVE THESE INSTRUCTIONS For best performance Base unit location/avoiding noise Th e base unit and other compatible Panasonic units use radio waves to communicate with each other. Environment RKe ep the product away from electrical noise generating devices, such as fluorescent lamps and motors. RThe product should be kept free from excessive smoke, dust, high temperature, and vibration. RThe product should not be exposed to direct sunlight. RDo not place heavy objects on top of the product. RWhen you leave the product unused for a long period of time, unplug the product from the power outlet. RThe product should be kept away from heat sources such as heaters, kitchen stoves, etc. It should not be placed in rooms where the temperature is less than 0 °C (32 °F) or greater than 40 °C (104 °F). Damp basements should also be avoided. Routine care RWi pe the outer surface of the product with a soft moist cloth. RDo not use benzine, thinner, or any abrasive powder. Camera image quality RCa mera images may have the following characteristics. – Colors in images may differ from the a c tual colors. – When there is light behind the subject (i.e., backlighting), faces may appear dark. – Image quality may be reduced in dark locations. – Images may appear hazy when there are outdoor lights in use. RDistinguishing faces is difficult in the following situations. – When the person is too far (over approx. 9.8 ft. [3 m]) from the camera even when the surrounding area is bright. (Depending on the viewing angle or the conditions when images were viewed, such as when there are shadows or backlighting, faces may not be distinguishable even when the pe…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Power of Attorney May 28, 2014 PCTP-14-F026 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product, which are in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for DECT Indoor Camera, Model KX-HNC200 1 Product Classification: Part 15 Unlicensed PCS Transceiver in Intdoor Camera FCC ID Handset Unit ACJ96NKX-HNC200 FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 MHz Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 1 DECT Indoor camera may be marketed with DECT Base, which will be Part 15D certified under the following FCC IDs: ACJ96NKX- HNB600. Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Request for Confidentiality May 28, 2014 PCTP-14-F026 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for 1.9 GHz DECT Intdoor Camera 2 Model Numbers: KX-HNC200 Product Description: Part 15 Unlicensed PCS Transceiver in Indoor Camera FCC ID: ACJ96NKX-HNC200 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Base Unit Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 2 DECT Indoor camera may be marketed with DECT Base, which will be Part 15D certified under the following FCC IDs: ACJ96NKX- HNB600.

FCC Part 15D – Compliance Information pctp-14-f026 (fcc_part_15d-compliance_information)8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication system Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Kazunori Ata FP PP EUT Type/System FCC ID ACJ96NKX-HNB600 (IC:216A- KXHNA600) ACJ96NKX-HNC200 (IC:216A-KXHNC200) Model name KX-HNB600 KX-HNC200 HW Version PNLB2370xx PNLB2373xx SW Version SW401 SW401 Max antenna Gain (dBi) 0dBi 0dBi Can the EUT be Initiating Device YES YES Does the EUT transmit signaling channels YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 417us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex FCC Part 15D – Compliance Information pctp-14-f026 (fcc_part_15d-compliance_information)8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Base (FP) Antenna Type Internal External 1 Wire Antenna 2 Pattern Antenna 3 Wire Antenna 4 Pattern Antenna Does RX and TX use the same antenna(s)? Yes No Indoor Camera (PP) Antenna Type Internal External 1 Wire Antenna 2 Wire Antenna Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) 1 2 3 4 Indoor Camera (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC 120V AC Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV236 (AC Adaptor) Panasonic Indoor Camera (PP) PNLV236 (AC Adaptor) Panasonic Data Connections PSTN (Base) Others (please specify) .... FCC Part 15D – Compliance Information pctp-14-f026 (fcc_part_15d-compliance_information)8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor Type PNLV236 (AC Adaptor) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION FCC Part 15D – Compliance Information pctp-14-f026 (fcc_part_15d-compliance_information)8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: May 28, 2014 Richard Mullen Richard Mullen

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means: • Provided with 128 bits for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base and Indoor-Camera know each other’s security code information.

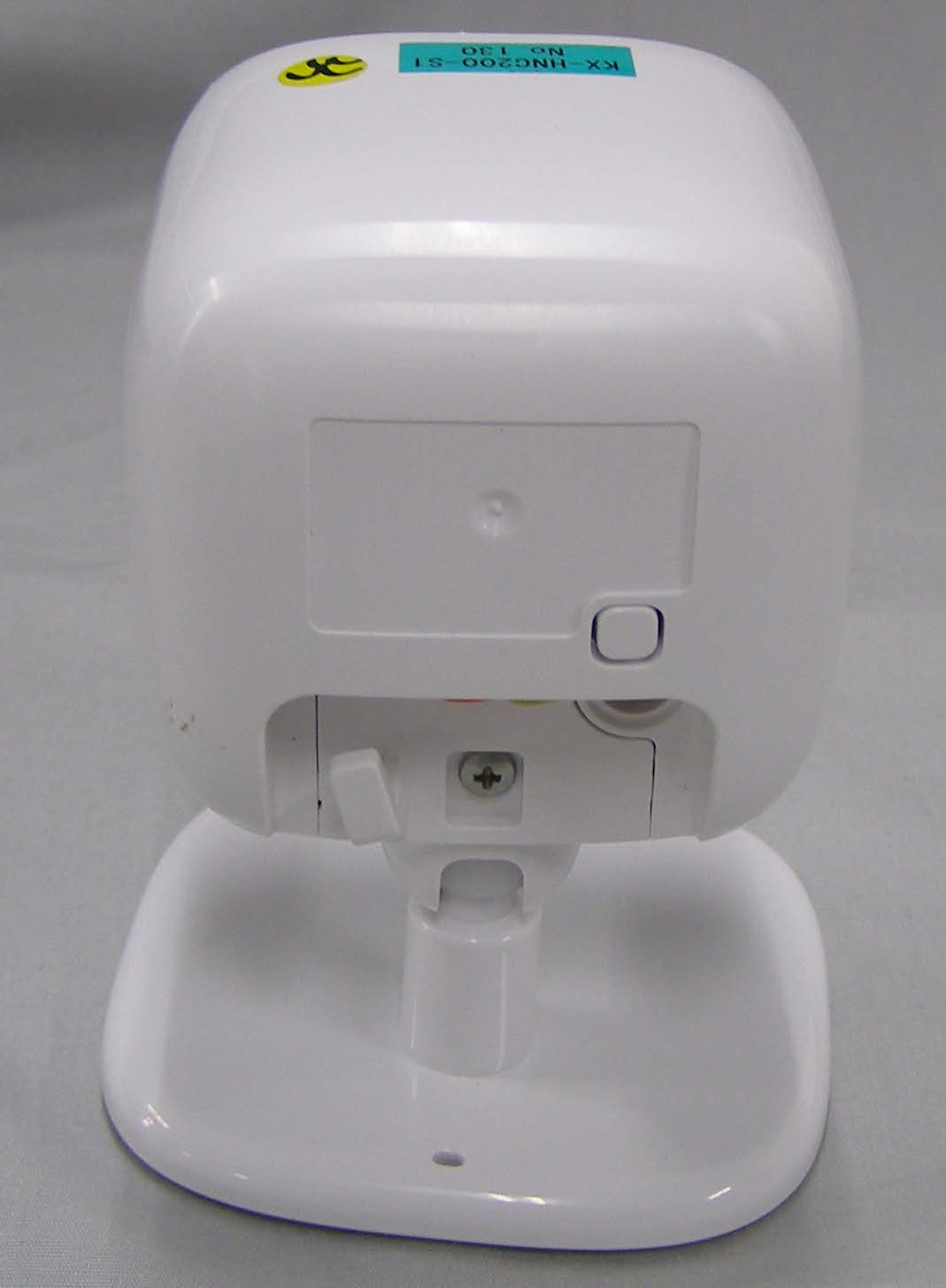

EXTERNAL PHOTOGRAPHS KX-HNC200 Top View Bottom View

EXHIBIT B MARKINGS Indoor Camera: The Indoor Camera provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on the back of the Indoor Camera.

INTERNAL PHOTOGRAPHS Internal View Main Board (Upside) Main Board 2 (Upside) Main Board 2 (Downside)

FCC ID: ACJ96NKX-HNC200 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 17.40 (dBm) Maximum peak output power at antenna input terminal : 0.055 (W) Maximum antenna gain: 0.00 (dBi) Maximum antenna gain: 1.000 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0109 (mW/cm^2) Power density at prediction frequency: 0.109 (W/m^2) Maximum allowable antenna gain: 19.61 (dBi) Margin of Compliance: 19.61 (dB) 2 4 R PG S π =

Report No. 258223-4 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Transceiver in Indoor Camera Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-HNC200 Rating 120 V AC (Mains) Trademark Panasonic Serial number / Additional information DECT 6.0 Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 2 2 GHz License-exempt Personal Communications Service Devices (LE-PCS) Order number 258223 Tested in period 2014.05.07 to 2014.05.14 Issue date 2014.05.26 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC part 15D Report no.: 258223-4 FCC ID: ACJ96NKX-HNC200 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (46) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Coordination with fixed microwave .................................................................................................. 10 3.3 Digital Modulation Techniques ........................................................................................................ 10 3.4 Labeling Requirements ................................................................................................................... 10 3.5 Antenna Requirement...................................................................................................................... 11 3.6 Channel Frequencies ...................................................................................................................... 11 3.7 Automatic Discontinuation of Transmission .................................................................................... 12 3.8 Peak Power Output ......................................................................................................................... 13 3.9 Emission Bandwidth B ..................................................................................................................... 16 3.10 Power Spectral Density ................................................................................................................... 19 3.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 22 3.12 Out-of-band Emissions, Conducted................................................................................................. 24 3.13 Carrier Frequency Stability .............................................................................................................. 28 3.14 Frame Repetition Stability ............................................................................................................... 29 3.15 Frame Period and Jitter ................................................................................................................... 29 3.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 31 3.17 Threshold Monitoring Bandwidth ..................................................................................................... 33 3.18 Reaction Time and Monitoring Interval ............................................................................................ 34 3.19 Time and Spectrum Window Access Procedure ............................................................................. 36 3.20 A…

Text truncated - open the document above for the full version.

FCC ID: ACJ96NKX-HNC200 Project no.: 258223 Page 1 of 1 PHOTOS OF TEST SET-UP – KX-HNC200 Power line Conducted Emissions Test
