ACJ96NKX-HNK101DECT 6.0 Access Keypad

Operating Instructions Home Network System Access Keypad Model No. KX-HNK101 Thank you for purchasing a Panasonic product. This document explains how to install the keypad properly. For details about how to use the system, refer to the User’s Guide (page 12). Please read this document before using the unit and save it for future reference. For assistance, please contact us at 1-800-272-7033 or visit our Web site: www.panasonic.com/support for customers in the U.S.A. or Puerto Rico. Please register your product: www.panasonic.com/prodreg Printed in China Introduction Accessory information ...............3 Important Information About this system ......................4 For your safety ...........................4 Important safety instructions ......5 For best performance ................5 Other information .......................6 Setup Part names and functions ..........7 LED indicator .............................7 Touchpanel ................................7 Setup overview ..........................8 Registering the keypad ..............8 Confirming the usage area ........9 Installation ...............................10 Note about power connections .............................11 Appendix Using the keypad .....................12 Features available when using the [Home Network] app ................12 Accessing the User’s Guide ....12 Specifications ..........................13 FCC and other information ......14 Customer services ...................15 Warranty (For United States and Puerto Rico) .............................16 2 Table of Contents Accessory information Supplied accessories No.Accessory item/Part numberQuantity AAC adaptor/PNLV226KZ1 B Mounting bracket *1 /PNMH1355Z 1 CWall mounting screws (25 mm (1 inch))/XTB4+25AVW2 *1 The mounting bracket is attached to the product at the time of shipment. ABC Other information RDesign and specifications are subject to change without notice. RThe illustrations in these instructions may vary slightly from the actual product. Trademarks RiPhone and iPad are registered trademarks of Apple Inc. RAndroid is a trademark of Google Inc. RAll other trademarks identified herein are the property of their respective owners. For assistance, please visit www.panasonic.com/support 3 Introduction About this system RThis system is an auxiliary system; it is not designed to provide complete protection from property loss. Panasonic will not be held responsible in the event that property loss occurs while this system is in operation. RThe system’s wireless features are subject to interference, therefore functionality in all situations cannot be guaranteed. Panasonic will not be held responsible for injury or damage to property that occurs in the event of wireless communication error or failure. For your safety To prevent severe injury and loss of life/ property, read this section carefully before using the product to ensure proper and safe operation of your product. WARNING Power connection RUse only the power source marked on the product. RDo not overload power outlets and extension cords. This can result in the risk of fire or electric shock. RCompletely insert the AC adaptor/ power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire. RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire. RUnplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact us at www.panasonic.com/contactinfo RUnplug from power outlets and never touch the inside of the product if its casing has been broken open. Danger of electric shock exists. RNever touch the plug with wet hands. Danger of electric shock exists. RDo not connect non-specified devices. Installation RTo prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture. RDo not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident. RDo not allow the AC adaptor to be excessively pulled, bent or placed under heavy objects. RKeep small parts (screws, etc.) out of the reach of children. There is a risk of swallowing. In the event they are swallowed, seek medical advice immediately. 4 For assistance, please visit www.panasonic.com/support Important Information Operating safeguards RUnplug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners. RDo not disassemble the product. RNever put metal objects inside the product. If metal objects enter the product, turn off the circuit breaker and contact an authorized service center. Medical RConsult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to determine if they are adequately shielded from external RF (radio frequency) energy. DECT features operate between 1.92 GHz and 1.93 GHz with a peak transmission power of 115 mW. RDo not use the product in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. CAUTION Installation and location RNever install wiring during a lightning storm. RThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible. Important safety instructions When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a …

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means: • Provided with 128 bits for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base and Keypad know each other’s security code information.

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Power of Attorney March 4, 2015 PCTP-15-F011 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product, which are in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for DECT Access Keypad, Model KX-HNK101 1 Product Classification: Part 15 Unlicensed PCS Transceiver in Access Keypad FCC ID Handset Unit ACJ96NKX-HNK101 FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 MHz Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 1 DECT Access Keypad may be marketed with DECT Base, which is Part 15D certified under the following FCC IDs: ACJ96NKX-HNB600. Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Request for Confidentiality March 4, 2015 PCTP-15-F011 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for DECT Access Keypad 2 Model Numbers: KX-HNK101 Product Description: Part 15 Unlicensed PCS Transceiver in Access Keypad FCC ID: ACJ96NKX-HNK101 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Base Unit Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 2 DECT Access Keypad may be marketed with DECT Base, which is Part 15D certified under the following FCC IDs: ACJ96NKX-HNB600.

PCTP-15-F011 FCC ID: ACJ96NKX-HNK101 FCC Part 15D – Compliance Information pctp-15-f011 (fcc_part_15d-compliance_information for kx-hnk101) 8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication system Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Junji Sumi FP PP EUT Type/System FCC ID ACJ96NKX-HNB600 (IC:216A- KXHNB600) ACJ96NKX-HNK101 (IC:216A-KXHNK101) Model name KX-HNB600 KX-HNK101 HW Version PNLB2370xx PNLB2495xx SW Version SW415 SW100 Max antenna Gain (dBi) 0dBi 0dBi Can the EUT be Initiating Device YES YES Does the EUT transmit signaling channels YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 417us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-15-F011 FCC ID: ACJ96NKX-HNK101 FCC Part 15D – Compliance Information pctp-15-f011 (fcc_part_15d-compliance_information for kx-hnk101) 8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Base (FP) Antenna Type Internal External 1 Wire Antenna 2 Pattern Antenna 3 Wire Antenna 4 Pattern Antenna Does RX and TX use the same antenna(s)? Yes No Keypad(PP) Antenna Type Internal External 1 Wire Antenna 2 Wire Antenna Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) 1 2 3 4 Keypad (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC 120V AC Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV236 (AC Adaptor) Panasonic Keypad (PP) PNLV226 (AC Adaptor) Panasonic Data Connections PSTN (Base) Others (please specify) .... PCTP-15-F011 FCC ID: ACJ96NKX-HNK101 FCC Part 15D – Compliance Information pctp-15-f011 (fcc_part_15d-compliance_information for kx-hnk101) 8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor Type PNLV226 (AC Adaptor) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-15-F011 FCC ID: ACJ96NKX-HNK101 FCC Part 15D – Compliance Information pctp-15-f011 (fcc_part_15d-compliance_information for kx-hnk101) 8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No ADDITIONAL REMARKS: > DECLARED BY: March 4, 2015 Richard Mullen

EXTERNAL PHOTOGRAPHS KX-HNK101 Top View

MARKINGS Keypad NOTE: Above markings are shown on the back of the Keypad

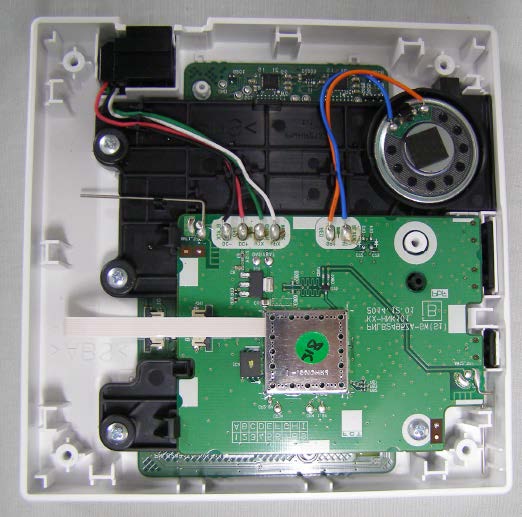

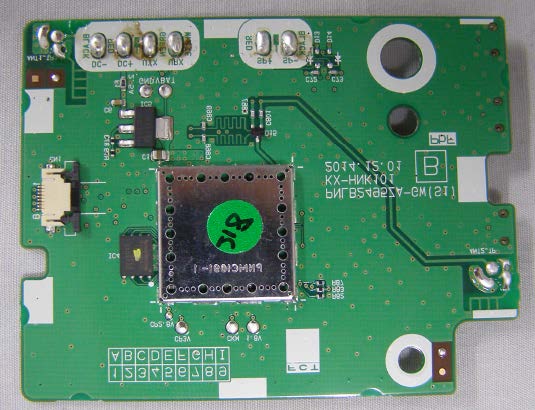

INTERNAL PHOTOGRAPHS Internal View Main Board （With Shield） Main Board （Without Shield ）

FCC ID: ACJ96NKX-HNK101 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power densityP = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 17.94 (dBm) Maximum peak output power at antenna input terminal : 0.062 (W) Maximum antenna gain: 0.00 (dBi) Maximum antenna gain: 1.000 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0124 (mW/cm^2) Power density at prediction frequency: 0.124 (W/m^2) Maximum allowable antenna gain: 19.07 (dBi) Margin of Compliance: 19.07 (dB) 2 4 R PG S π =

Report No. 279025-4 Template version: C Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product DECT Access Keypad Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-HNK101 Rating 5.5V DC (AC Adaptor Output, Input: 120V AC ) Panasonic Serial number / Additional information DECT 6.0 Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 2 2 GHz License-exempt Personal Communications Service Devices (LE-PCS) Order number 279025 Tested in period 2015.02.26 to 2015.03.03 Issue date 2015.03.03 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G. Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC part 15D Report no.: 279025-4 FCC ID: ACJ96NKX-HNK101 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (47) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Digital Modulation Techniques ........................................................................................................ 10 3.3 Labeling Requirements ................................................................................................................... 10 3.4 Channel Frequencies ...................................................................................................................... 10 3.5 Antenna Requirement...................................................................................................................... 11 3.6 Automatic Discontinuation of Transmission .................................................................................... 11 3.7 Peak Power Output ......................................................................................................................... 12 3.8 Emission Bandwidth B ..................................................................................................................... 15 3.9 Power Spectral Density ................................................................................................................... 18 3.10 In-Band Unwanted Emissions, Conducted ...................................................................................... 21 3.11 Out-of-band Emissions, Conducted................................................................................................. 23 3.12 Carrier Frequency Stability .............................................................................................................. 29 3.13 Frame Repetition Stability ............................................................................................................... 30 3.14 Frame Period and Jitter ................................................................................................................... 30 3.15 Monitoring Threshold, Least Interfered Channel ............................................................................. 32 3.16 Threshold Monitoring Bandwidth ..................................................................................................... 34 3.17 Reaction Time and Monitoring Interval ............................................................................................ 35 3.18 Time and Spectrum Window Access Procedure ............................................................................. 37 3.19 Acknowledgements and Transmission Duration ............................................................................. 38 3.20 Dual Acce…

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS Project no.: 279025 FCC ID: ACJ96NKX-HNK101 Page 1 (1) PHOTOS OF TEST SET-UP – KX-HNK101 RF Conducted Tests Power line Conducted Emissions Test
