ACJ96NKX-HNS107DECT 6.0 Garage Door Sensor

Garage Door Sensor Model No. KX-HNS107 No. ① Battery*1 ② ③ *1 When replacing the battery, see “Power source” of “Specifications”, page 7. for battery information 2 Accessory item/Part numberQuantity 2Mounting screws Mounting double-sided tapes 1 operate between 1.92 GHz and 1.93 GHz with a peak transmission power of 115 mW. temperature is less than -20 °C or greater than 50 °C. Damp basements should also be avoided. The garage door sensor utilizes a gyroscopic sensor to detect its orientation relative to the ground. When the sensor is not perpendicular to the ground, i.e., when the garage door is open, the sensor can trigger a variety of actions, such as sounding an alert, turning on a light, and sending a notification to your mobile device. 1 Remove the cover. 2 Insert the batter y. 3 Attach the cover. Registering the Garage Door Sensor 2 Garage door sensor DECT: 1.92 GHz – 1.93 GHz Lithium battery CR2 (1 ×3.0 V, 850 ｍAh) ● Operating conditions -20 °C – 50 °C 2015

EXTERNAL PHOTOGRAPHS KX-HNS107 Top View Bottom View

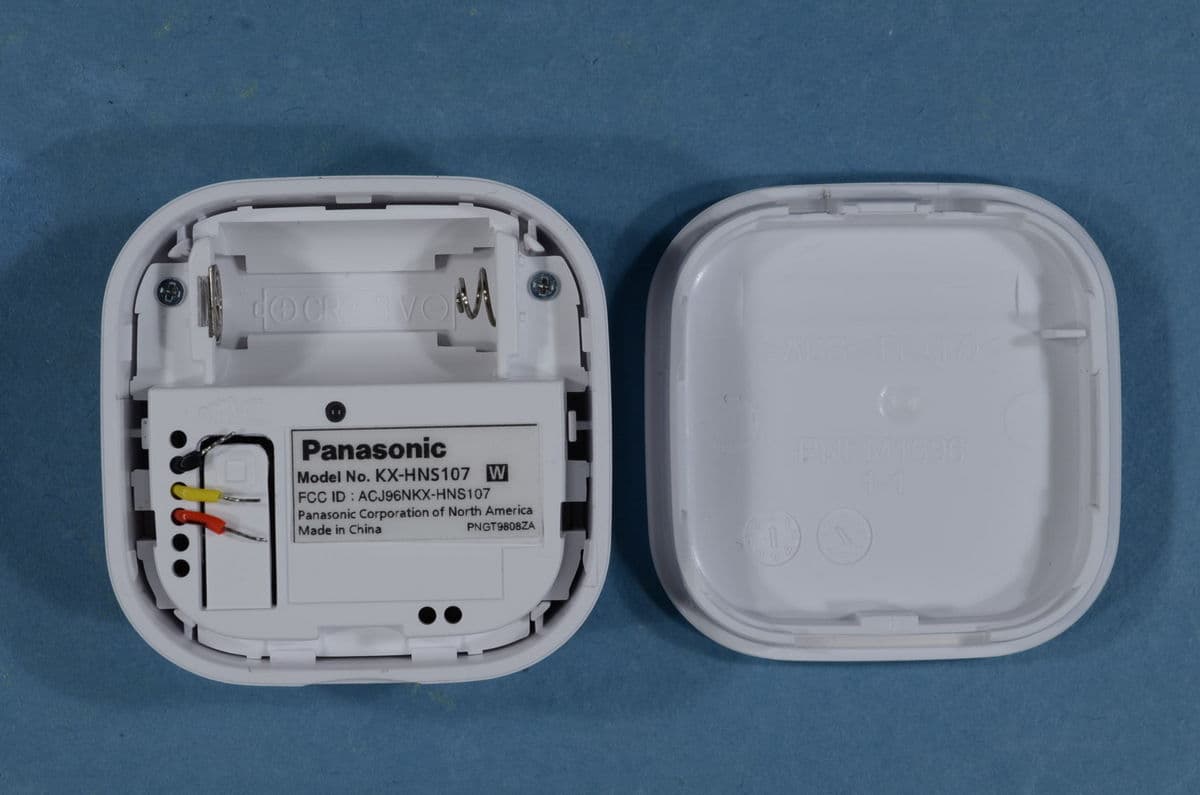

EXHIBIT B MARKINGS Garage Door Sensor: The garage door sensor provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this sensor. NOTE: Above markings are shown under the battery cover of the garage door sensor.

INTERNAL PHOTOGRAPHS Internal View Main Board （With Shield） Main Board （Without shield） Main Board （Opposite Side）

FCC ID: ACJ96NKX-HNS107 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 19.80 (dBm) Maximum peak output power at antenna input terminal : 0.095 (W) Maximum antenna gain: 0.00 (dBi) Maximum antenna gain: 1.000 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0190 (mW/cm^2) Power density at prediction frequency: 0.190 (W/m^2) Maximum allowable antenna gain: 17.21 (dBi) Margin of Compliance: 17.21 (dB) 2 4 R PG S π =

Report No. 297364-1 Template version: C Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product DECT Transceiver in Garage Door Opener Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-HNS107 Rating 3.0V DC (Primary Battery) Trademark Panasonic Serial number / Additional information DECT 6.0 Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 3 2 GHz License-Exempt Personal Communications Services (LE-PCS) Devices Order number 297364 Tested in period 2015.10.13 to 2015.11.06 Issue date 2015.11.13 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: +47 22 96 03 30 FAX: +47 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information please contact Nemko. TEST REPORT FCC part 15D Report no.: 297364-1 FCC ID: ACJ96NKX-HNS107 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (45) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Digital Modulation Techniques .......................................................................................................... 7 3.2 Labeling Requirements ..................................................................................................................... 7 3.3 Channel Frequencies ........................................................................................................................ 7 3.4 Antenna Requirement........................................................................................................................ 8 3.5 Automatic Discontinuation of Transmission ...................................................................................... 8 3.6 Peak Power Output ........................................................................................................................... 9 3.7 Emission Bandwidth B ..................................................................................................................... 12 3.8 Power Spectral Density ................................................................................................................... 15 3.9 In-Band Unwanted Emissions, Conducted ...................................................................................... 18 3.10 Out-of-band Emissions, Conducted................................................................................................. 20 3.11 Carrier Frequency Stability .............................................................................................................. 26 3.12 Frame Repetition Stability ............................................................................................................... 27 3.13 Frame Period and Jitter ................................................................................................................... 27 3.14 Monitoring Threshold, Least Interfered Channel ............................................................................. 29 3.15 Threshold Monitoring Bandwidth ..................................................................................................... 31 3.16 Reaction Time and Monitoring Interval ............................................................................................ 32 3.17 Time and Spectrum Window Access Procedure ............................................................................. 34 3.18 Acknowledgements and Transmission Duration ............................................................................. 35 3.19 Dual Access Criteria Check ......................................................................................................…

Text truncated - open the document above for the full version.

PCTP-16-F014 DECT Garage Door Sensor with FCC ID: ACJ96NKX-HNS107 FCC Part 15D – Compliance Information pctp-16-f014 (fcc_part_15d-compliance_information for kx-hns107).doc 8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication system Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Kazunori Ata FP PP EUT Type/System FCC ID ACJ96NKX-HNB600 (IC:216A-KXHNB600) ACJ96NKX-HNS107 (IC:216A-KXHNS107) Model name KX-HNB600 KX-HNS107 HW Version PNLB2370xx PNLB2589xx SW Version SW520 SW100 Max antenna Gain (dBi) 0dBi 0dBi Can the EUT be Initiating Device YES YES Does the EUT transmit signaling channels YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 417us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-16-F014 DECT Garage Door Sensor with FCC ID: ACJ96NKX-HNS107 FCC Part 15D – Compliance Information pctp-16-f014 (fcc_part_15d-compliance_information for kx-hns107).doc 8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Base (FP) Antenna Type Internal External 1 Wire Antenna 2 Pattern Antenna 3 Wire Antenna 4 Pattern Antenna Does RX and TX use the same antenna(s)? Yes No Garage Door Sensor(PP) Antenna Type Internal External 1 Wire Antenna 2 Wire Antenna Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) 1 2 3 4 Garage Door Sensor (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC 3.0V DC Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV236 (AC Adaptor) Panasonic Garage Door Sensor (PP) CR2(Lithium Battery) x 1 Panasonic Data Connections PSTN (Base) Others (please specify) .... PCTP-16-F014 DECT Garage Door Sensor with FCC ID: ACJ96NKX-HNS107 FCC Part 15D – Compliance Information pctp-16-f014 (fcc_part_15d-compliance_information for kx-hns107).doc 8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description Type Manufacturer HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-16-F014 DECT Garage Door Sensor with FCC ID: ACJ96NKX-HNS107 FCC Part 15D – Compliance Information pctp-16-f014 (fcc_part_15d-compliance_information for kx-hns107).doc 8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: November 17, 2015 Richard Mullen

TEST SET-UP PHOTOS Project no.: 297364 FCC ID: ACJ96NKX-HNS107 Page 1 (1) PHOTOS OF TEST SET-UP – KX-HNS107 RF Conducted Tests
