ACJ96NKX-PRW130DECT 6.0 Base with Wi-Fi

Premium Design Phone with Home Phone Connect Model No. KX-PRW130 *1See page 2 for replacement battery information. *2The handset cover comes attached to the handset. ①②③④ Accessory itemModel number Rechargeable HHR-4DP A *1 batteriesBattery type: –Nickel metal hydride (Ni-MH) –2 x AAA (R03) size for each handset T-adaptorKX-J66 Range extender KX-TGA405 *2 Key detector KX-TGA20 *3 *1 Replacement batteries may have a different capacity from that of the supplied batteries. *2 By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. This product can be purchased online. Please visit our Web site: http://www.panasonic.com/RangeExtender *3 By registering the key detector (4 max.) to a Panasonic Digital Cordless Phone and attaching it to an easy-to-lose item in advance, you can locate and find the mislaid item to which the key detector is attached. Please visit our Web site: http://panasonic.net/pcc/products/telephone/p/tga20/ L Design and specifications are subject to change without notice. L The illustrations in these instructions may vary slightly from the actual product. ① No. Quantity Handset cover*2 Rechargeable batteries*1 Telephone line cord/PQJA10075Z AC adaptor/PNLV236Z Accessory item/Part number 1 2 1 1 ④ ③ ② You can expand your phone system by registering optional handsets (6 max.) to a single base unit. L Optional handsets may be a different color from that of the supplied handsets. Your smartphone: 4 max. You can expand your phone system by installing the Smartphone Connect app on your smartphone and registering your smartphone to the base unit. L You must configure the base unit and download the app before you can use these features. See the “Smartphone Integration” chapter beginning for more information. Handset (optional): KX-PRWA13 2. L Communication standards DECT 6.0 (Digital Enhanced Cordless Telecommunications 6.0), Wi-Fi (IEEE 802.11 b/g/n) L Frequency range DECT: 1.92 GHz to 1.93 GHz Wi-Fi: 2.412 GHz to 2.462 GHz (channels 1 to 11) L RF transmission power DECT: 115 mW (max.) Wi-Fi: 100 mW (peak transmission power) L Encryption WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/ AES), WEP (128/64 bit) L Simplified configuration WPS (PBC) L Power source 120 V AC, 60 Hz L Power consumption Base unit: Standby: Approx. 2.0 W Maximum: Approx. 3.9 W L Operating conditions 0 °C – 40 °C (32 °F – 104 °F), 20 % – 80 % relative air humidity (dry) Note: L Design and specifications are subject to change without notice. L The illustrations in these instructions may vary slightly from the actual product. ■Base unit ■Base unit ① Press the AC adaptor plug firmly to the unit. ② Keep the plug in the horizontal position and fasten the cord by hooking it. ③ Connect the AC adaptor to the power outlet. ④ Connect the telephone line cord to the unit and single-line telephone line jack (RJ11C) until you hear a click. ⑤ ADSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service. Note: L Use only the supplied Panasonic AC adaptor PNLV236. . OFF . . . Program this setting using either the base unit or one of the handsets. (Fewer operations are needed when using the base unit.) Press the WPS button on your wireless router. Press and hold 【WiFi SETUP】 button on the base unit for about 5 seconds and then wait for a long beep to sound.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means:  Provided with 128 bits for security codes.  When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC.  Base and Handset knows each other’s security code information.

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Division Power of Attorney November 21, 2013 PCTP-13-F005 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15C and D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base 1 FCC Classification: Digital Transmission System / Wi-Fi Tranceiver in UPCS Base Station FCC ID Base Unit ACJ96NKX-PRW130 FCC Rule Part: FCC Part 15, Subpart C, Section 15.247 Frequency Range: 2412~ 2642 MHz Number Channels: 11 Channels Type Modulation: Digital (Gaussian Frequency Shift Keying) FCC Classification: Isochronous UPCS Base Station (PUB) FCC ID Base Unit ACJ96NKX-PRW130 FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 Number Channels: 5 RF Channels / 5x12 = 60 TDMA Duplex Channels Type Modulation: Digital (Gaussian Frequency Shift Keying) RF Exposure: Mobile / MPE / Requires minimum spacing distance of 20 cm Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 Base Station will be approved for compliance with FCC Part 68 under Certification ID Number US: ACJW401BKX-PRW130. Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Division Request for Confidentiality November 21, 2013 PCTP-13-F005 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base with Wi-Fi FCC ID Base Unit ACJ96NKX-PRW130 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Base Unit Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

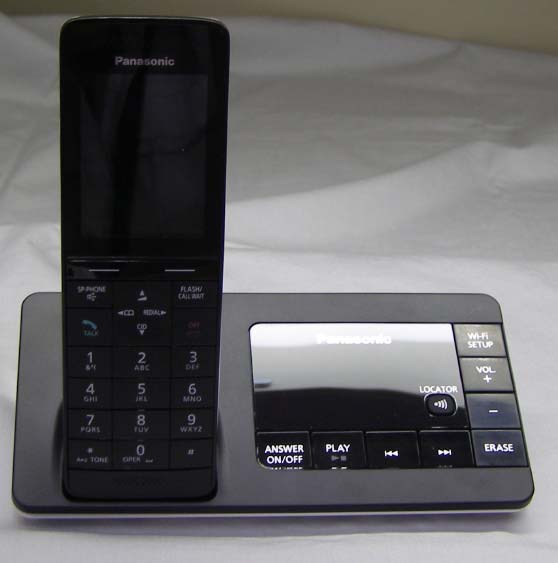

EXTERNAL PHOTOGRAPHS KX-PRW130 Top View Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit.

INTERNAL PHOTOGRAPHS Internal View Main Board Main Board Without RF Cover With RF Cover RF Portion

FCC ID: ACJ96NKX-PRW130 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 19.90 (dBm) Maximum peak output power at antenna input terminal : 0.098 (W) Maximum antenna gain: -0.40 (dBi) Maximum antenna gain: 0.912 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0177 (mW/cm^2) Power density at prediction frequency: 0.177 (W/m^2) Maximum allowable antenna gain: 17.11 (dBi) Margin of Compliance: 17.51 (dB) 2 4 R PG S π =

FCC ID: ACJ96NKX-PRW130 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 19.60 (dBm) Maximum peak output power at antenna input terminal : 0.091 (W) Maximum antenna gain: -1.00 (dBi) Maximum antenna gain: 0.794 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0144 (mW/cm^2) Power density at prediction frequency: 0.144 (W/m^2) Maximum allowable antenna gain: 17.41 (dBi) Margin of Compliance: 18.41 (dB) 2 4 R PG S π =

Report No. 243527-1 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Base Station with WLAN Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-PRW130 Rating 120 V AC (Mains) Trademark Panasonic Serial number / Additional information / Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 2 2 GHz License-exempt Personal Communications Service Devices (LE-PCS) Order number 243527 Tested in period 2013.10.31 to 2013.11.18 Issue date 2013.11.20 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC part 15D Report no.: 243527-1 FCC ID: ACJ96NKX-PRW130 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (44) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Coordination with fixed microwave .................................................................................................. 11 3.3 Digital Modulation Techniques ........................................................................................................ 11 3.4 Labeling Requirements ................................................................................................................... 11 3.5 Antenna Requirement...................................................................................................................... 12 3.6 Channel Frequencies ...................................................................................................................... 12 3.7 Automatic Discontinuation of Transmission .................................................................................... 13 3.8 Peak Power Output ......................................................................................................................... 14 3.9 Emission Bandwidth B ..................................................................................................................... 17 3.10 Power Spectral Density ................................................................................................................... 20 3.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 23 3.12 Out-of-band Emissions, Conducted................................................................................................. 25 3.13 Carrier Frequency Stability .............................................................................................................. 29 3.14 Frame Repetition Stability ............................................................................................................... 30 3.15 Frame Period and Jitter ................................................................................................................... 30 3.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 32 3.17 Threshold Monitoring Bandwidth ..................................................................................................... 34 3.18 Reaction Time and Monitoring Interval ............................................................................................ 35 3.19 Time and Spectrum Window Access Procedure ............................................................................. 37 3.20 Acknowledgemen…

Text truncated - open the document above for the full version.

FCC ID: ACJ96NKX-PRW130 Project no.: 243527 Page 1 of 2 PHOTOS OF TEST SET-UP – KX-PRW130 Radiated Emissions Test FCC ID: ACJ96NKX-PRW130 Project no.: 243527 Page 2 of 2 Power line Conducted Emissions Test
