Premium Design Phone with Home Phone Connect Model No. KX-PRW130 *1See page 2 for replacement battery information. *2The handset cover comes attached to the handset. ①②③④ Accessory itemModel number Rechargeable HHR-4DP A *1 batteriesBattery type: –Nickel metal hydride (Ni-MH) –2 x AAA (R03) size for each handset T-adaptorKX-J66 Range extender KX-TGA405 *2 Key detector KX-TGA20 *3 *1 Replacement batteries may have a different capacity from that of the supplied batteries. *2 By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. This product can be purchased online. Please visit our Web site: http://www.panasonic.com/RangeExtender *3 By registering the key detector (4 max.) to a Panasonic Digital Cordless Phone and attaching it to an easy-to-lose item in advance, you can locate and find the mislaid item to which the key detector is attached. Please visit our Web site: http://panasonic.net/pcc/products/telephone/p/tga20/ L Design and specifications are subject to change without notice. L The illustrations in these instructions may vary slightly from the actual product. ① No. Quantity Handset cover*2 Rechargeable batteries*1 Telephone line cord/PQJA10075Z AC adaptor/PNLV236Z Accessory item/Part number 1 2 1 1 ④ ③ ② You can expand your phone system by registering optional handsets (6 max.) to a single base unit. L Optional handsets may be a different color from that of the supplied handsets. Your smartphone: 4 max. You can expand your phone system by installing the Smartphone Connect app on your smartphone and registering your smartphone to the base unit. L You must configure the base unit and download the app before you can use these features. See the “Smartphone Integration” chapter beginning for more information. Handset (optional): KX-PRWA13 2. L Communication standards DECT 6.0 (Digital Enhanced Cordless Telecommunications 6.0), Wi-Fi (IEEE 802.11 b/g/n) L Frequency range DECT: 1.92 GHz to 1.93 GHz Wi-Fi: 2.412 GHz to 2.462 GHz (channels 1 to 11) L RF transmission power DECT: 115 mW (max.) Wi-Fi: 100 mW (peak transmission power) L Encryption WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/ AES), WEP (128/64 bit) L Simplified configuration WPS (PBC) L Power source 120 V AC, 60 Hz L Power consumption Base unit: Standby: Approx. 2.0 W Maximum: Approx. 3.9 W L Operating conditions 0 °C – 40 °C (32 °F – 104 °F), 20 % – 80 % relative air humidity (dry) Note: L Design and specifications are subject to change without notice. L The illustrations in these instructions may vary slightly from the actual product. ■Base unit ■Base unit ① Press the AC adaptor plug firmly to the unit. ② Keep the plug in the horizontal position and fasten the cord by hooking it. ③ Connect the AC adaptor to the power outlet. ④ Connect the telephone line cord to the unit and single-line telephone line jack (RJ11C) until you hear a click. ⑤ ADSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service. Note: L Use only the supplied Panasonic AC adaptor PNLV236. . OFF . . . Program this setting using either the base unit or one of the handsets. (Fewer operations are needed when using the base unit.) Press the WPS button on your wireless router. Press and hold 【WiFi SETUP】 button on the base unit for about 5 seconds and then wait for a long beep to sound.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means:  Provided with 128 bits for security codes.  When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC.  Base and Handset knows each other’s security code information.

PCTP-13-F005/F006 FCC IDs: ACJ96NKX-PRW130 / ACJ96NKX-PRWA13 FCC Part 15D – Compliance Information pctp-13-f005, f006 (fcc_part_15d-compliance_information) 8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication system Business Division Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Junji Sumi FP PP EUT Type/System FCC ID ACJ96NKX-PRW130 ( IC:216A-KXPRW130) ACJ96NKX-PRWA13 (IC:216A-KXPRWA13) Model name KX-PRW130 KX-PRWA13 HW Version PNLB2298xx PNLB2297xx SW Version SW120 SW120 Max antenna Gain (dBi) -1dBi -2dBi Can the EUT be Initiating Device YES YES Does the EUT transmit signaling channels YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-13-F005/F006 FCC IDs: ACJ96NKX-PRW130 / ACJ96NKX-PRWA13 FCC Part 15D – Compliance Information pctp-13-f005, f006 (fcc_part_15d-compliance_information) 8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Base (FP) Antenna Type Internal External 1 Pattern Antenna 2 Pattern Antenna 3 4 Does RX and TX use the same antenna(s)? Yes No Handset (PP) Antenna Type Internal External 1 Wired Antenna 2 Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) and Repeater 1 2 3 4 Handset (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC DC 2.4V Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV236 (AC Adaptor) Panasonic Handset (PP) (charger) PNLC1047 (Charger) Panasonic Data Connections PSTN (Base) Others (please specify) .... PCTP-13-F005/F006 FCC IDs: ACJ96NKX-PRW130 / ACJ96NKX-PRWA13 FCC Part 15D – Compliance Information pctp-13-f005, f006 (fcc_part_15d-compliance_information) 8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor with Charger Type PNLV233 (AC Adaptor) PNLC1047 (Charger) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-13-F005/F006 FCC IDs: ACJ96NKX-PRW130 / ACJ96NKX-PRWA13 FCC Part 15D – Compliance Information pctp-13-f005, f006 (fcc_part_15d-compliance_information) 8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: November 22, 2013 Date Richard Mullen Name (print) Richard Mullen Signature

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Division Power of Attorney November 21, 2013 PCTP-13-F006 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product, which are in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for DECT Cordless Telephone Handset, Model KX-PRWA13 1 Product Classification: Part 15 Unlicensed PCS Portable Tx Held to Ear (PUE) FCC ID Handset Unit ACJ96NKX-PRWA13 FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 MHz Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 DECT Handset under FCC ID: ACJ96NKX-PRWA13 may be marketed with DECT Bases, which will be Part 15D certified under FCC ID: ACJ96NKX-PRW130. Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Division Request for Confidentiality November 21, 2013 PCTP-13-F006 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for DECT Cordless Telephone Handset, Model KX-PRWA13 Product Classification: Part 15 Unlicensed PCS Portable Tx Held to Ear (PUE) FCC ID Handset Unit ACJ96NKX-PRWA13 FCC Rule Part: FCC Part 15, Subpart D In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Handset Unit and RF Unit; and (4) Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Handset Unit and RF Unit; (2) Internal Photographs of Handset Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

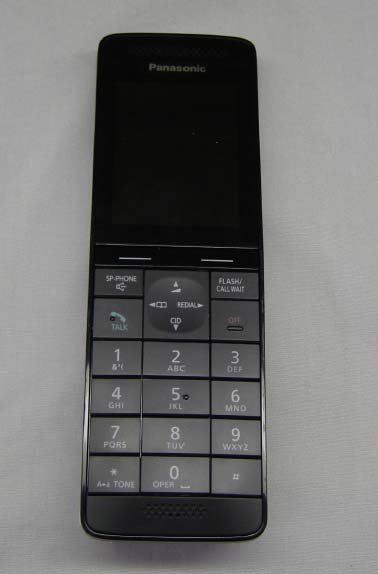

EXTERNAL PHOTOGRAPHS KX-PRWA13 Top View Bottom View Bottom View

EXHIBIT B MARKINGS Portable Unit: FCC ID Label: The m arking will be shown on the battery compartment of the portable unit. NOTE: The portable unit is sold without the battery installed. Nameplate: The nam eplate is located on the battery compartment of the portable unit.

INTERNAL PHOTOGRAPHS Internal view without RF shield Internal View 2 Internal view with RF cover Bottom View

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_Nemko_60320_6130377_FCC_DECT_PRWA13_CalData Appendix for the Report Dosimetric Assessment of the Portable Device KX-PRWA13 from Panasonic (FCC ID: ACJ96NKX-PRWA13) (IC: 216A-KXPRWA13) According to the FCC Requirements Calibration Data November 13, 2013 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan SAR_Report_FCC_DECT_1900_1.2.doc/25.11.2011/AR The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. Cal_D1900V2_SN5d051_Sep2013_V2 Page 1 of 7 Calibration Certificate Certificate No: Cal_D1900V2_SN5d051_Sep2013_V2 Object: D1900V2 SN: 5d051 Date of Calibration: September 25, 2013 Next Calibration: September 2015 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Nov 12 Rohde&Schwarz (262487-D-K-15012- 01-00-2012-11) Nov 14 Power Sensor E9301H US40010212 Nov 12 Rohde&Schwarz (262492-D-K-15012- 01-00-2012-11) Nov 14 Powermeter E4417A GB41050441 Nov 12 Rohde&Schwarz (262488-D-K-15012- 01-00-2012-11) Nov 14 Power Sensor E9301A MY41495584 Nov 12 Rohde&Schwarz (262489-D-K-15012- 01-00-2012-11) Nov 14 Network Analyzer E5071C MY46103220 Jul 13 Rohde&Schwarz (11-300285997) Jul 15 Reference Probe EX3DV4 SN 3536 Sep 12 SPEAG (EX3-3536_Sep12) Sep 13 DAE3 SN 335 Feb 13 SPEAG (DAE3-335_Feb13) Feb 14 Cal_D1900V2_SN5d051_Sep2013_V2 Page 2 of 7 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 IEC 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", February 2005 IEC 62209-2 "Evaluation of Human Exposure to Radio Frequency Fields from Handheld and Body-Mounted Wireless Communication Devices in the Frequency Range of 30 MHz to 6 GHz: Human models, Instrumentation, and Procedures ", Part 2: “Procedure to determine the Specific Absorption Rate (SAR) for including accessories and multiple transmitters” Edition 1.0, 2010-01 Additional Documentation: DASY 4/5 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08 Cal_D1900V2_SN5d051_Sep2013_V2 Page 3 of 7 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1059 Distance Dipole Center – TSL: 10mm With spacer Area Scan resolution dx, dy = 10mm Zoom Scan resolution dx, dy, dz = 5mm Frequency: 1900 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 40.00 1.40 Measured Head TSL Parameters 21.8 41.4 ± 6% 1.43 S/m ± 6% SAR Result with Head TSL Averaged over 1g SAR measured 250 mW input power 9.80 mW/g SAR normalized normalized to 1W 39.20 mW/g SAR for nominal Head TSL parameters normalized to 1W 39.01 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250 mW input power 4.93 mW/g SAR normalized normalized to 1W 19.72 mW/g SAR for nominal Head TSL parameters normalized to 1W 19.66 mW/g ± 16.5 % (k=2) Cal_D1900V2_SN5d051_Sep2013_V2 Page 4 of 7 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 53.30 1.52 Measured Body TSL Parameters 21.7 55.00 ± 6% 1.51 S/m ± 6% SAR Result with Body TSL Averaged over 1g SAR measured 250 mW input power 9.53 mW/g SAR normalized normalized to 1W 38.12 mW/g SAR for nominal Body TSL parameters normalized to 1W 38.54 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250 mW input power 4.85 mW/g SAR normalized normalized to 1W 19.40 mW/g SAR for nominal Body TSL parameters normalized to 1W 19.54 mW/g ± 16.5 % (k=2) General Antenna Parameters Antenna Parameters with Head TSL Impedance, transformed to feed point 47.6 Ω + 0.21 jΩ Return Loss -32.05 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 52.4 Ω – 0.83 jΩ Return Loss -32.06 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feed point can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: May, 2004 Cal_D1900V2_SN5d051_Sep2013_V2 Page 5 of 7 SAR Result with Head TSL Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 250913_b_3536.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.41, 8.41, 8.41); Calibrated: 24.09.2012 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 18.02.2013 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.8 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.1 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 19.2 W/kg SAR(1 …

Text truncated - open the document above for the full version.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_Nemko_60320_6130377_FCC_DECT_PRWA13_Confidential Page 1 of 29 Report Dosimetric Assessment of the Portable Device KX-PRWA13 from Panasonic (FCC ID: ACJ9TAKX-PRWA13) (IC: 216A-KXPRWA13) According to the FCC Requirements November 13, 2013 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. This version supersedes all previous versions of this report. SAR_Report_Nemko_60320_6130377_FCC_DECT_PRWA13_Confidential Page 2 of 29 Dasy_Report_FCC_DECT_1900_1.4.doc/10.07.2013/AvB Executive Summary The KX-PRWA13 is a new cordless phone (Portable Device) from Panasonic operating in the 1920 MHz frequency range. The device has an integrated antenna and works in US DECT standard. The objective of the measurements done by IMST was the dosimetric assessment of one device in a worst case setup in head configuration. The headset was set to use one specific frequency and maximum output power during the measurement. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the 47 CFR § 2.1093 [47CFR] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions, IEEE 1528-2003 [IEEE1528-2003] and IC RSS 102 Issue 4. Additional information and guidelines given by the following FCC documents were used:  SAR Measurement Requirements for 100 MHz to 6 GHz [KDB 865664 D01 v01r01]  Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies [KDB 447498 D01 v05r01] All measurements have been performed in accordance to the recommendations given by SPEAG. SAR_Report_Nemko_60320_6130377_FCC_DECT_PRWA13_Confidential Page 3 of 29 Dasy_Report_FCC_DECT_1900_1.4.doc/10.07.2013/AvB Compliance Statement The device KX-PRWA13 from Panasonic (FCC ID: ACJ9TAKX-PRWA13, IC: 216A- KXPRWA13) is in compliance with the following standards for uncontrolled exposure:  47 CFR § 2.1093 [47CFR]  IC RSS 102 Issue 4 [RSS 102],  IEEE Std. C95.1 - 1999 [C95.1-1999],  IEEE Std. C95.3 - 2002 [C95.3-2002],  IEEE 1528-2003 [IEEE 1528-2003],  The latest version of all relevant FCC OET KDB Procedures The maximum results of SAR for the KX-PRWA13 are as follows: Band Frequency [MHz] CH Phantom Configuration Figure No. Highest Reported SAR 1g [W/kg] Plot No. US DECT 1924.992 2 Cheek position, left side 13 0.016 1 prepared by: ........................................ reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer SAR_Report_Nemko_60320_6130377_FCC_DECT_PRWA13_Confidential Page 4 of 29 Dasy_Report_FCC_DECT_1900_1.4.doc/10.07.2013/AvB Table of Contents 1 SUBJECT OF INVESTIGATION .......................................................................................................... 5 2 THE IEEE STANDARD C95.1-1999 AND THE FCC EXPOSURE CRITERIA .................................... 5 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES ........... 5 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS .................................... 6 2.3 SAR LIMIT ..................................................................................................................................... 6 3 THE FCC MEASUREMENT PROCEDURE ......................................................................................... 7 3.1 GENERAL REQUIREMENTS .............................................................................................................. 7 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR ................................................................................ 7 3.2.1 PHANTOM REQUIREMENTS ......................................................................................................... 7 3.2.2 TEST POSITIONS ........................................................................................................................ 7 3.2.3 TEST TO BE PERFORMED .......................................................................................................... 10 3.2.4 MEASUREMENT VARIABILITY ..................................................................................................... 10 4 BODY-WORN CONFIGURATIONS ................................................................................................... 11 4.1 POC (PTT) POSITION ................................................................................................................... 11 4.2 PHANTOM REQUIREMENTS ............................................................................................................ 11 4.3 TEST TO BE PERFORMED .............................................................................................................. 11 5 THE MEASUREMENT SYSTEM ........................................................................................................ 12 5.1 PHANTOMS................................................................................................................................... 13 5.2 E-FIELD-PROBES ......................................................................................................................... 14 5.3 MEASUREMENT PROCEDURE ........................................................................................................ 15 5.4 UNCERTAINTY ASSESSMENT ......................................................................................................... 16 6 OUTPUT POWER VAL…

Text truncated - open the document above for the full version.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_Nemko_60320_6130377_FCC_DECT_PRWA13_Plots Page 1 of 5 Appendix for the Report Dosimetric Assessment of the Portable Device KX-PRWA13 (FCC ID: ACJ96NKX-PRWA13) (IC: 216A-KXPRWA13) According to the FCC Requirements SAR Distribution Plots November 13, 2013 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. This version supersedes all previous versions of this report. SAR_Report_Nemko_60320_6130377_FCC_DECT_PRWA13_Plots Page 2 of 5 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots, Head Measurement Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: PRWA13_yplm_1.da4 DUT: Panasonic; Type: KX-PRWA13; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.41 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.05, 5.05, 5.05); Calibrated: 19.02.2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.09.2013 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Left/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.017 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.11 V/m; Power Drift = 0.183 dB Peak SAR (extrapolated) = 0.028 W/kg SAR(1 g) = 0.016 mW/g; SAR(10 g) = 0.0089 mW/g Maximum value of SAR (measured) = 0.018 mW/g Fig. 1: SAR distribution for DECT US, channel 2, cheek position, left side of head (November 12, 2013). SAR_Report_Nemko_60320_6130377_FCC_DECT_PRWA13_Plots Page 3 of 5 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: PRWA13_yplm_2.da4 DUT: Panasonic; Type: KX-PRWA13; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.41 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.05, 5.05, 5.05); Calibrated: 19.02.2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.09.2013 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilted Left/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.011 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.59 V/m; Power Drift = 0.022 dB Peak SAR (extrapolated) = 0.016 W/kg SAR(1 g) = 0.011 mW/g; SAR(10 g) = 0.00646 mW/g Maximum value of SAR (measured) = 0.012 mW/g Fig. 2: SAR distribution for DECT US, channel 2, tilted position, left side of head (November 12, 2013). SAR_Report_Nemko_60320_6130377_FCC_DECT_PRWA13_Plots Page 4 of 5 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: PRWA13_yprm_1.da4 DUT: Panasonic; Type: KX-PRWA13; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.41 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(4.89, 4.89, 4.89); Calibrated: 19.02.2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.09.2013 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Right/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.014 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.82 V/m; Power Drift = 0.092 dB Peak SAR (extrapolated) = 0.020 W/kg SAR(1 g) = 0.015 mW/g; SAR(10 g) = 0.00891 mW/g Maximum value of SAR (measured) = 0.016 mW/g Fig. 3: SAR distribution for DECT US, channel 2, cheek position, right side of head (November 12, 2013). SAR_Report_Nemko_60320_6130377_FCC_DECT_PRWA13_Plots Page 5 of 5 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: PRWA13_yprm_2.da4 DUT: Panasonic; Type: KX-PRWA13; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.41 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(4.89, 4.89, 4.89); Calibrated: 19.02.2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.09.2013 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilted Right/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.011 mW/g Tilted Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.81 V/m; Power Drift = -0.037 dB Peak SAR (extrapolated) = 0.015 W/kg SAR(1 g) = 0.00989 mW/g; SAR(10 g) = 0.00587 mW/g Fig. 4: SAR distribution for DECT US, channel 2, tilted position, right side of head (November 12, 2013)

Report No. 243527-2 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Handset Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-PRWA13 Rating 2.5 V DC (Secondary Batteries, 2xAAA NiMH cells) Trademark Panasonic Serial number / Additional information / Tested according to FCC P…

Text truncated - open the document above for the full version.
