Model No. KX-T0155/KX-T0158 DECT 6.0 Cell Station Unit Quick Installation Guide Document Version: 2008-01 Thank you for purchasing a Panasonic DECT 6.0 Cell Station Unit. Please read this manual carefully before using this product and save this manual for future use. 2Quick Installation Guide F.C.C. REQUIREMENTS AND RELEVANT INFORMATION Privacy of communications may not be ensured when using the wireless systems. CAUTION Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the distance between the equipment and receiver. •Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Some wireless telephones operate at frequencies that may cause interference to nearby TVs and VCRs. To minimize or prevent such interference, the base of the wireless telephone should not be placed near or on top of a TV or VCR. If interference is experienced, move the wireless telephone further away from the TV or VCR. This will often reduce, or eliminate, interference. CAUTION To comply with FCC RF exposure requirements in an uncontrolled environment: •This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm (8 in) spacing must be provided between antenna and all person's body (excluding extremities of hands, wrist and feet) during wireless modes of operation. •This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Medical—consult the manufacturer of any personal medical devices, such as pacemakers, to determine if they are adequately shielded from external RF (radio frequency) energy. (The unit operates in the frequency range of 1920 MHz to 1930 MHz, and the output peak power level is less than 0.12 W.) Do not use the unit in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF (radio frequency) energy. Quick Installation Guide3 Table of Contents 1 Overview.................................................................................................. 4 2 Procedure Overview ............................................................................... 7 3 Site Planning ........................................................................................... 9 4 Before Site Survey................................................................................ 13 5 Site Survey ............................................................................................ 18 6 After Site Survey................................................................................... 22 7 Connecting a Cell Station to the PBX ................................................. 23 8 Wall Mounting ....................................................................................... 30 9 Troubleshooting.................................................................................... 33 1 Overview 4Quick Installation Guide 1Overview Names and Locations LED Indications Maximum Number of Calls Cell Stations (CSs) determine the area covered by the wireless system. The number of calls that can be made simultaneously through each CS varies depending on the model, as follows: Note For more details about the Portable Station (PS), refer to the Operating Instructions of the PS. IndicationColorDescription STATUSGreen/RedCS status indication •OFF: Power Off •Green ON: Stand-by (no active calls) •Slow Green Flashing (60 times per minute): Talk (active calls) •Moderate Green Flashing (120 times per minute): Busy •Red ON: Fault (includes Initialization) •Red Flashing (60 times per minute): Out of Service/Starting up CS status indication during the site survey •Red ON: The CS is connected to an AC adaptor/battery box. •Red Flashing (60 times per minute): The CS is connected to the PBX. Cell StationMaximum CallsCompatible Portable Station KX-T01552•KX-TD7685 •KX-TD7695 KX-T01588 LED Antennas CS ID Number (ID: xxxxxxxxxx) 1 Overview Quick Installation Guide5 Maximum Number of CSs Supported by PBX The following number of CSs can be supported by each PBX. Required Distances between Equipment Maintain the distances listed below between equipment in order to prevent noise, interference or the disconnection of a conversation. (The distance may vary depending on the environment.) If multiple CSs cover the same area, the phone connection may become noisy or the number of possible simultaneous calls with PSs may decrease due to interference between the CSs. For details, refer to "5 Site Survey—Testing the Radio Signal Strength". The required distance between CSs may vary depending on the environment of the installation site and conditions in which the wireless system is used. Conduct a site survey to determine the appropriate distance. RF Specification PBXConnected via Maximum Number KX-T0155KX-T0158 KX-TAW848 •Hybrid Ports •HLC card 4- KX-TDA50 (with Additional AC Adaptor) •Sup…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Power of Attorney January 18, 2008 PCNF-07-F106A Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko Canada to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15D. Any and all acts carried out by Nemko Canada on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Equipment: Isochronous UPCS Cell Station Product Name: 1920~1930 MHz Digital Cordless Telephone System 8-Ch Base Model Number: KX-T0158 Base FCC ID: ACJ96NKX-T0158 Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Panasonic Communications Co., Ltd. Responsible Sales Company: Panasonic Consumer Electronics Company Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality January 18, 2008 PCNF-07-F106A Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Equipment: Isochronous UPCS Cell Station (Base) Product Name: 1920~1930 MHz Digital Cordless Telephone System FCC Part & Equip Class: FCC Part 15D / UPCS Base Station / Equipment Classification Code PUB 2-Ch Base Model Number: KX-T0158 Base FCC ID: ACJ96NKX-T0158 In accordance with provisions of Section 0.457(d) of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain Operation Description, Parts List, Block Diagram and Schematic Diagram. This transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits which contain Internal Photographs, and the Operating Instructions (User Manual). This product does not offer user tune-up procedures. The requested short-term confidentiality exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division FCC Cover Letter / Product Description January 18, 2008 PCNF-07-F106A Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America requests TCB Certification for the below described product, which is in compliance with FCC Part 15D. Type Equipment: Isochronous UPCS Cell Station Product Name: 1920~1930 MHz Digital Cordless Telephone System FCC Part & Equip Class: FCC Part 15D / UPCS Base Station / Equipment Classification Code PUB 2-Ch Base Model Number: KX-T0158 Base FCC ID: ACJ96NKX-T0158 Frequency Range: 1921.536 ~ 1928.448 MHz Number Channels: 5 RF Channels, 5x12 = 60 TDMA Duplex Channels Type Modulation: GFSK (Gaussian Frequency Shift Keying) Conducted Output Power: 0.070 Watts Peak Power (18.5 dBm) Power Supply: Supplied by host PBX Antenna: Permanently attached 2 monopole antenna with antenna gain less than 3.0 dBi RF Exposure Evaluation: Maximum Permissive Exposure for Mobile Operation. The User Manual is provided with RF exposure warnings, which includes: (1) To comply with FCC RF exposure requirements, the base unit must be installed and operated 20 cm (8 inches) or more between the product and all person’s body (excluding extremities of hands, wrist and feet); (2) This product may not be collocated or operated in conjunction with any other antenna or transmitter and (3) The handset may be carried and operated with only the specific provided belt-clip. Other non-tested belt-clips or similar body-worn accessories may not comply and must be avoided. UTAM Affidavit: Panasonic was issued Affidavit of Participation to FCC Section 15.307(b) Affidavit #: PAN120707 was issued on December 7, 2006 Remarks: The subject Cell Station (Base) will be FCC Part 68 certified by Nemko Canada under US: ACJKXNANKX-TD7685; and will be marketed with Portable Station (Handset), which will be FCC Part 15D TCB certified by Nemko Canada under FCC ID: ACJ96NKX-TD7685. Sincerely yours, Richard Mullen Richard Mullen Group Manager

Panasonic Communications Co., Ltd. FCC ID : ACJ96NKX-T0155 1 of 1 STATEMENT OF SECURITY CODE This wireless handset has 1000 billion digital security coding combinations that are provided by the following means: • Provided with 40 bits (1000 billion) for security codes.. • When shipped from the factory, the security code is decided by the manufacturer.

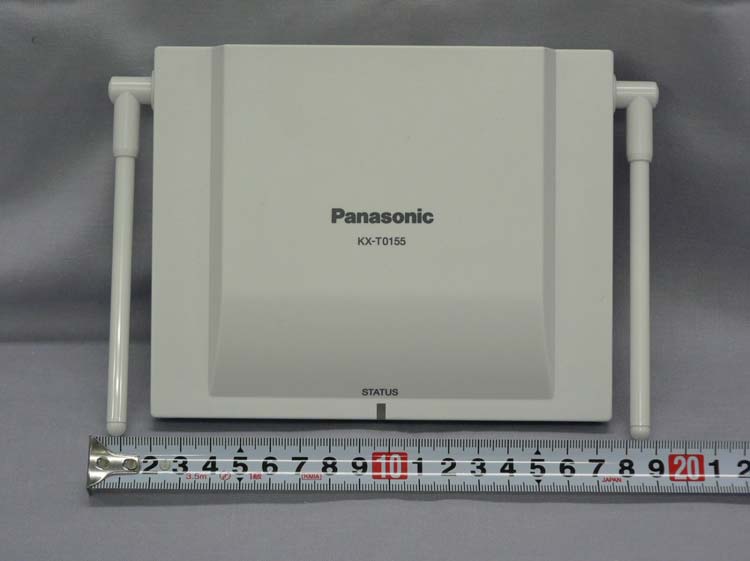

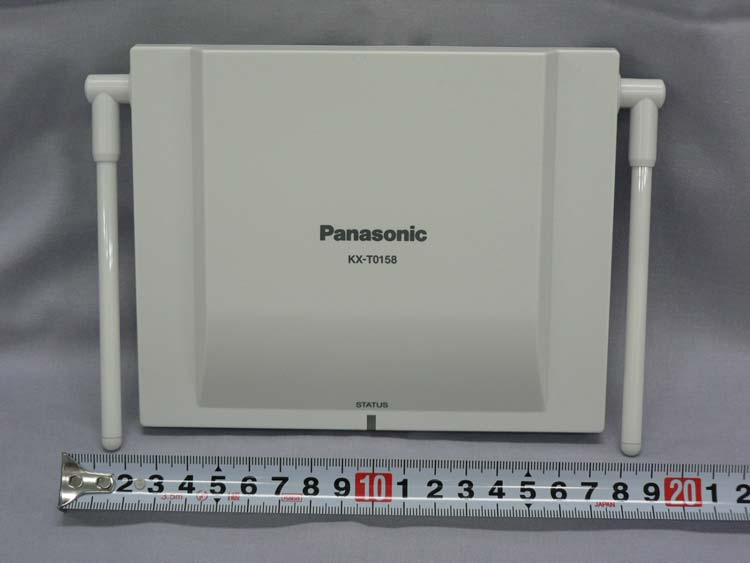

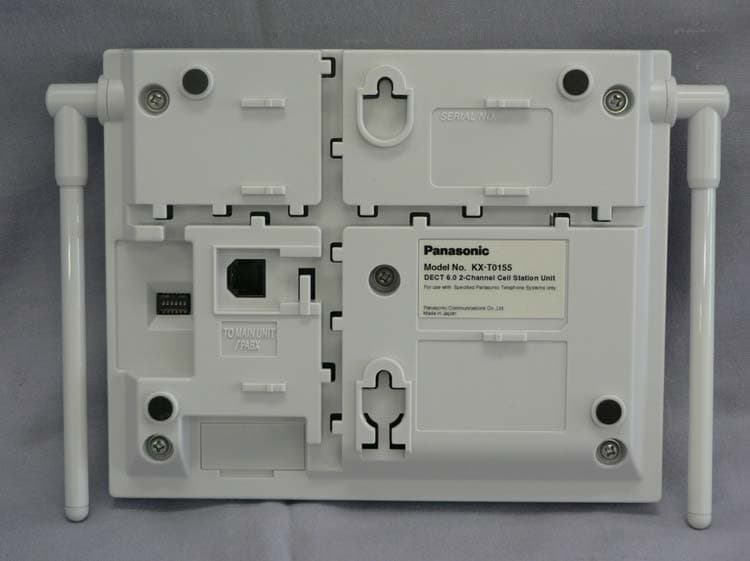

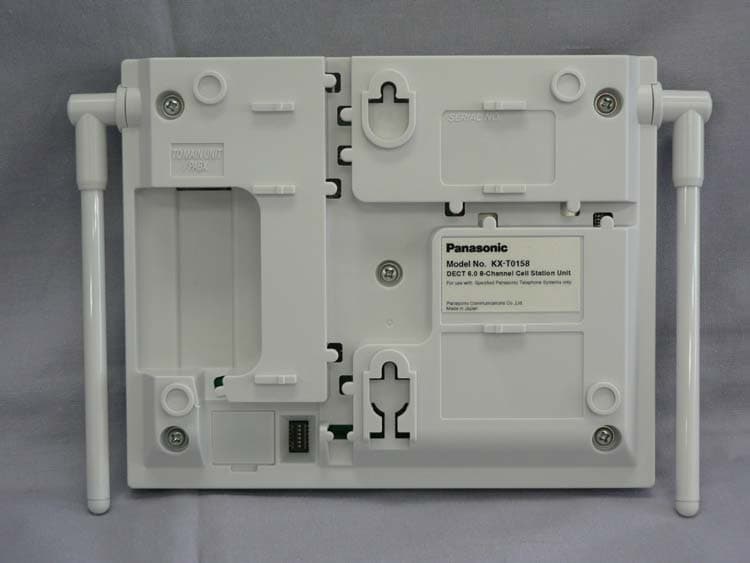

Panasonic Communications Co., Ltd. FCC ID: ACJ96NKX-T0155 1 of 2 External Photos KX-T0155 Front view KX-T0155 Rear view Panasonic Communications Co., Ltd. FCC ID: ACJ96NKX-T0155 2 of 2 KX-T0158 Front view KX-T0158 Rear view

Panasonic Communications Co., Ltd. FCC ID: ACJ96NKX-T0155 / ACJ96NKX-T0158 2) KX-T0158 2 of 2

Panasonic Communications Co., Ltd. FCC ID: ACJ96NKX-T0155 1 of 3 Internal Photos KX-T0155 Internal view KX-T0155 Internal view Panasonic Communications Co., Ltd. FCC ID: ACJ96NKX-T0155 2 of 3 KX-T0158 Internal view KX-T0158 Internal view Panasonic Communications Co., Ltd. FCC ID: ACJ96NKX-T0155 3 of 3 RF module of KX-T0155 and KX-T0158, View of under the shield case

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 9 7-01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Valid for frequencies from 30 to 100.000 MHz Maximum peak output power at antenna input terminal : 18.50 (dBm) Maximum peak output power at antenna input terminal : 70.79457844 (mW) Antenna gain(typical): 3.00 (dBi) Maximum antenna gain: 1.995262315 (numeric) Prediction distance: 100 (cm) Prediction frequency: 1921.536 (MHz) MPE limit for uncontrolled exposure at prediction f requency: 1.00 (mW/cm^2) Power density at prediction frequency: 0.001124 (mW/cm^2) Maximum allowable antenna gain: 32.49 (dBi) Margin of Compliance: 29.49 (dB) 2 4 R PG S π =

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Comlab, Gåsevikveien 8, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 94564-6 Item tested : KX-T0155 Type of equipment : UPCS Base FCC ID : ACJ96NKX-T0155 Client : Panasonic Communications Co. Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 18 January 2008 Authorized by : ......................... . .................... Egil Hauger Technical Verificator TEST REPORT FCC part 15D Project no.: 94564 FCC ID: ACJ96NKX-T0155 Nemko Comlab, N-2027 Kjeller Page 2 (52) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information............................................................................................................................... 3 1.3 Manufacturer (if other than client) ...................................................................................................... 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Test Environment............................................................................................................................... 5 2.3 Test Period ........................................................................................................................................ 5 2.4 Test Engineer(s) ................................................................................................................................ 5 2.5 Test Equipment.................................................................................................................................. 5 2.6 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave................................................................................................... 11 4.3 Digital Modulation Techniques......................................................................................................... 11 4.4 Labeling Requirements .................................................................................................................... 11 4.5 Antenna Requirement ...................................................................................................................... 12 4.6 Channel Frequencies....................................................................................................................... 12 4.7 Automatic Discontinuation of Transmission ..................................................................................... 13 4.8 Peak Power Output.......................................................................................................................... 14 4.9 Emission Bandwidth B..................................................................................................................... 19 4.10 Power Spectral Density.................................................................................................................... 22 4.11 In-Band Unwanted Emissions, Conducted....................................................................................... 25 4.12 Out-of-band Emissions, Conducted ................................................................................................. 27 4.13 Carrier Frequency Stability .............................................................................................................. 32 4.14 Frame Repetition Stability................................................................................................................ 33 4.15 Frame Period and Jitter ................................................................................................................... 33 4.16 Monitoring Threshold, Least Interfered Channel .............................................................................. 35 4.17 Threshold Monitoring Bandwidth ..................................................................................................... 37 4.18 Reaction Time and Monitoring Interval ............................................................................................ 38 4.19 Time and Spectrum Window Access Procedure .............................................................................. 40 4.20 Acknowledgements and Transmission Duration .............................................................................. 43 4.21 Dual Access Criteria Check ............................................................................................................. 44 4.22 Altern…

Text truncated - open the document above for the full version.

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Comlab, Gåsevikveien 8, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Letter of Compliance (Ref: 94564/8) On behalf of Panasonic Communications Co., Ltd, Nemko Comlab has performed EMC testing of the Panasonic KX- T0155 according to FCC CFR 47 Part 15D and ANSI C63.17-2006 for UPCS equipment. The Panasonic KX-T0155 is in compliance with FCC CFR 47 Part 15D and ANSI C63.17-2006 for UPCS equipment. As stated by the manufacturer the radio modules and access software of the Panasonic KX-T0158 is identical to the tested KX-T0155, therefore the KX-T0158 is also in compliance with the UPCS Access Requirements of FCC CFR47 Part 15D and ANSI C63.17-2006. The letter of compliance is based on Nemko Comlab report no. 94564-6 dated 18 January 2008. Nemko AS Nemko Comlab Frode Sveinsen

Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Report No: 94564 KX-T0158 AC Powerline Conducted Emission Page 2 of 1 AC Powerline Conducted Emission, Setup Photos KX-T0158 Setup KX-T0158 Setup Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Report No: 94564 KX-T0158 AC Powerline Conducted Emission Page 3 of 2 AC Powerline Conducted Emission, Spectral Plots Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Report No: 94564 KX-T0158 AC Powerline Conducted Emission Page 4 of 3 AC Powerline Conducted Emission, Spectral Plots, continued Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Report No: 94564 KX-T0158 AC Powerline Conducted Emission Page 5 of 4 AC Powerline Conducted Emission, Spectral Plots, continued Nemko Canada Inc., 303 River Road, R.R. 5, Ottawa, Ontario, Canada, K1V 1H2 Report No: 94564 KX-T0158 AC Powerline Conducted Emission Page 6 of 5 AC Powerline Conducted Emission, Spectral Plots, continued

FCC ID: ACJ96NKX-T0155 Project no.: 94564 Page 1 of 1 PHOTOS OF TEST SET-UP - Base Antenna Gain Test Power line Conducted Emissions Test
