ACJ96NKX-TC1851900 MHz DSSS Cordless Telephone System

Panasonic Corporation of North America

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Mar 29, 2000
Application Purpose: Original Equipment
Date of Application: Feb 08, 2000
Equipment Note: 900 MHz DSSS Cordless Telephone System
Frequency Range: 903.75000000 - 926.25000000
Company: Panasonic Corporation of North America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

900MHz Cordless Phone Pulse-or-tone dialing capability Model No. KX-TC1851B PLEASE READ BEFORE USE AND SAVE. Charge the battery for about 4 hours before initial use. Contents: Location of Controls. . . . . . . . . . . . . . . . 3 Connections. . . . . . . . . . . . . . . . . . . . . . 5 Battery Charge . . . . . . . . . . . . . . . . . . . 6 Selecting the Dialing Mode. . . . . . . . . . . 7 Making/Answering Calls. . . . . . . . . . . . . 8 Caller ID Service. . . . . . . . . . . . . . . . . . 9 Important Safety Instructions. . . . . . . . 10 FCC and Other Information. . . . . . . . . . 12 OPERATING INSTRUCTIONS Panasonic World Wide Web address: http://www.panasonic.com for customers in the USA or Puerto Rico – 2– Please read IMPORTANT SAFETY INSTRUCTIONS on page 10 before use. Read and understand all instructions. Thank you for purchasing your new Panasonic cordless telephone. Attach your purchase receipt here. For your future reference Serial No. Date of purchase (found on the bottom of the unit) Name and address of dealer – 3– Location of Controls ∫Handset Antenna (TONE) Button (TALK) Button (ENTER/CH) Button Navigator Key ((‹), (›), BACK (fi), FWD/EDIT (fl)) (CLEAR) Button (REDIAL/PAUSE) Button Display (FLASH/CALL\WAIT) Button (FUNCTION/EXIT) Button Charge Contacts – 4– ∫Base unit Antenna (HANDSET\LOCATOR) Button Charge Contacts CALLER ID Indicator IN USE/CHARGE Indicator – 5– Connections ≥USE ONLY WITH Panasonic ACADAPTORKX-TCA1. ≥The adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Telephone Line Cord Single-Line Telephone Jack (RJ11C) Power Outlet (AC 120V, 60Hz) AC Adaptor Battery Charge – 6– To power the handset, charge the battery. Place the handset on the base unit for about 4 hours before initial use. ≥The IN USE/CHARGE indicator lights. ∫Recharge Recharge the battery when: —“Recharge” is displayed, —“” flashes on the display, or —the handset beeps intermittently while it is in use. ≥Clean the handset and base unit charge contacts with a soft, dry cloth once a month. Clean more often if the unit is subject to grease, dust or high humidity.Otherwise the battery may not charge properly. ≥If the battery is fully charged, you do not have to place the handset on the base unit until “Recharge” is displayed and/or “” flashes. This will maximize the battery life. ≥The battery cannot be overcharged. Attention: The product you have purchased is powered by a nickel cadmium battery which is recyclable. At the end of its useful life, under various state and local laws, it is illegal to dispose of this battery into your municipal waste stream. Please call 1-800-8-BATTERY for information on how to recycle this battery. – 7– Selecting the Dialing Mode You can program the dialing mode by using the handset near the base unit. If you have touch tone service, set to TONE. If rotary or pulse service is used, set to PULSE. Your phone comes from the factory set to TONE. Make sure that the handset is in the stand-by mode. 1 Press (FUNCTION/EXIT). 2 Press (›)or (‹)repeatedly until the arrow points to “Program”. 3 Press (ENTER/CH)orFWD/EDIT(fl). 4 Press (›)or (‹)repeatedly until the arrow points to “Set dial mode”. 5 Press (ENTER/CH)or FWD/EDIT (fl). 6 Press (›)or (‹)to select “Pulse” or “Tone”. Press (ENTER/CH). ≥A beep sounds. ≥The display will return to the function list. To return to the stand-by mode, press (FUNCTION/EXIT) or wait for 60seconds. ≥You can exit the programming mode any time by pressing (FUNCTION/EXIT). – 8– ∫To make a call 1Press (TALK). 2Dial a telephone number. 3To hang up, press (TALK)or place the handset on the base unit. ≥If “Out of range” is displayed and an alarm tone sounds in step 1, move closer to the base unit or place the handset on the base unit. Then try again. ≥To redial the last number: Press (TALK), then press (REDIAL/PAUSE). ∫To answer a call If the handset is off the base unit, press (TALK). If on the base unit, just lift up. Making/Answering Calls – 9– Caller ID Service This unit is compatible with a Caller ID service offered by your telephone company. After you subscribe to a Caller ID service, the calling party information will be displayed after the first ring. The unit can record information of up to 50 different callers, including the time and date received and the number of times called, in the Caller List. The Caller List information is sorted from the most recent to the oldest call. When the 51st call is received, the oldest call is deleted. If your unit is connected to a PBX system which does not support Caller ID services, you cannot access those services. Please consult your equipment supplier. Important Safety Instructions – 10– When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 1.Read and understand all instructions. 2.Follow all warnings and instructions marked on this unit. 3.Unplug this unit from AC outlets before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 4.Do not use this unit near water, for example, near a bathtub, washbowl, kitchen sink, or the like. 5.Place this unit securely on a stable surface. Serious damage and/or injury may result if the unit falls. 6.Do not cover slots and openings on the unit. They are provided for ventilation and protection against overheating. Never place the unit near radiators, or in a place where proper ventilation is not provided. 7.Use only the power source marked on the unit. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. 8.Do not place objects on the power cord. Install the unit where no one can step or trip on the cord. 9.Do not overload wall outlets and extension cords. This can result in the risk of fire or electric shock. 10.Never push any objects through slots in this unit. This may result in the risk of fire or electric shock. Never spill any liquid on the unit. 11.To reduce …

Text truncated - open the document above for the full version.

Cover Letter(s)

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has four million digital security coding combinations that are provided by the following means: • Provided with 22 bits (four million) for security codes. • When the handset is not on the base unit, the 22 bit codes changes by the free-running timer. • When the user puts the handset on the base unit, the free-running timer ceases and decides the exact security code. The base unit sends the security code information to the handset. • When shipped from the factory, the security code is decided by the manufacture. However, once the user uses the cordless handset, the security code is constantly changing by the free-running timer.

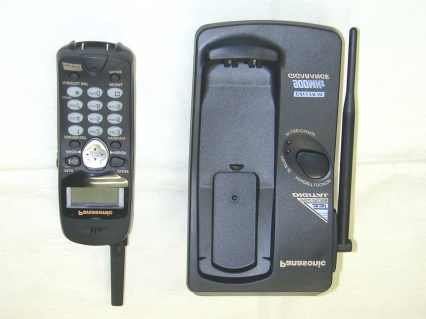

External Photos

FCC ID: ACJ96NKX-TC1851

External Photos

Test Report S/N: 15.200131046.ACJFCC Part 15.247 Test Date(s): February 01-02, 2000Certification © 2000 PCTEST Lab PANASONIC FCC ID: ACJ96NKX-TC1851 NVLAP Lab Code: 100431-0 Digital Spread Spectrum Cordless Telephone (903.75 - 926.25) Test Report S/N: 15.200131046.ACJFCC Part 15.247 Test Date(s): February 01-02, 2000Certification © 2000 PCTEST Lab PANASONIC FCC ID: ACJ96NKX-TC1851 NVLAP Lab Code: 100431-0 Digital Spread Spectrum Cordless Telephone (903.75 - 926.25) Test Report S/N: 15.200131046.ACJFCC Part 15.247 Test Date(s): February 01-02, 2000Certification © 2000 PCTEST Lab PANASONIC FCC ID: ACJ96NKX-TC1851 NVLAP Lab Code: 100431-0 Digital Spread Spectrum Cordless Telephone (903.75 - 926.25) Test Report S/N: 15.200131046.ACJFCC Part 15.247 Test Date(s): February 01-02, 2000Certification © 2000 PCTEST Lab PANASONIC FCC ID: ACJ96NKX-TC1851 NVLAP Lab Code: 100431-0 Digital Spread Spectrum Cordless Telephone (903.75 - 926.25) Test Report S/N: 15.200131046.ACJFCC Part 15.247 Test Date(s): February 01-02, 2000Certification © 2000 PCTEST Lab PANASONIC FCC ID: ACJ96NKX-TC1851 NVLAP Lab Code: 100431-0 Digital Spread Spectrum Cordless Telephone (903.75 - 926.25) Test Report S/N: 15.200131046.ACJFCC Part 15.247 Test Date(s): February 01-02, 2000Certification © 2000 PCTEST Lab PANASONIC FCC ID: ACJ96NKX-TC1851 NVLAP Lab Code: 100431-0 Digital Spread Spectrum Cordless Telephone (903.75 - 926.25) Test Report S/N: 15.200131046.ACJFCC Part 15.247 Test Date(s): February 01-02, 2000Certification © 2000 PCTEST Lab PANASONIC FCC ID: ACJ96NKX-TC1851 NVLAP Lab Code: 100431-0 Digital Spread Spectrum Cordless Telephone (903.75 - 926.25) Test Report S/N: 15.200131046.ACJFCC Part 15.247 Test Date(s): February 01-02, 2000Certification © 2000 PCTEST Lab PANASONIC FCC ID: ACJ96NKX-TC1851 NVLAP Lab Code: 100431-0 Digital Spread Spectrum Cordless Telephone (903.75 - 926.25) Test Report S/N: 15.200131046.ACJFCC Part 15.247 Test Date(s): February 01-02, 2000Certification © 2000 PCTEST Lab PANASONIC FCC ID: ACJ96NKX-TC1851 NVLAP Lab Code: 100431-0 Digital Spread Spectrum Cordless Telephone (903.75 - 926.25) Test Report S/N: 15.200131046.ACJFCC Part 15.247 Test Date(s): February 01-02, 2000Certification © 2000 PCTEST Lab PANASONIC FCC ID: ACJ96NKX-TC1851 NVLAP Lab Code: 100431-0 Digital Spread Spectrum Cordless Telephone (903.75 - 926.25)

ID Label/Location Info

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit. Portable Unit: The marking will be shown on the top side of the portable unit.

ID Label/Location Info

FCC ID: ACJ96NKX-TC1851

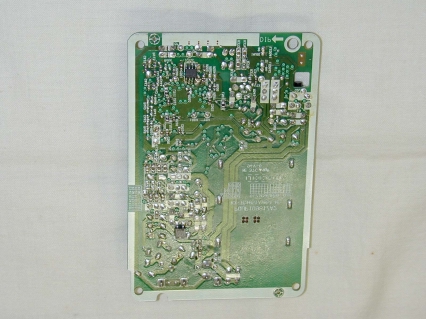

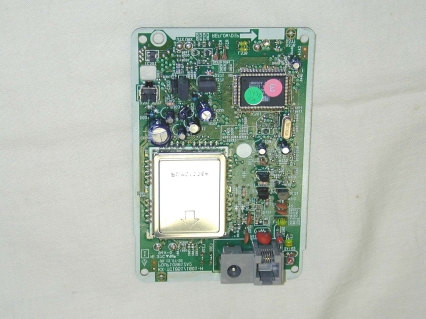

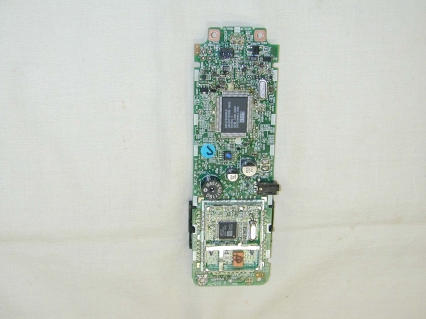

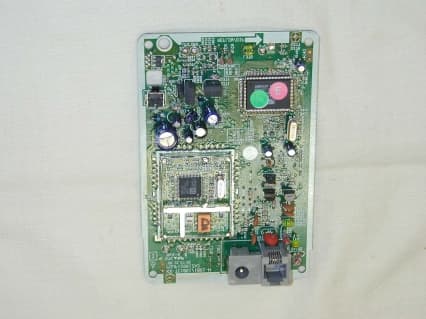

Internal Photos

Operational Description

EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY BASE UNIT: A) WHEN A BELL SIGNAL ENTERS FROM TEL LINE 1) The bell detection circuit, i.e., the transistor(Q101) begins to operate and its output is inputted to pin 64 of IC501(DSP). 2) To obtain a display synchronized with the bell signal, an IN USE signal is output from pin 65 of IC501(DSP) and INUSE LED(LED541) is lighted up. 3) A portable phone receives a bell from the base station. When the portable phone is switched from the STANDBY to TALK, the base station receives a carrier modulated by data indicating the switch from STANDBY to TALK. The data demodulated at the base station is inputted to pin 71 and 72 of IC501, and passes through Q121 to make the circuit relay, then, release the muting and enables talk. B) WHEN A LINE LOOP IS MADE BY A PORTABLE PHONE 1) When the operator of the portable phone switches STANDBY to TALK, the TALK mode data enters the base station and is demodulated at the RF Unit of the base station, and is inputted to pin 71 and 72 of IC501. 2) In this time, an IN USE signal is output from pin 65 of IC501, and the IN USE LED (LED541) is lighted up. C) RECIEVER UNIT OPERATION 1) A signal is received by the antenna, and passes through the 903.75 to 926.25MHz band pass filter F102, and is inputted to the pin 7 and 8 of IC101. 2) The received signal and local signal made by VCO (1.8075 • 1.8525GHz) are mixed by IC101 to obtain digitized audio signal. 3) The base band signal is fed to pins 72 of IC501. 4) This audio signal is transmitted to the telephone line by IC501. D) TRANSMISSION UNIT OPERATION 1) An audio signal from the line passes through the interface transistor(Q121). 2) The audio signal is inputted to pin 38 of IC501. 3) This audio signal is coded by IC501 and output from pin 71 to IC101. 4) This modulated signal goes through Balun(T101), and outputs to the antenna. EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY PORTABLE UNIT: A) RECEIVER UNIT OPERATION 1) A signal from the base unit is received by the antenna, and passes through the 903.75 to 926.25MHz band pass filter F102. And the signal is fed to pin 7 and 8 of IC101. 2) An received signal and 1st local signal made by VCO(1.8075•1.8525GHz) are mixed to obtain digitized audio signal. And this signal goes out from pin 37 of IC101. 3) This digitized audio signal is fed to pin 72 of IC201. 4) This audio signal goes to pin 32 and 33 of IC201, and output to speaker. B) TRANSMISSION UNIT OPERATION 1) When selected TALK switch to TALK, the detect switch of IC201 becomes ON and get into TALK mode. 2) The audio signal from microphone is inputted to pin 41 and 42 of IC201. 3) This audio signal is coded by IC201 and output from pin 71 to IC101. 4) This modulated signal goes through Balun(T101), and outputs to the antenna.

RF Exposure Info

Test Report S/N: SAR.200320077.ACJSAR Measurement Report Test Date(s): March 22-23, 2000FCC Part 15.247 Certification © 2000 PCTEST Lab FCC ID: ACJ96NKX-TC1851 (Tx 903 – 927MHz) NVLAP Lab Code: 100431-0 PANASONIC Digital Spread Spectrum Cordless Telephone (Base/Handset) Test Report S/N: SAR.200320077.ACJSAR Measurement Report Test Date(s): March 22-23, 2000FCC Part 15.247 Certification © 2000 PCTEST Lab FCC ID: ACJ96NKX-TC1851 (Tx 903 – 927MHz) NVLAP Lab Code: 100431-0 PANASONIC Digital Spread Spectrum Cordless Telephone (Base/Handset) Test Report S/N: SAR.200320077.ACJSAR Measurement Report Test Date(s): March 22-23, 2000FCC Part 15.247 Certification © 2000 PCTEST Lab FCC ID: ACJ96NKX-TC1851 (Tx 903 – 927MHz) NVLAP Lab Code: 100431-0 PANASONIC Digital Spread Spectrum Cordless Telephone (Base/Handset) Test Report S/N: SAR.200320077.ACJSAR Measurement Report Test Date(s): March 22-23, 2000FCC Part 15.247 Certification © 2000 PCTEST Lab FCC ID: ACJ96NKX-TC1851 (Tx 903 – 927MHz) NVLAP Lab Code: 100431-0 PANASONIC Digital Spread Spectrum Cordless Telephone (Base/Handset) Test Report S/N: SAR.200320077.ACJSAR Measurement Report Test Date(s): March 22-23, 2000FCC Part 15.247 Certification © 2000 PCTEST Lab FCC ID: ACJ96NKX-TC1851 (Tx 903 – 927MHz) NVLAP Lab Code: 100431-0 PANASONIC Digital Spread Spectrum Cordless Telephone (Base/Handset) Test Report S/N: SAR.200320077.ACJSAR Measurement Report Test Date(s): March 22-23, 2000FCC Part 15.247 Certification © 2000 PCTEST Lab FCC ID: ACJ96NKX-TC1851 (Tx 903 – 927MHz) NVLAP Lab Code: 100431-0 PANASONIC Digital Spread Spectrum Cordless Telephone (Base/Handset) Test Report S/N: SAR.200320077.ACJSAR Measurement Report Test Date(s): March 22-23, 2000FCC Part 15.247 Certification © 2000 PCTEST Lab FCC ID: ACJ96NKX-TC1851 (Tx 903 – 927MHz) NVLAP Lab Code: 100431-0 PANASONIC Digital Spread Spectrum Cordless Telephone (Base/Handset)

RF Exposure Info

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00032315_ZOOM.VLT Start : 23-Mar-100 03:18:42 pm End : 23-Mar-100 03:23:18 pm Radio Type : ACJ96NKX-TC1851 Model Number : KX-TC1851B Serial Number : 10 Frequency : 903.75 MHz Peak Trans. Pwr : 0.097 W Start Trans. Pwr: 0.097 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : PANASONIC DSS CORDLESS PHONE CHAN. 1 BASE 2 CM SPACING FIXED ANTENNA Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 0.500, Y = 0.750, Z = 0.000 (cm) Value = 5.021 Measured Values (volts) = 4.925E-003 4.273E-003 3.595E-003 2.997E-003 2.410E-003 1.965E-003 1.735E-003 1.677E-003 1.728E-003 1.801E-003 1.831E-003 1.651E-003 1.379E-003 9.852E-004 6.134E-004 3.467E-004 2.893E-004 4.485E-004 7.140E-004 9.212E-004 9.398E-004 Calc. Voltage @ Surface (Vs) = 0.0058 Voltage @ 1.00 cm (Vt) = 0.0030 Ave. Voltage (Vs+Vt)/2 = 0.0044 Ave. SAR over 1 g (mW/g) = 0.3627 0.0 0.1 0.2 0.3 0.4 0.5 mW/g -1012345 Z centimeters SAR Scan File : 00032315_ZOOM Start : 23-Mar-100 03:18:42 pm End : 23-Mar-100 03:23:18 pm ACJ96NKX-TC1851/KX-TC1851B/10;903.75MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 00032315_ZOOM Start : 23-Mar-100 03:18:42 pm End : 23-Mar-100 03:23:18 pm ACJ96NKX-TC1851/KX-TC1851B/10;903.75MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 0.416 0.404 0.392 0.381 0.369 0.357 0.346 0.334 0.322 0.311 File : 00032315_ZOOM Start : 23-Mar-100 03:18:42 pm End : 23-Mar-100 03:23:18 pm ACJ96NKX-TC1851/KX-TC1851B/10;903.75MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 0.416 0.404 0.392 0.381 0.369 0.357 0.346 0.334 0.322 0.311 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00032314_ZOOM.VLT Start : 23-Mar-100 03:03:36 pm End : 23-Mar-100 03:09:50 pm Radio Type : ACJ96NKX-TC1851 Model Number : KX-TC1851B Serial Number : 10 Frequency : 915 MHz Peak Trans. Pwr : 0.095 W Start Trans. Pwr: 0.095 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : PANASONIC DSS CORDLESS PHONE CHAN. 16 BASE 2CM SPACING FIXED ANTENNA Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 0.500, Y = 0.750, Z = 0.000 (cm) Value = 5.012 Measured Values (volts) = 5.021E-003 4.288E-003 3.620E-003 3.039E-003 2.444E-003 1.982E-003 1.739E-003 1.670E-003 1.716E-003 1.824E-003 1.830E-003 1.684E-003 1.382E-003 1.004E-003 6.230E-004 3.671E-004 2.983E-004 4.820E-004 7.042E-004 9.277E-004 9.496E-004 Calc. Voltage @ Surface (Vs) = 0.0059 Voltage @ 1.00 cm (Vt) = 0.0030 Ave. Voltage (Vs+Vt)/2 = 0.0045 Ave. SAR over 1 g (mW/g) = 0.3706 0.0 0.1 0.2 0.3 0.4 0.5 mW/g -1012345 Z centimeters SAR Scan File : 00032314_ZOOM Start : 23-Mar-100 03:03:36 pm End : 23-Mar-100 03:09:50 pm ACJ96NKX-TC1851/KX-TC1851B/10;915MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 00032314_ZOOM Start : 23-Mar-100 03:03:36 pm End : 23-Mar-100 03:09:50 pm ACJ96NKX-TC1851/KX-TC1851B/10;915MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 0.415 0.402 0.390 0.378 0.365 0.353 0.340 0.328 0.316 0.303 File : 00032314_ZOOM Start : 23-Mar-100 03:03:36 pm End : 23-Mar-100 03:09:50 pm ACJ96NKX-TC1851/KX-TC1851B/10;915MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 0.415 0.402 0.390 0.378 0.365 0.353 0.340 0.328 0.316 0.303 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00032313_ZOOM.VLT Start : 23-Mar-100 02:46:57 pm End : 23-Mar-100 02:52:46 pm Radio Type : ACJ96NKX-TC1851 Model Number : KX-TC1851B Serial Number : 10 Frequency : 926.25 MHz Peak Trans. Pwr : 0.104 W Start Trans. Pwr: 0.104 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : PANASONIC DSS CORDLESS PHONE CHAN. 31 BASE 2 CM SPACING FIXED ANTENNA Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 0.250, Y = 0.750, Z = 0.000 (cm) Value = 5.163 Measured Values (volts) = 5.153E-003 4.433E-003 3.697E-003 2.989E-003 2.408E-003 1.995E-003 1.740E-003 1.751E-003 1.813E-003 1.893E-003 1.832E-003 1.650E-003 1.279E-003 8.772E-004 5.409E-004 2.932E-004 3.098E-004 4.832E-004 7.520E-004 9.790E-004 9.636E-004 Calc. Voltage @ Surface (Vs) = 0.0061 Voltage @ 1.00 cm (Vt) = 0.0030 Ave. Voltage (Vs+Vt)/2 = 0.0045 Ave. SAR over 1 g (mW/g) = 0.3755 0.0 0.1 0.2 0.3 0.4 0.5 0.6 mW/g -1012345 Z centimeters SAR Scan File : 00032313_ZOOM Start : 23-Mar-100 02:46:57 pm End : 23-Mar-100 02:52:46 pm ACJ96NKX-TC1851/KX-TC1851B/10;926.25MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 00032313_ZOOM Start : 23-Mar-100 02:46:57 pm End : 23-Mar-100 02:52:46 pm ACJ96NKX-TC1851/KX-TC1851B/10;926.25MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 0.427 0.416 0.404 0.392 0.380 0.368 0.357 0.345 0.333 0.321 File : 00032313_ZOOM Start : 23-Mar-100 02:46:57 pm End : 23-Mar-100 02:52:46 pm ACJ96NKX-TC1851/KX-TC1851B/10;926.25MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 0.427 0.416 0.404 0.392 0.380 0.368 0.357 0.345 0.333 0.321

RF Exposure Info

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00032306_ZOOM.VLT Start : 23-Mar-100 11:25:41 am End : 23-Mar-100 11:39:01 am Radio Type : ACJ96NKX-TC1851 Model Number : KX-TC1851B Serial Number : 10 Frequency : 903.75 MHz Peak Trans. Pwr : 0.064 W Start Trans. Pwr: 0.064 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : PANASONIC DSS CORDLESS PHONE CHAN. 1 HANDSET FIXED ANTENNA Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -2.000, Y = -2.000, Z = 0.000 (cm) Value = 2.283 Measured Values (volts) = 2.255E-003 1.803E-003 1.484E-003 1.251E-003 1.062E-003 8.979E-004 7.820E-004 7.111E-004 6.528E-004 6.257E-004 5.968E-004 5.594E-004 5.155E-004 4.537E-004 4.044E-004 3.516E-004 2.472E-004 1.709E-004 1.160E-004 9.863E-005 5.843E-005 Calc. Voltage @ Surface (Vs) = 0.0028 Voltage @ 1.00 cm (Vt) = 0.0013 Ave. Voltage (Vs+Vt)/2 = 0.0020 Ave. SAR over 1 g (mW/g) = 0.1471 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 mW/g -1012345 Z centimeters SAR Scan File : 00032306_ZOOM Start : 23-Mar-100 11:25:41 am End : 23-Mar-100 11:39:01 am ACJ96NKX-TC1851/KX-TC1851B/10;903.75MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00032306_ZOOM Start : 23-Mar-100 11:25:41 am End : 23-Mar-100 11:39:01 am ACJ96NKX-TC1851/KX-TC1851B/10;903.75MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.1666 0.1597 0.1528 0.1459 0.1390 0.1321 0.1252 0.1184 0.1115 0.1046 File : 00032306_ZOOM Start : 23-Mar-100 11:25:41 am End : 23-Mar-100 11:39:01 am ACJ96NKX-TC1851/KX-TC1851B/10;903.75MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.1666 0.1597 0.1528 0.1459 0.1390 0.1321 0.1252 0.1184 0.1115 0.1046 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00032307_ZOOM.VLT Start : 23-Mar-100 11:51:00 am End : 23-Mar-100 12:00:04 pm Radio Type : ACJ96NKX-TC1851 Model Number : KX-TC1851B Serial Number : 10 Frequency : 915.00 MHz Peak Trans. Pwr : 0.064 W Start Trans. Pwr: 0.064 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : PANASONIC DSS CORDLESS PHONE CHAN. 16 HANDSET FIXED ANTENNA Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -2.000, Y = -2.250, Z = 0.000 (cm) Value = 2.281 Measured Values (volts) = 2.150E-003 1.755E-003 1.455E-003 1.212E-003 1.013E-003 8.854E-004 7.619E-004 6.980E-004 6.411E-004 5.982E-004 6.004E-004 5.622E-004 5.037E-004 4.808E-004 4.053E-004 3.009E-004 2.235E-004 1.819E-004 1.163E-004 7.474E-005 7.596E-005 Calc. Voltage @ Surface (Vs) = 0.0026 Voltage @ 1.00 cm (Vt) = 0.0012 Ave. Voltage (Vs+Vt)/2 = 0.0019 Ave. SAR over 1 g (mW/g) = 0.1396 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 mW/g -1012345 Z centimeters SAR Scan File : 00032307_ZOOM Start : 23-Mar-100 11:51:00 am End : 23-Mar-100 12:00:04 pm ACJ96NKX-TC1851/KX-TC1851B/10;915.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00032307_ZOOM Start : 23-Mar-100 11:51:00 am End : 23-Mar-100 12:00:04 pm ACJ96NKX-TC1851/KX-TC1851B/10;915.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.1664 0.1594 0.1523 0.1453 0.1382 0.1311 0.1241 0.1170 0.1100 0.1029 File : 00032307_ZOOM Start : 23-Mar-100 11:51:00 am End : 23-Mar-100 12:00:04 pm ACJ96NKX-TC1851/KX-TC1851B/10;915.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.1664 0.1594 0.1523 0.1453 0.1382 0.1311 0.1241 0.1170 0.1100 0.1029 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00032308_ZOOM.VLT Start : 23-Mar-100 12:10:56 pm End : 23-Mar-100 12:20:00 pm Radio Type : ACJ96NKX-TC1851 Model Number : KX-TC1851B Serial Number : 10 Frequency : 926.25 MHz Peak Trans. Pwr : 0.044 W Start Trans. Pwr: 0.044 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : PANASONIC DSS CORDLESS PHONE CHAN. 31 HANDSET FIXED ANTENNA Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -2.000, Y = -2.000, Z = 0.000 (cm) Value = 1.460 Measured Values (volts) = 1.424E-003 1.141E-003 9.510E-004 8.077E-004 6.710E-004 5.822E-004 5.261E-004 4.795E-004 4.519E-004 4.425E-004 3.925E-004 3.932E-004 3.761E-004 3.301E-004 2.850E-004 2.466E-004 1.960E-004 1.275E-004 1.028E-004 7.692E-005 6.209E-005 Calc. Voltage @ Surface (Vs) = 0.0017 Voltage @…

Text truncated - open the document above for the full version.
