ACJ96NKX-TD76802.4 GHz Cordless Phone (FHSS) - Handset

Panasonic Corporation of North America

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Dec 12, 2002
Application Purpose: Original Equipment
Date of Application: Dec 12, 2002
Equipment Note: 2.4 GHz Cordless Phone (FHSS) - Handset
Frequency Range: 2401.00000000 - 2480.00000000
Company: Panasonic Corporation of North America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: ACJ96NKX-TD7680 COVER LETTERS Page 1 of 2 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770) 338-6000 • Fax (770) 338-6210 MATSUSHITA MOBILE COMMUNICATIONS DEVELOPMENT CORPORATION OF U.S.A. Application for Type Acceptance Panasonic 2.4 GHz Cordless Telephone FCC ID: ACJ96NKX-TD7680 THIS COVER PAGE IS FOR FILING IDENTIFICATION ONLY Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: ACJ96NKX-TD7680 COVER LETTERS Page 2 of 2 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770) 338-6000 • Fax (770) 338-6210 Date: 12.12.2002 Authorization & Evaluation Division. Federal Communications Commission Laboratory. 7435 Oakland Mills Road. Columbia, MD 21045. Subject: REQUEST FOR CONFIDENTIALITY Pursuant to sections 0.457 (d) (1) (ii) and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of some of the information accompanying this application for FCC ID: ACJ96NKX-TD7680 as outlined below: • Block Diagram • Schematics • Theory of operation and circuit descriptions This information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. MMCD Panasonic Best Regards, Richard Mullen PSCD, MECA Phone: 770-338-6270 Fax: 770-338-6210

Cover Letter(s)

December 4, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ96NKX-TD7680 Part 15 Subpart C Certification Gentlemen: Submitted herewith, on behalf of Matsushita Electric Industrial Co., Ltd., is an application for Subpart 15 Class C Spread Spectrum Transmitter (FHSS). Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), operational description (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

Cover Letter(s)

May 1, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Katie Hawkins SUBJECT: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ96NKX-TD7680 731 Confirmation No.: TC919697 Correspondence Reference No.: 8055 Request for Tech. Info.: 04/29/03 Dear Katie: Transmitted herewith, on behalf of Matsushita Electric Industrial Co., Ltd. is an amendment provided in response to the request for technical information, dated April 29, 2003. 1. Attached are rescanned schematics at a more legible resolution. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Matsushita Electric Industrial Co., Ltd.

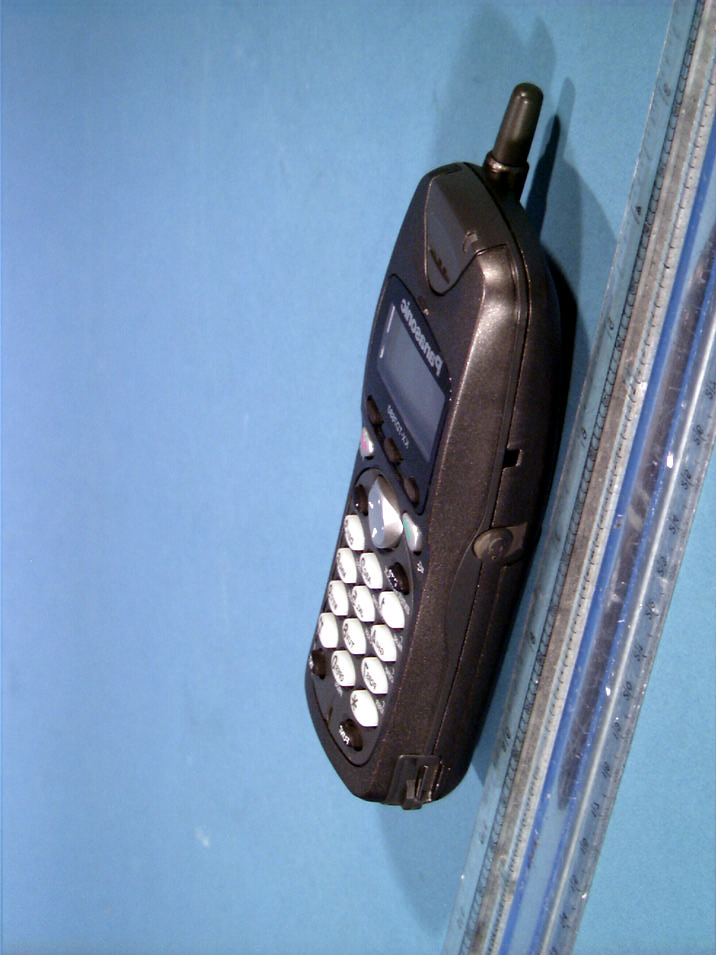

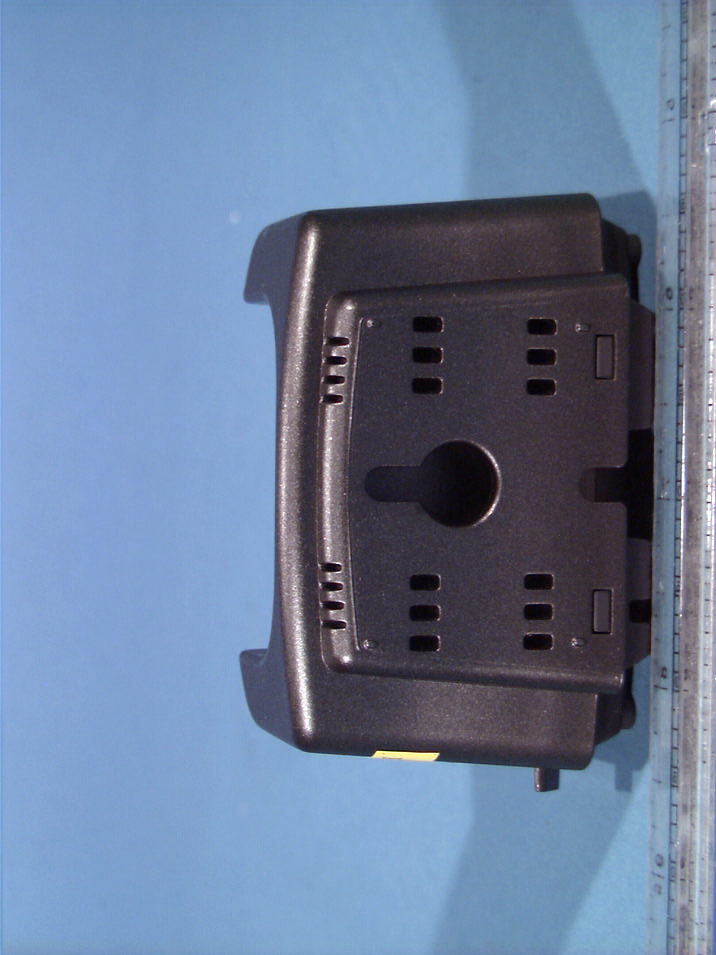

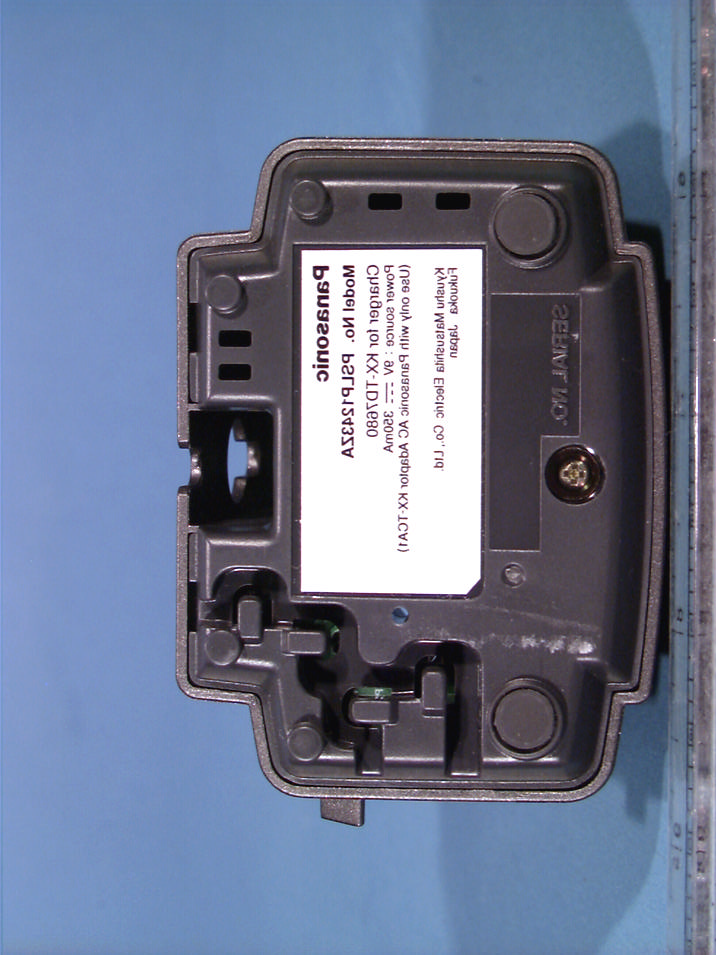

External Photos

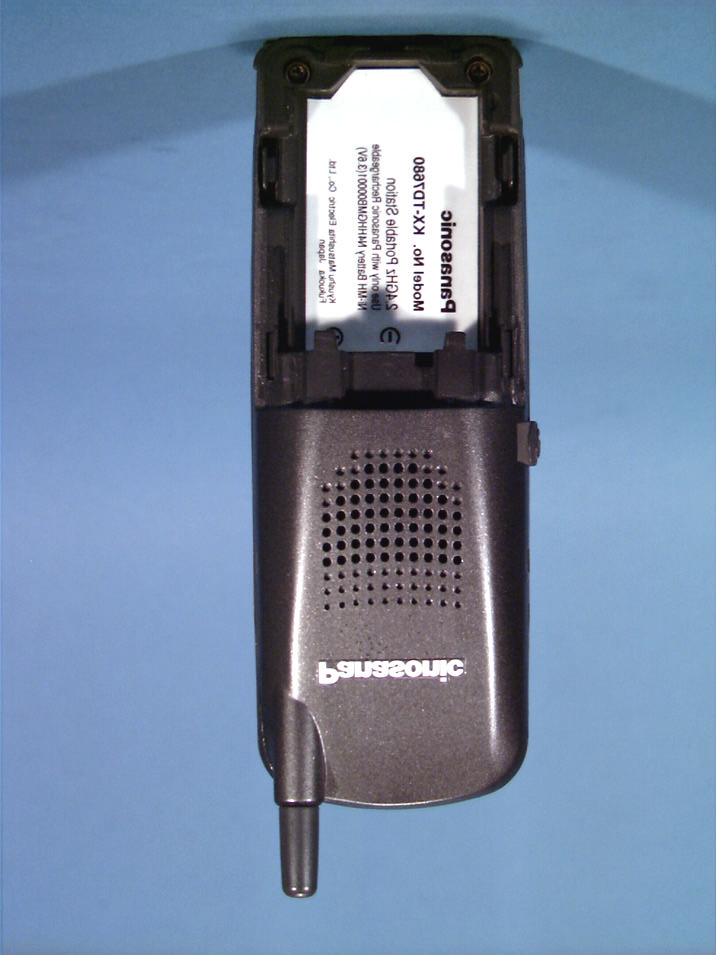

ID Label/Location Info

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) © 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) FCC ID: ACJ96NKX-TD7680

Internal Photos

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.221107624.ACJ Test Dates: Nov. 18-20, 2002 EUT Type: 2.4 GHz Cordless Phone Handset FCC ID: ACJ96NKX-TD7680 Page 1 of 25 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: November 18-20, 2002 1006 Oaza Kadoma, Kadoma, Osaka Test Report S/N: SAR.221107624.ACJ 571 JAPAN Test Site: PCTEST Lab, Columbia MD Attn: K. Nawata (KMECL) Rich Mullen (PSCD, MECA) FCC ID: ACJ96NKX-TD7680 APPLICANT: Matsushita Electric Industrial Co., Ltd. EUT Type: 2.4 GHz FHSS Cordless Phone Handset Tx Frequency: 2401.056 — 2479.680 MHz Rx Frequency: 2401.056 — 2479.680 MHz Max. RF Output Power: 0.300 W EIRP / 24.76dBm Conducted Max. SAR Measurement: 0.278 W/kg over 1 gm BODY 0.483 W/kg over 1 gm HEAD Trade Name/Model(s): PANASONIC KX-TD7680 FCC Classification: Part 15 Spread Spectrum Transmitter (FHSS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype (Same sample tested for EMC & SAR) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, Jan. 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Power output is conducted. This transmitter has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. Users must be informed of the operating requirements for satisfying body-worn RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 221107624.ACJ PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.221107624.ACJ Test Dates: Nov. 18-20, 2002 EUT Type: 2.4 GHz Cordless Phone Handset FCC ID: ACJ96NKX-TD7680 Page 2 of 25 © 2002 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ................................................................................ 11 Positioning for Ear / 15° Tilt .................................................................................. 12 Body Holster /Belt Clip Configuratio…

Text truncated - open the document above for the full version.

RF Exposure Info

Panasonic FCC ID: ACJ96NKX-TD7680 -- 2.4GHz Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450 MHz Brain: σ = 1.82 mho/m ε r = 40.3 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 4.0 SAR (1g): 0.344 mW/g, SAR (10g): 0.170 mW/g Panasonic 2.4GHz FHSS Cordless Handset Model:KX-TD7680 Ch.00 [2401.056MHz]; Standard Battery; Ambient Temp. = 19.4°C / Meas. Tissue Temp. = 18.3°C Conducted Power = 24.73dBm; Left Head Phantom, Cheek/Touch position Test Date --11/18/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.90E-2 8.70E-2 1.45E-1 2.03E-1 2.61E-1 PCTEST Engineering Laboratory, Inc. Panasonic FCC ID: ACJ96NKX-TD7680 -- 2.4GHz Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450 MHz Brain: σ = 1.82 mho/m ε r = 40.3 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 4.0 SAR (1g): 0.248 mW/g, SAR (10g): 0.125 mW/g Panasonic 2.4GHz FHSS Cordless Handset Model:KX-TD7680 Ch.00 [2401.056MHz]; Standard Battery; Ambient Temp. = 19.4°C / Meas. Tissue Temp. = 18.3°C Conducted Power = 24.73dBm; Right Head Phantom, Cheek/Touch position Test Date --11/18/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.02E-2 6.06E-2 1.01E-1 1.41E-1 1.82E-1 PCTEST Engineering Laboratory, Inc. Panasonic FCC ID: ACJ96NKX-TD7680 -- 2.4GHz Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450 MHz Brain: σ = 1.82 mho/m ε r = 40.3 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 4.0 SAR (1g): 0.483 mW/g, SAR (10g): 0.238 mW/g Panasonic 2.4GHz FHSS Cordless Handset Model:KX-TD7680 Ch.00 [2401.056MHz]; Standard Battery; Ambient Temp. = 19.4°C / Meas. Tissue Temp. = 18.3°C Conducted Power = 24.73dBm; Left Head Phantom, Ear/15 degree Tilt position Test Date --11/18/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.34E-2 1.00E-1 1.67E-1 2.34E-1 3.01E-1 PCTEST Engineering Laboratory, Inc. Panasonic FCC ID: ACJ96NKX-TD7680 -- 2.4GHz Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450 MHz Brain: σ = 1.82 mho/m ε r = 40.3 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 4.0 SAR (1g): 0.336 mW/g, SAR (10g): 0.168 mW/g Panasonic 2.4GHz FHSS Cordless Handset Model:KX-TD7680 Ch.00 [2401.056MHz]; Standard Battery; Ambient Temp. = 19.4°C / Meas. Tissue Temp. = 18.3°C Conducted Power = 24.73dBm; Right Head Phantom, Ear/15 degree Tilt position Test Date --11/18/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.84E-2 8.52E-2 1.42E-1 1.99E-1 2.56E-1 PCTEST Engineering Laboratory, Inc. Panasonic FCC ID: ACJ96NKX-TD7680 -- 2.4GHz Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.96 mho/m ε r = 53.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 4.0 SAR (1g): 0.278 mW/g, SAR (10g): 0.129 mW/g Panasonic 2.4GHz FHSS Cordless Handset Model:KX-TD7680 Ch.00 [2401.056MHz]; Standard Battery; Ambient Temp. = 19.4°C / Meas. Tissue Temp. = 18.3°C Conducted Power = 24.73dBm; Spacing = 0.6cm from back (antenna side) of EUT to flat phantom, with Belt Clip/No Holster Test Date --11/18/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.11E-2 6.33E-2 1.06E-1 1.48E-1 1.90E-1 PCTEST Engineering Laboratory, Inc.

RF Exposure Info

© 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TD7680 2.4 GHz FHSS Cordless Phone Handset (Model: KX-TD7680)

RF Exposure Info

2450MHz.. Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450 MHz Brain: σ = 1.82 mho/m ε r = 40.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 12.93 mW/g, SAR (10g): 9.21 mW/g 2450MHz Brain Dipole Validation (D2450V2 S/N: 719) Frequency: 2450MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 19.4°C / Measured Tissue Temp. = 18.3°C PCTEST Brain Tissue Simulating Liquid [11/18/2002] SAR Tot [mW/g] 1.28E+0 3.85E+0 6.41E+0 8.98E+0 1.14E+1 PCTEST Engineering Laboratory, Inc.

Test Report

PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.221107623.ACJ Test Dates: Nov. 18-20, 2002 EUT Type: 2.4 GHz FHSS Co r d l e s s Phone Handset FCC ID: ACJ96NKX-TD7680 Page 1 of 17 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE Matsushita Electric Industrial Co., Ltd. Dates of Tests: November 18-20, 2002 1006 Oaza Kadoma, Kadoma, Osaka Test Report S/N: 15.221107623.ACJ 571 JAPAN Test Site: PCTEST Lab, Columbia MD Attn: K. Nawata (KMECL) Rich Mullen (PSCD, MECA) FCC ID ACJ96NKX-TD7680 APPLICANT Matsushita Electric Industrial Co., Ltd. FCC Rule Part(s): § 15.247; ANSI C-63.4 (1992) Classification: Part 15 Spread Spectrum Transmitter (FHSS) Max Output Power: 0.300W EIRP Method/System: Frequency Hopping Spread Spectrum (FHSS) Equipment Type: 2.4 GHz FHSS Cordless Phone Handset Frequency Range: 2401.056 — 2479.680 MHz Model No(s).: KX-TD7680 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63-4. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Power output is conducted. This transmitter has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. Users must be informed of the operating requirements for satisfying body-worn RF exposure compliance. The highest reported SAR value is Head: 0.483 W/kg; Body: 0.278 W/kg at 25 % duty factor. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 221107623.ACJ PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.221107623.ACJ Test Dates: Nov. 18-20, 2002 EUT Type: 2.4 GHz FHSS Co r d l e s s Phone Handset FCC ID: ACJ96NKX-TD7680 Page 2 of 17 TABLE OF CONTENTS SCOPE 3 INTRODUCTION (SITE DESCRIPTION) 4 PRODUCT INFORMATION 5 DESCRIPTION OF TESTS A. CONDUCTED EMISSIONS 6 B. RADIATED EMISSIONS 7 C. RESTRICTED BANDS 8 D. ANTENNA REQUIREMENT 9 E. MAXIMUM PEAK POWER OUTPUT 10 F. CHANNEL SPACING 11 RADIATED MEASUREMENTS Data (HARMONICS) 12-14 FREQUENCY MEASUREMENTS (SPURIOUS) 15 LIST OF TEST EQUIPMENT 16 CONCLUSION 17 APPENDIX A - TEST PLOTS APPENDIX B - FCC ID LABEL & LOCATION APPENDIX C - TEST SETUP PHOTOGRAPHS APPENDIX D - EXTERNAL PHOTOGRAPHS APPENDIX E - INTERNAL PHOTOGRAPHS APPENDIX F - BLOCK DIAGRAM(S) APPENDIX G- SCHEMATIC DIAGRAM(S) APPENDIX H - OPERATIONAL DESCRIPTION APPENDIX I - USER’S MANUAL APPENDIX J - SAR MEASUREMENT REPORT APPENDIX K - SAR TEST DATA APPENDIX L - SAR TEST SETUP PHOTOGRAPHS APPENDIX M - DIPOLE VALIDATION APPENDIX N - PROBE CALIBRATION PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.221107623.ACJ Test Dates: Nov. 18-20, 2002 EUT Type: 2.4 GHz FHSS Co r d l e s s Phone Handset FCC ID: ACJ96NKX-TD7680 Page 3 of 17 MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name: Matsushita Electric Industrial Co., Ltd. Address: 1006 Oaza Kadoma Kadoma, Osaka 571 JAPAN Attention: Rich Mullen (PSCD) • FCC ID: ACJ96NKX-TD7680 • Class: Spread Spectrum Transceiver (FHSS) • Type: 2.4 GHz FHSS Cordless Phone Handset • Freq. Range: 2401.056 — 2479.680 MHz • Method/System: Frequency Hopping Spread Spectrum (FHSS) • Model No(s): KX-TD7680 • Max. RF Output Power: 0.300W EIRP • Rule Part(s): § 15.247; ANSI C-63.4 (1992) • Dates of Tests: November 18-20, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 15.221107623.ACJ NOTE: The receiver portion was tested and complies with Part 15B under the verification procedure. PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.221107623.ACJ Test Dates: Nov. 18-20, 2002 EUT Type: 2.4 GHz FHSS Co r d l e s s Phone Handset FCC ID: ACJ96NKX-TD7680 Page 4 of 17 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) and FCC Public Notice dated July 12, 1995 entitled “Guidance on Measurement for Direct Sequence Spread Spectrum Systems” were used in the measurement of Panasonic Spread Spectrum 2.4 GHz FHSS Cordless Phone Handset. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39 ° 11'15" N latitude and 76 ° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Col…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Ben Botros(Project Manager)

[email protected]201-348-7760Fax: 201-348-7760

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	300.00 mW

Confidentiality

Long Term

Grant Notes

Power output is conducted. This device has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. End Users must be informed of the operating requirements for satisfying body-worn RF exposure compliance. The highest reported SAR value is Head: 0.483 W/kg; Body: 0.278 W/kg at 25% duty factor.
