ACJ96NKX-TD76902.4GHz FHSS Handset

Please read this Operating Instructions before using and save for future reference. This manual is designed to be used with your Portable Station and a Panasonic KX-TDA200/KX-TDA100. Charge the battery for about 6 hours before initial use. 2.4 GHz Portable Station Operating Instructions Model No. KX-TD7690 2 Before Initial Use Thank you for purchasing a Panasonic 2.4 GHz Portable Station. Please read IMPORTANT SAFETY INSTRUCTIONS on page 40 before use. Read and understand all instructions. Registration You must register your PS to the system and determine its extension number before initial use. For PS registration, consult your dealer. Accessories (included) For extra orders, call toll free 1-800-332-5368 . Operating Instructions One Charger One Battery One AC adaptor (KX-TCA1-DK) One Screws and Washers Tw o 3 Table of Contents Before Initial Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Before Operating the PS . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Location of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Power On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Wave Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Locking the Keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Ringer Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Receiver Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 10 F-CO key Display Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Key Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Calling Another Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Calling an External Party . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Using the Call Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Making Calls Using the Directories . . . . . . . . . . . . . . . . . . . . . . 14 Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Intercom Calls/Outside Calls/Group Calls . . . . . . . . . . . . . . . . 16 During a Conversation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Transferring a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Holding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Handsfree/Monitor Conversation . . . . . . . . . . . . . . . . . . . . . . . 19 Using the Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Directories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Quick Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 PS Dialing Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Entering Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Other Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Changing the Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 4 Before Operating the PS Location of Controls Antenna Call/Charge Indicator Receiver Back view I/O Port - for service use only TALK Button Display Dial Buttons CANCEL/POWER Button Microphone Soft Buttons - to select the item displayed on the bottom line on LCD. Navigator key - to select the function, adjust the volume, or to enter characters on the display. Press the arrow repeatedly until the desired item appears. Headset Jack - The headset is optional. Please use only the Panasonic KX-TCA88 headset. Open the cover. Speaker 5 Before Operating the PS Display <Radio Signal Strength>* <Off-hook Status> <Off-hook Status for Intercom calls> <Programming Mode> <Incoming Call Log notification> <Message Waiting> Catches noises or disconnects Out of range When using the navigator key, only the displayed arrows can be pressed. The display depends on the operation. Press the corresponding soft button to select the item. * When you are out of range or the battery strength becomes low, the beep tone sounds. <Navigator> <Battery Strength>* <Soft Key Display> <Others> Full Low Needs to be charged MEETING MODE RINGER ON & VIB OFF FWD DND RINGER ON & VIB ON RINGER OFF & VIB ON RINGER OFF & VIB OFF 6 Before Operating the PS Setting Up Charging 1 Open the battery cover. 2 Connect the cord and install the battery. 3 Close the cover. 1 Connect the charger to a power outlet using the AC adaptor. 2 Charge the battery for about 6 hours. • When charge is completed, the charge indicator will change from red to green. Refer to “Battery Information” on page 39. • The PS and charger get warm during charging. This is normal and not dangerous. • Keep magnetically sensitive things (such as a credit card) away from the charger. Cords Cord (Red) Cord (Black) Cord holder To power outlet AC adaptor Charger Charger Charge indicator To power outlet 7 Before Operating the PS Wall Mounting The charger can be mounted on a wall. 1 Connect the charger to a power outlet using the AC adaptor. 2 Drive screws in using the wall template below. 3 Mount the charger securely on the screws. Cord holder To power outlet AC adaptor Charger Screws 45mm 45mm 8 Before Operating the P…

Text truncated - open the document above for the full version.

FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 1 of 1 EXHIBIT A STATEMENT OF SECURITY CODE This wireless system has 1000 billion digital security coding combinations that are provided by the following means: • Provided with 40 bits (1000 billion) for security codes.. • When shipped from the factory, the security code is decided by the manufacturer.

CPU Block Diagram 5 Unit Ver.11 1234 5 67 1234 Model Title Page KX-TD7690 6 A D Analog DSP BMC CPU A D AFE ADC Oscillator + PLL Power Control ADPCM Codec Filter RF Interface Speech Encoding Speech Decoding Burst Encoding Burst Decoding SYDA SYCL SYEN SYRI DRON RXDSG TXDA RXDA ADRSSI MICS MICP MICN Headset Jack Headset MIC Receiver Rear Speaker EEPROM 256kbit Vcc SCL SDA UART P0.0 LCD Battery Charge Circuit 3.3V Regulator Regulator 2.7V BAT M LEDs Address/Data Bus Flash ROM 4Mbit SRAM 256kbit ASIC RAM ROM Peripherals R2 HON HOP 3.3V BATT Key M at rix RST RST RSTCS RD WR RD WR RD WR CS A18 MODE RD WR CS WP WP To RF part PAON SLEEP MUTE Thermo Indicator Battery Indicator Charge Current indicator (To RF) (To Analog part) (To Digital part) Power Key BATT 2.7V Analog SW Audio Amp Vibrator Battery (4.3V) IC711 IC710 Q710 D702 D700 IC470 IC460 IC450 IC800BBIC IC480 IC500 IC501 Charge Control IC X800 IC650 IC651 Q650 Q600 Q651 Q654 Q653 Q652 I/O Connector Power Management Circuit

RF Block Diagram 5 Unit Ver.11 7 1234 Model Title Page KX-TD7690 6 512346 2 : R CHP :32/33:N/A PLL & Control logic Demodulator VCO PD Stand by & Control logic S&H Low IF bandpass filter LNA IC201 PMB6618 ADRSSI RXDA SYCL SYDA SYEN FIL101 PQVFLFS2450B D101 BAR64- 05WRXDSG Loop filter Gausian filter TXDA SYRI PAON RXON IC102 Regu lator DRON BAT Q201 Voltage regulator Voltage regulator To CPU Block To CPU Block IC101 ITT2303GJ Antenna

Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic Way, 4B-8 Zameel Shahat Secaucus, NJ 07094 Project Engineer Panasonic Quasar Technics Fax: (201) 392-4564 Tel: (201) 392-4161 e-mail: [email protected] February 25, 2002 KMSC-01F102 731 Confirmation Number: EA299903 To: Steve Dayhoff [email protected] FCC Application Processing Branch From: Zameel Shahat, Matsushita Electric Corp America Re: FCC ID ACJ96NKX-TD7690 Applicant: Matsushita Electric Industrial Co Ltd Correspondence Reference Number: 21918 731 Confirmation Number: EA299903 Dear Mr. Dayhoff the following are the answers for your questions. 1- Question: Please submit radiated measurements at the upper and lower bandedges (2400.00 MHz, and 2483.5 MHz) Provide peak and average levels at 3 meters. Answer : The measurement condition of Band-edge compliance test described on test report could be adapted for FCC 15.247(C). The reason is following subjects. According to PUBLIC NOTICE document issued by FCC named" Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems", (Released March 30, 2000) we can see the title of this item "Band- edge compliance of RF Conducted Emissions" . The FCC may allows using conducted emission data to certify Band edge emission. Certainly measured Band edge emission data in our test report is conducted data only, and it is relative value to fundamental power.(It does not indicate the absolute emission data.) But emission data of fundamental power which is nearest to the Band edge is measured by radiated and conducted. Therefore we can calculate radiated data of Band edge emission using radiated absolute fundamental power of nearest channel and relative value of Band edge emission against fundamental power of nearest channel. We think that it is enough to certify the compliance to Band Edge emission using following calculation. For example A. Band edge emission of the lower side channel. We measured the level of the fundamental must be 119.9dBuV/m at 01ch(2401.056MHz), and relative value of Band edge emission is - 35.2dB. Band edge emission level (radiated) = 119.9-35.2= 84.7 dBuV/m This frequency is in non restricted band, so the limitation of emission level (peak value)is 20dB below from nearest fundamental level(119.9-20= 99.9dBuv/m) **Band edge emission is less than limitation. It is complied to the regulation. B. Band edge emission of the upper side channel. We measured the level of the fundamental must be 119.2dBuV/m at 91ch(2479.680MHz), and relative value of Band edge emission is - 47.2dB. Band edge emission level (radiated) = 119.2-47.2= 72.0dBuV/m This frequency is in restricted band,so the limitation of emission level is 74 dBuv/m at peak detection. **Band edge emission is less than limitation. It is complied to the regulation. If description of PUBLIC NOTICE related to this subject could be still available now, we think band- edge emission level is complied for the regulation. 2- Question: Please clarify the relationship between the EIRP RF Power level used for the SAR report (158 mW), and the EIRP RF Power level measured in the EMI report (329 mW). Was the SAR performed at maximum RF power? Answer : the correct power level is 329 mW. We submitted the correct SAR report to the FCC [ KMSC-01-F102(correct SAR_test).PDF]. 3- Question: The test report indicates the transmitter has a 7% duty cycle. Please provide the Crest factor used in the SAR computations. Answer : The Crest Factor is a parameter which describes the SAR systems ability to measure signals That have various peak to RMS ratios while still remaining within the system specifications. The crest factor is not provided for the 3D-EMC system and a verification test was carried out to determine that the SAR system is responding to the duty cycle waveform as an averaging system. A uniform field within a TEM cell is used to compare the output of the SAR system of a CW signal at the frequency of interest, with a pulse modulated carrier using the same pulse width and repetition rate as the Panasonic phone previously tested at 7%. An HP 437A Peak power meter is used to set the same peak power in both test conditions. The 3D-EMC system allows for a real-time monitoring of all amplifier channels. The summed output of the three amplifier channels from the probe is directly proportional to the E 2 which is also directly proportional to SAR according to the equation: s E 2 SAR = ------ ? The measured results from the monitor are: SAR System Output for CW = 57.172 SAR System Output for 7% = 4.041 The ratio of the CW to Duty Cycle Field = 4.041/57.172*100% = 7.07% The above test verifies that the SAR system is correctly averaging the pulsed carrier and that the measured SAR values are time based average values. Sincerely yours, Zameel Shahat Zameel Shahat Project Engineer

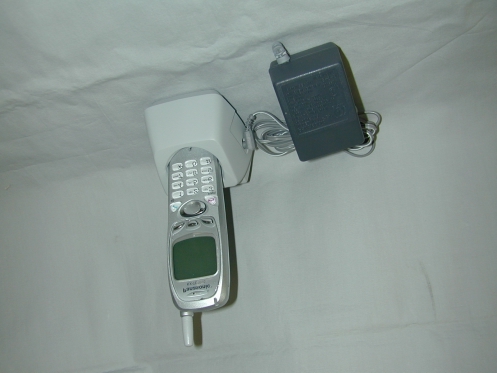

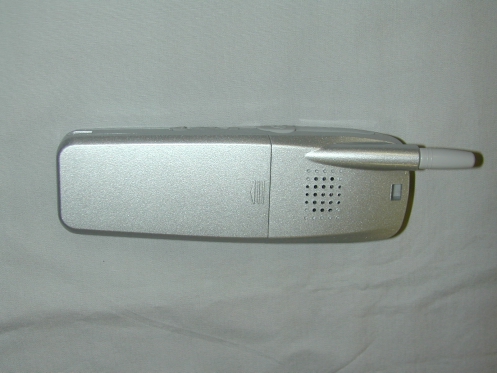

FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 1 of 4 EXHIBIT D-1 Photographs Figure 1 Front view with charger Figure 2 Front view Figure 3 Back view FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 2 of 4 Figure 1 FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 3 of 3 Figure 2 FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 4 of 4 Figure 3

FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 1 of 1 EXHIBIT B MARKINGS The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: The markings are shown in the battery holder of portable unit.

FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 1 of 4 EXHIBIT D-2 Photographs Figure 4 Back view with battery cover removed Figure 5 Back view with battery cover and batter removed Figure 6 Printed Wiring Board FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 2 of 4 Figure 4 FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 3 of 4 Figure 5 FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 4 of 4 Figure 6

FCC ID : ACJ96NKX-TD7690 FACTORY CONTROL NO. : KMSC-01-F102 1 of 1 EXHIBIT F DESCRIPTION OF ELECTRICAL CIRCUITRY A) RECEIVER UNIT OPERATION 1) A RF signal from Cell station (KX-TDA0142) is received by an antenna, passes through the 2.4GHz band pass filter FIL101, and then the signal is fed to pin (RF and RFX) of RF-IC (IC201). 2) The RF signal fed to RF-IC passes through LNA (Low Noise Amplifier) Low IF band pass filter and demodulates to a digital signal by demodulator. And then the digital signal is fed to base band IC (IC800) of CPU block from RXDA pin. 3) The digital signal, which is received by ADPCM Codec inside base band IC is converted into audio signal. Furthermore, the audio signal is amplified inside base band IC and output to a receiver unit. B) TRANSMISSION UNIT OPERATION 1) When press the TALK switch, base band IC (IC800) detects the switch becoming ON. As a result, a handset changes from stand-by mode to talk mode. 2) The audio signal went through microphone is amplified inside base band IC and converts into the digital signal by ADPCM Codec. 3) The digital signal from base band IC converts to 2.4GHz FSK (Frequency Sift Keying) modulation signal at the inside of RFIC (IC201). After FSK modulation signal is amplified by RF Power Amp (IC101), it goes through band pass filter (FIL101) and then outputs to the antenna.

UltraTech Group of Labs November 14, 2001 Panasonic Canada Inc. 5770 Ampler Drive Mississauga, ON CANADA L4W 2T3 Attn.: Mr. Edmond Leung Subject: Verification testing in accordance with SAR (Specific Absorption Rate) requirements using guidelines established in: IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C) Industry Canada RSS-102 (Issue 1) ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) Product: 2.4GHz FHSS Cordless Telephone Model: KX-TD7690 FCC ID: Dear Mr. Leung The product sample has been tested in accordance with SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1), and the results and observation were recorded in the engineering report, Our File No.: PAN-005-SAR Enclosed you will find a copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] November 14, 2001 File No.: PAN-005-SAR Panasonic Canada Inc. 5770 Ambler Drive Mississauga, ON CANADA L4W 2T3 NOT TRANSFERABLE This Verification Certificate is hereby issued to the named GRANTEE and is VALID ONLY for the equipment identified hereon for use under the rules and regulations listed below: GRANTEE'S NAME: Panasonic Canada Inc. PRODUCT UNDER TEST: 2.4GHz FHSS Cordless Telephone MODEL NO.: KX-TD7690 FCC ID: OPERATING FREQUENCY RANGE: 2401.0 ~ 2479.6 MHz NOMINAL RF OUTPUT POWER: 158.5 mW EIRP PEAK SPATIAL-AVERAGE SAR: 0.441 W/Kg (7% Duty Cycle, 0mm separation) APPLICABLE STANDARDS: SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) • Assessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) • Accredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) • Recognized/Listed by FCC (USA) • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) Approved by: Tri M. Luu, P.Eng. V.P. – Engineering UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 2.4GHz FHSS Cordless Telephone Model No.: KX-TD7690 Tested For Panasonic Canada Inc. 5770 Ambler Drive Mississauga, ON CANADA L4W 2T3 In Accordance With SAR (Specific Absorption Rate) Requirements Using Guidelines Established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: PAN-005-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: November 14, 2001 Report Prepared by: JaeWook Choi Tested by: JaeWook Choi Issued Date: November 14, 2001 Test Dates: November 2, 2001 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATIO (SAR) Contents i IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) 2.4GHz FHSS Cordless Telephone TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION.........................................................................................................................................1 1.1. SCOPE...........................................................................................................................................................................1 1.2. REFERENCES.................................................................................................................................................................1 EXHIBIT 2. PERFORMANCE ASSESSMENT..............................................................................................................2 2.1. CLIENT AND MANUFACTURER INFORMATION................................................................................................................2 2.2. DEVICE UNDER TEST (EUT) DESCRIPTION.....................................................................................................................2 2.3. LIST OF EUT’S ACCESSORIES........................................................................................................................................3 2.4. SPECIAL CHANGES ON THE EUT’S HARDWARE/SOFTWARE FOR TESTING PURPOSES......................................................3 2.5. ANCILLARY EQUIPMENT................................................................................................................................................3 2.6. GENERAL TEST CONFIGURATIONS................................................................................................................................. 3 2.6.1. Equipment Configuration....................................................................................................................................3 2.6.2. Exercising Equipment...................................................................................................................…

Text truncated - open the document above for the full version.

SPECIFIC ABSORPTION RATIO (SAR) Page 7 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) 2.4GHz FHSS Cordless Telephone MODEL NO.: KX-TD7690 4.2. PHOTOGRAPH OF EUT WITH ALL ACCESORIES < Front view with headset(M/N:KX-TD7690) > ULTRATECH GROUP OF LABS File #: PAN-005-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 14, 2001 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com xAssessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) xAccredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) xRecognized/Listed by FCC (USA) xAll test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) SPECIFIC ABSORPTION RATIO (SAR) Page 8 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) 2.4GHz FHSS Cordless Telephone MODEL NO.: KX-TD7690 <Front View> ULTRATECH GROUP OF LABS File #: PAN-005-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 14, 2001 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com xAssessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) xAccredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) xRecognized/Listed by FCC (USA) xAll test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) SPECIFIC ABSORPTION RATIO (SAR) Page 9 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) 2.4GHz FHSS Cordless Telephone MODEL NO.: KX-TD7690 <Back View> ULTRATECH GROUP OF LABS File #: PAN-005-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 14, 2001 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com xAssessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) xAccredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) xRecognized/Listed by FCC (USA) xAll test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) SPECIFIC ABSORPTION RATIO (SAR) Page 10 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) 2.4GHz FHSS Cordless Telephone MODEL NO.: KX-TD7690 < Headset (M/N: KX-TD7690) > ULTRATECH GROUP OF LABS File #: PAN-005-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 14, 2001 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com xAssessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) xAccredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) xRecognized/Listed by FCC (USA) xAll test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) SPECIFIC ABSORPTION RATIO (SAR) Page 11 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) 2.4GHz FHSS Cordless Telephone MODEL NO.: KX-TD7690 < Rechargeable Li-Ion Battery Pack > < Battery Charger and Power Adapter(M/N: KX-TCA1) > ULTRATECH GROUP OF LABS File #: PAN-005-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 14, 2001 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com xAssessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) xAccredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) xRecognized/Listed by FCC (USA) xAll test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) SPECIFIC ABSORPTION RATIO (SAR) Page 12 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) 2.4GHz FHSS Cordless Telephone MODEL NO.: KX-TD7690 4.3. PHOTOGRAPHS OF EUT POSITION (HEAD) < Right Head, Tilt Position with the antenna retracted – Overview > ULTRATECH GROUP OF LABS File #: PAN-005-SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 14, 2001 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com xAssessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) xAccredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) xRecognized/Listed by FCC (USA) xAll test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) SPECIFIC ABSORPTION RATIO (SAR) Page 13 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) 2.4GHz FHSS Cordless Telephone MODEL NO.: KX-TD7690 < Right Head, Tilt Position with the antenna ret…

Text truncated - open the document above for the full version.

UltraTech Group of Labs November 14, 2001 Panasonic Canada Inc. 5770 Ampler Drive Mississauga, ON CANADA L4W 2T3 Attn.: Mr. Edmond Leung Subject: Verification testing in accordance with SAR (Specific Absorption Rate) requirements using guidelines established in: IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C) Industry Canada RSS-102 (Issue 1) ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) Product: 2.4GHz FHSS Cordless Telephone Model: KX-TD7690 FCC ID: Dear Mr. Leung The product sample has been tested in accordance with SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102 (Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1), and the results and observation were recorded in the engineering report, Our File No.: PAN-005-SAR Enclosed you will find a copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] November 14, 2001 File No.: PAN-005-SAR Panasonic Canada Inc. 5770 Ambler Drive Mississauga, ON CANADA L4W 2T3 NOT TRANSFERABLE This Verification Certificate is hereby issued to the named GRANTEE and is VALID ONLY for the equipment identified hereon for use under the rules and regulations listed below: GRANTEE'S NAME: Panasonic Canada Inc. PRODUCT UNDER TEST: 2.4GHz FHSS Cordless Telephone MODEL NO.: KX-TD7690 FCC ID: OPERATING FREQUENCY RANGE: 2401.0 ~ 2479.6 MHz NOMINAL RF OUTPUT POWER: 158.5 mW EIRP PEAK SPATIAL-AVERAGE SAR: 0.441 W/Kg (7% Duty Cycle, 0mm separation) APPLICABLE STANDARDS: SAR (Specific Absorption Rate) requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) xAssessed by ITI (UK) Competent Body, NVLAP (USA) Accreditation Body & ACA/AUSTEL (Australia), VCCI (Japan) xAccredited by Industry Canada (Canada) under ACC-LAB (Europe/Canada MRA and APEC/Canada MRA) xRecognized/Listed by FCC (USA) xAll test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) Approved by: Tri M. Luu, P.Eng. V.P. – Engineering…

Text truncated - open the document above for the full version.
