ACJ96NKX-TG1221FCC Part 15 D / DECT Cordless Telephone Base

Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference. This unit is compatible with Caller ID. You must subscribe to the appropriate service offered by your service provider/telephone company. For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. Before initial use, see “Getting Started” on page 8. Consulte “Guía Rápida Española”, página 37. Please register your product: http://www.panasonic.com/prodreg Operating Instructions Digital Cordless Answering System Model shown is KX-TG1221. Model No. KX-TG1221 KX-TG1222 KX-TG1223 TG122x.book Page 1 Wednesday, September 29, 2010 2:13 PM Table of Contents 2 Introduction Model composition . . . . . . . . . . . . . . . . . . . . 3 Accessory information . . . . . . . . . . . . . . . . . 3 Important Information For your safety . . . . . . . . . . . . . . . . . . . . . . . 5 Important safety instructions . . . . . . . . . . . . 6 For best performance . . . . . . . . . . . . . . . . . 6 Other information . . . . . . . . . . . . . . . . . . . . . 7 Specifications . . . . . . . . . . . . . . . . . . . . . . . . 7 Getting Started Setting up. . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Note when setting up . . . . . . . . . . . . . . . . . . 9 Intelligent eco mode. . . . . . . . . . . . . . . . . . . 9 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Initial settings . . . . . . . . . . . . . . . . . . . . . . . 11 Making/Answering Calls Making calls . . . . . . . . . . . . . . . . . . . . . . . . 13 Answering calls . . . . . . . . . . . . . . . . . . . . . 13 Useful features during a call . . . . . . . . . . . 14 Shared Phonebook Shared phonebook . . . . . . . . . . . . . . . . . . 16 Programming Programmable settings . . . . . . . . . . . . . . . 18 Registering a unit . . . . . . . . . . . . . . . . . . . . 20 Caller ID Service Using Caller ID service . . . . . . . . . . . . . . . 21 Caller list . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Answering System Answering system . . . . . . . . . . . . . . . . . . . 23 Turning the answering system on/off . . . . . 23 Greeting message . . . . . . . . . . . . . . . . . . . 23 Listening to messages using the base unit 24 Listening to messages using the handset . 24 Remote operation . . . . . . . . . . . . . . . . . . . 25 Answering system settings . . . . . . . . . . . . 26 Voice Mail Service Voice mail service . . . . . . . . . . . . . . . . . . . 28 Intercom/Locator Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Handset locator . . . . . . . . . . . . . . . . . . . . . 29 Transferring calls, conference calls . . . . . . 29 Useful Information Wall mounting (Charger only) . . . . . . . . . . . 30 Error messages. . . . . . . . . . . . . . . . . . . . . . 31 Troubleshooting . . . . . . . . . . . . . . . . . . . . . 31 FCC and other information . . . . . . . . . . . . . 35 Guía Rápida Española Guía Rápida Española . . . . . . . . . . . . . . . . 37 Appendix Customer services . . . . . . . . . . . . . . . . . . . 41 Warranty (For United States and Puerto Rico) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Index Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 TG122x.book Page 2 Wednesday, September 29, 2010 2:13 PM Introduction 3 For assistance, please visit http://www.panasonic.com/help Model composition Accessory information Supplied accessories *1 The handset cover comes attached to the handset. *2 PNLC1020ZN: Champagne gold PNLC1020ZT: Black metallic SeriesModel No. Base unitHandset Part No.Part No.Quantity KX-TG1221 series KX-TG1221 *1 KX-TG1221KX-TGA1201 KX-TG1222KX-TG1221KX-TGA1202 KX-TG1223KX-TG1221KX-TGA1203 *1 Feature differences: Intercom calls can be made between handsets by purchasing and registering one or more optional handsets (page 4). No. Accessory item/ Order number Quantity KX-TG1221KX-TG1222KX-TG1223 1AC adaptor/PNLV226Z123 2Telephone line cord/ PQJA10075Z 111 3Rechargeable batteries/ HHR-4DPA 246 4Handset cover *1 / PNYNTGA652GR 123 5Charger *2 –12 12345 TG122x.book Page 3 Wednesday, September 29, 2010 2:13 PM Introduction 4 For assistance, please visit http://www.panasonic.com/help Additional/replacement accessories Please contact your nearest Panasonic dealer for sales information (page 41). *1 Replacement batteries may have a different capacity from that of the supplied batteries. Expanding your phone system Accessory itemOrder number Rechargeable batteries HHR-4DPA *1 LTo order, please call 1-800-332-5368 or visit http://www.panasonic.com/batterystore Battery type: – Nickel metal hydride (Ni-MH) – 2 x AAA (R03) size for each handset T-adaptorKX-J66 You can expand your phone system by registering optional handsets (6 max.) to a single base unit. LOptional handsets may be a different color from that of the supplied handsets. Handset (optional): KX-TGA120 TG122x.book Page 4 Wednesday, September 29, 2010 2:13 PM Important Information 5 For assistance, please visit http://www.panasonic.com/help For your safety To prevent severe injury and loss of life/ property, read this section carefully before using the product to ensure proper and safe operation of your product. WARNING Power connection LUse only the power source marked on the product. LDo not overload power outlets and extension cords. This can result in the risk of fire or electric shock. LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire. LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire. LUnplug the product from power outlets if it emits smoke, an abnormal smell, or …

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means: ∑ Provided with 128 bits for security codes. ∑ When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. ∑ Base and Handset knows each other’s security code information.

+Page: 1/1 Date: November 5, 2010 DESCRIPTION OF DIFFERENCES between ORIGINAL and SIMILARITY Name of Appliance : Cordless Telephone System SIMILARITY Model No. : KX-TG1221 (Base Unit) FCC ID : ACJ96NKX-TG1221 FCC ID : ACJ96NKX-TG6531 Approval Date : December 9, 2009 ORIGINAL NEW KX-TG6531 KX-TG1221 RF Type and Appearance 1.9GHz US-DECT 1.9GHz US-DECT P.C. Board Same 1.9GHz RF Unit Same 1.9GHz Antennas NOTE: The 1.9GHz RF unit and antennas of KX-TG1221 are identical to that of KX-TG6531. RF Unit (1.9GHz Portion) RF Unit (1.9GHz Portion) ORIGINAL Model No. : KX-TG6531 (Base Unit)

PCTP-10-F021: Base FCC ID: ACJ96NKX-TG1221 PCTP-10-F022: Handset FCC ID: ACJ96NKX-TGA120 FCC Part 15D – Compliance Information Amended December 10, 2010 page 1 (4) EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Systems Network Co., Ltd. Address Fukuoka, Japan Contact Yukio Kaneko FP PP Repeater EUT Type/System FCC ID ACJ96NKX-TG1221 (IC:216A-KXTG1221) ACJ96NKX-TGA120 (IC:216A-KXTGA120) Model name KX-TG1221 KX-TGA120 HW Version SW Version Max antenna Gain 0.0 dBi 0.0 dBi Can the EUT be Initiating Device YES YES YES Does the EUT transmit signaling channels YES YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-10-F021: Base FCC ID: ACJ96NKX-TG1221 PCTP-10-F022: Handset FCC ID: ACJ96NKX-TGA120 FCC Part 15D – Compliance Information Amended December 10, 2010 page 2 (4) ANTENNAS Antenna Type Internal External 1 Wired Antenna 2 Wired Antenna 3 4 Base (FP) or Repeater Does RX and TX use the same antenna(s)? Yes No Antenna Type Internal External 1 Wired Antenna 2 Handset (PP) Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Diversity Supported Antenna TX RX 1 2 3 Base (FP) or Repeater 4 1 Handset (PP) 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Repeater Nominal Voltage 120 VAC 2.4 VDC Cut-Off Voltage (if applicable) POWER SOURCE Type Manufacturer Base or Repeater AC Adapter with SPS @ 37 kHz, Model PNLV226 (UC) “or” AC Adapter with SPS @ 37 kHz, Model PNLV226 (FW) Panasonic Handset (PP) (charger) NiMH Batteries (2x) Data Connections PSTN (Base) Others (please specify) .... PCTP-10-F021: Base FCC ID: ACJ96NKX-TG1221 PCTP-10-F022: Handset FCC ID: ACJ96NKX-TGA120 FCC Part 15D – Compliance Information Amended December 10, 2010 page 3 (4) ANCILLARY EQUIPMENT Description AC Adaptor and Charger Type PNLV226 (AC Adaptor) and PNLC1020 (Charger) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-10-F021: Base FCC ID: ACJ96NKX-TG1221 PCTP-10-F022: Handset FCC ID: ACJ96NKX-TGA120 FCC Part 15D – Compliance Information Amended December 10, 2010 page 4 (4) MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. FCC Section 15.307(b) Affidavit # PAN120706 issued on December 7, 2006. Confirmed By Applicant Yes No ADDITIONAL REMARKS: DECLARED BY: Date: December 10, 2010 Name: Richard Mullen Signature: Richard Mullen

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Power of Attorney December 6, 2010 Part 15D DECT Base: PCTP-10-F021 Part 15D DECT Handset: PCTP-10-F022 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product, which are in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for DECT Base Model KX-TG1221(xx) Family 1 Original Application for DECT Handset Model KX-TGA120(xx) Family FCC Classification: Isochronous UPCS Base Station (PUB) Product Name: 1921.536 ~1928.448 MHz DECT Cordless Telephone Base Maximum Conducted Peak RF Output Power of 0.098 Watts FCC ID Base Unit ACJ96NKX-TG1221 FCC Classification: Isochronous UPCS Portable TX Held to Ear (PUE) Product Name: 1921.536 ~1928.448 MHz DECT Cordless Telephone Handset Maximum Conducted Peak RF Output Power of 0.102 Watts FCC ID Handset Unit ACJ96NKX-TGA120 Power Supply: AC Adaptor, Models PNLV266(FW) or PNLV266(UC) and both with switching power supply at 37 kHz Responsible Panasonic Corporation of North America Applicant & Grantee: One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 The subject Base will be: (1) FCC Part 68 certified by Nemko CCL under Certification ID Number US: ACJW401BKX-TG1221; and (2) will be marketed with Handset, which will be FCC Part 15D certified by Nemko CCL under FCC ID: ACJ96NKX-TGA120 Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality December 6, 2010 Part 15D DECT Base: PCTP-10-F021 Part 15D DECT Handset: PCTP-10-F022 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for DECT Base Model KX-TG1221(xx) Family Original Application for DECT Handset Model KX-TGA120(xx) Family FCC Classification: Isochronous UPCS Base Station (PUB) FCC ID Base Unit ACJ96NKX-TG1221 FCC Classification: Isochronous UPCS Portable TX Held to Ear (PUE) FCC ID Handset Unit ACJ96NKX-TGA120 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

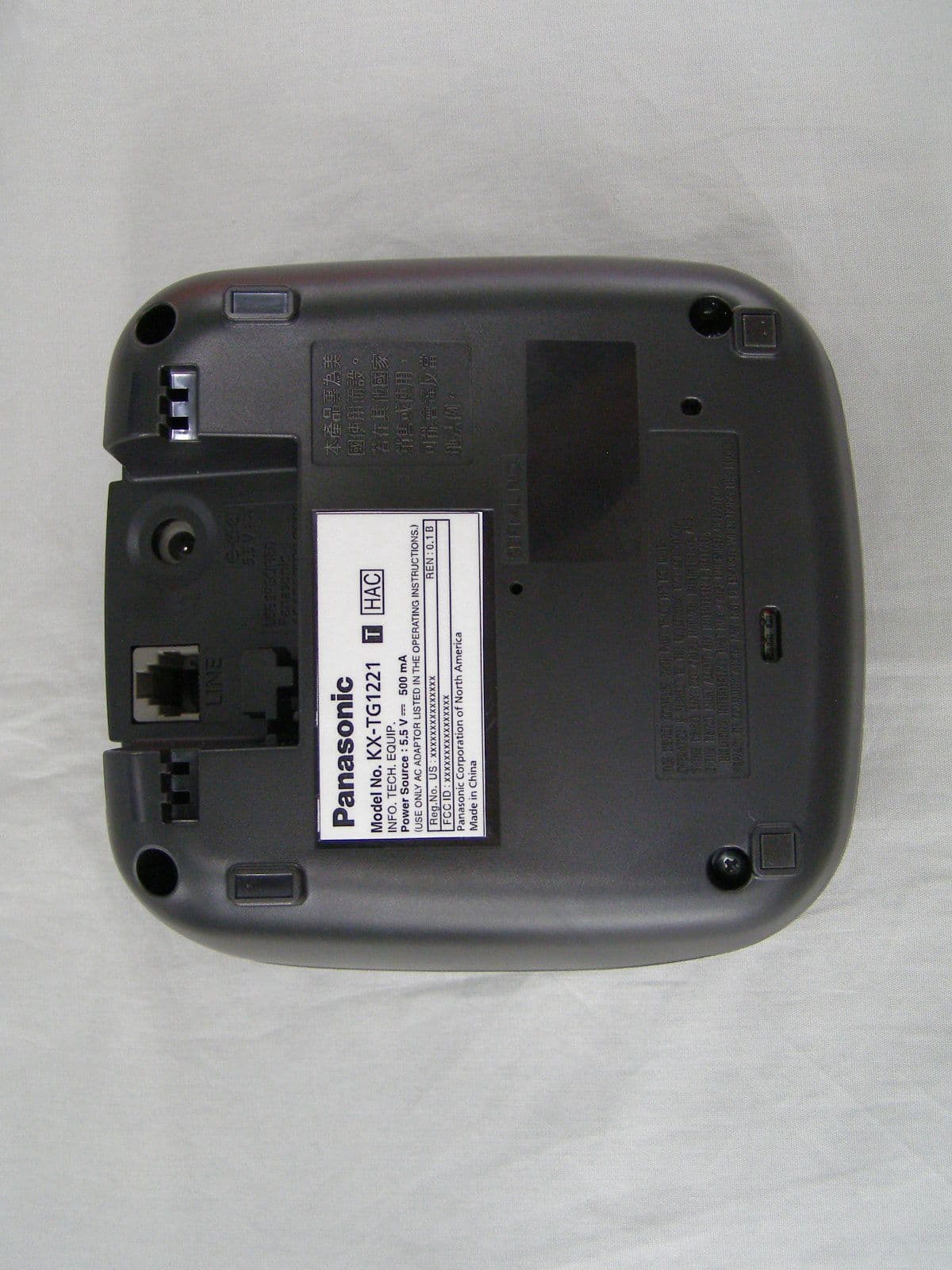

TEMPORARY CONFIDENTIAL EXTERNAL PHOTOGRAPHS KX-TG1221 TEMPORARY CONFIDENTIAL Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit.

TEMPORARY CONFIDENTIAL INTERNAL PHOTOGRAPHS Internal View TEMPORARY CONFIDENTIAL Main Board TEMPORARY CONFIDENTIAL RF Portion

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to isotropicR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.90 (dBm) Maximum peak output power at antenna input terminal: 97.72 (mW) Antenna gain(typical): -1.9 (dBi) Maximum antenna gain: 0.646 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1928 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm^2) Power density at prediction frequency: 0.012552 (mW/cm^2) Power density at prediction frequency: 0.1255 (W/m^2) Margin of Compliance: 19.0 (dB) 2 4 R PG S π =

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 161435-3 Item tested : KX-TG1221 Type of equipment : UPCS Base Station FCC ID : ACJ96NKX-TG1221 Client : Panasonic System Networks Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 9 December 2010 Authorized by : .............................................. G. Suhantakumar Technical Verificator TEST REPORT FCC part 15D Report no.: 161435-3 FCC ID: ACJ96NKX-TG1221 Nemko AS, N-2007 Kjeller Page 2 (27) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Description of Tested Device ............................................................................................................. 4 2.3 Exposure Evaluation .......................................................................................................................... 4 2.4 Test Environment .............................................................................................................................. 5 2.5 Test Period ........................................................................................................................................ 5 2.6 Test Engineer(s) ................................................................................................................................ 5 2.7 Test Equipment ................................................................................................................................. 5 2.8 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS ................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave .................................................................................................. 13 4.3 Digital Modulation Techniques ........................................................................................................ 13 4.4 Labeling Requirements ................................................................................................................... 13 4.5 Antenna Requirement...................................................................................................................... 14 4.6 Channel Frequencies ...................................................................................................................... 14 4.7 Peak Power Output ......................................................................................................................... 15 4.8 Spurious Emissions (Radiated) ....................................................................................................... 18 5 TEST SETUPS ................................................................................................................................ 25 5.1 Radiated Emissions Test, Semi-Anechoic Chamber ....................................................................... 25 5.2 Power Line Conducted Emissions Test ........................................................................................... 25 5.3 Radiated Emissions Test, Fully Anechoic Chamber ........................................................................ 26 6 TEST EQUIPMENT USED .............................................................................................................. 27 TEST REPORT FCC part 15D Report no.: 161435-3 FCC ID: ACJ96NKX-TG1221 Nemko AS, N-2007 Kjeller Page 3 (27) 1 GENERAL INFORMATION 1.1 Testhouse Info Name : Nemko AS Address : Nemko Kjeller Instituttveien 6 N-2007 Kjeller, NORWAY Telephone : +47 64 84 57 00 Fax : +47 64 84 57 05 E-mail: [email protected] FCC test firm registration # : 994405 IC OATS registration # : 2040D-1 Total Number of Pages: 27 1.2 Client Information Name : Panasonic System Networks Co., Ltd. Address : 1-62, 4-Chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan Telephone : +81-92-477-1405 Fax : +81-92-477-1487 Contact: Name : Mr. Junji Sumi Telephone : +81 92 477 1405 E-mail : [email protected] 1.3 Responsible Manufacturer (if other than client) Name : / Address : / TEST REPORT FCC part 15D Report no.: 161435-3 FCC ID: ACJ96NKX-TG1221 Nemko AS, N-2007 Kjeller Page 4 …

Text truncated - open the document above for the full version.

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 137945-3 Item tested : KX-TG6531 Type of equipment : UPCS Base FCC ID : ACJ96NKX-TG6531 Client : Panasonic Communications Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 7 December 2009 Authorized by : .............................................. Egil Hauger Technical Verificator TEST REPORT FCC part 15D Report no.: 137945-3 FCC ID: ACJ96NKX-TG6531 Nemko AS, N-2007 Kjeller Page 2 (52) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Test Environment .............................................................................................................................. 5 2.3 Test Period ........................................................................................................................................ 5 2.4 Test Engineer(s) ................................................................................................................................ 5 2.5 Test Equipment ................................................................................................................................. 5 2.6 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS ................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave .................................................................................................. 11 4.3 Digital Modulation Techniques ........................................................................................................ 11 4.4 Labeling Requirements ................................................................................................................... 11 4.5 Antenna Requirement...................................................................................................................... 12 4.6 Channel Frequencies ...................................................................................................................... 12 4.7 Automatic Discontinuation of Transmission .................................................................................... 13 4.8 Peak Power Output ......................................................................................................................... 14 4.9 Emission Bandwidth B ..................................................................................................................... 19 4.10 Power Spectral Density ................................................................................................................... 22 4.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 25 4.12 Out-of-band Emissions, Conducted................................................................................................. 27 4.13 Carrier Frequency Stability .............................................................................................................. 32 4.14 Frame Repetition Stability ............................................................................................................... 33 4.15 Frame Period and Jitter ................................................................................................................... 33 4.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 35 4.17 Threshold Monitoring Bandwidth ..................................................................................................... 37 4.18 Reaction Time and Monitoring Interval ............................................................................................ 38 4.19 Time and Spectrum Window Access Procedure ............................................................................. 40 4.20 Acknowledgements and Transmission Duration ............................................................................. 43 4.21 Dual Access Criteria Check ............................................................................................................. 44 4.22 Alternative Moni…

Text truncated - open the document above for the full version.

FCC ID: ACJ96NKX-TG1221 Project no.: 161435 Page 1 of 1 PHOTOS OF TEST SET-UP – KX-TG1221 Radiated Emissions Test Set-up Power line Conducted Emissions Test Set-up
