ACJ96NKX-TG22572.4GHz Digital Cordless Phone

2.4GHz Cordless Answering System Model No. KX-TG2257S Pulse-or-tone-dialing capability Operating Instructions Charge the battery for about 15 hours before initial use. PLEASE READ BEFORE USE AND SAVE. Contents: Location of Controls2 Connections5 Battery Charge6 Recording a Greeting Message7 Making/Answering calls with the handset8 Making/Answering calls with the base unit9 Caller ID Service9 Automatic Answering Operation10 Listening to Messages10 Important Safety Instructions11 FCC and Other Information13 –2– Please read IMPORTANT SAFETY INSTRUCTIONS on page 11 before use. Read and understand all instructions. Location of Controls Handset C H E D I T C A L L L W A WA I T P A USEUSE A L L L M S G N E W W M S G TONETONE S T O P A N AN S S O F F OFF A N S S O N S K I P KIP R E P E PE A T P L PL A Y B A C K AY BACK 9 8 3 2 1 6 5 4 7 0 IN T E R C O M S P - P H O N E C L CL E A R FUNCTIONFUNCTION / MUTEMUTE 2WAY REC2WAY REC OPENLCROPENLCR OFFOFF HOL HOL D R E D I A L F L A S H H Antenna Back side Display (OPENLCR) Button (MUTE) Button (FUNCTION/2WAYÒREC) (OFF) Button (HOLD/INTERCOM/CLEAR) Button (REDIAL/PAUSE) Button (TONE) Button (FLASH/CALL!WAIT/PLAYBACK) Button Navigator Key ( , , CH , EDIT ) Headset Jack Microphone Speaker (Talk) Button (Speakerphone) Button Charge Contacts –3– Base unit M U T E TE R I N G E R I N T INT E R C O M / ERCOM/ H O L D LD L O C A T O R TOR I N UN U SE SE CHCH A R G E V O L VOL U M E UME A U TO TO P R PR O G R A M AM F L FL A S H ASH C A CA L L W A I WAI T M I C S K IP SKIP R E P E A T REPEAT E R A S E M E M O MEMO R E D I A L AL P A U S E SE T O N E S L O W SLOW T A L K TALK G R E E T I N G S T O P KX-TGKX-TG 22572257 IN USE/CHARGE Indicator (AUTO/PROGRAM) Button (REDIAL/PAUSE) Button (FLASH/CALLÒWAIT) Button (MUTE/RINGER) Button (HOLD/LOCATOR/INTERCOM) Button (SP-PHONE) Button and Indicator Antenna Display Charge Contacts VOLUME , Buttons Hook –4– Base unit M U T E TE R I N G E R H O L D LD I N T INT E R C O M / ERCOM/ L O C A T O R TOR I N UN U SE SE CHCH A R G E V O L VOL U M E UME A U TO TO P R PR O G R A M AM F L FL A S H ASH C A CA L L W A I WAI T M I C S K IP SKIP R E P E A T REPEAT E R A S E M E M O MEMO R E D I A L AL P A U S E SE S L O W SLOW T A L K TALK G R E E T I N G S T O P T O N E KX-TGKX-TG 22572257 (REPEAT) Button (SKIP) Button (ERASE) Button (MEMO) Button (TONE) Button (GREETING) Button (ANSWERÒON) Button and Indicator (STOP) Button (MESSAGEÒPLAYBACK/SLOW!TALK) Button MIC (Microphone) –5– Connections Connect the AC adaptor •USE ONLY WITH Panasonic AC ADAPTOR PQLV1. •The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Single-Line Telephone Jack (RJ11C) Telephone Line Cord AC Adaptor Raise the antenna. Fasten the cord to prevent them from being disconnected. Power Outlet (AC 120 V, 60 Hz) Hook –6– Battery Charge Recharge Recharge the battery when: –"Recharge" is displayed, –"" flashes on the display, or – the handset beeps every minute while it is in use. •Clean the handset and the base unit charge contacts with a soft, dry cloth once a month. Clean more often if the unit is subject to grease, dust or high humidity.If not, the battery may not charge properly. •If the battery is fully charged, you do not have to place the handset on the base unit until "Recharge" is displayed and/or "" flashes. This will maximize the battery life. •The battery cannot be overcharged. To power the handset, charge the battery. Place the handset on the base unit for about 15 hours before initial use. A nickel cadmium battery that is recyclable powers the product you have purchased. At the end of its useful life, under various state and local laws, it is illegal to dispose of this battery into your municipal waste stream. Please call 1-800-8-BATTERY for information on how to recycle this battery. –7– You can record a personal greeting message of up to 2 minutes. If a greeting message is not recorded, one of two pre-recorded greetings will be played when a call is received. •All messages (greeting, incoming, etc.) are stored in digital memory. The total recording time is about 15 minutes. We recommend you record a brief greeting messagein order to leave more time for recording new messages. 1 Press and hold GREETING until a long beep is heard. 2 After the long beep, talk clearly, about 8 inches (20 cm) away from the MIC (microphone). 3 When finished, press STOP or GREETING. •To check the recorded greeting, press GREETING. •If you do not record a greeting message, one of two messages will be played when a call is received, depending on the caller’s recording time. Recording a Greeting Message –8– To make a call 1 Press or . 2 Dial a telephone number. 3 To hang up, press OFF or place the handset on the base unit. •If "No link to base. Place on cradle and try again" is displayed and an alarm tone sounds in step 1, move closer to the base unit or place the handset on the base unit, and try again. •To redial the last number,press or , then press REDIAL. •To adjust the receiver volume/speaker volume: To increase, press . To decrease, press . To answer a call If the handset is off the base unit, press or . Making/Answering Calls with the Handset –9– Making/Answering Calls with the Base Unit To make a call Using the digital duplex speakerphone: 1 Press SP-PHONE. 2 Dial a telephone number. 3 Talk into the MIC(microphone). 4 To hang up, press SP-PHONE. •To redial the last number, press SP-PHONE, then press REDIAL. •To adjust the speaker volume: To increase, press . To decrease, press . •To put a call on hold,press HOLD. •To release the hold, press SP-PHONE. To answer a call Press SP-PHONE, then talk into the MIC(microphone). Caller ID Service This unit is compatible with a Caller ID service offered by your telephone company. After subscribing to a Caller ID service, the calling party’s information will be shown on the handset display after the first ring. The unit can record information of up to 30 different callers…

Text truncated - open the document above for the full version.

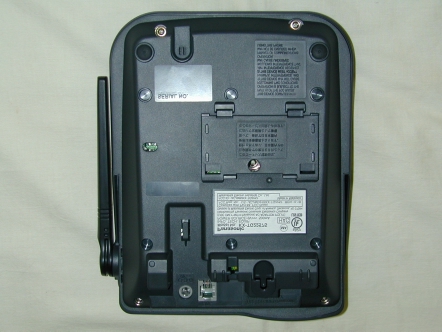

FCC ID : ACJ96NKX-TG2257 Appearance Bottom

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit. Portable Unit: FCC ID Label The marking will be shown on the battery compartment of the portable unit.

FCC ID : ACJ96NKX-TG2257 Internal RF Cover Removed FCC ID : ACJ96NKX-TG2257 Internal View Another Side Handset FCC ID : ACJ96NKX-TG2257 Battery Cover Removed Internal View FCC ID : ACJ96NKX-TG2257 P.C.B. Component Side RF Cover Removed

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has 268 million digital security coding combinations that are provided by the following means: • Provided with 28 bits (268 million) for security codes. • When the handset is not on the base unit, the 28 bit codes changes by the free-running timer. • When the user puts the handset on the base unit, the free-running timer ceases and decides the exact security code. The base unit sends the security code information to the handset. • When shipped from the factory, the security code is decided by the manufacture. However, once the user uses the cordless handset, the security code is constantly changing by the free-running timer.

EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY BASE UNIT: A) WHEN A BELL SIGNAL ENTERS FROM TEL LINE 1) The bell detection circuit, i.e., the transistor(Q6) begins to operate and its output is inputted to pin 27 of IC201(DSP). 2) To obtain a display synchronized with the bell signal, an IN USE signal is output from pin 69 of IC201(DSP) and INUSE LED(LED201) is lighted up. 3) A portable phone receives a bell from the base station. When the portable phone is switched from the STANDBY to TALK, the base station receives a carrier modulated by data indicating the switch from STANDBY to TALK. The data demodulated at the base station is inputted to pin 66 of IC201, and passes through Q4 to make the circuit relay, then, release the muting and enables talk. B) WHEN A LINE LOOP IS MADE BY A PORTABLE PHONE 1) When the operator of the portable phone switches STANDBY to TALK, the TALK mode data enters the base station and is demodulated at the RF Unit of the base station, and is inputted to pin 66 of IC201. 2) In this time, an IN USE signal is output from pin 69 of IC201, and the IN USE LED (LED201) is lighted up. C) RECIEVER UNIT OPERATION 1) A signal is received by the antenna, and passes through the 2400 to 2483.5MHz band pass filter FL111, and is inputted to the pin 3 of IC101. 2) The received signal and local signal made by VCO (2400.768~2478.592MHz) are mixed by IC101 to obtain digitized audio signal. 3) The base band signal is fed to pin 66 of IC201. 4) This audio signal is transmitted to the telephone line by IC201. D) TRANSMISSION UNIT OPERATION 1) An audio signal from the line passes through the interface transistor(Q1). 2) The audio signal is inputted to pin 36 of IC201. 3) This audio signal is coded by IC201 and output from pin 57 to IC201. 4) This modulated signal goes to the antenna. EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY PORTABLE UNIT: A) RECEIVER UNIT OPERATION 1) A signal from the base unit is received by the antenna, and passes through the 2400 to 2483.5MHz band pass filter FL111. And the signal is fed to pin 3 of IC101. 2) An received signal and 1st local signal made by VCO(2400.768~2478.592MHz) are mixed to obtain digitized audio signal. 3) This digitized audio signal is fed to pin 66 of IC201. 4) This audio signal goes to pin 33 and 34 of IC201, and output to speaker. B) TRANSMISSION UNIT OPERATION 1) When selected TALK switch to TALK, the detect switch of IC201 becomes ON and get into TALK mode. 2) The audio signal from microphone is inputted to pin 46 and 47 of IC201. 3) This audio signal is coded by IC201 and output from pin 57 to IC101. 4) This modulated signal goes to the antenna.

Maximum Permissible Exposure Calculations The following calculations are based on guidelines published on OET Bulletin 65, Edition 97-01, August 1997: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. Frequency (GHZ) Wavelength (m) Near to Far Field Transition (cm) Lower 2.4000 0.125 ~2.0 Upper 2.4835 0.121 ~1.9 For a simple case, discounting reflections, equation 4, page 19 gives: Power Density, S = PG / 4πR^2 Worst case power: 6.6 mW General population/uncontrolled limit: 1mW/cm^2. Distance from the antenna, R, where power density limit is reached is: R = √ (PG / 4πS) R = 0.7 cm Notes: 1. The general population / uncontrolled limit is taken from the OET 65, Appendix A Table 1B page 67.

Issue Date : December 6, 2001 Page 1 of 41 EMC EMISSION - TEST REPORT JQA APPLICATION No.: KL80010446 Name of Product: 2.4GHz Digital Cordless Telephone(Base Unit) Model/Type No.: KX-TG2257 FCC ID: ACJ96NKX-TG2257 Applicant : Kyushu Matsushita Electric Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Manufacturer : Kyushu Matsushita Electric Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Receive date of EUT: November 21, 2001 Final Judgement :Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology(AIST) under METI Japan and Communications Research Lab.(CRL) under MPHPT Japan. THE TEST RESULTS only responds to the test sample. This test report shall not be reproduced except in full. JAPAN QUALITY ASSURANCE ORGANIZATION (JQA) KITA-KANSAI TESTING CENTER EMC DIVISION Page 2 of 41 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 5 Test Conditions6-12 Configuration of EUT / Operation mode of the EUT13 - 14 EUT Modification / Responsible Party / Deviation from Standard15 Test results / Measurement Uncertainty16 - 18 Summary19 Test System-Arrangement (Drawings) 20 Preliminary Test and Test-setup (Drawings) 21 - 24 Test-setup (Photographs) at worst case 25 B) Test data Conducted Emission450 kHz - 30 MHz26 Electromagnetic Field Radiated Emission9 kHz - 25 GHz27 - 31 Maximum Peak Power (EIRP)32 Transmitter Power (TP)33 Calculated Antenna Gain of the EUT34 Peak Spectral Power Density35 - 38 Band-edge Emission39 - 41 JQA Application No. : KL80010446Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-TG2257Issue Date : December 6, 2001 FCC ID: ACJ96NKX-TG2257 JQA Application No. : KL80010446Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-TG2257Issue Date : December 6, 2001 FCC ID: ACJ96NKX-TG2257 Page 3 of 41 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and C (February 28, 2001) ô- Class A Digital Device ô- Class B Digital Device ò ̄- Intentional Radiator(Sec.15.247 ) ô- Receiver ̄The proposed rule changes(Sec.15.247) in the FCC ET Docket No. 01-158 is applied to the EUT at request of the applicant. Test items: ô- Sec.15.203 : Antenna requirement ò- Sec.15.205 : Restricted bands of operation ò- Sec.15.207 : Conducted limits ò- Sec.15.209 : Radiated emission limits general requirements ô- Sec.15.214 : Cordless Telephones ò- Sec.15.247 : Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz, and 24.0-24.25GHz Test procedure: Conducted emission and radiated emission test were performed according to the procedures in ANSI C63.4-1992. GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai : 1st and 2nd Open Sites (3 m Site) Test Facility located at Kameoka: 1st Open Site (3, 10 and 30 m, on common plane) : 2nd Open Site (3 and 10 m, on common plane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 3) Average Measurement Method FCC filing No. : 950523A 1300F2 Definitions for symbols used in this test report: ò- Black box indicates that the listed condition, standard or equipment is applicable for this Report. ô- Blank box indicates that the listed condition, standard or equipment is not applicable for this Report. JQA Application No. : KL80010446Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-TG2257Issue Date : December 6, 2001 FCC ID: ACJ96NKX-TG2257 Page 4 of 41 Description of the Equipment Under Test (EUT): 1) Name: 2.4GHz Digital Cordless Telephone(Base Unit) 2) Model/Type No.: KX-TG2257 3) Product Type: Pre-Production (S/N: ---) 4) Category: Intentional Radiator 5) EUT Authorization: - Verification- Certification- D.o.C.ôòô 6) Transmitting Frequency: 2402.048 MHz(14ch) - 2479.872 MHz(166ch) 7) Receiving Frequency: 2402.048 MHz(14ch) - 2479.872 MHz(166ch) 8) Method/System: Digital Modulation Systems 9) Type of Antenna: Collinear Antenna 10) Antenna Gain: 4 dBi 11) Measured MAX Output Power: 6.6 mW(EIRP) 12) Power Rating: AC 120V 60Hz 1 2-pin plug(AC Adaptor : PQLV1)φ JQA Application No. : KL80010446Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-TG2257Issue Date : December 6, 2001 FCC ID: ACJ96NKX-TG2257 Page 5 of 41 Detailed Transmitter portion(Channel plan): Transmitting frequency : 2402.048 MHz(14ch) - 2479.872 MHz(166ch) Number of channel: 153 Channel Separation: 512 kHz Modulation System Information: Modulation: Digital Modulation Emission Designator: F1E Type: TDD-FSK Deviation: 60 kHz Bit Rate: 128 Kbps Time-division duplex(TDD) Frame format: The TDD frame is 2msec in length, and is composed of two symmetrical 828 sec TX and RXμ subframe. Each subframe cotains 106 bits of 7.8 sec duration, with 172 sec gap times betweenμμ TX and RX subframe. Digital Security Code: 28bits Detailed Receiver portion: Receiving frequency: 2402.048 MHz(14ch) - 2479.872 MHz(166ch) Local frequency: 2400.768 MHz(14ch) - 2478.592 MHz(166ch) Intermediate frequency : 1.28 MHz The used (generated) frequencies in the EUT: Reference Clock: 8.192 MHz, 106.496 MHz CH 0123456789 10 --------2402.048 2402.560 2403.072 2403.584 2404.096 2404.608 20 2405.120 2405.632 2406.144 2406.656 2407.168 2407.680 2408.192 2408.704 2409.216 2409.728 30 2410.240 2410.752 2411.264 2411.776 2412.288 2412.800 2413.312 2413.824 2414.336 2414.848 40 2415.360 2415.872 2416.384 2416.896 2417.408 2417.920 2418.432 2418.944 2419.456 2419.968 50 2420.480 2420.992 2421.504 2422.016 2422.528 2423.040 2423.552 2424.064 2424.576 2425.088 60 2425.600 2426.112 2426.624 2427.136 2427.648 2428.160 2428.672 2429.184 2429.696 2430.208 70 2430.720 2431.232 2431.744 2432.256 2432.768 2433.280 2433.792 2434.304 2434.816 2435.328 80 2435.840 2436.352 2436.864 2437.376 2437.888 2438.400 2438.912 2439.424 2439.936…

Text truncated - open the document above for the full version.

Issue Date : December 6, 2001 Page 1 of 39 EMC EMISSION - TEST REPORT JQA APPLICATION No.: KL80010447 Name of Product: 2.4GHz Digital Cordless Telephone(Handset) Model/Type No.: KX-TG2257 FCC ID: ACJ96NKX-TG2257 Applicant : Kyushu Matsushita Electric Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Manufacturer : Kyushu Matsushita Electric Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Receive date of EUT: November 21, 2001 Final Judgement :Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology(AIST) under METI Japan and Communications Research Lab.(CRL) under MPHPT Japan. THE TEST RESULTS only responds to the test sample. This test report shall not be reproduced except in full. JAPAN QUALITY ASSURANCE ORGANIZATION (JQA) KITA-KANSAI TESTING CENTER EMC DIVISION Page 2 of 39 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 5 Test Conditions6-12 Configuration of EUT / Operation mode of the EUT13 - 14 EUT Modification / Responsible Party / Deviation from Standard15 Test results / Measurement Uncertainty16 - 18 Summary19 Test System-Arrangement (Drawings) 20 Preliminary Test and Test-setup (Drawings) 21 - 23 Test-setup (Photographs) at worst case 24 B) Test data Conducted Emission450 kHz - 30 MHzN/A Electromagnetic Field Radiated Emission9 kHz - 25 GHz25 - 29 Maximum Peak Power (EIRP)30 Transmitter Power (TP)31 Calculated Antenna Gain of the EUT32 Peak Spectral Power Density33 - 36 Band-edge Emission37 - 39 JQA Application No. : KL80010447Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-TG2257Issue Date : December 6, 2001 FCC ID: ACJ96NKX-TG2257 JQA Application No. : KL80010447Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-TG2257Issue Date : December 6, 2001 FCC ID: ACJ96NKX-TG2257 Page 3 of 39 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and C (February 28, 2001) ô- Class A Digital Device ô- Class B Digital Device ò ̄- Intentional Radiator(Sec.15.247 ) ô- Receiver ̄The proposed rule changes(Sec.15.247) in the FCC ET Docket No. 01-158 is applied to the EUT at request of the applicant. Test items: ô- Sec.15.203 : Antenna requirement ò- Sec.15.205 : Restricted bands of operation ô- Sec.15.207 : Conducted limits ò- Sec.15.209 : Radiated emission limits general requirements ô- Sec.15.214 : Cordless Telephones ò- Sec.15.247 : Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz, and 24.0-24.25GHz Test procedure: Radiated emission test was performed according to the procedures in ANSI C63.4-1992. GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai : 1st and 2nd Open Sites (3 m Site) Test Facility located at Kameoka: 1st Open Site (3, 10 and 30 m, on common plane) : 2nd Open Site (3 and 10 m, on common plane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 3) Average Measurement Method FCC filing No. : 950523A 1300F2 Definitions for symbols used in this test report: ò- Black box indicates that the listed condition, standard or equipment is applicable for this Report. ô- Blank box indicates that the listed condition, standard or equipment is not applicable for this Report. JQA Application No. : KL80010447Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-TG2257Issue Date : December 6, 2001 FCC ID: ACJ96NKX-TG2257 Page 4 of 39 Description of the Equipment Under Test (EUT): 1) Name: 2.4GHz Digital Cordless Telephone(Handset) 2) Model/Type No.: KX-TG2257 3) Product Type: Pre-Production (S/N: ---) 4) Category: Intentional Radiator 5) EUT Authorization: - Verification- Certification- D.o.C.ôòô 6) Transmitting Frequency: 2402.048 MHz(14ch) - 2479.872 MHz(166ch) 7) Receiving Frequency: 2402.048 MHz(14ch) - 2479.872 MHz(166ch) 8) Method/System: Digital Modulation Systems 9) Type of Antenna: J-Type Antenna 10) Antenna Gain: 0 dBi 11) Measured MAX Output Power: 6.6 mW(EIRP) 12) Power Rating: DC 3.6V(Ni-Cd Battery Pack, Model No. : N4HKGMA0001) JQA Application No. : KL80010447Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-TG2257Issue Date : December 6, 2001 FCC ID: ACJ96NKX-TG2257 Page 5 of 39 Detailed Transmitter portion(Channel plan): Transmitting frequency : 2402.048 MHz(14ch) - 2479.872 MHz(166ch) Number of channel: 153 Channel Separation: 512 kHz Modulation System Information: Modulation: Digital Modulation Emission Designator: F1E Type: TDD-FSK Deviation: 60 kHz Bit Rate: 128 Kbps Time-division duplex(TDD) Frame format: The TDD frame is 2msec in length, and is composed of two symmetrical 828 sec TX and RXμ subframe. Each subframe cotains 106 bits of 7.8 sec duration, with 172 sec gap times between bothμμ TX and RX subframe. Digital Security Code: 28bits Detailed Receiver portion: Receiving frequency: 2402.048 MHz(14ch) - 2479.872 MHz(166ch) Local frequency: 2400.768 MHz(14ch) - 2478.592 MHz(166ch) Intermediate frequency : 1.28 MHz The used (generated) frequencies in the EUT: Reference Clock: 8.192 MHz, 106.496 MHz CH 0123456789 10 --------2402.048 2402.560 2403.072 2403.584 2404.096 2404.608 20 2405.120 2405.632 2406.144 2406.656 2407.168 2407.680 2408.192 2408.704 2409.216 2409.728 30 2410.240 2410.752 2411.264 2411.776 2412.288 2412.800 2413.312 2413.824 2414.336 2414.848 40 2415.360 2415.872 2416.384 2416.896 2417.408 2417.920 2418.432 2418.944 2419.456 2419.968 50 2420.480 2420.992 2421.504 2422.016 2422.528 2423.040 2423.552 2424.064 2424.576 2425.088 60 2425.600 2426.112 2426.624 2427.136 2427.648 2428.160 2428.672 2429.184 2429.696 2430.208 70 2430.720 2431.232 2431.744 2432.256 2432.768 2433.280 2433.792 2434.304 2434.816 2435.328 80 2435.840 2436.352 2436.864 2437.376 2437.888 2438.400 2438.912 2439.424 2439.936 2440.448 90 2440.9…

Text truncated - open the document above for the full version.
