ACJ96NKX-TG23822.4 GHz FHSS Cordless Telephone System

2.4GHz Expandable Cordless Phone System Model No.KX-TG2382B Pulse-or-tone-dialing capability Operating Instructions Charge the battery for about 15 hours before initial use. PLEASE READ BEFORE USE AND SAVE. Contents: Location of Controls2 Connections4 Battery Installation/Battery Charge5 Recording a Greeting Message6 Making/Answering calls with the Handset7 Caller ID Service8 Automatic Answering Operation9 Listening to Messages9 Important Safety Instructions10 FCC and Other Information12 –2– Base unit K X - TG 2 3 8 2 G R E E GREE T I N G ING R E C REC C H E C K CHECK E R A S E ERASE REPEATREPEAT SKIPSKIP S T O P M E S S A G E PLE PL A Y BACKBACK CHARGECHARGE IN USE IN USE HOLD HOLD VOLUMEVOLUME E X PA N D A B LE T O 3 1 2 3 HANDSEHANDSE T LOCT LOC A TORTOR INTINT ERCOMERCOM M I C A L L 1 2 3 HANDSEHANDSE T LOCT LOC A TORTOR INTINT ERCOMERCOM A L L (ERASE) Button (GREETINGÒREC) Button (GREETINGÒCHECK) Button (STOP) Button (REPEAT) Button (SKIP) Button VOLUME Buttons , (ANSWER!ON) Button and Indicator CHARGE Indicator HANDSET LOCATOR/INTERCOM Buttons ((ALL), (1) to (3)) IN USE/HOLD Indicator (MESSAGEÒPLAYBACK) Button Charge Contacts Antenna Hook Display Please read IMPORTANT SAFETY INSTRUCTIONS on page 10 before use. Read and understand all instructions. Location of Controls –3– Handset CALL CALL W A IT IT CLEARCLEAR S P - P H O N E INTERCOM INTERCOM R E D IA L REDIAL FUNCTIONFUNCTION T O N E TONE T ALKALK E D I T HOLDHOLD O F F OFF FLFL ASHASH M U MU T E P A U S E USE 2 3 4 5 6 1 7 8 0 9 Back side Speaker Antenna Display (MUTE/FUNCTION) Button (FLASH/CALL/WAIT) Button (OFF) Button (HOLD/INTERCOM/CLEAR) Button (PAUSE/REDIAL) Button (TONE) Button Navigator Key ( , , , ) Headset Jack Microphone (TALK) Button (Speakerphone) Button Charge Contacts CHARGE Indicator Charge Contacts C H A R G E GE EXPANDABLE TO 3 Charger Unit –4– Connections Connect the AC adaptor and the telephone line cord. •USE ONLY WITH Panasonic AC ADAPTOR PQLV10. •The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Hooks Raise the antenna. Fasten the cords to prevent them from being disconnected. AC Adaptor Telephone Line Cord Power Outlet (AC 120 V, 60 Hz) Single-Line Telephone Jack (RJ11C) Hooks Hooks Charger Unit Power Outlet (AC 120 V, 60 Hz) AC Adaptor •USE ONLY WITH Panasonic AC ADAPTOR PQLV1. •The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) –5– Battery Installation/Battery Charge Recharge Recharge the battery when: –"Recharge" is displayed, –"" flashes on the display, or – the handset beeps every minute while it is in use. •Clean the handset and the base unit charge contacts with a soft, dry cloth once a month. Clean more often if the unit is subject to grease, dust or high humidity.If not, the battery may not charge properly. •If the battery is fully charged, you do not have to place the handset on the base unit or the charger until "Recharge" is displayed and/or "" flashes. This will maximize the battery life. •The battery cannot be overcharged. Battery installation 1 Install the battery in the handset. 2 Close the handset cover. Battery charge To power the handset, charge the battery. Place the handset on the base unit or the charger for about 15 hours before initial use. A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery. –6– You can record a personal greeting message of up to 2 minutes. If a greeting message is not recorded, one of two pre-recorded greetings will be played when a call is received. •All messages (greeting, incoming, etc.) are stored in digital memory. The total recording time is about 15 minutes. We recommend you record a brief greeting messagein order to leave more time for recording new messages. 1 Press and hold (GREETING!REC). 2 After the long beep, talk clearly, about 8 inches (20 cm) away from the MIC (microphone). 3 When finished, press (GREETING!REC). •If you do not record a greeting message, one of two messages will be played when a call is received, depending on the caller’s recording time. Recording a Greeting Message –7– To make a call 1 Press or . 2 Dial a telephone number. 3 To hang up, press (OFF)or place the handset on the base unit or the charger. •If "No link to base." is displayed and an alarm tone sounds in step 1, move closer to the base unit or place the handset on the base unit, and try again. •To redial the last number,press or , then press (PAUSE/REDIAL). •To adjust the receiver volume/speaker volume: To increase, press . To decrease, press . •To put a call on hold, press(HOLD/INTERCOM/CLEAR). •To release the hold, press(HOLD/INTERCOM/CLEAR). To answer a call Press or . Making/Answering Calls with the Handset –8– Caller ID Service This unit is compatible with a Caller ID service offered by your telephone company. After subscribing to a Caller ID service, the calling party’s information will be shown on the handset display after the first ring. The unit can record information of up to 30 different callers in the caller list. The Caller List information is sorted from the most recent to the oldest call. When the unit receives the 31st call, the oldest call is deleted. If your unit is connected to a PBX system which does not support Caller ID services, you cannot access those services. Please consult your equipment supplier. –9– Automatic Answering Operation  Setting the unit to answer calls Press (ANSWER!ON)to turn on the answering system. •The indicator lights and “Answer set” is heard. Listening to Messages You can see the total number of recorded messages on the base unit display. To listen to the messages, press (MESSAGE!PLAYBACK). •When you have new messages, the unit announces the number of new messages and plays them back. •When you have no new messages, the unit plays back all recorded messages. –10– Important Safety Instructions W…

Text truncated - open the document above for the full version.

Preparation Cordless Telephone Answering System Useful Information 2.4GHz Expandable Cordless Phone System Operating Instructions Model No.KX-TG2382B Pulse-or-tone dialing capability PLEASE READ BEFORE USE AND SAVE. Panasonic World Wide Web address: http://www.panasonic.com for customers in the USA or Puerto Rico Charge the battery for about 15 hours before initial use. Caller ID Compatible 2 If you want to add one more handset to the system, please purchase the optional handset KX-TGA230B or KX-TGA230W. The charger is included. To order, contact your dealer or call 1-800-211-PANA(7262) to locate a dealer. Thank you for purchasing your new Panasonic cordless telephone. Please read IMPORTANT SAFETY INSTRUCTIONS on page 71 before use. Read and understand all instructions. Caller ID and Call Waiting Service, where available, are telephone company services. After subscribing to Caller ID, this phone will display a caller’s name and phone number. Call Waiting Caller ID, which displays a second caller’s name and phone number while the user is on the phone line with the first caller, requires a subscription to both Caller ID with Name and Call Waiting Service. Attach your purchase receipt here. Energy Star: As an ENERGY STAR ® Partner, Panasonic has determined that this product meets the ENERGY STAR guidelines for energy efficiency. E NERGY STAR is a U.S. registered mark. Accessories (included)For extra orders, call 1-800-332-5368. AC Adaptor for base unit (p. 8) Order No. PQLV10Z (PQLV10) one Telephone Line Cord (p. 8) Order No. PQJA10075Z one Battery (p. 9, 61) Order No. N4HHGMB00001 (HHR-P103) two Belt Clip (p. 11) Order No. PQKE10352Z3 two Handset Cover (p. 9, 61) Order No. PQKK10131Z3 two Charger Unit (p. 8) Charger Order No. PQLV30017ZB AC Adaptor Order No. PQLV2Z (PQLV2) one For Best Performance 3 For assistance, please call: 1-800-211-PANA(7262)For assistance, please call: 1-800-211-PANA(7262) Battery Charge A rechargeable Ni-MH battery powers the handset. Charge the battery for about 15 hoursbefore initial use (p. 9). Base Unit Location/Noise Calls are transmitted between the base unit and the handset using wireless radio waves. For maximum distance and noise-free operation, the recommended base unit location is: Note: While using the handset: •If you are near a microwave oven which is being used, noise may be heard from the receiver or the speaker. Move away from the microwave oven and closer to the base unit. •If you use the handset near another cordless phone’s base unit, noise may be heard. Move away from the other cordless phone’s base unit and closer to your base unit. Away from electrical appliances such as a TV, personal computer or another cordless phone. In a HIGH and CENTRAL location with no obstructions such as walls. Raise the antenna. AND Contents 4 Preparation Location of Controls.......................................................................... 6 Installation.......................................................................................... 8 Connections ...................................................................................... 8 Installing the Battery in the Handset ................................................. 9 Battery Charge.................................................................................. 9 Belt Clip...............................................................................................11 Optional Headset................................................................................11 Programmable Settings.....................................................................12 Programming Guidelines...................................................................12 Function Menu Table ........................................................................13 Date and Time ..................................................................................14 Dialing Mode .....................................................................................15 Line Mode .........................................................................................16 Auto Talk Feature .............................................................................17 Ringer Volume ..................................................................................18 LCD Contrast ....................................................................................19 Preparing the Answering System.....................................................20 Greeting Message.............................................................................20 Caller’s Recording Time....................................................................22 Number of Rings ...............................................................................23 Registration for Additional Handsets...............................................24 Cordless Telephone Making Calls.......................................................................................25 Answering Calls.................................................................................29 Caller ID Service.................................................................................30 Using the Caller List...........................................................................31 Viewing the Caller List ......................................................................31 Calling Back from the Caller List.......................................................32 Editing the Caller’s Phone Number...................................................33 The Caller ID Number Auto Edit Feature..........................................34 Storing Caller List Information in the Directory .................................35 Erasing Caller List Information..........................................................36 Directory..............................................................................................37 Storing Names and Numbers ................................................…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has 1,000 billion digital security coding combinations that are provided by the following means: • Provided with 40 bits (1,000 billion) for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base and Handset knows each other’s security code information.

BASE UNIT 5.0VCONVERTOR IC701 TIP RING DC/TEL_JAC VRF RF_UNIT IC501DSP DC9V+GND + - CHARGE 1 2 4 3 D101 Q106 IC300 IC331 IC332 Q382,381 Q350 Q104 Q161 KEYPAD TX DATA RXDATA Vcc ANT

HANDSET 21 CHARGE BATT+ BATT- IC204 IC203 RINGER MIC SPEAKER HEAD SET JACK CN203 LCD IC202 KEYPAD KEY LEDS VCC RF UNIT VRF TX DATA RXDATA IC201DSP ANT

BASE UNIT 5.0VCONVERTOR IC701 TIP RING DC/TEL_JAC VRF RF_UNIT IC501DSP DC9V+GND + - CHARGE 1 2 4 3 D101 Q106 IC300 IC331 IC332 Q382,381 Q350 Q104 Q161 KEYPAD TX DATA RXDATA Vcc ANT Crystal 13.824 MHz

HANDSET 21 CHARGE BATT+ BATT- IC204 IC203 RINGER MIC SPEAKER HEAD SET JACK CN203 LCD IC202 KEYPAD KEY LEDS VCC RF UNIT VRF TX DATA RXDATA IC201DSP ANT Crystal 13.824 MHz

To: Joe Dichoso / FCC Application Processing Branch From: Richard Mullen / Matsushita Electric Corp of America Applicant: Matsushita Electric Industrial Co Ltd. FCC ID: ACJ96NKX-TG2382 731 Confirmation Number: EA580780 Correspondence Ref No: 23201 Date: July 1, 2002 Control Ref No: KM4-02-U13A 1) Regarding grant declared power - JQA Part 15C test report and PCTEST SAR test report both declared 344mW (EIRP) for handset unit and 572mW (EIRP) for base unit. It appears FCC wants to subtract antenna gain and declare conducted output power. As such, we agree the grant should declare peak conducted output power is 240mW for handset unit and 224mW for the base unit. 2). The attached confidential Appendix I for Frequency Hopping Algorithm provides details regarding system-hopping rate from pseudorandom ordered list of hopping frequencies and contains requested list of channel frequencies and a sample of a few sequences. We request this exact information not to be exposed within FCC’s web site as it contains confidential information, which would never to disclosed to the general public. 3) Section 15.247(a)(1) requires system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. The attached confidential Appendix I for Frequency Hopping Algorithm contains Section 1.7, which declares the following: 1.7 Conformation To FCC Sec. 15.247(a)(1) receiver requirement The maximum 20 dB bandwidth of the hopping channel is about 600 kHz. The 20 dB bandwidth of the receiver input is 1.2MHz. (The 3dB bandwidth of the receiver input is 900kHz). A packet is sent once per frame per bearer for the duration of the bearer; packets are not resent. See section 1.4 for a description of how the receiver gains synchronization with the transmitter, i.e. a dummy bearer. 4) Attached find Exhibit G-1, G-2 and G-3, which contains block diagram with declared employed frequencies for base unit, handset unit and RF unit employed within both the base and handset units. 5) Regarding how the EUT was operated/controlled during the test to assure testing of all appropriate modes, maximum power, and any duty factor driven parameters, per Supplement C Appendix B part I 2. The EUT was operated with software codes provided by Panasonic to control and maintain the power output characteristics of the device. Power was measured before and after each SAR test. 6) Regarding Table 12.1 shows body conductivity varies from Supplement C by more than 5% and request to estimate change in SAR if correct values were used. Refer to attached Exhibit C-3 (SAR Report – Amended Page 16), which shows corrected measured body conductivity used during the SAR evaluation. 7) The dipole verification target was obtained from the IEEE Standard P1528-200X Table 7.1 Draft 6.5. The 1 W targets were multiplied by a factor of 0.25 to correspond to a 0.250W power source input. Refer to attached Exhibit C-3 (SAR Report – Dipole Validation). 8) Attached find the requested finalized User Manual.

To: Joe Dichoso / FCC Application Processing Branch From: Richard Mullen / Matsushita Electric Corp of America Applicant: Matsushita Electric Industrial Co Ltd. FCC ID: ACJ96NKX-TG2382 731 Confirmation Number: EA580780 Correspondence Ref No: 23339 Date: July 2, 2002 Control Ref No: KM4-02-U13B Our filed Exhibit I contained requested information and explanation for frequency hopping algorithm for pseudorandom hopping frequencies and other details. This entire exhibit contains privileged and confidential materials, which is not routinely available for public inspection. Pursuant to 47 CFR Section 0.459, we request this exhibit be treated as confidential and withheld from public inspection. We will mail Mellow Bank another FCC Form 159 and declare confidential payment code EBC and include fee check in the amount of $145. This is in additional to already mailed FCC Form 159, which declared basic payment code EGC and included fee check in the amount of $985. I trust this now resolved this matter. Sincerely yours, Richard Mullen Group Manager Product Safety & Compliance Division

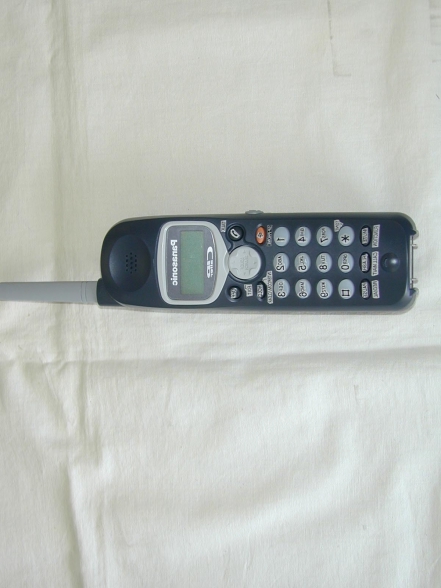

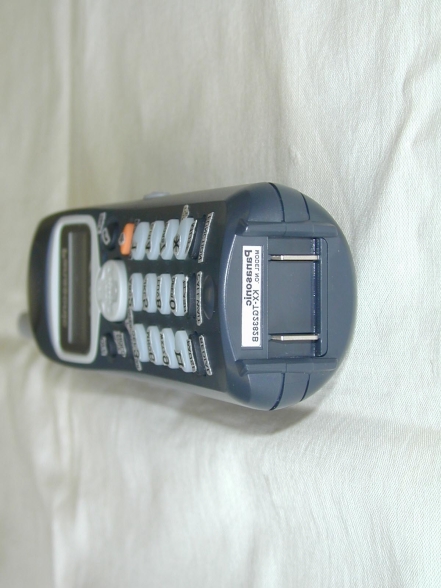

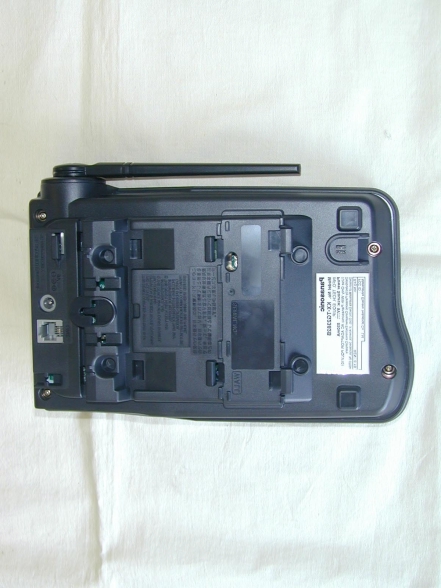

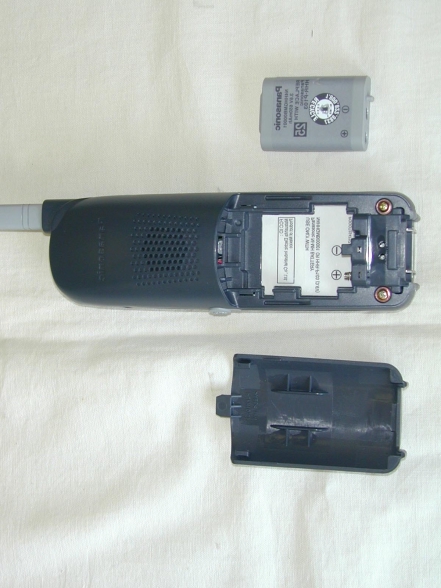

FCC ID: ACJ96NKX-TG2382 KX-TG2382B FCC ID: ACJ96NKX-TG2382 Bottom View FCC ID: ACJ96NKX-TG2382 Portable Unit FCC ID: ACJ96NKX-TG2382 Bottom View FCC ID: ACJ96NKX-TG2382 Battery Compartment

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit. Portable Unit: FCC ID Label Above markings are shown on the battery compartment of the portable unit.

FCC ID: ACJ96NKX-TG2382 Internal View FCC ID: ACJ96NKX-TG2382 P.C. Board (Another Side) FCC ID: ACJ96NKX-TG2382 P.C. Board (Metal Cover Open) FCC ID: ACJ96NKX-TG2382 Internal View FCC ID: ACJ96NKX-TG2382 P.C. Board (Another Side) FCC ID: ACJ96NKX-TG2382 P.C. Board (Metal Cover Open)

SAR Data Report 02032501 Start : 25-Mar-02 08:25:49 am End : 25-Mar-02 08:37:52 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 2450 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 39.400 Tissue Conductivity : 1.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 2450 MHz Validation SN: 146 CF=1; Amb. Temp.=22.01'C; Liq. Temp.=21.8'C Area Scan - Max Peak SAR Value at x=-1.0 y=-2.0 = 15.33 W/kg Zoom Scan - Max Peak SAR Value at x=-1.0 y=-2.0 z=0.0 = 25.43 W/kg Max 1g SAR at x=-1.0 y=-2.0 z=0.0 = 13.00 W/kg Max 10g SAR at x=-1.0 y=-2.0 z=0.0 = 8.67 W/kg Validation Results at 0.25 W: Peak Nominal = 26.0, Error: -2.38 % 1g Nominal = 13.1, Error: -0.80 % 10g Nominal = 8.5, Error: 2.00 % 2 4 6 8 10 12 14 16 18 20 22 24 26 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-1.0 y:-2.0 1g SAR Values 13.0 11.8 10.6 9.5 8.3 7.1 5.9 4.7 3.6 2.4 1.2

SAR Data Report 02051309 Start : 13-May-02 12:58:16 pm End : 13-May-02 01:04:59 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : PANASONIC Model Number : KX-TG2382 Frequency : 2480.293 MHz Transmit Pwr : 0.572 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 52.000 Tissue Conductivity : 1.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Muscle Calibrated Dielectric : 49.200 Calibrated Conductivity : 1.950 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.500 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: FHSS CH-90 Body (Base set) CF=1; Amb. Temp= 21.5 'C; Liq. Temp=21.2 'C Area Scan - Max Peak SAR Value at x=1.0 y=-50.0 = 0.12 W/kg Zoom Scan - Max Peak SAR Value at x=-1.0 y=-42.0 z=0.0 = 0.46 W/kg Max 1g SAR at x=0.0 y=-44.0 z=0.0 = 0.15 W/kg Max 10g SAR at x=1.0 y=-48.0 z=0.0 = 0.05 W/kg -0.1 0.0 0.1 0.2 0.3 0.4 0.5 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-1.0 y:-42.0 1g SAR Values 0.151 0.137 0.122 0.108 0.093 0.079 0.064 0.050 0.035 0.021 0.006

© 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS)

© 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2382 2.4 GHz Cordless Telephone (FHSS)

SAR Data Report 02051407 Start : 14-May-02 10:36:14 am End : 14-May-02 10:42:55 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : PANASONIC Model Number : KX-TG2382 Frequency : 2480.293 MHz Transmit Pwr : 0.344 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 39.400 Tissue Conductivity : 1.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: FHSS CH-90 Cheek CF=1; Amb. Temp= 21.5 'C; Liq. Temp=21.2 'C Area Scan - Max Peak SAR Value at x=-27.0 y=16.0 = 0.01 W/kg Zoom Scan - Max Peak SAR Value at x=-33.0 y=18.0 z=0.0 = 0.11 W/kg Max 1g SAR at x=-28.0 y=17.0 z=0.0 = 0.03 W/kg Max 10g SAR at x=-24.0 y=11.0 z=0.0 = 0.01 W/kg -0.01 0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-33.0 y:18.0 1g SAR Values 0.0341 0.0308 0.0275 0.0242 0.0210 0.0177 0.0144 0.0111 0.0078 0.0046 0.0013 SAR Data Report 02051411 Start : 14-May-02 11:16:37 am End : 14-May-02 11:24:31 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : PANASONIC Model Number : KX-TG2382 Frequency : 2480.293 MHz Transmit Pwr : 0.344 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 39.400 Tissue Conductivity : 1.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: FHSS CH-90 Cheek CF=1; Amb. Temp= 21.5 'C; Liq. Temp=21.2 'C Area Scan - Max Peak SAR Value at x=-30.0 y=20.0 = 0.05 W/kg Zoom Scan - Max Peak SAR Value at x=-35.0 y=21.0 z=0.0 = 0.22 W/kg Max 1g SAR at x=-34.0 y=22.0 z=0.0 = 0.07 W/kg Max 10g SAR at x=-33.0 y=22.0 z=0.0 = 0.02 W/kg -0.02 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 0.24 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-35.0 y:21.0 1g SAR Values 0.0722 0.0657 0.0592 0.0526 0.0461 0.0396 0.0330 0.0265 0.0199 0.0134 0.0069 SAR Data Report 02051408 Start : 14-May-02 10:45:26 am End : 14-May-02 10:52:09 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : PANASONIC Model Number : KX-TG2382 Frequency : 2480.293 MHz Transmit Pwr : 0.344 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 39.400 Tissue Conductivity : 1.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: FHSS CH-90 Tilt CF=1; Amb. Temp= 21.5 'C; Liq. Temp=21.2 'C Area Scan - Max Peak SAR Value at x=-21.0 y=11.0 = 0.06 W/kg Zoom Scan - Max Peak SAR Value at x=-29.0 y=0.0 z=0.0 = 0.30 W/kg Max 1g SAR at x=-27.0 y=0.0 z=0.0 = 0.08 W/kg Max 10g SAR at x=-26.0 y=6.0 z=0.0 = 0.02 W/kg -0.1 0.0 0.1 0.2 0.3 0.4 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-29.0 y:0.0 Fine Scan Data 0.242 0.195 0.149 0.102 0.055 0.008 -0.038 -0.085 -0.132 -0.178 -0.225 SAR Data Report 02051414 Start : 14-May-02 11:47:17 am End : 14-May-02 11:55:11 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : PANASONIC Model Number : KX-TG2382 Frequency : 2480.293 MHz Transmit Pwr : 0.344 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 39.400 Tissue Conductivity : 1.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Brain Calibrated Dielectric : 37.100 Calibrated Conductivity : 1.840 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 16.400 Probe Sensitivity : 0.753 0.726 0.683 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: FHSS CH90 Tilt CF=1; Amb. Temp= 21.5 'C; Liq. Temp=21.2 'C Area Scan - Max Peak SAR Value at x=-36.0 y=13.0 = 0.14 W/kg Zoom Scan - Max Peak SAR Value at x=-37.0 y=12.0 z=0.0 = 0.76 W/kg Max 1g SAR at x=-36.0 y=13.0 z=0.0 = 0.21 W/kg Max 10g SAR at x=-41.0 y=15.0 z=0.0 = 0.06 W/kg -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-37.0 y:12.0 1g SAR Values 0.208 0.186 0.163 0.141 0.119 0.097 0.075 0.053 0.031 0.008 -0.014 SAR Data Report 02051305 Start : 13-May-02 12:19:21 pm End : 13-May-02 12:26:04 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : PANASONIC Model Number : KX-TG2382 Frequency : 2480.293 MHz Transmit Pwr : 0.344 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 52.000 Tissue Conductivity : 1.920 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT25 Probe Type : E Fld Triangle Frequency : 2450 MHz Tissue Type : Muscle Calibrated Dielectric : 49.200 Calibrated Conductivity : 1.9…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road •• Columbia, MD 21045 •• USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.22040424182.ACJ Test Dates: May 13-14, 2002 EUT Type: 2.4 GHz Cordless Telephone FCC ID: ACJ96NKX-TG2382 Page 1 of 26 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS : DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: May 13-14, 2002 1006 Oaza Kadoma, Kadoma, Osaka Test Report S/N: SAR.211210716.ACJ 571 JAPAN Test Site: PCTEST Lab, Columbia MD Attn: K. Nawata (KMECL) Rich Mullen (PSCD, MECA) FCC ID: ACJ96NKX-TG2382 APPLICANT: Matsushita Electric Industrial Co., Ltd. EUT Type: 2.4 GHz Cordless Telephone (FHSS) Tx Frequency: 2400.916645 – 2480.293161 MHz Rx Frequency: 2400.916645 – 2480.293161 MHz Max. RF Output Power: 0.344W EIRP (25.37 W) - Handset 0.572W EIRP (27.57 W) - Baseset Max. SAR Measurement: 0.21W/kg Brain SAR; 0.07W/kg Body SAR (Handset) 0.15W/kg Body SAR (Baseset) Trade Name/Model(s): PANASONIC KX-TG2382 FCC Classification: Part 15.249 Cordless Telephone Remote Transceiver (ETR) FCC Rule Part(s): §2.1093; ET Docket 96.326 Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified i…
