EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY BASE UNIT: A) WHEN A BELL SIGNAL ENTERS FROM TEL LINE 1) The bell detection circuit, i.e., the transistor (Q101) begins to operate and its output is inputted to pin 64 of IC501(DSP). 2) To obtain a display synchronized with the bell signal, an IN USE signal is output from pin 65 of IC501(DSP) and INUSE LED(LED841) is lighted up. 3) A portable phone receives a bell from the base station. When the portable phone is switched from the STANDBY to TALK, the base station receives a carrier modulated by data indicating the switch from STANDBY to TALK. The data demodulated at the base station is inputted to pin 29 of IC501, and passes through Q121 to make the circuit relay, then, release the muting and enables talk. B) WHEN A LINE LOOP IS MADE BY A PORTABLE PHONE 1) When the operator of the portable phone switches STANDBY to TALK, the TALK mode data enters the base station and is demodulated at the RF Unit of the base station, and is inputted to pin 29 of IC501. 2) In this time, an IN USE signal is output from pin 65 of IC501, and the IN USE LED (LED841) is lighted up. C) RECIEVER UNIT OPERATION 1) A signal is received by the antenna, and passes through the 2.4015 to2.4705GHz band pass filter L106(RF UNIT), and is inputted to the pin 8 and 9 of IC101(RF UNIT). 2) The received signal and local signal made by VCO (1.601~1.647GHz) are mixed in IC101 (RF UNIT) to obtain digitized audio signal. 3) This digitized audio signal is fed to pin 71 of IC501. 4) This audio signal is transmitted to the telephone line by IC501. D) TRANSMISSION UNIT OPERATION 1) An audio signal from the line passes through the interface transistor(Q121). 2) The audio signal is inputted to pin 38 of IC501. 3) This audio signal is code by IC 501 and output to IC101(RF UNIT) from pin 72 of IC501, and IC101(RF UNIT) modulate the coded signal. 4) This modulated signal goes through Balun (T101/RF UNIT), and output to the antenna. EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY PORTABLE UNIT: A) RECEIVER UNIT OPERATION 1) A signal from the base unit is received by the antenna, and passes through the 2.4015 to 2.4705GHz band pass filter L106(RF UNIT). And the signal inputted to the pin 8 and 9 of IC101(RF UNIT). 2) The received signal and local signal made by VCO(1.601 to 1.647GHz) are mixed in IC101 to obtain digitized audio signal. 3) This digitized audio signal is fed to pin 71 of IC201. 4) This audio signal goes to pin 32 and 33 of IC201, and output to speaker. B) TRANSMISSION UNIT OPERATION 1) When selected TALK switch to TALK, the detect switch of IC201 becomes ON and get into TALK mode. 2) The audio signal from microphone is inputted to pin 41 and 42 of IC201. 3) This audio signal is coded by IC201 and output to IC101(RF UNIT) from pin 72 of IC501, and IC101(RF UNIT) modulate the coded signal. 4) This modulated signal goes through Balun (T101/RF UNIT), and output to the antenna.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has four million digital security coding combinations that are provided by the following means: • Provided with 22 bits (four million) for security codes. • When the handset is not on the base unit, the 22 bit codes changes by the free-running timer. • When the user puts the handset on the base unit, the free-running timer ceases and decides the exact security code. The base unit sends the security code information to the handset. • When shipped from the factory, the security code is decided by the manufacture. However, once the user uses the cordless handset, the security code is constantly changing by the free-running timer.

Test Report S/N: 15.210511300.ACJ FCC Part 15.247 Dates of Tests: May 14-17, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 9 Direct Sequence Spread Spectrum Telephone § 15.247(b) Maximum Peak Output Power Minimum Standard — The maximum peak output power of the transmitter shall not exceed 1 watt. Res. Bandwidth = 3 MHz (10dB/div) Vid. BW = 3 MHz Span = 10 MHz Ref. Level -20 dBm Sweep 5 ms sec Attenuator 0 dB ext. pad Max. Power Peak + Atten = dBm ⇒ Watts FREQ Base/Handset Channel Power Output Power Output (MHz) (B/H) (dBm) (mW) 2401.5 B 1 20.081 101.889 2434.5 B 12 20.111 102.594 2470.5 B 24 19.551 90.182 2401.5 H 1 17.241 52.981 2434.5 H 12 17.831 60.691 2470.5 H 24 17.961 62.535 Table 4. Output Power Measurements REMARKS: PASS @ 2434.5 MHz F/S = Meter reading @ 3 m. in dBm + 107.0 + AFCL = -24.5 + 107.0 + 32.8 = 115.3 dBuv/M The antenna gain is 2.14 dBi. Conducted Power = (FS * 3) 2 = 62.0 mW (30)(1.64)

Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic Way, 4B-8 Zameel Shahat Secaucus, NJ 07094 Project Engineer Panasonic Quasar Technics Fax: (201) 392-4564 Tel: (201) 392-4161 e-mail: [email protected] July 31, 2001 KMTDKM4-01-U24 731 Confirmation Number: EA101211 To: Joseph Dichoso / FCC Application Processing Branch From: Zameel Shahat / Matsushita Electric Corp. of America Please note following answers to your above referenced correspondence inquiry: The antenna gain is 2.14 dBi. @ 2434.5 MHz F/S = Meter reading @ 3 m. in dBm + 107.0 + AFCL = -24.5 + 107.0 + 32.8 = 115.3 dBuv/M The antenna gain is 2.14 dBi. (FS * 3)^2 Conducted Power = -------------- = 62.0 mW (30)(1.64) Please see the amendment sample calculation file. the reason that the conductivity tissue parameter is over estimated by over 5% because the Glycol proof SAM phantom is not yet commercially available so we had to use a recipe that would not damage our phantom. Please be advised that this configuration is on the side of caution. Should you have any questions, please contact the undersigned. Thank you for your attention in this matter. Sincerely yours, Zameel Shahat Project Engineer

© 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone

© 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit. Portable Unit: FCC ID Label The marking is shown on the battery compartment of the portable unit.

© 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone

© 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone

Handset RF Photo FCC ID: ACJ96NKX-TG2481

Base RF photo FCC ID: ACJ96NKX-TG2481

Test Report S/N: 15.210511300.ACJ FCC Part 15.247 Dates of Tests: May 14-17, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 Direct Sequence Spread Spectrum Telephone 3 1 Appendix F — SAR Measurement Report © 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Matsushita Electric Industrial Co., Ltd. Dates of Tests: May 14-17, 2001 1006 Oaza Kadoma Test Report S/N: SAR.210511300.ACJ Kadoma, Osaka 571 Japan Test Site: PCTEST Lab, Columbia, MD USA Attn: K. Nawata (KMECL) Rich Mullen (PSCD, MECA) FCC ID ACJ96NKX-TG2481 APPLICANT Matsushita Electric Industrial Co., Ltd. EUT Type: Spread Spectrum Cordless Telephone (DSS) Tx Frequency: 2401.5 — 2470.5 MHz Max. RF Output Power 0.0625 W EIRP (17.961 dBm) - Handset 0.103 W EIRP (20.111 dBm) - Base Trade Name/Model: PANASONIC KX-TG2481 FCC Classification: Spread Spectrum Transceiver (DSS) Application Type: Certification FCC Rule Part(s): § 2.1093; ET Docket 96.326; §22(H) 0.5470 W/kg DSS Brain SAR (Handset) 0.5626 W/kg DSS Body SAR (Handset) Maximum SAR: 0.4760 W/kg DSS Body SAR (Base) This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210511300.ACJ Test Report S/N: SAR.210511300.ACJ SAR Measurement Report Test Dates: MAY 14-17, 2001 FCC Part 15.247 Certification Table of Contents 1.1 SCOPE ........................................................................................................... 1 2.1 INTRODUCTION ............................................................................................ 2 2.2 SAR Definition.....................................................................................................2 3.1 SAR MEASUREMENT SET-UP .................................................................... 3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM....................................................... 4 5.1 E-field PROBE CALIBRATION PROCESS .................................................. 5 6.1 PHANTOM AND EQUIVALENT TISSUES.................................................... 7 7.1 SYSTEM SPECIFICATIONS ......................................................................... 8 8.1 MEASUREMENT PROCESS ........................................................................ 9 9.1 TEST POSITION OF THE PHONE............................................................... 10 10.1 BODY-WORN TEST SETUP..................................................................... 11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ..................................... 12 12.1 MEASUREMENT UNCERTAINTIES.......................................................... 13 13.1 SAR TEST DATA SUMMARY....................................................................14 14.1 SAR TEST EQUIPMENT............................................................................ 17 15.1 CONCLUSION............................................................................................ 18 Test Report S/N: SAR.210511300.ACJ SAR Measurement Report Test Dates: May 14-17, 2001 FCC Part 15.247 Certification PANASONIC FCC ID: ACJ96NKX-TG2481 (Model: KX-TG2481) © 2001 PCTEST Direct Sequence Spread Spectrum Telephone (DSS) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: Matsushita Electric Industrial Co., Ltd. Address: 1006 Oaza Kadoma Kadoma, Osaka 571 JAPAN Attention: K. Nawata (KMEC) Rich Mullen (PSCD, MECA) • EUT Type: Spread Spectrum Cordless Telephone (DSS) • Trade Name: PANASONIC • Model(s): KX-TG2481 • FCC IDENTIFIER: ACJ96NKX-TG2481 • Tx/Rx Frequency: 2401.5 — 2470.5 MHz • Application Type: Certification • FCC Classification: Spread Spectrum Transceiver (DSS) • FCC Rule Part(s): § 2.1093, Docket 96-326; § 22(H) • Modulation(s): Direct Sequence System (DSS) • Max. Output Power: 0.0625W EIRP (17.961 dBm) - Handset 0.103 W EIRP (20.111 dBm) - base • Date(s) of Tests: May 14-17, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210511300.ACJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210511300.ACJ SAR Measurement Report Test Dates: May 14-17, 2001 FCC Part 15.247 Certification PANASONIC FCC ID: ACJ96NKX-TG2481 (Model: KX-TG2481) © 2001 PCTEST Direct Sequence Spread Spectrum Telephone (DSS) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the en…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01051407_ZOOM.VLT Start : 14-May-101 01:09:45 pm End : 14-May-101 01:18:24 pm Radio Type : PANASONIC Model Number : KX-TG2481 Serial Number : 1 Frequency : 2401.50 MHz Peak Trans. Pwr : 0.053 W Start Trans. Pwr: 0.053 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST2 Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 52.200 Mixture Conductivity = 2.850 Comment : PANASONIC CORDLESS DSS PHONE CH 01 PANASONIC CORDLESS DSS PHONE - BODY SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.983 PCTEST2 Amplifier Channel Settings : 0.172 0.187 0.220 Max Location : X = -5.250, Y = -0.500, Z = 0.000 (cm) Value = 7.049 Measured Values (volts) = 6.513E-003 3.958E-003 2.299E-003 1.396E-003 9.306E-004 5.405E-004 2.473E-004 1.193E-004 1.210E-004 1.077E-004 5.008E-005 0.000E+000 0.000E+000 0.000E+000 0.000E+000 0.000E+000 0.000E+000 0.000E+000 0.000E+000 0.000E+000 0.000E+000 Calc. Voltage @ Surface (Vs) = 0.0110 Voltage @ 1.00 cm (Vt) = 0.0014 Ave. Voltage (Vs+Vt)/2 = 0.0062 Ave. SAR over 1 g (mW/g) = 0.5626 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 mW/g 012345 Z centimeters SAR Scan File : 01051407_ZOOM Start : 14-May-101 01:09:45 pm End : 14-May-101 01:18:24 pm PANASONIC/KX-TG2481/1;2401.50MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST2/E Field/0 DegreesMuscle/52.200/2.850 File : 01051407_ZOOM Start : 14-May-101 01:09:45 pm End : 14-May-101 01:18:24 pm PANASONIC/KX-TG2481/1;2401.50MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST2/E Field/0 DegreesMuscle/52.200/2.850 0.642 0.577 0.512 0.447 0.383 0.318 0.253 0.188 0.124 0.059 File : 01051407_ZOOM Start : 14-May-101 01:09:45 pm End : 14-May-101 01:18:24 pm PANASONIC/KX-TG2481/1;2401.50MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST2/E Field/0 DegreesMuscle/52.200/2.850 0.642 0.577 0.512 0.447 0.383 0.318 0.253 0.188 0.124 0.059

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE Matshushita Electric Industrial Co., Ltd. Dates of Tests: May 14-17, 2001 1006 Oaza Kadoma Test Report S/N: 15.210511300.ACJ Kadoma, Osaka 571 Japan Test Site: PCTEST Lab, Columbia MD Attention: Rich Mullen (PSCD) N. Yoshizumi-Kyushu MEICL FCC ID ACJ96NKX-TG2481 APPLICANT Matshushita Electric Industrial Co., Ltd. FCC Rule Part(s): § 15.247; ANSI C-63.4 (1992) Classification: Spread Spectrum Transceiver (DSS) Max Output Power: Base - 0.103 W / Handset — 0.063 W EIRP Method/System: Direct Sequence System (DSS) Equipment Type: Cordless Telephone (Base/Handset) Frequency Range: 2401.5 — 2470.5 MHz (Base/Handset) Model No(s).: KX-TG2481 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63-4. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210511300.ACJ FCC Part 15.247 Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 15.247 TABLE OF CONTENTS SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 PRODUCT INFORMATION 3 DESCRIPTION OF TESTS A. CONDUCTED EMISSIONS 4 B. RADIATED EMISSIONS 5 C. RESTRICTED BANDS 6 D. ANTENNA REQUIREMENT 7 E. DIRECT SEQUENCE BANDWIDTH 8 F. MAXIMUM PEAK POWER OUTPUT 9 G. POWER DENSITY 10 RADIATED MEASUREMENTS (FUNDAMENTAL & HARMONICS) 11-16 FREQUENCY MEASUREMENTS (SPURIOUS) 17 PROCESSING GAIN 18-22 LIST OF TEST EQUIPMENT 23 CONCLUSION 24 APPENDIX A - LABELLING REQUIREMENTS 25-26 APPENDIX B - PLOTS OF EMISSIONS 27 APPENDIX C - PHOTOGRAPHS OF TEST SET-UP 28 APPENDIX D - EUT PHOTOGRAPHS 29 APPENDIX E - USER’S MANUAL 30 APPENDIX F - SAR MEASUREMENT REPORT 31 APPENDIX G - SAR TEST DATA 32 APPENDIX H - SAR TEST SETUP PHOTOGRAPHS 33 Test Report S/N: 15.210511300.ACJ FCC Part 15.247 Dates of Tests: May 14-17, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 1 Direct Sequence Spread Spectrum Telephone MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name: Matsushita Electric Industrial Co., Ltd. Address: 1006 Oaza Kadoma Kadoma, Osaka 571 JAPAN Attention: Rich Mullen (PSCD) • FCC ID: ACJ96NKX-TG2481 • Class: Spread Spectrum Transceiver (DSS) • Type: Cordless Telephone (Base/Handset) • Freq. Range: 2401.5 — 2470.5 MHz • Method/System: Direct Sequence System (DSS) • Model No(s): KX-TG2481 • Max. RF Output Power: Base (0.103 W) / Handset (0.063 W) • Power Supply: AC Adapter PQLV10 - Base 3.6 VDC 850mAh Ni-Cd - Handset • Cable(s): Telco • USOC Jack: RJ-11 • Rule Part(s): § 15.247 • Dates of Tests: May 14-17, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 210511300.ACJ NOTE: The receiver portion was tested and complies with Part 15B under the verification procedure. Test Report S/N: 15.210511300.ACJ FCC Part 15.247 Dates of Tests: May 14-17, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 2 Direct Sequence Spread Spectrum Telephone INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) and FCC Public Notice dated July 12, 1995 entitled “Guidance on Measurement for Direct Sequence Spread Spectrum Systems” were used in the measurement of the Panasonic Spread Spectrum cordless telephone. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: 15.210511300.ACJ FCC Part 15.247 Dates of Tests: May 14-17, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 3 Direct Sequence Spread Spectrum Telephone PRODUCT INFORMATION Equipment Description: The Equipment under test (EUT) is the Panasonic cordless telephone using spread spectrum direct sequence and time division duplex techniques. Frequency Range: 2401.5 — 2470.5 MHz Channels: 24 (Base/handset) Channel Separation: 3.0 MHz Spread Spectrum Method: Direct Sequence (DBPSK modulation) Max RF Output Power: Base (0.103 W) / Handset (0.063 W) Antenna: Omni-dir…

Text truncated - open the document above for the full version.

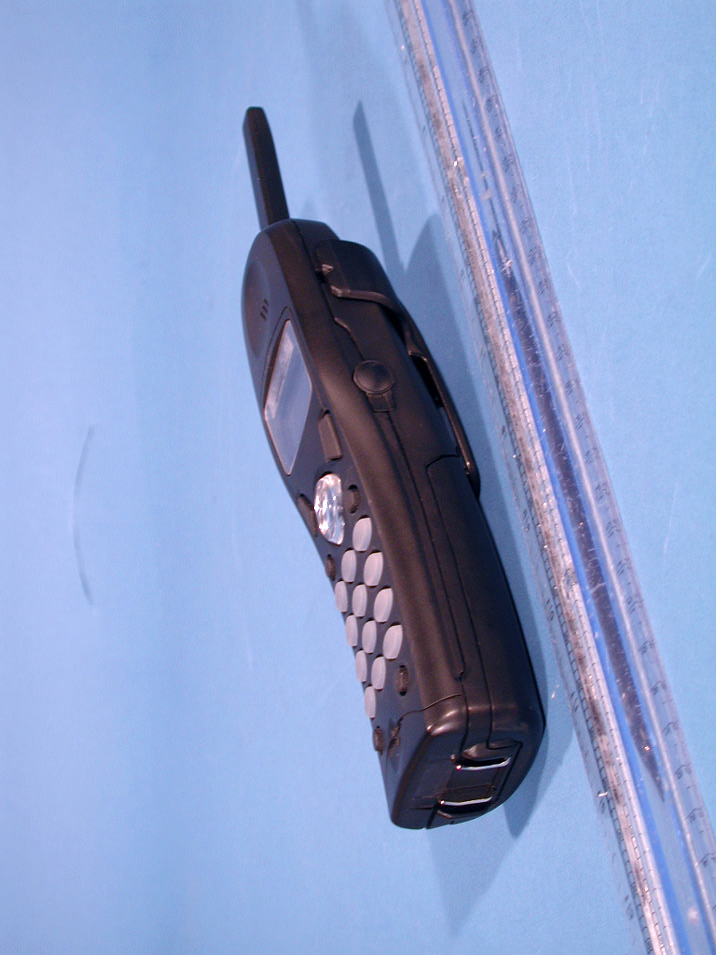

Test Report S/N: 15.210511300.ACJ FCC Part 15.247 Dates of Tests: May 14-17, 2001 Certification © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 Direct Sequence Spread Spectrum Telephone 2 8 Appendix C — Test Photographs © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone © 2001 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2481 NVLAP Lab Code: 100431-0 Direct Sequence Spread Spectrum Telephone
