ACJ96NKX-TG25842.4 GHz DSS Cordless Telephone Base Unit

2.4GHz Cordless Answering System Pulse-or-tone dialing capability Model No. KX-TG2584S PLEASE READ BEFORE USE AND SAVE. Charge the battery for about 15 hours before initial use. Contents: Location of Controls2 Connections5 Battery Installation/Battery Charge 6 Recording a Greeting Message7 Making/Answering Calls with the Handset8 Making/Answering Calls with the Portable Handset9 Caller ID Service9 Automatic Answering Operation10 Listening to Messages10 Important Safety Instructions11 FCC and Other Information13 Operating Instructions – 2 – Location of Controls ∫Handset T A L K 4 FLFL A SHSH REDIALREDIAL C A L L WAL WA I T PAUSEPAUSE PLPL A Y BABA C K TONE S T O P A N S O N 7 8 9 0 A N S OFFOFF CH FUNCTION EXIT INTINT ERCOM ERCOM HOLD HOLD S KIPKIP R E PEPE A T 1 2 3 A L L M S G N E W W M S G 5 6 BACKBACK F W D EDITEDIT MUTEMUTE LOUD LOUD SE A RC H O N O F F (INTERCOM/HOLD)/ (CLEAR) Button (FLASH/CALL\WAIT/PLAYBACK) Button Headset Jack (TONE) Button Navigator Key ( , , , ) Display (FUNCTION/EXIT) / (CH) (Channel) Button Charge Contact (REDIAL/PAUSE) Button Antenna C LE A R CLEAR Charge Contact (MUTE) Button Please read IMPORTANT SAFETY INSTRUCTIONS on pages 11 before use. Read and understand all instructions. – 3– ∫Base unit (ANSWER\ON) Button Antenna (TONE) Button Antenna (REPLAY\PAUSE) Button (FLASH/CALL\WAIT) Button (HOLD) Button (MESSAGE\PLAYBACK) Button One-Touch Auto Dial Buttons – 4– ∫Base unit (FUNCTION/EDIT) Button (CLEAR/ERASE) Button (STOP/EXIT) Button MIC (Microphone) Navigator Key ( (‹), (›), (fi), (fl)) (CONFERENCE) Button (RINGER) Button (LOCATION/INTERCOM) Button (MUTE) Button (DIGITAL\SP-PHONE) Button and indicator Display – 5– Connections ≥USE ONLY WITH Panasonic AC ADAPTOR PQLV10ZA. ≥The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Telephone Line Cord Single-Line Telephone Jack (RJ11C) Power Outlet (AC 120 V, 60 Hz) AC Adaptor Raise the antennas. Fasten the AC adaptor cord to prevent it from being disconnected. Hook ∫Connect the AC adaptor and the telephone line cord. – 6– Battery Installation/Battery Charge ∫Battery installation 1 Install the battery in the handset. 2 Close the handset cover. ∫Battery Charge To power the handset, charge the battery. Place the handset on the charger for about 15 hours before initial use. ∫Recharge Recharge the battery when: —“Recharge battery” is displayed, —“” flashes on the display, or —the handset beeps intermittently while it is in use. ≥Clean the charge contacts of the handset and the charger with a soft, dry cloth once a month. Clean more often if the unit is subject to grease, dust or high humidity.If not, the battery may not charge properly. ≥If the battery is fully charged, you do not have to place the handset on the charger until “Recharge battery” is displayed and/or “” flashes. This will maximize the battery life. ≥The battery cannot be overcharged. A nickel cadmium battery that is recyclable powers the product you have purchased. At the end of its useful life, under various state and local laws, it is illegal to dispose of this battery into your municipal waste stream. Please call 1-800-8-BATTERY for information on how to recycle this battery. – 7– Recording a Greeting Message 1 Press (FUNCTION). 2 Press (‹)or (›) until the arrow points to “Greeting record”. 3 Press (fl). 4 After the beep, talk clearly, about 8 inches (20 cm) away from the MIC(microphone). 5 When finished, press (fl). ≥If you do not record a greeting message, one of two messages will be played when a call is received, depending on the caller’s recording time. You can record a personal greeting message of up to 2 minutes. If a greeting message is not recorded, one of two pre-recorded greetings will be played when a call is received. ≥All messages (greeting, incoming, etc.) are stored in digital memory. The total recording time is about 15 minutes. We recommend you recorda brief greeting messagein order to leave more time for recording new messages. – 8– ∫To make a call 1 Lift the handset or press (DIGITAL\SP-PHONE). 2 Dial a telephone number. 3 To hang up, place the handset on the cradle or press (DIGITAL\SP-PHONE). ≥To redial the last number, lift the handset or press (DIGITAL\SP-PHONE),then press (REDIAL/PAUSE). ≥To adjust the receiver volume/speaker volume: To increase, press (‹). To decrease, press (›). ≥To put a call on hold, press (HOLD). ≥To release the hold, press (HOLD). ∫To answer a call Lift the handset or press (DIGITAL\SP-PHONE). Making/Answering Calls with the Handset – 9– ∫To make a call 1 Press . 2Dial a telephone number. 3 To hang up, press . ≥To redial the last number, Press , then press (REDIAL/PAUSE). ≥To adjust the speaker volume: To increase, press (‹). To decrease, press (›). ≥To put a call on hold, press(INTERCOM/HOLD). ≥To release the hold, press. ∫To answer a call Press . Caller ID Service Making/Answering Calls with the Portable Handset This unit is compatible with a Caller ID service offered by your telephone company. After subscribing to a Caller ID service, the calling party’s information will be shown on the handset display after the first ring. The unit can record information of up to 30 different callers in the caller list. The Caller List information is sorted by the most recent to the oldest call. When the unit receives the 31st call, the oldest call is deleted. If your unit is connected to a PBX system which does not support Caller ID services, you cannot access those services. Please consult your equipment supplier. – 10– Listening to Messages You can see the total number of recorded messages on the base unit display. To listen to the messages, press (MESSAGE\PLAYBACK). ≥When you have new messages, the unit announces the number of new messages and plays them back. ≥When you have no messages, the unit plays back all recorded messages. Automatic Answering Operation ∫Setting the unit to answer calls Press (ANSWER\ON)to turn on the answering system. ≥The indicator ligh…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has four million digital security coding combinations that are provided by the following means: • Provided with 22 bits (four million) for security codes. • When the handset is not on the base unit, the 22 bit codes changes by the free-running timer. • When the user puts the handset on the base unit, the free-running timer ceases and decides the exact security code. The base unit sends the security code information to the handset. • When shipped from the factory, the security code is decided by the manufacture. However, once the user uses the cordless handset, the security code is constantly changing by the free-running timer.

Matsushita Electric Corporation of America Product Safety & Compliance Division 1 Panasonic Way, 4B-8 Richard Mullen Secaucus, NJ 07094 Group Manager Panasonic Quasar Technics Fax: (201) 392-4564 Tel: (201) 348-7758 e-mail: [email protected] March 27, 2002 KM4-02-U05 731 Confirmation Number: 13EA203303 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject: Original Application for Direct Sequence Spread Spectrum Cordless Telephone Base Panasonic 2.4 GHz Cordless Telephone Base Unit, Model KX-TG2584 Series FCC ID: ACJ96NKX-TG2584 Gentlemen: Enclosed, find Matsushita Electric Industrial Co., Ltd.'s Application for Equipment Authorization dated March 25, 2002. This system is in compliance with Part 15, Subpart C and in accordance with §15.247 of the FCC Rules. The subject device is a direct sequence spread spectrum cordless telephone base unit with operation on 24 channels within the 2401.5~ 2470.5 MHz frequency band. This base unit has a permanently attached omni-directional antenna and the maximum RF output power is 0.125 W EIRP. The calculated processing gain for the base unit is 11.6dB. This base unit will be used with handset unit, which is the same as model KX-TG2583 separately granted under FCC ID: ACJ96NKX-TG2583 with already approved handset SAR evaluation. The User Manual will provide RF exposure warnings to include: (1) the base unit’s antenna should be located at least 20 cm from persons body during usage; and (2) the handset should only be carried in the provided belt-clip. The base unit was TCB certified by CCL under ACTA ID: US: ACJWI01BKX-TG2584. Should you have any questions, please contact the undersigned. Thank you for your attention in this matter. Sincerely yours, Richard Mullen Richard Mullen Group Manager Product Safety & Compliance Division

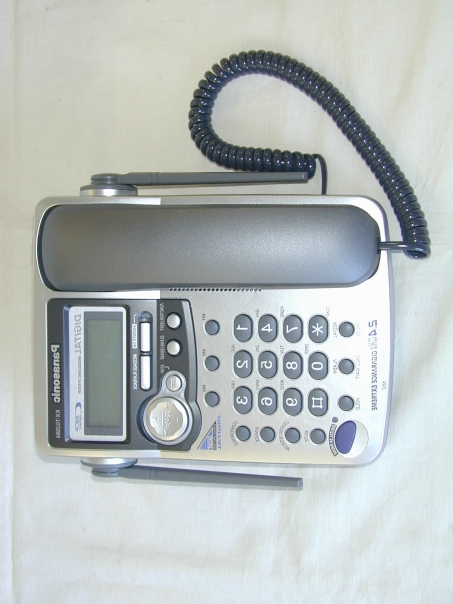

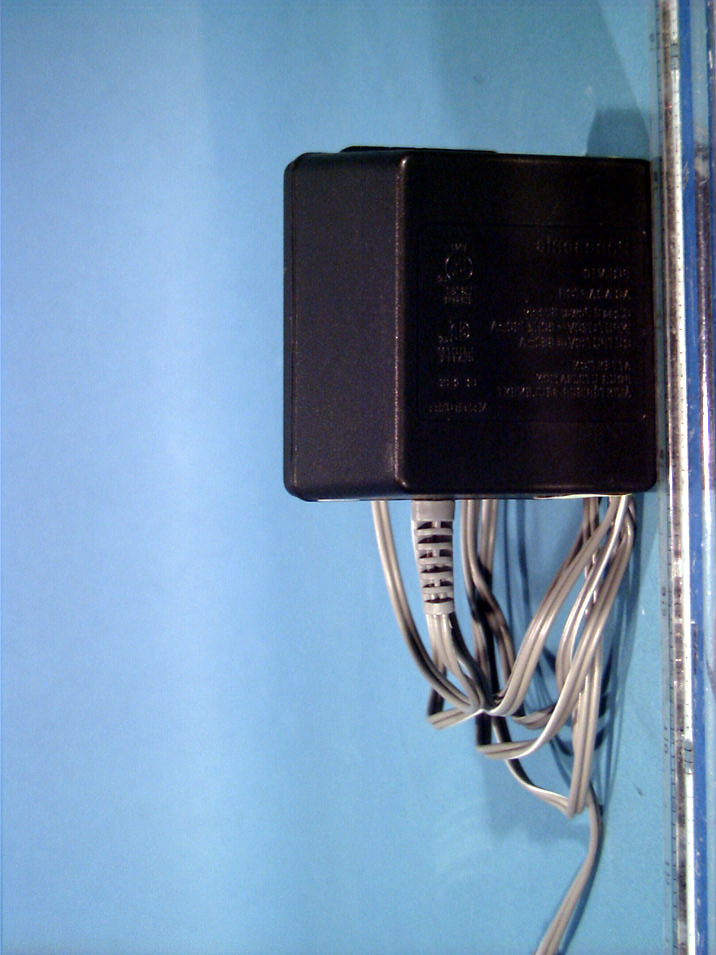

KX-TG2584S EXHIBIT D Rear View Bottom View © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit.

Internal View P.C. Board P.C. Board (Removed RF Cover) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone

EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY BASE UNIT: A) WHEN A BELL SIGNAL ENTERS FROM TEL LINE 1) The bell detection circuit, i.e., the transistor (Q101) begins to operate and its output is inputted to pin 64 of IC501(DSP). 2) To obtain a display synchronized with the bell signal, an IN USE signal is output from pin 67 of IC501(DSP) and C-ID LED(LED842) is lighted up. 3) A portable phone receives a bell from the base station. When the portable phone is switched from the STANDBY to TALK, the base station receives a carrier modulated by data indicating the switch from STANDBY to TALK. The data demodulated at the base station is inputted to pin 71 and 72 of IC501, and passes through Q121 to make the circuit relay, then, release the muting and enables talk. B) WHEN A LINE LOOP IS MADE BY A PORTABLE PHONE 1) When the operator of the portable phone switches STANDBY to TALK, the TALK mode data enters the base station and is demodulated at the RF Unit of the base station, and is inputted to pin 71 and 72 of IC501. 2) In this time, an IN USE signal is output from pin 65 of IC501, and the IN USE LED (LED843) is lighted up. C) RECIEVER UNIT OPERATION 1) A signal is received by the antenna, and passes through the 2.4015 to 2.4705GHz band pass filter L106 and Low Noise Amplifier (IC106), and is inputted to the pin 8 and 9 of IC101. 2) The received signal and local signal made by VCO (1.601~1.647GHz) are mixed in IC101 to obtain digitized audio signal. 3) This digitized audio signal is fed to pin 71 of IC501. 4) This audio signal is transmitted to the telephone line by IC501. D) TRANSMISSION UNIT OPERATION 1) An audio signal from the line passes through the interface transistor (Q121). 2) The audio signal is inputted to pin 38 of IC501. 3) This audio signal is code by IC 501 and output from pin 72 of IC501 4) This modulated signal goes through Balun (T101) and Power Amplifier (IC105), and output to the antenna.

PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220228087.ACJ Test Dates: Mar. 6-7, 2002 EUT Type: Cordless Telephone FCC ID: ACJ96NKX-TG2584 Page 1 of 18 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE Matshushita Electric Industrial Co., Ltd. Dates of Tests: March 6-7, 2002 1006 Oaza Kadoma Test Report S/N: 15.220228087.ACJ Kadoma, Osaka 571 Japan Test Site: PCTEST Lab, Columbia MD Attention: Rich Mullen (PSCD) N. Yoshizumi-Kyushu MEICL FCC ID ACJ96NKX-TG2584 APPLICANT Matshushita Electric Industrial Co., Ltd. FCC Rule Part(s): § 15.247; ANSI C-63.4 (1992) Classification: Spread Spectrum Transceiver (DSS) Max Output Power: 0.125 W EIRP Method/System: Direct Sequence System (DSS) Equipment Type: Cordless Telephone Frequency Range: 2401.5 — 2470.5 MHz Model No(s).: KX-TG2584 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63-4. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220228087.ACJ PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220228087.ACJ Test Dates: Mar. 6-7, 2002 EUT Type: Cordless Telephone FCC ID: ACJ96NKX-TG2584 Page 2 of 18 TABLE OF CONTENTS SCOPE 3 INTRODUCTION (SITE DESCRIPTION) 4 PRODUCT INFORMATION 5 DESCRIPTION OF TESTS A. CONDUCTED EMISSIONS 6 B. RADIATED EMISSIONS 7 C. RESTRICTED BANDS 8 D. ANTENNA REQUIREMENT 9 E. DIRECT SEQUENCE BANDWIDTH 10 F. MAXIMUM PEAK POWER OUTPUT 11 G. POWER DENSITY 12 RADIATED MEASUREMENTS (FUNDAMENTAL & HARMONICS) 13-15 FREQUENCY MEASUREMENTS (SPURIOUS) 16 LIST OF TEST EQUIPMENT 17 CONCLUSION 18 APPENDIX A - LABELLING REQUIREMENTS APPENDIX B - PLOTS OF EMISSIONS APPENDIX C - PHOTOGRAPHS OF TEST SET-UP APPENDIX D - EUT PHOTOGRAPHS PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220228087.ACJ Test Dates: Mar. 6-7, 2002 EUT Type: Cordless Telephone FCC ID: ACJ96NKX-TG2584 Page 3 of 18 MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name: Matsushita Electric Industrial Co., Ltd. Address: 1006 Oaza Kadoma Kadoma, Osaka 571 JAPAN Attention: Rich Mullen (PSCD) • FCC ID: ACJ96NKX-TG2584 • Class: Spread Spectrum Transceiver (DSS) • Type: Cordless Telephone • Freq. Range: 2401.5 — 2470.5 MHz • Method/System: Direct Sequence System (DSS) • Model No(s): KX-TG2584 • Max. RF Output Power: 0.125 W • Power Supply: AC Adapter Panasonic Model: PQLV10 Input: 120V ~ 60Hz Output: 9V ~ 850mA • Cable(s): Telco • USOC Jack: RJ-11 • Rule Part(s): § 15.247 • Dates of Tests: March 6-7, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 220228087.ACJ NOTE: The receiver portion was tested and complies with Part 15B under the verification procedure. PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220228087.ACJ Test Dates: Mar. 6-7, 2002 EUT Type: Cordless Telephone FCC ID: ACJ96NKX-TG2584 Page 4 of 18 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) and FCC Public Notice dated July 12, 1995 entitled “Guidance on Measurement for Direct Sequence Spread Spectrum Systems” were used in the measurement of Panasonic Spread Spectrum telephone system. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39 ° 11'15" N latitude and 76 ° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore-Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. PCTEST PT. 15.247 REPORT EVALUATION REPORT Reviewed By: Quality Manager Test Report S/N: 15.220228087.ACJ Test Dates: Mar. 6-7, 2002 EUT Type: Cordless Telephone FCC ID: ACJ96NKX-TG2584 Page 5 of 18 PRODUCT INFORMATION Equipment Description: The Equipment under test (EUT) is the Panasonic cordless telephone system using spread spectrum direct sequence and time division duplex techniques. Frequency Range: 2401.5 — 2470.5 MHz Channels: 24 Channel Separation: 3.0 MHz Spread Spectrum Method: Direct Sequence (DBPSK modulation) Max RF Output Power: 0.125 W Antenna: Omni-dire…

Text truncated - open the document above for the full version.

© 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2584 Cordless DSS Telephone
