ACJ96NKX-TG26702.4 GHz DSS Cordless Telephone System

2.4GHz Cordless Answering System Model No. KX-TG2670N Pulse-or-tone-dialing capability Operating Instructions Charge the battery for about 8 hours before initial use. PLEASE READ BEFORE USE AND SAVE. Contents: Location of controls2 Connections5 Battery charge6 Recording a Greeting Message7 Making/Answering calls with the handset8 Making/Answering calls with the base unit9 Caller ID Service9 Automatic Answering Operation10 Listening to messages10 Important Safety Instructions11 FCC and other information13 –2– Please read IMPORTANT SAFETY INSTRUCTIONS on page 11 before use. Read and understand all instructions. Location of controls Handset LOUD / SEARCH 7 1 0 3 2 4 6 8 9 5 O FF C L E A R CLEAR F L A S H ASH R E D IA L REDIAL CALL WAIT PLAY BACK TONE PAUSE D IR E C T IN T E R C O M F U N C T IO N /C H (INTERCOM) Button Display (FUNCTION/CH) Button (TONE) Button (CALL!WAIT/FLASH/PLAYBACK) Button Charge Contact Charge Contact (CLEAR) Button (REDIAL/PAUSE) Button (OFF) Button Navigator Key ( , , , ) Headset Jack (Talk) Button (DIRECT) Button (Speakerphone) Button Ringer Indicator Antenna Microphone –3– Base Unit R IN G E R RINGER R E D IA L REDIAL H O L D HOLD LO C LOC A TO R TOR IN T ERCOMERCOM ERASEERASE M I C E X I T EXIT E D IT EDIT F L A S H FLASH C A L L W A I T CALL WAIT P A U S E PAUSE C L E A R CLEAR CALLER IDCALLER ID R E C O R D RECORD G R E E T IN G GREETING C H E C K CHECK S T O P STOP N E W NEW M E S S A G E MESSAGE L O U D LOUD S E SE A R C RC H D I G I T A L S P - P H O N E H E A D S E T HEADSET Antennas Charge Contacts (FLASH) Button (PAUSE) Button Display (REDIAL) Button (RINGER) Button (LOCATOR/INTERCOM) Button (HOLD) Button MIC (Microphone) DIGITAL SP-PHONE (Speakerphone) /HEADSET Button and Indicator –4– Base Unit R IN G E R RINGER R E D IA L REDIAL H O L D HOLD L O C LOC A T O R TOR IN T E R C O M ERCOM ERASEERASE M I C EXITEXIT EDITEDIT F L A S H FLASH C A L L W A IT CALL WAIT P A U S E PAUSE C L E A R CLEAR CALLER IDCALLER ID R E C O R D RECORD G R EE TIN G GREETING C H EC K CHECK S T O P STOP N E W NEW M E S S A G E MESSAGE LOU D LOUD SESE A RCRC H D I G I T A L S P - P H O N E HEADSETHEADSET (GREETING!RECORD) Button (ERASE) Button (GREETING!CHECK) Button (ANSWER!ON) Button and Indicator Navigator Key ( , , , ) (TONE) Button (CLEAR) Button (NEW!MESSAGE) Button (STOP) Button (EXIT) Button (EDIT) Button CALLER ID Indicaor Headset Jack –5– Connections Connect the AC adaptor Raise the antennas. •USE ONLY WITH Panasonic AC ADAPTOR PQLV10. •The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Telephone Line Cord AC Adaptor Power Outlet (AC 120 V, 60 Hz) Single-Line Telephone Jack (RJ11C) –6– Battery charge Recharge Recharge the battery when: –"Recharge battery" is displayed, –"" flashes on the display, or – the handset beeps every minute while it is in use. •Clean the handset and the base unit charge contacts with a soft, dry cloth once a month. Clean more often if the unit is subject to grease, dust or high humidity.If not, the battery may not charge properly. •If the battery is fully charged, you do not have to place the handset on the base unit until "Recharge battery" is displayed and/or "" flashes. This will maximize the battery life. •The battery cannot be overcharged. To power the handset, charge the battery. Place the handset on the base unit for about 8 hours before initial use. –7– You can record a personal greeting message of up to 2 minutes. If a greeting message is not recorded, one of two pre-recorded greetings will be played when a call is received. •All messages (greeting, incoming, etc.) are stored in digital memory. The total recording time is about 15 minutes. We recommend you record a brief greeting messagein order to leave more time for recording new messages. 1 Press and hold GREETING RECORD until a long beep is heard. 2 After the long beep, talk clearly, about 8 inches (20 cm) away from the MIC (microphone). 3 When finished, press STOP. •To check the recorded greeting, press GREETING CHECK. •If you do not record a greeting message, one of two messages will be played when a call is received, depending on the caller’s recording time. Recording a Greeting Message –8– To make a call 1 Press or . 2 Dial a telephone number. 3 To hang up, press OFF or place the handset on the base unit. •If "No link to base. Place on cradle and try again" is displayed and an alarm tone sounds in step 1, move closer to the base unit or place the handset on the base unit, and try again. •To redial the last number,press or , then press REDIAL. •To adjust the receiver volume/speaker volume: To increase, press . To decrease, press . To answer a call If the handset is off the base unit, press or . OR If the handset is on the base unit, just lift up. Making/Answering calls with the handset –9– Making/Answering calls with the base unit To make a call Using the digital duplex speakerphone: 1 Press DIGITAL SP-PHONE. 2 Dial a telephone number. 3 Talk into the MIC(microphone). 4 To hang up, press DIGITAL SP-PHONE. •To redial the last number, press DIGITAL SP-PHONE, then press REDIAL. •To adjust the speaker volume: To increase, press . To decrease, press . •To put a call on hold,press HOLD. •To release the hold, press DIGITAL SP-PHONE. To answer a call Press DIGITAL SP-PHONE, then talk into the MIC(microphone). Caller ID Service This unit is compatible with a Caller ID service offered by your telephone company. After subscribing to a Caller ID service, the calling party’s information will be shown on the base unit and handset displays after the first ring. The unit can record information of up to 50 different callers in the caller list. The Caller List information is sorted from the most recent to the oldest call. When the unit receives the 51st call, the oldest call is deleted. If your unit is connected to a PBX system which does not support Caller ID services, you cannot access those services. Please consult your equipment s…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has four million digital security coding combinations that are provided by the following means: • Provided with 22 bits (four million) for security codes. • When the handset is not on the base unit, the 22 bit codes changes by the free-running timer. • When the user puts the handset on the base unit, the free-running timer ceases and decides the exact security code. The base unit sends the security code information to the handset. • When shipped from the factory, the security code is decided by the manufacture. However, once the user uses the cordless handset, the security code is constantly changing by the free-running timer.

FCC ID : ACJ96KX-TG2670 FCC ID : ACJ96KX-TG2670 FCC ID : ACJ96KX-TG2670 FCC ID : ACJ96KX-TG2670 FCC ID : ACJ96KX-TG2670 FCC ID : ACJ96KX-TG2670

FCC ID : ACJ96KX-TG2670 FCC ID : ACJ96KX-TG2670 FCC ID : ACJ96KX-TG2670 FCC ID : ACJ96KX-TG2670 FCC ID : ACJ96KX-TG2670 FCC ID : ACJ96KX-TG2670

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit. Portable Unit: Nameplate The marking will be shown on the battery compartment of the portable unit.

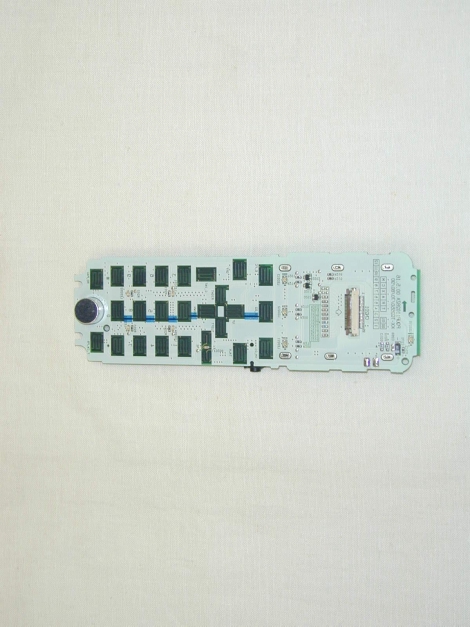

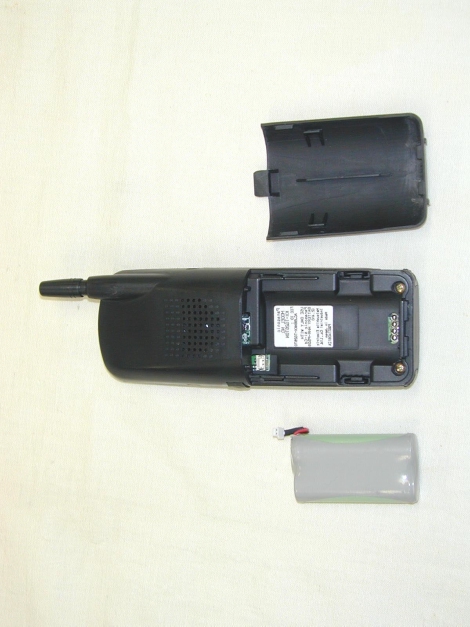

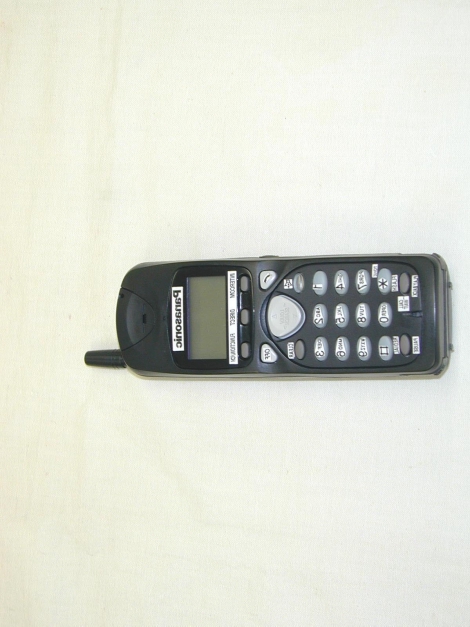

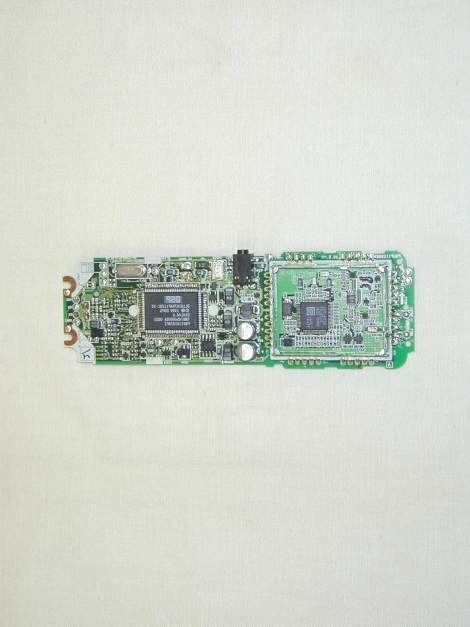

Test Report S/N: 15.200710351.ACJ FCC Part 15.247 Dates of Tests: July 11-12, 2000 Certification © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N Direct Sequence Spread Spectrum Telephone 28 Appendix D – EUT Photographs © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone

EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY BASE UNIT: A) WHEN A BELL SIGNAL ENTERS FROM TEL LINE 1) The bell detection circuit, i.e., the transistor (Q101) begins to operate and its output is inputted to pin 64 of IC501(DSP). 2) To obtain a display synchronized with the bell signal, an IN USE signal is output from pin 67 of IC501(DSP) and C-ID LED(LED805) is lighted up. 3) A portable phone receives a bell from the base station. When the portable phone is switched from the STANDBY to TALK, the base station receives a carrier modulated by data indicating the switch from STANDBY to TALK. The data demodulated at the base station is inputted to pin 71 and 72 of IC501, and passes through Q121 to make the circuit relay, then, release the muting and enables talk. B) WHEN A LINE LOOP IS MADE BY A PORTABLE PHONE 1) When the operator of the portable phone switches STANDBY to TALK, the TALK mode data enters the base station and is demodulated at the RF Unit of the base station, and is inputted to pin 71 and 72 of IC501. 2) In this time, an IN USE signal is output from pin 64 of IC501, and the C-ID LED (LED805) is lighted up. C) RECIEVER UNIT OPERATION 1) A signal is received by the antenna, and passes through the 2.4015 to 2.4705GHz band pass filter L106 and Low Noise Amplifier (IC106), and is inputted to the pin 8 and 9 of IC101. 2) The received signal and local signal made by VCO (1.601•1.647GHz) are mixed in IC101 to obtain digitized audio signal. 3) This digitized audio signal is fed to pin 71 of IC501. 4) This audio signal is transmitted to the telephone line by IC501. D) TRANSMISSION UNIT OPERATION 1) An audio signal from the line passes through the interface transistor (Q121). 2) The audio signal is inputted to pin 38 of IC501. 3) This audio signal is code by IC 501 and output from pin 72 of IC501 4) This modulated signal goes through Balun (T101) and Power Amplifier (IC105), and output to the antenna. EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY PORTABLE UNIT: A) RECEIVER UNIT OPERATION 1) A signal from the base unit is received by the antenna, and passes through the 2.4015 to 2.4705GHz band pass filter L106. And the signal is amplified by the Low Noise Amplifier (IC106), and is inputted to the pin 8 and 9 of IC101. 2) The received signal and local signal made by VCO(1.601 to 1.647GHz) are mixed in IC101 to obtain digitized audio signal. 3) This digitized audio signal is fed to pin 71 of IC201. 4) This audio signal goes to pin 32 and 33 of IC201, and output to speaker. B) TRANSMISSION UNIT OPERATION 1) When selected TALK switch to TALK, the detect switch of IC201 becomes ON and get into TALK mode. 2) The audio signal from microphone is inputted to pin 41 and 42 of IC201. 3) This audio signal is coded by IC201 and output from pin 72 of IC201. 4) This modulated signal goes through Balun (T101) and Power Amplifier (IC105), and outputs to the antenna.

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Matsushita Electric Industrial Co., Ltd. Date(s) of Tests: July 11-12, 2000 1006 Oaza Kadoma Test Report S/N: SAR.200710363.ACJ Kadoma, Osaka 571 Japan Test Site: PCTEST Lab, Columbia, MD USA Attention: K. Nawata (KMECL) Rich Mullen (PSCD, MECA) FCC ID ACJ96NKX-TG2670N APPLICANT Matsushita Electric Industrial Co., Ltd. EUT Type: Spread Spectrum Cordless Telephone – Base / Handset Tx Frequency: 2401.5 – 2470.5 MHz Max Output Power: Base - 0.0755 W / Handset – 0.08 W Trade Name/Model(s): PANASONIC KX-TG2670N FCC Classification: Spread Spectrum Transceiver (DSS) Application Type: Certification Serial Number: n/a (pre production) FCC Rule Part(s): § 2.1093; ET Docket 96.326; §22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 200710363.ACJ SAR Measurement Report FCC Part 15.247 Certification © 2000 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER & BRAIN EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 11 11.1 MEASUREMENT UNCERTAINTIES 12 12.1 TEST DATA SUMMARY 13-14 13.1 SAR TEST EQUIPMENT LIST 15 14.1 CONCLUSION 16 15.1 REFERENCES 17 APPENDIX A – SAR TEST PLOTS 18 APPENDIX B – PROBE CALIBRATION DATA 19 APPENDIX C – DIPOLE VALIDATION DATA 20 Test Report S/N: SAR.200710363.ACJ SAR Measurement Report Test Date(s): July 11-12, 2000 FCC Part 15.247 Certification PANASONIC Spread Spectrum Cordless Telephone © 2000 PCTEST Lab FCC ID: ACJ96NKX-TG2670N 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and Company Name: Matsushita Electric Industrial Co., Ltd. Address: 1006 Oaza Kadoma Kadoma, Osaka 571 JAPAN Attention: K. Nawata (KMEC) Rich Mullen (PSCD, MECA) • EUT Type: Spread Spectrum Cordless Telephone – Base / Handset • Trade Name: PANASONIC • Model(s): KX-TG2670N • FCC Identifier: ACJ96NKX-TG2670N • S/N: Pre-production • Tx/Rx Frequency: 2401.5 – 2470.5 MHz • Application Type: Certification • FCC Classification: Spread Spectrum Transceiver (DSS) • FCC Rule Part(s): § 2.1093, Docket 96-326; § 22(H) • Modulation(s): Direct Sequence System (DSS) • Max. Output Power: Base – 0.0755 W / Handset – 0.08 W • Date(s) of Tests: July 11-12, 2000 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.200710363.ACJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.200710363.ACJ SAR Measurement Report Test Date(s): July 11-12, 2000 FCC Part 15.247 Certification PANASONIC Spread Spectrum Cordless Telephone © 2000 PCTEST Lab FCC ID: ACJ96NKX-TG2670N 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1- 1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element…

Text truncated - open the document above for the full version.

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE Matshushita Electric Industrial Co., Ltd. Dates of Tests: July 11-12, 2000 1006 Oaza Kadoma Test Report S/N: 15.200710351.ACJ Kadoma, Osaka 571 Japan Test Site: PCTEST Lab, Columbia MD Attention: Rich Mullen (PSCD) N. Yoshizumi-Kyushu MEICL FCC ID ACJ96NKX-TG2670N APPLICANT Matshushita Electric Industrial Co., Ltd. FCC Rule Part(s): § 15.247; ANSI C-63.4 (1992) Classification: Spread Spectrum Transceiver (DSS) Max Output Power: Base - 0.0755 W / Handset – 0.0804 W EIRP Method/System: Direct Sequence System (DSS) Equipment Type: Cordless Telephone (Base/Handset) Frequency Range: 2401.5 – 2470.5 MHz (Base/Handset) Model No(s).: KX-TG2670N This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63-4. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 200710351.ACJ FCC Part 15.247 Certification © 2000 PCTEST Engineering Laboratory, Inc. FCC Part 15.247 TABLE OF CONTENTS SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 PRODUCT INFORMATION 3 DESCRIPTION OF TESTS A. CONDUCTED EMISSIONS 4 B. RADIATED EMISSIONS 5 C. RESTRICTED BANDS 6 D. ANTENNA REQUIREMENT 7 E. DIRECT SEQUENCE BANDWIDTH 8 F. MAXIMUM PEAK POWER OUTPUT 9 G. POWER DENSITY 10 RADIATED MEASUREMENTS (FUNDAMENTAL & HARMONICS) 11-16 FREQUENCY MEASUREMENTS (SPURIOUS) 17 PROCESSING GAIN 18-21 LIST OF TEST EQUIPMENT 22 RECOMMENDATION/CONCLUSION 23 APPENDIX A - LABELLING REQUIREMENTS 24-25 APPENDIX B - PLOTS OF EMISSIONS 26 APPENDIX C - PHOTOGRAPHS OF TEST SET-UP 27 APPENDIX D - EUT PHOTOGRAPHS 28 APPENDIX E - USER’S MANUAL 29 Test Report S/N: 15.200710351.ACJ FCC Part 15.247 Dates of Tests: July 11-12, 2000 Certification © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N Direct Sequence Spread Spectrum Telephone 1 MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name: Matsushita Electric Industrial Co., Ltd. Address: 1006 Oaza Kadoma Kadoma, Osaka 571 JAPAN Attention: Rich Mullen (PSCD) N. Yoshizumi-Kyushu MEICL • FCC ID: ACJ96NKX-TG2670N • Class: Spread Spectrum Transceiver (DSS) • Type: Cordless Telephone (Base/Handset) • Freq. Range: 2401.5 – 2470.5 MHz • Method/System: Direct Sequence System (DSS) • Model No(s): KX-TG2670N • Max. RF Output Power: Base (75.5 mW) / Handset (80.4 mW) • Power Supply: 9VDC 850mA (AC Adapter POLV10) - Base 2.4 VDC 1500mAh NiMh - Handset • Cable(s): Telco • USOC Jack: RJ-11 • Rule Part(s): § 15.247 • Dates of Tests: July 11-12, 2000 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 200710351.ACJ NOTE: The receiver portion was tested and complies with Part 15B under the verification procedure. Test Report S/N: 15.200710351.ACJ FCC Part 15.247 Dates of Tests: July 11-12, 2000 Certification © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N Direct Sequence Spread Spectrum Telephone 2 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) and FCC Public Notice dated July 12, 1995 entitled “Guidance on Measurement for Direct Sequence Spread Spectrum Systems” were used in the measurement of Panasonic Spread Spectrum telephone system. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: 15.200710351.ACJ FCC Part 15.247 Dates of Tests: July 11-12, 2000 Certification © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N Direct Sequence Spread Spectrum Telephone 3 PRODUCT INFORMATION Equipment Description: The Equipment under test (EUT) is the Panasonic cordless telephone system using spread spectrum direct sequence and time division duplex techniques. Frequency Range: 2401.5 – 2470.5 MHz Channels: 24 (Base/handset) Channel Separation: 3.0 MHz Spread Spectrum Method: Direct Sequence (DBPSK modulation) Max RF …

Text truncated - open the document above for the full version.

Test Report S/N: 15.200710351.ACJ FCC Part 15.247 Dates of Tests: July 11-12, 2000 Certification © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N Direct Sequence Spread Spectrum Telephone 27 Appendix C – Test Photographs © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone © 2000 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2670N NVLAP Lab Code: 1004310 Direct Sequence Spread Spectrum Telephone
