ACJ96NKX-TG2730FHSS cordless telephone system

2.4GHz Multi-Handset Cordless Phone System Model No. KX-TG2730S Pulse-or-tone-dialing capability Operating Instructions Charge the battery for about 15 hours before initial use. PLEASE READ BEFORE USE AND SAVE. Contents: Location of Controls2 Connections5 Battery Installation/Battery Charge6 Recording a Greeting Message7 Making/Answering calls with the Handset8 Making/Answering calls with the Base Unit9 Caller ID Service9 Automatic Answering Operation10 Listening to Messages10 Important Safety Instructions11 FCC and Other Information13 –2– Please read IMPORTANT SAFETY INSTRUCTIONS on page 11 before use. Read and understand all instructions. Location of Controls Handset INTERCOM T R A N S F E R CLEAR SP - PHONE H O L D F U N C T IO N REDIAL C A L L W A IT 2 1 3 4 5 6 7 8 T O N E 0 9 CONF T A L K OFF F L A S H PAUSE Back side Speaker Headset Jack (TONE) Button (TALK) Button (Speakerphone) Button Button CONF (Conference)/FUNCTION Microphone Charge Contacts Antenna Display (OFF) Button (HOLD/CLEAR)/ (INTERCOM/TRANSFER) Button (PAUSE/REDIAL) Button Soft Keys Navigator Key ( , , , ) (FLASH/CALL!WAIT) Button –3– Base unit 1 2 3 E R A S E STOP H O L D C O N F N E W M E S S A G E / S L O W T A L K M A I L B O X M I C D I G I T A L S P R E A D S P E C T R U M C H A R G E M U L T I H A N D S E T 0 REDIAL / PAUSE MUTE TONE D IG IT A L S P P H O N E FLASH/ CALL WAIT 1 3 2 4 5 6 8 7 9 TRANSFER IN T E R C O M P R I V A C Y M E M O G R E E T IN G PR OG RAM RING ER/ AUTO R I N G E R LOUD/ R O O M M O N I T O R IN U S E Display MIC (Microphone) CHARGE Indicator (PROGRAM) Button (RINGER/AUTO) Button (DIGITALÒSP-PHONE) Button and Indicator (MUTE) Button and Indicator (FLASH/CALLÒWAIT) Button (REDIAL/PAUSE) Button IN USE Indicator (INTERCOM/TRANSFER) Button (PRIVACY) Button and Indicator (HOLD) Button (CONF) (Conference) Button –4– Base unit M IC C HAR GE ERASE STO P MULTI HANDSET 1 2 3 N E W M E S S A G E / S L O W T A L K M A I L B O X H O L D C O N F REDIAL / PAUSE M UTE TO NE D IG IT A L S P P H O N E FLASH/ CALL WAIT D I G I T A L S P R E A D S P E C T R U M TRANSFER IN T E R C O M 0 1 3 2 4 5 6 8 7 9 P R I V A C Y R IN G E R L O U D / MEMO GREETING P R O G R A M R IN G E R / A U T O R O O M M O N I T O R IN U S E (ERASE) Button (STOP) Button (GREETING) Button (ANSWERÒON) Button and Indicator (MEMO) Button ROOM MONITOR/INTERCOM Indicator Antenna (TONE) Button Antenna Charge Contacts (MAILBOX) Buttons Navigator Key ( , , , ) –5– Connections Connect the AC adaptor and the telephone line cord. •USE ONLY WITH Panasonic AC ADAPTOR PQLV10. •The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Hook Telephone Line Cord AC Adaptor Power Outlet (AC 120 V, 60 Hz) Single-Line Telephone Jack (RJ11C) Fasten the AC adaptor cord to prevent it from being disconnected. Raise the antennas. –6– Battery Installation/Battery Charge Recharge Recharge the battery when: –"Recharge battery" is displayed, –"" flashes on the display, or – the handset beeps every minute while it is in use. •Clean the handset and the base unit charge contacts with a soft, dry cloth once a month. Clean more often if the unit is subject to grease, dust or high humidity.If not, the battery may not charge properly. •If the battery is fully charged, you do not have to place the handset on the base unit until "Recharge battery" is displayed and/or "" flashes. This will maximize the battery life. •The battery cannot be overcharged. Battery installation 1 Install the battery in the handset. 2 Close the handset cover. Battery charge To power the handset, charge the battery. Place the handset on the base unit for about 15 hours before initial use. A nickel cadmium battery that is recyclable powers the product you have purchased. At the end of its useful life, under various state and local laws, it is illegal to dispose of this battery into your municipal waste stream. Please call 1-800-8-BATTERY for information on how to recycle this battery. –7– You can record a personal greeting message of up to 2 minutes. If a greeting message is not recorded, one of two pre-recorded greetings will be played when a call is received. •All messages (greeting, incoming, etc.) are stored in digital memory. The total recording time is about 15 minutes. We recommend you record a brief greeting messagein order to leave more time for recording new messages. 1 Press and hold (GREETING)until a long beep is heard. 2 After the long beep, talk clearly, about 8 inches (20 cm) away from the MIC (microphone). 3 When finished, press (GREETING). •If you do not record a greeting message, one of two messages will be played when a call is received, depending on the caller’s recording time. Recording a Greeting Message –8– To make a call 1 Press or . 2 Dial a telephone number. 3 To hang up, press (OFF)or place the handset on the base unit. •If "No link to base. Walk closer to base and try again" is displayed and an alarm tone sounds in step 1, move closer to the base unit or place the handset on the base unit, and try again. •To redial the last number,press or , then press (PAUSE/REDIAL). •To adjust the receiver volume/speaker volume: To increase, press . To decrease, press . •To put a call on hold, press(HOLD/CLEAR). •To release the hold, press(HOLD/CLEAR). To answer a call Press or . Making/Answering Calls with the Handset –9– Making/Answering Calls with the Base Unit To make a call 1 Press (DIGITAL!SP-PHONE). 2 Dial a telephone number. 3 Talk into the MIC(microphone). 4 To hang up, press (DIGITAL!SP-PHONE). •To redial the last number, press (DIGITAL!SP-PHONE), then press (REDIAL/PAUSE). •To adjust the speaker volume: To increase, press . To decrease, press . •To put a call on hold,press (HOLD). •To release the hold, press (DIGITAL!SP-PHONE). To answer a call Press (DIGITAL!SP-PHONE), then talk into the MIC(microphone). Caller ID Service This unit is compatible with a Caller ID service offered by your telephone company. After su…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has 1,099 billion digital security coding combinations that are provided by the following means: • Provided with 40 bits (1,099 billion) for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base and Handset knows each other’s security code information.

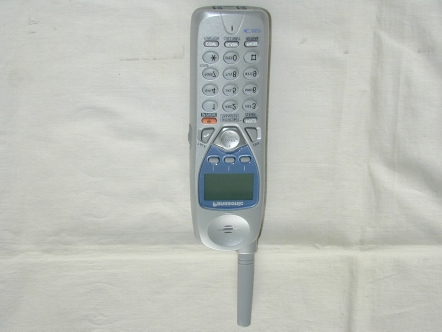

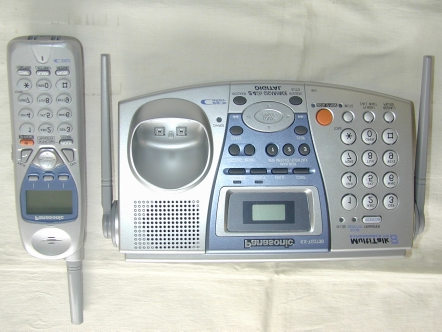

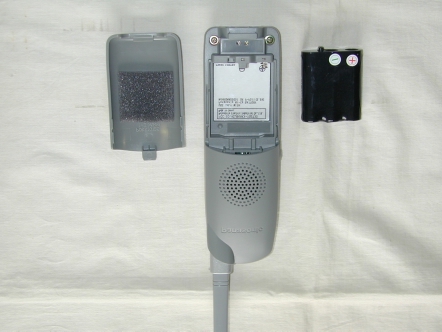

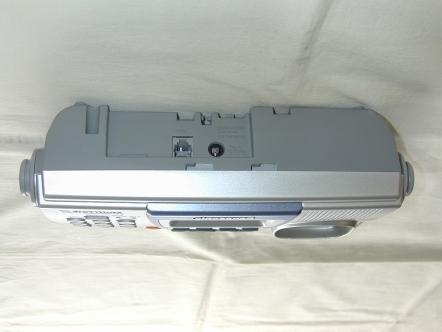

EXHIBIT D Appearance Rear Bottom Internal Handset Battery Compartment

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit. Portable Unit: FCC ID Label NOTE: The marking will be shown on the battery compartment of the portable unit.

Bottom Internal P.C.Board RF Cover Removed Handset Internal RF Cover Removed Handset (P.C.B. Another Side)

EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY BASE UNIT: A) WHEN A BELL SIGNAL ENTERS FROM TEL LINE 1) The bell detection circuit, i.e., the transistor(Q106) begins to operate and its output is inputted to pin 92 of IC501(DSP). 2) To obtain a display synchronized with the bell signal, an IN USE signal is output from pin 85 of IC501(DSP) and INUSE LED(LED949) is lighted up. 3) A portable phone receives a bell from the base station. When the portable phone is switched from the STANDBY to TALK, the base station receives a carrier modulated by data indicating the switch from STANDBY to TALK. The data demodulated at the base station is inputted to pin 84 of IC501, and passes through Q104 to make the circuit relay, then, release the muting and enables talk. B) WHEN A LINE LOOP IS MADE BY A PORTABLE PHONE 1) When the operator of the portable phone switches STANDBY to TALK, the TALK mode data enters the base station and is demodulated at the RF Unit of the base station, and is inputted to pin 84 of IC501. 2) In this time, an IN USE signal is output from pin 85 of IC501, and the IN USE LED (LED949) is lighted up. C) RECIEVER UNIT OPERATION 1) A signal is received by the antenna, and passes through the 2400 to 2483.5MHz band pass filter L132, and is inputted to the pin 5 of IC102. 2) The received signal and local signal made by VCO (2390.214194~2469.590710MHz) are mixed by IC101 to obtain digitized audio signal. 3) The base band signal is fed to pin 84 of IC501. 4) This audio signal is transmitted to the telephone line by IC501. D) TRANSMISSION UNIT OPERATION 1) An audio signal from the line passes through the interface transistor(Q161). 2) The audio signal is inputted to pin 51 of IC501. 3) This audio signal is coded by IC501 and output from pin 75 to IC501. 4) This modulated signal goes to the antenna. EXHIBIT E DESCRIPTION OF ELECTRICAL CIRCUITRY PORTABLE UNIT: A) RECEIVER UNIT OPERATION 1) A signal from the base unit is received by the antenna, and passes through the 2400 to 2483.5MHz band pass filter L132. And the signal is fed to pin 5 of IC102. 2) An received signal and local signal made by VCO(2390.214194~2469.590710MHz) are mixed to obtain digitized audio signal. 3) This digitized audio signal is fed to pin 65 of IC201. 4) This audio signal goes to pin 33 and 34 of IC201, and output to speaker. B) TRANSMISSION UNIT OPERATION 1) When selected TALK switch to TALK, the detect switch of IC201 becomes ON and get into TALK mode. 2) The audio signal from microphone is inputted to pin 41 and 42 of IC201. 3) This audio signal is coded by IC201 and output from pin 56 to IC101. 4) This modulated signal goes to the antenna.

© 2002 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Matsushita Electric Industrial Co., Ltd. Dates of Tests: Dec. 28, 2001 & Jan. 2, 2002 1006 Oaza Kadoma Test Report S/N: SAR.211210716.ACJ Kadoma, Osaka Test Site: PCTEST Lab, Columbia, MD USA 571 JAPAN Attn: K. Nawata (KMECL) Rich Mullen (PSCD, MECA) FCC ID ACJ96NKX-TG2730 APPLICANT Matsushita Electric Industrial Co., Ltd. EUT Type: 2.4 GHz Cordless Telephone (FHSS) Tx Frequency: 2400.916645 – 2480.293161 MHz Rx Frequency: 2400.916645 – 2480.293161 MHz Max. RF Output Power: 0.208W EIRP (23.183 dBm) - Handset 0.066W EIRP (18.221 dBm) - Baseset Trade Name/Model(s): PANASONIC KX-TG2730 FCC Classification: Part 15.249 Cordless Telephone Remote Transceiver (ETR) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 0.4643W/kg Brain SAR; 1.1506W/kg Body SAR (Handset) 0.3911 W/kg Body SAR (Baseset) This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.211210716.ACJ TEST REPORT S/N: SAR.211210716.ACJ SAR MEASUREMENT REPORT TEST DATES: Dec. 28, 2001 & Jan. 2, 2002 FCC PART 15.249 CERTIFICATION Table of Contents 1.1 SCOPE........................................................................................................................1 2.1 INTRODUCTION........................................................................................................2 2.2 SAR Definition......................................................................................................2 3.1 SAR MEASUREMENT SET-UP.............................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM...............................................................4 5.1 E-FIELD PROBE CALIBRATION PROCESS......................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES...........................................................7 7.1 SYSTEM SPECIFICATIONS...................................................................................8 8.1 MEASUREMENT PROCESS..................................................................................9 9.1 TEST POSITIONS OF THE PHONE....................................................................10 10.1 BODY-WORN TEST SETUP...............................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.........................................12 12.1 MEASUREMENT UNCERTAINTIES.................................................................13 13.1 SAR TEST DATA SUMMARY.............................................................................14 14.1 SAR TEST EQUIPMENT.....................................................................................20 15.1 CONCLUSION.......................................................................................................21 Test Report S/N: SAR.211210716.ACJ SAR Measurement Report Test Dates: Dec. 28, 2001 & Jan. 2, 2002 FCC Part 15.249 Certification PANASONIC FCC ID: ACJ96NKX-TG2730 (Model: KX-TG2730) © 2002 PCTEST 2.4 GHz Cordless Telephone (FHSS) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: Matsushita Electric Industrial Co., Ltd. Address: 1006 Oaza Kadoma Kadoma, Osaka 571 JAPAN Attention: K. Nawata (KMECL) Rich Mullen (PSCD, MECA) EUT Type: 2.4 GHz Cordless Telephone (FHSS) Trade Name: PANASONIC Model(s): KX-TG2730 FCC IDENTIFIER: ACJ96NKX-TG2730 Tx Frequency: 2400.916645 – 2480.293161 MHz Rx Frequency: 2400.916645 – 2480.293161 MHz Application Type: Certification FCC Classification: Part 15.249 Cordless Telephone Remote Transceiver (ETR) FCC Rule Part(s): § 2.1093, Docket 96-326 Modulation(s): FHSS Max RF. Output Power: 0.208W EIRP (23.183dBm) – Handset 0.066W EIRP (18.221 dBm) - Baseset Date(s) of Tests: Dec. 28, 2001 & Jan. 2, 2002 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. Report Serial No.: SAR.211210716.ACJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.211210716.ACJ SAR Measurement Report Test Dates: Dec. 28, 2001 & Jan. 2, 2002 FCC Part 15.249 Certification PANASONIC FCC ID: ACJ96NKX-TG2730 (Model: KX-TG2730) © 2002 PCTEST 2.4 GHz Cordless Telephone (FHSS) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation me…

Text truncated - open the document above for the full version.

Reference math : OFF Title: 2400-2500 MHz. Calibration Frequency Data Data Pt# (GHz) real imag 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 2.400000000 2.401010101 2.402020202 2.403030303 2.404040404 2.405050505 2.406060606 2.407070707 2.408080808 2.409090909 2.410101010 2.411111111 2.412121212 2.413131313 2.414141414 2.415151515 2.416161616 2.417171717 2.418181818 2.419191919 2.420202020 2.421212121 2.422222222 2.423232323 2.424242424 2.425252525 2.426262626 2.427272727 2.428252828 2.429292929 2.430303030 2.431313131 2.432323232 2.433333333 2.434343434 2.435353535 2.436363636 2.437373737 2.438383838 2.439393939 2.440404040 2.441414141 2.442424242 2.443434343 2.444444444 2.445454545 2.446464646 2.447474747 2.448484848 2.449494949 2.450505051 2.451515152 2.452525253 2.453535354 2.454545455 2.455555556 2.456565657 2.457575758 2.458585859 2.459595960 2.460606061 39.08 39.06 39.08 39.07 39.06 39.07 39.07 39.06 39.07 39.06 39.08 39.05 39.08 39.07 39.09 39.07 39.08 39.08 39.08 39.10 39.09 39.10 39.12 39.12 39.10 39.12 39.13 39.12 39.15 39.12 39.15 39.14 39.15 39.15 39.16 39.18 39.16 39.17 39.17 39.16 39.16 39.17 39.18 39.16 39.18 39.18 39.18 39.18 39.19 39.18 39.18 39.17 39.19 39.18 39.19 39.17 39.18 39.18 39.18 39.18 39.17 13.00 13.00 13.00 12.99 13.02 13.00 13.01 12.98 13.01 12.99 13.01 13.01 13.00 13.01 13.01 13.01 13.02 13.02 13.02 13.02 13.05 13.03 13.04 13.05 13.05 13.07 13.08 13.10 13.08 13.09 13.10 13.10 13.12 13.13 13.13 13.15 13.16 13.17 13.17 13.17 13.19 13.18 13.20 13.21 13.21 13.21 13.22 13.23 13.24 13.23 13.22 13.24 13.25 13.25 13.25 13.26 13.23 13.25 13.22 13.26 13.25

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/02010201 _ZOOM.VLT Start : 2-Jan-102 08:46:18 am End : 2-Jan-102 09:01:34 am Radio Type : Validation Model Number : Serial Number : C Frequency : 2450 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Dipole Antenna Posn. : Internal Phantom Type : Flat Phantom Posn. : E Field Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 39.200 Mixture Conductivity = 1.800 Comment : 2450 MHz Brain Validation SN: C Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 1.004 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = 1.750, Y = -2.000, Z = 0.000 (cm) Value = 295.112 Measured Values (volts) = 2.521E-001 1.518E-001 9.800E-002 7.119E-002 5 .488E-002 4.028E-002 3.141E-002 2.482E-002 2.059E-002 9.985E-003 7.142E-003 5.265E-003 4.083E-003 4.200E-003 3.444E-003 2.628E-003 2.172E-003 1.014E-003 2.043E-003 2.255E-003 2.262E-003 Calc. Voltage @ Surface (Vs) = 0.37 64 Voltage @ 1.00 cm (Vt) = 0.0322 Ave. Voltage (Vs+Vt)/2 = 0.1343 Ave. SAR over 1 g (mW/g) = 12.5341 0 2 4 6 8 10 12 14 16 18 20 mW/g -1012345 Z centimeters SAR Scan File : 02010201_ZOOM Start : 2-Jan-102 08:46:18 am End : 2-Jan-102 09 :01:34 am Validation//C;2450MHz;W;Dipole/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.200/1.800 File : 02010201_ZOOM Start : 2-Jan-102 08:46:18 am End : 2-Jan-102 09:01:34 am Validation//C;2450MHz;W;Dipole/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.200/1.800 13.5 12.2 10.9 9.5 8.2 6.9 5.6 4.2 2.9 1.6 File : 02010201_ZOOM Start : 2-Jan-102 08:46:18 am End : 2-Jan-102 09:01:34 am Validation//C;2450MHz;W;Dipole/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.200/1.800 13.5 12.2 10.9 9.5 8.2 6.9 5.6 4.2 2.9 1.6

March 29, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Steve Dayhoff SUBJECT: Matsushita Electric FCC ID: ACJ96NKX-TG2730 731 Confirmation No.: EA889183 Correspondence Reference No.: 22368 Request for Tech. Info.: 3/19/02 Dear Steve: Transmitted herewith, on behalf of Matsushita Electric is an amendment provided in response to the request for technical information dated March 19, 2002. 1. Please find attached the revised pages in the SAR report indicating EIRP power levels used for SAR evaluation. (The EIRP is maintained at a constant level as it is controlled by software). 2. Please find attached the date of test printout from the dielectric test system. 3. The unit was tested using software codes that put the unit at a fixed channel in the CW mode so no duty cycle correction was needed. 4. The unit was tested using software codes that disabled the hop function. 5. Please note that most of the 1 gram average is measured during the first 2cm of the “z” scan. Since the SAR to noise ratio is very low the noise on the plot appears exaggerated. During the testing the second peak was investigated. 6. Please find attached investigated 1g SAR for the 2 nd peak. Peak SAR was 1.1506 w/kg where the alternate peak was found to be 0.9739 w/kg. 7. Please find attached dipole validation plots. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Matsushita Electric

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01122806_ZOOM.VLT Start : 28-Dec-101 11:16:18 am End : 28-Dec-101 11 :25:30 am Radio Type : PANASONIC Model Number : KX-TG2730 Serial Number : 1 Frequency : 2400.916645 MHz Peak Trans. Pwr : 0.010 W Start Trans. Pwr: 0.010 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Flat Phantom Posn. : E Field Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 52.700 Mixture Conductivity = 1.950 Comment : PANASONIC 2.4 GHz CORDLESS PHONE CH 01 BODY SAR - PEAK2 CHECK Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.983 PCTEST Amplifier Channel Settings : 0.172 0.187 0.220 Max Location : X = 0.000, Y = -2.0 00, Z = 0.000 (cm) Value = 11.112 Measured Values (volts) = 1.257E-002 8.143E-003 4.231E-003 2.563E-003 1.487E-003 1.194E-003 0.936E-003 8.665E-004 7.925E-004 3.789E-004 3.247E-004 2.970E-004 2.819E-004 2.492E-004 2.383E-004 1.925E-004 2.015E-004 2.220E-004 2.444E-004 2.088E-004 1.610E-004 Calc. Voltage @ Surface (Vs) = 0.0188 Voltage @ 1.00 cm (Vt) = 0.0026 Ave. Voltage (Vs+Vt)/2 = 0.0107 Ave. SAR over 1 g (mW/g) = 0.9739

Test Report S/N: SAR.211210716.ACJ SAR Measurement Report Test Dates: Dec. 28, 2001 & Jan. 2, 2002 FCC Part 15.249 Certification PANASONIC FCC ID: ACJ96NKX-TG2730 (Model: KX-TG2730) © 2002 PCTEST 2.4 GHz Cordless Telephone (FHSS) 14 13.1 SAR TEST DATA SUMMARY Ambient TEMPERATURE (°C) 22.0 Liquid TEMPERATURE (°C) 21.0 Relative HUMIDITY (%) 54.3 Atmospheric PRESSURE (kPa) 101.1 Measured Values: Mixture Type: Brain Dielectric Constant: 39.2 Conductivity: 1.80 Liquid Depth: 15.0 cm Closest Distance (between E-Probe & Phone): 1.0 cm 13.2 Measurement Results (Handset Head SAR) FREQUENCY POWER (W) MHZ CH Modulation Start End Phantom Position Antenna Position SAR (W/kg) 2400.916645 01 FHSS 0.208 0.208 Left Tilt Fixed 0.4643 2440.158968 45 FHSS 0.161 0.161 Left Tilt Fixed 0.4221 2480.293161 90 FHSS 0.125 0.125 Left Tilt Fixed 0.4076 NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. 2. All modes of operation were investigated and the worst-case are reported. 3. Battery condition is fully charged for all readings. 4. Power Measured o Conducted x EIRP o ERP 5. SAR Measurement System o SPEAG x IDX 6. SAR Configuration x Head o Body o Hand Fig. 14 Head SAR Test Setup Test Report S/N: SAR.211210716.ACJ SAR Measurement Report Test Dates: Dec. 28, 2001 & Jan. 2, 2002 FCC Part 15.249 Certification PANASONIC FCC ID: ACJ96NKX-TG2730 (Model: KX-TG2730) © 2002 PCTEST 2.4 GHz Cordless Telephone (FHSS) 15 13.1 SAR TEST DATA SUMMARY (Continued) Ambient TEMPERATURE (°C) 22.0 Liquid TEMPERATURE (°C) 21.0 Relative HUMIDITY (%) 54.3 Atmospheric PRESSURE (kPa) 101.1 Measured Values: Mixture Type: Brain Dielectric Constant: 39.2 Conductivity: 1.80 Liquid Depth: 15.0 cm Closest Distance (between E-Probe & Phone): 1.1 cm 13.3 Measurement Results (Handset Head SAR) FREQUENCY POWER (W) MHZ CH Modulation Start End Phantom Position Antenna Position SAR (W/kg) 2400.916645 01 FHSS 0.208 0.208 Right Tilt Fixed 0.2200 2440.158968 45 FHSS 0.161 0.161 Right Tilt Fixed 0.1783 2480.293161 90 FHSS 0.125 0.125 Right Tilt Fixed 0.0893 NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. 2. All modes of operation were investigated and the worst-case are reported. 3. Battery condition is fully charged for all readings. 4. Power Measured o Conducted x EIRP o ERP 5. SAR Measurement System o SPEAG x IDX 6. SAR Configuration x Head o Body o Hand Fig. 15 Head SAR Test Setup Test Report S/N: SAR.211210716.ACJ SAR Measurement Report Test Dates: Dec. 28, 2001 & Jan. 2, 2002 FCC Part 15.249 Certification PANASONIC FCC ID: ACJ96NKX-TG2730 (Model: KX-TG2730) © 2002 PCTEST 2.4 GHz Cordless Telephone (FHSS) 16 13.1 SAR TEST DATA SUMMARY (Continued) Ambient TEMPERATURE (°C) 22.0 Liquid TEMPERATURE (°C) 21.0 Relative HUMIDITY (%) 54.3 Atmospheric PRESSURE (kPa) 101.1 Measured Values: Mixture Type: Brain Dielectric Constant: 39.2 Conductivity: 1.80 Liquid Depth: 15.0 Closest Distance (between E-Probe & Phone): 1.2 cm 13.4 Measurement Results (Handset Head SAR) FREQUENCY POWER (W) MHZ CH Modulation Start End Phantom Position Antenna Position SAR (W/kg) 2400.916645 01 FHSS 0.208 0.208 Left Cheek Fixed 0.2027 2440.158968 45 FHSS 0.161 0.161 Left Cheek Fixed 0.1703 2480.293161 90 FHSS 0.125 0.125 Left Cheek Fixed 0.1196 NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. 2. All modes of operation were investigated and the worst-case are reported. 3. Battery condition is fully charged for all readings. 4. Power Measured o Conducted x EIRP o ERP 5. SAR Measurement System o SPEAG x IDX 6. SAR Configuration x Head o Body o Hand Fig. 16 Head SAR Test Setup Test Report S/N: SAR.211210716.ACJ SAR Measurement Report Test Dates: Dec. 28, 2001 & Jan. 2, 2002 FCC Part 15.249 Certification PANASONIC FCC ID: ACJ96NKX-TG2730 (Model: KX-TG2730) © 2002 PCTEST 2.4 GHz Cordless Telephone (FHSS) 17 13.1 SAR TEST DATA SUMMARY (Continued) Ambient TEMPERATURE (°C) 22.0 Liquid TEMPERATURE (°C) 21.0 Relative HUMIDITY (%) 54.3 Atmospheric PRESSURE (kPa) 101.1 Measured Values: Mixture Type: Brain Dielectric Constant: 39.2 Conductivity: 1.80 Liquid Depth: 15.0 Closest Distance (between E-Probe & Phone): 1.3 cm 13.5 Measurement Results (Handset Head SAR) FREQUENCY POWER (W) MHZ CH Modulation Start End Phantom Position Antenna Position SAR (W/kg) 2400.916645 01 FHSS 0.208 0.208 Right Cheek Fixed 0.0508 2440.158968 45 FHSS 0.161 0.161 Right Cheek Fixed 0.0340 2480.293161 90 FHSS 0.125 0.125 Right Cheek Fixed 0.0391 NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. 2. All modes of operation were investigated and the worst-case are reported. 3. Battery condition is fully charged for all readings. 4. Power Measured o Conducted x EIRP o ERP 5. SAR Measurement System o SPEAG x IDX 6. SAR Configuration x Head o Body o Hand Fig. 17 Head SAR Test Setup Test Report S/N: SAR.211210716.ACJ SAR Measurement Report Test Dates: Dec. 28, 2001 & Jan. 2, 2002 FCC Part 15.249 Certification PANASONIC FCC ID: ACJ96NKX-TG2730 (Model: KX-TG2730) © 2002 PCTEST 2.4 GHz Cordless Telephone (FHSS) 18 13.1 SAR TEST DATA SUMMARY (Continued) Ambient TEMPERATURE (°C) 22.0 Liquid TEMPERATURE (°C) 21.0 Relative HUMIDITY (%) 54.3 Atmospheric PRESSURE (kPa) 101.1 Measured Values: Mixture Type: Muscle Dielectric Constant: 52.7 Conductivity: 1.95 Liquid Depth: 15.0 cm 13.6 Measurement Results (Handset Body SAR) FREQUENCY POWER* (W) MHZ CH Modulation Start End Separation Distance (cm) Antenna Position SAR (W/kg) 2400.916645 01 FHSS 0.208 0.208 0.5 Fixed 1.1506 2440.158968 45 FHSS 0.161 0.161 0.5 Fixed 0.8926 2480.293161 90 FHSS 0.125 0.125 0.5 Fixed 0.5275 NOTES: 1. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3. * Power Measured o Conducted x EIRP o …

Text truncated - open the document above for the full version.

IssueDate:December19,2001 Page 1 of 45 EMC EMISSION - TEST REPORT JQA APPLICATION No.: KL80010466 Name of Product: 2.4GHz Frequency Hopping Spread Spectrum Cordless Telephone (Base Unit) Model/Type No.: KX-TG2730 FCC ID: ACJ96NKX-TG2730 Applicant : Kyushu Matsushita Electric Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Manufacturer : Kyushu Matsushita Electric Co., Ltd. Address : 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Receive date of EUT: December 3, 2001 Final Judgement :Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) under METI Japan and Communications Research Lab. (CRL) under MPHPT Japan. THE TEST RESULTS only responds to the test sample. This test report shall not be reproduced except in full. Page 2 of 45 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 5 Test Conditions6-13 Configuration of EUT / Operation mode of the EUT14 - 15 EUT Modification / Responsible Party / Deviation from Standard16 Test results / Measurement Uncertainty17 - 19 Summary20 Test System-Arrangement (Drawings) 21 Preliminary Test and Test-setup (Drawings) 22 - 25 Test-setup (Photographs) at worst case 26 B) Test data Conducted Emission450 kHz - 30 MHz27 Electromagnetic Field Radiated Emission9 kHz - 25 GHz28 - 32 Maximum Peak Power (EIRP)33 Transmitter Power (TP)34 Antenna Gain of the EUT35 -20dB Bandwidth and Band-edge Emission36 - 41 Carrier Frequencies Separation42 - 43 Channel Separation / Dwell Time44 - 45 JQA Application No. : KL80010466Regulation : CFR 47 FCC Rules Part 15 Model No.: KX-TG2730Issue Date : December 19, 2001 FCC ID: ACJ96NKX-TG2730 JQA Application No…
