ACJ96NKX-TG27702.4 GHz Cordless Phone (FHSS)

Panasonic Corporation of North America

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Dec 08, 2002
Application Purpose: Original Equipment
Date of Application: Dec 08, 2002
Equipment Note: 2.4 GHz Cordless Phone (FHSS)
Frequency Range: 2400.91700000 - 2479.40100000
Company: Panasonic Corporation of North America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2.4GHz Expandable Cordless Phone System Model No.KX-TG2770S Pulse-or-tone-dialing capability Operating Instructions Charge the battery for about 15 hours before initial use. PLEASE READ BEFORE USE AND SAVE. Contents: Location of Controls2 Connections5 Battery Installation/Battery Charge6 Recording a Greeting Message7 Making/Answering calls with the Cordless Handset8 Making/Answering calls with the Base Unit9 Caller ID Service9 Automatic Answering Operation10 Listening to Messages10 Important Safety Instructions11 FCC and Other Information13 –2– Please read IMPORTANT SAFETY INSTRUCTIONS on page 11 before use. Read and understand all instructions. Location of Controls Cordless handset INTERCOM T R A N S F E R CLEAR SP - PHONE H O L D F U N C T IO N REDIAL C A L L W A IT 2 1 3 4 5 6 7 8 T O N E 0 9 CONF T A L K OFF F L A S H PAUSE Back side Speaker Headset Jack (*) (TONE) Button (TALK) Button (Speakerphone) Button Button Microphone Charge Contacts Antenna Display (OFF) Button (HOLD/CLEAR) (INTERCOM/TRANSFER) Button (PAUSE/REDIAL) Button Soft Keys Navigator Key ( , , , ) (FLASH/CALL!WAIT) Button CONF ( Conference ) /FUNCTION –3– Base unit 2 1 3 S T O P STOP M A IL B O X MAILBOX E R A S E ERASE M I C P L PL A Y B A C K S L O W T A L K YBACK SLOW TALK M U T E MUTE PRIVPRIV ACYACY D I G I T A L S L S P P - P H O N E F U N C T IO N FUNCTION EDITEDIT F L FL A S H SH C A L L CALL W A I AI T R E D IA L REDIAL P A U S E AUSE L O C A T O R LOCATOR I N T E R C O M INTERCOM T R A N S F E R TRANSFER H O L D HOLD C O N F CONF M E M O MEMO G R E E T IN G GREETING K X - T G TG 2 7 7 0 Display MIC (Microphone) (DIGITAL!SP-PHONE) (Speakerphone) Button and Indicator (MUTE) Button and Indicator (FLASH/CALL!WAIT) Button (REDIAL/PAUSE) Button (LOCATOR/INTERCOM) (TRANSFER) Button and Indicator (PRIVACY) Button (HOLD) Button Button (ERASE) Button (STOP) Button (GREETING) Button (ANSWER!ON) Button and Indicator (MEMO) Button Antenna (*) (TONE) Button MAILBOX Buttons (FUNCTION/EDIT) Button Antenna CONF (Conference)/FUNCTION Navigator Key (F, G, I, H) –4– Charger unit CHARGE CHARGE Indicator AC Adaptor Charge Contacts –5– Connections Base unit •USE ONLY WITH Panasonic AC ADAPTOR. •The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Handset Handset Cord Raise the antennas. Telephone Line Cord Power Outlet (AC 120 V, 60 Hz) Fasten the AC adaptor cord. Single-Line Telephone Jack (RJ11C) Hook AC Adaptor Power Outlet (AC 120 V, 60 Hz) AC Adaptor C H A R GEGE •USE ONLY WITH Panasonic AC ADAPTOR KX-TCA1 (Order No. KX-TCA1-G). •The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Charger unit –6– Battery Installation/Battery Charge Recharge Recharge the battery when: –"Recharge battery" is displayed, –"" flashes on the display, or – the cordless handset beeps intermittently while it is in use. •Clean the handset and the base unit charge contacts with a soft, dry cloth once a month. Clean more often if the unit is subject to grease, dust or high humidity.If not, the battery may not charge properly. •If the battery is fully charged, you do not have to place the handset on the charger until "Recharge battery" is displayed and/or "" flashes. This will maximize the battery life. •The battery cannot be overcharged. Battery installation 1 Install the battery in the cordless handset. 2 Close the handset cover. Battery charge To power the cordless handset, charge the battery. Place the cordless handset on the charger for about 15 hours before initial use. A nickel cadmium battery that is recyclable powers the product you have purchased. At the end of its useful life, under various state and local laws, it is illegal to dispose of this battery into your municipal waste stream. Please call 1-800-8-BATTERY for information on how to recycle this battery. –7– You can record a personal greeting message of up to 2 minutes. If a greeting message is not recorded, one of two pre-recorded greetings will be played when a call is received. •All messages (greeting, incoming, etc.) are stored in digital memory. The total recording time is about 15 minutes. We recommend you record a brief greeting messagein order to leave more time for recording new messages. 1 Press and hold (GREETING)until a long beep is heard. 2 After the long beep, talk clearly, about 8 inches (20 cm) away from the MIC (microphone). 3 When finished, press (GREETING). •If you do not record a greeting message, one of two messages will be played when a call is received, depending on the caller’s recording time. Recording a Greeting Message –8– To make a call 1 Press or . 2 Dial a telephone number. 3 To hang up, press (OFF)or place the handset on the charger. •If "No link to base. Walk closer to base and try again" is displayed and an alarm tone sounds in step 1, move closer to the base unit, and try again. •To redial the last number,press or , then press (PAUSE/REDIAL). •To adjust the handset volume/speaker volume: To increase, press . To decrease, press . •To put a call on hold,press(HOLD/CLEAR). •To release the hold,press(HOLD/CLEAR). To answer a call Press or . Making/Answering Calls with the Cordless Handset –9– Making/Answering Calls with the Base Unit To make a call 1 Lift the handset off the cradle or press (DIGITAL!SP-PHONE). 2 Dial a telephone number. 3 Talk into the handset or the MIC(microphone). 4To hang up, place the handset on the cradle or press (DIGITAL!SP-PHONE). •To redial the last number,lift the handset off the cradle or press (DIGITAL!SP-PHONE), and then press (REDIAL/PAUSE). •To adjust the handset volume/speaker volume: To increase, press . To decrease, press . •To put a call on hold,press (HOLD). •To release the hold: —when using the speakerphone, press (DIGITAL!SP-PHONE)or lift the handset. —when using the handset, press (HOLD). To answer a call Lift the handset off the cradle or press (DIGITAL!SP-PHONE). Caller ID Service This unit is com…

Text truncated - open the document above for the full version.

Attestation Statements

Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: ACJ96NKX-TG2770 COVER LETTERS Page 1 of 4 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770) 338-6000 • Fax (770) 338-6210 MATSUSHITA MOBILE COMMUNICATIONS DEVELOPMENT CORPORATION OF U.S.A. Application for Type Acceptance Panasonic 2.4 GHz Cordless Telephone FCC ID: ACJ96NKX-TG2770 THIS COVER PAGE IS FOR FILING IDENTIFICATION ONLY Panasonic Matsushita Mobile Communications Development Corporation of U.S.A. FCC ID: ACJ96NKX-TG2770 COVER LETTERS Page 1 1225 Northbrook Parkway • Suite 2-400 • Suwanee, GA 30024 • Phone (770) 338-6000 • Fax (770) 338-6210 Date: 12.2.2002 Authorization & Evaluation Division. Federal Communications Commission Laboratory. 7435 Oakland Mills Road. Columbia, MD 21045. Subject: REQUEST FOR CONFIDENTIALITY Pursuant to sections 0.457 (d) (1) (ii) and 0.459 of the commission’s rules, the applicant hereby requests confidential treatment of some of the information accompanying this application for FCC ID: ACJ96NKX-TG2770 as outlined below: • Block Diagram • Schematics • Theory of operation and circuit descriptions This information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. MMCD Panasonic Best Regards, Richard Mullen PSCD, MECA Phone: 770-338-6270 Fax: 770-338-6210

Cover Letter(s)

December 2, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ96NKX-TG2770 Part 15 Subpart C Certification Gentlemen: Submitted herewith, on behalf of Matsushita Electric Industrial Co., Ltd., is an application for Subpart 15 C Part 15 Spread Spectrum Transmitter (DSS). Attached are the applicant’s Letter of Authorization, measurement report test data and plots, FCC ID label and location, test setup photographs, internal and external photographs, block diagram, operational description, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Matsushita Electric Industrial Co., Ltd.

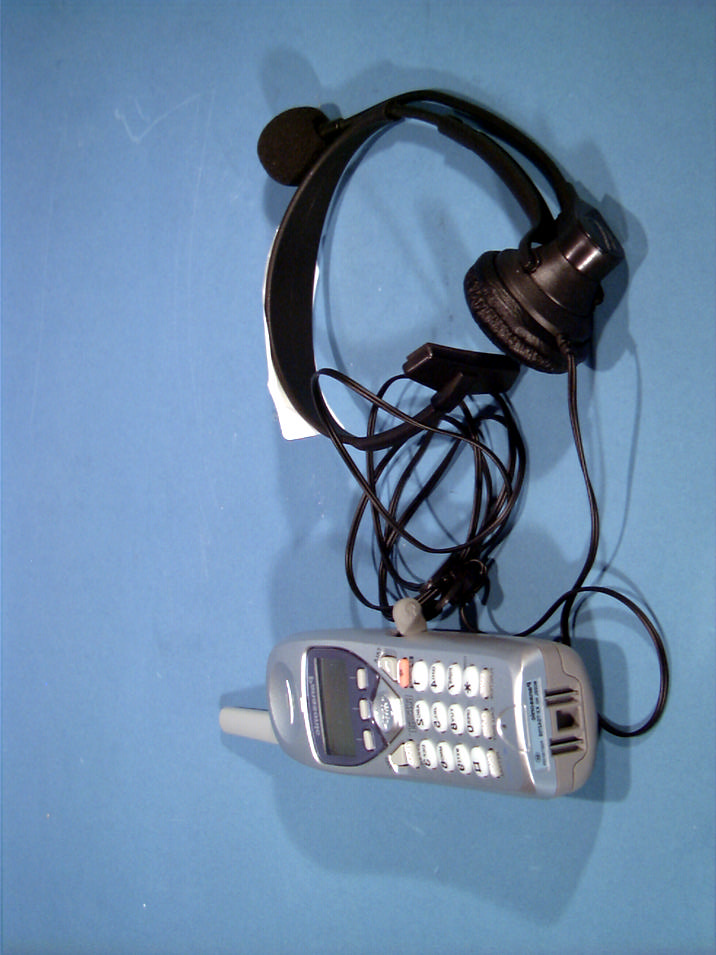

External Photos

© 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770) © 2002 PCTEST Lab Panasonic FCC ID: ACJ96NKX-TG2770 2.4 GHz FHSS Cordless Phone (Model: KX-TG2770)

ID Label/Location Info

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with RSS-210 of the Industry Canad a rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit. Portable Unit: FCC ID Label The marking will be shown on the battery compartment of the portable unit.

Internal Photos

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-221118622.ACJ Test Dates: Nov. 18-19, 2002 EUT Type: 2.4 GHz Cordless Phone FCC ID: ACJ96NKX-TG2770 Page 1 of 25 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: November 18-19, 2002 1006 Oaza Kadoma, Kadoma, Osaka Test Report S/N: SAR.221118622.ACJ 571 JAPAN Test Site: PCTEST Lab, Columbia MD Attn: K. Nawata (KMECL) Rich Mullen (PSCD, MECA) FCC ID: ACJ96NKX-TG2770 APPLICANT: Matsushita Electric Industrial Co., Ltd. EUT Type: 2.4 GHz FHSS Cordless Phone Tx Frequency: 2400.917 — 2479.401 MHz Rx Frequency: 2400.917 — 2479.401 MHz Max. RF Output Power: 0.161W Conducted (Base) 0.076W Conducted (Hand Set) Max. SAR Measurement: 0.173 W/kg over 1 gm HEAD (Head Set) 0.254 W/kg over 1 gm BODY (Head Set) 0.142 W/kg over 1 gm BODY (Base Set) Trade Name/Model(s): PANASONIC KX-TG2770 FCC Classification: Part 15 Spread Spectrum Transmitter (FHSS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [Same sample for EMC & SAR] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Note: Power output is conducted. This transmitter has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. Users must be informed of the operating requirements for satisfying body-worn RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220627338.PG6 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-221118622.ACJ Test Dates: Nov. 18-19, 2002 EUT Type: 2.4 GHz Cordless Phone FCC ID: ACJ96NKX-TG2770 Page 2 of 25 © 2002 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ................................................................................ 11 Positioning for Ear / 15° Tilt .........................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

PANASONIC FCC: ACJ96NKX-TG2770 -- 2.4GHz. Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450 MHz Brain: σ = 1.77 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 4.0 SAR (1g): 0.0649 mW/g, SAR (10g): 0.0360 mW/g Panasonic 2.4GHz FHSS Cordless Handset Model:KX-TG2770 Ch.44 [2440.158968MHz]; Standard Battery; Ambient Temp. = 19.4°C / Meas. Tissue Temp. = 18.3°C Conducted Power = 18.9dBm; Right Head Phantom, Cheek/Touch position Test Date --11/18/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 5.80E-3 1.74E-2 2.90E-2 4.06E-2 5.22E-2 PCTEST Engineering Laboratory, Inc. PANASONIC FCC: ACJ96NKX-TG2770 -- 2.4GHz. Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450 MHz Brain: σ = 1.77 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 4.0 SAR (1g): 0.108 mW/g, SAR (10g): 0.0576 mW/g Panasonic 2.4GHz FHSS Cordless Handset Model:KX-TG2770 Ch.44 [2440.158968MHz]; Standard Battery; Ambient Temp. = 19.4°C / Meas. Tissue Temp. = 18.3°C Conducted Power = 18.9dBm; Right Head Phantom, Ear/15 degree Tilt position Test Date --11/18/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.02E-2 3.06E-2 5.10E-2 7.14E-2 9.18E-2 PCTEST Engineering Laboratory, Inc. PANASONIC FCC: ACJ96NKX-TG2770 -- 2.4GHz. Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450 MHz Brain: σ = 1.77 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 4.0 SAR (1g): 0.0660 mW/g, SAR (10g): 0.0355 mW/g Panasonic 2.4GHz FHSS Cordless Handset Model:KX-TG2770 Ch.44 [2479.401MHz]; Standard Battery; Ambient Temp. = 19.4°C / Meas. Tissue Temp. = 18.3 °C Conducted Power = 17.7dBm; Left Head Phantom, Cheek/Touch position Test Date --11/18/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 6.10E-3 1.83E-2 3.05E-2 4.27E-2 5.49E-2 PCTEST Engineering Laboratory, Inc. PANASONIC FCC: ACJ96NKX-TG2770 -- 2.4GHz. Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450 MHz Brain: σ = 1.77 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 4.0 SAR (1g): 0.173 mW/g, SAR (10g): 0.0874 mW/g Panasonic 2.4GHz FHSS Cordless Handset Model:KX-TG2770 Ch.44 [2440.159MHz]; Standard Battery; Ambient Temp. = 19.4°C / Meas. Tissue Temp. = 18.3°C Conducted Power = 18.9dBm; Left Head Phantom, Ear/15 degree Tilt position Test Date --11/18/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.63E-2 4.89E-2 8.15E-2 1.14E-1 1.47E-1 PCTEST Engineering Laboratory, Inc. PANASONIC FCC: ACJ96NKX-TG2770 -- 2.4GHz. Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.00,4.00,4.00) Med. Parameters 2450 MHz Muscle: σ = 1.96 mho/m ε r = 53.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 4.0 SAR (1g): 0.267 mW/g, SAR (10g): 0.121 mW/g Panasonic 2.4GHz FHSS Cordless Handset Model:KX-TG2770 Ch.00 [2400.916645MHz]; Standard Battery; Ambient Temp. = 19.4°C / Meas. Tissue Temp. = 18.3°C Conducted Power = 18.72dBm; Spacing = 1.5cm from back (antenna side) of EUT to flat phantom, with Belt Clip/No Holster Test Date --11/18/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.77E-2 5.31E-2 8.85E-2 1.24E-1 1.59E-1 PCTEST Engineering Laboratory, Inc.

RF Exposure Info

2450MHz.. Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.40,4.40,4.40) Med. Parameters 2450 MHz Brain: σ = 1.77 mho/m ε r = 39.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 12.98 mW/g, SAR (10g): 9.33 mW/g 2450MHz Brain Dipole Validation (D2450V2 S/N: 719) Frequency: 2450MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 19.4°C / Measured Tissue Temp. = 18.3°C PCTEST Brain Tissue Simulating Liquid [11/18/2002] SAR Tot [mW/g] 1.23E+0 3.92E+0 6.52E+0 9.48E+0 1.56E+1 PCTEST Engineering Laboratory, Inc.

Test Report

PCTEST PT. 15.247 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 15.221118621.ACJ Test Dates: Nov. 18-19, 2002 EUT Type: 2.4 GHZ FHSS C ORDLESS PHONE FCC ID: ACJ96NKX- TG2770 Page 1 of 24 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE Matsushita Electric Industrial Co., Ltd. Dates of Tests: November 18-19, 2002 1006 Oaza Kadoma, Kadoma, Osaka Test Report S/N: SAR.221118621.ACJ 571 JAPAN Test Site: PCTEST Lab, Columbia MD Attn: K. Nawata (KMECL) Rich Mullen (PSCD, MECA) FCC ID ACJ96NKX-TG2770 APPLICANT Matsushita Electric Industrial Co., Ltd. FCC Rule Part(s): § 15.247; ANSI C-63.4 (1992) Classification: Part 15 Spread Spectrum Transmitter (DSS) Max Output Power: 0.161W Conducted (Base) 0.076W Conducted (Hand Set) Method/System: Frequency Hopping Spread Spectrum (FHSS) Equipment Type: 2.4 GHz FHSS Cordless Phone Frequency Range: 2400.917 — 2479.401 MHz Model No(s).: KX-TG2770 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63-4. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Power output is conducted. This transmitter has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. Users must be informed of the operating requirements for satisfying body-worn RF exposure compliance. The highest reported SAR value is Head: 0.173 W/kg; Body: 0.254 W/kg at 25 % duty factor. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220401140.A3L PCTEST PT. 15.247 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N:15.221118621.ACJ Test Dates: NOV. 18-19, 2002 EUT Type: 2.4 GHZ FHSS CORDLESS PHONE FCC ID: ACJ96KX-TG2770 Page 2 of 24 TABLE OF CONTENTS APPENDIX A – COVER LETTER APPENDIX B - ATTESTATION STATEMENT APPENDIX C - TEST REPORT SCOPE 3 INTRODUCTION (SITE DESCRIPTION) 4 PRODUCT INFORMATION 5 DESCRIPTION OF TESTS A. CONDUCTED EMISSIONS 6 B. RADIATED EMISSIONS 7 C. RESTRICTED BANDS 8 D. ANTENNA REQUIREMENT 9 E. MAXIMUM PEAK POWER OUTPUT 10-11 F. CHANNEL SPACING 12-13 RADIATED MEASUREMENTS (FUNDAMENTAL & HARMONICS) 14-21 FREQUENCY MEASUREMENTS (SPURIOUS) 22 LIST OF TEST EQUIPMENT 23 CONCLUSION 24 APPENDIX D - TEST PLOTS APPENDIX E - FCC ID LABEL & LOCATION APPENDIX F - TEST SETUP PHOTOGRAPHS APPENDIX G - EXTERNAL PHOTOGRAPHS APPENDIX H - INTERNAL PHOTOGRAPHS APPENDIX I - BLOCK DIAGRAM(S) APPENDIX J- SCHEMATIC DIAGRAM(S) APPENDIX K - CIRCUIT DESCRIPTION APPENDIX L - USER’S MANUAL APPENDIX M - SAR MEASUREMENT REPORT APPENDIX N - SAR TEST DATA APPENDIX O - SAR TEST SETUP PHOTOGRAPHS APPENDIX P - DIPOLE VALIDATION APPENDIX Q - PROBE CALIBRATION PCTEST PT. 15.247 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N:15.221118621.ACJ Test Dates: NOV. 18-19, 2002 EUT Type: 2.4 GHZ FHSS CORDLESS PHONE FCC ID: ACJ96KX-TG2770 Page 3 of 24 MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name: Matsushita Electric Industrial Co., Ltd. Address: 1006 Oaza Kadoma Kadoma, Osaka 571 JAPAN Attention: Rich Mullen (PSCD) • FCC ID: ACJ96NKX-TG2770 • Class: Spread Spectrum Transceiver (DSS) • Type: 2.4 GHz FHSS Cordless Phone • Freq. Range: 2400.917 — 2479.401 MHz • Method/System: TDMA • Model No(s): KX-TG2770 • Max. RF Output Power: 0.161W Conducted (Base) 0.076W Conducted (Hand Set) • Rule Part(s): § 15.247 • Dates of Tests: November 18-19, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 221118621.ACJ NOTE: The receiver portion was tested and complies with Part 15B under the verification procedure. PCTEST PT. 15.247 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N:15.221118621.ACJ Test Dates: NOV. 18-19, 2002 EUT Type: 2.4 GHZ FHSS CORDLESS PHONE FCC ID: ACJ96KX-TG2770 Page 4 of 24 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) and FCC Public Notice dated July 12, 1995 entitled “Guidance on Measurement for Direct Sequence Spread Spectrum Systems” were used in the measurement of Panasonic Spread Spectrum 2.4 GHz FHSS Cordless Phone. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Location The map at right shows the location of th…

Text truncated - open the document above for the full version.

Test Setup Photos

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ben Botros(Project Manager)

[email protected]201-348-7760Fax: 201-348-7760

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.40 GHz - 2.48 GHz	76.00 mW

Confidentiality

Long Term

Grant Notes

Power output is conducted (0.161W Base/ 0.076W Handset). This device has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. End Users must be informed of the operating requirements for satisfying body-worn RF exposure compliance. The highest reported SAR value is Head: 0.173 W/kg; Body: 0.254 W/kg at 25% duty factor.
