ACJ96NKX-TG4131FCC Part 15 D / DECT Cordless Telephone Base

Panasonic Corporation of North America
FCC Part 15 D / DECT Cordless Telephone Base - FCC ID ACJ96NKX-TG4131 - Panasonic Corporation of North America
Click to zoom

Application Details

Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
Date of Grant
Dec 20, 2010
Application Purpose
Original Equipment
Date of Application
Dec 19, 2010
Equipment Note
FCC Part 15 D / DECT Cordless Telephone Base
Frequency Range
1921.53600000 - 1928.44800000
Company
Panasonic Corporation of North America
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference. This unit is compatible with Caller ID. You must subscribe to the appropriate service offered by your service provider/telephone company. For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. Before initial use, see “Getting Started” on page 9. Consulte “Guía Rápida Española”, página 46. Please register your product: http://www.panasonic.com/prodreg Operating Instructions Digital Cordless Answering System Model shown is KX-TG4132. Model No. KX-TG4132 KX-TG4133 KX-TG4134 TG413x(e).book Page 1 Friday, September 24, 2010 8:45 AM Table of Contents 2 Introduction Model composition . . . . . . . . . . . . . . . . . . . . 3 Accessory information . . . . . . . . . . . . . . . . . 3 Important Information For your safety . . . . . . . . . . . . . . . . . . . . . . . 6 Important safety instructions . . . . . . . . . . . . 7 For best performance . . . . . . . . . . . . . . . . . 7 Other information . . . . . . . . . . . . . . . . . . . . . 8 Specifications . . . . . . . . . . . . . . . . . . . . . . . . 8 Getting Started Setting up. . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Note when setting up . . . . . . . . . . . . . . . . . 10 Intelligent eco mode. . . . . . . . . . . . . . . . . . 11 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Initial settings . . . . . . . . . . . . . . . . . . . . . . . 12 Making/Answering Calls Making calls . . . . . . . . . . . . . . . . . . . . . . . . 14 Answering calls . . . . . . . . . . . . . . . . . . . . . 14 Useful features during a call . . . . . . . . . . . 15 Shared Phonebook Shared phonebook . . . . . . . . . . . . . . . . . . 17 Programming Programmable settings . . . . . . . . . . . . . . . 19 Special programming . . . . . . . . . . . . . . . . . 23 Registering a unit . . . . . . . . . . . . . . . . . . . . 25 Caller ID Service Using Caller ID service . . . . . . . . . . . . . . . 26 Caller list . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Answering System Answering system . . . . . . . . . . . . . . . . . . . 29 Turning the answering system on/off . . . . . 29 Greeting message . . . . . . . . . . . . . . . . . . . 29 Listening to messages using the base unit 30 Listening to messages using the handset . 30 Remote operation . . . . . . . . . . . . . . . . . . . 31 Answering system settings . . . . . . . . . . . . 32 Voice Mail Service Voice mail service . . . . . . . . . . . . . . . . . . . 34 Intercom/Locator Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Handset locator . . . . . . . . . . . . . . . . . . . . . 36 Transferring calls, conference calls . . . . . . 36 Useful Information Wall mounting . . . . . . . . . . . . . . . . . . . . . . . 37 Error messages. . . . . . . . . . . . . . . . . . . . . . 39 Troubleshooting . . . . . . . . . . . . . . . . . . . . . 40 FCC and other information . . . . . . . . . . . . . 44 Guía Rápida Española Guía Rápida Española . . . . . . . . . . . . . . . . 46 Appendix Customer services . . . . . . . . . . . . . . . . . . . 50 Warranty (For United States and Puerto Rico) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Index Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 TG413x(e).book Page 2 Friday, September 24, 2010 8:45 AM Introduction 3 For assistance, please visit http://www.panasonic.com/help Model composition ENERGY STAR Accessory information Supplied accessories *1 The handset cover comes attached to the handset. SeriesModel No. Base unitHandset Part No.Part No.Quantity KX-TG4131 series KX-TG4132KX-TG4131KX-TGA4102 KX-TG4133KX-TG4131KX-TGA4103 KX-TG4134KX-TG4131KX-TGA4104 As an ENERGY STAR ® Partner, Panasonic has determined that this product meets the ENERGY STAR guidelines for energy efficiency. ENERGY STAR is a U.S. registered mark. No. Accessory item/ Order number Quantity KX-TG4132KX-TG4133KX-TG4134 1AC adaptor/PNLV226Z234 2Telephone line cord/ PQJA10075Z 111 3Rechargeable batteries/ HHR-4DPA 468 4Wall mounting adaptor/ PQKL10088Z1 111 5Handset cover *1 / PNYNTGA652BR 234 6Charger/PNLC1018Z123 123456 TG413x(e).book Page 3 Friday, September 24, 2010 8:45 AM Introduction 4 For assistance, please visit http://www.panasonic.com/help Additional/replacement accessories Please contact your nearest Panasonic dealer for sales information (page 50). *1 Replacement batteries may have a different capacity from that of the supplied batteries. *2 By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. Up to 2 range extenders can be registered to the base unit. This product can be purchased online. Please visit our Web site: http://www.panasonic.com/RangeExtender Accessory itemOrder number Rechargeable batteries HHR-4DPA *1 LTo order, please call 1-800-332-5368 or visit http://www.panasonic.com/batterystore Battery type: – Nickel metal hydride (Ni-MH) – 2 x AAA (R03) size for each handset T-adaptorKX-J66 Range extenderKX-TGA405 *2 TG413x(e).book Page 4 Friday, September 24, 2010 8:45 AM Introduction 5 For assistance, please visit http://www.panasonic.com/help Expanding your phone system Optional handset feature overview You can expand your phone system by registering optional handsets (6 max.) to a single base unit. LOptional handsets may be a different color from that of the supplied handsets. * 1 You can make a call using a speed dial key on the handset as well as the base unit if your FeatureKX-TGA410KX-TGA660KX-TGA659 Handset Display size1.8 inches1.8 inches1.9 inches Button sizeLargeLargeExtra large Speed dial *1 ––r TG413x(e).book Page 5 Friday, September 24, 2010 8:45 AM unit has the speed dial feature. Important Information 6 For assistance, please visit http://www.panasonic.…

Text truncated - open the document above for the full version.

Attestation Statements

PCTP-10-F018: Base FCC ID: ACJ96NKX-TG4131 PCTP-10-F019: Handset FCC ID: ACJ96NKX-TGA410 FCC Part 15D – Compliance Information Amended December 10, 2010 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Systems Network Co., Ltd. Address Fukuoka, Japan Contact Yukio Kaneko FP PP Repeater EUT Type/System FCC ID ACJ96NKX-TG4131 (IC:216A-KXTG4131) ACJ96NKX-TGA410 (IC:216A-KXTGA410) Model name KX-TG4131 KX-TGA410 HW Version SW Version Max antenna Gain 0.0 dBi 0.0 dBi Can the EUT be Initiating Device YES YES YES Does the EUT transmit signaling channels YES YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-10-F018: Base FCC ID: ACJ96NKX-TG4131 PCTP-10-F019: Handset FCC ID: ACJ96NKX-TGA410 FCC Part 15D – Compliance Information Amended December 10, 2010 page 2 (4) rev.1.4 ANTENNAS Antenna Type Internal External 1 Wired Antenna 2 Wired Antenna 3 4 Base (FP) or Repeater Does RX and TX use the same antenna(s)? Yes No Antenna Type Internal External 1 Wired Antenna 2 Handset (PP) Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Diversity Supported Antenna TX RX 1 2 3 Base (FP) or Repeater 4 1 Handset (PP) 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Repeater Nominal Voltage 120 VAC 2.4 VDC Cut-Off Voltage (if applicable) POWER SOURCE Type Manufacturer Base or Repeater AC Adapter with SPS @ 37 kHz, Model PNLV226 (UC) “or” AC Adapter with SPS @ 37 kHz, Model PNLV226 (FW) Panasonic Handset (PP) (charger) NiMH Batteries (2x) Data Connections PSTN (Base) Others (please specify) .... PCTP-10-F018: Base FCC ID: ACJ96NKX-TG4131 PCTP-10-F019: Handset FCC ID: ACJ96NKX-TGA410 FCC Part 15D – Compliance Information Amended December 10, 2010 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor and Charger Type PNLV226 (AC Adaptor) and PNLC1018 (Charger) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-10-F018: Base FCC ID: ACJ96NKX-TG4131 PCTP-10-F019: Handset FCC ID: ACJ96NKX-TGA410 FCC Part 15D – Compliance Information Amended December 10, 2010 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. FCC Section 15.307(b) Affidavit # PAN120706 issued on December 7, 2006. Confirmed By Applicant Yes No ADDITIONAL REMARKS: DECLARED BY: Date: December 10, 2010 Name: Richard Mullen Signature: Richard Mullen

Cover Letter(s)

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means: ∑ Provided with 128 bits for security codes. ∑ When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. ∑ Base and Handset knows each other’s security code information.

Cover Letter(s)

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Power of Attorney December 6, 2010 Part 15D DECT Base: PCTP-10-F018 Part 15D DECT Handset: PCTP-10-F019 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product, which are in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for DECT Base Model KX-TG4131(xx) Family 1 Original Application for DECT Handset Model KX-TGA410(xx) Family FCC Classification: Isochronous UPCS Base Station (PUB) Product Name: 1921.536 ~1928.448 MHz DECT Cordless Telephone Base Maximum Conducted Peak RF Output Power of 0.098 Watts FCC ID Base Unit ACJ96NKX-TG4131 FCC Classification: Isochronous UPCS Portable TX Held to Ear (PUE) Product Name: 1921.536 ~1928.448 MHz DECT Cordless Telephone Handset Maximum Conducted Peak RF Output Power of 0.112 Watts FCC ID Handset Unit ACJ96NKX-TGA410 Power Supply: AC Adaptor, Models PNLV266(FW) or PNLV266(UC) and both with switching power supply at 37 kHz Responsible Panasonic Corporation of North America Applicant & Grantee: One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 The subject Base will be: (1) FCC Part 68 certified by Nemko CCL under Certification ID Number US: ACJW401BKX-TG4131; and (2) will be marketed with Handset, which will be FCC Part 15D certified by Nemko CCL under FCC ID: ACJ96NKX-TGA410 Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality December 6, 2010 Part 15D DECT Base: PCTP-10-F018 Part 15D DECT Handset: PCTP-10-F019 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for DECT Base Model KX-TG4131(xx) Family Original Application for DECT Handset Model KX-TGA410(xx) Family FCC Classification: Isochronous UPCS Base Station (PUB) FCC ID Base Unit ACJ96NKX-TG4131 FCC Classification: Isochronous UPCS Portable TX Held to Ear (PUE) FCC ID Handset Unit ACJ96NKX-TGA410 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

External Photos

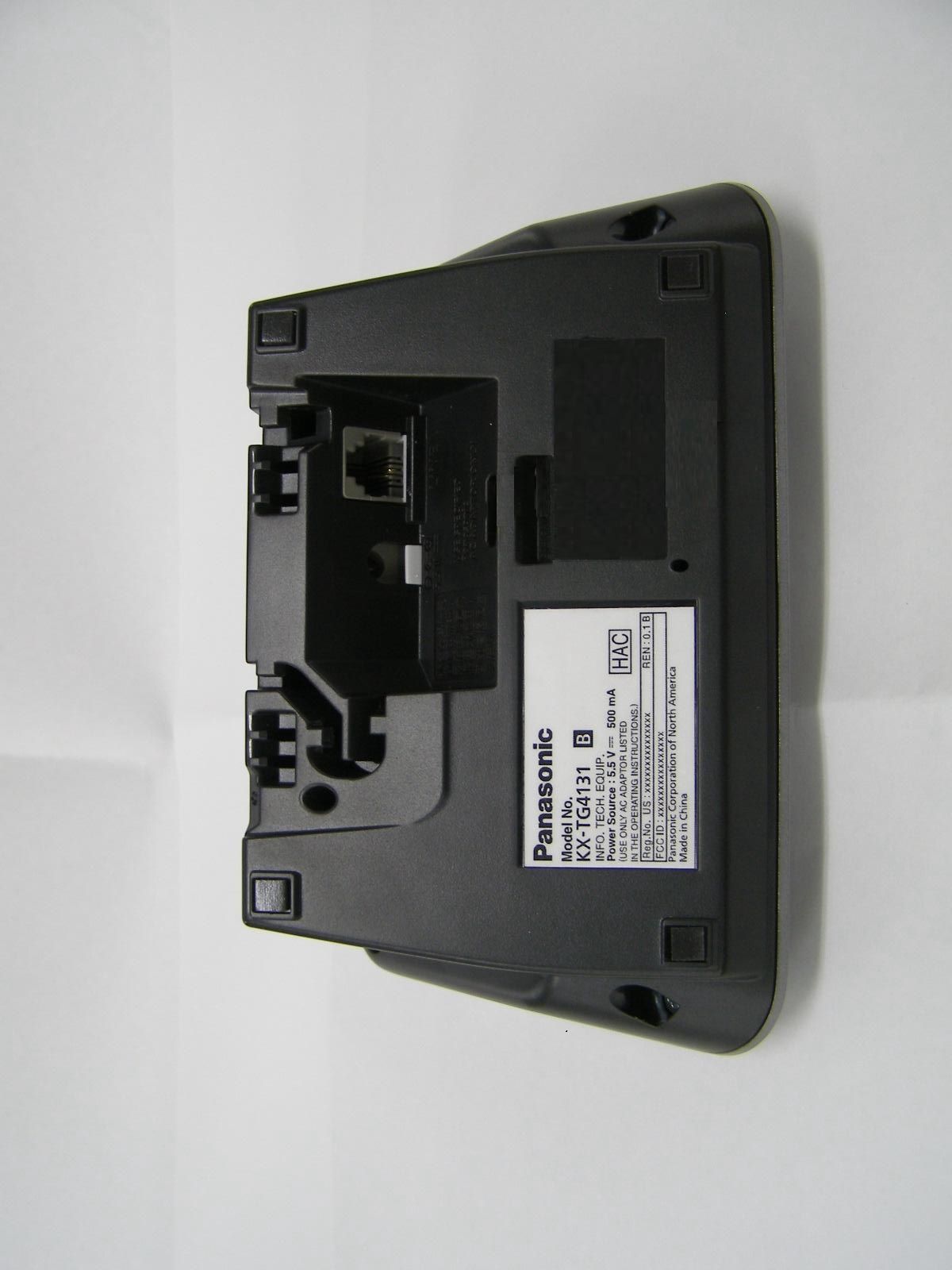

TEMPORARY CONFIDENTIAL EXTERNAL PHOTOGRAPHS KX-TG4131 TEMPORARY CONFIDENTIAL Bottom View

ID Label/Location Info

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit.

Internal Photos

TEMPORARY CONFIDENTIAL INTERNAL PHOTOGRAPHS Internal View TEMPORARY CONFIDENTIAL Main Board TEMPORARY CONFIDENTIAL RF Portion

RF Exposure Info

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to isotropicR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.90 (dBm) Maximum peak output power at antenna input terminal: 97.72 (mW) Antenna gain(typical): -0.5 (dBi) Maximum antenna gain: 0.891 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1928 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm^2) Power density at prediction frequency: 0.017327 (mW/cm^2) Power density at prediction frequency: 0.1733 (W/m^2) Margin of Compliance: 17.6 (dB) 2 4 R PG S π =

Test Report

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 161431-4 Item tested : KX-TG4131 Type of equipment : UPCS Base Station FCC ID : ACJ96NKX-TG4131 Client : Panasonic System Networks Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 8 December 2010 Authorized by : .............................................. G. Suhantakumar Technical Verificator TEST REPORT FCC part 15D Report no.: 161431-4 FCC ID: ACJ96NKX-TG4131 Nemko AS, N-2007 Kjeller Page 2 (26) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Description of Tested Device ............................................................................................................. 4 2.3 Exposure Evaluation .......................................................................................................................... 4 2.4 Test Environment .............................................................................................................................. 5 2.5 Test Period ........................................................................................................................................ 5 2.6 Test Engineer(s) ................................................................................................................................ 5 2.7 Test Equipment ................................................................................................................................. 5 2.8 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS ................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave .................................................................................................. 13 4.3 Digital Modulation Techniques ........................................................................................................ 13 4.4 Labeling Requirements ................................................................................................................... 13 4.5 Antenna Requirement...................................................................................................................... 14 4.6 Channel Frequencies ...................................................................................................................... 14 4.7 Peak Power Output ......................................................................................................................... 15 4.8 Spurious Emissions (Radiated) ....................................................................................................... 18 5 TEST SETUPS ................................................................................................................................ 24 5.1 Radiated Emissions Test, Semi-Anechoic Chamber ....................................................................... 24 5.2 Power Line Conducted Emissions Test ........................................................................................... 24 5.3 Radiated Emissions Test, Fully Anechoic Chamber ........................................................................ 25 6 TEST EQUIPMENT USED .............................................................................................................. 26 TEST REPORT FCC part 15D Report no.: 161431-4 FCC ID: ACJ96NKX-TG4131 Nemko AS, N-2007 Kjeller Page 3 (26) 1 GENERAL INFORMATION 1.1 Testhouse Info Name : Nemko AS Address : Nemko Kjeller Instituttveien 6 N-2007 Kjeller, NORWAY Telephone : +47 64 84 57 00 Fax : +47 64 84 57 05 E-mail: [email protected] FCC test firm registration # : 994405 IC OATS registration # : 2040D-1 Total Number of Pages: 26 1.2 Client Information Name : Panasonic System Networks Co., Ltd. Address : 1-62, 4-Chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan Telephone : +81-92-477-1405 Fax : +81-92-477-1487 Contact: Name : Mr. Junji Sumi Telephone : +81 92 477 1405 E-mail : [email protected] 1.3 Responsible Manufacturer (if other than client) Name : / Address : / TEST REPORT FCC part 15D Report no.: 161431-4 FCC ID: ACJ96NKX-TG4131 Nemko AS, N-2007 Kjeller Page 4 …

Text truncated - open the document above for the full version.

Test Report

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 137945-3 Item tested : KX-TG6531 Type of equipment : UPCS Base FCC ID : ACJ96NKX-TG6531 Client : Panasonic Communications Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 7 December 2009 Authorized by : .............................................. Egil Hauger Technical Verificator TEST REPORT FCC part 15D Report no.: 137945-3 FCC ID: ACJ96NKX-TG6531 Nemko AS, N-2007 Kjeller Page 2 (52) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Test Environment .............................................................................................................................. 5 2.3 Test Period ........................................................................................................................................ 5 2.4 Test Engineer(s) ................................................................................................................................ 5 2.5 Test Equipment ................................................................................................................................. 5 2.6 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS ................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave .................................................................................................. 11 4.3 Digital Modulation Techniques ........................................................................................................ 11 4.4 Labeling Requirements ................................................................................................................... 11 4.5 Antenna Requirement...................................................................................................................... 12 4.6 Channel Frequencies ...................................................................................................................... 12 4.7 Automatic Discontinuation of Transmission .................................................................................... 13 4.8 Peak Power Output ......................................................................................................................... 14 4.9 Emission Bandwidth B ..................................................................................................................... 19 4.10 Power Spectral Density ................................................................................................................... 22 4.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 25 4.12 Out-of-band Emissions, Conducted................................................................................................. 27 4.13 Carrier Frequency Stability .............................................................................................................. 32 4.14 Frame Repetition Stability ............................................................................................................... 33 4.15 Frame Period and Jitter ................................................................................................................... 33 4.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 35 4.17 Threshold Monitoring Bandwidth ..................................................................................................... 37 4.18 Reaction Time and Monitoring Interval ............................................................................................ 38 4.19 Time and Spectrum Window Access Procedure ............................................................................. 40 4.20 Acknowledgements and Transmission Duration ............................................................................. 43 4.21 Dual Access Criteria Check ............................................................................................................. 44 4.22 Alternative Moni…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: ACJ96NKX-TG4131 Project no.: 161431 Page 1 of 2 PHOTOS OF TEST SET-UP – KX-TG4131 Radiated Emissions Test Set-up FCC ID: ACJ96NKX-TG4131 Project no.: 161431 Page 2 of 2 Power line Conducted Emissions Test Set-up

Contact Information

Applicant

Ben Botros(Project Manager)
[email protected]201-348-7760Fax: 201-348-7760

Technical Contact

Panasonic Corporation of North AmericaRichard Mullen
[email protected]201-348-7758

One Panasonic Way, 4B-8 · Secaucus · United States

Test Firm

Nemko ASFrode Sveinsen
[email protected]47-22-96-03-35Fax: 47-22-96-05-50

Technical Specifications

#Rule PartsFrequency RangePower Output
115D1.92 GHz - 1.93 GHz98.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is peak conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
