ACJ96NKX-TG4221DECT 6.0 Base

Digital Cordless Answering System Model No. KX-TG4221 KX-TG4222 KX-TG4223 KX-TG4224 KX-TG4225 KX-TG4221 KX-TG4221 KX-TG4221 KX-TGA421 seriesKX-TG4222 KX-TG4221 KX-TGA421 KX-TG4223 KX-TG4221 KX-TGA421 KX-TG4224 KX-TG4221 KX-TGA421 KX-TG4225 KX-TG4221 KX-TGA421 Supplied handset qty. 1 unit *1 2 units *2 3 units *3 4 units *4 5 units *5 Accessory item/ Order number ① AC adaptor/PNLV226Z ② Telephone line cord/PQJA10075Z ③ Wall mounting adaptor/PQKL10088Z3 ④ Rechargeable batteries/HHR-4DPA ⑤ Handset cover *6 /PNYNTGA652GR ⑥ Charger/PNLC1041ZN *1 KX-TG4221 *2 KX-TG4222 *3 KX-TG4223 *4 KX-TG4224 *5 KX-TG4225 *6 The handset cover comes attached to the handset. ①②③④⑤ ⑥ Handset Part No.Quantity No. SeriesModel No. Base unit Part No. Accessory quantity 1 1 4 1 5 1 1 8 4 1 10 5 1 2 1 6 3 5 2 1 1 4 2 3 1 1 3 4 1 2 4 － 123 Accessory itemModel number Rechargeable HHR-4DP A *1 batteries L To order, please call 1-800-332-5368 or visit http://www.panasonic.com/batterystore Battery type: –Nickel metal hydride (Ni-MH) –2 x AAA (R03) size for each handset T-adaptorKX-J66 Range extender KX-TGA405 *2 *1 Replacement batteries may have a different capacity from that of the supplied batteries. *2 By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. This product can be purchased online. Please visit our Web site: http://www.panasonic.com/RangeExtender Handset (optional): KX-TGA421 You can expand your phone system by registering optional handsets (6 max.) to a single base unit. L Optional handsets may be a different color from that of the supplied handsets. on page 2. ■Base unit L Use only the supplied Panasonic AC adaptor PNLV226. ■Charger . L For body-worn operation, the handset must be used only with a non-metallic accessory. Use of other accessories may not ensure compliance with FCC RF ex posure requirement.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means:  Provided with 128 bits for security codes.  When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC.  Base and Handset knows each other’s security code information.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Power of Attorney December 21, 2012 PCTP-12-F002 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base 1 FCC Classification: Isochronous UPCS Base Station (PUB) FCC ID Base Unit ACJ96NKX-TG4221 FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 RF Output Power: 0.110 Watts Responsible Panasonic Corporation of North America Applicant & Grantee: One Panasonic Way, Secaucus, NJ 07094 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 Base Station will be approved for compliance with FCC Part 68 under Certification ID Number US: ACJW401BKX-TG4221. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality December 21, 2012 PCTP-12-F002 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base FCC Classification: Isochronous UPCS Base Station (PUB) FCC ID Base Unit ACJ96NKX-TG4221 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Handset Unit and RF Unit; and (4) Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Handset Unit and RF Unit; (2) Internal Photographs of Handset Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

PCTP-12-F002 / DECT Base under FCC ID: ACJ96NKX-TG4221 FCC Part 15D – Compliance Information pctp-12-f002 (fcc part 15d compliance information for dect base under acj96nkx-tg4221).doc 8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication Products Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Keisuke Hirai FP EUT Type/System FCC ID ACJ96NKX-TG4221 Model name KX-TG4221 HW Version PNLB2154xx SW Version SW401 Max antenna Gain (dBi) 0dBi Can the EUT be Initiating Device YES Does the EUT transmit signaling channels YES Max number of slots in use simultaneously 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-12-F002 / DECT Base under FCC ID: ACJ96NKX-TG4221 FCC Part 15D – Compliance Information pctp-12-f002 (fcc part 15d compliance information for dect base under acj96nkx-tg4221).doc 8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Antenna Type Internal External 1 Wired Antenna 2 3 4 Base (FP) Does RX and TX use the same antenna(s)? Yes No Antenna Type Internal External 1 2 Handset (PP) Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Diversity Supported Antenna TX RX 1 2 3 Base (FP) 4 1 Handset (PP) 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC - Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater AC Adaptor for Base: Types PNLV226(FW) or PNLV226(UC) with switching frequency at 54 kHz or 38 kHz. Panasonic PCTP-12-F002 / DECT Base under FCC ID: ACJ96NKX-TG4221 FCC Part 15D – Compliance Information pctp-12-f002 (fcc part 15d compliance information for dect base under acj96nkx-tg4221).doc 8-Dec-2006 page 3 (4) rev.1.4 Handset (PP) (Charger) AC Adaptor Models PNLV233(YJ) or PNLV233(UC) with switching frequency at 33 kHz or 38 kHz for connection to Charger Cradle Model PNLC1041 Data Connections PSTN (Base) Others (please specify) .... ANCILLARY EQUIPMENT Description AC Adaptor and Charger Type PNLV226 (AC Adaptor) and PNLC1040(AC Aaptor Charger PNLV233) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-12-F002 / DECT Base under FCC ID: ACJ96NKX-TG4221 FCC Part 15D – Compliance Information pctp-12-f002 (fcc part 15d compliance information for dect base under acj96nkx-tg4221).doc 8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: December 21, 2012 Richard Mullen Richard Mullen

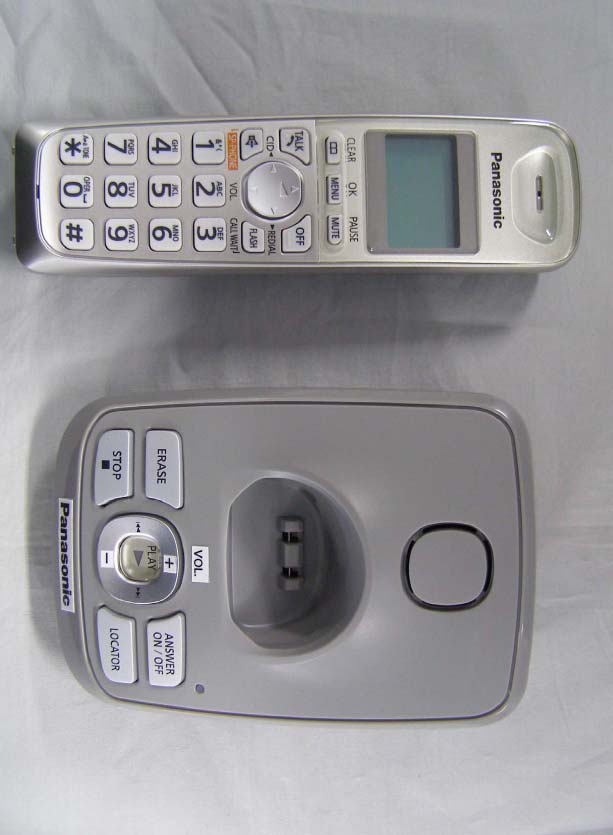

EXTERNAL PHOTOGRAPHS KX-TG4421 Bottom View KX-TG4421

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above m arkings are shown on bottom of the base unit.

INTERNAL PHOTOGRAPHS Main Board Internal View

FCC ID: ACJ96NKX-TG4221 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 20.20 (dBm) Maximum peak output power at antenna input terminal : 0.105 (W) Maximum antenna gain: -1.20 (dBi) Maximum antenna gain: 0.759 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0158 (mW/cm^2) Power density at prediction frequency: 0.158 (W/m^2) Maximum allowable antenna gain: 16.81 (dBi) Margin of Compliance: 18.01 (dB) 2 4 R PG S π =

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 224784-1 Item tested : KX-TG4221 Type of equipment : UPCS Base FCC ID : ACJ96NKX-TG4221 Client : Panasonic System Networks Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 2 January 2013 Authorized by : .............................................. Roy Uggerud Technical Verificator TEST REPORT FCC part 15D Report no.: 224784-1 FCC ID: ACJ96NKX-TG4221 Nemko AS, N-2007 Kjeller Page 2 (52) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Description of Tested Device ............................................................................................................. 4 2.3 Exposure Evaluation .......................................................................................................................... 4 2.4 Test Environment .............................................................................................................................. 5 2.5 Test Period ........................................................................................................................................ 5 2.6 Test Engineer(s) ................................................................................................................................ 5 2.7 Test Equipment ................................................................................................................................. 5 2.8 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS ................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave .................................................................................................. 14 4.3 Digital Modulation Techniques ........................................................................................................ 14 4.4 Labeling Requirements ................................................................................................................... 14 4.5 Antenna Requirement...................................................................................................................... 15 4.6 Channel Frequencies ...................................................................................................................... 15 4.7 Automatic Discontinuation of Transmission .................................................................................... 16 4.8 Peak Power Output ......................................................................................................................... 17 4.9 Emission Bandwidth B ..................................................................................................................... 22 4.10 Power Spectral Density ................................................................................................................... 25 4.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 28 4.12 Out-of-band Emissions, Conducted................................................................................................. 30 4.13 Carrier Frequency Stability .............................................................................................................. 35 4.14 Frame Repetition Stability ............................................................................................................... 36 4.15 Frame Period and Jitter ................................................................................................................... 36 4.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 38 4.17 Threshold Monitoring Bandwidth ..................................................................................................... 40 4.18 Reaction Time and Monitoring Interval ............................................................................................ 41 4.19 Time and Spectrum Window Access Procedure ............................................................................. 43 4…

Text truncated - open the document above for the full version.

FCC ID: ACJ96NKX-TG4221 Project no.: 224784 Page 1 of 1 PHOTOS OF TEST SET-UP – KX-TG4221 Power line Conducted Emissions Test
