ACJ96NKX-TG51105.8 GHz FHSS Cordless Telephone System

5.8GHz Expandable Cordless Phone System Model No.KX-TG5100M KX-TG5110M Pulse-or-tone-dialing capability Operating Instructions Charge the battery for about 6 hours before initial use. PLEASE READ BEFORE USE AND SAVE. Contents: Location of Controls2 Connections5 Battery Installation/Battery Charge6 Recording a Greeting Message7 Making/Answering calls with the Handset8 Making/Answering calls with the Base Unit9 Caller ID Service9 Automatic Answering Operation10 Listening to Messages10 Important Safety Instructions11 FCC and Other Information13 –2– Please read IMPORTANT SAFETY INSTRUCTIONS on page 11 before use. Read and understand all instructions. Location of Controls Handset Headset Jack [TONE] Button [ ] (TALK) Button [ ] (Speakerphone) Button [CONF (Conference) / FUNCTION ] Button Microphone Charge Contacts Antenna Display [OFF] Button [HOLD/INTERCOM/CLEAR] [PAUSE/REDIAL] Button Soft Keys Receiver [FLASH/CALL WAIT] Button Navigator Key ( , , , ) Back side Speaker –3– Base unit Display [MUTE] Button and Indicator [CALL WAIT/FLASH] Button [REDIAL/PAUSE] Button [PRIVACY] Button [STOP] Button [GREETING] Button [MEMO] Button) Antenna Antenna [MIC] (Microphone) [DIGITAL SP-PHONE] (Speakerphone) Button and Indicator [LOCATOR/INTERCOM/ TRANSFER] Button and Indicator [HOLD] Button [CONF] (Conference) Button [ERASE] Button [ANSWER ON] Button and Indicator CHARGE Indicator Charge Contacts Navigator Key ( , , , ) [ Y ] (TONE) Button MAILBOX Buttons) [FUNCTION/EDIT] Button –4– Charger unit C H A R G E Charge Contacts AC Adaptor CHARGE Indicator –5– Connections Connect the AC adaptor and the telephone line cord. •USE ONLY WITH Panasonic AC ADAPTOR PQLV10.(Order No.PQLV10Z) •The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Hook Telephone Line Cord Single-Line Telephone Jack (RJ11C) Fasten the AC adaptor cord to prevent it from being disconnected. AC Adaptor Power Outlet (AC 120 V, 60 Hz) Raise the antennas. Power Outlet (AC 120 V, 60 Hz) AC Adaptor •USE ONLY WITH Panasonic AC ADAPTOR PQLV2(Order No.PQLV2Z). •The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Charger unit –6– Battery Installation/Battery Charge Recharge Recharge the battery when: –"Recharge battery" is displayed, –"" flashes on the display, or – the handset beeps every minute while it is in use. •Clean the handset and the base unit charge contacts with a soft, dry cloth once a month. Clean more often if the unit is subject to grease, dust or high humidity.If not, the battery may not charge properly. •If the battery is fully charged, you do not have to place the handset on the base unit until "Recharge battery" is displayed and/or "" flashes. This will maximize the battery life. •The battery cannot be overcharged. Battery installation 1 Install the battery in the handset. 2 Close the handset cover. Battery charge To power the handset, charge the battery. Place the handset on the base unit for about 6 hours before initial use. A nickel cadmium battery that is recyclable powers the product you have purchased. At the end of its useful life, under various state and local laws, it is illegal to dispose of this battery into your municipal waste stream. Please call 1-800-8-BATTERY for information on how to recycle this battery. –7– You can record a personal greeting message of up to 2 minutes. If a greeting message is not recorded, one of two pre-recorded greetings will be played when a call is received. •All messages (greeting, incoming, etc.) are stored in digital memory. The total recording time is about 15 minutes. We recommend you record a brief greeting messagein order to leave more time for recording new messages. 1 Press and hold (GREETING)until a long beep is heard. 2 After the long beep, talk clearly, about 20 cm (8 inches) away from the MIC (microphone). 3 When finished, press (GREETING). •If you do not record a greeting message, one of two messages will be played when a call is received, depending on the caller’s recording time. Recording a Greeting Message –8– To make a call 1 Press or . 2 Dial a telephone number. 3 To hang up, press (OFF)or place the handset on the base unit. •If "No link to base. Walk closer to base and try again" is displayed and an alarm tone sounds in step 1, move closer to the base unit or place the handset on the base unit, and try again. •To redial the last number,press or , then press (PAUSE/REDIAL). •To adjust the receiver volume/speaker volume: To increase, press . To decrease, press . •To put a call on hold,press(HOLD/INTERCOM/CLEAR). •To release the hold,press(HOLD/INTERCOM/CLEAR). To answer a call Press or . Making/Answering Calls with the Handset –9– Making/Answering Calls with the Base Unit To make a call 1 Press (DIGITAL!SP-PHONE). 2 Dial a telephone number. 3 Talk into the MIC(microphone). 4 To hang up, press (DIGITAL!SP-PHONE). •To redial the last number,press (DIGITAL!SP-PHONE), then press (REDIAL/PAUSE). •To adjust the speaker volume: To increase, press . To decrease, press . •To put a call on hold,press (HOLD). •To release the hold, press (DIGITAL!SP-PHONE). To answer a call Press (DIGITAL!SP-PHONE), then talk into the MIC(microphone). Caller ID Service This unit is compatible with a Caller ID service offered by your telephone company. After subscribing to a Caller ID service, the calling party’s information will be shown on the handset display after the first ring. The unit can record information of up to 30 different callers in the caller list. The Caller List information is sorted from the most recent to the oldest call. When the unit receives the 31st call, the oldest call is deleted. If your unit is connected to a PBX system which does not support Caller ID services, you cannot access those services. Please consult your equipment supplier. –10– Automatic Answering Operation  How to use the mailboxes The unit accommodates three mailboxes (Mailbox 1, 2 and 3). A c…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has 1,099 billion digital security coding combinations that are provided by the following means: • Provided with 40 bits (1,099 billion) for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC.

BASE UNIT 5.5VCONVERTOR IC601 TIP RING DC/TEL_JAC VRF RF_UNIT IC501DSP DC9V+GND 3 4 21 D106 Q111 IC331 IC381 Q141 Q171 KEYPAD RXDATA Vcc Crystal 13.824 MHz

HANDSET 21 CHARGE BATT+ BATT- IC204 IC203 RINGER MIC SPEAKER HEAD SET JACK CN203 LCD IC202 KEYPAD KEY LEDS VCC RF UNIT VRF TX DATA RXDATA IC201DSP Crystal 13.824 MHz

February 20, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Stan Lyles SUBJECT: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ96NKX-TG5110 731 Confirmation No.: EA466126 Correspondence Reference No.: 24766 Request for Tech. Info.: 1/30/03 Dear Stan: Transmitted herewith, on behalf of Matsushita Electric Industrial Co., Ltd. is an amendment provided in response to the request for technical information dated January 30, 2003. 1. The base and the handset are both included in this application. The cover letter only indicates that the Part 68 application for telecom compliance issues pertinent to the base is being handled by a TCB. 2. Please find test report plots for both base and hand set. 3. The maximum peak output power of the base is 0.268 Watts and the maximum peak output power of the handset is 0.170 Watts, as indicated in the amended EMC report. 4. The measured scans generated from the SAR measurement system correspond to the location of the hotspots with respect to the specific phantom. The separation distance from the left ear to the antenna of this unit is slightly greater than that from the right side, hence the left ear SAR peaks appear near the keypad and the right ear SAR peaks near the antenna. 5. Please find attached page 7 of the SAR report with the recipe for the 5.8 GHz liquids 6. Please find attached confidentiality letter regarding probe calibration details/photos and 5.8 GHz recipes. 7. Please find attached justification for validation targets. 8. Details of the 25% duty cycle: The basic repeating frame structure is 10 msec long. It is sub-divided into 8 slots, each 1250 μsec long. The active transmission time is 937.5 μsec. The first 4 slots are allocated for the “up-link”, when the handset transmits to the base set. The last 4 slots form the “down-link”, when the base set transmits to the handset. This system uses TDD (Time Division Duplex) for two-way voice communication. This is accomplished using slot pairs 0 and 4, 1 and 5, 2 and 6, and 3 and 7. Each slot contains 540 bits, 1.74 μsec in duration, with 312.5 μsec gap times between each slot. Implementing two slot pairs would correspond to a duty cycle of 25%. This duty cycle was used during SAR evaluation. For a 25% duty cycle, the 1 gram averaged SAR decreased by 25%±0.5% compared to a 100% duty signal (See attachments) 9. Please find the printouts from the dielectric measurement equipment. 10. Please find attached details of uncertainty development at 5.8 GHz. If you have any questions, please do not hesitate to contact us. cc: Matsushita Electric Industrial, Co. Ltd.

February 20, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Stan Lyles SUBJECT: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ96NKX-TG5110 731 Confirmation No.: EA466126 Correspondence Reference No.: 24766 Request for Tech. Info.: 1/30/03 PCTEST Confidentiality Request – 5.8 GHz Probe Calibration Dear Stan: From verbal authorization from Mr. Richard Mullen, Group Manager, Division of Product Safety & Compliance on 02/19/2003 (with Alfred Cirwithian, witnessed via speakerphone by Stephen Liu) PCTEST issues this confidentiality request as an addition to the original request for confidentiality filed with the FCC, dated 12/11/2002 on behalf on Matsushita Electric Industrial, Co. Ltd. in the matter of the referenced application. Pursuant to section 0.459 of 47 CFR, confidentiality is requested for: • Detailed Probe Calibration Procedures (5.8 GHz) • Page 7 of SAR Report – (5.8 GHz Mixture) and will be filed under PCTEST Operational Description. Justification for this request is the protection of proprietary trade secrets and that such materials would customarily be guarded from competitors. Sincerely, cc: Matsushita Electric Industrial, Co. Ltd.

March 10, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Stan Lyles SUBJECT: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ96NKX-TG5110 731 Confirmation No.: EA466126 Correspondence Reference No.: 24861 Request for Tech. Info.: 2/28/03 Dear Stan: Transmitted herewith, on behalf of Matsushita Electric Industrial Co., Ltd. is an amendment provided in response to the request for technical information dated February 28, 2003. 1. Please find attached the test report plots for both handset and base set. 2. Please find attached photos of horn/free space setup with and without E-field probe. The verification of field homogeneity and details of E-field probe are indicated on the caption above the photos. Verification of thermistor RF transparency via liquid isotropy measurements is attached. In addition, this letter is a formal withdrawal of the confidentiality request submitted on Feb. 20, 2003, for the 5.8 GHz probe calibration procedures and mixtures. 3. Please find the attached pages regarding justification of verification target value. 4. Please find the attached uncertainty details for device measurement and system verification. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Matsushita Electric Industrial Co., Ltd.

March 31, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Stanley Lyles SUBJECT: Matsushita Electric Industrial Co., Ltd. FCC ID: ACJ96NKX-TG5110 731 Confirmation No.: EA466126 Correspondence Reference No.: 24967 Request for Tech. Info.: 3/18/2003 Dear Stanley: Transmitted herewith, on behalf of Matsushita Electric Industrial Co., Ltd. is an amendment provided in response to the request for technical information dated March 18, 2003. 1. Please find attached exhibits including 2-D contour plots along the z-axis and z- scan plot scans (with marked sample points and expected behavior) demonstrating that the free space field was well behaved in the region of calibration. Please also find details of the new revised temperature probe calibration uncertainty (11.36%) and data justifying hemispherical isotropy uncertainty. Please also find photographs and explanation for angle measurements. Hemispherical isotropy was determined “in liquid”. 2. Please find attached similar 1 gram target analysis (values determined by Tim Harrington per correspondence were included in analysis). Since there were no available measurement standards for measuring SAR at 5.8 GHz, PCTEST chose to extrapolate from the IEEE P1528 accepted targets from 3GHz to 5.8 GHz to generate an approximate conservative target, until further guidance is issued (See attached table and comparison). This estimated target for 5.8GHz was also accepted under EA214444, which also complied on the side of caution for RF safety. Given the maximum SAR level is well within the FCC RF exposure limit and the measured SAR level is the worst-case, PCTEST believes that there is no issue of non-compliance. 3. Please find time of occupancy (dwell time) data. 4. Please find 2 samples of frequency hopping sequence. Panasonic requests that this document be kept confidential. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Matsushita Electric Industrial Co., Ltd.

FIG 1 FIG 2 FIG 3

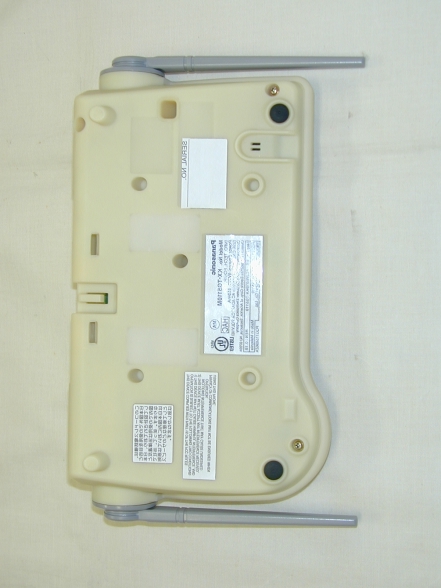

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit. Portable Unit: FCC ID Label The marking will be shown on the battery compartment of the portable unit.

FIG 4 FIG 5 P.C. Board Another Side FIG 6 P.C. Board (RF Cover Removed) FIG 7 Handset FIG 8 Battery Cover Removed FIG 9 FIG 10 Handset (P.C.Board Another Side) FIG 11 Handset RF Cover Removed

SAR Data Report 02112201 Start : 22-Nov-02 9:38:28 am End : 22-Nov-02 9:44:27 am Code Version : 4.12 Robot Version: 4.08 Serial Number: 1068 Product Data: Type : Dipole Frequency : 5800 MHz Transmit Pwr : 0.100 W Antenna Type : Dipole Antenna Posn. : Validation Measurement Data: Phantom Name : SAM FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 36.500 Tissue Conductivity : 5.300 Tissue Density : 1.000 Crest Factor : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 5000 MHz Tissue Type : Brain Calibrated Dielectric : 35.300 Calibrated Conductivity : 5.270 Probe Offset : 2.400 mm Conversion Factor : 2.400 Diode Compression Pt : 76.0 mV Probe Sensitivity : 0.683 0.796 0.774 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Chan. Offset (mV) : 2.39 2.95 2.60 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Scan Time: 166.7 msec Comments: 5800 MHz Validation Amb. Temp= 22.4 'C; Liq. Temp=21.9 'C Area Scan - Max Peak SAR Value at x=3.0 y=3.0 = 12.55 W/kg Zoom Scan - Max Peak SAR Value at x=4.0 y=2.0 z=0.0 = 26.52 W/kg Max 1g SAR at x=4.0 y=3.0 z=0.0 = 13.76 W/kg Max 10g SAR at x=4.0 y=2.0 z=0.0 = 5.95 W/kg Validation Results at 0.10 W: Peak Nominal = 27.4, Error: 3.21 % 1g Nominal = 13.2, Error: 3.93 % 10g Nominal = 5.7, Error: 3.66 % 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:4.0 y:2.0 1g SAR Values 13.26 12.40 11.53 10.67 9.81 8.95 8.09 7.22 6.36 5.50 4.64

SAR Data Report 02112201 Start : 22-Nov-02 9:38:28 am End : 22-Nov-02 9:44:27 am Code Version : 4.12 Robot Version: 4.08 Serial Number: 1068 Product Data: Type : Dipole Frequency : 5800 MHz Transmit Pwr : 0.100 W Antenna Type : Dipole Antenna Posn. : Validation Measurement Data: Phantom Name : SAM FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 36.500 Tissue Conductivity : 5.300 Tissue Density : 1.000 Crest Factor : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 5000 MHz Tissue Type : Brain Calibrated Dielectric : 35.300 Calibrated Conductivity : 5.270 Probe Offset : 2.400 mm Conversion Factor : 2.400 Diode Compression Pt : 76.0 mV Probe Sensitivity : 0.683 0.796 0.774 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Chan. Offset (mV) : 2.39 2.95 2.60 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Scan Time: 166.7 msec Comments: 5800 MHz Validation Amb. Temp= 22.4 'C; Liq. Temp=21.9 'C Area Scan - Max Peak SAR Value at x=3.0 y=3.0 = 12.55 W/kg Zoom Scan - Max Peak SAR Value at x=4.0 y=2.0 z=0.0 = 26.52 W/kg Max 1g SAR at x=4.0 y=3.0 z=0.0 = 13.76 W/kg Max 10g SAR at x=4.0 y=2.0 z=0.0 = 5.95 W/kg Validation Results at 0.10 W: Peak Nominal = 27.4, Error: 3.21 % 1g Nominal = 13.2, Error: 3.93 % 10g Nominal = 5.7, Error: 3.66 % 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:4.0 y:2.0 1g SAR Values 13.26 12.40 11.53 10.67 9.81 8.95 8.09 7.22 6.36 5.50 4.64

PCT Calibration Laboratory © 2002 PCTEST Calibration Data Probe: PCT002 OFFSET ANGLE (cm) (deg) 0.24 54.73 Isotropicity Frequency % dB 5800 2.85 0.12 Tissue Type Freq. (MHz) Dielectric Constant Conductivity (S/m) Conversion Factor Brain 5800 36.5 5.30 2.4 Muscle 5800 47.5 5.75 2.5 5 GHz Calibration (PCT002) 0 0.25 0.5 0.75 1 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Ch1 Ch2 Ch3 Sum 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 0100200300 TEM Calibration Plot Date: 13-Nov-02 03:43:23 pm Probe Name: PCT002 Frequency: 5800 Sensitivity: Ch1: 0.683 Ch2: 0.796 Ch3: 0.774 mV/(mW/cm^2) Isotropicity: 2.85% 0.12 db Min=0.985 Max=1.042

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC SAR Report Reviewed by: Quality Manager SAR Filename: SAR.221118604.ACJ Test Dates: November 18-19, 2002 EUT Type: 5.8 GHz FHSS Cordless Phone FCC ID: ACJ96NKX-TG5110 Page 1 of 23 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Matsushita Electric Industrial Co., Ltd. Dates of Tests: November 18-19, 2002 1006 Oaza Kadoma, Kadoma, Osaka Test Report S/N: SAR.221118604.ACJ 571 JAPAN Test Site: PCTEST Lab, Columbia MD Attn: K. Nawata (KMECL) Rich Mullen (PSCD, MECA) FCC ID: ACJ96NKX-TG5110 APPLICANT: Matsushita Electric Industrial Co., Ltd. EUT Type: 5.8 GHz FHSS Cordless Phone Tx Frequency: 5759.703 — 5838.187 MHz (FHSS) Rx Frequency: 5759.703 — 5838.187 MHz (FHSS) Max. RF Output Power: 0.268W Conducted (Base Set) 0.170W Conducted (Hand Set) Max. SAR Measurement: 0.43 W/kg over 1 gm BODY (Base Set) 0.79 W/kg over 1 gm BODY (Head Set) 0.35 W/kg over 1 gm HEAD (Head Set) Trade Name/Model(s): PANASONIC KX-TG5110 FCC Classification: Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Parts: §2.1093; ET Docket 96.326 Application Type: Certification Test Device Serial No.: Identical prototype[S/N: #2] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft CBD 1.0 — April 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Power output is conducted. This transmitter has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. Users must be informed of the operating requirements for satisfying body-worn RF exposure compliance. The highest reported SAR value is Head: 0.43 W/kg; Body: 0.79 W/kg at 25 % duty factor. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.221118604.ACJ PCTEST SAR TEST REPORT FCC SAR Report Reviewed by: Quality Manager SAR Filename: SAR.221118604.ACJ Test Dates: November 18-19, 2002 EUT Type: 5.8 GHz FHSS Cordless Phone FCC ID: ACJ96NKX-TG5110 Page 2 of 23 © 2002 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Body Holster /Belt Clip Configurations.................................................................. 11 10. ANSI/IEEE C95.1 -…

Text truncated - open the document above for the full version.

SAR Data Report 02111947 Start : 19-Nov-02 04:36:14 pm End : 19-Nov-02 04:43:11 pm Code Version : 4.12 Robot Version: 4.08 Serial Number: 1068 Product Data: Type : PANASONIC Model Number : KX-TG5110 Frequency : 5838.187348 MHz Transmit Pwr : 0.212 W Antenna Type : J-Type Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 47.500 Tissue Conductivity : 5.750 Tissue Density : 1.000 Crest Factor : 4.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 5000 MHz Tissue Type : Muscle Calibrated Dielectric : 47.600 Calibrated Conductivity : 5.890 Probe Offset : 2.400 mm Conversion Factor : 2.500 Diode Compression Pt : 76.0 mV Probe Sensitivity : 0.683 0.796 0.774 mV/(V/m)^2 Amplifier Gains : 20.00 20.00 20.00 Chan. Offset (mV) : 2.49 2.86 2.76 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Scan Time: 166.7 msec Comments: FHSS Mode CH-88 Body (BASESET) Amb. Temp.= 22.4 'C; Liq. Temp.= 22.0'C Area Scan - Max Local SAR Value at x=8.0 y=15.0 = 0.18 W/kg Zoom Scan - Max Local SAR Value at x=24.0 y=-1.0 z=0.0 = 1.21 W/kg Max 1g SAR at x=16.0 y=14.0 z=0.0 = 0.30 W/kg Max 10g SAR at x=13.0 y=11.0 z=0.0 = 0.12 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:24.0 y:-1.0 1g SAR Values 0.172 0.159 0.145 0.131 0.117 0.103 0.089 0.075 0.061 0.047 0.034

SAR Data Report 02111912 Start : 19-Nov-02 10:57:22 am End : 19-Nov-02 11:06:56 am Code Version : 4.12 Robot Version: 4.08 Serial Number: 1068 Product Data: Type : PANASONIC Model Number : KX-TG5110 Frequency : 5798.945026 MHz Transmit Pwr : 0.155 W Antenna Type : J-Type Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM RIGHT-3 Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 36.500 Tissue Conductivity : 5.300 Tissue Density : 1.000 Crest Factor : 4.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 5000 MHz Tissue Type : Brain Calibrated Dielectric : 35.300 Calibrated Conductivity : 5.270 Probe Offset : 2.400 mm Conversion Factor : 2.400 Diode Compression Pt : 76.0 mV Probe Sensitivity : 0.683 0.796 0.774 mV/(V/m)^2 Amplifier Gains : 20.00 20.00 20.00 Chan. Offset (mV) : 0.93 1.78 1.45 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Scan Time: 166.7 msec Comments: FHSS Mode CH-44 Cheek Amb. Temp.= 22.4 'C; Liq. Temp.= 21.9'C Area Scan - Max Local SAR Value at x=-43.0 y=8.0 = 0.11 W/kg Zoom Scan - Max Local SAR Value at x=-59.0 y=24.0 z=0.0 = 2.27 W/kg Max 1g SAR at x=-42.0 y=7.0 z=0.0 = 0.25 W/kg Max 10g SAR at x=-43.0 y=13.0 z=10.0 = 0.10 W/kg 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-59.0 y:24.0 1g SAR Values 0.125 0.112 0.098 0.085 0.072 0.058 0.045 0.031 0.018 0.005 -0.009 SAR Data Report 02111913 Start : 19-Nov-02 11:10:06 am End : 19-Nov-02 11:26:48 am Code Version : 4.12 Robot Version: 4.08 Serial Number: 1068 Product Data: Type : PANASONIC Model Number : KX-TG5110 Frequency : 5798.945 MHz Transmit Pwr : 0.155 W Antenna Type : J-Type Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM RIGHT-3 Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 36.500 Tissue Conductivity : 5.300 Tissue Density : 1.000 Crest Factor : 4.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 5000 MHz Tissue Type : Brain Calibrated Dielectric : 35.300 Calibrated Conductivity : 5.270 Probe Offset : 2.400 mm Conversion Factor : 2.400 Diode Compression Pt : 76.0 mV Probe Sensitivity : 0.683 0.796 0.774 mV/(V/m)^2 Amplifier Gains : 20.00 20.00 20.00 Chan. Offset (mV) : 0.93 1.78 1.45 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Scan Time: 166.7 msec Comments: FHSS Mode CH-44 Tilt Amb. Temp.= 22.4 'C; Liq. Temp.= 21.9'C Area Scan - Max Local SAR Value at x=-52.0 y=17.0 = 0.16 W/kg Zoom Scan - Max Local SAR Value at x=-53.0 y=8.0 z=0.0 = 0.63 W/kg Max 1g SAR at x=-54.0 y=7.0 z=0.0 = 0.26 W/kg Max 10g SAR at x=-56.0 y=12.0 z=0.0 = 0.13 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-53.0 y:8.0 1g SAR Values 0.256 0.241 0.226 0.211 0.196 0.181 0.166 0.151 0.136 0.121 0.106 SAR Data Report 02111831 Start : 18-Nov-02 03:17:22 pm End : 18-Nov-02 03:25:11 pm Code Version : 4.12 Robot Version: 4.08 Serial Number: 1068 Product Data: Type : PANASONIC Model Number : KX-TG5110 Frequency : 5798.945 MHz Transmit Pwr : 0.155 W Antenna Type : J-Type Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM LEFT-3 Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 36.500 Tissue Conductivity : 5.300 Tissue Density : 1.000 Crest Factor : 4.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 5000 MHz Tissue Type : Brain Calibrated Dielectric : 35.300 Calibrated Conductivity : 5.270 Probe Offset : 2.400 mm Conversion Factor : 2.400 Diode Compression Pt : 76.0 mV Probe Sensitivity : 0.683 0.796 0.774 mV/(V/m)^2 Amplifier Gains : 20.00 20.00 20.00 Chan. Offset (mV) : 2.25 2.85 2.48 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Scan Time: 166.7 msec Comments: FHSS Mode CH-44 Cheek Amb. …
