ACJ96NKX-TG5240KX-TG5240(xx), 5.8 GHz FHSS Cordless Telephone

Panasonic Corporation of North America

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Feb 12, 2004
Application Purpose: Original Equipment
Date of Application: Dec 16, 2003
Equipment Note: KX-TG5240(xx), 5.8 GHz FHSS Cordless Telephone
Frequency Range: 5759.70240000 - 5838.18697000
Company: Panasonic Corporation of North America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Answering System Useful Information Preparation Telephone System 5.8GHz Expandable Cordless Phone System Operating Instructions Model No. KX-TG5240M Pulse-or-tone dialing capability PLEASE READ BEFORE USE AND SAVE. Panasonic World Wide Web address: http://www.panasonic.com for customers in the USA or Puerto Rico Caller ID Compatible Charge the battery for about 6 hours before initial use. 2 Thank you for purchasing your new Panasonic cordless telephone. Please read the IMPORTANT SAFETY INSTRUCTIONS on page 95 before use. Read and understand all instructions. Trademarks: openLCR, openLCR.com, and the openLCR logo are the trademarks of openLCR.com, Inc. Accessories(included) For extra orders, call 1-800-332-5368. For hearing or speech impaired TTY users, TTY: 1-866-605-1277. Caller ID and Call Waiting Service, where available, are telephone company services. After subscribing to Caller ID, this phone will display a caller’s name and phone number, then announce the displayed caller’s name. Name and telephone number Caller ID service is required for the Talking Caller ID feature. Call Waiting Caller ID, which displays a second caller’s name and phone number while the user is on another call, requires a subscription to both Caller ID and Call Waiting with Caller ID service (CWID). AAC Adaptor (p. 12) Order No. PQLV1Z (PQLV1) one ATelephone Line Cord (p. 12) Order No. PQJA10075Z one AWall Mounting Adaptor (p. 76) Order No. PQKL10063Z1 one AHandset Cover (p. 13) Order No. PQKK10142Z1 one ABattery (p. 13) Order No. HHR-P104 one ABelt Clip (p. 75) Order No. PQKE10377Z1 one Attach your purchase receipt here. 3 For assistance, please call: 1-800-211-PANA(7262) Expanding Your Phone KX-TG5240 includes one handset and one base unit. You can expand the system by adding up to 3 accessory handsets, sold separately. A maximum of 4 handsets can be registered to the base unit. The included handset is pre-registered at the factory and assigned the extension number 1. After purchasing accessory handsets, you must register each to the base unit. (Please read the accessory handset’s Installation Manual.) The model numbers of the accessory handsets are KX-TGA520M and KX-TGA523S. A charger is included with each accessory handset. To order, contact your dealer or call 1-800-211-PANA(7262) to locate a dealer. System capabilities (Operating more than one handset) Up to 4 extensions (4 handsets or 3 handsets and the base unit) can operate at a time. The maximum operating number may decrease depending on the state of use. Up to 3 accessory handsets can be added. KX-TG5240 The illustration is KX-TGA520. 4 Contents For Best Performance . . . . . . . . 6 Location of Controls . . . . . . . . . 7 Displays . . . . . . . . . . . . . . . . . . 10 Installation . . . . . . . . . . . . . . . . 12 Connections . . . . . . . . . . . . . . 12 Installing the Battery in the Handset. . . . . . . . . . . . . . . 13 Battery Charge . . . . . . . . . . . . 13 Programmable Settings . . . . . . 15 Programming Guidelines. . . . . 15 Function Menu Table . . . . . . . 16 Date and Time. . . . . . . . . . . . . 17 Display Language . . . . . . . . . . .18 Dialing Mode . . . . . . . . . . . . . . 18 Line Mode . . . . . . . . . . . . . . . . 19 Auto Talk . . . . . . . . . . . . . . . . . 19 Ringer Volume . . . . . . . . . . . . 20 Ringer Tone . . . . . . . . . . . . . . 21 LCD Contrast . . . . . . . . . . . . . 22 Preparing the Answering System . . . . . . . . . . . . . . . . . . . 23 Greeting Message. . . . . . . . . . 23 Caller’s Recording Time . . . . . 24 Number of Rings . . . . . . . . . . . 25 Recording Mode . . . . . . . . . . . 26 Message Alert . . . . . . . . . . . . . 26 Making Calls . . . . . . . . . . . . . . . 27 Using the Handset. . . . . . . . . . 27 Using the Base Unit . . . . . . . . 30 Answering Calls . . . . . . . . . . . . 31 Caller ID Service . . . . . . . . . . . . 32 Talking Caller ID . . . . . . . . . . . 33 Using the Caller List. . . . . . . . . 34 Viewing the Caller List. . . . . . . 35 Calling Back from the Caller List . . . . . . . . . . . . . . . . 35 Editing the Caller’s Phone Number . . . . . . . . . . . . . . . . . . 36 Caller ID Number Auto Edit . . 37 Storing Caller Information in the Phone Book . . . . . . . . . . 38 Erasing Caller Information. . . . 38 Phone Book . . . . . . . . . . . . . . . 39 Storing Names and Numbers. . . 39 Dialing from the Phone Book. . 41 Chain Dialing. . . . . . . . . . . . . . 42 Editing an Item in the Phone Book. . . . . . . . . . . . . . . 43 Erasing an Item in the Phone Book. . . . . . . . . . . . . . . 43 Copying Items in the Phone Book. . . . . . . . . . . . . . . 44 Speed Dialer . . . . . . . . . . . . . . . 46 Storing Phone Numbers . . . . . 46 Dialing a Stored Phone Number . . . . . . . . . . . . . . . . . . 46 Intercom . . . . . . . . . . . . . . . . . . 47 Paging . . . . . . . . . . . . . . . . . . . 47 Answering a Page . . . . . . . . . . 48 Voice Paging . . . . . . . . . . . . . . 49 Transferring a Call . . . . . . . . . . 49 Conference Calls . . . . . . . . . . . 52 Call Share . . . . . . . . . . . . . . . . 52 Room Monitor . . . . . . . . . . . . . . 53 Special Features. . . . . . . . . . . . 55 Muting Your Conversation. . . . 55 Call Privacy . . . . . . . . . . . . . . . 55 Using the PAUSE Button (For PBX Line/Long Distance Calls) . . . . . . . . . . . . . . . . . . . . 55 Preparation Telephone System 5 Contents For assistance, please call: 1-800-211-PANA(7262) Useful Information Answering System Telephone System Preparation Temporary Tone Dialing (For Rotary or Pulse Service Users). . 56 For Call Waiting Service Users . . . . . . . . . . . . . . . . . . . . 56 Call Waiting Deluxe Service . . . 57 FLASH Button . . . . . . . . . . . . . 60 Incoming Call Tone . . . . . . . . . 61 Key Tone . . . . . . . . . . . . . . . . . 62 Mailbox Features . . . . . . . . . . . 63 Setting the Mailbox Password (for Mailbox 2 and 3) . . . . . . . . 64 Automatic Answering Operation. . . . . . …

Text truncated - open the document above for the full version.

Attestation Statements

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has 1,099 billion digital security coding combinations that are provided by the following means: • Provided with 40 bits (1,099 billion) for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base and Handset knows each other’s security code information.

Block Diagram

BASE UNIT 4.0VCONVERTOR IC601 TIP RING DC/TEL_JAC K VRF RF_UNIT IC501DSP DC9V+GND 3 4 2 1 D101 Q111 IC331 Q141 Q171 KEYPAD RXDATA Vcc Crystal 13.824 MHz Q142 TXDATA ANT1 ANT2 HANDSET 21 CHARGE BATT+ BATT- IC204 IC203 RINGER MIC SPEAKER HEAD SET JACK CN203 LCD IC206 KEY PAD KEY LEDS VCC RF UNIT VRF TX DATA RXDATA IC201DSP Crystal 13.824 MHz

Cover Letter(s)

December 16, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: FCC Certification Authorization Application Under FCC PART 15, Subpart C, Section 15.247 - Frequency Hopping Spread Spectrum Transmitters Operating In the 5725 – 5850 MHz Band. Product: 5.8 GHz FHSS Cordless Telephone Model No.: KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 Dear Sir/Madam As appointed agent for Matsushita Electric Industrial Co., Ltd., we would like to submit the application to the Federal Communications Commission for certification of the above product. Please review all files uploaded to OET Laboratory Division Electronic Filing Site. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R

Cover Letter(s)

External Photos

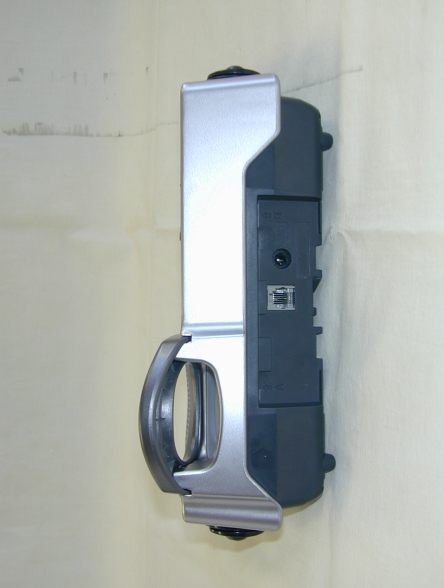

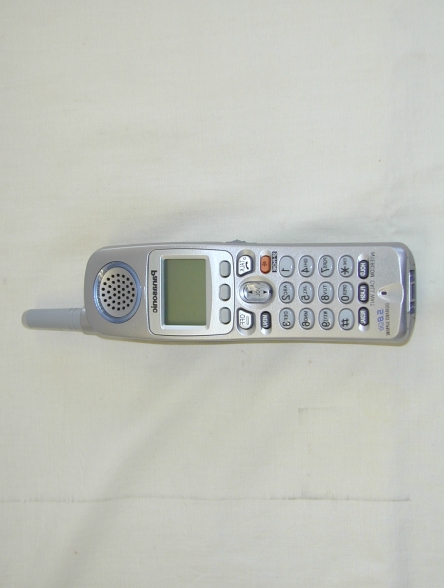

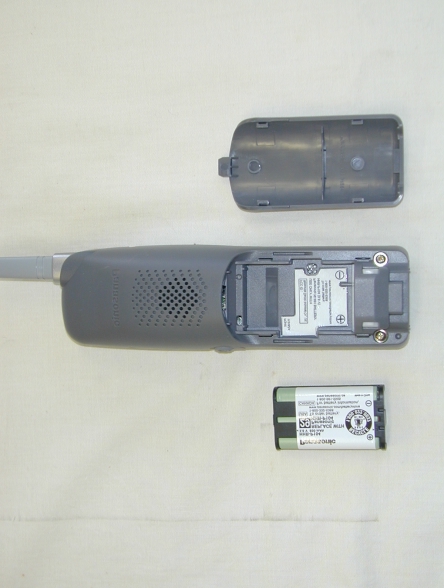

EXHIBIT D KX-TG5240 EXHIBIT D Rear View EXHIBIT D Bottom View EXHIBIT D Handset EXHIBIT D Handset (Battery Cover Open)

ID Label/Location Info

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. Nameplate NOTE: Above markings are shown on bottom of the base unit. Portable Unit: FCC ID Label The marking will be shown on the battery compartment of the portable unit.

Internal Photos

EXHIBIT D Internal View EXHIBIT D P.C. Board EXHIBIT D P.C. Board (Another Side) EXHIBIT D P.C. Board (RF Cover Open) EXHIBIT D Handset (P.C. Board) EXHIBIT D Handset (P.C. Board Another Side) EXHIBIT D Handset (P.C. Board RF Cover Open)

RF Exposure Info

FCC and Other Information 98 Operating near 5.8GHz electrical appliances may cause interference. Move away from the electrical appliances. FCC RF Exposure Warning: To comply with FCC RF exposure requirements the base unit must be installed and operated with its antenna located 20 cm or more between antenna and all person’s body (excluding extremities of hands, wrist and feet). The handset unit may be carried and operated with only the specific provided belt-clip. Other non-tested belt-clips or similar body-worn accessories may not comply and must be avoided. The base and handset units must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section 68.316. A TIA/EIA-IS-968 compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack that is also TIA/EIA-IS-968 compliant. The software contained in this equipment to allow user access to the network must be ungraded to recognize newly established network area codes and exchange codes as they are placed into service. Failure to upgrade the premises systems or peripheral equipment to recognize the new codes as they are established will restrict the customer and the customer’s employees from gaining access to the network and to these codes. • Environment — do not place the unit in a room where the temperature is less than 5°C (41°F) or greater than 40°C (104°F). Allow 10 cm (4”) clearance around the unit for proper ventilation. Avoid excessive smoke, dust, mechanical vibration, shock, or direct sunlight. • Medical — consult the manufacturer of any personal medical devices, such as pacemakers, to determine if they are adequately shielded from external RF (radio frequency) energy. (The unit operates in the frequency range of 5760MHz to 5840MHz, and the power output level can range 0.25 to 0.5 watts.) Do not use the unit in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF (radio frequency) energy. • Routine care — wipe the unit with a soft cloth. Do not use benzine, thinner, or any abrasive powder. When you leave the unit unused for a long period of time, unplug the AC adaptor from the outlet. • If there is any trouble — disconnect the unit from the telephone line and connect a known working phone. If the known working phone operates properly, have your unit repaired by one of the authorized Panasonic Factory Service Centers. If the known working phone does not operate properly, consult your telephone company. When you hold the phone to your ear, noise might be heard in your Hearing Aid. Some Hearing Aids are not adequately shielded from external RF (radio frequency) energy. If noise occurs, use an optional headset accessory or the speakerphone option (if applicable) when using this phone. Consult your audiologist or Hearing Aid manufacturer about the availability of Hearing Aids which provide adequate shielding to RF energy commonly emitted by digital devices.

RF Exposure Info

5.8 GHz FHSS Cordless Telephone Model No.: KX-TG5240(xx) Tested For Matsushita Electric Industrial Co., Ltd. 1006 Oaza Kadoma Kadoma, Osaka Japan, 571 In Accordance With SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) UltraTech's File No.: PAN-039-SAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: December 15, 2003 Report Prepared by: JaeWook Choi, SAR System Engineer Tested by: JaeWook Choi, SAR System Engineer Issued Date: December 15, 2003 Test Dates: November 13, 2003 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] SPECIFIC ABSORPTION RATE (SAR)Page 1 IEEE C95.1-1991, FCC OET Bulletin 65 (Supplement C), Industry Canada RSS-102(Issue 1) and ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Amendment Standard 2000 (No. 1) 5.8 GHz FHSS Cordless Telephone M/N: KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION...................................................................................................................................................... 4G 1.1. SCOPE .................................................................................................................................................................................... 4G 1.2. REFERENCES ........................................................................................................................................................................ 4G EXHIBIT 2. PERFORMANCE ASSESSMENT ........................................................................................................................... 5G 2.1. CLIENT AND MANUFACTURER INFORMATION ........................................................................................................... 5G 2.2. D EVICEUNDER TEST (D.U.T.) DESCRIPTION................................................................................................................... 5G 2.3. LIST OF D.U.T.’S ACCESSORIES:....................................................................................................................................... 6G 2.4. SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES .................................. 6G 2.5. ANCILLARYEQUIPMENT .................................................................................................................................................. 6G 2.6. GENERAL TEST CONFIGURATIONS ................................................................................................................................ 6G 2.6.1. Equipment Configuration ................................................................................................................................................. 6G 2.6.2. Exercising Equipment....................................................................................................................................................... 6G 2.7. S PECIFICOPERATINGCONDITIONS........................................................................................................................................... 6G 2.8. BLOCK DIAGRAM OF TEST SETUP................................................................................................................................... 7G EXHIBIT 3. SUMMARY OF TEST RESULTS............................................................................................................................ 8G 3.1. LOCATION OF TESTS .......................................................................................................................................................... 8G 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS.......................................................................................................... 8G EXHIBIT 4. MEASUREMENTS, EXAMINATIONS & TESTDATA ...................................................................................... 9G 4.1. TEST SETUP .......................................................................................................................................................................... 9G 4.2. P HOTOGRAPH OFD.U.T. AND ALL ACCESORIES..................................................................................................................... 10G 4.3. PHOTOGRAPHS OF D.U.T. POSITION ............................................................................................................................. 13G 4.3.1. Head Configuration........................................................................................................................................................ 13G 4.3.1.1. Head Right – Cheek Position........................................................................................................................................................ 13G 4.3.1.2. Head Right – Tilt Position ............................................................................................................................................................ 14G 4.3.1.3. Head Left – Cheek Position.......................................................................................................................................................... 15G 4.3.1.4. Head Left – Tilt Position .............................................................................................................................................................. 16G 4.3.2. Body Configuration ............................................................................................…

Text truncated - open the document above for the full version.

Test Report

5.8 GHz FHSS Cordless Telephone MODEL: KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 Applicant: Matsushita Electric Industrial Co., Ltd. 1006 Oaza Kadoma Kadoma Osaka 571 Japan In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Frequency Hopping Spread Spectrum Transmitters Operating in the 5725 – 5850 MHz Band UltraTech's File No.: PAN-039F15C247 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: December 16, 2003 Report Prepared by: Dan Huynh Issued Date: December 16, 2003 Tested by: Mr. Hung Trinh, EMC/RFI Technician Test Dates: November 11-19, 2003 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC Part 15, Subpart C, Section 15.247 - Frequency Hopping Spread Spectrum Transmitters Contents i 5.8 GHz FHSS Cordless Telephone, Model No.: KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 ULTRATECH GROUP OF LABS File #: PAN-039F15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 December 16, 2003 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST ........................................................................................................................................ 1 EXHIBIT 2. INTRODUCTION .......................................................................................................................................................... 2 2.1. SCOPE .......................................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................................... 2 2.3. NORMATIVE REFERENCES ..................................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT ............................................................................................................................... 3 3.1. CLIENT INFORMATION ............................................................................................................................................................ 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION............................................................................................................... 3 3.3. EUT’S TECHNICAL SPECIFICATIONS.................................................................................................................................... 4 3.4. LIST OF EUT’S PORTS............................................................................................................................................................... 5 3.5. ANCILLARY EQUIPMENT ........................................................................................................................................................ 5 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS................................................. 6 4.1. CLIMATE TEST CONDITIONS ................................................................................................................................................. 6 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS............................................................................... 6 EXHIBIT 5. SUMMARY OF TEST RESULTS................................................................................................................................ 7 5.1. LOCATION OF TESTS................................................................................................................................................................ 7 5.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ................................................................................ 7 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES.......................................................... 7 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS ................................................ 8 6.1. TEST PROCEDURES .................................................................................................................................................................. 8 6.2. MEASUREMENT UNCERTAINTIES ........................................................................................................................................ 8 6.3. MEASUREMENT EQUIPMENT USED ..................................................................................................................................... 8 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUACTURER............................................................. 8 6.5. COMPLIANCE WITH FCC PART 15 – GENERAL TECHNICAL REQUIREMENTS ............................................................ 9 6.6. AC POWER LINE CONDUCTED EMISSIONS [47 CFR §15.107(a)] ..................................................................... ................ 11 6.7. HOPPING CHANNEL CARRIER FREQUENCY CHARACTERISTICS [47 CFR §§ 15.247(a)(1) & (a)(1)(iii)] .................. 17 6.8. PEAK OUTPUT POWER & EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) [47 CFR § 15.247(b)]........…

Text truncated - open the document above for the full version.

Test Setup Photos

ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 1 AC Power Line Conducted Emissions (Front View) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 2 AC Power Line Conducted Emissions (Side View) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 3 Transmitter Radiated Emissions at 3 Meters Handset (Orthogonal Position # 1) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 4 Transmitter Radiated Emissions at 3 Meters Handset (Orthogonal Position # 1) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 5 Transmitter Radiated Emissions at 3 Meters Handset (Orthogonal Position # 2) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 6 Transmitter Radiated Emissions at 3 Meters Handset (Orthogonal Position # 2) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 7 Transmitter Radiated Emissions at 3 Meters Handset (Orthogonal Position # 3) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 8 Transmitter Radiated Emissions at 3 Meters Handset (Orthogonal Position # 3) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 9 Transmitter Radiated Emissions at 3 Meters Base Unit (Antenna perpendicular to ground plane) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 10 Transmitter Radiated Emissions at 3 Meters Base Unit (Antenna perpendicular to ground plane) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 11 Transmitter Radiated Emissions at 3 Meters Base Unit (Antenna parallel to ground plane) ANNEX 1 - TEST SETUP PHOTOS Matsushita Electric Industrial Co., Ltd. 5.8 GHz FHSS CordlessTelephone, Model KX-TG5240(xx) FCC ID: ACJ96NKX-TG5240 A1 - 12 Transmitter Radiated Emissions at 3 Meters Base Unit (Antenna parallel to ground plane)
