EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means: ∑ Provided with 128 bits for security codes. ∑ When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. ∑ Base and Handset knows each other’s security code information.

Page: 1/2 Date: November 5, 2010 DESCRIPTION OF DIFFERENCES between ORIGINAL and SIMILARITY SIMILARITY Model No. : KX-TG7641 (Base Unit) Name of Appliance : 1.9GHz Cordless Telephone System/2.4GHz Bluetooth Transmitter FCC ID : ACJ96NKX-TG7641 ORIGINAL Model No. : KX-TG6581 (Base Unit) Name of Appliance : 1.9GHz Cordless Telephone System/2.4GHz Bluetooth Transmitter FCC ID : ACJ96NKX-TG6581 Approval Date : Feb. 18, 2010 ORIGINAL SIMILAR KX-TG6581 KX-TG7641 RF Type and Appearance 1.9GHz US-DECT& 2.4GHz Bluetooth 1.9GHz US-DECT & 2.4GHz Bluetooth P.C.B. of Base Unit Antenna for Bluetooth is different. Bluetooth RF Block is same. US-DECT RF Block is different Antennas for US-DECT are different. Page: 2/2 NOTE: The 2.4 GHz Bluetooth RF Block of KX-TG7641 is identical to that of KX-TG6581. Another antenna for US-DECT P.C.B. another side

PCTP-10-F025: DECT Base FCC ID: ACJ96NKX-TG7641 PCTP-10-F024: BT Base FCC ID: ACJ96NKX-TG7641 FCC Part 15D – Compliance Information pctp-10-f024, -f025 (part 15d declarations for kx-tg7641).doc 8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Systems Network Co., Ltd. Address Fukuoka, Japan Contact Yukio Kaneko FP PP Repeater EUT Type/System FCC ID ACJ96NKX-TG7641 (IC:216A-KXTG7641) Model name KX-TG7641 HW Version SW Version Max antenna Gain 2.0 dBi Can the EUT be Initiating Device YES YES YES Does the EUT transmit signaling channels YES YES YES Max number of slots in use simultaneously 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-10-F025: DECT Base FCC ID: ACJ96NKX-TG7641 PCTP-10-F024: BT Base FCC ID: ACJ96NKX-TG7641 FCC Part 15D – Compliance Information pctp-10-f024, -f025 (part 15d declarations for kx-tg7641).doc 8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Antenna Type Internal External 1 Wired Antenna 2 Wired Antenna 3 4 Base (FP) or Repeater Does RX and TX use the same antenna(s)? Yes No Antenna Type Internal External 1 2 Handset (PP) Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Diversity Supported Antenna TX RX 1 2 3 Base (FP) or Repeater 4 1 Handset (PP) 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Repeater Nominal Voltage 120 VAC 2.4 VDC Cut-Off Voltage (if applicable) POWER SOURCE Type Manufacturer Base or Repeater AC Adapter with SPS @ 37 kHz, Model PNLV226 (UC) “or” AC Adapter with SPS @ 37 kHz, Model PNLV226 (FW) Panasonic Handset (PP) (charger) NiMH Batteries (2x) Data Connections PSTN (Base) Others (please specify) .... PCTP-10-F025: DECT Base FCC ID: ACJ96NKX-TG7641 PCTP-10-F024: BT Base FCC ID: ACJ96NKX-TG7641 FCC Part 15D – Compliance Information pctp-10-f024, -f025 (part 15d declarations for kx-tg7641).doc 8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor and Charger Type PNLV226 (AC Adaptor) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-10-F025: DECT Base FCC ID: ACJ96NKX-TG7641 PCTP-10-F024: BT Base FCC ID: ACJ96NKX-TG7641 FCC Part 15D – Compliance Information pctp-10-f024, -f025 (part 15d declarations for kx-tg7641).doc 8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. FCC Section 15.307(b) Affidavit # PAN120706 issued on December 7, 2006. Confirmed By Applicant Yes No ADDITIONAL REMARKS: DECLARED BY: Date: December 9, 2010 Name: Richard Mullen Signature: Richard Mullen

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Power of Attorney December 6, 2010 Part 15C BT: PCTP-10-F024 Part 15D DECT: PCTP-10-F025 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product, which are in compliance with FCC Parts 15C and 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for Base Model KX-TG7641(xx) Family 1 FCC Classification: Spread Spectrum Transmitter (DSS) Product Name: 2402 ~ 2480 MHz Bluetooth Transmitter Maximum Conducted Peak RF Output Power 0.0012 Watts FCC Rule Part: FCC Part 15, Subpart C, Section 15.247 FCC Classification: Isochronous UPCS Base Station (PUB) Product Name: 1921.536 ~1928.448 MHz DECT Cordless Telephone Base Maximum Conducted Peak RF Output Power of 0.091 Watts FCC Rule Part: FCC Part 15, Subpart D Power Supply: AC Adaptor, Models PNLV266(FW) or PNLV266(UC) and both with switching power supply at 37 kHz FCC ID Base Unit ACJ96NKX-TG7641 Responsible Panasonic Corporation of North America Applicant & Grantee: One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 The subject Base will be: (1) FCC Part 68 certified by Nemko CCL under Certification ID Number US: ACJW401BKX-TG7641; and (2) will be marketed with Handset, which will be FCC Part 15D certified by Nemko CCL under FCC ID: ACJ96NKX-TGA660 Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality December 6, 2010 Part 15C BT: PCTP-10-F024 Part 15D DECT: PCTP-10-F025 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for Base Model KX-TG7641(xx) Family FCC Classification: Spread Spectrum Transmitter (DSS) Product Name: 2402 ~ 2480 MHz Bluetooth Transmitter FCC Rule Part: FCC Part 15, Subpart C, Section 15.247 FCC Classification: Isochronous UPCS Base Station (PUB) Product Name: 1921.536 ~1928.448 MHz DECT Cordless Telephone Base FCC Rule Part: FCC Part 15, Subpart D FCC ID Base Unit ACJ96NKX-TG7641 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

PCTP-10-F025: DECT Base FCC ID: ACJ96NKX-TG7641 PCTP-10-F024: BT Base FCC ID: ACJ96NKX-TG7641 FCC Part 15D – Compliance Information Amended December 10, 2010 page 1 (4) EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Systems Network Co., Ltd. Address Fukuoka, Japan Contact Yukio Kaneko FP PP Repeater EUT Type/System FCC ID ACJ96NKX-TG7641 (IC:216A-KXTG7641) Model name KX-TG7641 HW Version SW Version Max antenna Gain 2.0 dBi Can the EUT be Initiating Device YES YES YES Does the EUT transmit signaling channels YES YES YES Max number of slots in use simultaneously 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-10-F025: DECT Base FCC ID: ACJ96NKX-TG7641 PCTP-10-F024: BT Base FCC ID: ACJ96NKX-TG7641 FCC Part 15D – Compliance Information Amended December 10, 2010 page 2 (4) ANTENNAS Antenna Type Internal External 1 Wired Antenna 2 Wired Antenna 3 4 Base (FP) or Repeater Does RX and TX use the same antenna(s)? Yes No Antenna Type Internal External 1 2 Handset (PP) Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Diversity Supported Antenna TX RX 1 2 3 Base (FP) or Repeater 4 1 Handset (PP) 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Repeater Nominal Voltage 120 VAC 2.4 VDC Cut-Off Voltage (if applicable) POWER SOURCE Type Manufacturer Base or Repeater AC Adapter with SPS @ 37 kHz, Model PNLV226 (UC) “or” AC Adapter with SPS @ 37 kHz, Model PNLV226 (FW) Panasonic Handset (PP) (charger) NiMH Batteries (2x) Data Connections PSTN (Base) Others (please specify) .... PCTP-10-F025: DECT Base FCC ID: ACJ96NKX-TG7641 PCTP-10-F024: BT Base FCC ID: ACJ96NKX-TG7641 FCC Part 15D – Compliance Information Amended December 10, 2010 page 3 (4) ANCILLARY EQUIPMENT Description AC Adaptor and Charger Type PNLV226 (AC Adaptor) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-10-F025: DECT Base FCC ID: ACJ96NKX-TG7641 PCTP-10-F024: BT Base FCC ID: ACJ96NKX-TG7641 FCC Part 15D – Compliance Information Amended December 10, 2010 page 4 (4) MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. FCC Section 15.307(b) Affidavit # PAN120706 issued on December 7, 2006. Confirmed By Applicant Yes No ADDITIONAL REMARKS: DECLARED BY: Date: December 10, 2010 Name: Richard Mullen Signature: Richard Mullen

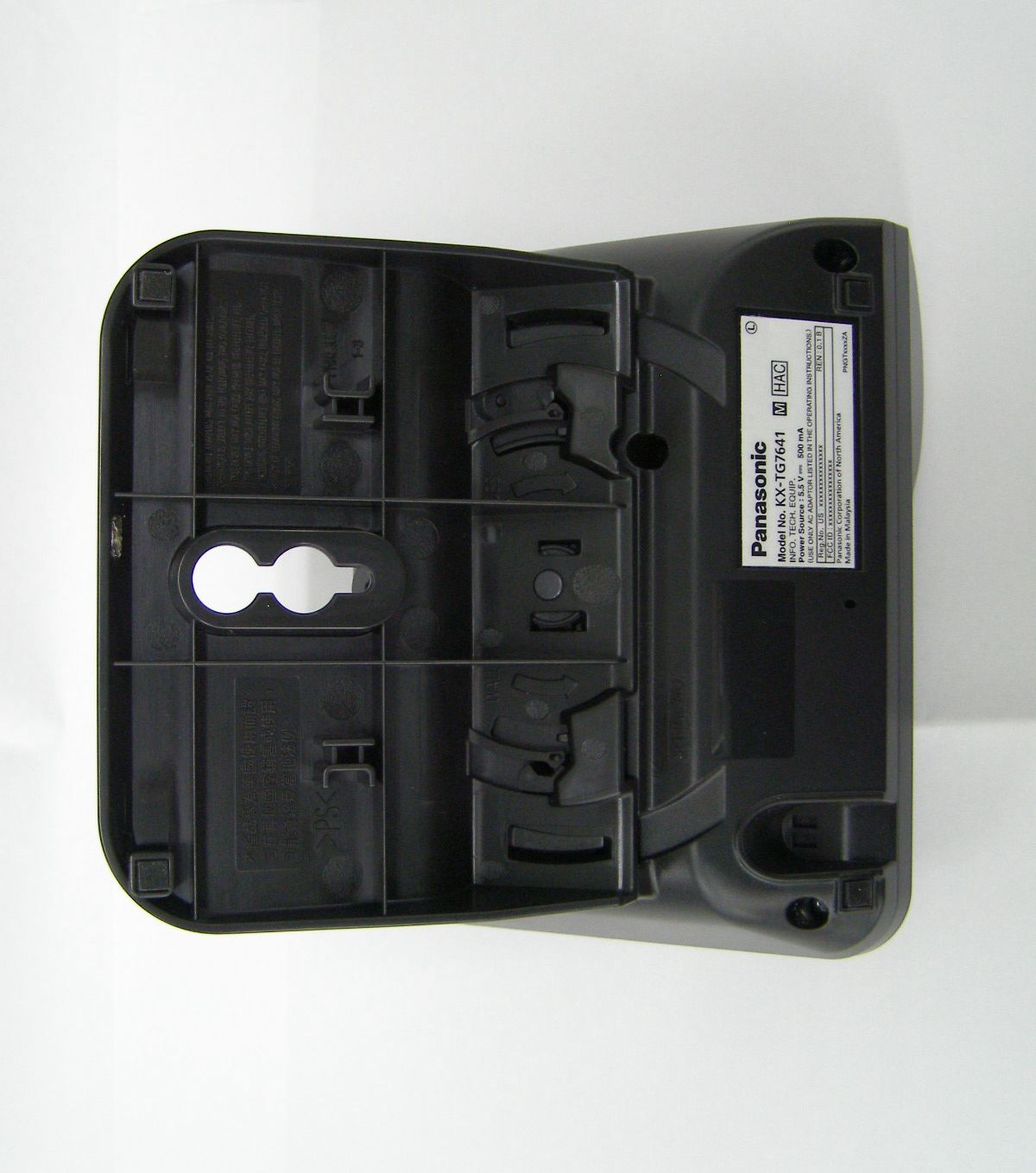

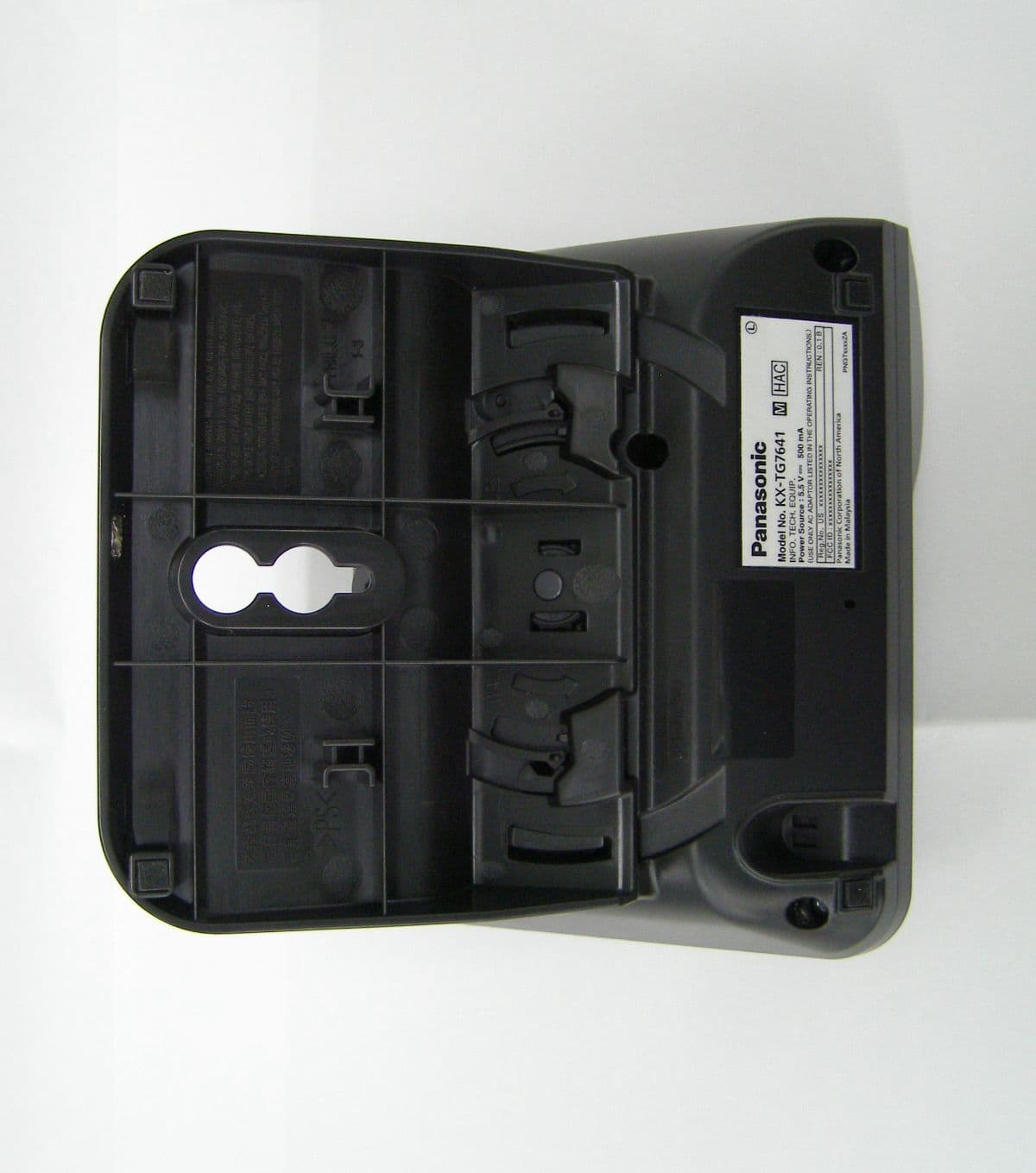

TEMPORARY CONFIDENTIAL EXTERNAL PHOTOGRAPHS KX-TG7641 TEMPORARY CONFIDENTIAL Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit.

TEMPORARY CONFIDENTIAL INTERNAL PHOTOGRAPHS Internal View TEMPORARY CONFIDENTIAL Main Board TEMPORARY CONFIDENTIAL RF Portion TEMPORARY CONFIDENTIAL BT Cover Open

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to isotropicR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.60 (dBm) Maximum peak output power at antenna input terminal: 91.20 (mW) Antenna gain(typical): -2.4 (dBi) Maximum antenna gain: 0.575 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1925 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm^2) Power density at prediction frequency: 0.010441 (mW/cm^2) Power density at prediction frequency: 0.1044 (W/m^2) Margin of Compliance: 19.8 (dB) 2 4 R PG S π =

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 161417-4 Item tested : KX-TG7641 Type of equipment : UPCS Base Station with Bluetooth Transceiver FCC ID : ACJ96NKX-TG7641 Client : Panasonic System Networks Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 6 December 2010 Authorized by : .............................................. G. Suhantakumar Technical Verificator TEST REPORT FCC part 15D Report no.: 161417-4 FCC ID: ACJ96NKX-TG7641 Nemko AS, N-2007 Kjeller Page 2 (57) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Description of Tested Device ............................................................................................................. 4 2.3 Exposure Evaluation .......................................................................................................................... 4 2.4 Test Environment .............................................................................................................................. 5 2.5 Test Period ........................................................................................................................................ 5 2.6 Test Engineer(s) ................................................................................................................................ 5 2.7 Test Equipment ................................................................................................................................. 5 2.8 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS ................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave .................................................................................................. 14 4.3 Digital Modulation Techniques ........................................................................................................ 14 4.4 Labeling Requirements ................................................................................................................... 14 4.5 Antenna Requirement...................................................................................................................... 15 4.6 Channel Frequencies ...................................................................................................................... 15 4.7 Automatic Discontinuation of Transmission .................................................................................... 16 4.8 Peak Power Output ......................................................................................................................... 17 4.9 Emission Bandwidth B ..................................................................................................................... 22 4.10 Power Spectral Density ................................................................................................................... 25 4.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 28 4.12 Out-of-band Emissions, Conducted................................................................................................. 30 4.13 Carrier Frequency Stability .............................................................................................................. 36 4.14 Frame Repetition Stability ............................................................................................................... 37 4.15 Frame Period and Jitter ................................................................................................................... 37 4.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 40 4.17 Threshold Monitoring Bandwidth ..................................................................................................... 42 4.18 Reaction Time and Monitoring Interval ............................................................................................ 43 4.19 Time and Spectrum Window Access Procedure ..........................................…

Text truncated - open the document above for the full version.

FCC ID: ACJ96NKX-TG7641 Project no.: 161417 Page 1 of 2 PHOTOS OF TEST SET-UP – KX-TG7641 Radiated Emissions Test Set-up FCC ID: ACJ96NKX-TG7641 Project no.: 161417 Page 2 of 2 Power line Conducted Emissions Test Set-up
