ACJ96NKX-TG9321Unlicensed PCS Base Station / DECT Cordless Telephone Base

This unit is compatible with Caller ID. You must subscribe to the appropriate service offered by your service provider/telephone company. Please read these operating instructions before using the unit and save them for future reference. Charge the handset batteries for about 7 hours before initial use. Operating Instructions Expandable Digital Cordless Phone Model No. KX-TG9321 KX-TG9322 2 For your safety To prevent severe injury and loss of life/ property, read this section carefully before using the product to ensure proper and safe operation of your product. WARNING Power connection LUse only the power source marked on the product. LDo not overload power outlets and extension cords. This can result in the risk of fire or electric shock. LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire. LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire. LUnplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact the Panasonic Call Center at 1-800-211- PANA (1-800-211-7262). LUnplug from power outlets and never touch the inside of the product if its casing has been broken open. LNever touch the plug with wet hands. Danger of electric shock exists. Installation LTo prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture. LDo not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident. LDo not allow the AC adaptor or telephone line cord to be excessively pulled, bent or placed under heavy objects. Operating safeguards LUnplug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners. LDo not disassemble the product. LDo not spill liquids (detergents, cleansers, etc.) onto the telephone line cord plug, or allow it to become wet at all. This may cause a fire. If the telephone line cord plug becomes wet, immediately pull it from the telephone wall jack, and do not use. Medical LConsult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to determine if they are adequately shielded from external RF (radio frequency) energy. (The product operates in the frequency range of 1.92 GHz to 1.93 GHz, and the RF transmission power is 115 mW (max.).) LDo not use the product in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. CAUTION Installation and location LNever install telephone wiring during an electrical storm. LNever install telephone line jacks in wet locations unless the jack is specifically designed for wet locations. LNever touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. LUse caution when installing or modifying telephone lines. LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible. LThis product is unable to make calls when: – the handset batteries need recharging or have failed. –there is a power failure. 3 Battery LWe recommend using the batteries noted on page xx. USE ONLY rechargeable Ni-MH batteries AAA (R03) size. LDo not mix old and new batteries. LDo not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed. LExercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns. LCharge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual. LOnly use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode. Attention: A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY (1-800-822- 8837) for information on how to recycle this battery. Important safety instructions When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. 4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. SAVE THESE INSTRUCTIONS For best performance Base unit location/avoiding noise The base unit and other compatible Panasonic units use radio waves to communicate with each other. LFor maximum coverage and noise-free communications, place your base unit: – at a convenient, high, and central location with no obstructions between the handset and base unit in an indoor environment. – away from electronic appliances such as TVs, radios, personal computers, wireless devices,…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has 128-bit security cords ,which combinations are more than 1,000 billion patterns and are provided by the following means: • Provided with 128 bits for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base unit and Handset know each other’s security code information.

Page: 1/1 Date: May 7, 2010 DESCRIPTION OF DIFFERENCES between ORIGINAL and SIMILARITY Name of Appliance : Cordless Telephone System SIMILARITY Model No. : KX-TG9321 (Base Unit) FCC ID : ACJ96NKX-TG9321 ORIGINAL Model No. : KX-TG9391 (Base Unit) FCC ID : ACJ96NKX-TG9391 Approval Date : June 5, 2008 ORIGINAL NEW KX-TG9391 KX-TG9321 RF Type and Appearance 1.9GHz US-DECT 1.9GHz US-DECT P.C. Board 1.9GHz Antennas are different. NOTE: The 1.9GHz RF unit of KX-TG9321 is identical to that of KX-TG9391 except for antenna. RF Unit (1.9GHz Portion) Same 1.9GHz RF Unit RF Unit (1.9GHz Portion)

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Power of Attorney April 5, 2010 PCTP-10-F001 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. FCC Classification: Isochronous UPCS Base Station Product Name: 1920 ~1930 MHz DECT Cordless Telephone Base FCC Rule Part: FCC Part 15, Subpart D 1 FCC ID Base Unit ACJ96NKX-TG9321 Responsible Panasonic Corporation of North America [PNA] Applicant & Grantee: One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Panasonic System Networks Co., Ltd. [PSN] Responsible Sales Company: Panasonic System Networks Company of America [PSNA] Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 The subject base will be separately TCB certified by Nemko-Communication Certification Laboratory for compliance with FCC Part 68 under Certification ID Number US: ACJW401BKX-TG9321. This product’s associated handset was TCB certified by Nemko for compliance with FCC Part 15D on 06/05/08 under FCC ID: ACJ96NKX-TGA939. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality April 5, 2010 PCTP-10-F001 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; FCC Classification: Isochronous UPCS Base Station Product Name: 1920 ~1930 MHz DECT Cordless Telephone Base FCC Rule Part: FCC Part 15, Subpart D Equipment Class: Unlicensed PCS Base Station / Equipment Classification Code PUB FCC ID Base Unit ACJ96NKX-TG9321 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

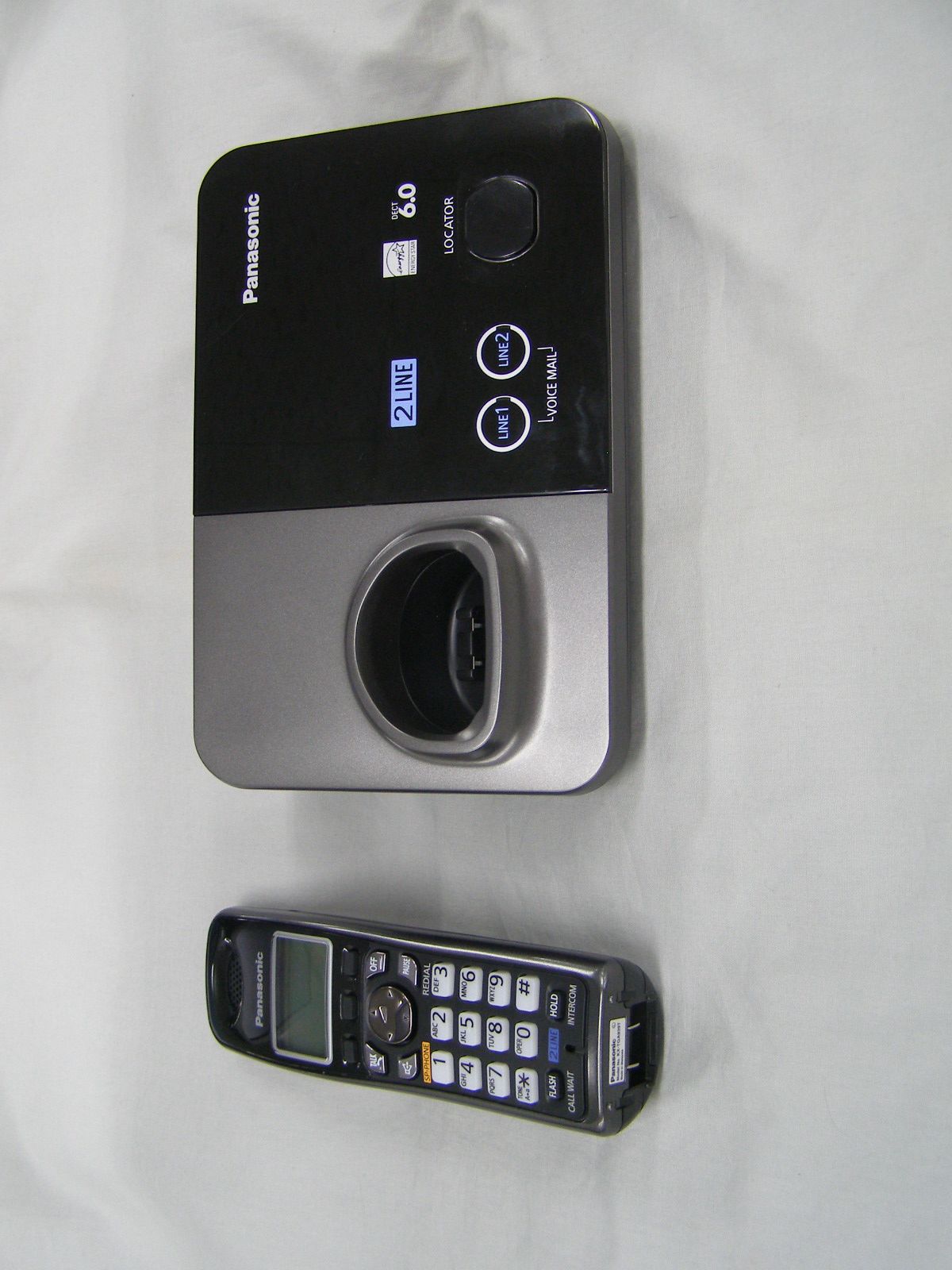

Temporary Confidential EXTERNAL PHOTOGRAPHS KX-TG9321 Temporary Confidential Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit. Nameplate Bottom view of the unit Warning statements

Temporary Confidential INTERNAL PHOTOGRAPHS Internal View Temporary Confidential Main Board Temporary Confidential RF Portion

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to isotropicR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.40 (dBm) Maximum peak output power at antenna input terminal: 87.10 (mW) Antenna gain(typical): 1.2 (dBi) Maximum antenna gain: 1.318 (numeric) Prediction distance: 20 (cm) Sourse Based Time Average Duty Cycle: 100 (%) Prediction frequency: 1928.448 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.000 (mW/cm^2) Power density at prediction frequency: 0.022842 (mW/cm^2) Power density at prediction frequency: 0.2284 (W/m^2) Margin of Compliance: 16.4 (dB) 2 4 R PG S π =

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 147426-2 Item tested : KX-TG9321 Type of equipment : UPCS Base FCC ID : ACJ96NKX-TG9321 Client : Panasonic System Networks Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 4 May 2010 Authorized by : .............................................. Egil Hauger Technical Verificator TEST REPORT FCC part 15D Report no.: 147426-2 FCC ID: ACJ96NKX-TG9321 Nemko AS, N-2007 Kjeller Page 2 (18) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Description of Tested Device ............................................................................................................. 4 2.3 Exposure Evaluation .......................................................................................................................... 4 2.4 Test Environment .............................................................................................................................. 5 2.5 Test Period ........................................................................................................................................ 5 2.6 Test Engineers .................................................................................................................................. 5 2.7 Test Equipment ................................................................................................................................. 5 2.8 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS ................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave .................................................................................................. 13 4.3 Peak Power Output ......................................................................................................................... 14 5 TEST SETUPS ................................................................................................................................ 17 5.1 Power Line Conducted Emissions Test ........................................................................................... 17 5.2 Radiated Emissions Test, Fully Anechoic Chamber ........................................................................ 17 6 TEST EQUIPMENT USED .............................................................................................................. 18 TEST REPORT FCC part 15D Report no.: 147426-2 FCC ID: ACJ96NKX-TG9321 Nemko AS, N-2007 Kjeller Page 3 (18) 1 GENERAL INFORMATION 1.1 Testhouse Info Name : Nemko AS Address : Nemko Kjeller Instituttveien 6 N-2007 Kjeller, NORWAY Telephone : +47 64 84 57 00 Fax : +47 64 84 57 05 E-mail: [email protected] FCC test firm registration # : 994405 IC OATS registration # : 2040D-1 Total Number of Pages: 18 1.2 Client Information Name : Panasonic System Networks Co., Ltd. Address : 1-62, 4-Chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan Telephone : +81-92-477-1405 Fax : +81-92-477-1487 Contact: Name : Mr. Junji Sumi Telephone : +81 92 477 1405 E-mail : [email protected] 1.3 Responsible Manufacturer (if other than client) Name : / Address : / TEST REPORT FCC part 15D Report no.: 147426-2 FCC ID: ACJ96NKX-TG9321 Nemko AS, N-2007 Kjeller Page 4 (18) 2 Test Information 2.1 Tested Item Name : Panasonic Model name : KX-TG9321 FCC ID : ACJ96NKX-TG9321 Industry Canada ID : 216A-KXTG9321 Serial number : / Hardware identity and/or version: / Software identity and/or version : / Tested to IC Radio Standard (RSS) : RSS-213 Issue 2, RSS-GEN Issue 2 Test Site IC Reg. Number : IC 2040D-1 Frequency Range : 1921.536 – 1928.448 MHz Number of Channels : 5 RF Channels, 5x12 = 60 TDMA Duplex Channels Type of Modulation : Digital (Gaussian Frequency Shift Keying) RF Power : 0.090 Watts (Conducted, Peak) Occupied Bandwidth (99% BW) : 1266 kHz Emission Designator (TRC-43) : 1M3F1E Transmitter Spurious (worst case) : Less then -48 dBm (Conducted) Receiver Spurious (worst case) : Less then -80 dBm (Conducted) Antenna Connector : None Number of Antennas : 2 Antenna Diversity Supported : Yes Desktop Charger : Integ…

Text truncated - open the document above for the full version.

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Comlab, Gåsevikveien 8, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 106355-6 Item tested : KX-TG9391 Type of equipment : UPCS Base FCC ID : ACJ96NKX-TG9391 Client : Panasonic Communications Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 17 June 2008 Authorized by : .......................... .................... Egil Hauger Technical Verificator TEST REPORT FCC part 15D Project no.: 106355-6 FCC ID: ACJ96NKX-TG9391 Nemko AS, N-2007 Kjeller Page 2 (59) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Manufacturer (if other than client)...................................................................................................... 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Test Environment .............................................................................................................................. 5 2.3 Test Period ........................................................................................................................................ 5 2.4 Test Engineer(s) ................................................................................................................................ 5 2.5 Test Equipment ................................................................................................................................. 5 2.6 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General.............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS................................................................................................................................ 8 4.1 Power Line Conducted Emissions..................................................................................................... 8 4.2 Coordination with fixed microwave .................................................................................................. 17 4.3 Digital Modulation Techniques ........................................................................................................ 17 4.4 Labeling Requirements ................................................................................................................... 17 4.5 Antenna Requirement...................................................................................................................... 18 4.6 Channel Frequencies ...................................................................................................................... 18 4.7 Automatic Discontinuation of Transmission .................................................................................... 19 4.8 Peak Power Output ......................................................................................................................... 20 4.9 Emission Bandwidth B..................................................................................................................... 25 4.10 Power Spectral Density ................................................................................................................... 28 4.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 31 4.12 Out-of-band Emissions, Conducted................................................................................................. 33 4.13 Carrier Frequency Stability .............................................................................................................. 38 4.14 Frame Repetition Stability ............................................................................................................... 39 4.15 Frame Period and Jitter ................................................................................................................... 39 4.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 42 4.17 Threshold Monitoring Bandwidth ..................................................................................................... 44 4.18 Reaction Time and Monitoring Interval ............................................................................................ 45 4.19 Time and Spectrum Window Access Procedure ............................................................................. 47 4.20 Acknowledgements and Transmission Duration ............................................................................. 50 4.21 Dual Access Criteria Check............................................................................................................. 51 4.22 Alternative Monito…

Text truncated - open the document above for the full version.

CONFIDENTIAL FCC ID: ACJ96NKX-TG9321 Project no.: 147426 Page 1 of 1 PHOTOS OF TEST SET-UP – Panasonic KX-TG9321 Power-Line Conducted Emissions test
