ACJ96NKX-TGA101Cordless Telephone Handset

Thank you for purchasing a Panasonic cordless telephone. Please read this Installation Manual before using the unit and save for future reference. For assistance, visit our website: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. This handset is an accessory handset for use with Panasonic base units KX-TG1032/KX-TG1033/KX-TG1034. You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit’s operating instructions for further details. Charge the batteries for 7 hours before initial use. Expandable Digital Cordless Handset Model No. KX-TGA101 Installation Manual PQQX15792ZA FC0107FF0 Temporary Confidential 2For assistance, please visit http://www.panasonic.com/help Accessory information Included accessories *1 The handset cover comes attached to the handset. Sales and support information LTo order replacement accessories, call 1-800-332-5368. LTTY users (hearing or speech impaired users) can call 1-866-605-1277. Setting up the handset Connecting the charger Note: LUse only the included Panasonic AC adaptor PQLV209. LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor may cause it to become disconnected. Accessory itemOrder numberQuantity ChargerPQLV30053ZS1 AC adaptor for chargerPQLV209V1 BatteryHHR-55AAABU2 Handset cover *1 PQYNTG1032SR1 (120 V AC, 60 Hz) Fasten the AC adaptor cord to prevent it from being disconnected. Bottom of the charger Hooks Hooks Temporary Confidential For assistance, please visit http://www.panasonic.com/help3 Battery installation 1 Press the notch of the handset cover firmly, and slide it in the direction of the arrow. 2Insert the batteries negative (T) terminal first. Close the handset cover. Important: LUse only Ni-MH batteries AAA (R03) size. LDo not use alkaline/manganize/Ni-Cd batteries. LInstall the batteries in proper order (S, T), matching the correct polarity. Attention: A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY (1-800- 822-8837) for information on how to recycle this battery. Battery charge Place the handset on the charger for 7 hours before initial use. Note: LIf you want to use the handset immediately, charge the batteries for at least 15 minutes. LTo ensure that the batteries charge properly, clean the charge contacts of the handset and charger with a soft, dry cloth once a month. Clean more often if the unit is subject to the exposure of grease, dust, or high humidity. Panasonic battery performance Note: LThe handset can be left on the charger without any ill effect on the batteries. LThe battery level may not be displayed correctly after you replace the batteries. In this case, place the handset on the charger and let charge for 7 hours. OperationOperating time While in use (talking) Up to 17 hours While not in use (standby) Up to 7.5 days Charge contacts Temporary Confidential 4For assistance, please visit http://www.panasonic.com/help Registration Register the handset to a KX-TG1032/ KX-TG1033/KX-TG1034 base unit. 1Base unit: Press and hold {LOCATOR} until the registration tone sounds. LAfter the base unit beeps, the rest of the procedure must be completed within 1 minute and 30 seconds. 2Handset: Press {OK}, then wait until a beep sounds. Changing the display language 1 {MENU} 2{V}/{^}: “Handset settings” i {OK} 3{V}/{^}: “Display settings” i {OK} 4{V}/{^}: “Change language” i {OK} 5{V}/{^}: Select the desired setting. 6{OK} i {OFF} Headset (optional) Connecting a headset to the handset allows hands-free phone conversations. We recommend using a Panasonic KX-TCA60/KX-TCA86/KX- TCA88HA/KX-TCA92/KX-TCA93/KX- TCA94/KX-TCA95 headset. See 2 for ordering information. LHeadset shown is KX-TCA86. Temporary Confidential For assistance, please visit http://www.panasonic.com/help5 Specifications
Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications 6.0)
Number of channels: 60 Duplex Channels
Frequency range: 1.92 GHz to 1.93 GHz
Duplex procedure: TDMA (Time Division Multiple Access)
Channel spacing: 1,728 kHz
Bit rate: 1,152 kbit/s
Modulation: GFSK (Gaussian Frequency Shift Keying)
RF transmission power: Approx. 100 mW
Voice coding: ADPCM 32 kbit/s
Power source: 120 V, 60 Hz
Power consumption: Charger: Standby: Approx. 0.7 W Maximum: Approx. 3.5 W
Operating conditions: 5 °C – 40 °C, 20 % – 80 % relative air humidity (dry)
Dimensions: Handset: Approx. 168 mm x 48 mm x 35 mm (6 5 / 8 inches × 1 7 / 8 inches × 1 3 / 8 inches) Charger: Approx. 51 mm x 81 mm x 89 mm (2 inches × 3 3 / 16 inches × 3 1 / 2 inches)
Mass (weight): Handset: Approx. xx g (xx lb.) Charger: Approx. xx g (xx lb.) Note: LDesign and specifications are subject to change without notice. LThe illustrations in these instructions may vary slightly from the actual product. Temporary Confidential 6For assistance, please visit http://www.panasonic.com/help FCC and other information This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section 68.316. When you hold the phone to your ear, noise might be heard in your Hearing Aid. Some Hearing Aids are not adequately shielded from external RF (radio frequency) energy. If noise occurs, use an optional headset accessory or the speakerphone option (if applicable) when using this phone. Consult with your audiologist or Hearing Aid manufacturer about the availability of Hearing Aids which provide adequate shielding to RF energy commonly emitted by digital devices. WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST CALLS TO EMERGENCY NUMBERS: 1) Remain on the line and briefly explain to the dispatcher the reason for the call. 2) Perform such ac…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has 128-bit security cords, which combinations are more than 1,000 billion patterns and are provided by the following means: • Provided with 128 bits for security codes. • When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. • Base and Handset know each other’s security code information.

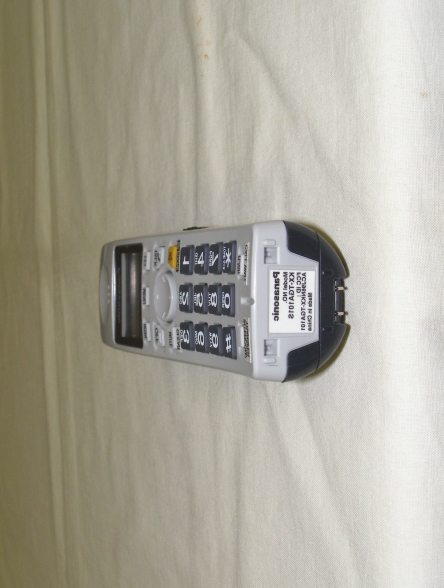

     EXTERNAL PHOTOGRAPHS KX-TGA101S
