ACJ96NKX-TGA402ADECT 6.0 Handset

Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference. This unit is compatible with Caller ID. You must subscribe to the appropriate service offered by your service provider/telephone company. For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. Before initial use, see “Getting Started” on page 10. Consulte “Guía Rápida Española”, página 44. Please register your product: http://www.panasonic.com/prodreg Operating Instructions Expandable Digital Cordless Answering System Model shown is KX-TG4011. KX-TG4024 KX-TG4025 KX-TG4073 KX-TG4074 Model No. KX-TG4021 KX-TG4022 KX-TG4023 Expandable Digital Cordless Phone Model No. KX-TG4011 KX-TG4012 KX-TG4013 TG401x.book Page 1 Friday, December 3, 2010 1:36 PM Table of Contents 2 Introduction Model composition . . . . . . . . . . . . . . . 3 Accessory information . . . . . . . . . . . . . 4 Important Information For your safety . . . . . . . . . . . . . . . . . . 7 Important safety instructions . . . . . . . . 8 For best performance . . . . . . . . . . . . . 8 Other information. . . . . . . . . . . . . . . . . 9 Specifications . . . . . . . . . . . . . . . . . . . 9 Getting Started Setting up . . . . . . . . . . . . . . . . . . . . . 10 Note when setting up. . . . . . . . . . . . . 11 Intelligent eco mode . . . . . . . . . . . . . 11 Controls . . . . . . . . . . . . . . . . . . . . . . . 12 Belt clip . . . . . . . . . . . . . . . . . . . . . . . 13 Display. . . . . . . . . . . . . . . . . . . . . . . . 13 Initial settings. . . . . . . . . . . . . . . . . . . 13 Making/Answering Calls Making calls. . . . . . . . . . . . . . . . . . . . 15 Answering calls . . . . . . . . . . . . . . . . . 15 Useful features during a call . . . . . . . 16 Shared Phonebook Shared phonebook . . . . . . . . . . . . . . 18 Programming Programmable settings . . . . . . . . . . . 20 Registering a unit . . . . . . . . . . . . . . . 23 Caller ID Service Using Caller ID service . . . . . . . . . . . 24 Caller list . . . . . . . . . . . . . . . . . . . . . . 24 Answering System Answering system . . . . . . . . . . . . . . . 27 Turning the answering system on/off. 27 Greeting message . . . . . . . . . . . . . . . 28 Listening to messages using the base unit . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Listening to messages using the handset . . . . . . . . . . . . . . . . . . . . . . . 29 Remote operation . . . . . . . . . . . . . . . 30 Answering system settings . . . . . . . . 31 Voice Mail Service Voice mail service. . . . . . . . . . . . . . . 33 Intercom/Locator Intercom . . . . . . . . . . . . . . . . . . . . . . 34 Handset locator . . . . . . . . . . . . . . . . 34 Transferring calls, conference calls . 34 Useful Information Wall mounting . . . . . . . . . . . . . . . . . . 35 Error messages . . . . . . . . . . . . . . . . 37 Troubleshooting . . . . . . . . . . . . . . . . 37 FCC and other information . . . . . . . . 42 Guía Rápida Española Guía Rápida Española . . . . . . . . . . . 44 Appendix Customer services . . . . . . . . . . . . . . 48 Warranty (For United States and Puerto Rico) . . . . . . . . . . . . . . . . . . . . . . . . . 49 Index Index. . . . . . . . . . . . . . . . . . . . . . . . . 51 TG401x.book Page 2 Friday, December 3, 2010 1:36 PM Introduction 3 For assistance, please visit http://www.panasonic.com/help Model composition *1 A range extender (KX-TGA405) is supplied in this model. By installing this unit, you can extend the range of your phone system, to include areas where reception was previously not available. Read the installation guide for the range extender. ■ KX-TG4011 series■ KX-TG4021 series LModel shown is KX-TG4012.LModel shown is KX-TG4022. ■ KX-TG4071 series LModel shown is KX-TG4073. SeriesModel No. Base unitHandset Part No.Part No.Quantity KX-TG4011 series KX-TG4011KX-TG4011KX-TGA4021 KX-TG4012KX-TG4011KX-TGA4022 KX-TG4013KX-TG4011KX-TGA4023 KX-TG4021 series KX-TG4021KX-TG4021KX-TGA4021 KX-TG4022KX-TG4021KX-TGA4022 KX-TG4023KX-TG4021KX-TGA4023 KX-TG4024KX-TG4021KX-TGA4024 KX-TG4025KX-TG4021KX-TGA4025 KX-TG4071 series KX-TG4073 *1 KX-TG4021KX-TGA4023 KX-TG4074 *1 KX-TG4021KX-TGA4024 TG401x.book Page 3 Friday, December 3, 2010 1:36 PM Introduction 4 For assistance, please visit http://www.panasonic.com/help Feature differences Accessory information Supplied accessories *1 KX-TG4011/KX-TG4021 *2 KX-TG4012/KX-TG4022 *3 KX-TG4013/KX-TG4023/KX-TG4073 *4 KX-TG4024/KX-TG4074 *5 KX-TG4025 *6 The handset cover comes attached to the handset. SeriesAnswering system Intercom Between handsets KX-TG4011 series–r *1 KX-TG4021 seriesrr *1 KX-TG4071 seriesrr *1 Single handset models: Intercom calls can be made between handsets by purchasing and registering one or more optional handsets (page 5). No. Supplied handset qty.1 unit *1 2 unit *2 3 unit *3 4 unit *4 5 unit *5 Accessory item/ Order number Accessory quantity 1AC adaptor/PQLV219Y12345 2Telephone line cord/ PQJA10075Z 11111 3Rechargeable batteries/ HHR-4DPA (Part No. HHR-55AAABU or N4DHYYY00004) 246810 4Handset cover *6 / PNYNTGA652GR 12345 5Belt clip/PNKE1054Z212345 6Charger/PNLC1010ZN–1234 TG401x.book Page 4 Friday, December 3, 2010 1:36 PM Introduction 5 For assistance, please visit http://www.panasonic.com/help ■ For KX-TG4021/KX-TG4071 series *1 *1 KX-TG4021/KX-TG4022/KX-TG4023/KX-TG4024/KX-TG4025/KX-TG4073/ KX-TG4074 ■ For KX-TG4071 series *1 *1 KX-TG4073/KX-TG4074 Additional/replacement accessories Please contact your nearest Panasonic dealer for sales information (page 48). *1 Replacement batteries may have a different capacity from that of the supplied batteries. Expanding your phone system Handset feature overview You can expand your phone system by registering optional handsets (6 max.) to a single base unit. No.Accessory item/Order numberQuantity 7Wall mounting adaptor/PNKL1010Z31 No.Accessory item/Order numberQuantity 8Range extender/…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means: ∑ Provided with 128 bits for security codes. ∑ When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. ∑ Base and Handset knows each other’s security code information.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Power of Attorney March 16, 2012 PCTP-12-F001 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product, which are in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for DECT Cordless Telephone Handset, Model KX-TGA402 1 Product Classification: Part 15 Unlicensed PCS Portable Tx Held to Ear (PUE) FCC ID Handset Unit ACJ96NKX-TGA402A FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 MHz RF Output Power: 0.081 Watts Power Supply: AC Adaptors, Model PNLV219(FW) with switching power supply at 37 kHz or Model PNLV219(UC) with switching power supply at 36 kHz; and optional Battery Charger Model PNLC1010 Responsible Panasonic Corporation of North America Applicant & Grantee: One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 DECT Handset Model KX-TGA402 under FCC ID: ACJ96NKX-TGA402A is similar to past certified Model KX-TGA402 under FCC ID: ACJ96NKX-TGA402, except for changed RF IC vendor, which have test results that fall outside the scope of Class II Permissive Change. Also, this DECT Handset will be marketed with DECT Base Model KX-TG4021, which was Part 15D certified under FCC ID: ACJ96NKX-TG6531. Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality March 16, 2012 PCTP-12-F001 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for DECT Cordless Telephone Handset, Model KX-TGA402 Product Classification: Part 15 Unlicensed PCS Portable Tx Held to Ear (PUE) FCC ID Handset Unit ACJ96NKX-TGA402A FCC Rule Part: FCC Part 15, Subpart D In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Handset Unit and RF Unit; and (4) Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Handset Unit and RF Unit; (2) Internal Photographs of Handset Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

PCTP-12-F001 / FCC ID: ACJ96NKX-TGA402A FCC Part 15D – Compliance Information pctp-12-f001 (part 15d declaration for handset under acj96nkx-tga402a).doc 8-Dec-2006 page 1 (4) rev.1.4 / March 16, 2012 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Address Contact Richard Mullen FP PP Repeater EUT Type/System FCC ID Model name HW Version SW Version Max antenna Gain Can the EUT be Initiating Device YES YES YES Does the EUT transmit signaling channels YES YES YES Max number of slots in use simultaneously Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417μs / duplex channel Min. Burst Length # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-12-F001 / FCC ID: ACJ96NKX-TGA402A FCC Part 15D – Compliance Information pctp-12-f001 (part 15d declaration for handset under acj96nkx-tga402a).doc 8-Dec-2006 page 2 (4) rev.1.4 / March 16, 2012 ANTENNAS Antenna Type Internal External 1 2 3 4 Base (FP) Does RX and TX use the same antenna(s)? Yes No Antenna Type Internal External 1 Pattern Antenna 2 Handset (PP) Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Diversity Supported Antenna TX RX 1 2 3 Base (FP) 4 1 Handset (PP) 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Repeater Nominal Voltage 2.4V DC Cut-Off Voltage (if applicable) - POWER SOURCE Type Manufacturer Base or Repeater Handset (PP) (charger) PNLC1010 Panasonic Data Connections PSTN Others (please specify) .... PCTP-12-F001 / FCC ID: ACJ96NKX-TGA402A FCC Part 15D – Compliance Information pctp-12-f001 (part 15d declaration for handset under acj96nkx-tga402a).doc 8-Dec-2006 page 3 (4) rev.1.4 / March 16, 2012 ANCILLARY EQUIPMENT Description AC Adaptor and Charger Type AC Adaptors, Model PNLV219(FW) with switching power supply at 37 kHz or Model PNLV219(UC) with switching power supply at 36 kHz Battery Charger Model PNLC1010 Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-12-F001 / FCC ID: ACJ96NKX-TGA402A FCC Part 15D – Compliance Information pctp-12-f001 (part 15d declaration for handset under acj96nkx-tga402a).doc 8-Dec-2006 page 4 (4) rev.1.4 / March 16, 2012 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: March 16, 2012 Richard Mullen Richard Mullen

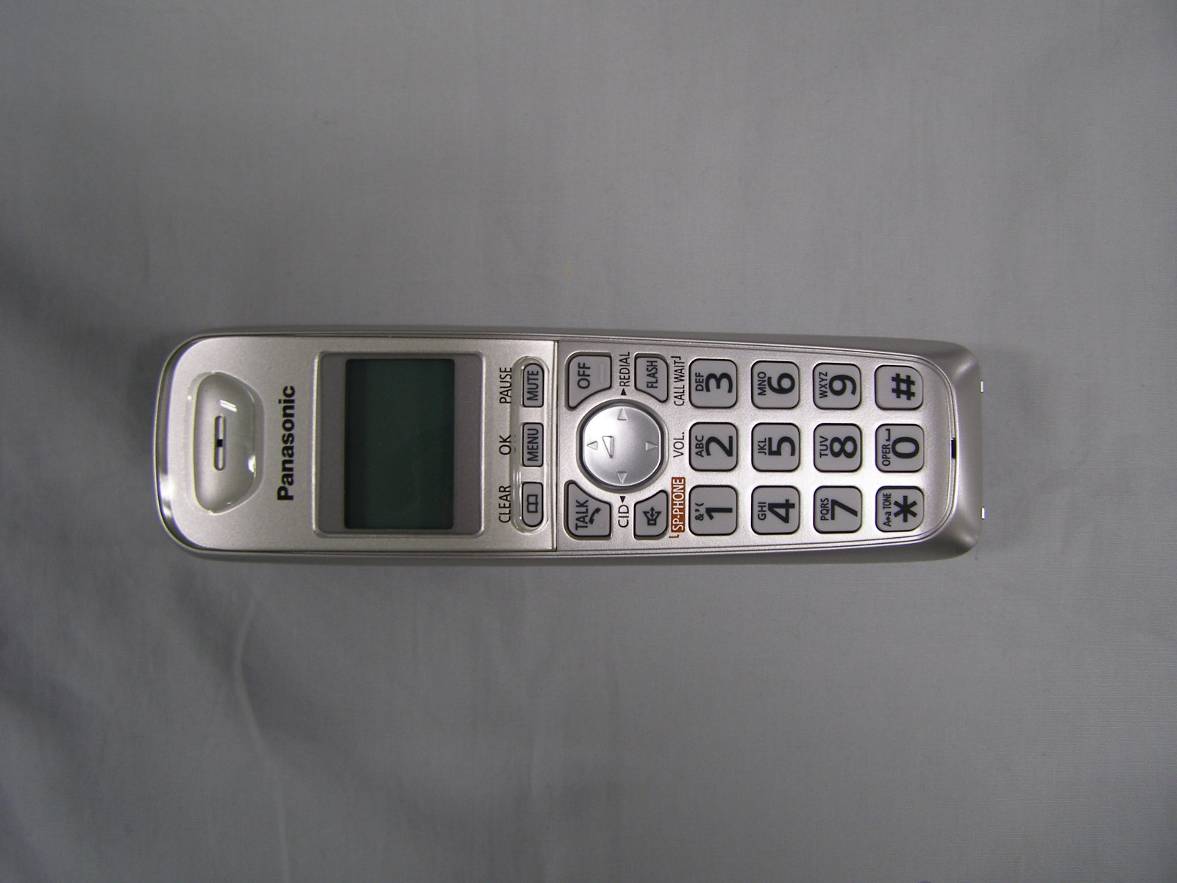

EXTERNAL PHOTOGRAPHS KX-TGA402 Back View

EXHIBIT B MARKINGS Portable Unit: FCC ID Label: The marking will be shown on the battery compartment of the portable unit. NOTE: The portable unit is sold without the battery installed. Nameplate: The nameplate is located on the battery compartment of the portable unit.

INTERNAL PHOTOGRAPHS Internal View RF Portion PC Board The other side

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_Nemko_60320_6120069_FCC_CalData_TGA402 Appendix for the Report Dosimetric Assessment of the Portable Device Panasonic KX-TGA402 (FCC ID: ACJ96NKX-TGA402A) According to the FCC Requirements Calibration Data March 20, 2012 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan SAR_Report_FCC_DECT_1900_1.2.doc/25.11.2011/AR The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. Cal_D1900V2_SN5d051_Sep2011 Page 1 of 8 Calibration Certificate Certificate No: Cal_D1900V2_SN5d051_Sep2011 Object: D1900V2 SN: 5d051 Date of Calibration: September 30, 2011 Next Calibration: September 2013 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1784162174-1) Dec 12 Power Sensor E9301H US40010212 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1784041195-1) Dec 12 Powermeter E4417A GB41050441 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1674038198-1) Dec 12 Power Sensor E9301A MY41495584 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1784041307-1) Dec 12 Network Analyzer E5071C MY46103220 Aug 11 Rohde& Schwarz (14967-DKD-00201- 2009-08) Aug 12 Reference Probe ET3DV6 SN 1669 Feb 11 SPEAG, No ET3- 1669_Feb09 Feb 12 DAE3 SN 335 Feb 11 SPEAG, No DAE3- 335_Feb09 Feb 12 Cal_D1900V2_SN5d051_Sep2011 Page 2 of 8 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 EN 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", March 2007 Federal Communications Commission Office of Engineering & Technologies (FCCOET) "Evaluating Compliance wit FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields; Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions", Supplement C (Edition 01-01) to Bulletin 65 Additional Documentation: DASY 4 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08/ABo Cal_D1900V2_SN5d051_Sep2011 Page 3 of 8 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1340 Distance Dipole Center – TSL: 10mm With spacer Zoom Scan res. dx, dy, dz = 5mm Frequency: 1900 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 40.0 1.40 Measured Head TSL Parameters 22.8 39.4 ± 6% 1.43 S/m ± 6% SAR Result with Head TSL Averaged over 1g SAR measured 250mW input power9.53 mW/g SAR normalized normalized to 1W 38.12 mW/g SAR for nominal Head TSL parameters normalized to 1W 37.51 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power4.93 mW/g SAR normalized normalized to 1W 19.72 mW/g SAR for nominal Head TSL parameters normalized to 1W 19.52 mW/g ± 16.5 % (k=2) Cal_D1900V2_SN5d051_Sep2011 Page 4 of 8 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 53.30 1.52 Measured Body TSL Parameters 23.3 52.10 ± 6% 1.54 S/m ± 6% SAR Result with Body TSL Averaged over 1g SAR measured 250mW input power 9.66 mW/g SAR normalized normalized to 1W 38.64 mW/g SAR for nominal Body TSL parameters normalized to 1W 38.14 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 5.10 mW/ g SAR normalized normalized to 1W 20.40 mW/g SAR for nominal Body TSL parameters normalized to 1W 20.23 mW/g ± 16.5 % (k=2) General Antenna Parmeters Antenna Parameters with Head TSL Impedance, transformed to feed point 48.4 jΩ - 0.7 jΩ Return Loss -35.2 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 52.8 jΩ - 1.8 jΩ Return Loss -29.9 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feedpoint can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: January 15, 1998 Cal_D1900V2_SN5d051_Sep2011 Page 5 of 8 SAR Result with Head TSL Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: 300911_y_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.12, 5.12, 5.12); Calibrated: 21.02.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 22.02.2011 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.4 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.3 V/m; Power Drift = -0.025 dB Peak SAR (extrapolated) = 17.0 W/kg SAR(1 g) = 9.53 mW/g; SAR(10 g) = 4.93 mW/g Maximum value of SA…

Text truncated - open the document above for the full version.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_Nemko_60320_6120069_FCC_DECT_Plots_TGA402 Page 1 of 7 Appendix for the Report Dosimetric Assessment of the Portable Device KX-TGA402 (FCC ID: ACJ96NKX-TGA402A) According to the FCC Requirements SAR Distribution Plots March 20, 2012 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR_Report_Nemko_60320_6120069_FCC_DECT_Plots_TGA402 Page 2 of 7 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, HEAD MEASUREMENT ........................................................................... 3 2 SAR Z-AXIS SCANS (VALIDATION) ........................................................................................................... 7 3 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................. 7 SAR_Report_Nemko_60320_6120069_FCC_DECT_Plots_TGA402 Page 3 of 7 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots, Head Measurement Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA402A_yplm_1.da4 DUT: Panasonic; Type: KX-TGA402A; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.47 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.13, 5.13, 5.13); Calibrated: 25.01.2012 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 20.02.2012 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Left/Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.032 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.63 V/m; Power Drift = 0.067 dB Peak SAR (extrapolated) = 0.072 W/kg SAR(1 g) = 0.037 mW/g; SAR(10 g) = 0.020 mW/g Maximum value of SAR (measured) = 0.041 mW/g Fig. 1: SAR distribution for DECT US, channel 2, cheek position, left side of head (March 20, 2012; Ambient Temperature: 22.3°C; Liquid Temperature: 22.1°C). SAR_Report_Nemko_60320_6120069_FCC_DECT_Plots_TGA402 Page 4 of 7 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA402A_yplm_2.da4 DUT: Panasonic; Type: KX-TGA402A; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.47 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.13, 5.13, 5.13); Calibrated: 25.01.2012 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 20.02.2012 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilted Left/Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.020 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.83 V/m; Power Drift = -0.031 dB Peak SAR (extrapolated) = 0.035 W/kg SAR(1 g) = 0.019 mW/g; SAR(10 g) = 0.012 mW/g Maximum value of SAR (measured) = 0.021 mW/g Fig. 2: SAR distribution for DECT US, channel 2, tilted position, left side of head (March 20, 2012; Ambient Temperature: 22.3°C; Liquid Temperature: 22.1°C). SAR_Report_Nemko_60320_6120069_FCC_DECT_Plots_TGA402 Page 5 of 7 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA402A_yprm_1.da4 DUT: Panasonic; Type: KX-TGA402A; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.47 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.13, 5.13, 5.13); Calibrated: 25.01.2012 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 20.02.2012 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Right/Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.029 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.07 V/m; Power Drift = 0.057 dB Peak SAR (extrapolated) = 0.048 W/kg SAR(1 g) = 0.029 mW/g; SAR(10 g) = 0.017 mW/g Maximum value of SAR (measured) = 0.032 mW/g Fig. 3: SAR distribution for DECT US, channel 2, cheek position, right side of head (March 20, 2012; Ambient Temperature: 22.3°C; Liquid Temperature: 22.1°C). SAR_Report_Nemko_60320_6120069_FCC_DECT_Plots_TGA402 Page 6 of 7 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA402A_yprm_2.da4 DUT: Panasonic; Type: KX-TGA402A; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.47 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.13, 5.13, 5.13); Calibrated: 25.01.2012 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 20.02.2012 - Phantom: SAM Glycol 1340; Type: QD 000 P40 …

Text truncated - open the document above for the full version.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_Nemko_60320_6120069_FCC_DECT_KX-TGA402_Confidential Page 1 of 27 Report Dosimetric Assessment of the Portable Device KX-TGA402 (FCC ID: ACJ96NKX-TGA402A) According to the FCC Requirements March 20, 2012 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan This revised version of the report supersedes all previous versions. The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR_Report_Nemko_60320_6120069_FCC_DECT_KX-TGA402_Confidential Page 2 of 27 Dasy_Report_FCC_DECT_1900_1.3.doc/10.09.2010/ABo Executive Summary The KX-TGA402 is a new cordless phone (Portable Device) from Panasonic operating in the 1920 MHz frequency range (US DECT Standard). The device has an integrated antenna. The objective of the measurements done by IMST was the dosimetric assessment of one device in a worst case setup in head configuration. The handset was set to use one specific frequency and maximum output power during the measurement. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were conducted according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. Since the device provides no headset connector, SAR assessment was conducted in head configuration only. Compliance Statement The Panasonic KX-TGA402 cordless telephone (FCC ID: ACJ96NKX-TGA402A) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. Maximum SAR 1g = 0.037 W/kg (Cheek Left, Channel 2) prepared by: ........................................ reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer SAR_Report_Nemko_60320_6120069_FCC_DECT_KX-TGA402_Confidential Page 3 of 27 Dasy_Report_FCC_DECT_1900_1.3.doc/10.09.2010/ABo Table of Contents 1 SUBJECT OF INVESTIGATION .................................................................................................................... 4 2 THE IEEE STANDARD C95.1-1999 AND THE FCC EXPOSURE CRITERIA ....................................... 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES ........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS ....................................... 5 2.3 SAR LIMIT .................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR ....................................................................................... 6 4 BODY-WORN CONFIGURATIONS .............................................................................................................. 9 4.1 POC (PTT) POSITION ...............................…

Text truncated - open the document above for the full version.
