ACJ96NKX-TGA651DECT Cordless Telephone Handset

Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference. This unit is compatible with Caller ID. You must subscribe to the appropriate service offered by your service provider/telephone company. For assistance, visit our website: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. Operating Instructions Expandable Digital Cordless Answering System Model shown is KX-TG6511. KX-TG6573 KX-TG6531 KX-TG6532 KX-TG6533 KX-TG6534 KX-TG6541 KX-TG6542 KX-TG6543 KX-TG6544 KX-TG6545 Model No. KX-TG6521 KX-TG6522 KX-TG6523 Expandable Digital Cordless Phone Model No. KX-TG6511 KX-TG6512 KX-TG6513 Before initial use, see "Getting Started" on page 5 . Please register your product: http://www.panasonic.com/prodreg 2 For your safety To prevent severe injury and loss of life/ property, read this section carefully before using the product to ensure proper and safe operation of your product. WARNING Power connection LUse only the power source marked on the product. LDo not overload power outlets and extension cords. This can result in the risk of fire or electric shock. LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire. LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire. LUnplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact the Panasonic Call Center at 1-800-211- PANA (1-800-211-7262). LUnplug from power outlets and never touch the inside of the product if its casing has been broken open. LNever touch the plug with wet hands. Danger of electric shock exists. Installation LTo prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture. LDo not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident. LDo not allow the AC adaptor or telephone line cord to be excessively pulled, bent or placed under heavy objects. Operating safeguards LUnplug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners. LDo not disassemble the product. LDo not spill liquids (detergents, cleansers, etc.) onto the telephone line cord plug, or allow it to become wet at all. This may cause a fire. If the telephone line cord plug becomes wet, immediately pull it from the telephone wall jack, and do not use. Medical LConsult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to determine if they are adequately shielded from external RF (radio frequency) energy. (The product operates in the frequency range of 1.92 GHz to 1.93 GHz, and the RF transmission power is 115 mW (max.).) LDo not use the product in health care facilities if any regulations posted in the area instruct you not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. CAUTION Installation and location LNever install telephone wiring during an electrical storm. LNever install telephone line jacks in wet locations unless the jack is specifically designed for wet locations. LNever touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. LUse caution when installing or modifying telephone lines. LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible. LThis product is unable to make calls when: – the handset batteries need recharging or have failed. – there is a power failure. 3 Battery LWe recommend using the batteries. USE ONLY rechargeable Ni-MH batteries AAA (R03) size. LDo not mix old and new batteries. LDo not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed. LExercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns. LCharge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual. LOnly use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode. Attention: A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY (1-800-822- 8837) for information on how to recycle this battery. Important safety instructions When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. 4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. SAVE THESE INSTRUCTIONS For best performance Base unit locatio…

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Power of Attorney November 6, 2009 PCTP-09-F019 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Equipment: Isochronous UPCS Portable Handset Product Name: 1920~1930 MHz Digital Cordless Telephone System FCC ID Handset Unit ACJ96NKX-TGA651 1 Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Panasonic Communications Co., Ltd. 2 Responsible Sales Company: Panasonic Consumer Electronics Company Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 The subject handset unit’s associated base will be separately TCB certified by Nemko for compliance with FCC Part 15D under FCC ID: ACJ96NKX-TG6531. 2 Effective January 1, 2010 company name will change to Panasonic System Networks Co., Ltd. (PSN) Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality November 6, 2009 PCTP-09-F019 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Equipment: Isochronous UPCS Portable Handset Product Name: 1920~1930 MHz Digital Cordless Telephone System FCC Rule Part: Part 15, Subpart D Equipment Classification: Unlicensed PCS Portable TX Held to Ear / Equipment Classification Code PUE Model Number: KX-TGA651(xx) Family FCC ID: ACJ96NKX-TGA651 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagram of Base Unit and RF Unit; and (4) Block Diagram of Base Unit and RF Unit. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Handset Unit and RF Unit; (2) Internal Photographs of Handset Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

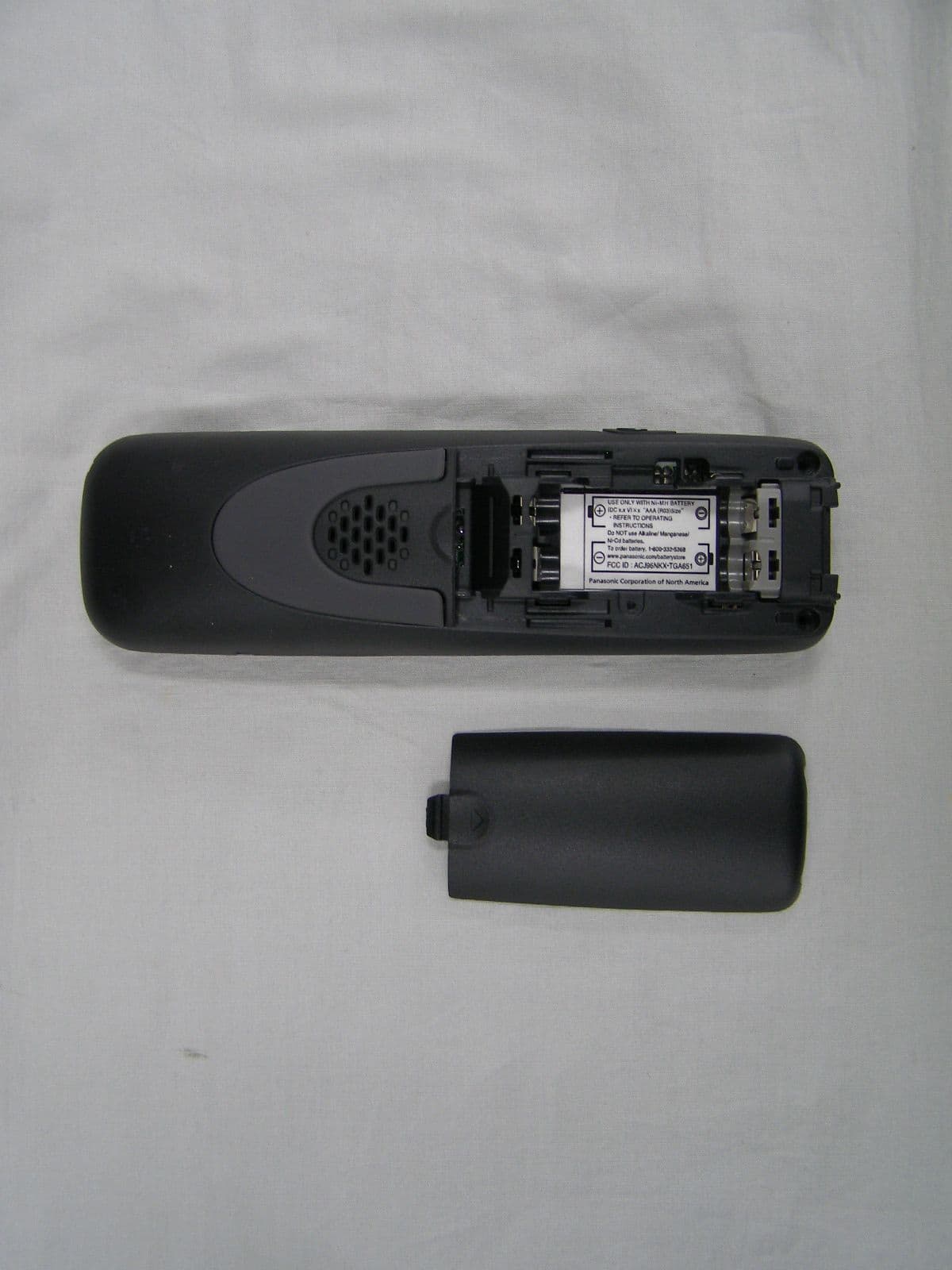

Temporary Confidential EXTERNAL PHOTOGRAPHS KX-TGA651 Temporary Confidential Back View

EXHIBIT B MARKINGS Portable Unit: FCC ID Label: The marking will be shown on the battery compartment of the portable unit. NOTE: The portable unit is sold without the battery installed. Nameplate: The nameplate is located on the bottom of the portable unit.

Temporary Confidential INTERNAL PHOTOGRAPHS Internal View Temporary Confidential RF Portion Temporary Confidential PC Board The other side

DAT-P-152/98-01 SAR_Report_Nemko_6620_773_FCC_DECT_KX-TGA651_Confidential_V2 Page 1 of 30 Report Dosimetric Assessment of the Portable Device Panasonic KX-TGA651 (FCC ID: ACJ96NKX-TGA651) According to the FCC Requirements November 17, 2009 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic Communications Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_FCC_DECT_1900_1.2.doc/16.05.2008/ABo SAR_Report_Nemko_6620_773_FCC_DECT_KX-TGA651_Confidential_V2 Page 2 of 30 Dasy_Report_FCC_DECT_1900_1.2.doc/16.05.2008/ABo Executive Summary The KX-TGA651 is a cordless telephone (Portable Device) from Panasonic operating in the 1920 MHz frequency range (US DECT Standard). The objective of the measurements done by IMST was the dosimetric assessment of one device in a worst case setup, the handset was set to use one specific frequency during the measurement. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Panasonic KX-TGA651 cordless telephone (FCC ID: ACJ96NKX-TGA651) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: Body worn with the following accessories: • Belt clip with headset (display towards the phantom, distance 0 mm) • Belt clip with headset (display towards the ground, distance 0 mm) Maximum SAR 1g = 0.013 W/kg (Head, Cheek left, Channel 2) prepared by: ........................................... reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] SAR_Report_Nemko_6620_773_FCC_DECT_KX-TGA651_Confidential_V2 Page 3 of 30 Dasy_Report_FCC_DECT_1900_1.2.doc/16.05.2008/ABo Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1-1999 AND THE FCC EXPOSURE CRITERIA....................................... 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION.............................................................................................................................. 10 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 16 8 APPENDIX....................................................................................................................................................... 17 8.1 ADMINISTRATIVE DATA............................................................................................................................ 17 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 17 8.3 TISSUE RECIPES...................................................................................................................................... 17 8.4 MATERIAL PARAMETERS......................................................................................................................... 18 8.5 SIMPLIFIED PERFORMANCE CHECKING.............................…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_Nemko_6620_773_FCC_Caldata_KX-TGA651 dasy_report_fcc_850_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the Panasonic KX-TGA651 (FCC ID: ACJ96NKX-TGA651) According to the FCC Requirements Calibration Data November 17, 2009 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic Communications Co., Ltd. 1 -62, 4 - chome, Minoshima, Hakata - Ku Fukuoka 812-8531 Japan DAT-P-152/98-01 Cal_D1900V2_SN5d051_0909 Page 1 of 8 _ Calibration_Certificate_Dipole_V1.0/01.08.2009/ABo Calibration Certificate Certificate No: Cal_D1900V2_SN5d051_0909 Object: D1900V2 SN: 5d051 Date of Calibration: September 09, 2009 Next Calibration: September 2011 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784162174-1) Dec 10 Power Sensor E9301H US40010212 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784041195-1) Dec 10 Powermeter E4417A GB41050441 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1674038198-1) Dec 10 Power Sensor E9301A MY41495584 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784041307-1) Dec 10 Network Analyzer E5071C MY46103220 Aug 09 Rohde& Schwarz (14967-DKD-00201- 2009-08) Aug 10 Reference Probe ET3DV6 SN 1669 Feb 09 SPEAG, No ET3- 1669_Feb09 Feb 10 DAE3 SN 335 Feb 09 SPEAG, No DAE3- 335_Feb09 Feb 10 Cal_D1900V2_SN5d051_0909 Page 2 of 8 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 IEC 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", February 2005 Federal Communications Commission Office of Engineering & Technologies (FCCOET) "Evaluating Compliance wit FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields; Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions", Supplement C (Edition 01-01) to Bulletin 65 Additional Documentation: DASY 4 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08/ABo Cal_D1900V2_SN5d051_0909 Page 3 of 8 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1340 Distance Dipole Center – TSL: 10mm With spacer Zoom Scan res. dx, dy, dz = 5mm Frequency: 1900 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 40.0 1.40 Measured Head TSL Parameters 22.0 40.3 ± 6% 1.45 S/m ± 6% SAR result with Head TSL Averaged over 1g SAR measured 250mW input power 9.10 mW/g SAR normalized normalized to 1W 36.40 mW/g SAR for nominal Head TSL parameters normalized to 1W 35.90 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 4.76 mW/g SAR normalized normalized to 1W 19.04 mW/g SAR for nominal Head TSL parameters normalized to 1W 18.96 mW/g ± 16.5 % (k=2) Cal_D1900V2_SN5d051_0909 Page 4 of 8 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 53.30 1.52 Measured Body TSL Parameters 22.0 52.90 ± 6% 1.54 S/m ± 6% SAR result with Body TSL Averaged over 1g SAR measured 250mW input power 9.42 mW/g SAR normalized normalized to 1W 37.68 mW/g SAR for nominal Body TSL parameters normalized to 1W 37.28 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 4.97 mW/ g SAR normalized normalized to 1W 19.88 mW/g SAR for nominal Body TSL parameters normalized to 1W 19.77 mW/g ± 16.5 % (k=2) General Antenna Parmeters Antenna Parameters with Head TSL Impedance, transformed to feed point 48.2 jΩ - 1.3 jΩ Return Loss -33.0 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 53.9 jΩ - 0.4 jΩ Return Loss -28.3 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feedpoint can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: January 15, 1998 Cal_D1900V2_SN5d051_0909 Page 5 of 8 SAR result with Head TSL Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 090909_b_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.45 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 10.02.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2009 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.4 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.3 V/m; Power Drift = -0.152 dB Peak SAR (extrapolated) = 15.9 W/kg SAR(1 g) = 9.1 mW/g; SAR(10 g) = 4.76 mW/g Maximum value of SAR (measured) = 10.3 mW/g Cal_D1900V2_SN5d051_0909 Page 6 of 8 SAR result with Body TSL Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 090909_b_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phant…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_Nemko_6620_773_FCC_DECT_SAR Plots_KX-TGA651 Page 1 of 10 Appendix for the Report Dosimetric Assessment of the Panasonic KX-TGA651 (FCC ID: ACJ96NKX-TGA651) According to the FCC Requirements SAR Distribution Plots November 17, 2009 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic Communications Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531 Japan The test results only relate to the items tested.This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo SAR_Report_Nemko_6620_773_FCC_DECT_SAR Plots_KX-TGA651 Page 2 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, HEAD MEASUREMENTS ......................................................................... 3 2 SAR DISTRIBUTION PLOTS, BODY MEASUREMENTS ........................................................................ 7 3 SAR Z-AXIS SCANS (VALIDATION) ........................................................................................................... 9 4 SAR Z-AXIS SCANS (MEASUREMENTS) ................................................................................................ 10 SAR_Report_Nemko_6620_773_FCC_DECT_SAR Plots_KX-TGA651 Page 3 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots, Head Measurements Test Laboratory: IMST GmbH, DASY Blue (I); File Name: TGA651_bplm_1.da4 DUT: Panasonic; Type: KX-TGA651; Program Name: Cheek Left Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.44 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.95, 7.95, 7.95); Calibrated: 18.09.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 14.09.2009 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Left/Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.012 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.758 V/m; Power Drift = -0.108 dB Peak SAR (extrapolated) = 0.053 W/kg SAR(1 g) = 0.013 mW/g; SAR(10 g) = 0.00671 mW/g Maximum value of SAR (measured) = 0.016 mW/g Fig. 1: SAR distribution for DECT US, channel 2, cheek position, left side of head (November 13, 2009; Ambient Temperature: 22.0°C; Liquid Temperature: 21.6°C). SAR_Report_Nemko_6620_773_FCC_DECT_SAR Plots_KX-TGA651 Page 4 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: TGA651_bplm_2.da4 DUT: Panasonic; Type: KX-TGA651; Program Name: Tilted Left Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.44 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.95, 7.95, 7.95); Calibrated: 18.09.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 14.09.2009 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilted Left/Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.007 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.958 V/m; Power Drift = -0.083 dB Peak SAR (extrapolated) = 0.013 W/kg SAR(1 g) = 0.0069 mW/g; SAR(10 g) = 0.00367 mW/g Maximum value of SAR (measured) = 0.008 mW/g Fig. 2: SAR distribution for DECT US, channel 2, tilted position, left side of head (November 13, 2009; Ambient Temperature: 22.0°C; Liquid Temperature: 21.6°C). SAR_Report_Nemko_6620_773_FCC_DECT_SAR Plots_KX-TGA651 Page 5 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: TGA651_bprm_1.da4 DUT: Panasonic; Type: KX-TGA651; Program Name: Cheek Right Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.44 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.95, 7.95, 7.95); Calibrated: 18.09.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 14.09.2009 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Right/Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.010 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.21 V/m; Power Drift = -0.040 dB Peak SAR (extrapolated) = 0.017 W/kg SAR(1 g) = 0.0094 mW/g; SAR(10 g) = 0.00522 mW/g Maximum value of SAR (measured) = 0.011 mW/g Fig. 3: SAR distribution for DECT US, channel 2, cheek position, right side of head (November 13, 2009; Ambient Temperature: 22.0°C; Liquid Temperature: 21.6°C). SAR_Report_Nemko_6620_773_FCC_DECT_SAR Plots_KX-TGA651 Page 6 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: TGA651_bprm_2.da4 DUT: Panasonic; Type: KX-TGA651; Program Name: Tilted Right Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.44 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.95, 7.95, 7.95); Calibrated: 18.09.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 14.09.2009 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; P…

Text truncated - open the document above for the full version.

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 137945-4 Item tested : KX-TGA651 Type of equipment : UPCS Handset FCC ID : ACJ96NKX-TGA651 Client : Panasonic Communications Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 19 November 2009 Authorized by : ....................... ...................... Egil Hauger Technical Verificator TEST REPORT FCC part 15D Report no.: 137945-4 FCC ID: ACJ96NKX-TGA651 Nemko AS, N-2007 Kjeller Page 2 (53) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Test Environment .............................................................................................................................. 5 2.3 Test Period ..................…
