ACJ96NKX-TGA659FCC Part 15 D / DECT Cordless Telephone Handset

Operating Instructions Digital Cordless Answering System Model shown is KX-TG6591. Model No. KX-TG6591 KX-TG6592 Before initial use, see “Getting Started” on page 9. Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference. Consulte “Guía Rápida Española”, página 55. This unit is compatible with Caller ID. You must subscribe to the appropriate service offered by your service provider/telephone company. For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. Please register your product: http://www.panasonic.com/prodreg Introduction Model composition ..............................3 Accessory information .........................3 Important Information For your safety ....................................6 Important safety instructions ...............7 For best performance ..........................7 Other information ................................8 Specifications ......................................8 Getting Started Setting up ............................................9 Note when setting up ........................10 Intelligent eco mode ..........................11 Controls .............................................11 Belt clip ..............................................12 Display ..............................................12 Initial settings ....................................13 Making/Answering Calls Making calls ......................................15 Answering calls .................................16 Useful features during a call .............17 Shared Phonebook Shared phonebook ............................19 Speed Dial Speed dial .........................................22 Programming Programmable settings .....................24 Special programming ........................29 Registering a unit ..............................31 Caller ID Service Using Caller ID service ......................32 Caller list ...........................................33 Answering System Answering system .............................35 Turning the answering system on/ off ......................................................35 Greeting message .............................36 Listening to messages using the base unit ....................................................36 Listening to messages using the handset .............................................37 Remote operation .............................38 Answering system settings ...............39 Voice Mail Service Voice mail service .............................41 Intercom/Locator Intercom ............................................43 Handset locator .................................43 Transferring calls, conference calls ...................................................43 Useful Information Wall mounting ...................................45 Error messages .................................47 Troubleshooting ................................48 FCC and other information ................53 Guía Rápida Española Guía Rápida Española ......................55 Appendix Customer services ............................59 Warranty (For United States and Puerto Rico) ..................................................60 Index Index..................................................62 2 Table of Contents Model composition SeriesModel No. Base unitHandset Part No.Part No.Quantity KX-TG6591 series KX-TG6591KX-TG6591KX-TGA6591 KX-TG6592KX-TG6591KX-TGA6592 Feature highlights nEasy-to-see LCD and big button – 1.9 inches wide display with white backlight – Big keys with backlight nEasy-to-use feature – 3 One-touch dials on handset and base unit – Dedicated volume key on the side of handset – Nonslip pad handset – Intelligent eco mode – Hands-free speakerphone on handset and base unit nEasy-to-hear feature – Customized sound system Choose prefer sound. (Bass/Standard/Treble) – Loud receiving volume – Clear sound – Hearing aid compatible (Compliance with “TIA-1083” standard) Accessory information Supplied accessories No. Accessory item/Order number Quantity KX-TG6591KX-TG6592 AAC adaptor/PNLV226Z12 BTelephone line cord/PQJA10075Z11 C Wall mounting adaptor *1 11 DRechargeable batteries/HHR-4DPA24 E Handset cover *2 /PNYNTGA652BR 12 FBelt clip/PNKE1076Z212 GCharger/PNLC1015ZM–1 *1 PNKL1010Z1: Black metallic, PNKL1010Z2: Pearl silver *2 The handset cover comes attached to the handset. For assistance, please visit http://www.panasonic.com/help 3 Introduction ABCDE FG Additional/replacement accessories Please contact your nearest Panasonic dealer for sales information (page 59). Accessory itemOrder number Rechargeable batteries HHR-4DPA *1 RTo order, please call 1-800-332-5368 or visit http://www.panasonic.com/batterystore Battery type: – Nickel metal hydride (Ni-MH) – 2 x AAA (R03) size for each handset HeadsetKX-TCA60, KX-TCA93, KX-TCA94, KX-TCA400, KX-TCA430 T-adaptorKX-J66 Range extender KX-TGA405 *2 *1 Replacement batteries may have a different capacity from that of the supplied batteries. *2 By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. Up to 2 range extenders can be registered to the base unit. This product can be purchased online. Please visit our Web site: http://www.panasonic.com/RangeExtender 4 For assistance, please visit http://www.panasonic.com/help Introduction Expanding your phone system Optional handset feature overview You can expand your phone system by registering optional handsets (6 max.) to a single base unit. ROptional handsets may be a different color from that of the supplied handsets. FeatureKX-TGA660KX-TGA410KX-TGA659 Handset Display size1.8 inches1.8 inches1.9 inches Button sizeLargeLargeExtra large Speed dial *1 –– *1 You can make a call using a speed dial key on the handset as well as the base unit if your unit has speed dial feature. For assistance, please visit http://www.panasonic.com/help 5 Introductio…

Text truncated - open the document above for the full version.

PCTP-10-F029: Base FCC ID: ACJ96NKX-TG6591 PCTP-10-F030: Handset FCC ID: ACJ96NKX-TGA659 FCC Part 15D – Compliance Information Amended December 10, 2010 page 1 (4) EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Systems Network Co., Ltd. Address Fukuoka, Japan Contact Yukio Kaneko FP PP Repeater EUT Type/System FCC ID ACJ96NKX-TG6591 (IC:216A-KXTG6591) ACJ96NKX-TGA659 (IC:216A-KXTGA659) Model name KX-TG6591 KX-TGA659 HW Version SW Version Max antenna Gain 0.0 dBi 0.0 dBi Can the EUT be Initiating Device YES YES YES Does the EUT transmit signaling channels YES YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-10-F029: Base FCC ID: ACJ96NKX-TG6591 PCTP-10-F030: Handset FCC ID: ACJ96NKX-TGA659 FCC Part 15D – Compliance Information Amended December 10, 2010 page 2 (4) ANTENNAS Antenna Type Internal External 1 Wired Antenna 2 Wired Antenna 3 4 Base (FP) or Repeater Does RX and TX use the same antenna(s)? Yes No Antenna Type Internal External 1 Wired Antenna 2 Handset (PP) Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Diversity Supported Antenna TX RX 1 2 3 Base (FP) or Repeater 4 1 Handset (PP) 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Repeater Nominal Voltage 120 VAC 2.4 VDC Cut-Off Voltage (if applicable) POWER SOURCE Type Manufacturer Base or Repeater AC Adapter with SPS @ 37 kHz, Model PQLV219(FW) “or” AC Adapter with SPS @ 36 kHz, Model PQLV219(UC) Panasonic Handset (PP) (charger) NiMH Batteries (2x) Data Connections PSTN (Base) Others (please specify) .... PCTP-10-F029: Base FCC ID: ACJ96NKX-TG6591 PCTP-10-F030: Handset FCC ID: ACJ96NKX-TGA659 FCC Part 15D – Compliance Information Amended December 10, 2010 page 3 (4) ANCILLARY EQUIPMENT Description AC Adaptor and Charger Type PQLV219 (AC Adaptor) and PNLC1015 (Charger) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-10-F029: Base FCC ID: ACJ96NKX-TG6591 PCTP-10-F030: Handset FCC ID: ACJ96NKX-TGA659 FCC Part 15D – Compliance Information Amended December 10, 2010 page 4 (4) MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. FCC Section 15.307(b) Affidavit # PAN120706 issued on December 7, 2006. Confirmed By Applicant Yes No ADDITIONAL REMARKS: DECLARED BY: Date: December 10, 2010 Name: Richard Mullen Signature: Richard Mullen

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means: ∑ Provided with 128 bits for security codes. ∑ When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC. ∑ Base and Handset knows each other’s security code information.

TEMPORARY CONFIDENTIAL EXTERNAL PHOTOGRAPHS KX-TGA659 TEMPORARY CONFIDENTIAL Back View

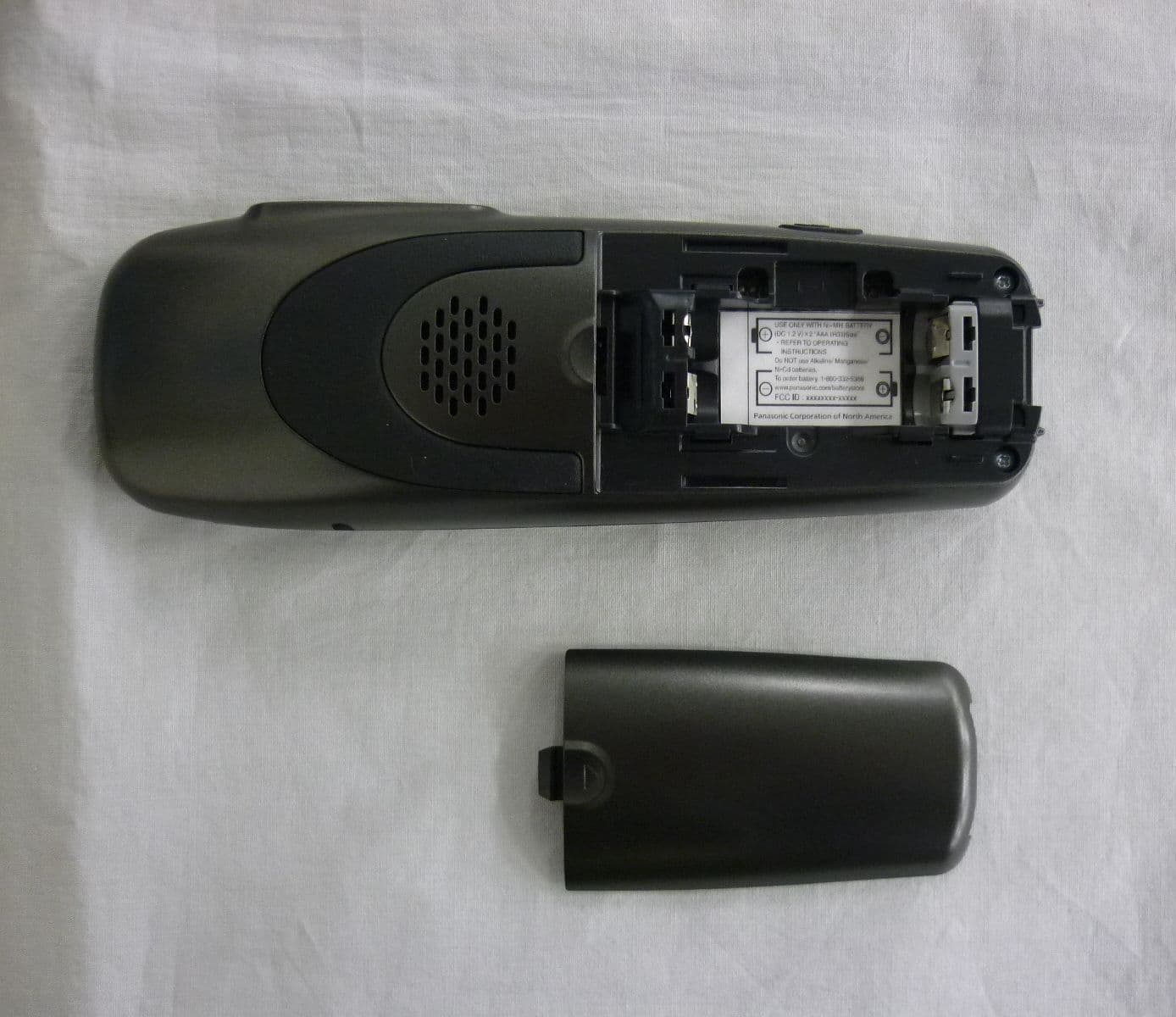

EXHIBIT B MARKINGS Portable Unit: FCC ID Label: The marking will be shown on the battery compartment of the portable unit. NOTE: The portable unit is sold without the battery installed. Nameplate: The nameplate is located on the bottom of the portable unit.

TEMPORARY CONFIDENTIAL INTERNAL PHOTOGRAPHS Internal View TEMPORARY CONFIDENTIAL RF Portion TEMPORARY CONFIDENTIAL PC Board The other side

DAT-P-152/98-01 SAR_Report_Nemko_6620_830_FCC_DECT_KX-TGA659_Confidential Page 1 of 30 Report Dosimetric Assessment of the Portable Device Panasonic KX-TGA659 (FCC ID: ACJ96NKX-TGA659) According to the FCC Requirements November 30, 2010 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_FCC_DECT_1900_1.2.doc/16.05.2008/ABo SAR_Report_Nemko_6620_830_FCC_DECT_KX-TGA659_Confidential Page 2 of 30 Dasy_Report_FCC_DECT_1900_1.2.doc/16.05.2008/ABo Executive Summary The KX-TGA659 is a cordless telephone (Portable Device) from Panasonic operating in the 1920 MHz frequency range (US DECT Standard). The objective of the measurements done by IMST was the dosimetric assessment of one device in a worst case setup. The handset was set to use one specific frequency and maximum output power during the measurements. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. Compliance Statement The Panasonic KX-TGA659 cordless telephone (FCC ID: ACJ96NKX-TGA659) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following body worn configurations: • Belt clip and Headset attached (Display towards the phantom, distance 0 mm) • Belt clip and Headset attached (display towards the ground, distance 0 mm) Maximum SAR 1g = 0.035 W/kg (Head position, Cheek left, Channel 2) prepared by: ........................................... reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] SAR_Report_Nemko_6620_830_FCC_DECT_KX-TGA659_Confidential Page 3 of 30 Dasy_Report_FCC_DECT_1900_1.2.doc/16.05.2008/ABo Table of Contents 1 SUBJECT OF INVESTIGATION .................................................................................................................... 4 2 THE IEEE STANDARD C95.1-1999 AND THE FCC EXPOSURE CRITERIA ....................................... 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES ........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS ....................................... 5 2.3 SAR LIMIT .................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR ....................................................................................... 6 4 BODY-WORN CONFIGURATIONS .............................................................................................................. 9 4.1 POC (PTT) POSITION .............................................................................................................................. 10 4.2 PHANTOM REQUIREMENTS ...................................................................................................................... 10 4.3 TEST TO BE PERFORMED ......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM ................................................................................................................. 10 5.1 PHANTOM ................................................................................................................................................. 12 5.2 PROBE ...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE .................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT ................................................................................................................... 14 6 SAR RESULTS ............................................................................................................................................... 15 7 EVALUATION ................................................................................................................................................. 16 8 APPENDIX ....................................................................................................................................................... 17 8.1 ADMINISTRATIVE DATA ............................................................................................................................ 17 8.2 DEVICE UNDER TEST AND TEST CONDITIONS ......................................................................................... 17 8.3 TISSUE RECIPES ...................................................................................................................................... 17 8.4 MATERIAL PARAMETERS ......................................................................................................................... 18 8.5 SIMPL…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_Nemko_6620_830_FCC_CalData_TGA659 Appendix for the Report Dosimetric Assessment of the Portable Device Panasonic KX-TGA659 (FCC ID: ACJ96NKX-TGA659) According to the FCC Requirements Calibration Data November 30, 2010 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Pansonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan Dasy_Report_FCC_DECT_1900_1.1.doc/22.05.2006/CH DAT-P-152/98-01 Cal_D1900V2_SN5d051_0909 Page 1 of 8 _ Calibration_Certificate_Dipole_V1.0/01.08.2009/ABo Calibration Certificate Certificate No: Cal_D1900V2_SN5d051_0909 Object: D1900V2 SN: 5d051 Date of Calibration: September 09, 2009 Next Calibration: September 2011 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784162174-1) Dec 10 Power Sensor E9301H US40010212 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784041195-1) Dec 10 Powermeter E4417A GB41050441 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1674038198-1) Dec 10 Power Sensor E9301A MY41495584 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784041307-1) Dec 10 Network Analyzer E5071C MY46103220 Aug 09 Rohde& Schwarz (14967-DKD-00201- 2009-08) Aug 10 Reference Probe ET3DV6 SN 1669 Feb 09 SPEAG, No ET3- 1669_Feb09 Feb 10 DAE3 SN 335 Feb 09 SPEAG, No DAE3- 335_Feb09 Feb 10 Cal_D1900V2_SN5d051_0909 Page 2 of 8 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 IEC 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", February 2005 Federal Communications Commission Office of Engineering & Technologies (FCCOET) "Evaluating Compliance wit FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields; Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions", Supplement C (Edition 01-01) to Bulletin 65 Additional Documentation: DASY 4 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08/ABo Cal_D1900V2_SN5d051_0909 Page 3 of 8 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1340 Distance Dipole Center – TSL: 10mm With spacer Zoom Scan res. dx, dy, dz = 5mm Frequency: 1900 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 40.0 1.40 Measured Head TSL Parameters 22.0 40.3 ± 6% 1.45 S/m ± 6% SAR result with Head TSL Averaged over 1g SAR measured 250mW input power 9.10 mW/g SAR normalized normalized to 1W 36.40 mW/g SAR for nominal Head TSL parameters normalized to 1W 35.90 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 4.76 mW/g SAR normalized normalized to 1W 19.04 mW/g SAR for nominal Head TSL parameters normalized to 1W 18.96 mW/g ± 16.5 % (k=2) Cal_D1900V2_SN5d051_0909 Page 4 of 8 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 53.30 1.52 Measured Body TSL Parameters 22.0 52.90 ± 6% 1.54 S/m ± 6% SAR result with Body TSL Averaged over 1g SAR measured 250mW input power 9.42 mW/g SAR normalized normalized to 1W 37.68 mW/g SAR for nominal Body TSL parameters normalized to 1W 37.28 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 4.97 mW/ g SAR normalized normalized to 1W 19.88 mW/g SAR for nominal Body TSL parameters normalized to 1W 19.77 mW/g ± 16.5 % (k=2) General Antenna Parmeters Antenna Parameters with Head TSL Impedance, transformed to feed point 48.2 jΩ - 1.3 jΩ Return Loss -33.0 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 53.9 jΩ - 0.4 jΩ Return Loss -28.3 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feedpoint can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: January 15, 1998 Cal_D1900V2_SN5d051_0909 Page 5 of 8 SAR result with Head TSL Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 090909_b_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.45 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 10.02.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2009 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.4 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.3 V/m; Power Drift = -0.152 dB Peak SAR (extrapolated) = 15.9 W/kg SAR(1 g) = 9.1 mW/g; SAR(10 g) = 4.76 mW/g Maximum value of SAR (measured) = 10.3 mW/g Cal_D1900V2_SN5d051_0909 Page 6 of 8 SAR result with Body TSL Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 090909_b_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phan…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_Nemko_6620_830_FCC_DECT_Plots_TGA659 Page 1 of 10 Appendix for the Report Dosimetric Assessment of the Portable Device Panasonic KX-TGA659 (FCC ID: ACJ96NKX-TGA659) According to the FCC Requirements SAR Distribution Plots November 30, 2010 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Netowrk Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan The test results only relate to the items tested.This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo SAR_Report_Nemko_6620_830_FCC_DECT_Plots_TGA659 Page 2 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, HEAD MEASUREMENTS ......................................................................... 3 2 SAR DISTRIBUTION PLOTS, BODY MEASUREMENTS ........................................................................ 7 3 SAR Z-AXIS SCANS (VALIDATION) ........................................................................................................... 9 4 SAR Z-AXIS SCANS (MEASUREMENTS) ................................................................................................ 10 SAR_Report_Nemko_6620_830_FCC_DECT_Plots_TGA659 Page 3 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots, Head Measurements Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA659_yplm_1.da4 DUT: Panasonic; Type: KX-TGA659; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.42 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.77, 7.77, 7.77); Calibrated: 16.09.2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 10.02.2010 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Left/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.032 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.72 V/m; Power Drift = -0.148 dB Peak SAR (extrapolated) = 0.065 W/kg SAR(1 g) = 0.035 mW/g; SAR(10 g) = 0.018 mW/g Maximum value of SAR (measured) = 0.038 mW/g Fig. 1: SAR distribution for DECT US, channel 2, cheek position, left side of head (November 24, 2010; Ambient Temperature: 20.9°C; Liquid Temperature: 20.7°C). SAR_Report_Nemko_6620_830_FCC_DECT_Plots_TGA659 Page 4 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA659_yplm_2.da4 DUT: Panasonic; Type: KX-TGA659; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.42 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.77, 7.77, 7.77); Calibrated: 16.09.2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 10.02.2010 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilted Left/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.018 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.17 V/m; Power Drift = 0.048 dB Peak SAR (extrapolated) = 0.051 W/kg SAR(1 g) = 0.017 mW/g; SAR(10 g) = 0.00855 mW/g Maximum value of SAR (measured) = 0.020 mW/g Fig. 2: SAR distribution for DECT US, channel 2, tilted position, left side of head (November 24, 2010; Ambient Temperature: 20.9°C; Liquid Temperature: 20.7°C). SAR_Report_Nemko_6620_830_FCC_DECT_Plots_TGA659 Page 5 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA659_yprm_1.da4 DUT: Panasonic; Type: KX-TGA659; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.42 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.77, 7.77, 7.77); Calibrated: 16.09.2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 10.02.2010 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Right/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.026 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.44 V/m; Power Drift = -0.181 dB Peak SAR (extrapolated) = 0.047 W/kg SAR(1 g) = 0.025 mW/g; SAR(10 g) = 0.013 mW/g Maximum value of SAR (measured) = 0.028 mW/g Fig. 3: SAR distribution for DECT US, channel 2, cheek position, right side of head (November 24, 2010; Ambient Temperature: 20.9°C; Liquid Temperature: 20.7°C). SAR_Report_Nemko_6620_830_FCC_DECT_Plots_TGA659 Page 6 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA659_yprm_2.da4 DUT: Panasonic; Type: KX-TGA659; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.42 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.77, 7.77, 7.77); Calibrated: 16.09.2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 10.02.2010 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postpro…

Text truncated - open the document above for the full version.

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Kjeller, Instituttveien 6, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 160537-7 Item tested : KX-TGA659 Type of equipment : UPCS Handset FCC ID : ACJ96NKX-TGA659 Client : Panasonic System Networks Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 9 December 2010 Authorized by : .............................................. G. Suhantakumar Technical Verificator TEST REPORT FCC part 15D Report no.: 160537-7 FCC ID: ACJ96NKX-TGA659 Nemko AS, N-2007 Kjeller Page 2 (17) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information .............................................................................................................................. 3 1.3 Responsible Manufacturer (if other than client) ................................................................................. 3 2 TEST INFORMATION ...............................................................................................…

Text truncated - open the document above for the full version.
