ACJ96NKX-TGA820Cordless Telephone Handset

Thank you for purchasing a Panasonic cordless telephone. Please read this Installation Manual before using the unit and save for future reference. For assistance, visit our website: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. This handset is an accessory handset for use with Panasonic Digital Cordless Phones: KX-TG8231/KX-TG8232 You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit’s operating instructions for further details. Charge the batteries for 7 hours before initial use. Expandable Digital Cordless Handset Model No. KX-TGA820 Installation Manual PQQX16156ZA DC0107YK0 TGA820(e).fm Page 1 Friday, May 18, 2007 4:47 PM Temporary Confidential 2For assistance, please visit http://www.panasonic.com/help Supplied accessories *1 The handset cover comes attached to the handset. Note: LPlease read the base unit’s operating instructions for additional/ replacement accessories. Sales and support information LTo order replacement accessories, call 1-800-332-5368. LTTY users (hearing or speech impaired users) can call 1-866-605- 1277. Connecting the charger Note: LUse only the supplied Panasonic AC adaptor PQLV209. LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Accessory itemOrder numberQuantity ChargerPQLV30056YB1 AC adaptor for chargerPQLV209V1 BatteriesHHR-4DPA (Part No. HHR-55AAABU) 2 Handset cover *1 PQYNTG8200E1 Belt clipPQKE10481Z11 Hooks (120 V AC, 60 Hz) Fasten the AC adaptor cord to prevent it from being disconnected. TGA820(e).fm Page 2 Friday, May 18, 2007 4:47 PM Temporary Confidential For assistance, please visit http://www.panasonic.com/help3 Battery installation/Battery charge Important: LUse only the supplied rechargeable batteries noted on page 6. LUSE ONLY rechargeable Ni-MH batteries AAA (R03) size. LDo NOT use Alkaline/Manganese/Ni-Cd batteries. LEnsure correct polarities (S, T) when installing the batteries. LWipe the battery ends (S, T) with a dry cloth. LWhen installing the batteries, avoid touching the battery ends (S, T) or the unit contacts. 1Press the notch of the handset cover firmly, and slide it in the direction of the arrow. 2Insert the batteries negative (T) end first. Close the handset cover. 3Place the handset on the charger for 7 hours before initial use. Attention: A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY (1-800-822-8837) for information on how to recycle this battery. TGA820(e).fm Page 3 Friday, May 18, 2007 4:47 PM Temporary Confidential 4For assistance, please visit http://www.panasonic.com/help Note: LIf you fully charged the batteries, but the operating time seems to be short, wipe the battery ends (S, T) and the unit contacts with a dry cloth. Register the handset to a KX-TG8231/KX-TG8232 base unit 1 Base unit: Press and hold {x} (LOCATOR) until the registration tone sounds. LIf all registered handsets start ringing, press {x} (LOCATOR) to stop, then repeat this step. LAfter the base unit beeps, the rest of the procedure must be completed within 1 minute and 30 seconds. 2Handset: Press {OK}, then wait until a beep sounds and w stops flashing. Changing the display language 1 {MENU} (center of joystick) 2Select M by pushing the joystick in any direction. i {SELECT} 3Push the joystick up or down to select “Change language” i {SELECT} 4Push the joystick up or down to select the desired language. i {SAVE} i {OFF} TGA820(e).fm Page 4 Friday, May 18, 2007 4:47 PM Temporary Confidential For assistance, please visit http://www.panasonic.com/help5 Belt clip You can hang the handset on your belt or pocket using the supplied belt clip. NTo attach the belt clipNTo remove the belt clip While pressing the top of the clip(A), pull the right edge in the direction of the arrow (B). A B TGA820(e).fm Page 5 Friday, May 18, 2007 4:47 PM Temporary Confidential 6For assistance, please visit http://www.panasonic.com/help Important safety instructions WARNING: LTo prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture. LUnplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact the Panasonic Call Center at 1-800-211-PANA (1-800-211-7262). LDo not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident. LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire. LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire. CAUTION: Installation LOperating the product near electrical appliances may cause interference. Move away from the electrical appliances. LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible. Battery To reduce the risk of fire or injury to persons, read and follow these instructions. LUse only the battery(ies) specified. LDo not dispose of the battery(ies) in a fire, as they may explode. Check with local waste management codes for special disposal instructions. TGA820(e).fm Page 6 Friday, May 18, 2007 4:47 PM Temporary Confidential For assistance, please visit http://www.panasonic.com/help7 LDo not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed. LExercise care when handling …

Text truncated - open the document above for the full version.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7765 / Fax: 201-392-4564 [email protected] ERICA MARTINEZ RF Engineer Product Safety and Compliance Division Power of Attorney June 5, 2007 PCZ-07-F003 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15D. Any and all acts carried out by Nemko on our behalf shall have the same effects as acts of our own for a period of one year. Type Equipment: Isochronous UPCS Portable Handset Product Name: 1920~1930 MHz Digital Cordless Telephone System FCC ID Handset Unit ACJ96NKX-TGA820 Applicant & Grantee: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 FRN Number: 0003762242 Responsible Manufacturer: Panasonic Communications Co., Ltd. Responsible Sales Company: Panasonic Consumer Electronics Company Sincerely yours, Erica Martinez Erica Martinez RF Engineer Panasonic Corporation of North America Product Safety and Compliance Division

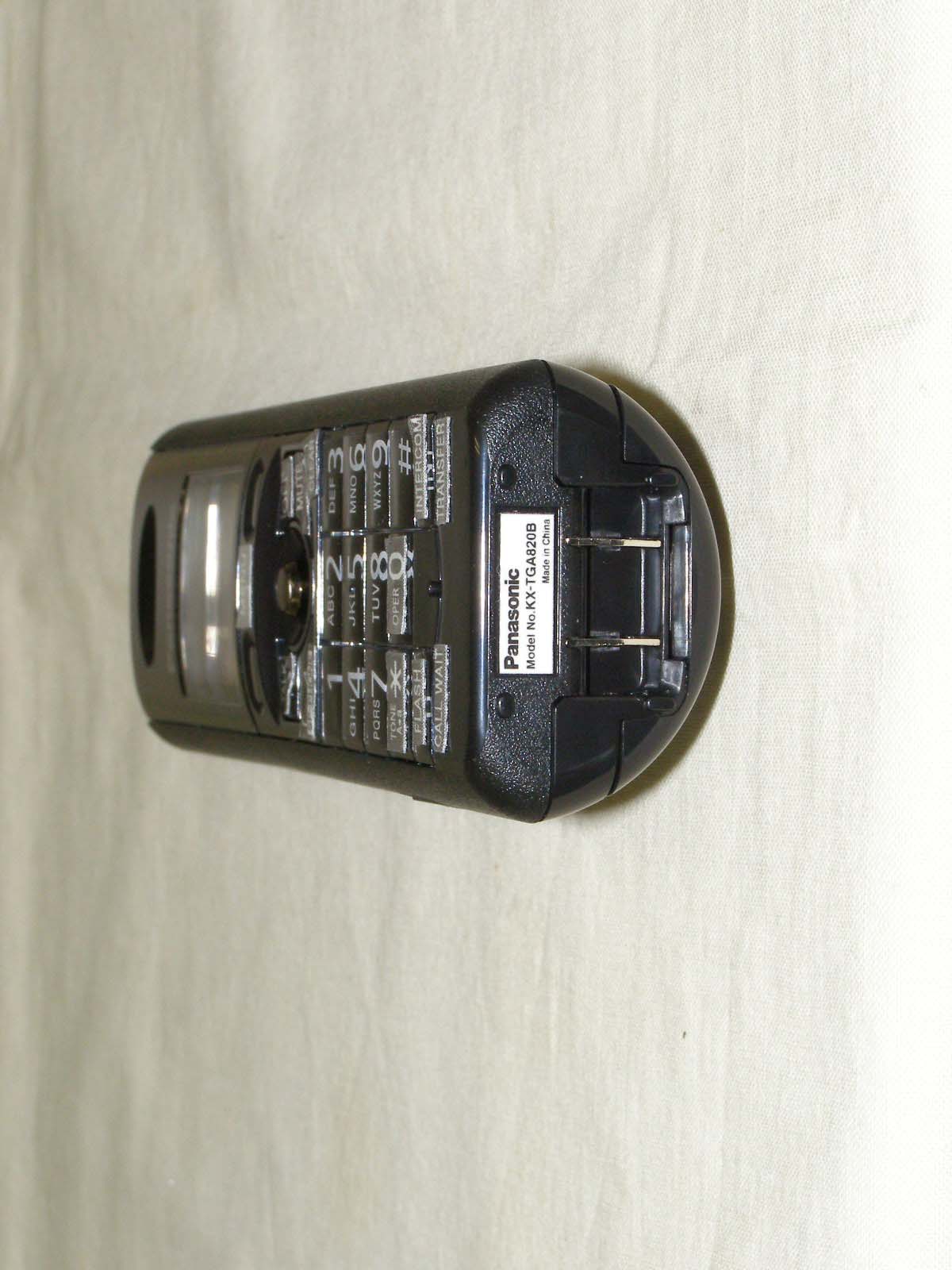

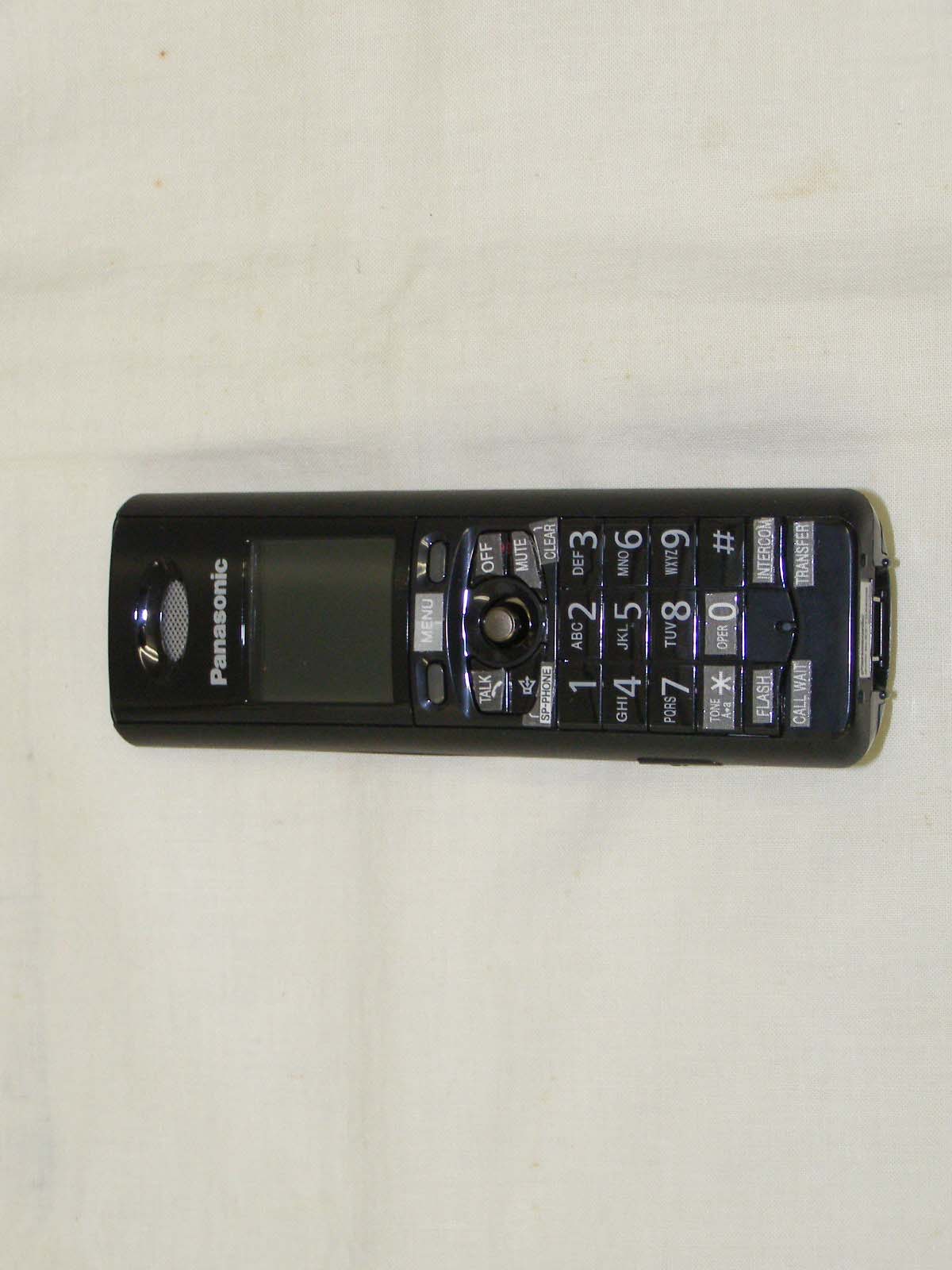

EXTERNAL PHOTOGRAPHS KX-TGA820 Temporary Confidential Bottom View Temporary Confidential Back View (Battery Compartment Open) Temporary Confidential

EXHIBIT B MARKINGS Portable Unit: The marking will be shown on the battery compartment of the portable unit. NOTE: The portable unit is sold without the battery installed.

INTERNAL PHOTOGRAPHS P.C. Board (LCD Side) Temporary Confidential P.C. Board Temporary Confidential P.C. Board (Metal Cover Open) Temporary Confidential

DAT-P-152/98-01 SAR_Report_Nemko_6620_642_FCC_CalData_TGA820 dasy_report_fcc_850_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the Panasonic KX-TGA820 (FCC ID: ACJ96NXK-TGA820) According to the FCC Requirements Calibration Data May 31, 2007 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Nemko AS Gasevikveien 8 N-2007 Kjeller This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR_Report_Nemko_6620_642_FCC_DECT_SAR Plots_TGA820 Page 1 of 10 Appendix for the Report Dosimetric Assessment of the Panasonic KX-TGA820 (FCC ID: ACJ96NXK-TGA820) According to the FCC Requirements SAR Distribution Plots May 31, 2007 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Nemko AS Gasevikveien 8 N-22027 Kjeller The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo SAR_Report_Nemko_6620_642_FCC_DECT_SAR Plots_TGA820 Page 2 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, HEAD MEASUREMENTS......................................................................... 3 2 SAR DISTRIBUTION PLOTS, BODY MEASUREMENTS........................................................................ 7 3 SAR Z-AXIS SCANS (VALIDATION)........................................................................................................... 9 4 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 10 SAR_Report_Nemko_6620_642_FCC_DECT_SAR Plots_TGA820 Page 3 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots, Head Measurements Test Laboratory: IMST GmbH, DASY Blue (I); File Name: TGA820B_bplm_1.da4 DUT: Panasonic; Type: KX-TGA820B; Program Name: Cheek Left Communication System: DECT US, Single Slot; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.42 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(4.93, 4.93, 4.93); Calibrated: 15.02.2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2007 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Cheek Left/Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.009 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.22 V/m; Power Drift = 0.032 dB Peak SAR (extrapolated) = 0.017 W/kg SAR(1 g) = 0.010 mW/g; SAR(10 g) = 0.00541 mW/g Maximum value of SAR (measured) = 0.011 mW/g Fig. 1: SAR distribution for DECT US, channel 2, cheek position, left side of head (May 30, 2007; Ambient Temperature: 22.4°C; Liquid Temperature: 21.3°C). SAR_Report_Nemko_6620_642_FCC_DECT_SAR Plots_TGA820 Page 4 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: TGA820B_bplm_2.da4 DUT: Panasonic; Type: KX-TGA820B; Program Name: Tilted Left Communication System: DECT US, Single Slot; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.42 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(4.93, 4.93, 4.93); Calibrated: 15.02.2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2007 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Tilted Left/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.003 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.41 V/m; Power Drift = 0.181 dB Peak SAR (extrapolated) = 0.007 W/kg SAR(1 g) = 0.00372 mW/g; SAR(10 g) = 0.00192 mW/g Maximum value of SAR (measured) = 0.004 mW/g Fig. 2: SAR distribution for DECT US, channel 2, tilted position, left side of head (May 30, 2007; Ambient Temperature: 22.4°C; Liquid Temperature: 21.3°C). SAR_Report_Nemko_6620_642_FCC_DECT_SAR Plots_TGA820 Page 5 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: TGA820B_bprm_1.da4 DUT: Panasonic; Type: KX-TGA820B; Program Name: Cheek Right Communication System: DECT US, Single Slot; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.42 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(4.93, 4.93, 4.93); Calibrated: 15.02.2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2007 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Cheek Right/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.006 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.90 V/m; Power Drift = -0.101 dB Peak SAR (extrapolated) = 0.011 W/kg SAR(1 g) = 0.00638 mW/g; SAR(10 g) = 0.00347 mW/g Maximum value of SAR (measured) = 0.007 mW/g Fig. 3: SAR distribution for DECT US, channel 2, cheek position, right side of head (May 30, 2007; Ambient Temperature: 22.4°C; Liquid Temperature: 21.3°C). SAR_Report_Nemko_6620_642_FCC_DECT_SAR Plots_TGA820 Page 6 of 10 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: TGA820B_bprm_2.da4 DUT: Panasonic; Type: KX-TGA820B; Program Name: Tilted Right Communication System: DECT US, Single Slot; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.42 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(4.93, 4.93, 4.93); Calibrated: 15.02.2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2007 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Bu…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_Nemko_6620_642_FCC_DECT_1900_TGA820_Confidental Page 1 of 31 Report Dosimetric Assessment of the Portable Device Panasonic KX-TGA820 (FCC ID: ACJ96NKX-TGA820) According to the FCC Requirements May 31, 2007 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Dasy_Report_FCC_DECT_1900_1.1.doc/22.05.2006/CH Customer Nemko AS Gasevikveien 8 N-2007 Kjeller The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR_Report_Nemko_6620_642_FCC_DECT_1900_TGA820_Confidental Page 2 of 31 Executive Summary The KX-TGA820 is a cordless telephone (Portable Device) from Panasonic operating in the 1920 MHz frequency range (US DECT Standard). The device has an integrated antenna. The objective of the measurements done by IMST was the dosimetric assessment of one device in the 1920 MHz frequency range. The handset was set to use one specific frequency during the measurements. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Panasonic KX-TGA820 cordless telephone (FCC ID: ACJ96NKX-TGA820) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: Body worn with the following accessory: • with belt clip, without headset, (display towards the ground, distance 0 mm) • with belt clip and headset (display towards the ground, distance 0 mm) prepared by: ........................................... reviewed by: ..................................... Alexander Rahn Dipl.-Ing. Chritoph Hennes Dasy_Report_FCC_DECT_1900_1.1.doc/22.05.2006/CH test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] SAR_Report_Nemko_6620_642_FCC_DECT_1900_TGA820_Confidental Page 3 of 31 Dasy_Report_FCC_DECT_1900_1.1.doc/22.05.2006/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1-1999 AND THE FCC EXPOSURE CRITERIA....................................... 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION............................................................................................................................. 10 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 16 8 APPENDIX....................................................................................................................................................... 17 8.1 ADMINISTRATIVE DATA............................................................................................................................ 17 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 17 8.3 TISSUE RECIPES...................................................................................................................................... 17 8.4 MATERIAL PARAMETERS......................................................................................................................... 18 8.5 SIMPLIFIED PERFORMANCE CHECKING................................................................................................…

Text truncated - open the document above for the full version.

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Comlab, Gåsevikveien 8, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 86535-4 Item tested : KX-TGA820 Type of equipment : UPCS Handset FCC ID : ACJ96NKX-TGA820 Client : Panasonic Communications Co., Ltd. FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 8 June 2007 Authorized by : .............................................. Egil Hauger Technical Verificator TEST REPORT FCC part 15D Project no.: 86535 FCC ID: ACJ96NKX-TGA820 Nemko Comlab, N-2027 Kjeller Page 2 (59) CONTENTS 1 GENERAL INFORMATION ............................................................................................................... 3 1.1 Testhouse Info ................................................................................................................................... 3 1.2 Client Information............................................................................................................................... 3 1.3 Manufacturer (if other than client) ...................................................................................................... 3 2 TEST INFORMATION ....................................................................................................................... 4 2.1 Tested Item........................................................................................................................................ 4 2.2 Test Environment............................................................................................................................... 5 2.3 Test Period ........................................................................................................................................ 5 2.4 Test Engineer(s) ................................................................................................................................ 5 2.5 Test Equipment.................................................................................................................................. 5 2.6 Other Comments ............................................................................................................................... 5 3 TEST REPORT SUMMARY .............................................................................................................. 6 3.1 General .............................................................................................................................................. 6 3.2 Test Summary ................................................................................................................................... 7 4 TEST RESULTS................................................................................................................................ 8 4.1 Power Line Conducted Emissions ..................................................................................................... 8 4.2 Coordination with fixed microwave................................................................................................... 11 4.3 Digital Modulation Techniques......................................................................................................... 11 4.4 Labelling Requirements ................................................................................................................... 11 4.5 Antenna Requirement ...................................................................................................................... 12 4.6 Channel Frequencies....................................................................................................................... 12 4.7 Automatic Discontinuation of Transmission ..................................................................................... 13 4.8 Peak Power Output.......................................................................................................................... 14 4.9 Emission Bandwidth B..................................................................................................................... 17 4.10 Power Spectral Density.................................................................................................................... 20 4.11 In-Band Unwanted Emissions, Conducted....................................................................................... 23 4.12 Out-of-band Emissions, Conducted ................................................................................................. 25 4.13 Carrier Frequency Stability .............................................................................................................. 31 4.14 Frame Repetition Stability................................................................................................................ 32 4.15 Frame Period and Jitter ................................................................................................................... 32 4.16 Monitoring Threshold, Least Interfered Channel .............................................................................. 35 4.17 Threshold Monitoring Bandwidth ..................................................................................................... 37 4.18 Reaction Time and Monitoring Interval ............................................................................................ 38 4.19 Time and Spectrum Window Access Procedure .............................................................................. 40 4.20 Acknowledgements and Transmission Duration .............................................................................. 41 4.21 Dual Access Criteria Check ............................................................................................................. 43 4.22 Alter…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Nemko_6620_642_FCC_DECT_1900_TGA820_Pictures Page 1 of 6 Appendix for the Report Dosimetric Assessment of the Panasonic KX-TGA820 (FCC ID: ACJ96NKX-TGA820) According to the FCC Requirements Pictures May 31, 2007 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort dasy_report_fcc_DECT_1900_pictures_1.0.doc/08.12.2006/CH Customer Nemko Comlab AS Gasevikveien 8 N-22027 Kjeller The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR Report, Nemko_6620_642_FCC_DECT_1900_TGA820_Pictures Page 2 of 6 1 Subject of Investigation Fig. 1: Picture of the device under test. 8.9 Pictures of the device under test Fig. 14 – 15 show the device under test and the used accessories. dasy_report_fcc_DECT_1900_pictures_1.0.doc/08.12.2006/CH Fig. 2: Picture of the device under test SAR Report, Nemko_6620_642_FCC_DECT_1900_TGA820_Pictures Page 3 of 6 Fig. 15: Used headset KX-TCA88. dasy_report_fcc_DECT_1900_pictures_1.0.doc/08.12.2006/CH SAR Report, Nemko_6620_642_FCC_DECT_1900_TGA820_Pictures Page 4 of 6 8.10 Test Positions for the Device under Test Fig. 16 - 21 show the test positions for the SAR measurements. Fig. 3: Cheek position, left side. dasy_report_fcc_DECT_1900_pictures_1.0.doc/08.12.2006/CH Fig. 4: Tilted position, left side. SAR Report, Nemko_6620_642_FCC_DECT_1900_TGA820_Pictures Page 5 of 6 Fig. 5: Cheek position, right side. dasy_report_fcc_DECT_1900_pictures_1.0.doc/08.12.2006/CH Fig. 6: Tilted position, right side. SAR Report, Nemko_6620_642_FCC_DECT_1900_TGA820_Pictures Page 6 of 6 Fig. 7: Body worn, position 1 with belt clip, display towards the ground. dasy_report_fcc_DECT_1900_pictures_1.0.doc/08.12.2006/CH Fig. 8: Body worn, position 2 with belt clip and headset, display towards the ground.

FCC ID: ACJ96NKX-TGA820 Project no.: 84442 Page 1 of 2 PHOTOS OF TEST SET-UP Radiated Emissions Test 200 - 1000 MHz FCC ID: ACJ96NKX-TGA820 Project no.: 84442 Page 2 of 2 Power-Line Conducted Emissions Test
