ACJ96NKX-TGA950UPCS (DECT 6.0 Handset)

Installation Manual Model No. KX-TGA950 Additional Digital Cordless Handset Thank you for purchasing a Panasonic product. This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone: KX-TG9541 (The corresponding models are subject to change without notice.) You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit’s operating instructions for further details. Please read this installation manual before using the unit and save it for future reference. For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. One Panasonic Way, Secaucus, New Jersey 07094 © Panasonic System Networks Co., Ltd. 2013 Printed in China PNQX6077ZA TT0613MU0 (E) TGA950(en)_0325_ver001.pdf 12013/03/25 12:51:19 Accessory information Supplied accessories Accessory item/Order numberQuantity Charger/PNLC1040ZB1 Rechargeable batteries/HHR-4DPA2 Handset cover *1 /PNYNTGA950BR 1 Belt clip/PNKE1268Z11 *1 The handset cover comes attached to the handset. Note: RPlease read the base unit’s operating instructions for additional/replacement accessories. – Optional headsets: KX-TCA60, KX-TCA93, KX-TCA400, KX-TCA430 Setting up Connections/Wall mounting 27.2 mm (1 / inches) Screws (Not supplied) To power outlet 1 16 Note: RThe AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) RMake sure that the wall and the fixing method are strong enough to support the weight of the unit. 2 For assistance, please visit http://www.panasonic.com/help Installation TGA950(en)_0325_ver001.pdf 22013/03/25 12:51:20 Battery installation/Battery charging Important: RUse the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted on page 2. RWipe the battery ends ( , ) with a dry cloth. RAvoid touching the battery ends ( , ) or the unit contacts. RConfirm correct polarities ( , ). RUSE ONLY Ni-MH batteries AAA (R03) size. RDo NOT use Alkaline/Manganese/Ni-Cd batteries. Charge for about 7 hours. RWhen the batteries are fully charged, “Fully charged” is displayed. Rechargeable Ni-MH ONLY Confirm “Charging” is displayed. Note: RIf the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends ( , ) and the charge contacts with a dry cloth and charge again. Registering a handset to a base unit 1Base unit: Press and hold MLOCATORN for about 5 seconds. RDepending on the base unit, a registration tone sounds. RIf all registered handsets start ringing, press MLOCATORN again to stop, then repeat this step. 2Handset: Place the handset on the base unit or charger, then wait until a long beep sounds and is displayed. Note: RIf an error tone sounds, or if is displayed, register the handset according to the base unit’s operating instructions. For assistance, please visit http://www.panasonic.com/help 3 Installation TGA950(en)_0325_ver001.pdf 32013/03/25 12:51:20 Display language 1MMENUN#110 2MbN: Select the desired setting. a MSAVEN a MOFFN For your safety To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product. WARNING Power connection RCompletely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire. RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire. RUnplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact the Panasonic Call Center at 1-800-211- PANA (1-800-211-7262). Installation RTo prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture. RDo not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident. CAUTION Installation and location RThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible. Battery RWe recommend using the supplied batteries or additional/replacement batteries noted on page 2 for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size. RDo not mix old and new batteries. 4 For assistance, please visit http://www.panasonic.com/help Installation TGA950(en)_0325_ver001.pdf 42013/03/25 12:51:20 RDo not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed. RExercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns. RCharge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual. ROnly use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode. Attention: A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY (1-800-822-8837) for information on how to recycle this battery. For assistance, please visit http://www.panasonic.com/help 5 Installation TGA950(en)_0325_ver001.pdf 5…

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means:  Provided with 128 bits for security codes.  When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC.  Base and Handset knows each other’s security code information.

Panasonic Corporation of North America One Panasonic Way 4B-8 Secaucus, NJ 07094 Tel: 201-348-7758 / Fax: 201-392-4564 [email protected] Richard Mullen Group Manager Product Safety and Compliance Division Request for Confidentiality June 26, 2013 PCTP-12-F016 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for DECT Cordless Telephone Handset with Bluetooth FCC Rule Parts: FCC Part 15, Subpart C and D FCC ID Handset Unit ACJ96NKX-TGA950 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Handset Unit and RF Unit; and (4) Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Handset Unit and RF Unit; (2) Internal Photographs of Handset Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division

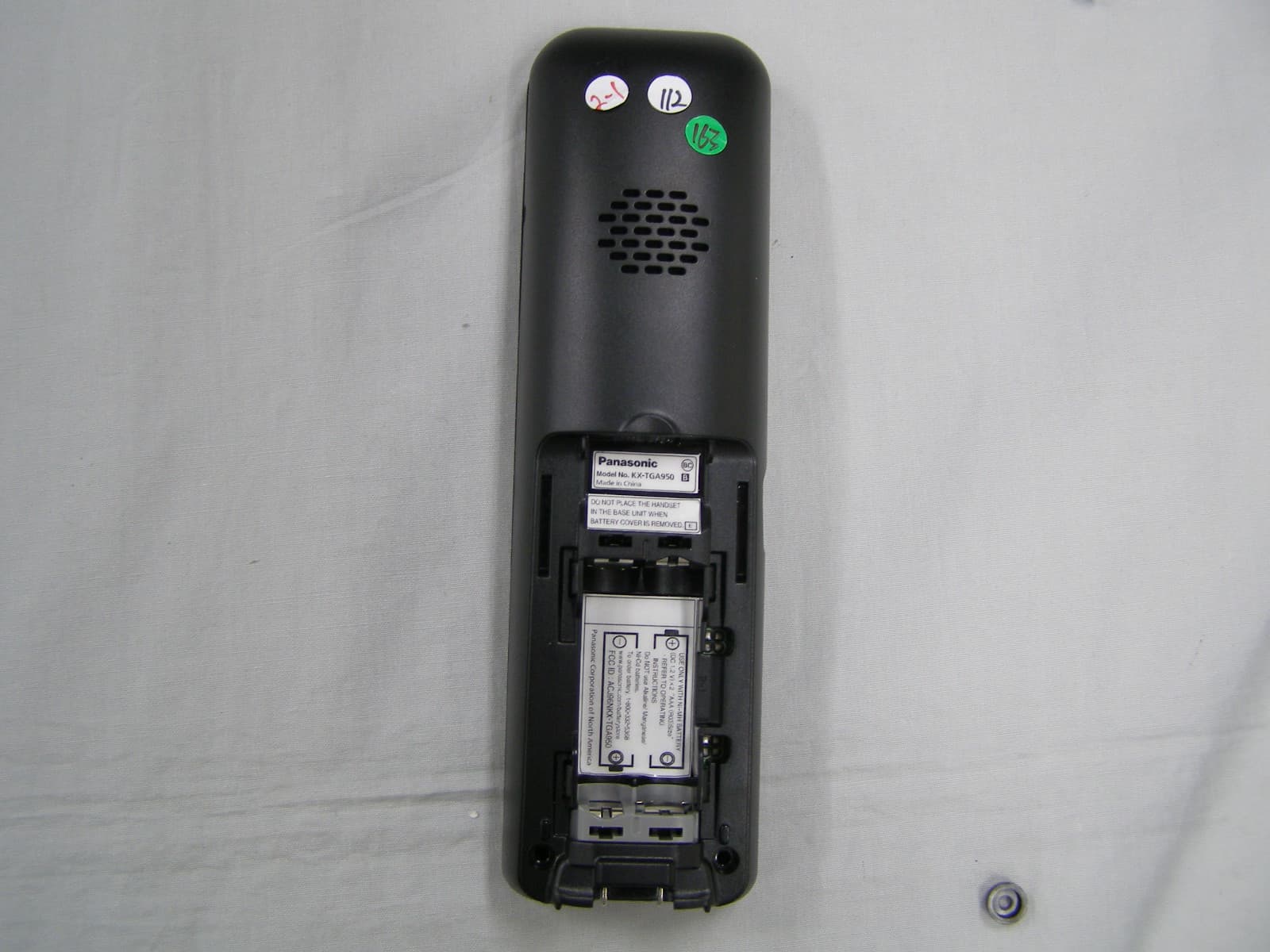

EXTERNAL PHOTOGRAPHS KX-TGA950 Bottom View

EXHIBIT B MARKINGS Portable Unit: FCC ID Label: The marking will be shown on the battery compartment of the portable unit. NOTE: The portable unit is sold without the battery installed. Nameplate: The nameplate is located on the battery compartment of the portable unit.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_Nemko_60320_6130194_FCC_CalData_TGA950 Appendix for the Report Dosimetric Assessment of the Portable Device Panasonic KX-TGA950 (FCC ID: ACJ96NKX-TGA950) (IC: 216A-KXTGA950) According to the FCC Requirements Calibration Data June 18, 2013 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan SAR_Report_FCC_DECT_1900_1.2.doc/25.11.2011/AR The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. Cal_D1900V2_SN5d051_Sep2011 Page 1 of 8 Calibration Certificate Certificate No: Cal_D1900V2_SN5d051_Sep2011 Object: D1900V2 SN: 5d051 Date of Calibration: September 30, 2011 Next Calibration: September 2013 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1784162174-1) Dec 12 Power Sensor E9301H US40010212 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1784041195-1) Dec 12 Powermeter E4417A GB41050441 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1674038198-1) Dec 12 Power Sensor E9301A MY41495584 Dec 10 Agilent Techn. (ISO/IEC 17025, 1-1784041307-1) Dec 12 Network Analyzer E5071C MY46103220 Aug 11 Rohde& Schwarz (14967-DKD-00201- 2009-08) Aug 12 Reference Probe ET3DV6 SN 1669 Feb 11 SPEAG, No ET3- 1669_Feb09 Feb 12 DAE3 SN 335 Feb 11 SPEAG, No DAE3- 335_Feb09 Feb 12 Cal_D1900V2_SN5d051_Sep2011 Page 2 of 8 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 EN 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", March 2007 Federal Communications Commission Office of Engineering & Technologies (FCCOET) "Evaluating Compliance wit FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields; Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions", Supplement C (Edition 01-01) to Bulletin 65 Additional Documentation: DASY 4 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08/ABo Cal_D1900V2_SN5d051_Sep2011 Page 3 of 8 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1340 Distance Dipole Center – TSL: 10mm With spacer Zoom Scan res. dx, dy, dz = 5mm Frequency: 1900 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 40.0 1.40 Measured Head TSL Parameters 22.8 39.4 ± 6% 1.43 S/m ± 6% SAR Result with Head TSL Averaged over 1g SAR measured 250mW input power9.53 mW/g SAR normalized normalized to 1W 38.12 mW/g SAR for nominal Head TSL parameters normalized to 1W 37.51 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power4.93 mW/g SAR normalized normalized to 1W 19.72 mW/g SAR for nominal Head TSL parameters normalized to 1W 19.52 mW/g ± 16.5 % (k=2) Cal_D1900V2_SN5d051_Sep2011 Page 4 of 8 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 53.30 1.52 Measured Body TSL Parameters 23.3 52.10 ± 6% 1.54 S/m ± 6% SAR Result with Body TSL Averaged over 1g SAR measured 250mW input power 9.66 mW/g SAR normalized normalized to 1W 38.64 mW/g SAR for nominal Body TSL parameters normalized to 1W 38.14 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 5.10 mW/ g SAR normalized normalized to 1W 20.40 mW/g SAR for nominal Body TSL parameters normalized to 1W 20.23 mW/g ± 16.5 % (k=2) General Antenna Parmeters Antenna Parameters with Head TSL Impedance, transformed to feed point 48.4 jΩ - 0.7 jΩ Return Loss -35.2 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 52.8 jΩ - 1.8 jΩ Return Loss -29.9 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feedpoint can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: January 15, 1998 Cal_D1900V2_SN5d051_Sep2011 Page 5 of 8 SAR Result with Head TSL Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: 300911_y_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.12, 5.12, 5.12); Calibrated: 21.02.2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 22.02.2011 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.4 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.3 V/m; Power Drift = -0.025 dB Peak SAR (extrapolated) = 17.0 W/kg SAR(1 g) = 9.53 mW/g; SAR(10 g) = 4.93 mW/g M…

Text truncated - open the document above for the full version.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_Nemko_60320_6130194_FCC_DECT_Plots_KX-TGA950 Page 1 of 8 Appendix for the Report Dosimetric Assessment of the Portable Device KX-TGA950 (FCC ID: ACJ96NKX-TGA950) (IC: 216A-KXTGA950) According to the FCC Requirements SAR Distribution Plots June 18, 2013 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. This version supersedes all previous versions of this report. SAR_Report_Nemko_60320_6130194_FCC_DECT_Plots_KX-TGA950 Page 2 of 8 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, HEAD MEASUREMENT ..................................................................... 3 2 SAR DISTRIBUTION PLOTS, BODY MEASUREMENT ..................................................................... 7 SAR_Report_Nemko_60320_6130194_FCC_DECT_Plots_KX-TGA950 Page 3 of 8 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots, Head Measurement Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA950_yplm_1_ant1.da4 DUT: Panasonic; Type: KX-TGA950; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.41 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.41, 8.41, 8.41); Calibrated: 24.09.2012 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 20.09.2012 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Left/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.078 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.31 V/m; Power Drift = 0.001 dB Peak SAR (extrapolated) = 0.153 W/kg SAR(1 g) = 0.076 mW/g; SAR(10 g) = 0.043 mW/g Maximum value of SAR (measured) = 0.083 mW/g Fig. 1: SAR distribution for DECT US, channel 2, cheek position, left side of head, (June 14, 2013; Ambient Temperature: 22.6°C; Liquid Temperature: 22.3°C). SAR_Report_Nemko_60320_6130194_FCC_DECT_Plots_KX-TGA950 Page 4 of 8 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA950_yplm_2_ant1.da4 DUT: Panasonic; Type: KX-TGA950; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.41 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.41, 8.41, 8.41); Calibrated: 24.09.2012 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 20.09.2012 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilted Left/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.048 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.73 V/m; Power Drift = -0.062 dB Peak SAR (extrapolated) = 0.081 W/kg SAR(1 g) = 0.045 mW/g; SAR(10 g) = 0.026 mW/g Maximum value of SAR (measured) = 0.050 mW/g Fig. 2: SAR distribution for DECT US, channel 2, tilted position, left side of head, (June 14, 2013; Ambient Temperature: 22.6°C; Liquid Temperature: 22.3°C). SAR_Report_Nemko_60320_6130194_FCC_DECT_Plots_KX-TGA950 Page 5 of 8 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA950_yprm_1_ant1.da4 DUT: Panasonic; Type: KX-TGA950; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.41 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.41, 8.41, 8.41); Calibrated: 24.09.2012 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 20.09.2012 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Right/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.078 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.76 V/m; Power Drift = -0.097 dB Peak SAR (extrapolated) = 0.150 W/kg SAR(1 g) = 0.086 mW/g; SAR(10 g) = 0.048 mW/g Maximum value of SAR (measured) = 0.094 mW/g Fig. 3: SAR distribution for DECT US, channel 2, cheek position, right side of head, (June 14, 2013; Ambient Temperature: 22.6°C; Liquid Temperature: 22.3°C). SAR_Report_Nemko_60320_6130194_FCC_DECT_Plots_KX-TGA950 Page 6 of 8 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: TGA950_yprm_2_ant1.da4 DUT: Panasonic; Type: KX-TGA950; Program Name: DECT Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.41 mho/m; ε r = 41; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.41, 8.41, 8.41); Calibrated: 24.09.2012 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 20.09.2012 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postproce…

Text truncated - open the document above for the full version.

The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. SAR_Report_Nemko_60320_6130194_FCC_DECT_KX-TGA950_Confidential Page 1 of 31 Report Dosimetric Assessment of the Portable Device KX-TGA950 (FCC ID: ACJ96NKX-TGA950) (IC: 216A-KXTGA950) According to the FCC Requirements June 18, 2013 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Panasonic System Networks Co., Ltd. 1 - 62, 4 - chome Minoshima, Hakata, Fukuoka 812-8531 Japan The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. This version supersedes all previous versions of this report. SAR_Report_Nemko_60320_6130194_FCC_DECT_KX-TGA950_Confidential Page 2 of 31 Dasy_Report_FCC_DECT_1900_1.3.doc/10.09.2010/ABo Executive Summary The KX-TGA950 is a new cordless phone (Portable Device) from Panasonic operating in the 1920 MHz frequency range. The device has an integrated antenna and work in US DECT standard. The objective of the measurements done by IMST was the dosimetric assessment of one device in a worst case setup in head and body worn configuration. The handset was set to use one specific frequency and maximum output power during the measurement . The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions and IC RSS 102 Issue 4. Additional information and guidelines given by the following FCC documents were used: • SAR Measurement Requirements for 100 MHz to 6 GHz [KDB 865664 D01 v01r01] • Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies [KDB 447498 D01 v05r01] All measurements have been performed in accordance to the recommendations given by SPEAG. SAR_Report_Nemko_60320_6130194_FCC_DECT_KX-TGA950_Confidential Page 3 of 31 Dasy_Report_FCC_DECT_1900_1.3.doc/10.09.2010/ABo Compliance Statement The Panasonic KX-TGA950 cordless phone (FCC ID: ACJ96NKX-TGA950; IC: 216A-KXTGA950) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following body worn configurations: • display towards the phantom, distance 0 mm • display towards the ground, distance 0 mm The maximum results of SAR for the KX-TGA950 are as follows: Band Frequency [MHz] CH Phantom Configuration Figure No. Highest Measured SAR 1g [W/kg] Highest Reported SAR 1g [W/kg] Plot No. US DECT 1924.992 2 Right Head Cheek 17 0.086 0.086 3 Body Worn Pos. 1 19 0.077 0.077 5 prepared by: ........................................ reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer SAR_Report_Nemko_60320_6130194_FCC_DECT_KX-TGA950_Confidential Page 4 of 31 Dasy_Report_FCC_DECT_1900_1.3.doc/10.09.2010/ABo Table of Contents 1 SUBJECT OF INVESTIGATION .......................................................................................................... 5 2 THE IEEE STANDARD C95.1-1999 AND THE FCC EXPOSURE CRITERIA.................................... 5 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES ........... 5 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS .................................... 6 2.3 SAR LIMIT ..................................................................................................................................... 6 3 THE FCC MEASUREMENT PROCEDURE ......................................................................................... 7 3.1 GENERAL REQUIREMENTS .............................................................................................................. 7 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR ................................................................................ 7 3.2.1 PHANTOM REQUIREMENTS ......................................................................................................... 7 3.2.2 TEST POSITIONS ........................................................................................................................ 7 3.2.3 TEST TO BE PERFORMED .......................................................................................................... 10 3.2.4 MEASUREMENT VARIABILITY ..................................................................................................... 10 4 BODY-WORN CONFIGURATIONS ................................................................................................... 11 4.1 POC (PTT) POSITION ................................................................................................................... 11 4.2 PHANTOM REQUIREMENTS ............................................................................................................ 11 4.3 TEST TO BE PERFORMED .............................................................................................................. 11 5 THE MEASUREMENT SYSTEM ........................................................................................................ 12 5.1 PHANTOMS................................................................................................................................... 13 5.2 E-FIELD-PROBES ......................................................................................................................... 14 5.3 MEASUREMENT PROCEDURE ........................................................................................................ 15 5.4 UNCERTAINTY ASSESSMENT ..................…

Text truncated - open the document above for the full version.

Report No. 238317-3 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2027 Kjeller, Norway TEL +47 64 84 57 01 FAX +47 64 84 57 05 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Handset Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-TGA950 Rating / Trademark Panasonic Serial number / Additional information / Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 2 2 GHz License-exempt Personal Communications Service Devices (LE-PCS) Order number 238317 Tested in period 2013.05.23 to 2013.06.24 Issue date 2013.06.24 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 64 84 57 00 FAX: (+47) 64 84 57 05 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC part 15D Report no.: 238317-3 FCC ID: ACJ96NKX-TGA950 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (48) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Coordination with fixed microwa…

Text truncated - open the document above for the full version.
