ACJ96NKX-TGB850DECT Cordless Telephone

Operating Instructions Corded | Cordless Phone Model No. KX-TGB850 KX-TGB852 KX-TG2153SK Model shown is KX-TGB850. Before initial use, see “Getting Started” on page 8. Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference. ® Consulte “Guía Rápida Española”, página 37. For assistance, visit our Web site: http://shop.panasonic.com/support for customers in the U.S.A. Please register your product: http://shop.panasonic.com/support 2 Answering System Answering system ....................................29 Turning the answering system on/off ........29 Greeting message ....................................29 Listening to messages ..............................30 Useful Information Voicemail service ......................................33 Wall mounting ...........................................33 Troubleshooting ........................................34 FCC and other information .......................35 Guía Rápida Española Guía Rápida Española .............................37 Appendix Customer services ....................................43 Limited Warranty (ONLY FOR U.S.A.) ......44 Index Index .........................................................46 Introduction Model composition....................................3 Accessory information ..............................3 Graphical symbols for use on equipment and their descriptions ...............................4 Important Information For your safety..........................................5 Important safety instructions.....................6 For best performance ...............................6 Other information ......................................7 Specifications ...........................................7 Getting Started Setting up .................................................8 Note when setting up ................................9 Controls ....................................................10 Navigating the menus ...............................12 Date and time ...........................................12 Other settings ...........................................12 Menu Map.................................................13 Making and Answering Calls Making calls ..............................................14 Answering calls.........................................15 Useful features during a call .....................15 Intercom, transferring calls and conference calls........................................16 Handset locator ........................................17 Phonebook Phonebook ...............................................18 Speed dial.................................................19 Caller ID Service Using Caller ID service .............................21 Caller list ...................................................21 Programming Personal settings ......................................23 Advanced settings ....................................25 Table of contents 3 For assistance, please visit http://shop.panasonic.com/support Introduction Model composition SeriesModel No. Base unitHandset Part No.Part No.Quantity KX-TGB850 seriesKX-TGB850KX-TGB850KX-TGBA851 KX-TGB852KX-TGB850KX-TGBA852 KX-TG2153SKKX-TGB850KX-TGBA853 Accessory information Supplied accessories No.Accessory item/Part number Quantity KX-TGB850KX-TGB852KX-TG2153SK 1 AC adaptor/PNWYBB810S00 or PNWYAB810S00 234 2 Telephone line cord/PNJA1186Z111 3 Desk stand *1 /PNWYAB850B01111 4 Corded handset/PNWYAB850B00111 5 Corded handset cord/ PQJA212V111 6 Rechargeable batteries *2 246 7 Handset cover *3 /PNWYAB810S01123 8 Charger/PNWYAB810S02123 *1 The desk stand comes attached to the base unit. *2 See below for replacement battery information. *3 The handset cover comes attached to the handset. 1 OR 2 34 PNWYBB810S00 PNWYAB810S00 5 6 7 8 Additional/replacement accessories Please contact your nearest Panasonic dealer for sales information (page 43). Accessory itemModel number/Specifications Rechargeable batteries PNWYAB850B05 ●To order, please visit http://shop.panasonic.com/support Battery type: – Nickel metal hydride (Ni-MH) – 2 x AAA (R03) size for each handset 4 Introduction Other information ● Design and specifications are subject to change without notice. ●The illustrations in these instructions may vary slightly from the actual product. Expanding your phone system You can expand your phone system by registering optional handsets (4 max.) to a single base unit. ●Optional handsets may be a different color from that of the supplied handsets. ●To order, please visit http://shop.panasonic.com/support Graphical symbols for use on equipment and their descriptions SymbolExplanationSymbolExplanation Alternating current (A.C.) Class II equipment (equipment in which protection against electric shock relies on Double Insulation or Reinforced Insulation) Direct current (D.C.)“ON” (power) Protective earth“OFF” (power) Protective bonding earthStand-by (power) Caution: risk caused by visible radiation “ON”/“OFF” (power; push-push) For indoor use onlyCaution, risk of electric shock Handset (optional): KX-TGBA85 5 Important Information Operating safeguards ●Unplug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners. ●Do not disassemble the product. ●Do not spill liquids (detergents, cleansers, etc.) onto the telephone line cord plug, or allow it to become wet at all. This may cause a fire. If the telephone line cord plug becomes wet, immediately pull it from the telephone wall jack, and do not use. ●Do not place the corded or cordless handset on the base unit when battery cover is removed. Medical ●Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids, to determine if they are adequately shielded from external RF (radio frequency) energy. (The product operates in the frequency range of 1.92 GHz to 1.93 GHz, and the RF transmission power is 115 mW (max.).) ●Do not use the product in health care facilities if…

Text truncated - open the document above for the full version.

Two Riverfront Plaza | Newark, NJ 07102-5490 Ben Botros, Project Manager Safety , Compliance and Quality Assurance Authorization Letter June 18, 2020 PCEC-20-SGW01B Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Intertek Testing Services (Mr. Terry Chan / Tim Lee/ Herbert Wong / Kenneth Wong) to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product. Any and all acts carried out by Intertek Testing Services on our behalf shall have the same effects as acts of our own for a period of six months from the date of this letter. Type Filing: Original Application DECT Telephone Base Model Numbers: KX-TGB850 FCC Classification: Isochronous UPCS Base (PUB) FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 RF Exposure: Mobile / MPE (requires minimum 20cm spacing between antenna and body) FCC Rule Part: FCC Part 15, Subpart B FCC Classification: Class B Digital Device (JAB) FCC ID: ACJ96NKX-T GB850 Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Sincerely yours, Ben Botros Project Manager Panasonic Corporation of North America Safety, Compliance and Quality Assurance

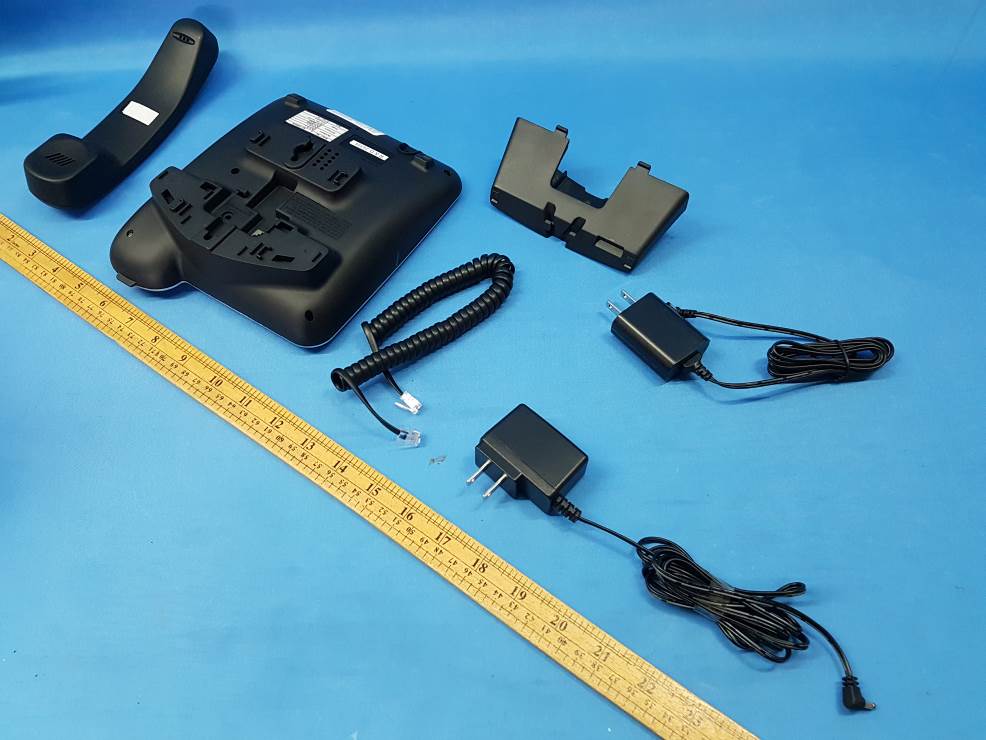

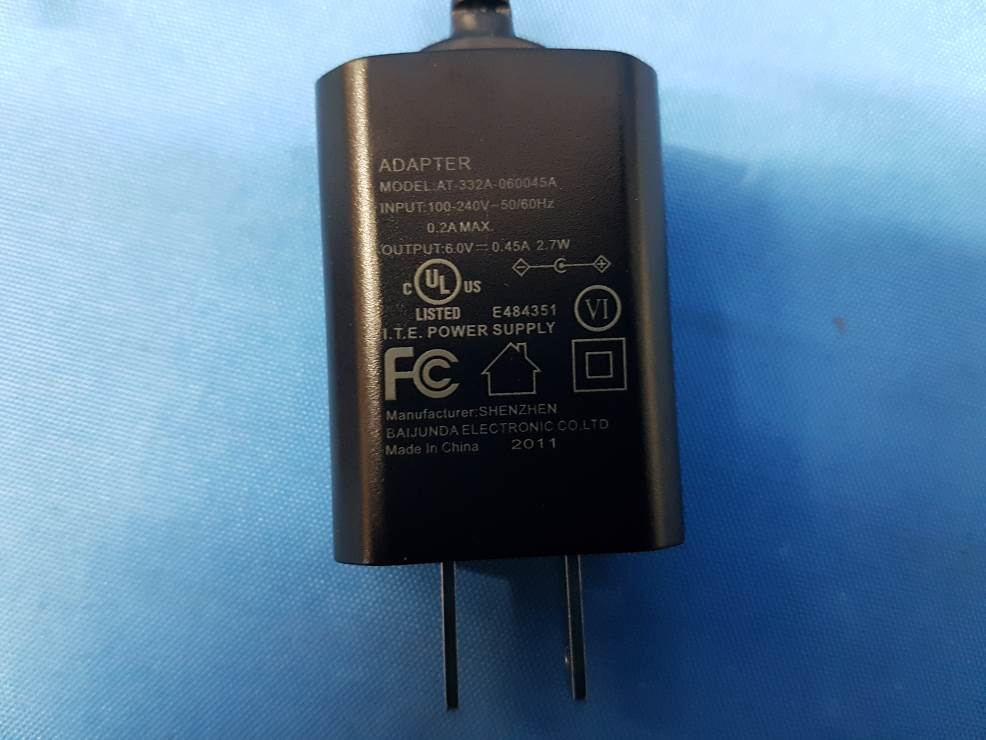

INTERTEK TESTING SERVICES External Photos FCC ID: ACJ96NKX-TGB850 INTERTEK TESTING SERVICES External Photos FCC ID: ACJ96NKX-TGB850 41.0 (2:1) 27.0 (2:1) KX-TGB850B 2:1 承認者は、W/Fを参照のこと 2019.xx.xx TGB85x (base unit) [ Name label for TGB850 (Base) ]

41.0 (2:1) 27.0 (2:1) KX-TGB850B 2:1 承認者は、W/Fを参照のこと 2019.xx.xx

INTERTEK TESTING SERVICES Internal photos FCC ID: ACJ96NKX-TGB850 INTERTEK TESTING SERVICES Internal photos FCC ID: ACJ96NKX-TGB850 INTERTEK TESTING SERVICES Internal photos FCC ID: ACJ96NKX-TGB850 INTERTEK TESTING SERVICES Internal photos FCC ID: ACJ96NKX-TGB850 INTERTEK TESTING SERVICES Internal photos FCC ID: ACJ96NKX-TGB850 INTERTEK TESTING SERVICES Internal photos FCC ID: ACJ96NKX-TGB850 INTERTEK TESTING SERVICES Internal photos FCC ID: ACJ96NKX-TGB850

INTERTEK TESTING SERVICES FCC ID: ACJ96NKX-TGB850 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz Base Unit of tested model: TGB850, the measured powers among all the measured channels were within its production tolerance: +17 dBm (Minimum) and +20 dBm (Maximum).The antenna gain of TGB850 is 0.5 dBi = 1.12 (num gain) and its maximum source-based time-averaging duty factor is 25.0% (6/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 20 dBm = 100.0 mW The Conducted Power source-based time-averaging output power = (100.0 * 0.250) mW = 25 mW The power density at 20cm = 25 *1.12/ 4πR 2 = 0.0056 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 57 TEST REPORT Report Number: 19120559HKG-001 Application For Original Grant of 47 CFR Part 15 Certification Unlicensed Personal Communication Service Devices FCC ID: ACJ96NKX-TGB850 Prepared and Checked by: Approved by: Signed On File Leung Chiu Kuen, Stanley Engineer Tang Kwan Mo, Jess Lead Engineer Date: July 16, 2020 TEST REPORT Panasonic Corporation of North America Intertek Report No: 19120559HKG-001 Page 2 of 57 GENERAL INFORMATION Grantee: Panasonic Corporation of North America Grantee Address: 2 Riverfront Plaza, 9/F., Newark, NJ 07102, USA FCC Specification Standard: FCC Part 15, October 1, 2019 Edition FCC ID: ACJ96NKX-TGB850 FCC Model(s): KX-TGB850, KX-TGBA852, KX-TG2153SK Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: DECT Cordless Telephone Serial Number: N/A Sample Receipt Date: December 13, 2020 Date of Test: December 18, 2019 - May 21, 2020 Report Date: July 16, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Panasonic Corporation of North America Intertek Report No: 19120559HKG-001 Page 3 of 57 TABLE OF CONTENTS 1.0 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE ............................................ 5 1.1 Summary of Test Results ................................................................................................ 5 1.2 Statement of Compliance .............................................................................................. 6 2.0 GENERAL DESCRIPTION ................................................................................................ 7 2.1 Product Description......................................................................................................... 7 2.2 Technical Description ...................................................................................................... 7 2.3 Test Methodology ........................................................................................................... 7 2.4 Test Facility ..................................................................................................................... 7 3.0 SYSTEM TEST CONFIGURATION .................................................................................... 8 3.1 Justification ..................................................................................................................... 8 3.2 Radiated Emission Test Setup ......................................................................................... 9 3.3 AC Line Conducted Emission Test Setup ........................................................................ 10 3.4 Conducted Emission Test Configuration ........................................................................ 11 3.5 Conducted Monitoring and Operational Test Configuration ......................................... 11 3.6 EUT Exercising Software ................................................................................................ 11 3.7 Details of EUT and Description of Accessories ............................................................... 12 3.8 Measurement Uncertainty ............................................................................................ 12 4.0 MEASUREMENT RESULTS ........................................................................................... 13 4.1 Antenna Requirement ................................................................................................... 13 4.2 Digital Modulation Techniques...................................................................................... 13 4.3 Emission Bandwidth ...................................................................................................... 14 4.4 Directional Gain of the Antenna .................................................................................... 16 4.5 Peak Transmit Power .................................................................................................... 17 4.6 Power Spectral Density ................................................................................................. 19 4.7 Automatic Discontinuation of Transmission .................................................................. 21 4.8 Unwanted Emission Inside the Sub-Band ...................................................................... 22 4.9 Emissions Outside the Sub-Band ................................................................................... 25 4.9.1 Radiated Emissions Configuration Photographs .................................................…

Text truncated - open the document above for the full version.

May 25, 2020 To whom it may concern, Declarations FCC ID: ACJ96NKX-TGB850 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit 1 Switch-off companion device NA 2 On hook by companion device B 3 Switch-off device NA 4 On hook on device side NA 5 Remove power from device A 6 Remove power from companion device B A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. 5. M L of base unit and Handset declared by manufacturer are 30dBm. If you have questions or need further information, please contact the undersigned. Regards,

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: ACJ96NKX-TGB850 Radiated Emission - Dect Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: ACJ96NKX-TGB850 AC Conducted Emission - Dect Front View Side View 1 INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: ACJ96NKX-TGB850 AC Conducted Emission Side View 2
