ACJ96NKX-TGC360DECT 6.0 Base

Cordless Telephone Model No. KX-TGC350 KX-TGC352 Cordless Telephone with Digital Answering Machine Model No. KX-TGC360 KX-TGC362 KX-TG3620 KX-TGC350KX-TGC350KX-TGC350KX-TGCA35 seriesKX-TGC352KX-TGC350KX-TGCA35 KX-TGC360KX-TGC360KX-TGC360KX-TGCA35 seriesKX-TGC362KX-TGC360KX-TGCA35 KX-TG3620KX-TGC360KX-TGCA35 Quantity KX-TGC350KX-TGC352 KX-TGC360KX-TGC362 KX-TG3620 䐟 AC adaptor/PNLV226-0X Telephone line cord/PQJA10075Y (Black) or PQJA10075Z (Transparence) 䐡 Rechargeable batteries/HHR-4DPA 䐢 Handset cover *1 /PNYNTGC35BR 䐣 Charger/PNLC1073ZB *1The handset cover comes attached to the handset. 䐟䐠䐡䐢䐣 Base unit Part No. 1 2 1 2 No. Accessory item/Part number 11 1 Handset Part No.Quantity SeriesModel No. –1 䐠 11 24 12 Accessory itemModel number/Specifications RechargeableHHR-4DPA batteries䞉To order, please visit http://shop.panasonic.com/support Battery type: –Nickel metal hydride (Ni-MH) –2 x AAA (R03) size for each handset Range extender KX-TGA405 *1 *1By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. This product can be purchased online. Please visit our Web site: http://shop.panasonic.com/support Handset (optional): KX-TGDA20 You can expand your phone system by registering optional handsets (6 max.) to a single base unit. 㻌 㻚

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Power of Attorney December 8, 2015 PCTP-16-F005 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base Station 1 Model Numbers: KX-TGC360(xx), KX-TGC362(xx), KX-TGC363(xx), KX-TG3620(xx), KX-TG3622(xx), KX-TG632SK(xx), KX-TG633SK(xx), KX-TGC350(xx), KX-TGC352(xx), KX-TGC353(xx), KX-TG3612(xx) FCC Classification: Isochronous UPCS Base Station (PUB) FCC ID: ACJ96NKX-TGC360 FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 Number Channels: 5 RF Channels / 5x12 = 60 TDMA Duplex Channels RF Exposure: Mobile / MPE (requires minimum 20cm spacing between antenna and body) Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 1 Base Station will be used with Handset, which will be separately certified under FCC ID: ACJ96NKX-TGCA35. Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Department Request for Confidentiality December 8, 2015 PCTP-16-F005 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base Station 2 Model Numbers: KX-TGC360(xx), KX-TGC362(xx), KX-TGC363(xx), KX-TG3620(xx), KX-TG3622(xx), KX-TG632SK(xx), KX-TG633SK(xx), KX-TGC350(xx), KX-TGC352(xx), KX-TGC353(xx), KX-TG3612(xx) Product Description: Base Station contains DECT Transmitter FCC ID: ACJ96NKX-TGC360 In accordance with provisions of Sections 0.457(d) and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Base Unit Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Department 2 Base Station will be used with Handset, which will be separately certified under FCC ID: ACJ96NKX-TGCA35.

Page: 1/ 3 Date: October 13 th, 2015 EQUIPMENT DESCRIPTION DESCRIPTION OF DIFFERENCES (1.9GHz Cordless Telephone, KX-TGC460 Series) Name of Appliance : Cordless Telephone System Model No. : KX-TGC36xyy(zz), KX-TGC35xyy(zz), KX-TG362xyy(zz), KX-TG361xyy(zz), KX-TG63xyySK(zz), KX-TGC39xyy(zz), KX-TGC38xyy(zz, KX-TG22xyySK(zz), and TG21xyySK(zz) x: letter 1-5 represents number of included handset y: blank or letter A-Z represents country designation z: blank or letter A-Z represents color code Application to : FCC15, RSS213 Manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka, 812-8531, Japan Factory Flairis Sdn Bhd. Plot 4, 8 & 9, Kawasan Perindustrian, Kota Tinggi, Batu 2, Jalan Lombong, 81900 Kota Tinggi, Johor Darul Takzim, Malaysia Panasonic System Networks Vietnam Co.,Ltd Lot J1/2, Thang Long Industrial Park, Dong Anh dist., Hanoi, Vietnam Panasonic System Networks (Zhuhai) Co., Ltd. 3 Ping Xi 8 Lu, Nanping Keji Gongye Yuan, Zhuhai, Guangdong, China Page: 2/3 TABLE 1 (For USA) Model Type Base Unit Model No. Telephone Answering Indicator Bluetooth Interface Package Exclusive distribution Number of Handset in Packing KX-TGC360 1.9GHz Compact Appearance KX-TGC360 Provided LEDs None Normal － 1 KX-TGC362 2 KX-TGC363 3 KX-TG3620 Yes 1 KX-TG3622 2 KX-TG632SK Cereal Box 2 KX-TG633SK 3 KX-TGC350 KX-TGC350 None None Normal － 1 KX-TGC352 2 KX-TGC353 3 KX-TG3612 Yes 2 NOTE: All models have the same P.C. Board PNLB2593 and the same telephone circuit. NOTE: These model numbers may be followed by country code and color code. Table for Handset Model Lighted Keys Headset Jack LCD LCD Backlight Key size Complies TIA-1083 Talk time Link to KX-TGCA35 Provided None 1.6 inch monochrome Amber Normal Yes 10h For KX-TGC3xx series (Normal type) KX-TGCA36 No 8h For KX-TGC3xx series (Low cost type) Page: 3/3 TABLE 1 (For Canada) Model Type Base Unit Model No. Telephone Answering Indicator Bluetooth Interface Package Exclusive distribution Number of Handset in Packing KX-TGC390C 1.9GHz Compact Appearance KX-TGC390 Provided LEDs None Normal － 1 KX-TGC392C 2 KX-TGC393C 3 KX-TG223CSK Cereal Box Yes 3 KX-TGC380C KX-TGC380 None None Normal － 1 KX-TGC382C 2 KX-TGC383C 3 KX-TGC384C 4 KX-TG213CSK Cereal Box Yes 3 NOTE: All models have the same P.C. Board PNLB2593 and the same telephone circuit. NOTE: These model numbers may be followed by country code and color code. Table for Handset Model Lighted Keys Headset Jack LCD LCD Backlight Key size Complies TIA-1083 Talk time Link to KX-TGCA38C Provided None 1.6 inch monochrome Amber Normal Yes 10h For KX-TGC3xx series (Normal type)

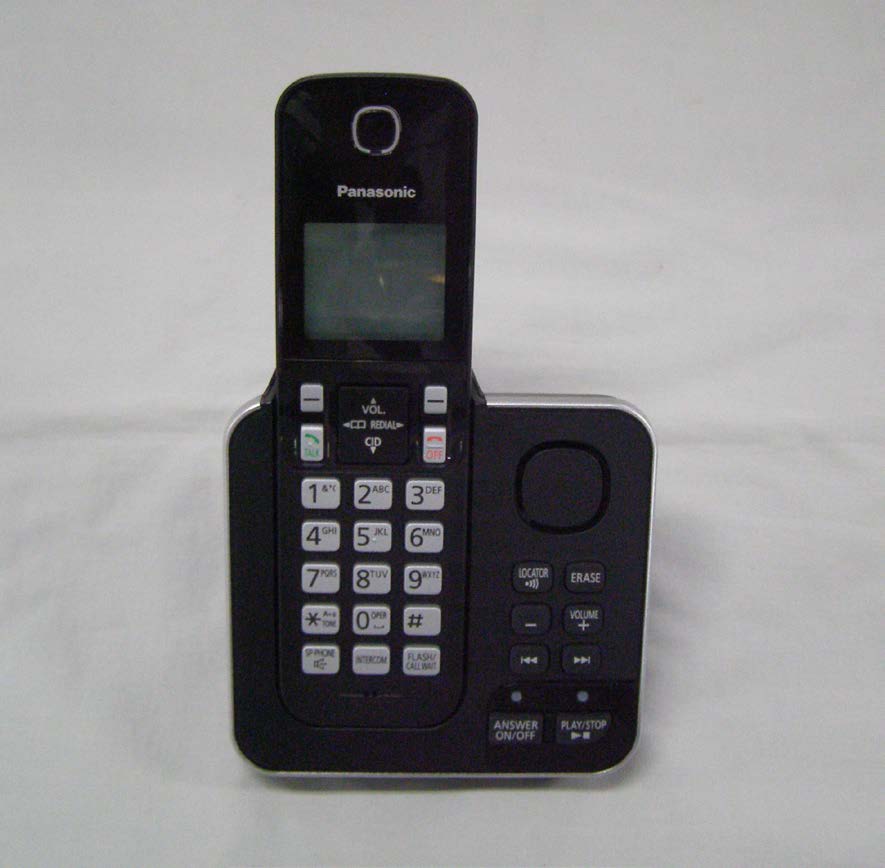

EXTERNAL PHOTOGRAPHS KX-TGC360 Top View Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above markings are shown on bottom of the base unit.

INTERNAL PHOTOGRAPHS Internal View Main Board RF Portion

FCC ID: ACJ96NKX-TGC360 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 19.78 (dBm) Maximum peak output power at antenna input terminal : 0.095 (W) Maximum antenna gain: 0.00 (dBi) Maximum antenna gain: 1.000 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0189 (mW/cm^2) Power density at prediction frequency: 0.189 (W/m^2) Maximum allowable antenna gain: 17.23 (dBi) Margin of Compliance: 17.23 (dB) 2 4 R PG S π =

Report No. 299189-1 Template version: C Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Base Station Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-TGC360 KX-TGC390C Rating 120V AC (AC Adaptor Model PNLV226) Trademark Panasonic Serial number / Additional information DECT 6.0 Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 3 2 GHz License-Exempt Personal Communications Services (LE-PCS) Devices Order number 299189 Tested in period 2015.10.30 to 2015.11.26 Issue date 2015.12.03 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: +47 22 96 03 30 FAX: +47 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information please contact Nemko. TEST REPORT FCC part 15D Report no.: 299189-1 FCC ID: ACJ96NKX-TGC360 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (48) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Digital Modulation Techniques ........................................................................................................ 10 3.3 Labeling Requirements ................................................................................................................... 10 3.4 Channel Frequencies ...................................................................................................................... 10 3.5 Antenna Requirement...................................................................................................................... 11 3.6 Automatic Discontinuation of Transmission .................................................................................... 11 3.7 Peak Power Output ......................................................................................................................... 12 3.8 Emission Bandwidth B ..................................................................................................................... 15 3.9 Power Spectral Density ................................................................................................................... 18 3.10 In-Band Unwanted Emissions, Conducted ...................................................................................... 21 3.11 Out-of-band Emissions, Conducted................................................................................................. 23 3.12 Carrier Frequency Stability .............................................................................................................. 30 3.13 Frame Repetition Stability ............................................................................................................... 31 3.14 Frame Period and Jitter ................................................................................................................... 31 3.15 Monitoring Threshold, Least Interfered Channel ............................................................................. 33 3.16 Threshold Monitoring Bandwidth ..................................................................................................... 35 3.17 Reaction Time and Monitoring Interval ............................................................................................ 36 3.18 Time and Spectrum Window Access Procedure ............................................................................. 38 3.19 Acknowledgements and Transmission Duration ............................................................................. 41 3…

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS Project no.: 297372 FCC ID: ACJ96NKX-TGC360 Page 1 (1) PHOTOS OF TEST SET-UP – KX-TGC360 Power line Conducted Emissions Test
