Installation Manual Additional Digital Cordless Handset Model No. KX-TGDA63 KX-TGDA66 Thank you for purchasing a Panasonic product. This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone: – KX-TGD610/KX-TGD630/KX-TGD660 (The corresponding models are subject to change without notice.) You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit’s operating instructions for further details. Please read this installation manual before using the unit and save it for future reference. For assistance, visit our Web site: http://shop.panasonic.com/support for customers in the U.S.A. Printed in Malaysia PNQX9174ZA PP0521YL0 Accessory information Supplied accessories Accessory item/Part numberQuantity Charger *1 1 Rechargeable batteries/HHR-4DPA2 Handset cover *2, *3 1 *1 PNLC1077ZB (Black), PNLC1077ZW (White) *2 The handset cover comes attached to the handset. *3 PNYNTGDA63BR (Black), PNYNTGDA63WR (White) Note: RPlease read the base unit’s operating instructions for additional/replacement accessories. RPlease read “Graphical symbols for use on equipment and their descriptions” of the base unit’s operating instructions. For your safety To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product. WARNING Power connection RCompletely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire. RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire. RUnplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact us at http://shop.panasonic.com/support 2 For assistance, please visit http://shop.panasonic.com/support Installation Installation RTo prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture. RDo not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident. RDo not place the handset on the base unit when battery cover is removed. CAUTION Installation and location RThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible. RThe product is only use for mounting at heights £ 2 m. Note: RThis height is not guaranteed for product reliability. RTo prevent serious injuries due to the product unexpectedly falling, the product must be installed at a height of 1.5 m or lower. Battery RWe recommend using the supplied batteries or additional/replacement batteries noted on page 2 for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size. RDo not mix old and new batteries. RDo not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed. RExercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns. RCharge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual. ROnly use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode. RAvoid the use in the following conditions: – High or low extreme temperatures during use, storage or transportation. – Replacement of a battery with an incorrect type that can defeat a safeguard. – Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. For assistance, please visit http://shop.panasonic.com/support 3 Installation – Extremely high temperature and/or extremely low air pressure that can result in an explosion or the leakage of flammable liquid or gas. Attention: A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY (1-800-822-8837) for information on how to recycle this battery. Important safety instructions When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 2. Do not use the telephone to report a gas leak in the vicinity of the leak. 3. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. SAVE THESE INSTRUCTIONS Other information RThe applied nameplate is located at the bottom or rear of the product. ROperating the product near electrical appliances may cause interference. Move away from the electrical appliances. CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Routine care RWipe the outer surface of the product with a soft moist cloth. RDo not use benzine, thinner, or any abrasive powder. Notice for product disposal, transfer, or return RThis product can stor…

Text truncated - open the document above for the full version.

Two Riverfront Plaza | Newark, NJ 07102-5490 Ben Botros, Project Manager Safety , Compliance and Quality Assurance Authorization Letter April 27, 2021 PCTP-21-F001 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Panasonic Corporation of North America hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of six months from the date of this letter. FCC ID: ACJ96NKX-TGDA66 Type Filing: Original Application for UPCS Cordless Telephone Handset Model Numbers: KX-TGDA66 FCC Classification: Isochronous UPCS Handset (PUE) FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 Number Channels: 5 RF Channels / 5x12 = 60 TDMA Duplex Channels RF Exposure: Portable / SAR (zero spacing between antenna and head/body is acceptable) FCC Rule Part: FCC Part 15, Subpart B FCC Classification: Class B Digital Device (JAB) Sincerely yours, Ben Botros Project Manager Panasonic Corporation of North America Safety, Compliance and Quality Assurance

Two Riverfront Plaza | Newark, NJ 07102-5490 Ben Botros, Project Manager Safety , Compliance and Quality Assurance Request for Confidential ity April 27, 2021 PCTP-21-F001 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; FCC ID: ACJ96NKX-TGDA66 Type Filing: Original Application for UPCS Cordless Telephone Handset Model Numbers: KX-TGDA66, KX-TGDA63 Request For Permanent Confidentiality In accordance with provisions of Sections §§0.457(d) and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Description of Electrical Circuitry; (2) Schematic Diagrams of Base Unit and RF Unit; and (3) Base Unit Block Diagram. Rationale: The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development Request For Short-Term Confidentiality In accordance with FCC Public DA 04-1705, we request 180 day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit an d RF Unit; (3) Test Setup Photographs; and (4) User Manual. Rationale: These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Ben Botros Project Manager Panasonic Corporation of North America Safety, Compliance and Quality Assurance

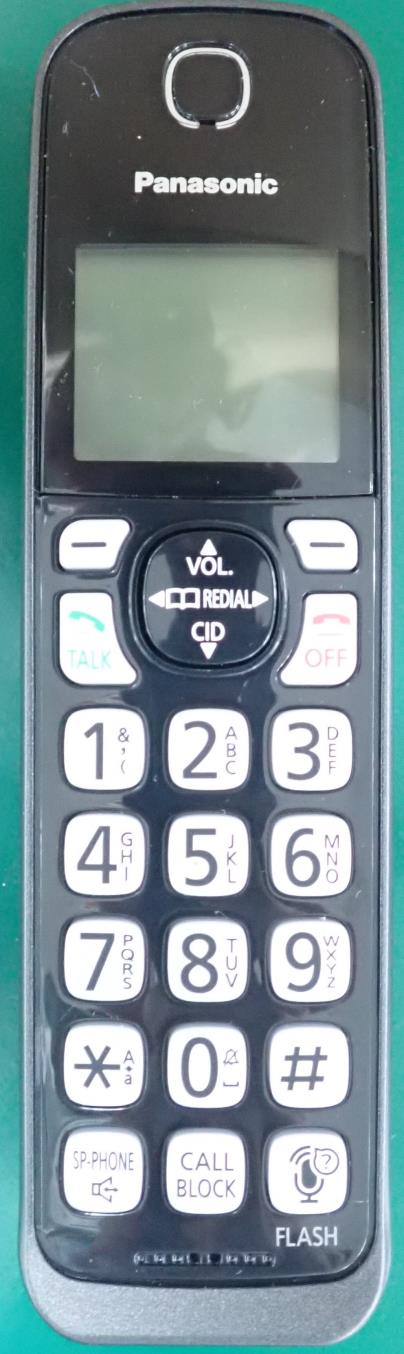

EXTERNAL PHOTOGRAPHS KX-TGDA66 Top View Bottom View

EXHIBIT B MARKINGS Portable Unit: FCC ID Label (Nameplate) The marking will be shown on the battery compartment of the portable unit.

INTERNAL PHOTOGRAPHS Internal View Internal View 2 Internal View 2

EQUIPMENT DESCRIPTION DESCRIPTION OF DIFFERENCES (1.9GHz Cordless Telephone, KX-TGD8xx Series and KX-TGD6xx Series) Application to : FCC 15 TABLE 1 <For US> Model Type Base Unit Model No. Portable Unit Model No. Telephone Answering Indicator Bluetooth Module Declaration of FCC ID KX-TGD860 1.9GHz Square Appearance KX-TGD860 KX-TGDA86 Provided 7seg.Counter ＆ LEDs Provided ACJ96NKX-TGD860 KX-TGD660 KX-TGD660 KX-TGDA66 KX-TGD830 KX-TGD830 KX-TGDA83 None ACJ96NKX-TGD830 KX-TGD630 KX-TGD630 KX-TGDA63 KX-TGD610 KX-TGD610 None None <For Canada> Model Type Base Unit Model No. Portable Unit Model No. Telephone Answering Indicator Bluetooth Module Declaration of IC ID KX-TGD870C 1.9GHz Square Appearance KX-TGD870 KX-TGDA87 Provided 7seg.Counter ＆ LEDs Provided IC:216A-KXTGD870 KX-TGD850C KX-TGD850 KX-TGDA85 None IC:216A-KXTGD850 NOTE: All models have the same P.C. Board PNLB2909, the same RF circuit and the software. NOTE: These model numbers may be followed by country code and color code. NOTE: The difference between KX-TGD870C and KX-TGD860 is model number only. US: KX-TGD860 Canada: KX-TGD870C NOTE: The difference between KX-TGD850C and KX-TGD830 is model number only. US: KX-TGD830 Canada: KX-TGD850C NOTE: The difference between KX-TGD660 / KX-TGD630/ KX-TGD610 and (previous model) KX-TGD860 / KX-TGD830 is model number only. NOTE: KX-TGD660 / KX-TGD630/ KX-TGD610 are using same ID with (previous model) KX-TGD860 / KX-TGD830 KX-TGD660 :FCC ID: ACJ96NKX-TGD860 KX-TGD630/KX-TGD610 :FCC ID: ACJ96NKX-TGD830 NOTE: The difference between KX-TGD630 and KX-TGD610 is Telephone answering system. KX-TGD630 : provided KX-TGD610 : none Both are identical in Telephone Line, RF circuit, Antenna, Power circuit & Safety structure. So that, there are no effect to RF/EMC/Safety/Telecom Table for Handset <For US> Model Lighted Keys Headset Jack LCD LCD backlight Type Declaration of FCC ID KX-TGDA86 Provided None 1.6 inch monochrome White Normal *1 ACJ96NKX-TGDA51 KX-TGDA83 KX-TGDA66 Provided None 1.6 inch monochrome White Normal New ACJ96NKX-TGDA66 KX-TGDA63 NOTE: The difference between KX-TGDA86 and KX-TGDA83 is only silk screen print on cabinet. NOTE: The difference between KX-TGDA66 and KX-TGDA63 is only silk screen print on cabinet. NOTE: KX-TGDA86/KX-TGDA83 use P.C Board PNLB2668 while KX-TGDA66/KX-TGDA63 use P.C Board PNLB2936. NOTE: The difference between KX-TGDA86/KX-TGDA83 and KX-TGDA66/KX-TGDA63 is the type of BBIC, RF circuit and software. <For Canada> Model Lighted Keys Headset Jack LCD LCD backlight Type Declaration of IC ID KX-TGDA87C Provided None 1.6 inch monochrome White Normal *1 IC:216A-KXTGDA59 KX-TGDA85C NOTE: The difference between KX-TGDA87C and KX-TGDA86 is model number only. US: KX-TGDA86 Canada: KX-TGDA87C NOTE: The difference between KX-TGDA85C and KX-TGDA83 is model number only. US: KX-TGDA83 Canada: KX-TGDA85C NOTE: The difference between KX-TGDA86 / KX-TGDA83 and (previous model) KX-TGDA51 / KX-TGDA50 is model number only. *1 NOTE: KX-TGDA86 / KX-TGDA83 are using same ID with (previous model) KX-TGDA51 / KX-TGDA50 FCC ID : ACJ96NKX-TGDA51 NOTE: KX-TGDA87C / KX-TGDA85C are using same ID with (previous model) KX-TGDA59C / KX-TGDA58C IC: 216A-KXTGDA59

SAR Evaluation Report DUT Information Manufacturer Panasonic Corporation Brand Name KX-TGDA66 Model Name KX-TGDA66 FCC ID ACJ96NKX-TGDA66 DUT Type handset Intended Use < 20 cm to human body (portable device) > 20 cm to human body (mobile/fixed device) - next to the ear body-worn limb-worn hand-held front-of-face body supported clothing-integrated Prepared by Testing Laboratory IMST GmbH, Test Center Carl-Friedrich-Gauß-Str. 2 – 4 47475 Kamp-Lintfort Germany Laboratory Accreditation The Test Center facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-01. The German Bundesnetzagentur (BNetzA) recognizes IMST GmbH as CAB-EMC on the basis of the Council Decision of 22. June 1998 concerning the conclusion of the MRA between the European Community and the United States of America (1999/178/EC) in accordance with § 4 of the Recognition Ordinance of 11. January 2016. The recognition is valid until 20. July 2021 under the registration number: BNetzA-CAB-16/21-14. Prepared for Manufacturer Panasonic Corporation 1-62, 4-Chome Minoshima, Hakata-ku 812-8531 Fukuoka Japan Test Specification Applied Standard / Rule IEEE 1528-2013; FCC CFR 47 § 2.1093 Exposure Category general public / uncontrolled exposure occupational / controlled exposure Test Result PASS FAIL Report Information Data Stored 6210313 Issue Date May 4, 2021 Revision Date Revision Number* . *A new revision replaces all previous revisions and thus, become invalid herewith. Remarks This report relates only to the item(s) evaluated. This report shall not be reproduced, except in its entirety, without the prior written approval of IMST GmbH. The results and statements contained in this report reflect the evaluation for the certain model described above. The manufacturer is responsible for ensuring that all production devices meet the intent of the requirements described in this report. Report Issue Date: May 4, 2021 Revision Date: Revision No.: SAR_FCC_6210313_TGDA66 Page 2 of 49 SAR_Report_EN50566_EN62209 - 2_1.0.docx/09.06 444/AR SAR_Report_FCC_ISED_Headset _v 2 .0 Table of Contents 1 Subject of Investigation and Test Results ............................................................................................ 3 1.1 Technical Data of DUT ..................................................................................................................................... 3 1.2 Product Family / Model Variants ...................................................................................................................... 3 1.3 Antenna Configuration ..................................................................................................................................... 3 1.4 Test Specification / Normative References ...................................................................................................... 4 1.5 Attestation of Test Results ............................................................................................................................... 4 2 Quality Assurance ................................................................................................................................... 4 3 Exposure Criteria and Limits .................................................................................................................. 5 3.1 SAR Limits ....................................................................................................................................................... 5 3.2 Exposure Categories ........................................................................................................................................ 5 3.3 Distinction between Maximum Permissible Exposure and SAR Limits ............................................................ 5 4 The Measurement System ....................................................................................................................... 6 4.1 Phantoms ......................................................................................................................................................... 7 4.2 E-Field-Probes ................................................................................................................................................. 8 5 Measurement Procedure ......................................................................................................................... 9 5.1 General Requirement ....................................................................................................................................... 9 5.2 Test Position of DUT operating next to the Human Ear ................................................................................... 9 5.3 Measurement Procedure ................................................................................................................................ 12 6 System Verification and Test Conditions ............................................................................................ 13 6.1 Date of Testing ............................................................................................................................................... 13 6.2 Environment Conditions ................................................................................................................................. 13 6.3 Tissue Simulating Liquid Recipes .................................................................................................................. 13 6.4 Tissue Simulating Liquid Parameters ............................................................................................................. 14 6.5 Simplified Performance Checking .................................................................................................................. 14 7 SAR Measurement Conditions and Results ..…

Text truncated - open the document above for the full version.

SAR_FCC_6210313_TGDA66_Appendix Page 22 of 49 Appendixes for Report SAR_FCC_6210313_TGDA66 DUT Information Manufacturer Panasonic Corporation Brand Name KX-TGDA66 Model Name KX-TGDA66 FCC ID ACJ96NKX-TGDA66 IC Number Type / Category handset Intended Use < 20 cm to human body (portable device) > 20 cm to human body (mobile/fixed device) - next to the ear body-worn limb-worn hand-held front-of-face body supported clothing-integrated Prepared by Testing Laboratory IMST GmbH, Test Center Carl-Friedrich-Gauß-Str. 2 – 4 47475 Kamp-Lintfort Germany Prepared for Applicant / Manufacturer Panasonic Corporation 1-62, 4-Chome Minoshima, Hakata-ku 812-8531 Fukuoka Japan Test Specification Applied Standard / Rule IEEE 1528-2013; FCC CFR 47 § 2.1093 Exposure Category general public / uncontrolled exposure occupational / controlled exposure Test Result PASS FAIL Report Information Data Stored 6210313 Issue Date May 4, 2021 Revision Date Revision Number* *A new revision replaces all previous revisions and thus, become invalid herewith. Appendixes Appendix A - Pictures Appendix B - SAR Distribution Plots Appendix C - System Verification Plots Appendix D – Certificates of Conformity Appendix E – Calibration Certificates for DAEs Appendix F – Calibration Certificates for E-Field Probes Appendix G – Calibration Certificates for Dipoles Appendix Issue Date: May 4, 2021 Revision Date: Revision No.: SAR_FCC_6210313_TGDA66_Appendix Page 23 of 49 SAR_Report_EN50566_EN62209 - 2_1.0.docx/09.06 444/AR SAR_Report_FCC_ISED_Headset _v 2 .0 Appendix A - Pictures Pictures of the DUT Pic.1: Front side views of the device under test. Pic. 2: Rear side views of the device under test. Appendix Issue Date: May 4, 2021 Revision Date: Revision No.: SAR_FCC_6210313_TGDA66_Appendix Page 24 of 49 SAR_Report_EN50566_EN62209 - 2_1.0.docx/09.06 444/AR SAR_Report_FCC_ISED_Headset _v 2 .0 Pictures of Test Positions of the DUT Pic. 3: Cheek position, left side. Pic. 4: Tilted position, left side. Pic. 5: Cheek position, right side. Pic. 6: Tilted position, right side. Appendix Issue Date: May 4, 2021 Revision Date: Revision No.: SAR_FCC_6210313_TGDA66_Appendix Page 25 of 49 SAR_Report_EN50566_EN62209 - 2_1.0.docx/09.06 444/AR SAR_Report_FCC_ISED_Headset _v 2 .0 Appendix B - SAR Distribution Plots Worst Case SAR Measurement Plots for Head and Body Worn Configuration Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: KX-TGD660_2Dy_DECT_CH4_lm_1.da4 DUT: Panasonic; Type: KX-TGDA66; Serial: - Program Name: DECT US Communication System: DECT US; Frequency: 1921.54 MHz; Duty Cycle: 1:24 Medium parameters used (interpolated): f = 1921.54 MHz; σ = 1.41 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.32, 5.32, 5.32); Calibrated: 3/17/2021 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 3/11/2021 - Phantom: SAM 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Left/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.048 mW/g Cheek Left/Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=6mm, dy=6mm, dz=5mm Reference Value = 4.81 V/m; Power Drift = -0.063 dB Peak SAR (extrapolated) = 0.079 W/kg SAR(1 g) = 0.043 mW/g; SAR(10 g) = 0.023 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.047 mW/g Plot. 1: SAR distribution plot for DECT, channel 4, head configuration, left cheek. Appendix Issue Date: May 4, 2021 Revision Date: Revision No.: SAR_FCC_6210313_TGDA66_Appendix Page 26 of 49 SAR_Report_EN50566_EN62209 - 2_1.0.docx/09.06 444/AR SAR_Report_FCC_ISED_Headset _v 2 .0 Appendix C - System Verification Plots Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 20210428_1900h_2Dy_1669_335.da4 DUT: D1900V2 - SN535; Type: D1900V2; Serial: SN535 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz; Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.39 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.32, 5.32, 5.32); Calibrated: 3/17/2021 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 3/11/2021 - Phantom: SAM 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.53 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 87.5 V/m; Power Drift = 0.178 dB Peak SAR (extrapolated) = 15.5 W/kg SAR(1 g) = 9.17 mW/g; SAR(10 g) = 4.88 mW/g Maximum value of SAR (measured) = 10.3 mW/g Plot. 2: SAR Verification Measurement 1900 MHz. Appendix Issue Date: May 4, 2021 Revision Date: Revision No.: SAR_FCC_6210313_TGDA66_Appendix Page 27 of 49 SAR_Report_EN50566_EN62209 - 2_1.0.docx/09.06 444/AR SAR_Report_FCC_ISED_Headset _v 2 .0 Appendix D – Certificates of Conformity Fig. 9: Certificate of conformity for the used DASY4 system: Appendix Issue Date: May 4, 2021 Revision Date: Revision No.: SAR_FCC_6210313_TGDA66_Appendix Page 28 of 49 SAR_Report_EN50566_EN62209 - 2_1.0.docx/09.06 444/AR SAR_Report_FCC_ISED_Headset _v 2 .0 Fig. 10: Certificate of conformity for the used SAM phantom. Appendix Issue Date: May 4, 2021 Revision Date: Revision No.: SAR_FCC_6210313_TGDA66_Appendix Page 29 of 49 SAR_Report_EN50566_EN62209 - 2_1.0.docx/09.06 444/AR SAR_Report_FCC_ISED_Headset _v 2 .0 Fig. 11: Certificate of conformity for the ELI phantom. Appendix Issue Date: May 4, 2021 Revision Date: Revision No.: SAR_FCC_6210313_TGDA66_Appendix Page 30 of 49 SAR_Report_EN50566_EN62209 - 2_1.0.docx/09.06 444/AR SAR_Report_FCC_ISED_Headset _v 2 .0…

Text truncated - open the document above for the full version.

Report No. 431363-02-R00 Template version: C Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2027 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product DECT Handset Name and address of the applicant Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor Newark, 07102-5490, NJ, USA Name and address of the manufacturer Panasonic Corporation 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka, 812-8531, Japan Model KX-TGDA66, KX-TGDA63 Rating 2.4V DC (2x AA cells, NiMH) Trademark Panasonic Serial number 4313630001 Additional information DECT 6.0 Tested according to FCC Part 15, subpart B Other Class B Digital Device Industry Canada ICES-003, Issue 7 Information Technology Equipment (ITE) Order number 431363 Tested in period 2021-03-26 to 2021-04-13 Issue date 2021-04-30 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway www.nemko.com CAB Number: FCC: NO0001 ISED: NO0470 TEL: +47 22 96 03 30 FAX: +47 22 96 05 50 An accredited technical test executed under the Norwegian accreditation scheme Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC Part 15B Report no.: 431363-02-R00 FCC ID: ACJ96NKX-TGDA66 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (18) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item ........................................................................................................................................................ 3 1.2 Test Environment ............................................................................................................................................... 4 1.3 Test Engineer(s) ................................................................................................................................................. 4 1.4 Test Equipment .................................................................................................................................................. 4 1.5 Test Configurations ............................................................................................................................................ 4 1.6 Other Comments ................................................................................................................................................ 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................................. 5 2.2 Test Summary .................................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ...................................................................................................................... 7 3.2 Spurious Emissions (Radiated) ......................................................................................................................... 12 4 MEASUREMENT UNCERTAINTY .................................................................................................. 16 5 TEST SETUPS ................................................................................................................................ 17 5.1 Radiated Emissions Test .................................................................................................................................. 17 5.2 Power Line Conducted Emissions Test ............................................................................................................. 17 6 TEST EQUIPMENT USED .............................................................................................................. 18 TEST REPORT FCC Part 15B Report no.: 431363-02-R00 FCC ID: ACJ96NKX-TGDA66 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 3 (18) 1 INFORMATION 1.1 Tested Item Name Panasonic Model name KX-TGDA66, KX-TGDA63 FCC ID ACJ96NKX-TGDA66 FCC / IC Class B Serial number 4313630001 Hardware identity and/or version PNLB2936 Software identity and/or version SW400 Desktop Charger PNLC1077(YA) with AC Adaptors PNLV233 (UC), PNLV233 (VJ), PNLV233 (ZC), PNLV233 (2A) Power Supply Secondary Batteries (2x AAA cells, 1.2V, 300mAh) Description of Tested Device(s) The tested equipment is a DECT Handset with Desktop Charger. The models KX-TGDA66 and KX-TGDA63 are electrically identical, the only difference is the silk screen print on cabinet. TEST REPORT FCC Part 15B Report no.: 431363-02-R00 FCC ID: ACJ96NKX-TGDA66 Nemko Norway, Instituttveie…
