ACJ96NKX-TGE230DECT 6.0 Base

Panasonic Corporation of North America
DECT 6.0 Base - FCC ID ACJ96NKX-TGE230 - Panasonic Corporation of North America
Click to zoom

Application Details

Equipment Class
PUB - Part 15 Unlicensed PCS Base Station
Date of Grant
Dec 16, 2013
Application Purpose
Original Equipment
Date of Application
Dec 16, 2013
Equipment Note
DECT 6.0 Base
Frequency Range
1921.53600000 - 1928.44800000
Company
Panasonic Corporation of North America
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Operating Instructions Digital Cordless Phone Model No. KX-TGE210 KX-TGE212 Digital Cordless Answering System Model shown is KX-TGE210. Model No. KX-TGE232 KX-TGE233 KX-TGE234 KX-TGE240 KX-TGE242 KX-TGE243 KX-TGE244 KX-TGE245 Before initial use, see “Getting Started” on page 10. Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference. Consulte “Guía Rápida Española”, página 59. For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. Please register your product: http://www.panasonic.com/prodreg TGE21x23x24x(en)_1122_ver031.pdf1 12013/11/22 14:22:26 Introduction Model composition .......................................3 Accessory information ..................................4 Important Information For your safety .............................................6 Important safety instructions ........................7 For best performance ...................................7 Other information .........................................8 Specifications ...............................................9 Getting Started Setting up ...................................................10 Controls ......................................................12 Display icons ..............................................14 Language settings ......................................14 Date and time .............................................14 Recording your greeting message .............15 Other settings .............................................15 Making/Answering Calls Making calls ...............................................17 Answering calls ..........................................18 Useful features during a call .......................18 Handset locator ..........................................20 Cell locator .................................................21 Intercom .....................................................21 Power back-up operation ...........................22 Phonebook Phonebook .................................................24 Speed dial ..................................................26 Programming Menu list .....................................................27 Alarm ..........................................................32 Silent mode ................................................33 Call block ....................................................33 Other programming ....................................35 Registering a unit .......................................35 Caller ID Service Using Caller ID service ...............................37 Caller list ....................................................37 Answering System Answering system ......................................39 Turning the answering system on/off .........39 Greeting message ......................................39 Listening to messages ...............................40 Advanced new message alerting features ......................................................41 Remote operation .......................................42 Answering system settings .........................44 Useful Information Voice mail service ......................................46 Wall mounting ............................................47 Error messages ..........................................50 Troubleshooting .........................................51 FCC and other information .........................56 Guía Rápida Española Guía Rápida Española ...............................59 Appendix Customer services .....................................63 Warranty (For United States and Puerto Rico) ...........................................................64 Index Index...........................................................66 2 Table of Contents TGE21x23x24x(en)_1122_ver031.pdf2 22013/11/22 14:22:26 Model composition nKX-TGE210 seriesnKX-TGE230 series RModel shown is KX-TGE212.RModel shown is KX-TGE232. nKX-TGE240 series RModel shown is KX-TGE242. SeriesModel No. Base unitHandset Part No.Part No.Quantity KX-TGE210 series KX-TGE210KX-TGE210KX-TGEA201 KX-TGE212KX-TGE210KX-TGEA202 KX-TGE230 series KX-TGE232KX-TGE230KX-TGEA202 KX-TGE233KX-TGE230KX-TGEA203 KX-TGE234KX-TGE230KX-TGEA204 KX-TGE240 series KX-TGE240KX-TGE240KX-TGEA201 KX-TGE242KX-TGE240KX-TGEA202 KX-TGE243KX-TGE240KX-TGEA203 KX-TGE244KX-TGE240KX-TGEA204 KX-TGE245KX-TGE240KX-TGEA205 For assistance, please visit http://www.panasonic.com/help 3 Introduction TGE21x23x24x(en)_1122_ver031.pdf3 32013/11/22 14:22:26 Accessory information Supplied accessories No. Supplied handset qty. 1 unit *1 2 units *2 3 units *3 4 units *4 5 units *5 Accessory item/ Order number Accessory quantity AAC adaptor/PNLV226Z11111 BTelephone line cord/ PQJA10075Z 11111 CWall mounting adaptor/ PNKL1044Z2 11111 DRechargeable batteries/ HHR-4DPA 246810 E Handset cover *6 / PNYNTGEA20BR 12345 FBelt clip/PNKE1312Z212345 GCharger/PNLC1050ZB–1234 *1 KX-TGE210/KX-TGE240 *2 KX-TGE212/KX-TGE232/KX-TGE242 *3 KX-TGE233/KX-TGE243 *4 KX-TGE234/KX-TGE244 *5 KX-TGE245 *6 The handset cover comes attached to the handset. ABCDEF G 4 For assistance, please visit http://www.panasonic.com/help Introduction TGE21x23x24x(en)_1122_ver031.pdf4 42013/11/22 14:22:26 Additional/replacement accessories Please contact your nearest Panasonic dealer for sales information (page 63). Accessory itemOrder number Rechargeable batteries HHR-4DPA *1 RTo order, please visit http://www.panasonic.com/batterystore Battery type: – Nickel metal hydride (Ni-MH) – 2 x AAA (R03) size for each handset HeadsetKX-TCA60, KX-TCA93, KX-TCA400, KX-TCA430 T-adaptorKX-J66 Range extender KX-TGA405 *2 Key detector KX-TGA20 *3 *1 Replacement batteries may have a different capacity from that of the supplied batteries. *2 By installing this unit, you can extend the range of your phone system to include areas where reception was previously not available. This product can be purchased online. Please visit our Web site: http:…

Text truncated - open the document above for the full version.

Cover Letter(s)

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means:  Provided with 128 bits for security codes.  When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC.  Base and Handset knows each other’s security code information.

Cover Letter(s)

Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Division Power of Attorney December 12, 2013 PCTP-14-F005 Federal Communication Commission Equipment Authorization Division / Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; We, the undersigned, Panasonic Corporation of North America, hereby authorizes Nemko AS to act on our behalf in all matters relating to the preparation of TCB Certification application for the below described product in compliance with FCC Part 15C and D. Any and all acts carried out by Nemko AS on our behalf shall have the same effects as acts of our own for a period of one year from the date of this letter. Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base Station 1 Model Numbers: KX-TGE230(xx), KX-TGE232(xx), KX-TGE233(xx), KX-TGE234(xx), KX-TG423(xx)SK, KX-TG424(xx)SK, KX-TG425(xx)SK, KX-TGE210(xx), KX-TGE212(xx), KX-TGE213(xx) FCC Classification: Isochronous UPCS Base Station (PUB) FCC ID: ACJ96NKX-TGE230 FCC Rule Part: FCC Part 15, Subpart D Frequency Range: 1921.536 ~ 1928.448 Number Channels: 5 RF Channels / 5x12 = 60 TDMA Duplex Channels RF Exposure: Mobile / MPE (requires minimum 20cm spacing between antenna and body) Responsible Panasonic Corporation of North America Applicant & Grantee: Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Responsible Manufacturer: Panasonic System Networks Co., Ltd. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 1 Base Station will be used with Handset, which will be separately certified under FCC ID: ACJ96NKX-TGEA20. Panasonic Corporation of North America Two Riverfront Plaza, 9 th Floor, Newark, NJ 07102-5490 Tel/Fax: 201-348-7758 / [email protected] Richard Mullen, Group Manager Product Safety and Compliance Division Request for Confidentiality December 12, 2013 PCTP-14-F005 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern; Type Filing: Original Application for 1.9 GHz DECT Cordless Telephone Base Station 2 Model Numbers: KX-TGE230(xx), KX-TGE232(xx), KX-TGE233(xx), KX-TGE234(xx), KX-TG423(xx)SK, KX-TG424(xx)SK, KX-TG425(xx)SK, KX-TGE210(xx), KX-TGE212(xx), KX-TGE213(xx) Product Description: Base Station contains DECT Transmitter FCC ID: ACJ96NKX-TGE230 In accordance with provisions of Sections 0.457 and 0.459 of the Commission’s Rules and Section 552(b)(4) of the Freedom of Information Act, we request permanent confidentiality for exhibits, which contain: (1) Antenna Construction; (2) Description of Electrical Circuitry; (3) Schematic Diagrams of Base Unit and RF Unit; and (4) Base Unit Block Diagram. The transmitter is not user adjustable and does not have a Tune-Up Procedure. These exhibits contain proprietary, confidential and trade secrets material, which would not be routinely made available for public inspection. In accordance with FCC Public DA 04-1705, we request forty-five day short-term confidentiality, starting from the from the issuance of equipment authorization date, for exhibits, which contain: (1) External Photographs of Base Unit and RF Unit; (2) Internal Photographs of Base Unit and RF Unit; (3) Test Setup Photographs; and (4) User Manual. These exhibits contain pre-market information, which could give our competitors unfair advantage should this information be released before this product is actually introduced into the common marketplace. Sincerely yours, Richard Mullen Richard Mullen Group Manager Panasonic Corporation of North America Product Safety and Compliance Division 2 Base Station will be used with Handset, which will be separately certified under FCC ID: ACJ96NKX-TGEA20.

Cover Letter(s)

PCTP-14-F005 FCC ID: ACJ96NKX-TGE230 FCC Part 15D – Compliance Information pctp-14-f005 (fcc_part_15d-compliance_information)8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication system Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Yukio Kaneko FP EUT Type/System FCC ID ACJ96NKX-TGE230 (IC:216A-KXTGE230) Model name KX-TGE230 HW Version PNLB2278xx SW Version SW401 Max antenna Gain (dBi) 0dBi Can the EUT be Initiating Device YES Does the EUT transmit signaling channels YES Max number of slots in use simultaneously 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-14-F005 FCC ID: ACJ96NKX-TGE230 FCC Part 15D – Compliance Information pctp-14-f005 (fcc_part_15d-compliance_information)8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Base (FP) Antenna Type Internal External 1 Pattern Antenna 2 3 4 Does RX and TX use the same antenna(s)? Yes No Handset (PP) Antenna Type Internal External 1 Pattern Antenna 2 Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Antenna Diversity Supported TX RX Base (FP) and Repeater 1 2 3 4 Handset (PP) 1 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC - Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV226 (AC Adaptor) Panasonic Handset (PP) (charger) PNLV233 (AC Adaptor) Panasonic Data Connections PSTN (Base) Others (please specify) .... PCTP-14-F005 FCC ID: ACJ96NKX-TGE230 FCC Part 15D – Compliance Information pctp-14-f005 (fcc_part_15d-compliance_information)8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor and Charger Type PNLV226 (AC Adaptor) and PNLC1050(Charger) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-14-F005 FCC ID: ACJ96NKX-TGE230 FCC Part 15D – Compliance Information pctp-14-f005 (fcc_part_15d-compliance_information)8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: December 12, 2013 Richard Mullen Richard Mullen

External Photos

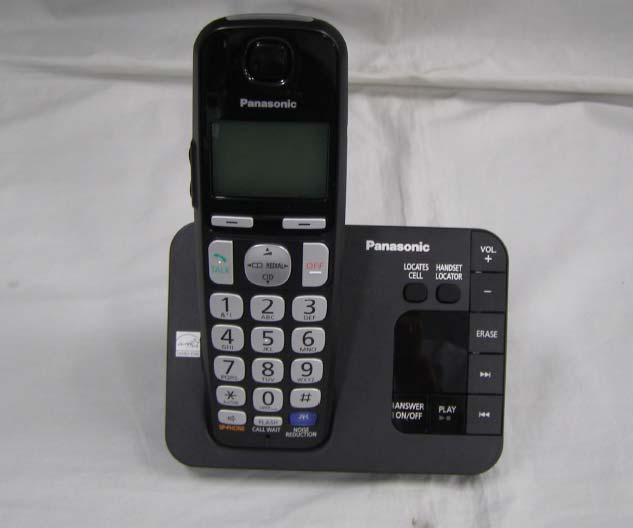

EXTERNAL PHOTOGRAPHS KX-TGE230 Top View Bottom View

ID Label/Location Info

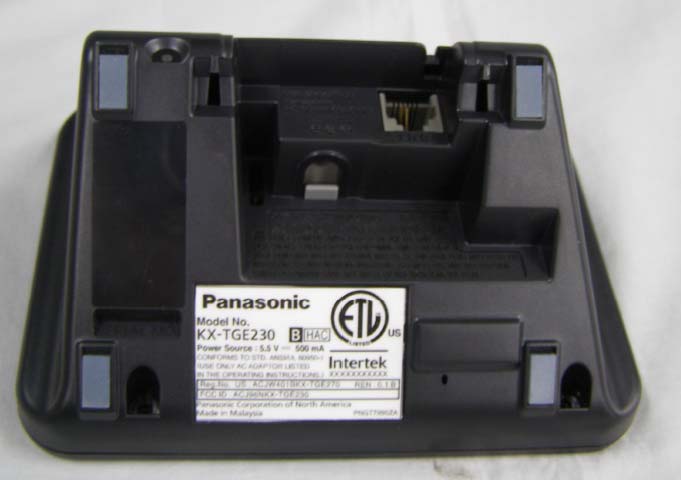

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above m arkings are shown on bottom of the base unit.

Internal Photos

INTERNAL PHOTOGRAPHS Internal View Main Board RF Portion

RF Exposure Info

FCC ID: ACJ96NKX-TGE230 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 18.10 (dBm) Maximum peak output power at antenna input terminal : 0.065 (W) Maximum antenna gain: 0.00 (dBi) Maximum antenna gain: 1.000 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0128 (mW/cm^2) Power density at prediction frequency: 0.128 (W/m^2) Maximum allowable antenna gain: 18.91 (dBi) Margin of Compliance: 18.91 (dB) 2 4 R PG S π =

Test Report

Report No. 248567-6 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Base Station Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-TGE230 Rating 120 V AC (Mains) Trademark Panasonic Serial number / Additional information DECT 6.0 Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 2 2 GHz License-exempt Personal Communications Service Devices (LE-PCS) Order number 248567 Tested in period 2013.12.10 to 2013.12.13 Issue date 2013.12.13 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC part 15D Report no.: 248567-6 FCC ID: ACJ96NKX-TGE230 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (50) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Coordination with fixed microwave .................................................................................................. 17 3.3 Digital Modulation Techniques ........................................................................................................ 17 3.4 Labeling Requirements ................................................................................................................... 17 3.5 Antenna Requirement...................................................................................................................... 18 3.6 Channel Frequencies ...................................................................................................................... 18 3.7 Automatic Discontinuation of Transmission .................................................................................... 19 3.8 Peak Power Output ......................................................................................................................... 20 3.9 Emission Bandwidth B ..................................................................................................................... 23 3.10 Power Spectral Density ................................................................................................................... 26 3.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 29 3.12 Out-of-band Emissions, Conducted................................................................................................. 31 3.13 Carrier Frequency Stability .............................................................................................................. 35 3.14 Frame Repetition Stability ............................................................................................................... 36 3.15 Frame Period and Jitter ................................................................................................................... 36 3.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 38 3.17 Threshold Monitoring Bandwidth ..................................................................................................... 40 3.18 Reaction Time and Monitoring Interval ............................................................................................ 41 3.19 Time and Spectrum Window Access Procedure ............................................................................. 43 3.20 Acknowledgements …

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: ACJ96NKX-TGE230 Project no.: 248567 Page 1 of 1 PHOTOS OF TEST SET-UP – KX-TGE230 Power line Conducted Emissions Test
