ACJ96NKX-TGE270DECT 6.0 Base with BT

Operating Instructions Link-to-Cell Bluetooth Convergence Solution Model No. KX-TGE260 KX-TGE262 KX-TGE263 KX-TGE264 KX-TG454SK KX-TGE270 KX-TGE272 KX-TGE273 KX-TGE274 KX-TGE275 KX-TG465SK Model shown is KX-TGE260. Before initial use, see “Getting Started” on page 10. Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference. Consulte “Guía Rápida Española”, página 78. For assistance, visit our Web site: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico. Please register your product: http://www.panasonic.com/prodreg TGE26x27x(en)_1203_ver021.pdf 12013/12/03 14:54:34 Introduction Model composition .......................................3 Accessory information ..................................3 Important Information For your safety .............................................6 Important safety instructions ........................7 For best performance ...................................7 Other information .........................................8 Specifications ...............................................9 Getting Started Setting up ...................................................10 Controls ......................................................12 Display icons/Indicators .............................13 Language settings ......................................15 Date and time .............................................15 Recording your greeting message .............15 Other settings .............................................15 Link to Cell Link to cell feature ......................................17 Pairing a cellular phone ..............................17 Link to cell settings .....................................18 Making/Answering Calls Using the Handset Making cellular calls ...................................21 Making landline calls ..................................21 Answering calls ..........................................22 Useful features during a call .......................22 Power back-up operation for landline .........25 Making/Answering Calls Using the Base Unit Making cellular calls ...................................27 Making landline calls ..................................27 Answering calls ..........................................27 Useful features during a call .......................28 Locator/Intercom Handset locator ..........................................30 Cell locator .................................................30 Intercom .....................................................30 Phonebook Phonebook .................................................32 Speed dial ..................................................35 Programming Menu list .....................................................36 Alarm ..........................................................43 Silent mode ................................................44 Call block ....................................................45 Other programming ....................................46 Registering a unit .......................................47 Caller ID Service Using Caller ID service ...............................48 Caller list ....................................................48 Using Bluetooth Devices Copying phonebook from a cellular phone (phonebook transfer) ..................................51 Text message (SMS) alert .........................52 Using a Bluetooth wireless headset (optional) for landline calls .........................................53 Answering System for Landline Answering system for landline ...................55 Turning the answering system on/off .........55 Greeting message ......................................55 Listening to messages ...............................56 Advanced new message alerting features ......................................................57 Remote operation .......................................59 Answering system settings .........................60 Useful Information Voice mail service for landline ....................62 Wall mounting ............................................63 Error messages ..........................................66 Troubleshooting .........................................67 FCC and other information .........................75 Guía Rápida Española Guía Rápida Española ...............................78 Appendix Customer services .....................................88 Warranty (For United States and Puerto Rico) ...........................................................89 Index Index...........................................................91 2 Table of Contents TGE26x27x(en)_1203_ver021.pdf 22013/12/03 14:54:34 Model composition nKX-TGE260 seriesnKX-TGE270 series RModel shown is KX-TGE262.RModel shown is KX-TGE272. SeriesModel No. Base unitHandset Part No.Part No.Quantity KX-TGE260 series KX-TGE260KX-TGE260KX-TGEA201 KX-TGE262KX-TGE260KX-TGEA202 KX-TGE263KX-TGE260KX-TGEA203 KX-TGE264KX-TGE260KX-TGEA204 KX-TG454SKKX-TGE260KX-TGEA204 KX-TGE270 series KX-TGE270KX-TGE270KX-TGEA201 KX-TGE272KX-TGE270KX-TGEA202 KX-TGE273KX-TGE270KX-TGEA203 KX-TGE274KX-TGE270KX-TGEA204 KX-TGE275KX-TGE270KX-TGEA205 KX-TG465SKKX-TGE270KX-TGEA205 Accessory information Supplied accessories No. Supplied handset qty. 1 unit *1 2 units *2 3 units *3 4 units *4 5 units *5 Accessory item/ Order number Accessory quantity AAC adaptor/PNLV226Z11111 BTelephone line cord/ PQJA10075Z 11111 For assistance, please visit http://www.panasonic.com/help 3 Introduction TGE26x27x(en)_1203_ver021.pdf 32013/12/03 14:54:34 No. Supplied handset qty. 1 unit *1 2 units *2 3 units *3 4 units *4 5 units *5 Accessory item/ Order number Accessory quantity CWall mounting adaptor/ PNKL1044Z1 11111 DRechargeable batteries/ HHR-4DPA 246810 E Handset cover *6 / PNYNTGEA20SR 12345 FBelt clip/PNKE1312Z112345 GCharger/PNLC1050ZS–1234 *1 KX-TGE260/KX-TGE270 *2 KX-TGE262/KX-TGE272 *3 KX-TGE263/KX-TGE273 *4 KX-TGE264/KX-TGE274/KX-TG454SK *5 KX-TGE275/KX-TG465SK …

Text truncated - open the document above for the full version.

EXHIBIT A STATEMENT OF SECURITY CODE This cordless telephone system has more than 1,000 billion combinations that are provided by the following means:  Provided with 128 bits for security codes.  When shipped from the factory, the security code is decided by the manufacture. It is memorized in a memory IC.  Base and Handset knows each other’s security code information.

FCC 15C – Product Information PCTP-14-F004 - FCC IDs: ACJ96NKX-TGE270 Nemko AS, Instituttveien 6, 2007 Kjeller, Norway pctp-14-f004 (fcc id-acj96nkx-tge270 fcc 15c test info - bluetoooth part)Tel: +47 22 96 03 30 Fax: +47 22 96 05 50 Page 1 (4) rev.0.4 17-Jul-2013 Email: [email protected] EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Address Two Riverfront Plaza, 9th Floor Newark, NJ 07102-5490 Contact Richard Mullen Telephone +1-201-348-7758 Email [email protected] Brand Name Panasonic Model Number KX-TGE270 Hardware Version Software Version Grantee Code IC Company Number 1. Basic Information FCC 15 Part 15.247 15.249 Other Please specify if other: Type of Equipment FHSS DTS Other Please specify if other: Classification of EUT Portable Mobile Fixed Lowest Operating Frequency 0CH 2402MHz Highest Operating Frequency 78CH 2480MHz Nominal Output Power 7 dBm Maximum Duty Cycle (in actual use) Operating Mode (list all) Modulation Type (list all) GFSK Nominal 99% Bandwidth 1MHz Maximum Number of channels 79ch Channel Separation 1MHz Number of Antennas TX : 1 , RX : 1 Antenna Diversity Supported Yes No Smart Antenna System Yes No Reduced output power on any channels Yes No If YES, please specify: FCC 15C – Product Information PCTP-14-F004 - FCC IDs: ACJ96NKX-TGE270 Nemko AS, Instituttveien 6, 2007 Kjeller, Norway pctp-14-f004 (fcc id-acj96nkx-tge270 fcc 15c test info - bluetoooth part)Tel: +47 22 96 03 30 Fax: +47 22 96 05 50 Page 2 (4) rev.0.4 17-Jul-2013 Email: [email protected] 2. FHSS Equipment (fill in if FHSS Equipment, FCC 15.247) Adaptive Frequency Hopping Yes No If YES, please specify minimum number of hopping channels : 3. DTS Equipment (fill in if DTS Equipment, FCC 15.247) Nominal 6 dB Bandwidth 4. Bluetooth Equipment (fill in if Bluetooth Equipment) BT 2.0 EDR ? Yes No BT 3.0 HS ? Yes No BT Low Energy Yes No 5. 2.4GHz WLAN Equipment (fill in if 2.4GHz WLAN Equipment) Supported Operating Modes 802.11b 802.11g 802.11n 802.11ac 40 MHz mode supported Yes No Number of Antennas TX :1 , RX : 1 Antenna Diversity Supported Yes No Smart Antenna System Yes No If Smart Antenna System supported, please specify number of streams If number of channels differ in any of the operating modes, please specify: 6. 5GHz WLAN Equipment (fill in if 5GHz WLAN Equipment) Supported Operating Modes 802.11a 802.11n 802.11ac Supported Frequency Bands 5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5825 MHz DFS Supported Yes No If DFS, what mode Master Slave 40 MHz mode supported Yes No Number of Antennas Antenna Diversity Supported Yes No Smart Antenna System Yes No If Smart Antenna System supported, please specify number of streams If Output Power is reduced on any channels in one of the Frequency Bands, please specify: If number of channels differ in any of the operating modes, please specify: FCC 15C – Product Information PCTP-14-F004 - FCC IDs: ACJ96NKX-TGE270 Nemko AS, Instituttveien 6, 2007 Kjeller, Norway pctp-14-f004 (fcc id-acj96nkx-tge270 fcc 15c test info - bluetoooth part)Tel: +47 22 96 03 30 Fax: +47 22 96 05 50 Page 3 (4) rev.0.4 17-Jul-2013 Email: [email protected] 6. Power Supply and Connections Type of Power Supply Mains Battery Other Please specify if other than Mains Nominal Voltage 1.8V Please specify all connections on the EUT: ADDITIONAL REMARKS: DECLARED BY: December 5, 2013 Richard Mullen Richard Mullen FCC 15C – Product Information PCTP-14-F004 - FCC IDs: ACJ96NKX-TGE270 Nemko AS, Instituttveien 6, 2007 Kjeller, Norway pctp-14-f004 (fcc id-acj96nkx-tge270 fcc 15c test info - bluetoooth part)Tel: +47 22 96 03 30 Fax: +47 22 96 05 50 Page 4 (4) rev.0.4 17-Jul-2013 Email: [email protected] About this document This document specifies the information that is needed to select the correct testcases and test procedures for testing to FCC Part 15C. The form must be completed by the applicant and submitted to Nemko before testing is started. Preparation of Equipment for Testing Note (a): Number of samples for testing In general, the following samples are needed for FCC 15C testing: RF Conducted Tests: One sample with a 50 ohm antenna connector (preferably SMA Female). Only one antenna connector is normally needed even if the equipment has more than one antenna, however EUTs with Smart Antenna Systems must have antenna connectors on all antennas. Radiated Tests: One sample with integral antennas. This sample will be used to measure Radiated Emissions, Antenna Gain, Part 15B and Power-Line Conducted tests. If it is not possible to mount antenna connector(s) on the EUT all tests will be performed radiated or with a test jig. In this case the applicant shall always supply a value for the antenna gain. Note (b): Power supply Means of connecting the equipment to an external power supply shall be supplied by the applicant together with the equipment to be tested. Battery operated equipment shall be supplied with the necessary batteries and chargers. All tests on battery operated equipment will be performed with new or fully charged batteries. Note (c): Test Modes Most RF tests are performed with the EUT in force transmit mode. Software and necessary programming tools must be submitted to Nemko together with the test samples before start of testing. All tests will normally be performed on 3 channels and with all supported modulation types. Frequency hopping equipment will be tested both with hopping active and without hopping. Equipment with digital modulations other than Frequency hopping should transmit with as high duty cycle as possible.

PCTP-14-F004/F006 FCC IDs: ACJ96NKX-TGE270 / ACJ96NKX-TGEA20 FCC Part 15D – Compliance Information pctp-14-f004, f006 (fcc_part_15d-compliance_information) 8-Dec-2006 page 1 (4) rev.1.4 EUT AND PRODUCT INFORMATION Type of Equipment UPCS (DECT 6.0) Applicant Name Panasonic Corporation of North America Responsible Mfr Name Panasonic System Networks Co., Ltd. Communication system Business Unit Address 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Contact Yukio Kaneko FP PP EUT Type/System FCC ID ACJ96NKX-TGE270 (IC:216A-KXTGE270) ACJ96NKX-TGEA20 (IC:216A-KXTGEA20) Model name KX-TGE270 KX-TGEA20 HW Version PNLB2279xx PNLB2282xx SW Version SW401 SW401 Max antenna Gain (dBi) 0dBi 0dBi Can the EUT be Initiating Device YES YES Does the EUT transmit signaling channels YES YES Max number of slots in use simultaneously 1 slot 1 slot Test standard: FCC part 15D Other: Industry Canada RSS-213, Issue 2 Frequency Band 1921.536 – 1928.448 MHz # of RF Channels 5 Frame Period 10 ms Max. Burst length 417us / duplex channel Min. Burst Length 106us / signaling channel # of Logical Channels 60 (12 duplex channels per RF carrier) Operating Mode Simplex Duplex PCTP-14-F004/F006 FCC IDs: ACJ96NKX-TGE270 / ACJ96NKX-TGEA20 FCC Part 15D – Compliance Information pctp-14-f004, f006 (fcc_part_15d-compliance_information) 8-Dec-2006 page 2 (4) rev.1.4 ANTENNAS Antenna Type Internal External 1 Pattern Antenna 2 Pattern Antenna 3 4 Base (FP) Does RX and TX use the same antenna(s)? Yes No Antenna Type Internal External 1 Pattern Antenna 2 Handset (PP) Does RX and TX use the same antenna(s)? Yes No ANTENNA DIVERSITY Diversity Supported Antenna TX RX 1 2 3 Base (FP) and Repeater 4 1 Handset (PP) 2 VOLTAGE AND TEMPERATURE RANGES VOLTAGES FP PP Nominal Voltage 120V AC DC 2.4V Cut-Off Voltage (if applicable) - - - POWER SOURCE Type Manufacturer Base or Repeater PNLV226 (AC Adaptor) Panasonic Handset (PP) (charger) PNLC1050 (Charger) Panasonic Data Connections PSTN (Base) Others (please specify) .... PCTP-14-F004/F006 FCC IDs: ACJ96NKX-TGE270 / ACJ96NKX-TGEA20 FCC Part 15D – Compliance Information pctp-14-f004, f006 (fcc_part_15d-compliance_information) 8-Dec-2006 page 3 (4) rev.1.4 ANCILLARY EQUIPMENT Description AC Adaptor and Charger Type PNLV226 (AC Adaptor), PNLC1050 (Charger) Manufacturer Panasonic HOST DEVICE Description Type Manufacturer ADDITIONAL INFORMATION PCTP-14-F004/F006 FCC IDs: ACJ96NKX-TGE270 / ACJ96NKX-TGEA20 FCC Part 15D – Compliance Information pctp-14-f004, f006 (fcc_part_15d-compliance_information) 8-Dec-2006 page 4 (4) rev.1.4 MANUFACTURERS DECLARATIONS FCC part 15.323 (c)(5) No device or group of co-operating devices located within 1m of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. Applicant Agrees Yes No FCC part 15.323 (c)(10) The applicant hereby declares that the system in this application does use the criteria of (c)(10) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(11) The applicant hereby declares that system in this application does not use the criteria of (c)(11) of this section. Applicant Agrees Yes No FCC part 15.323 (c)(12) The provisions of (c)(10) or (c)(11) of this section shall not be used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Applicant Agrees Yes No FCC part 15.307 (b) The Applicant is a participating member of UTAM, Inc. and will provide an affidavit from UTAM, Inc. certifying this. Confirmed By Applicant Yes No ADDITIONAL REMARKS: > DECLARED BY: December 5, 2013 Richard Mullen Richard Mullen

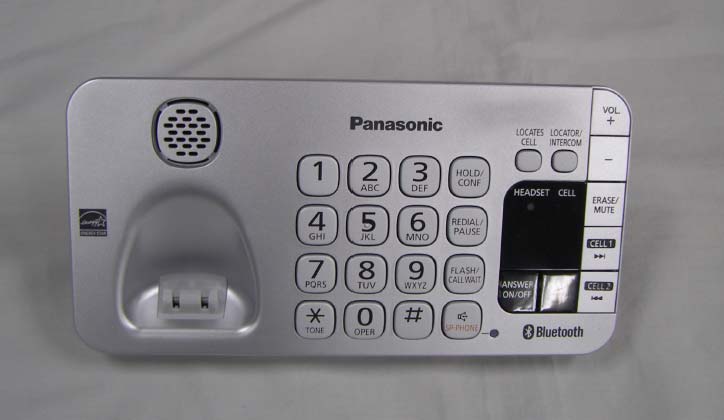

EXTERNAL PHOTOGRAPHS KX-TGE270 Top View Bottom View

EXHIBIT B MARKINGS Base Unit: The base unit provides with the following marking, or equivalent. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. NOTE: Above m arkings are shown on bottom of the base unit.

INTERNAL PHOTOGRAPHS Internal View Main Board <With RF shield> <Without RF shield> RF Portion

FCC ID: ACJ96NKX-TGE270 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Source Based Time Averaged Duty Cycle is 100% in ca lculation below Maximum peak output power at antenna input terminal : 18.40 (dBm) Maximum peak output power at antenna input terminal : 0.069 (W) Maximum antenna gain: 0.00 (dBi) Maximum antenna gain: 1.000 (numeric) Prediction distance: 20 (cm) Prediction frequency: 1925 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 10.00 (W/m^2) Power density at prediction frequency: 0.0138 (mW/cm^2) Power density at prediction frequency: 0.138 (W/m^2) Maximum allowable antenna gain: 18.61 (dBi) Margin of Compliance: 18.61 (dB) 2 4 R PG S π =

Report No. 248567-2 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2007 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product UPCS Base Station with Bluetooth Name and address of the applicant Panasonic Corporation of North America Name and address of the manufacturer Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku Fukuoka 812-8531, Japan Model KX-TGE270 Rating 120 V AC (Mains) Trademark Panasonic Serial number / Additional information DECT 6.0 Tested according to FCC Part 15, subpart D Isochronous UPCS Device, 1920 – 1930 MHz Industry Canada RSS 213, Issue 2 2 GHz License-exempt Personal Communications Service Devices (LE-PCS) Order number 248567 Tested in period 2013.11.18 to 2013.12.05 Issue date 2013.12.05 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [G.Suhanthakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC part 15D Report no.: 248567-2 FCC ID: ACJ96NKX-TGE270 Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (51) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Description of Tested Device ............................................................................................................. 3 1.3 Exposure Evaluation .......................................................................................................................... 3 1.4 Test Environment .............................................................................................................................. 4 1.5 Test Engineer(s) ................................................................................................................................ 4 1.6 Test Equipment ................................................................................................................................. 4 1.7 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 6 3 TEST RESULTS ................................................................................................................................ 7 3.1 Power Line Conducted Emissions ..................................................................................................... 7 3.2 Coordination with fixed microwave .................................................................................................. 17 3.3 Digital Modulation Techniques ........................................................................................................ 17 3.4 Labeling Requirements ................................................................................................................... 17 3.5 Antenna Requirement...................................................................................................................... 18 3.6 Channel Frequencies ...................................................................................................................... 18 3.7 Automatic Discontinuation of Transmission .................................................................................... 19 3.8 Peak Power Output ......................................................................................................................... 20 3.9 Emission Bandwidth B ..................................................................................................................... 23 3.10 Power Spectral Density ................................................................................................................... 26 3.11 In-Band Unwanted Emissions, Conducted ...................................................................................... 29 3.12 Out-of-band Emissions, Conducted................................................................................................. 31 3.13 Carrier Frequency Stability .............................................................................................................. 36 3.14 Frame Repetition Stability ............................................................................................................... 37 3.15 Frame Period and Jitter ................................................................................................................... 37 3.16 Monitoring Threshold, Least Interfered Channel ............................................................................. 39 3.17 Threshold Monitoring Bandwidth ..................................................................................................... 41 3.18 Reaction Time and Monitoring Interval ............................................................................................ 42 3.19 Time and Spectrum Window Access Procedure ............................................................................. 44 3.20 Ac…

Text truncated - open the document above for the full version.

FCC ID: ACJ96NKX-TGE270 Project no.: 248567 Page 1 of 2 PHOTOS OF TEST SET-UP – KX-TGE270 Radiated Emissions Tests FCC ID: ACJ96NKX-TGE270 Project no.: 248567 Page 2 of 2 Power line Conducted Emissions Test
